Product Description




CNB-227L Laser Safety Curtain Sensor For Swing Door Opener

CANBO M-227L Laser Safety Curtain Sensor

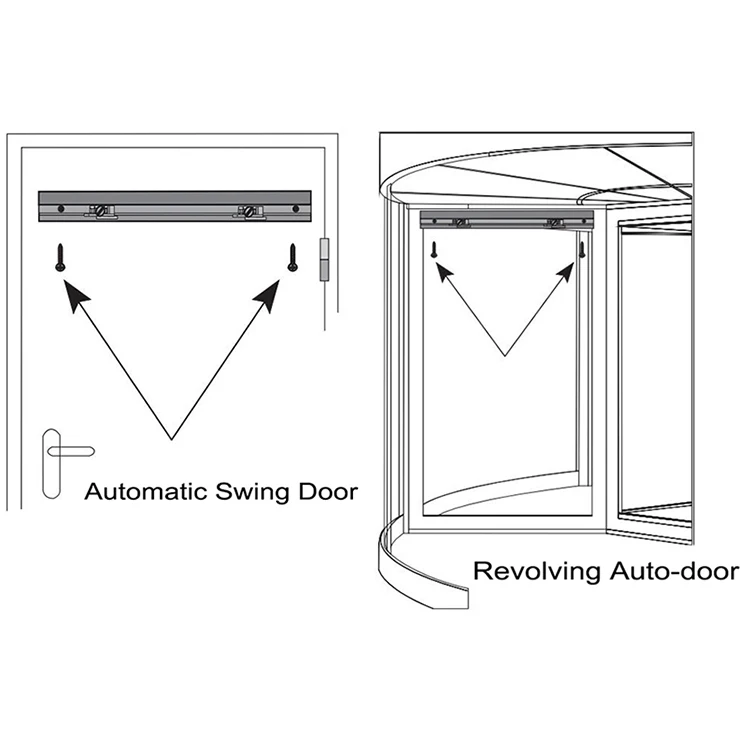

Suitable for 90° swing doors, revolving doors, other induction doors, etc.; As a safety presence function; Faster response time and more accuracy when compared to infrared sensors; Accurately detects people or objects in the path of an automatic door; Prevents collisions.

And other similar products:
M-227 INFRARED TOP SCAN, can accurately detect the moving or fixed human body and objects, avoid all kinds of rotating automatic sensing door or swing door from colliding with body or objects, to ensure the safety of people and equipment, widely used in automatic revolving door safety presence occasions.

M-229E SAFETY CURTAIN SENSOR, it is specially used for automatic sliding door as safety presence detect. Can accurately detect human body and objects in the moving area of automatic sliding door avoid being clipped.

M-261 INFRARED SAFETY GRATING SET, it is widely used in elevator and automatic door as safety presence(person or objects) funtion. Can accurately and reliably detect the people or objects, provide the door opening signal to elevator or automatic door, so as to avoid the hidden danger incidents of being clipped.



CNB-227L  Laser Safety Curtain Sensor





1, Exquisite structure, fashionable and simple appearance, easy to install.

2, Flexible adjustment of the detection height and sensing range by adjusting wheel and locking screw, fast and accurate.
3, The system with strong operating voltage stability, and has background noise filtering system, which is not affected by the environment (like sunshine, snow, rain etc.)

4, The detection angle of scanning can be adjusted accurately by mounting a bracket.

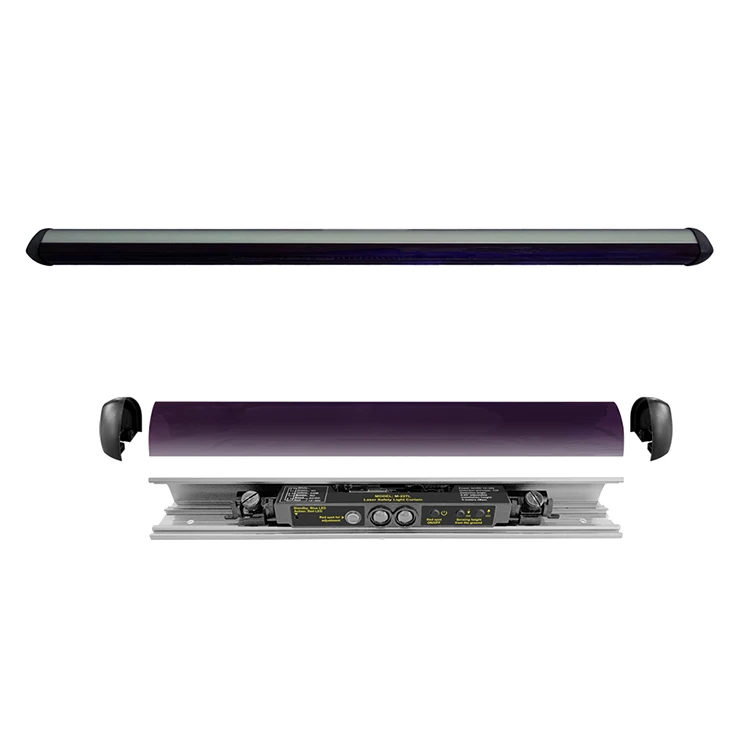

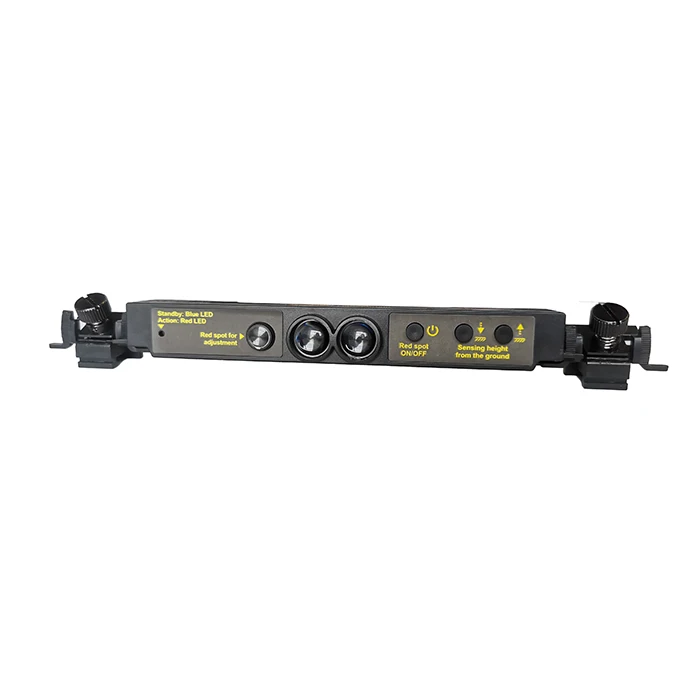

Product Overview

① End cover
② Filter front cover
③ Aluminum housing
④ Mounting Brackets
⑤ Indicator light
⑥ Positioning red dot
⑦ Transmitting cabin
⑧ Receiving cabin
⑨ Positioning red dot switch
⑩ Scan range close to ground switch
⑪ Scanning range away from ground switch
⑫ Wire interface x 2
⑬ Connection socket

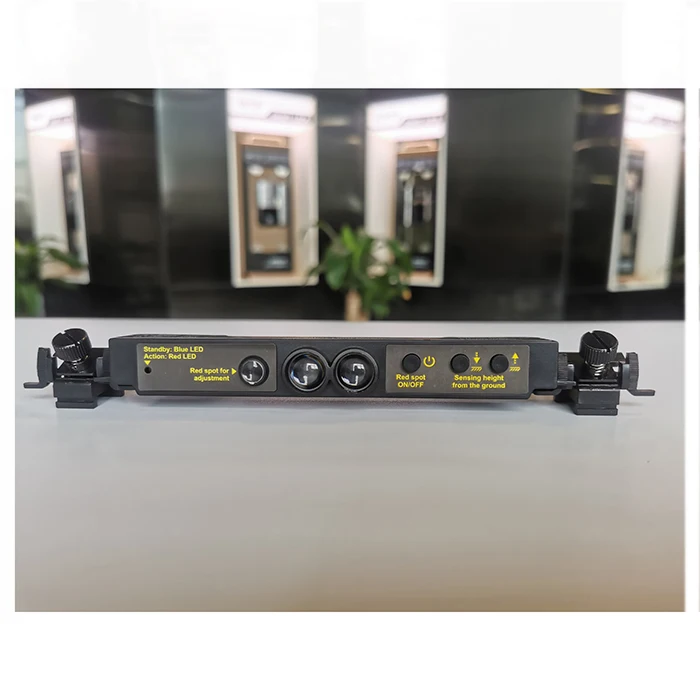

Adjustment

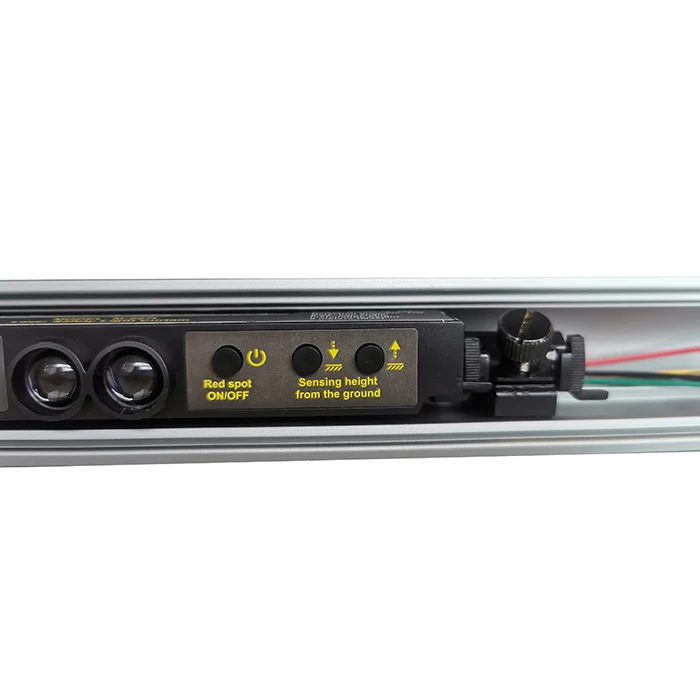

1, adjust the scanning range by button
The scanning range total 7 levels, push button once, one beep voice, scanning range increase or decrease about 5cm, if you hear two beep voice, it's mean the scanning range is to the limit.

2, Working mode: Normally mode, stable mode
The stable mode is recommended when there are unstable environmental factors such as floating blades, complex ground, and rainy days. The factory default is normal mode.

3, Tilt angle:
When install it on the door leaf, recommended that the tilt angle of sensor will be ≥15°,ensure laser beam doesn't scan the door leaf, sensor detection will be more stable.



M-227L  LASER SAFETY CURTAIN SENSOR
1, The TOF technology is used to accurately detect the appearance of the objects(human body), which plays the function of safety presence, anti-collision and safety detection.

2, Industrial grade enhanced laser tubes, less laser exitation attenuation, no need to do state detection between the door machine, long standby, more convenient.

3, With strong adaptive ability to environmental deformation, temperature, vibration and other factors, excellent anti-sunlight interference performance, long and stable operation.

4, With visible positioning red dot, easy installation and debugging, clear beam protection position and range.

5, 310x31x20mm, 620x31x20mm, 750x31x20mm, 900x31x20mm, 1200x31x20mm (Optional)




Specification


Item
Laser safety curtain sensor
Detection diameter
100mm light spots
Brand
Canbo
Detection reaction time
≤50m
Model
CNB-227L
Detection range
≥20CM from the ground
Application
Swing door, revolving door, etc
Detection angle
0-25° adjustable
Detection principle
Time-of-Flight technology(TOF)
Installation height
5m(fixed position), 3.5m(moving door leaf
Light medium
890nm infrared laser
Signal output
Relay NO or NO
Laser category
Class Ⅰ eye-safe laser
Trigger mode
Moving or stationary
Power input
AC/DC 12-30V
Function instruction
LED indicators
Standby current
50mA(12V power)
Standby state
BLUE indicator light
Action current
90mA(12V power)
Detection state
RED indicator light
Dimension
310x31x20mm, 620x31x20mm, 750x31x20mm, 900x31x20mm, 1200x31x20mm


Item
Safety light curtain
Infrared safety grating sets
Brand
Canbo
Canbo
Model
CNB-227A
CNB-227B
Application
Rotating auto-door/swing door
Rotating auto-door/swing door
Power input
DC12-30V AC12-24V
DC12-30V AC12-24V
Detect range
ø75mm spot, 1.5-2.5m adjustment
ø75mm spot, 1.5-2.5m adjustment
Max.install height
install it on top of the door leaf
install it on top of the door leaf
Diamension
750/900/1200(L)x31(W)x20(H)mm
620(L)x31(W)x20(H)mm
Warranty
1 Year
1 Year


Details Images




Packing & Delivery




Packing: poly bag + PE foam + inner box + outer box, screws will be packed into a zipcode bag.
(Maybe there will be some differences in the way of packing for different models of products )




Recommend Products




All are three beams detact sensor, or single and double beams available.
