Углеродистая конструкционная сталь SS400 SS490 S235 S275 горячекатаная оцинкованная H-образная
580,00 $ - 590,00 $

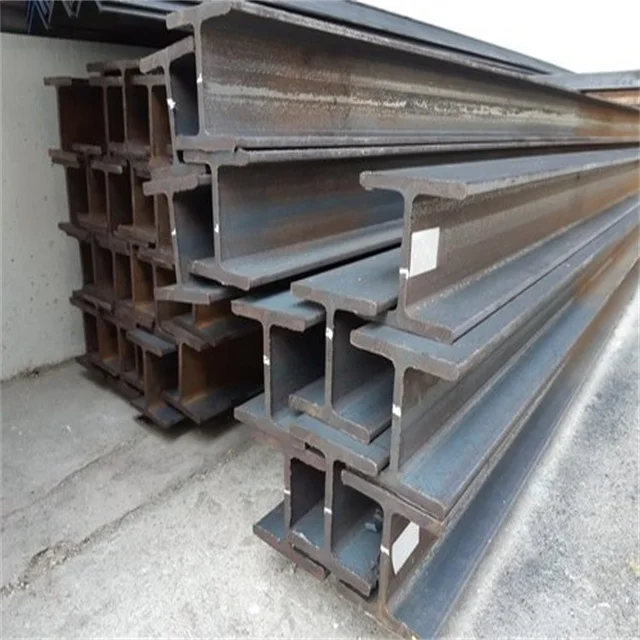

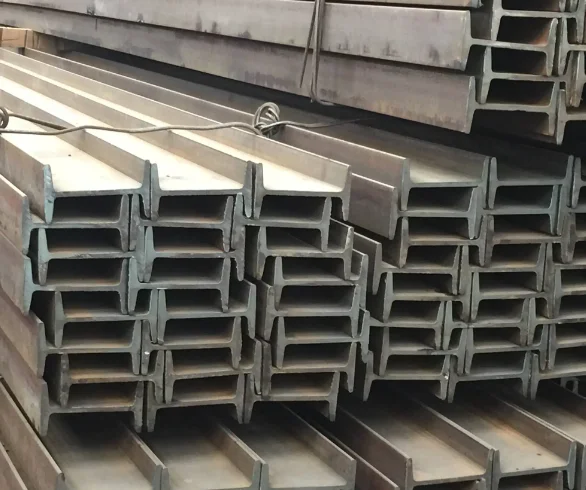

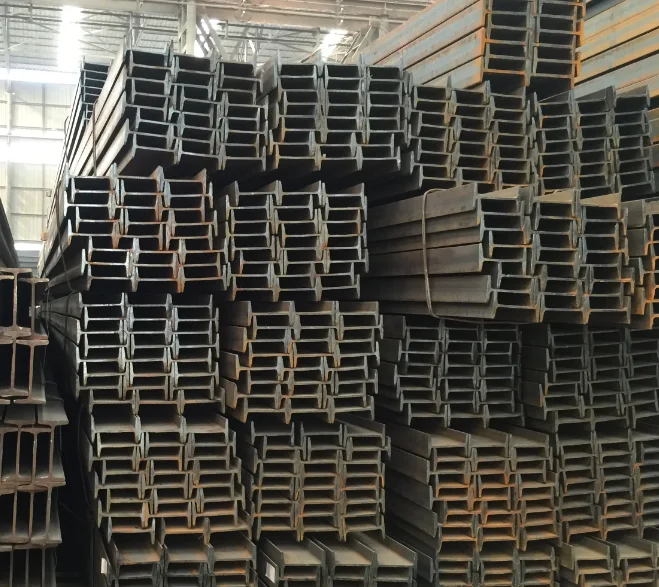

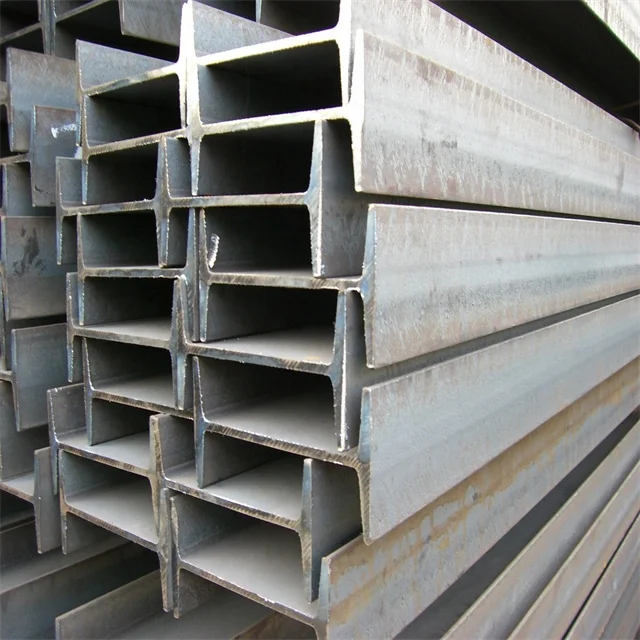

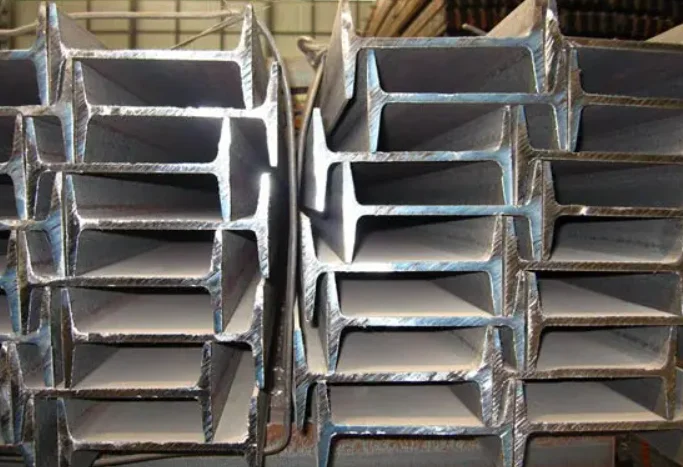

Большой запас I двутавровых стальных горячекатаных 12 метров iIPE100 I образных балок для продажи
- Категория: Steel I-Beams >>>
- Поставщик: Shandong Zhongxiang Metal Products Co. Ltd.
Сохранить в закладки 1600685772456:
Описание и отзывы
Характеристики
Products Description
Product name | I Beam |
Place of Origin | China |
Length | 6-12m |
Flange Width | 50mm-400mm |
Flange Thickness | 8-64mm |
MOQ | 1 Ton |
Sample | Avaliable |
Technique | Hot Rolled |
Material | Q195-Q420 Series,SS400-SS540 Series,S235JR-S355JR Series,ST Series, A36-A992 Series,Gr50 Series |
Certificate | ISO, SGS ,CE or other third party inspection acceptable. |
Standard | ASTM,JIS,DIN EN10025,GB |
Shape | H shape |
Edge | Mill Edge/Slit Edge |
Payment Term | TT/LC |
Application | 1.Industrial structure of the steel structure bearing bracket. 2.Underground engineering steel pile and retaining structure. 3.Petrochemical and electric power and other industrial equipment structure 4.Large span steel bridge components 5.Ships, machinery manufacturing frame structure 6.The train, automobile, tractor beam bracket 7.Port of conveyor belt, high speed damper bracket |
SIZE(mm) | Theoretical weight-GB(kg/m) | Theoretical weight-JIS(kg/m) | SIZE(mm) | Theoretical weight-GB(kg/m) | Theoretical weight-JIS(kg/m) |
100*50*5*7 | 9.54 | 9.3 | 390*300*10*16 | 107 | 105 |
100*100*6*8 | 17.2 | 16.9 | 394*398*11*18 | 147 | 147 |
125*60*6*8 | 13.3 | 13.1 | 396*199*7*11 | 56.7 | 56.1 |
125*125*6.5*9 | 23.8 | 23.6 | 400*200*8*13 | 66 | 65.4 |
150*75*5*7 | 14.3 | 14 | 400*400*13*21 | 172 | 172 |
148*100*6*9 | 21.4 | 20.7 | 400*408*21*21 | 197 | 197 |
150*150*7*10 | 31.9 | 31.1 | 414*405*18*28 | 233 | 232 |
175*90*5*8 | 18.2 | 18 | 428*407*20*35 | 284 | 283 |
175*175*7.5*11 | 40.4 | 40.4 | 440*300*11*18 | 124 | 121 |
194*150*6*9 | 31.2 | 29.9 | 446*199*8*12 | 66.7 | 65.1 |
198*99*4.5*7 | 18.5 | 17.8 | 450*200*9*14 | 76.5 | 74.9 |
200*100*5.5*8 | 21.7 | 20.9 | 458*417*30*50 | 415 | 415 |
200*200*8*12 | 50.5 | 49.9 | 482*300*11*15 | 115 | 111 |
200*204*12*12 | 56.7 | 56.2 | 488*300*11*18 | 129 | 125 |
244*175*7*11 | 44.1 | 43.6 | 496*199*9*14 | 79.5 | 77.9 |
248*124*5*8 | 25.8 | 25.1 | 498*432*45*70 | 605 | 604 |
250*125*6*9 | 29.7 | 29 | 500*200*10*16 | 89.6 | 88.1 |
250*250*9*14 | 72.4 | 71.8 | 506*201*11*19 | 103 | 102 |
250*255*14*14 | 82.2 | 81.6 | 582*300*12*17 | 137 | 133 |
294*200*8*12 | 57.3 | 55.8 | 588*300*12*20 | 151 | 147 |
294*302*12*12 | 85 | 83.5 | 594*302*14*23 | 175 | 170 |
298*149*5.5*8 | 32.6 | 32 | 596*199*10*15 | 95.1 | 92.4 |
300*150*6.5*9 | 37.3 | 36.7 | 600*200*11*17 | 106 | 103 |
300*300*10*15 | 94.5 | 93 | 606*201*12*20 | 120 | 118 |
300*305*15*15 | 106 | 105 | 692*300*13*20 | 166 | 163 |
340*250*9*14 | 79.7 | 78.1 | 700*300*13*24 | 185 | 182 |
344*348*10*16 | 115 | 113 | 792*300*14*22 | 191 | 188 |
346*174*6*9 | 41.8 | 41.2 | 800*300*14*26 | 210 | 207 |
350*175*7*11 | 50 | 49.4 | 890*299*15*23 | 213 | 210 |
350*350*12*19 | 137 | 135 | 900*300*16*28 | 243 | 240 |
388*402*15*15 | 141 | 140 | 912*302*18*34 | 286 | 283 |
Hot rolled mining I beam can be used in mine road support. In order to avoid or minimize the chance of mine roadway collapsing,mine support products are necessary. And with the I beam support; it can obviously improve the level of safety in the tunnel. Themining I beam can be used under multiple conditions, fractured road or road with gravel, clay, silt. Use the I beam accessories accordingly, you can get the safest work environment in the tunnel under many circumstances.
Quality Control
1.SGS and ISO9001 Audited company.
2.Industry experience over 20 years.
3.Management Systems-Internal Software
4.Finished Product Inventory-More Than 500 Tons.
5.Raw Material inventory -Over 800 Mertic Tons.
6.Shipment of goods -More than 30 countries worldwide.
7.We have the most convenient transport and prompt delivery.
8.We offer competitive price with best service.
9.We have high technical production line with top quality products.
10.We have win high reputation based on best quality products.
2.Industry experience over 20 years.
3.Management Systems-Internal Software
4.Finished Product Inventory-More Than 500 Tons.
5.Raw Material inventory -Over 800 Mertic Tons.
6.Shipment of goods -More than 30 countries worldwide.
7.We have the most convenient transport and prompt delivery.
8.We offer competitive price with best service.
9.We have high technical production line with top quality products.
10.We have win high reputation based on best quality products.
Company Profile
Certifications
Packing & Shipping
Standard expore sea-worthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet, then put in container) or customized.
Grate care is taken to avoid any damage which might otherwise be caused during storage or transportation. In additon, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.
Grate care is taken to avoid any damage which might otherwise be caused during storage or transportation. In additon, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.
Application
The application scope of I-beam:
1. Beam-column members in steel structures of industrial and civil buildings;
2. Steel bearing bracket of industrial structure;
3. Steel piles and supporting structures for underground engineering;
4. Petrochemical, electric power and other industrial equipment structure;
5. Long-span steel bridge members;
6. Ship and machinery manufacturing frame structure;
1. Beam-column members in steel structures of industrial and civil buildings;
2. Steel bearing bracket of industrial structure;
3. Steel piles and supporting structures for underground engineering;
4. Petrochemical, electric power and other industrial equipment structure;
5. Long-span steel bridge members;
6. Ship and machinery manufacturing frame structure;
FAQ
Q: Where is your company ?
A: Our company located in TianJin of China.
Q: How long is your delivery time?
A: Generally is 10-15 workingdays of goods in stock, or 20-30 days if goods are not in stock, it is according to quantitiy.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.
Q: What is your terms of payment?
A: We supports L/C,T/T ,Paypal payments. We'll show you the photos of the products and packages before you pay the
balance.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit
A: Our company located in TianJin of China.
Q: How long is your delivery time?
A: Generally is 10-15 workingdays of goods in stock, or 20-30 days if goods are not in stock, it is according to quantitiy.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.
Q: What is your terms of payment?
A: We supports L/C,T/T ,Paypal payments. We'll show you the photos of the products and packages before you pay the
balance.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit
