1/2/4 панель управления противопожарной
- Категории: Fire Alarm Control Panels >>>
- Поставщик: Ningbo,Peasway,Electronics,Co.,Ltd.
Сохранить в закладки:
Описание и отзывы
Характеристики
Product Description
Specification Parameters
Technical Data:
Zone and sounder end of line resistors: 3.9KΩ,1W
Zone monitoring current:<4.5mA
Zone alarm current:>20mA
Zone short current:>110mA
Sounder alarm output: 3 x 300mA (max)/24VDC
Auxiliary Supply: 300mA/24V
Dimensions: 290 x 87.5 x 211.5mm
One set of fault relay contacts: Rated at 0.5A SELV
Humidity: ≤95%RH
Zone voltage: 24v±2V
Available zone: 1,2,4
Each Zone can connect up to 50 devices
weight: 2100g (without battery)
Main power: AC220V± 15%,50Hz/ AC110V± 15%,60Hz Battery: DC 24V (2 x 12V 3.3Ah)
Zone and sounder end of line resistors: 3.9KΩ,1W
Zone monitoring current:<4.5mA
Zone alarm current:>20mA
Zone short current:>110mA
Sounder alarm output: 3 x 300mA (max)/24VDC
Auxiliary Supply: 300mA/24V
Dimensions: 290 x 87.5 x 211.5mm
One set of fault relay contacts: Rated at 0.5A SELV
Humidity: ≤95%RH
Zone voltage: 24v±2V
Available zone: 1,2,4
Each Zone can connect up to 50 devices
weight: 2100g (without battery)
Main power: AC220V± 15%,50Hz/ AC110V± 15%,60Hz Battery: DC 24V (2 x 12V 3.3Ah)
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | peasway |
Model Number | PW-141 |
Product name | Fire Alarm Contol Panel |
Certificate | CE |
Zone | 1/2/4Zones |
Main power supply | AC220V 15% |
special features | remote control |
Dimension | 290*87.5*211.5mm |
Humidity | ≤95%RH |
Zone voltage | 24v±2V |
Auxiliary Supply | 300mA/24V |
Zone short current | >110mA |

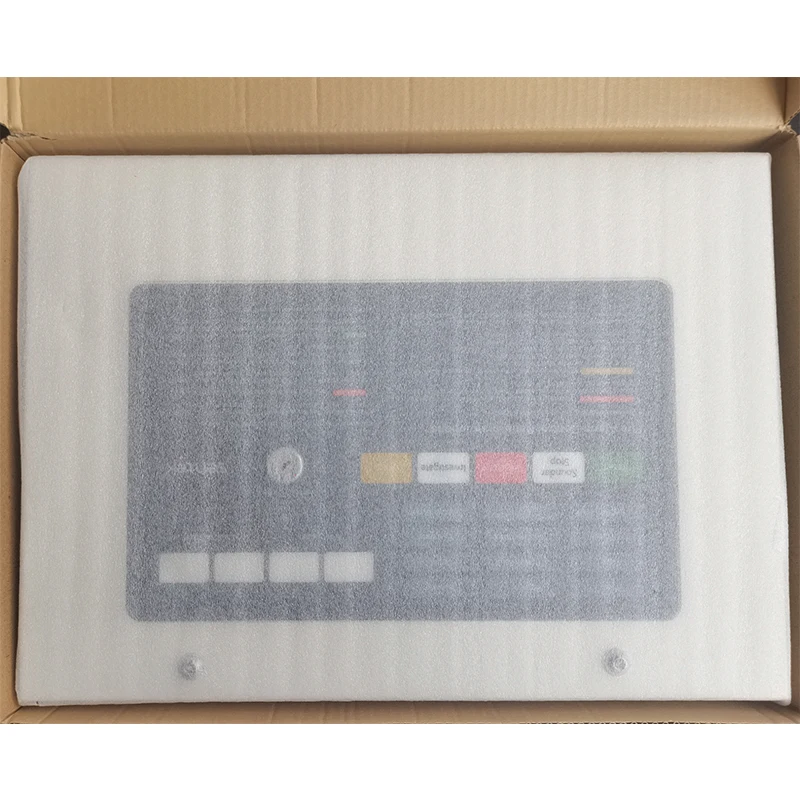

Packing & Delivery
Standard packing ,1pcs/box,5boxes/ctn
Company Profile
We are one professional design and manufacturing company of fire and security detector products, with years of experience in developing and manufacturing high quality smoke, fire, toxic gas detection and air quality related products.
Our products cover smoke detectors, heat detectors, carbon monoxide detectors, gas detectors, water detector, system detectors, wireless RF detectors.
We are certified CCC, CE, RoHS, EN14604, SGS, INTERTEK. With years of good business operation and services instructed by strict production management and quality control under ISO9001, we have established good relationships with customers from Europe, North American, South America, Australia and other countries.
We offer engineering and manufacturing services for the best return of investment on your projects in fire, security and safety applications. We have independent testing laboratory and technical R&D department for continuous development and updating of our products. We also offer OEM, ODM and EMS services for different customers.
Warmly welcome customers from all over the world to visit our factory and establish business relationship with us.
Our products cover smoke detectors, heat detectors, carbon monoxide detectors, gas detectors, water detector, system detectors, wireless RF detectors.
We are certified CCC, CE, RoHS, EN14604, SGS, INTERTEK. With years of good business operation and services instructed by strict production management and quality control under ISO9001, we have established good relationships with customers from Europe, North American, South America, Australia and other countries.
We offer engineering and manufacturing services for the best return of investment on your projects in fire, security and safety applications. We have independent testing laboratory and technical R&D department for continuous development and updating of our products. We also offer OEM, ODM and EMS services for different customers.
Warmly welcome customers from all over the world to visit our factory and establish business relationship with us.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2010,sell to Western Europe(25.00%),Domestic Market(15.00%),Eastern Europe(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Southeast Asia(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),North America(3.00%),Oceania(00.00%),Eastern Asia(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Smoke Detector,CO Detector,Gas Detector,Water Leak Detector,Heat Detector
4. why should you buy from us not from other suppliers?
We are one professional design and manufacturing company of fire and security detector products
We are certified CCC, CE, RoHS, EN14604, SGS, INTERTEK.
We also offer OEM, ODM and EMS services for different customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Zhejiang, China, start from 2010,sell to Western Europe(25.00%),Domestic Market(15.00%),Eastern Europe(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Southeast Asia(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),North America(3.00%),Oceania(00.00%),Eastern Asia(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Smoke Detector,CO Detector,Gas Detector,Water Leak Detector,Heat Detector
4. why should you buy from us not from other suppliers?
We are one professional design and manufacturing company of fire and security detector products
We are certified CCC, CE, RoHS, EN14604, SGS, INTERTEK.
We also offer OEM, ODM and EMS services for different customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
