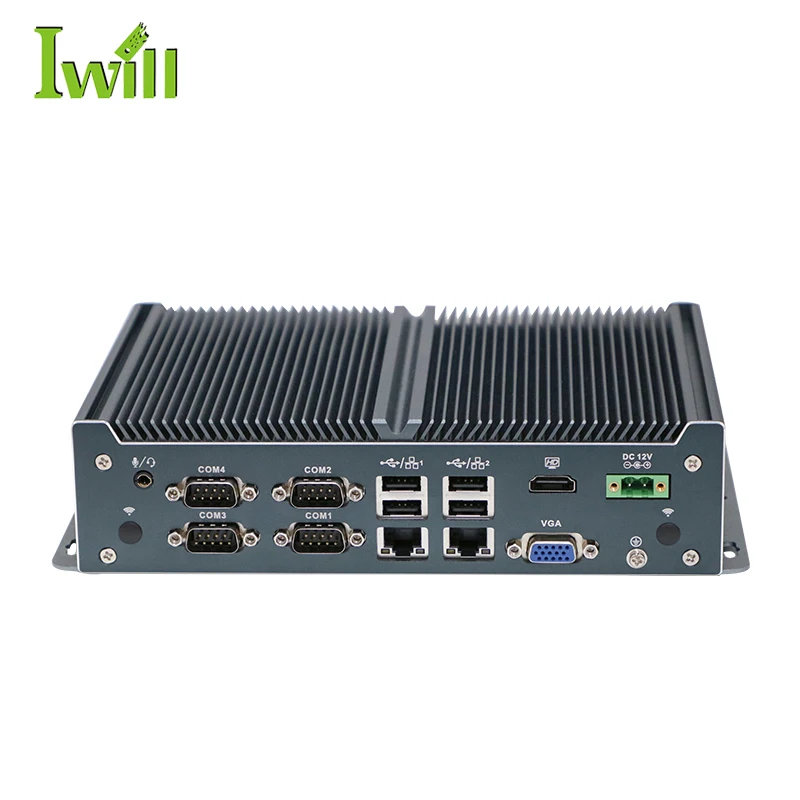

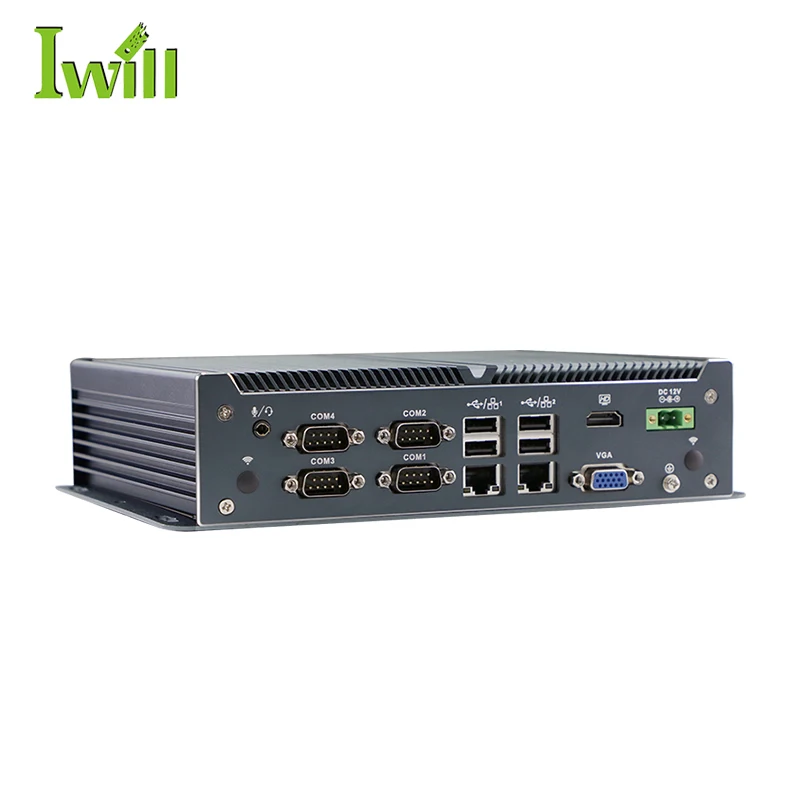

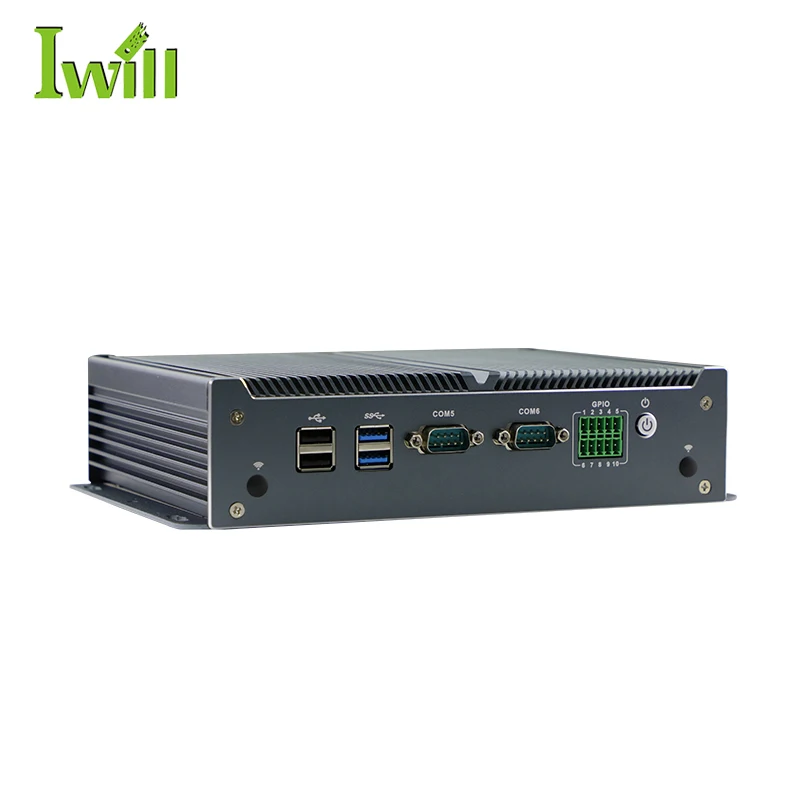

Прямые продажи J1900 2LAN 6COM 8USB безвентиляторный промышленный компьютер для станка с ЧПУ контроллером расширительными слотами mini PCIE x1
- Категория: >>>
- Поставщик: Shenzhen Iwill Technology Co. Ltd.
Сохранить в закладки 1600688921278:
Описание и отзывы
Характеристики
Notice: This link's price is barebone system price, doesn't include CPU, ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.
Direct Sales J1900 2LAN 6COM 8USB Fanless Industrial Computer for cnc controller machine With expansion slots of mini PCIE x1
Pls contact me directly:( email:vincent@iwilltech.cn, PH/WhatsApp/WeChat:+86 13243738816)
Product Paramenters
Model | IBOX-1126 |
Case Color | Titanium gray（Any color can be） |
Material | Pure Aluminum |
CPU | Intel Celeron J1900（Quad core,1.99Ghz) |
BIOS | AMI EFI BIOS |
RAM | Support 1*DDR3 1333/1600MHz SODIMM ram slot, support max 8 G |
Storage | Support 1*MSATA, 1*2.5'' SSD/HDD |
Display Chip | Intel HD Graphics |
Display Interface | 1xVGA, 1xHD, (Support synchronous and asynchronous dual display) |

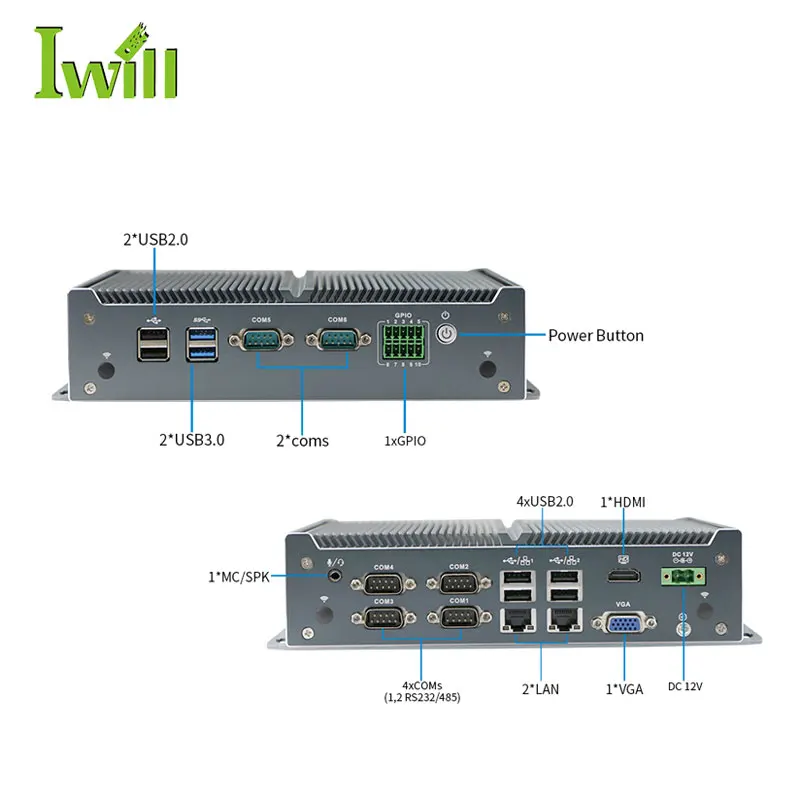

Front I/O | 3xUSB2.0,1xUSB3.0,2xCOMs,1xGPIO(4*Input 4*Output),1xSwitch bottom |
Rear I/O | 4xCOMs(COM1,2 RS232/485 Optional), 4xUSB2.0, 2xLAN, 1xHD.1xVGA,1x2PINS phoenix power connector,1xaudio |
Network Card | 2xIntel i211-AT 10/100/1000M lan |
Expansion | 1xMINI PCIE slot(WIFI/3G/4G,choose one of them),SIM card slot |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level） |
Power Supply | Support DC 12v Input |
Work Temp | 0℃ ～ +50℃ ( HDD)，-20℃ ～ +60℃ ( SSD)，Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Cetificates | CE, CCC, FCC Class A, ROHS |

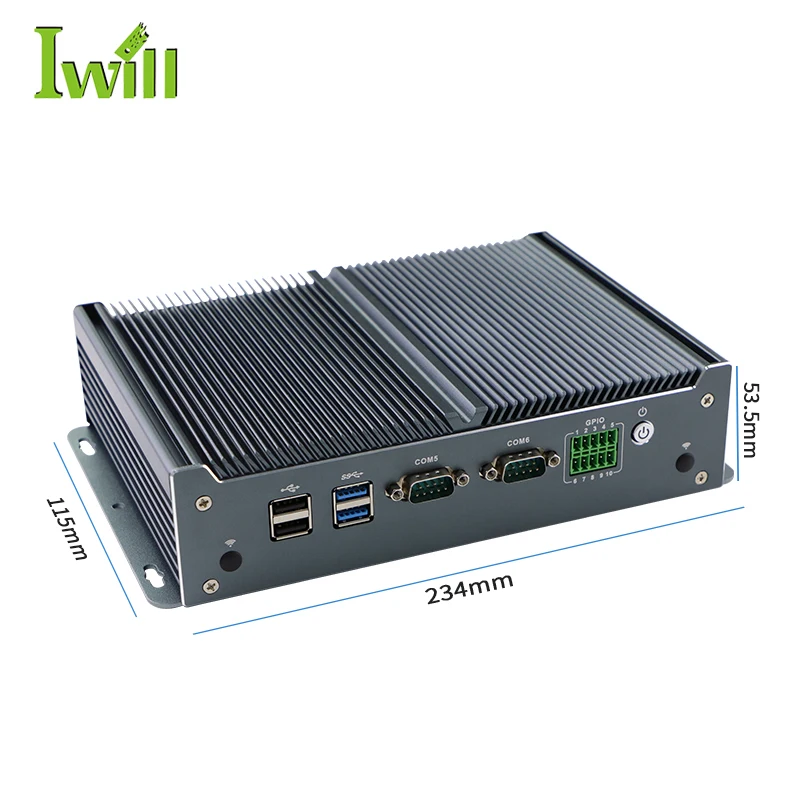

Dimension | 234 * 155 * 53.5mm (L*W*H); |
Net Weight | 1.8 kg【not include wall bracket】 |
Application | Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields |
Details Images
High Temperature Test
Put the tested product into the constant temperature and humidity test box, open the AIDA64 copy machine software and run it 100%
Constant temperature 40°C Humidity 50%
Constant temperature 50°C Humidity 50%
Constant temperature 60°C Humidity 50%
Low Temperature Test
Put the tested machine into the constant temperature and humidity test box, open the AIDA64 copy machine software and run it 100%
Test conclusion: The experimental results determine that the IBOX-1126 machine can work normally for a long time within the ambient temperature of 20°C ~ 60°C.
Click Here Get More Test Details
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Company Profile
e IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design,producing, processing, marketing and distribution. Main products cover mini PC, HTPC,embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
Our Services & Strength
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
Похожие товары

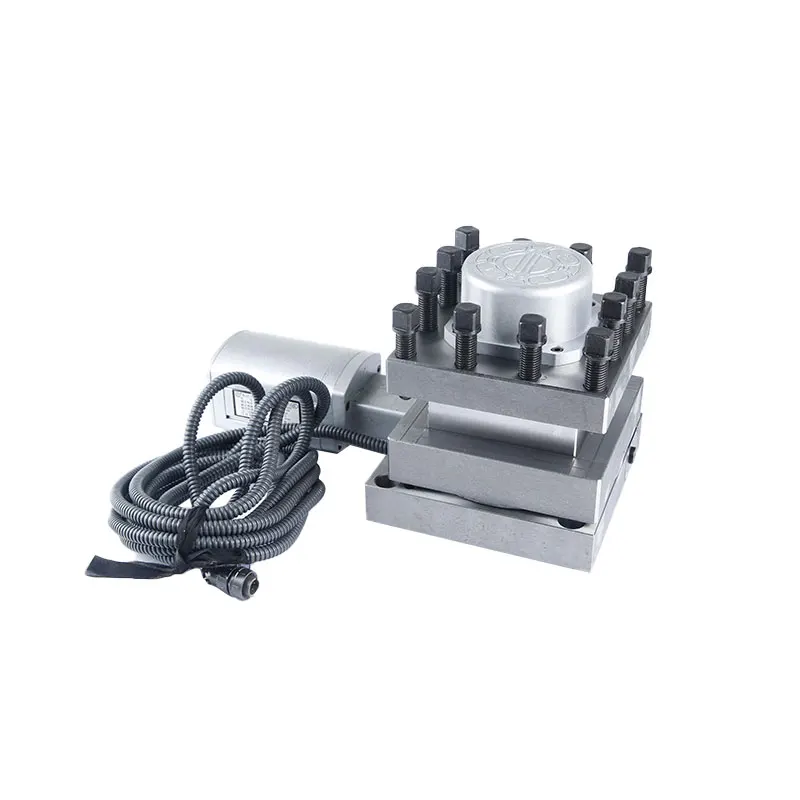

Новейшая версия 4-позиционный Электроинструмент HAK21 серии токарный станок с ЧПУ, инструментальный пост 4 станции LD4 HAK21 NC турель
345,58 $ - 382,35 $
Коммерческая Машина для изготовления пирожных, машина для приготовления пирожных, закусочные машины
153,00 $ - 173,00 $

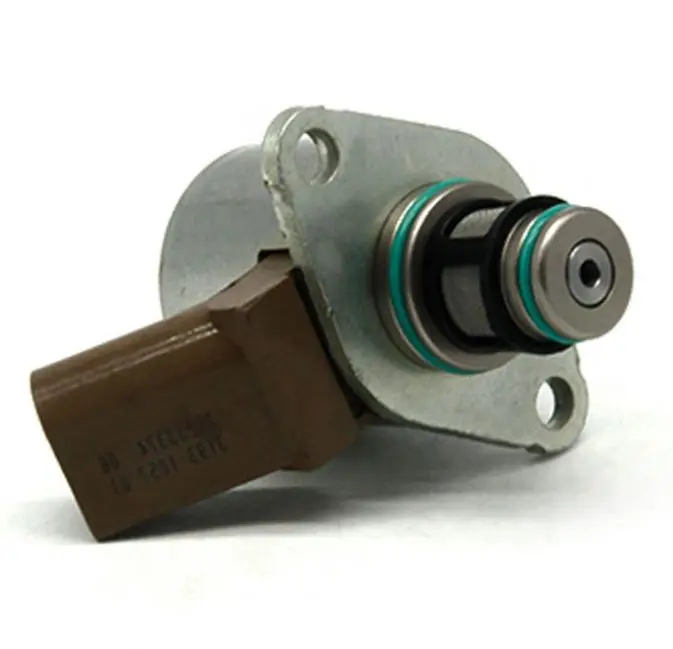

Подлинный Впускной Дозирующий клапан HEMENG IMV 9109-946 28233374, впускной Дозирующий клапан IMV 9109-946 / 28233374
