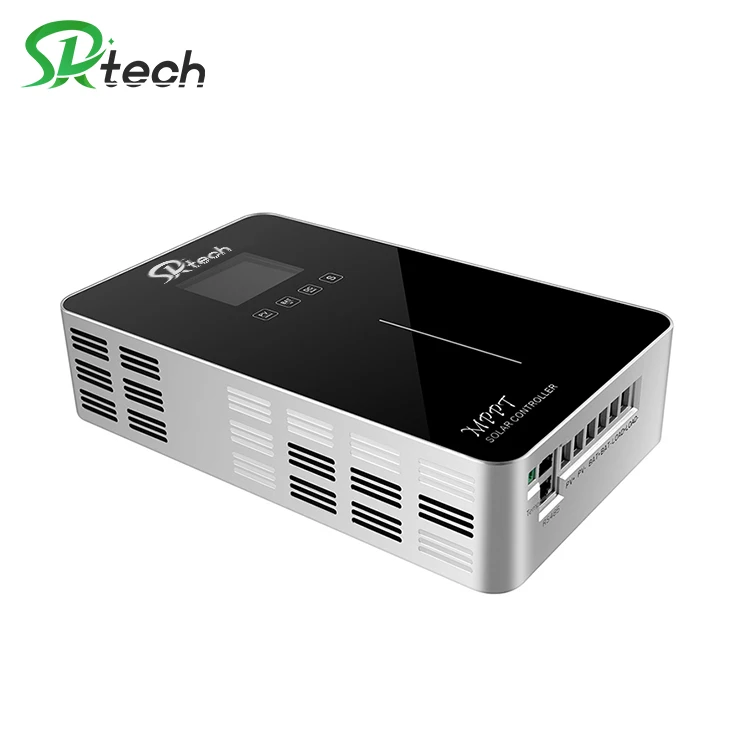

Умный контроллер заряда солнечной батареи нового поколения 12 в 24 36 48 40 А 50 60 80 100 Встроенный MPPT
- Категория: >>>
- Поставщик: S K Tech Co. Ltd.
Сохранить в закладки 1600688984138:
Описание и отзывы
Характеристики

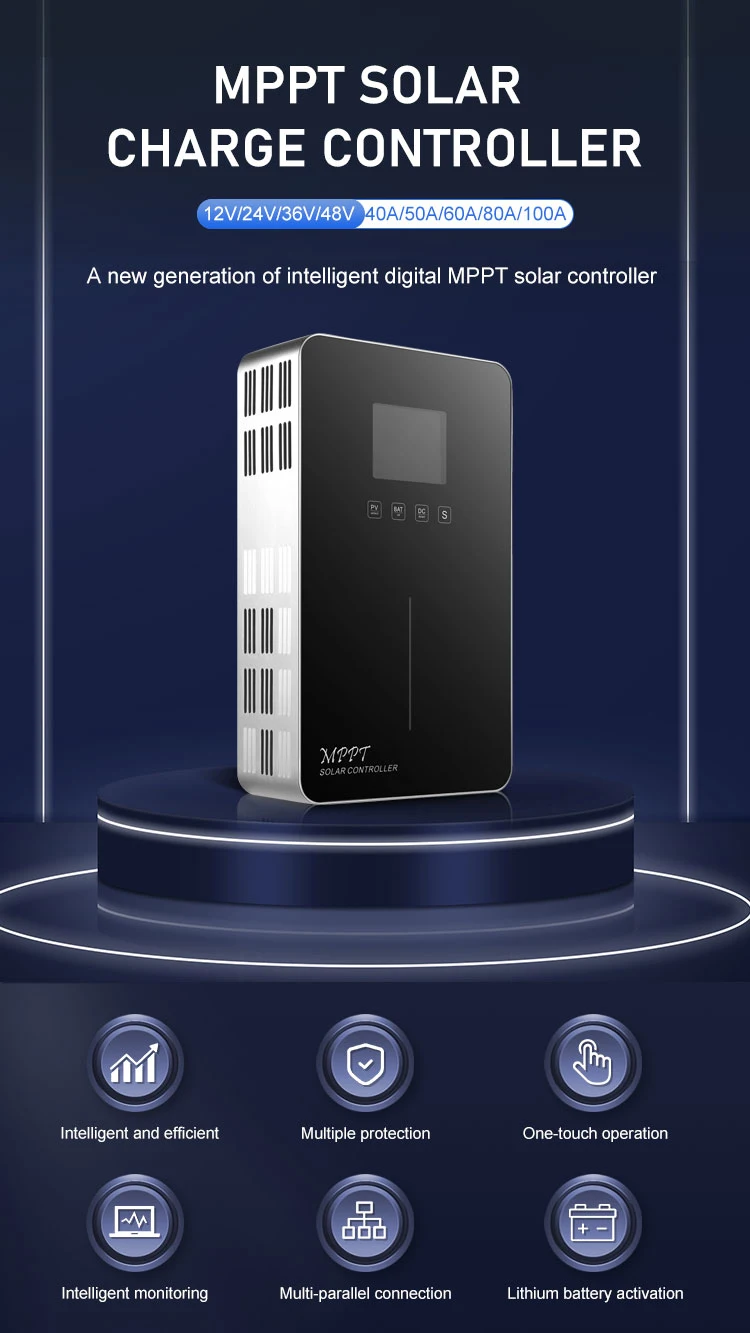

A New Generation of Intelligent Digital MPPT Solar Controller
1. high-end design, color screen, touch button
1. high-end design, color screen, touch button
2. four-stage charging to extend battery life
3. tracking efficiency up to 99.5%
4. perfect protection function
4. perfect protection function
5. expandable APP, host computer, and unlimited parallel connection
6. monitor the entire system status, diagnose system matching, etc.
Characteristics of Sunway Runner Series Solar Charge Controller
Characteristics of Sunway Runner Series Solar Charge Controller
* High-efficient MPPT algorithm, MPPT efficiency ≥99.5%.
* Support Seal/Gel/Flooded battery and customized batteries.
* Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control.
* Current-limited charging function.
* High definition LCD display.
* High definition LCD display.
* Intelligent interaction experience.
* Dual RS485 communication ports, support for parallel communication.
* Support PC and APP (Android & iOS) monitoring.
* CE, RoHS, FCC certifications approved.

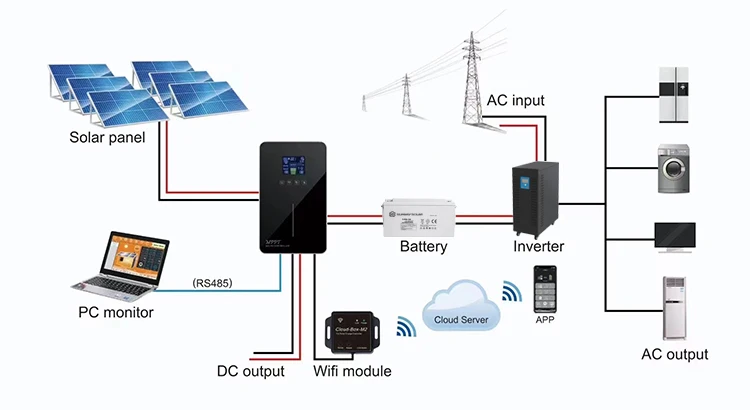

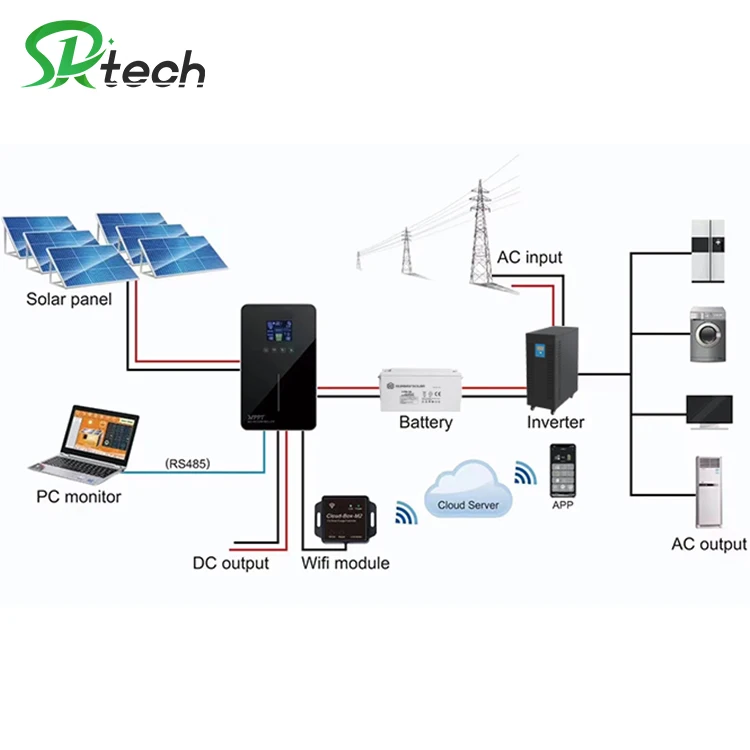

Working Principle of Sunway Runner Series Solar Charge Controller
Product Parameters
Runner-RS Reries | R48L40 | R48L50 | R48L60 | R48L80 | R48L100 | |||||||
Product Category | ||||||||||||
MPPT efficiency | ≥99.5% | |||||||||||
Standby power | 1W~1.8W | |||||||||||
Heat-Dissipating method | Built-in fan for cooling | |||||||||||
Lead-acid battery system | 12V System：9VDC~15VDC 24V System：18VDC~30VDC 36V System：32VDC~40VDC 24V System：42VDC~60VDC | |||||||||||
Lithium-ion battery system | 8VDC~60VDC | |||||||||||
Input Characteristics | ||||||||||||
Max.PV input voltage(Voc) | 150VDC | |||||||||||
Min.Vmpp Voltage | Battery Voltage + 2V | |||||||||||
Start-up charging voltage | Battery Voltage + 3V | |||||||||||
Low input voltage protection | Battery Voltage + 2V | |||||||||||
Over voltage protection / Recovery | 150VDC/145VDC | |||||||||||
Reted PV Power | 12V system | 560W | 700W | 840W | 1120W | 1400W | ||||||
24V system | 1120W | 1400W | 1680W | 2240W | 2800W | |||||||
36V system | 1680W | 2100W | 2520W | 3360W | 4200W | |||||||
48V system | 2240W | 2800W | 3360W | 4480W | 5600W | |||||||
Battery type Default Gel-sealed lead-acid battery | ||||||||||||
Rated charge current | 40A | 50A | 60A | 80A | 100A | |||||||
Communication | Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring | |||||||||||
Recommended breaker | ≥63A | ≥ 63A | ≥ 100A | ≥ 120A | ≥ 150A | |||||||
Net weight/Gross weight (kg) | 2 /2.6 | 5 / 6.2 | ||||||||||
Product size /Packing size (mm) | 305x185x90/370x218x98 | 380x210x80/490x350x195 | ||||||||||
Remarks: 1. The above is the standard parameters of the company. If there are any changes, please contact with our sales 2. Our company can customize non-conventional MPPT controllers for customers and provide OEM and ODM services | ||||||||||||

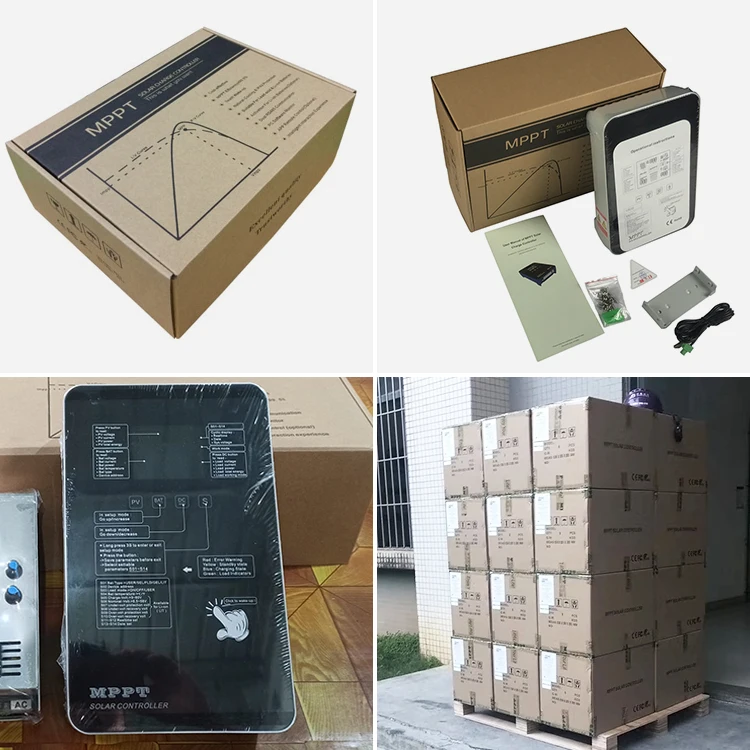

Product Packaging
Product List for Runner Series MPPT Solar Charge Controller | ||||
Item | Description | Quantity | ||
Product Name | MPPT controller | 1 unit | ||
Installation accessories package | Mounting backboard | 1 pcs | ||
Temperature sensing cable | 1 pcs | |||
M4 screws (for mounting backboard) | 4 pcs | |||
plastic expansion particles | 4 pcs | |||
Accessory pack | User manual | 1 pcs | ||
Optional | RS485-USB cable | 1 pcs | ||
Bluetooth communication module | 1 pcs | |||
External WIFI communication module | 1 unit | |||

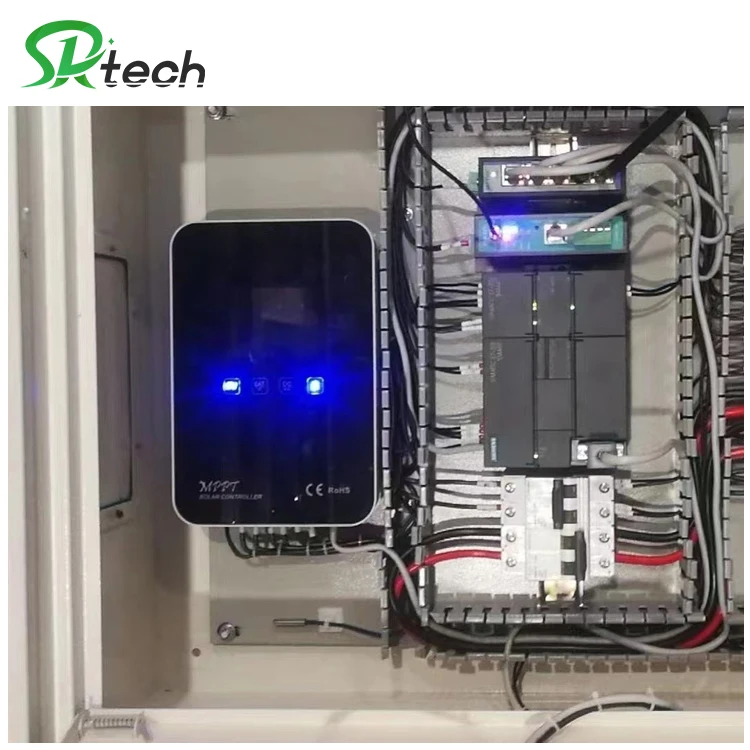

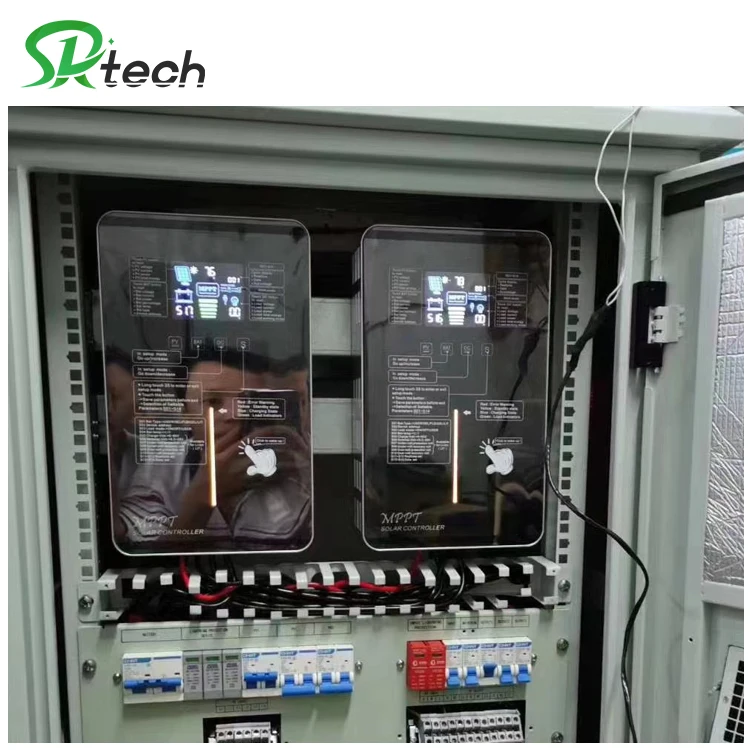

Project Case
Home Solar Energy System
Energy Storage System
Solar Monitoring System
Communication Basestation
Certifications
FAQ
1. Where can I review the products parameter and manual before purchasing?
A: Pls kindly contact with our sales engineer, we will provide you with product file asap.
2. How to choose a MPPT controller?
A: MPPT controller is related to the solar panels total power and battery system voltage. According to the calculation formula P=U*I, you can get the MPPT controller rated current. For example, the solar panels total power is 2000W, battery system voltage is 48V, that MPPT controller rated current I=2000W/48V=41.6A, so choose MPPT controller is 48V 50A which need greater than 41.6A.
3. How to make maximum efficiency use of the solar panels in series-parallel connection?
A: The total open circuit voltage(Voc) of solar panel in series cannot exceed MPPT controller maximum PV input Voc, as well the total power voltage(Vmp) cannot less than MPPT controller charging voltage. The details series-parallel connection please refer to the user manual “ Serial Connection(string) of PV Modules”.
4. Can you provide OEM or ODM service for customers?
5. Can MPPT charge controller charge lithium battery? How to set it?
A: Pls kindly contact with our sales engineer, we will provide you with product file asap.
2. How to choose a MPPT controller?
A: MPPT controller is related to the solar panels total power and battery system voltage. According to the calculation formula P=U*I, you can get the MPPT controller rated current. For example, the solar panels total power is 2000W, battery system voltage is 48V, that MPPT controller rated current I=2000W/48V=41.6A, so choose MPPT controller is 48V 50A which need greater than 41.6A.
3. How to make maximum efficiency use of the solar panels in series-parallel connection?
A: The total open circuit voltage(Voc) of solar panel in series cannot exceed MPPT controller maximum PV input Voc, as well the total power voltage(Vmp) cannot less than MPPT controller charging voltage. The details series-parallel connection please refer to the user manual “ Serial Connection(string) of PV Modules”.
4. Can you provide OEM or ODM service for customers?
A: Yes. Customers should provide formal Letter of Authorization. We will keep our partnership strictly confidential and customized products will be not sold to any third party.
5. Can MPPT charge controller charge lithium battery? How to set it?
A: Yes. All series controllers can set up “User-defined”battery type for lithium battery by APP or PC software. Galaxy, Master, Mars series can be reset battery type on controller itself, too.
6. Is there a setting on the controller to tell it whether the batteries are sealed lead-acid or gel?
A: Yes, all of our MPPT charge controller can be checked and set up the conventional battery types (Sealed/Gel/Flooded) by LCD screen, APP and even PC software.
7. Could i charge my golf cart acid battery with your MPPT controller?
A: Yes, you can set the MPPT controller charge parameter according to the specific charging parameters of golf cart acid battery (such as the bulk voltage and floating voltage value).
8. After shut down and restarted MPPT controller, will the setting parameters keep retain or revert to default setting?
A: All of our MPPT charge controller have storage memory function, it will keep the original setting parameters after shut down and restart.
9. When the solar panels charge the battery through a mppt controller, and with DC load output at the same time, does the load using energy from solar panels or from battery?
A: The energy using will be given priority from solar panels. If the solar panel is underpower, that will powered by batteries.
For example the load need 50A, the solar panel generates is 30A and supplement from battery is 20A.
10. Could i monitor the MPPT controller through a PC?
A: Of course, connect the MPPT controller and PC through a RS485 cable, and install the PC software program on the computer.Please ensure the communication cable is purchase from the same dealer.
11. Where can i get the APP for the WiFi module connection?
A: Three methods are available :
1)Scan the QR codes from the WIFI module user manual;
2)You can search “My Green Solar Monitor” in iPhone app store and Google Play to get the APP. In domestic with Android is download from Tencent app;
3)Get the APP download program from salesman.
12. Can it be connected with another controller to charge battery bank?
A: Our MPPT charge controller cannot charge the battery bank with other brand MPPT or PWM controller. If need multiple controller to charge one battery bank, please purchase the same model controller which can in parallel use.
13. How can we get the technical support for products?
A: All the products provide lifetime free technical support. Any feedback of product issues, we will response and service within 24 hours.
14. What size and model of the cable is required to connect input and output terminals?
A: Please refer to the wire and breaker specification selection in user manual.
6. Is there a setting on the controller to tell it whether the batteries are sealed lead-acid or gel?
A: Yes, all of our MPPT charge controller can be checked and set up the conventional battery types (Sealed/Gel/Flooded) by LCD screen, APP and even PC software.
7. Could i charge my golf cart acid battery with your MPPT controller?
A: Yes, you can set the MPPT controller charge parameter according to the specific charging parameters of golf cart acid battery (such as the bulk voltage and floating voltage value).
8. After shut down and restarted MPPT controller, will the setting parameters keep retain or revert to default setting?
A: All of our MPPT charge controller have storage memory function, it will keep the original setting parameters after shut down and restart.
9. When the solar panels charge the battery through a mppt controller, and with DC load output at the same time, does the load using energy from solar panels or from battery?
A: The energy using will be given priority from solar panels. If the solar panel is underpower, that will powered by batteries.
For example the load need 50A, the solar panel generates is 30A and supplement from battery is 20A.
10. Could i monitor the MPPT controller through a PC?
A: Of course, connect the MPPT controller and PC through a RS485 cable, and install the PC software program on the computer.Please ensure the communication cable is purchase from the same dealer.
11. Where can i get the APP for the WiFi module connection?
A: Three methods are available :
1)Scan the QR codes from the WIFI module user manual;
2)You can search “My Green Solar Monitor” in iPhone app store and Google Play to get the APP. In domestic with Android is download from Tencent app;
3)Get the APP download program from salesman.
12. Can it be connected with another controller to charge battery bank?
A: Our MPPT charge controller cannot charge the battery bank with other brand MPPT or PWM controller. If need multiple controller to charge one battery bank, please purchase the same model controller which can in parallel use.
13. How can we get the technical support for products?
A: All the products provide lifetime free technical support. Any feedback of product issues, we will response and service within 24 hours.
14. What size and model of the cable is required to connect input and output terminals?
A: Please refer to the wire and breaker specification selection in user manual.
Похожие товары
Оптовая Продажа Настенный 1KW 3KW интегрированный на сетевом контроллере ветровой энергии и инверторе
162 998,23 ₽ - 184 709,28 ₽
Распродажа контроллер Mppt ветряная турбина солнечный гибридный ветровая мощность 1 кВт 2 3 48 В 5 10 20 96 110 220 240
43 973,16 ₽ - 120 016,95 ₽
Несетевой ШИМ 1 кВт 2 3 12 В 24 48 96 в 110 220 гибридный ветровой Солнечный контроллер контроллеры заряда
Контроллер заряда ветряной турбины 1500 Вт 24 В

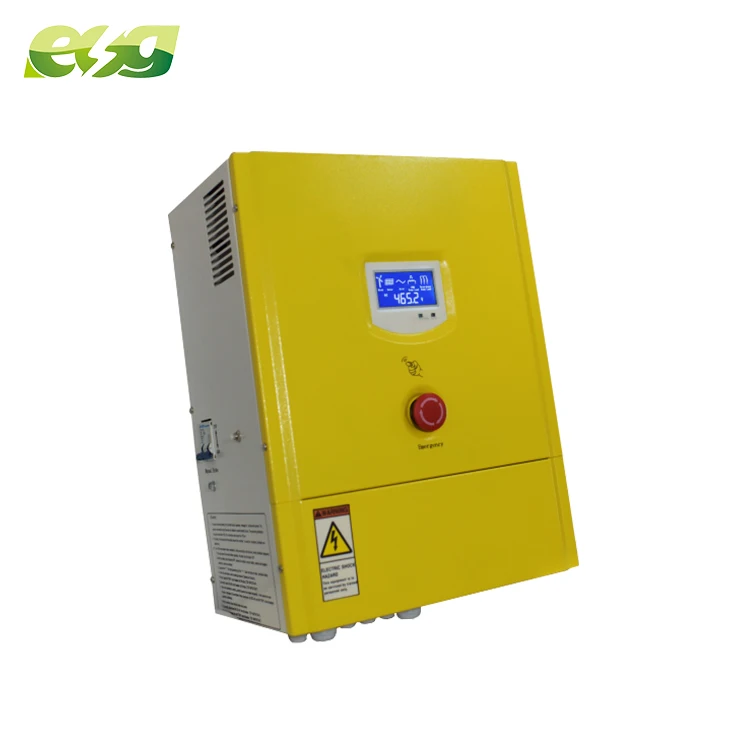

Лидер продаж система подключения ESG инвертор генератора 1KW2KW3KWWind Контроллер Заряда Mppt для ветровой турбины
