Штамповочная лента RFID метка из смолы 13 56 МГц MIFARE Ультралегкая C/AES F08 эпоксидная NFC метка 213 RFID брелок для зарядки электромобилей
- Категория: >>>
- Поставщик: Shenzhen ZD Technology Co. Ltd.
Сохранить в закладки 1600691214124:
Описание и отзывы
Характеристики
Specification
Punching String RFID Resin Tag 13.56Mhz MIFARE® Ultralight® AES Epoxy NFC RFID Keychain Tag
RFID key fobs are best suited either for employee access or authorization to use a machine, access a secure area, or drive a vehicle. Our RFID key fobs and key tags are available with custom art and private logos, it could be made of ABS and leather.
RFID key fobs are used for other applications including access control such as apartment and hotel rooms, identification, public transportation, e-payment, and more.
Epoxy RFID NFC Keychain Tag | value | |
Special Features | Waterproof / Weatherproof, MINI TAG | |
Communication Interface | RFID, NFC | |
Place of Origin | China | |
Guangdong | ||
Brand Name | ZD | |
Frequency | 13.56Mhz | |
Product name | NFC RFID Epoxy Keychain Tags | |
Material | Epoxy + PVC | |
Application | Access Control System, Ticketing, Payment | |
Chip | MIFARE® Ultralight® AES | |
Protocol | ISO14443A/ISO15693 | |
Reading distance | 0-10cm | |
Printing | CMYK 4C Printing/offsetting/silkscreen Printing | |
Writing Cycle | 100,000 Times | |
MOQ | 500pcs | |
Sample | Testing Samples | |

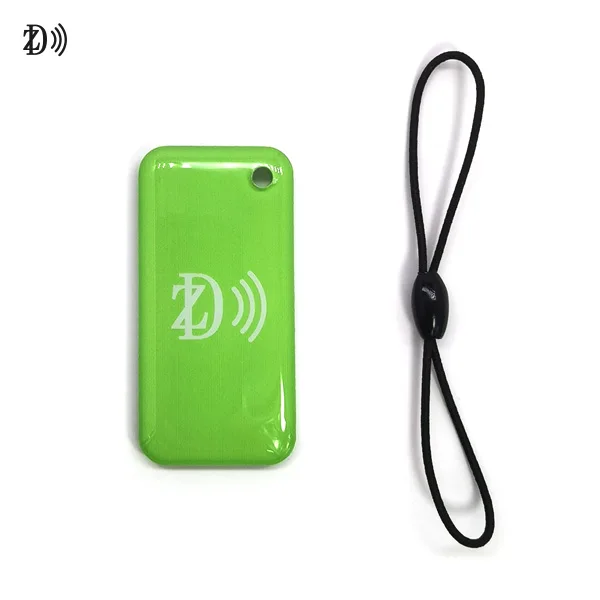

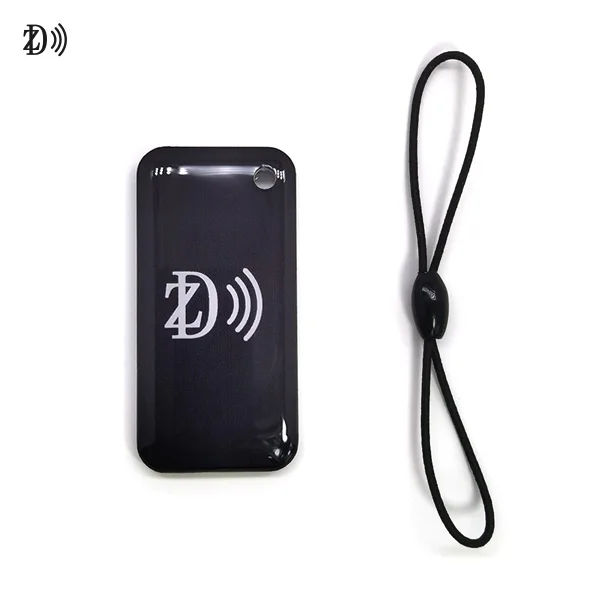

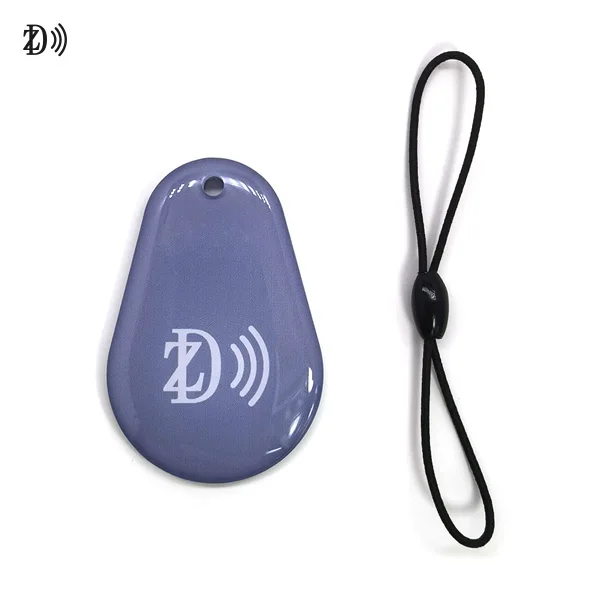

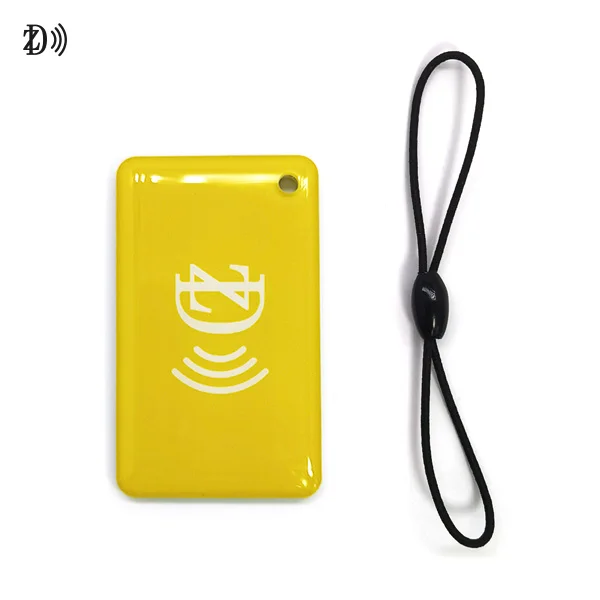

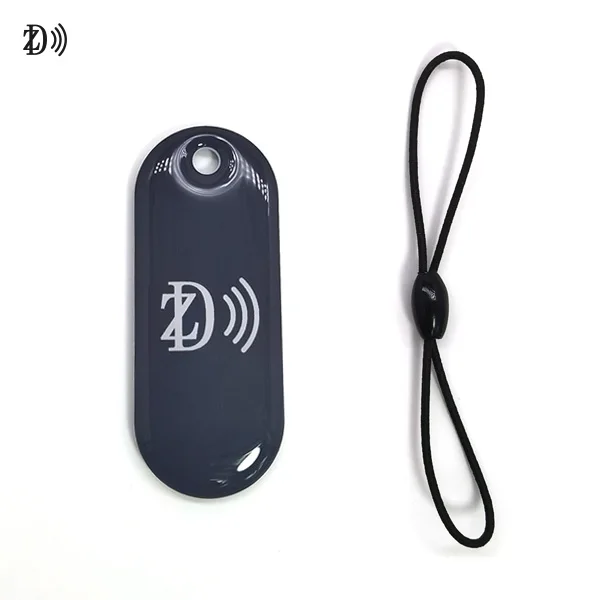

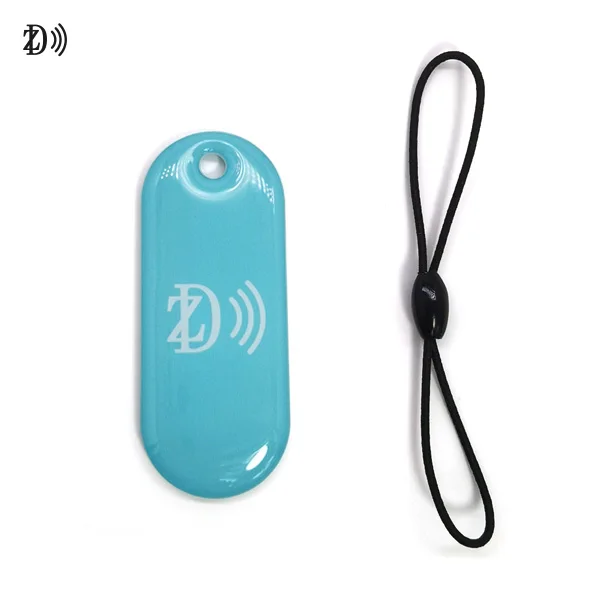

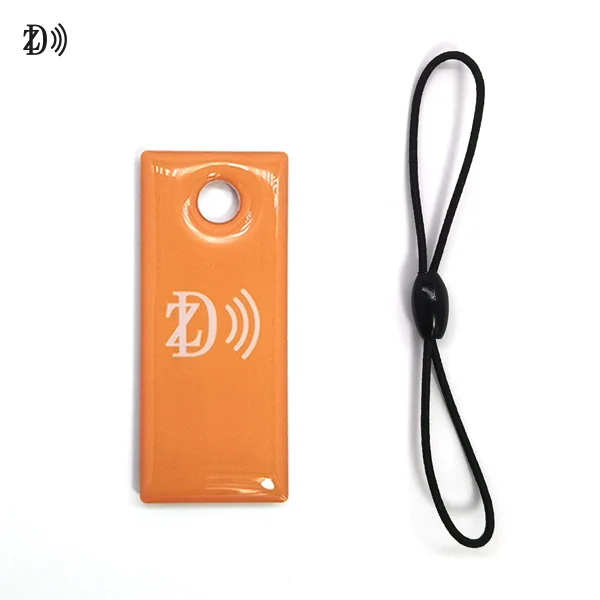

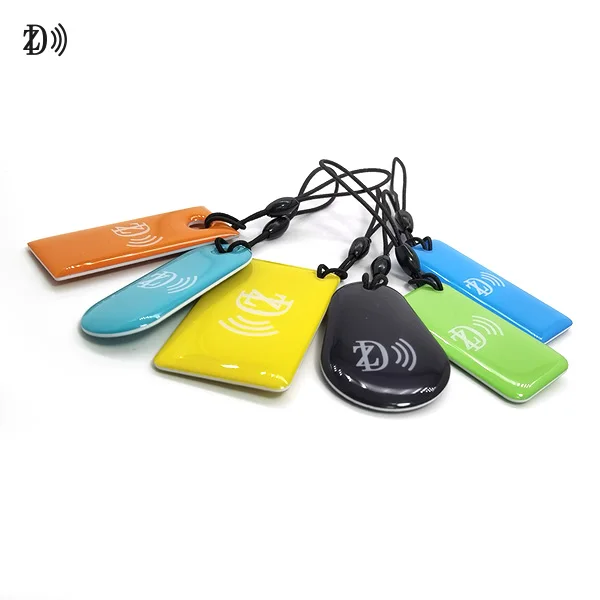

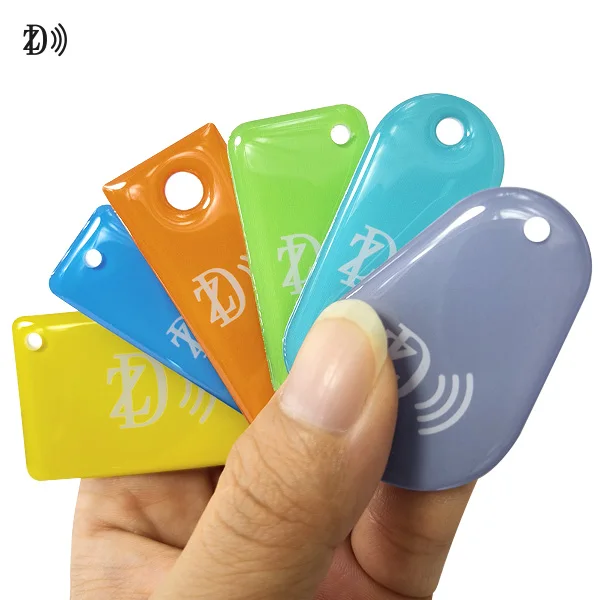

Details Images
Application
Applications:
1.Access Control
2. Payment
3. Secure Management

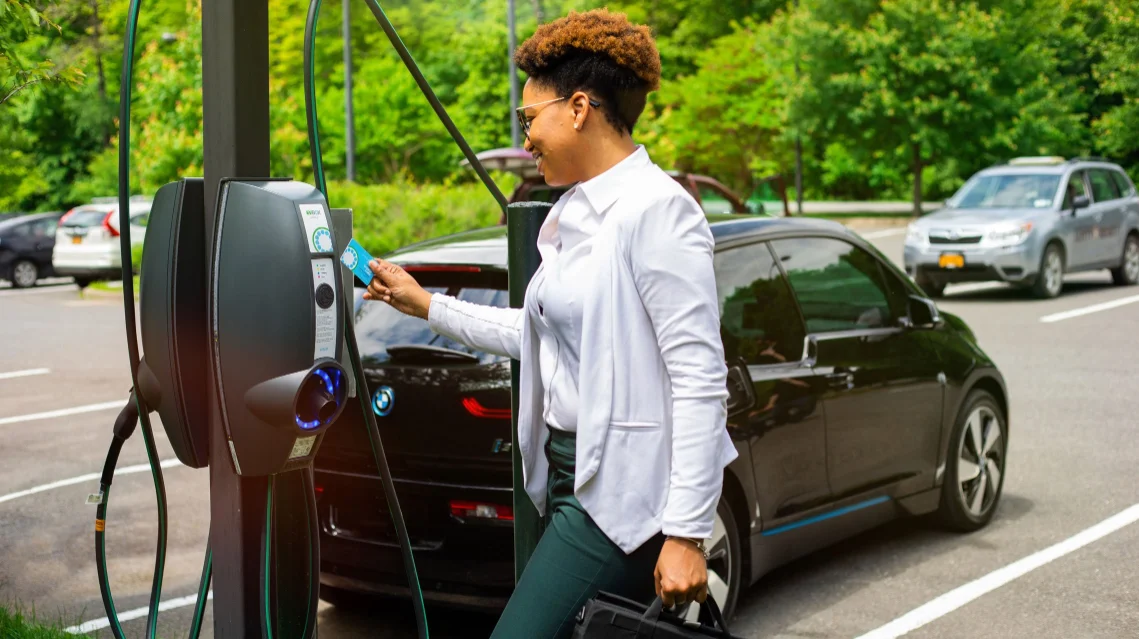

4. EV Charging
5. Ticketing etc.
Available Chips
MIFARE® Ultralight® AES
The MIFARE Ultralight AES IC delivers a new level of trust for limited-use tickets and key cards by supporting AES cryptographic authentication. Designed as a secure, contactless replacement for traditional paper tickets, mag-stripe, barcode and QR code-based systems, the IC gives solution providers a convenient, more secure way to issue single-trip and multi-use transit tickets, event tickets, access passes, loyalty cards. Further, in hospitality it gives guests secure access to hotel rooms and other hotel facilities, including spas, gyms and parking garages.
-NXP introduces most secure member of MIFARE® Ultralight® family using Advanced Encryption Standard (AES) with Common Criteria EAL3+ security certification.
Security and privacy
• Common Criteria certification: EAL3+ (AVA_VAN.2)
• 3-pass mutual AES authentication based on a key length of 128-bit
• Configurable secure messaging communication mode - CMAC for message integrity protection according to NIST Special Publication 800-38B, see.
• Three independent 24-bit one-way counters with optional AES authentication protection of one counter
• Unique 7-byte Identifier for each device
• Random ID (optional) for enhanced privacy. Compliant to ISO14443-3
• 32-bit user programmable OTP area
• Field programmable read-only locking function per page for the first 512 bit
• Read-only locking per block of 2 pages for the memory above 512 bit
• Pre-programmed ECC-based originality signature, offering the possibility for customizing and permanently locking
• AES-based originality key leveraging the AES authentication to check the NXP origin of the IC via NXP tools
Note: MF0AES(H)20 comes with an external CC EAL3+ certification targeting basic attack potential (AVA_VAN.2). Hence, the contactless IC does not claim to be completely resistant. In case of broader protection is required, products with a higher security certification should be considered.
• Common Criteria certification: EAL3+ (AVA_VAN.2)
• 3-pass mutual AES authentication based on a key length of 128-bit
• Configurable secure messaging communication mode - CMAC for message integrity protection according to NIST Special Publication 800-38B, see.
• Three independent 24-bit one-way counters with optional AES authentication protection of one counter
• Unique 7-byte Identifier for each device
• Random ID (optional) for enhanced privacy. Compliant to ISO14443-3
• 32-bit user programmable OTP area
• Field programmable read-only locking function per page for the first 512 bit
• Read-only locking per block of 2 pages for the memory above 512 bit
• Pre-programmed ECC-based originality signature, offering the possibility for customizing and permanently locking
• AES-based originality key leveraging the AES authentication to check the NXP origin of the IC via NXP tools
Note: MF0AES(H)20 comes with an external CC EAL3+ certification targeting basic attack potential (AVA_VAN.2). Hence, the contactless IC does not claim to be completely resistant. In case of broader protection is required, products with a higher security certification should be considered.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
Chip type | Capacity | Protocol | Frequency | Function | Manufactuer | |||||
MIFARE Classic® 1K | 1K Byte | ISO14443A | 13.56MHz | Read/Write | NXP | |||||
MIFARE Classic® 4K | 4K Byte | |||||||||
MIFARE Ultralight® EV1 | 80 Byte | |||||||||
164 Byte | ||||||||||
MIFARE Ultralight® C | 192 Byte | |||||||||
MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under license. | ||||||||||
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license. | ||||||||||
NTAG® 213 | 180 Byte | ISO14443A | 13.56MHz | Read/Write | NXP | |||||
NTAG® 215 | 540 Byte | |||||||||
NTAG® 216 | 924 Byte | |||||||||
NTAG® 213 TagTamper | 184 Byte | |||||||||
NTAG® 424 DNA | 416 Byte | |||||||||
NTAG® 424 DNA TagTamper | 416 Byte | |||||||||
NTAG are registered trademarks of NXP B.V. and are used under license. | ||||||||||
MIFARE Plus® EV2 | 2K Byte 4K Byte | ISO14443A | 13.56MHz | Read/Write | NXP | |||||
MIFARE Plus® SE | 1K Byte | |||||||||
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license. | ||||||||||
MIFARE® DESFire® EV1 2K | 2K Byte | ISO14443A | 13.56MHz | Read/Write | NXP | |||||
MIFARE® DESFire® EV1 4K | 4K Byte | |||||||||
MIFARE® DESFire® EV1 8K | 8K Byte | |||||||||
MIFARE® DESFire® EV2 2K | 2K Byte | |||||||||
MIFARE® DESFire® EV2 4K | 4K Byte | |||||||||
MIFARE® DESFire® EV2 8K | 8K Byte | |||||||||
MIFARE® DESFire® EV3 2K | 2K Byte | |||||||||
MIFARE® DESFire® EV3 4K | 4K Byte | |||||||||
MIFARE® DESFire® EV3 8K | 8K Byte | |||||||||
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license. | ||||||||||
ICODE® SLI | 1024 Bits | ISO15693 | 13.56MHz | Read/Write | NXP | |||||
ICODE® SLIX | 1024 Bits | |||||||||
ICODE® SLIX 2 | 2560 Bits | |||||||||
ICODE® SLIX-S | 2048 Bits | |||||||||
ICODE® SLIX-L | 512 Bits | |||||||||
ICODE are registered trademarks of NXP B.V. and are used under license. | ||||||||||

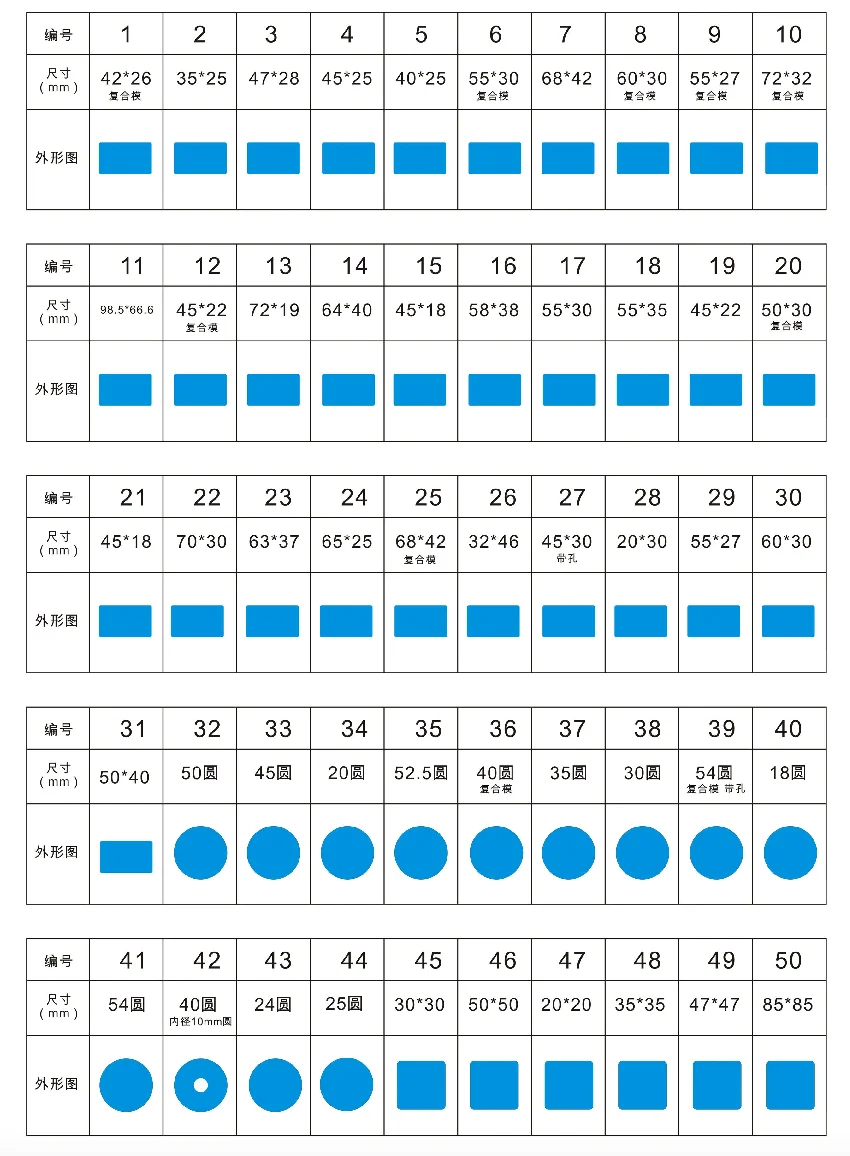

Dimension

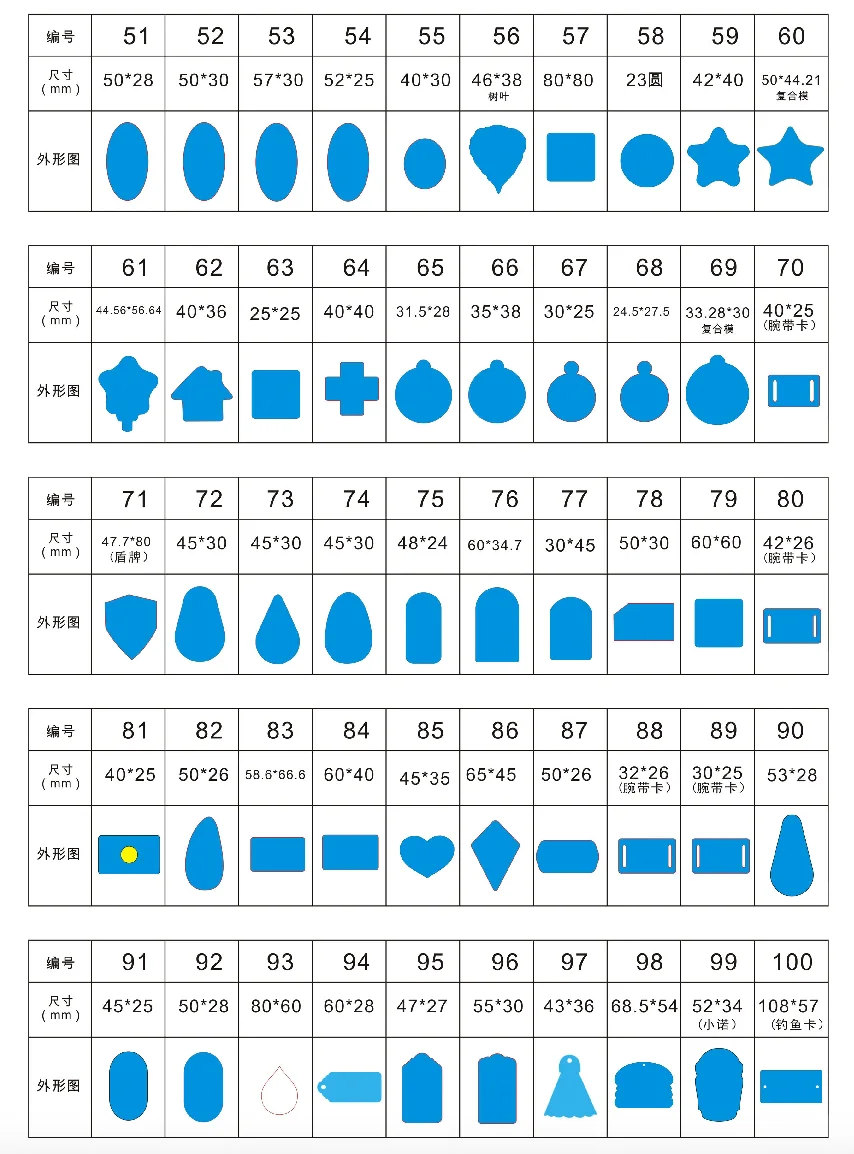

Model of the Key fobs

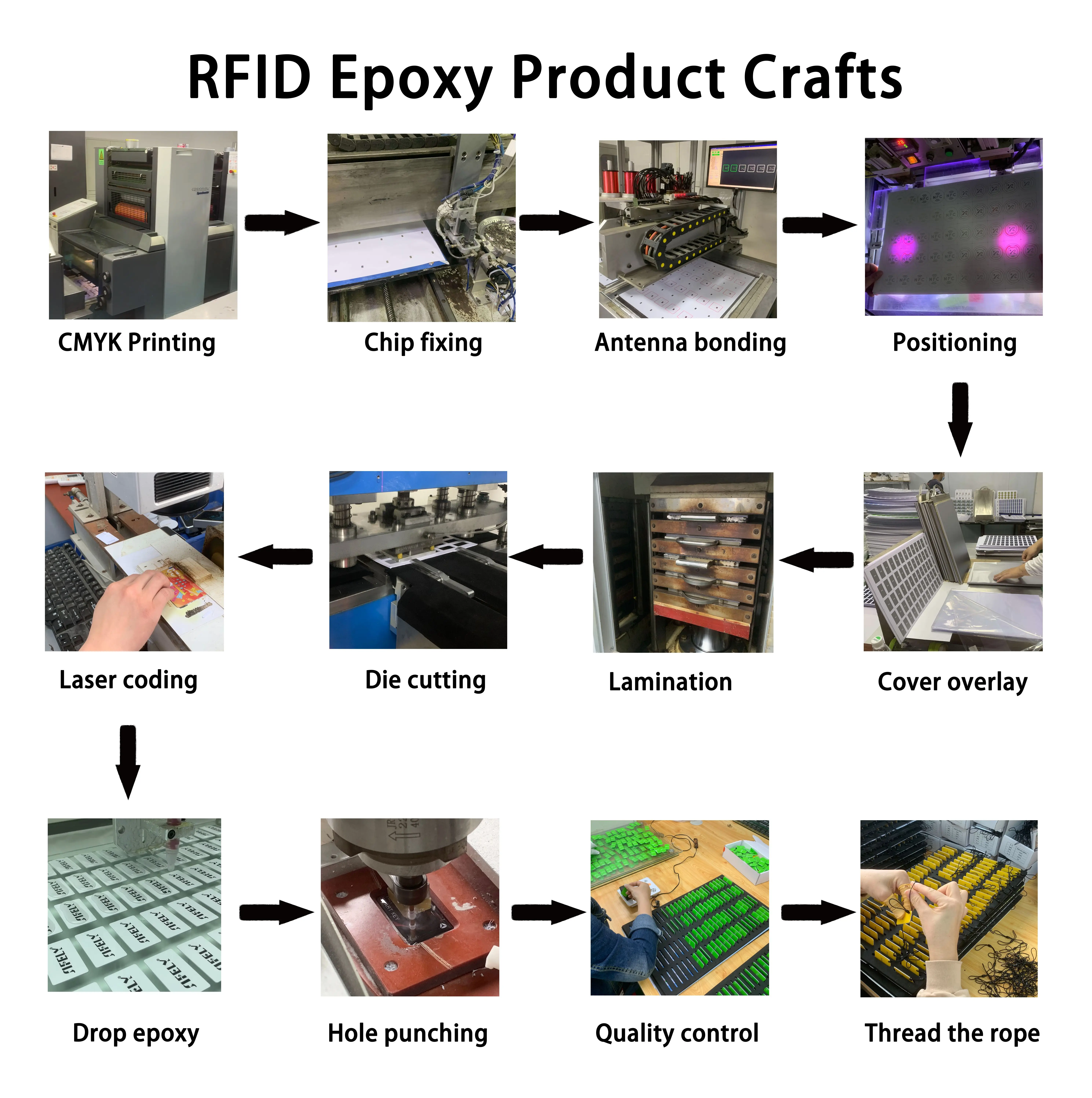

Production Process
Packing & Delivery
Company Profile

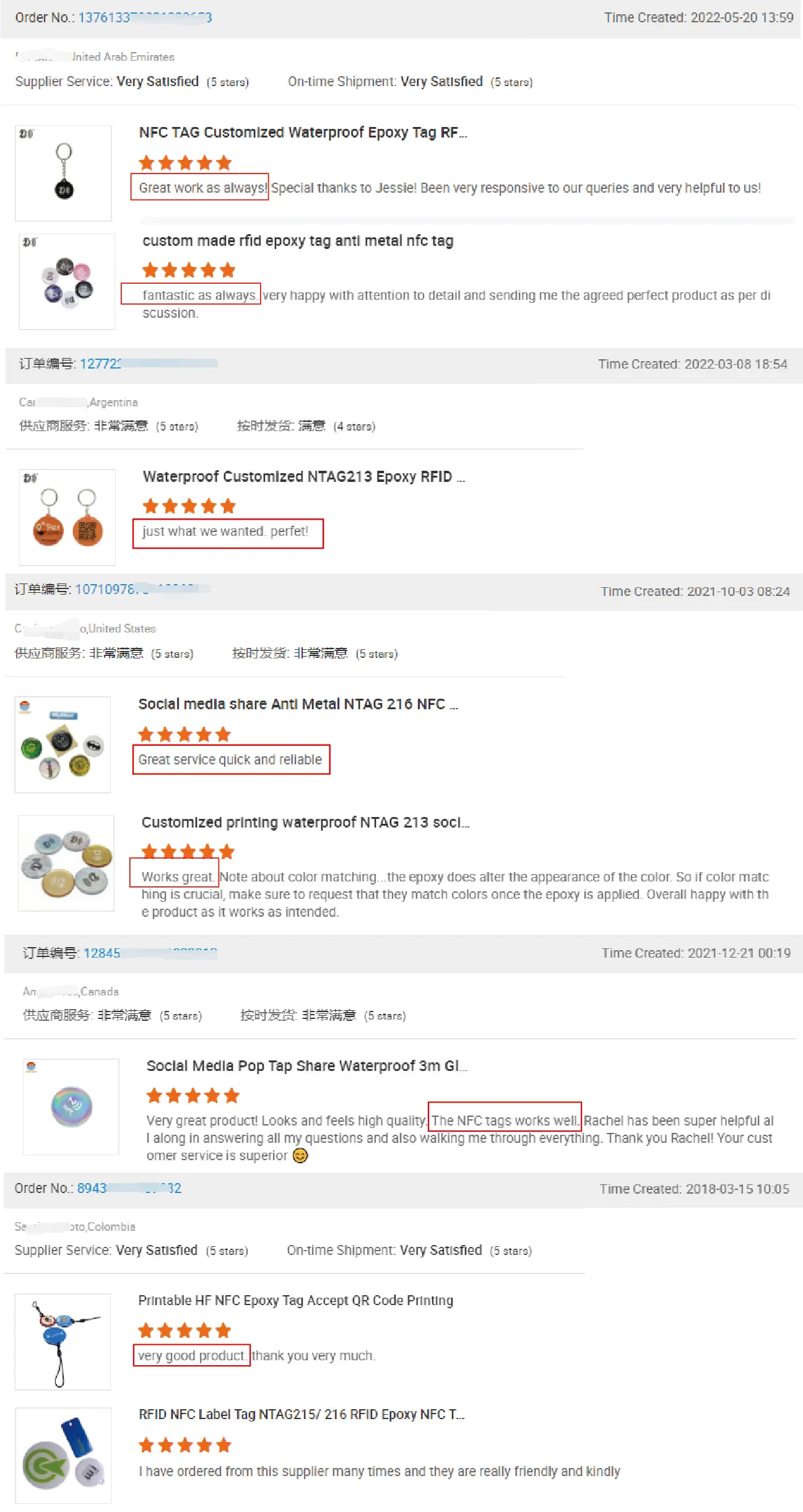

Customers Testimonials
FAQ
Q: Are you factory or trader?
A: We are manufacturer with 20 years of experience.
Q: How long would it take to receive my order after the payment?
A: Lead time will depend on the logistic service provider so as to your location. We will arrange the best suitable logistics and despatch the items once payment is received.
Q: Can you provide free samples?
A: If you like our product and leave a good review/ comment, we will offer some free samples in your next order.
Q: Can you print my logo on the item?
A: Absolutely, we welcome OEM/ODM request. Please contact us to get more detailed info.
Q: How should I contact you?
A: Click the ‘message’ buttoon and send your detailed requirements, we will reach you in 24 hours.
