Лучшее качество мощный генератор солнечной энергии Lipofe4 3 кВт/ч 2 кВт 1800 Вт 5 5000 110 В 220 1000

Сохранить в закладки 1600691792209:


Цена:18 524,90 ₽ - 20 521,59 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики
















Product Information


Feature




1 3 times peak power, excellent loading capability.
2 Solar power generator combine inverter/solar controller/battery all in one.
3 Multiple output: 1*AC output socket, 4*DC 12V, 2*USB.
4 Working mode AC prior/ECO mode/Solar prior selectable.
5 AC charging current 0-30A selectable.
6 LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7 Adding fault code to monitor real-time work situations.
8 Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9 Digital LCD and LED for visualization of operation status of the equipment.
0 Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.

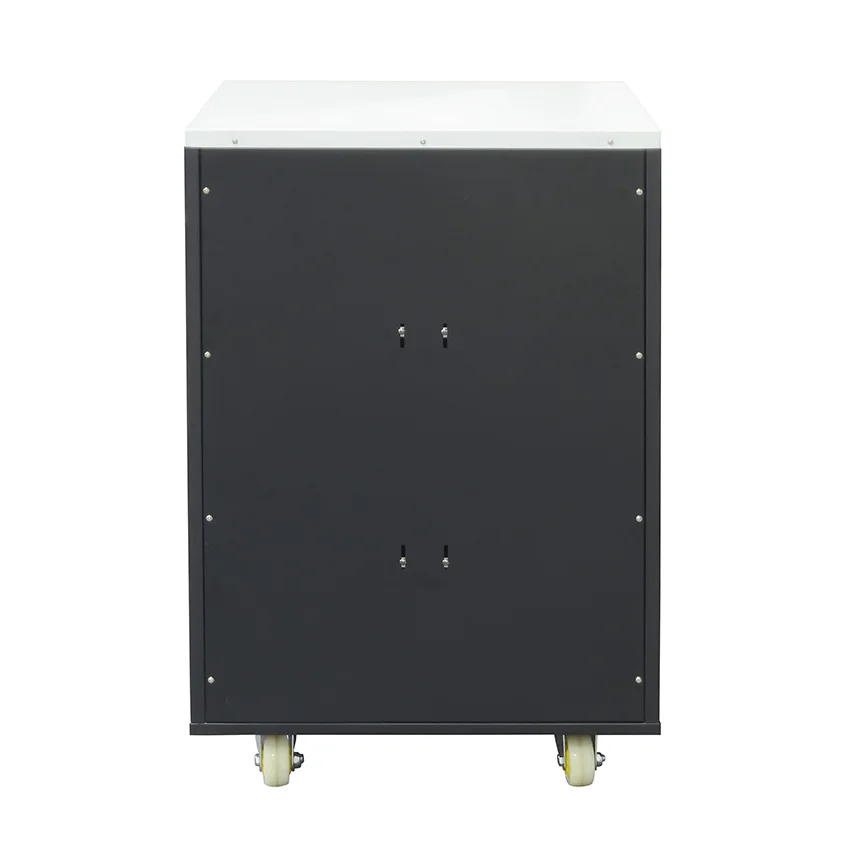

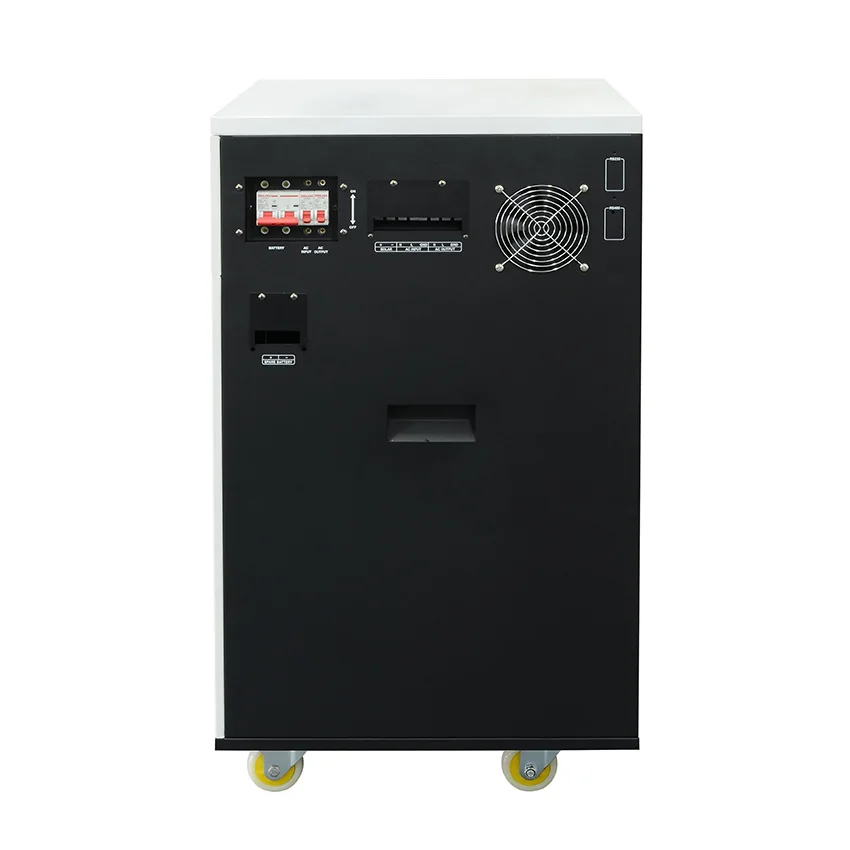

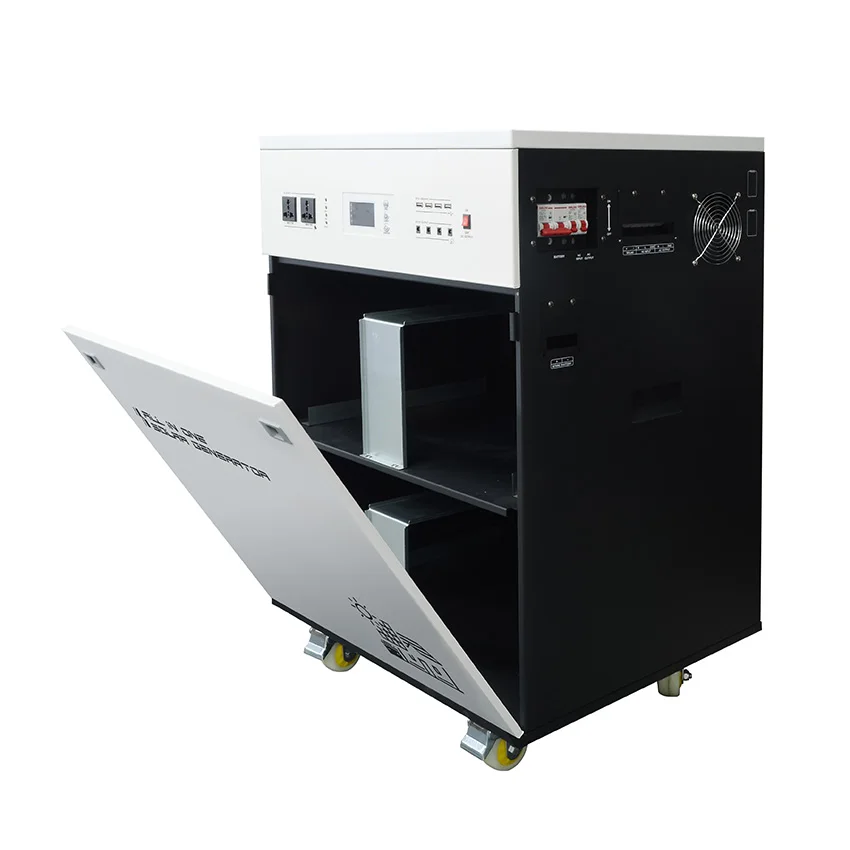

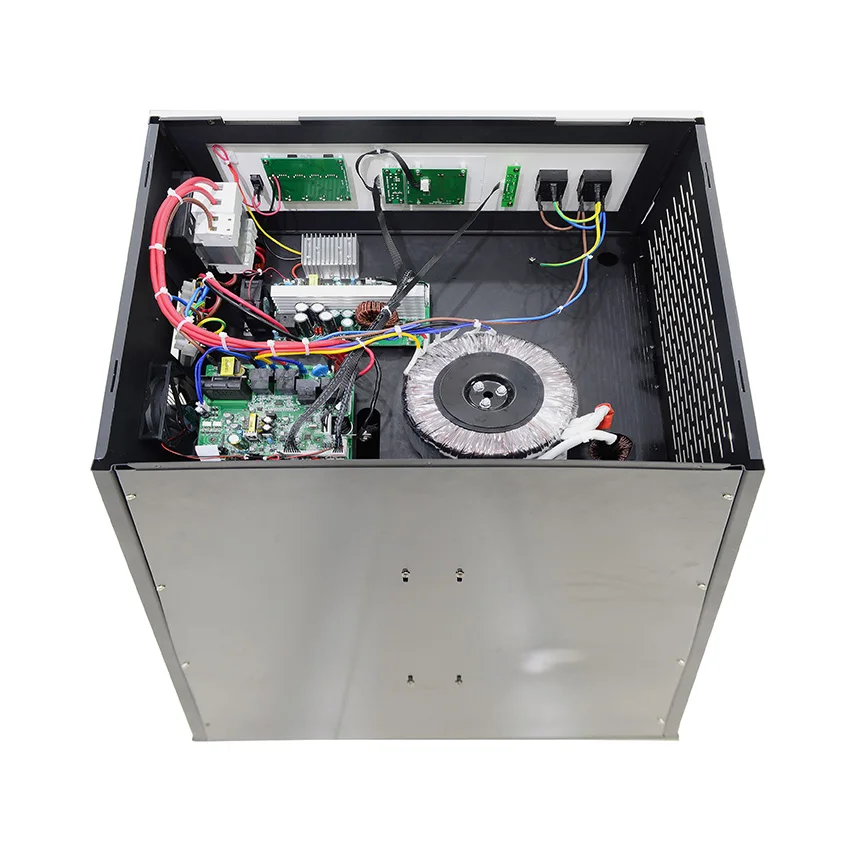

Product Details

solar-generator-5000w_03.jpgsolar-generator-5000w_04.jpgsolar-generator-5000w_05.jpgsolar-generator-5000w_06.jpgsolar-generator-5000w_07.jpg





Parameters











































































































































































































Specification
Model : ESS152P8/W8202P8/W8302P8/W8402P/W502P/W602P/W702P/W
CapacityRated power1500W2000W3000W4000W5000W6000W7000W
Peak power(20ms)4500VA6000VA9000VA12KVA15KVA18KVA21KVA
InputStardard battery voltage48VDC
AC input voltage range85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/
180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC)
AC input frequency range45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
OutputConversion efficiency≥85%(Battery mode); >99%(AC mode)
AC Output voltage110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode);
110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode)
AC Output frequency50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
AC Output waveformPure Sine Wave
THD≤3%(Linear load)
DC Output voltage 4*DC 12V; 4*USB(5V)
AC chargerAC charging current0~30A(Depends on model)
AC charging methodThree-stage(constant current, constant voltage, floating charge)
solar charger  (Optional)Charging modePWM/MPPT
Max PV input voltage(Voc)
(At the lowest temperature)
PWM: 100V; MPPT: 150V
PV input voltage rangePWM: 60V-88V;   MPPT: 60V-120V
Charge & discharge current60A
Max PV input power3360W
Inbuilt batteryCapacity4*200AH
Battery size(LxWxH)/pcs522*240*218(244)
OtherTransfer time≤4ms
Protectionwith over-voltage, low-voltage, overload, short circuit, high tempreature protections
DisplayLCD & LED
Cooling wayCooling fan in intelligent control
Communication(Optional)RS485/APP(WIFI monitoring or GPRS monitoring)
Working mode
(selectable)
d1AC priority mode
d2ECO mode
d3Solar priority mode
Work
environment
Operating temperature-10℃~40℃
Storage temperature-15℃~60℃
Elevation2000m(More than derating)
Humidity0%~95% ,No condensation
PhysicalDimention L x W x H(mm)610*535*960
Net weight(kg)(without battery)53555961636466
PackingDimention  L x W x H(mm)688*612*1093
Gross weight(kg)(without battery)68707476787981
Quantity/CTN1pcs per wooden case




 *sess series solar inverter power is from 300w~7000w, Please contact us to get more information





Wiring Diagram









We offer 3 optional working modes (transfer time≤4ms):


01 Grid priority mode: When the power grid and battery are connected to the generator inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via generator inverter. When the grid is cut off, the battery will automatically continue to supply power via generator inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the generator inverter’s rated power, there will be no output from the generator inverter. Only the chip of generator inverter is working. The power consumption of the generator inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the generator inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the power grid and battery are connected to the generator inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.

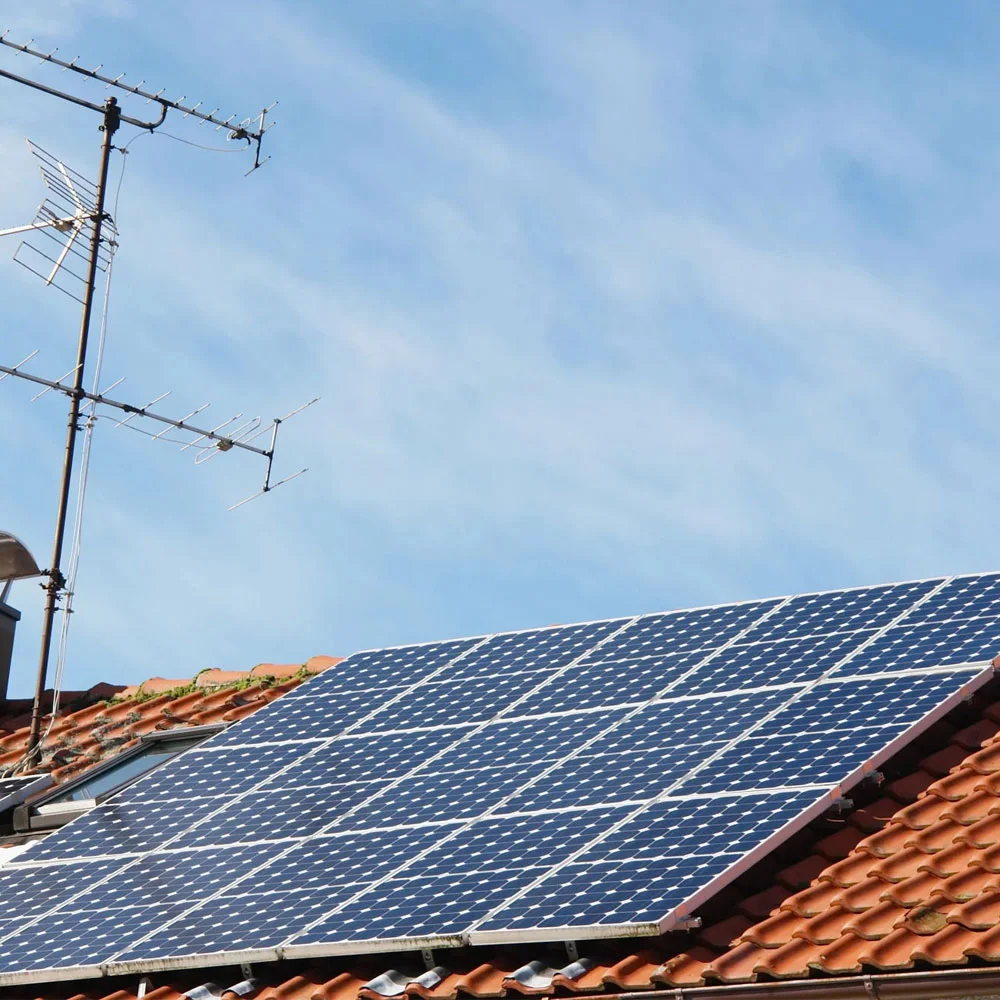

Application






Packaging & Shipping

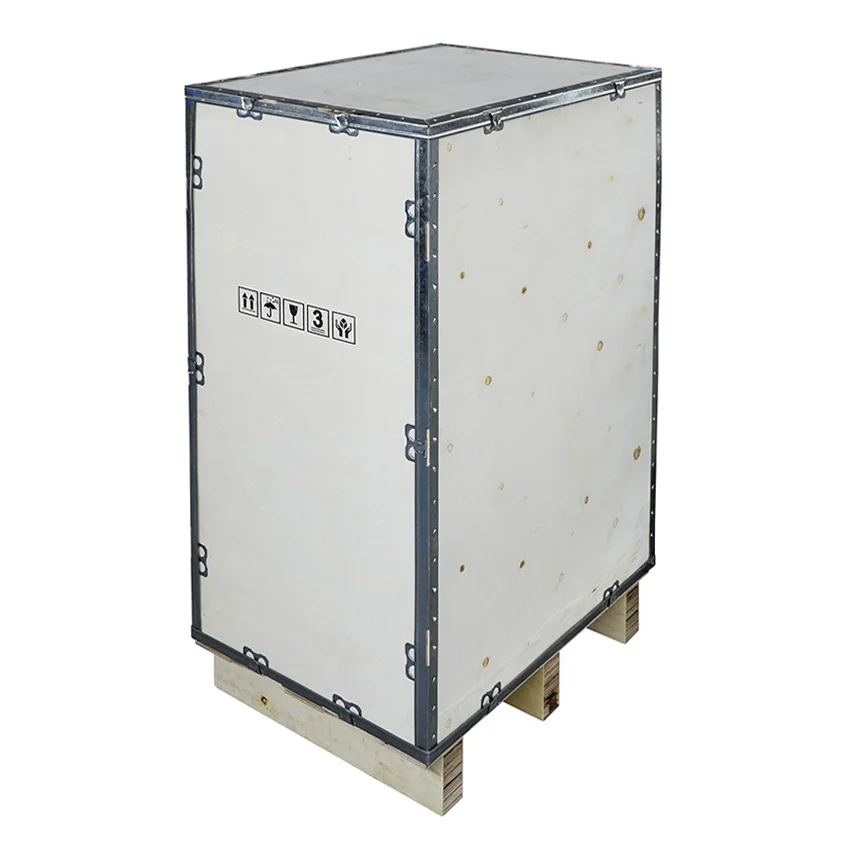

Package
Wooden box advised for sample or wholesale goods to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.





























Payment
T/TEXW30% T/T in advance, balance paid before dispatch
FOB
CNF(CFR)30% T/T in advance, balance paid against copy of B/L
CIF
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional)










Related Products


Hot selling inverters






















Company Information


Why choose us

 why choose us - generator solar supplier








About us




About Xindun - generator solar supplier











































Guangdong Xindun Power Technology Co.,Ltd

Factory Location



Foshan,Guangdong,China


Industry Experience

14-year manufacturer, 16-year trading, 10-year alibaba gold supplier



Product Range


pure sine wave inverter, hybrid solar inverter, ups power supply, solar charge controller, solar generator, solar power system solution, mini solar dc system
Main MarketAfrica, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.)
Factory7000 Square Meters, 100+ workers
DepartmentR&D, Production,  Sales, Marketing, Purchasing, QA, After-sale service department
CertificateISO9001:2015, CE, IEC, etc.
PatentSoftware Paten, Design Patent, Project Pantent







Factory

Xindun - generator solar factory





Production Process

generator solar production process








Solar Exhibitions




Solar exhibitions








Certificates

Xindun certificates





Our team

our team





FAQ


Q1: Are you a factory?
A: Yes, we are ISO9001:2015 manufacturing with qualifications of TUV, CE, ROHS & CCC. main products including inverters, solar charge controllers, solar generators, solar power system solutions.





Q2: Are you solar inverters pure sine wave output?
A: Yes, all of our solar inverters are pure sine wave output.





Q3: What kind of output you can do?
A: Normally, we produce inverters with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.





Q4: What appliances your inverters can load?
A4: Our inverter can load home and camping appliances, other inductive load such as refrigerator, air condition, lighting, tv, etc.





Q5: How long is your factory?
It's over 14 years. at the beginning our factory focused on domestic market.
From 2012, we set up our oversea sales department.





Q6: What' s the difference between low frequency and high frequency inverter?


A: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.





Q7: What's the difference between pure sine wave inverter and modified sine wave inverter?


A: Pure sine wave output inverter is just as good as the public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.





Q8: How to solve the technical problem?


A: 24 hours after-service consultancy just for you and to make your problem to solveeasily.





Q9: What to do if the product is broken?


A: Usually we do standard exporting package and insurance in case of broken. If any product is faulty, please send us the picture or video, we will study it and supply the spare parts of PCB board free for after sale service.
