Product Description
Rain Hose Irrigation System
Rain hose irrigation system micro spray tape
Sprinkler Hose with Holes
1. Product description:
Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available,
varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12
meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.
1. Product description:
Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available,
varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12
meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.

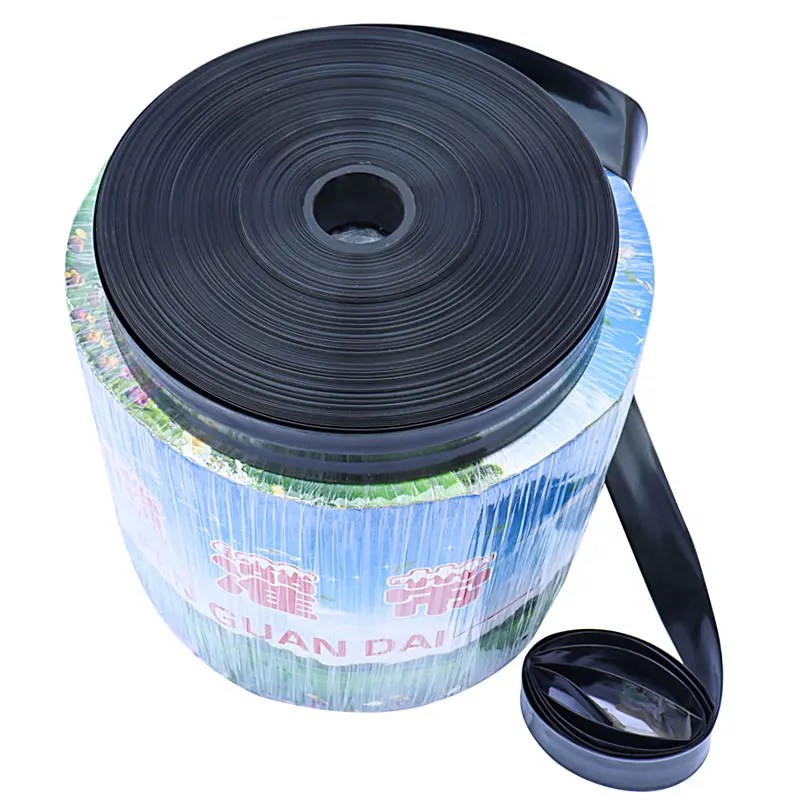

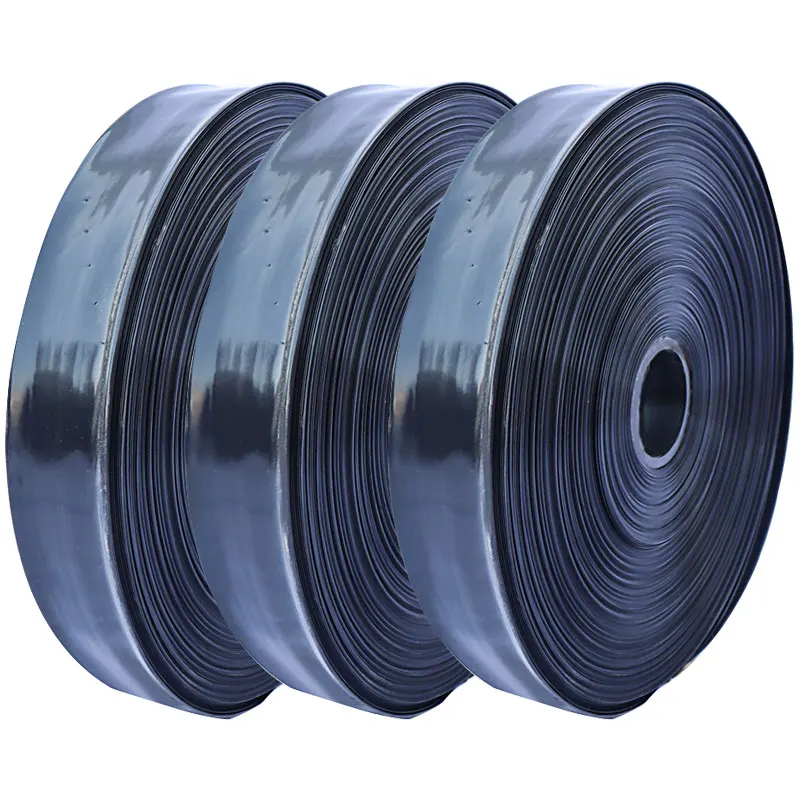

Width (mm) | Dia (mm) | Wall thick (mm) | Roll Weight (kg) | Roll Length (m) | ||
35 | 22 | 0.18 | 10.5 | 1000 | ||
45 | 28 | 0.18 | 13.5 | 1000 | ||
50 | 32 | 0.20 | 20 | 1000 | ||
65 | 40 | 0.23 | 5 | 200*5 | ||
80 | 50 | 0.30 | 5 | 100*4 | ||
100 | 63 | 0.30 | 6 | 100*3 | ||
Customised Design | 0.4 | MOQ 10000 Meters | ||||
Products Features

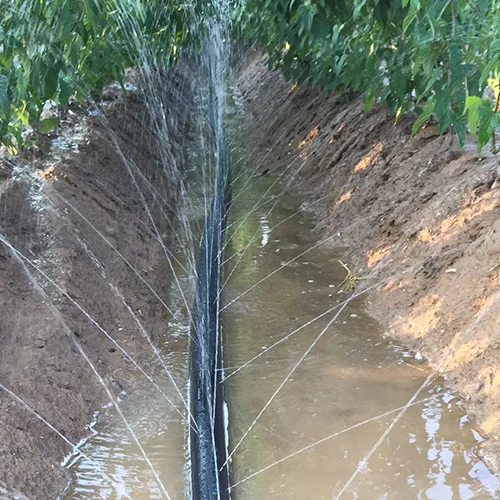

When irrigation by PE micro spray tape, it is similar to fin rain to moisten the crops. Spraying water with litter impact.And even without harming the crops. Especially, it can significantly reduce the humidity in the greenhouse and reduce the disease of crops.
Micro-spraying hose is a new type of micro irrigation equipment, also known as "sprinkler irrigation", "micro-spraying hose", "spray hose", "spray pipe", "porous hose", etc.

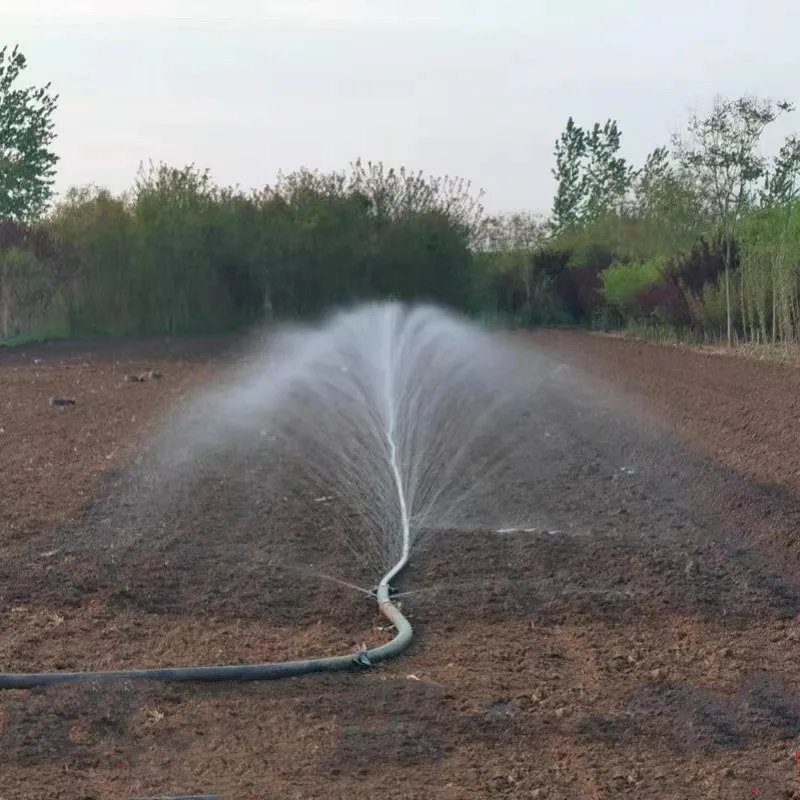

The working principle is to bring the water pressure to the field through water pipe and micro nozzle, and through the water outlet hole on micro-spraying hose, under the action of gravity and air resistance, it forms a drizzle-like spraying effect.
The water outlet holes of micro-spraying hose are mixed in multiple air groups, and are arranged according to a certain distance and a certain rule, such as oblique five holes, lateral tee holes, horizontal three holes, left and right holes and no holes, etc.
the water outlet hole generally adopts mechanical drilling, start drilling and laser drilling, the aperture is 0.1~1.2mm, and the empty shape is round. The main models are: N30, N45, N50, and N65.
Micro-spraying hose is a new type of micro irrigation equipment, also known as "sprinkler irrigation", "micro-spraying hose", "spray hose", "spray pipe", "porous hose", etc.
The working principle is to bring the water pressure to the field through water pipe and micro nozzle, and through the water outlet hole on micro-spraying hose, under the action of gravity and air resistance, it forms a drizzle-like spraying effect.
The water outlet holes of micro-spraying hose are mixed in multiple air groups, and are arranged according to a certain distance and a certain rule, such as oblique five holes, lateral tee holes, horizontal three holes, left and right holes and no holes, etc.
the water outlet hole generally adopts mechanical drilling, start drilling and laser drilling, the aperture is 0.1~1.2mm, and the empty shape is round. The main models are: N30, N45, N50, and N65.
Related Products
Our Advantages
Company Profile
Shandong Yibiyuan Water-saving Irrigation Technology Co., Ltd. is a comprehensive professional enterprise integrating the research, development, production, operation and technical services of plastic pipe, pipe fittings, sprinkling irrigation, drip irrigation, filter, fertilizer applicator, air inlet and vent valve, built-in drip irrigation pipe, cut-off valve, constant-pressure frequency-conversion control equipment, pressure compensation emitter, drip tip, current stabilizer, drip irrigation tape and other water-saving irrigation equipment. The company covers an area of 15,000 square meters, with a construction area of 5,000 square meters, and has a total investment of 3 million yuan. It has more than 100 employees, including 50 employees with college degree or above, 20 engineering technicians above intermediate level and 8 senior engineers. The company produces and sells 5,000 tons of water-saving irrigation equipment annually. On the basis of introducing advanced technology at home and abroad, through extensive contact and cooperation with China Agricultural University, Irrigation Research Institute of the Ministry of Water Resources and other scientific research institutions and engineering companies, as well as continuous efforts of our own, Yibiyuan water-saving irrigation equipment has been leading in technology and quality, which is at the leading level in domestic similar products. The company has a complete range of products, high quality and perfect service, which are well received by users all over the world.
FAQ
Q: Are you a manufacturer?
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What are your payment terms?
A: Generally, we accept T/T payment, 30% in advance and the rest before shipment. Please contact your sale representatives for details.
Q: What's the lead time of the sprinkler hose with holes?
A: The lead time is about 7~15 days.
Q: I haven't done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: What's your shipment terms?
A: We generally go FOB Qingdao or Ex Works. You can talk to your sales rep for other options.
Q: Can you send me some samples before the mass order?
A: Yes, we're glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What are your payment terms?
A: Generally, we accept T/T payment, 30% in advance and the rest before shipment. Please contact your sale representatives for details.
Q: What's the lead time of the sprinkler hose with holes?
A: The lead time is about 7~15 days.
Q: I haven't done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: What's your shipment terms?
A: We generally go FOB Qingdao or Ex Works. You can talk to your sales rep for other options.
Q: Can you send me some samples before the mass order?
A: Yes, we're glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
Похожие товары
Оптовая продажа садовый Быстрый соединительный шланг соединитель для шланга воды фитинги пластиковые соединители мужчин
59,61-107,29 ₽

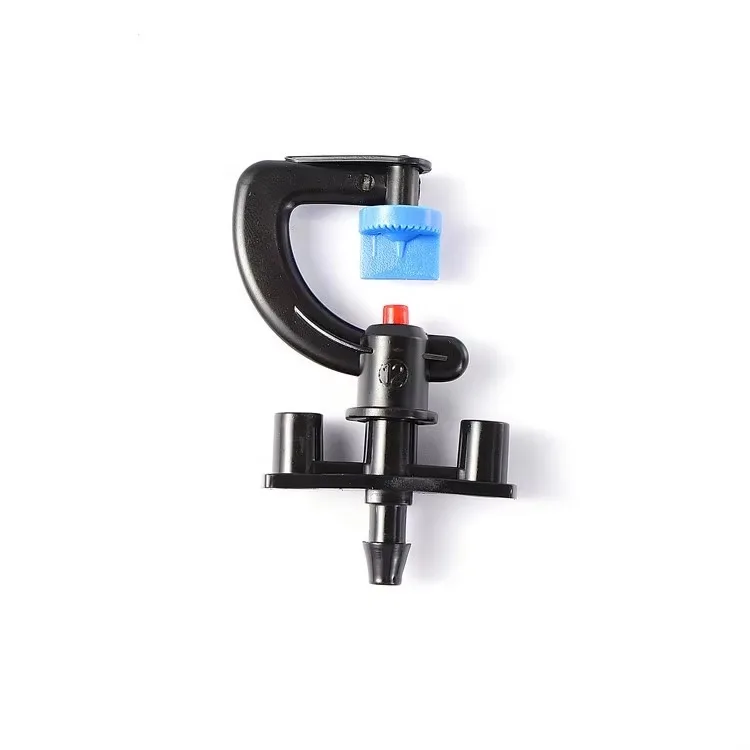

Новый дизайн более высокое распределение однородный мини-спринклер для полива орошения доступный в большом количестве
Оросительная машина с центральным поворотом 3/4 дюйма микро-спринклер подобный Нельсону

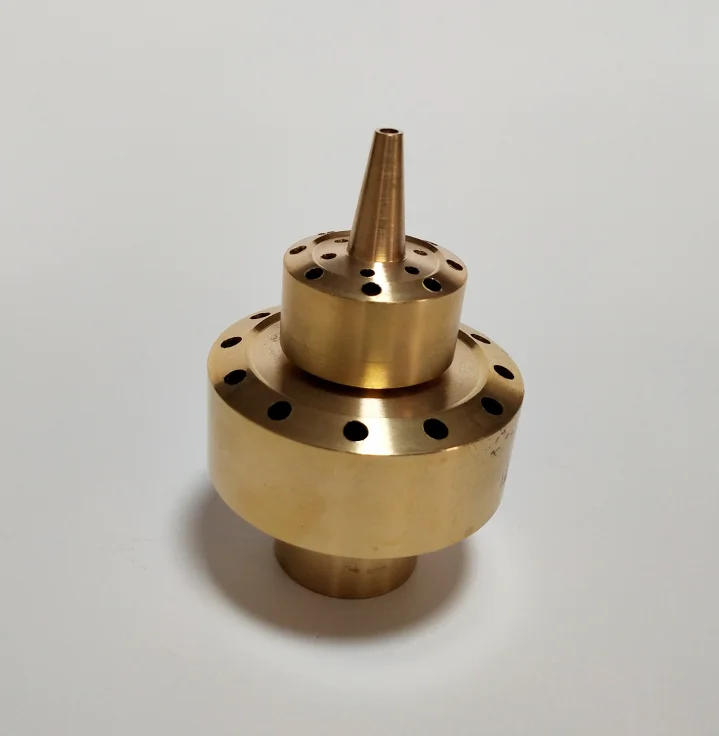

Медь 2 слоя Стиль сопло фонтана латунь сопла струи воды фонтанные форсунки

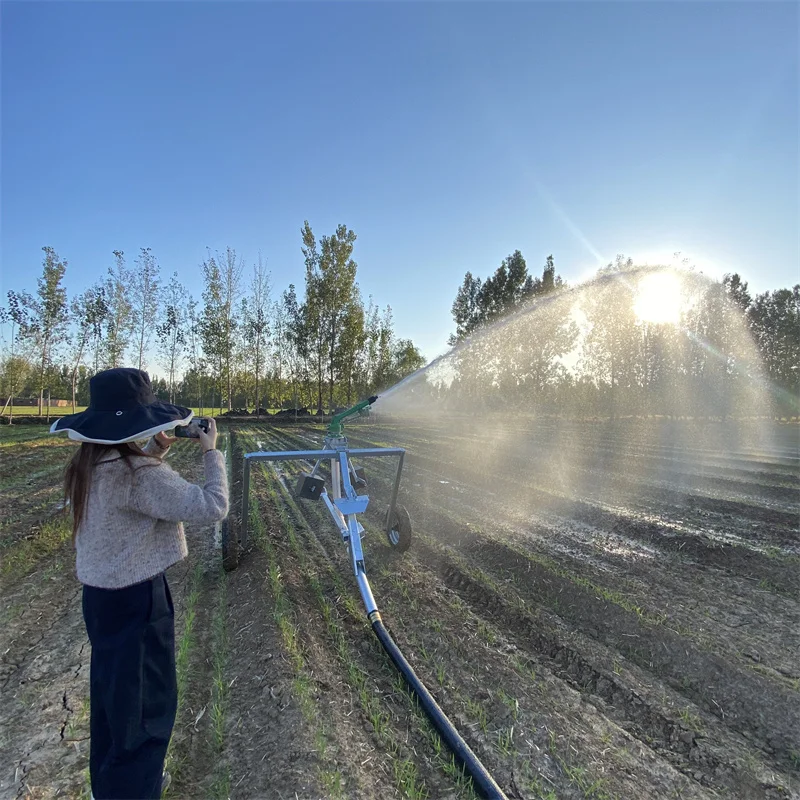

Новая полностью автоматическая передвижная лебедка дисковая спринклерная ирригационная машина Самоходная для прокатки затвора
