Высокоскоростной станок для изготовления каркаса с зажимами
11 800,00 $
HAIXING Glacure Tole De Toiture Machine Moulage
- Категория: >>>
- Поставщик: Tianjin Haixing Imp & Exp Co. Ltd.Tianjin Ltd.
Сохранить в закладки 1600693765694:
Описание и отзывы
Характеристики
Product Description

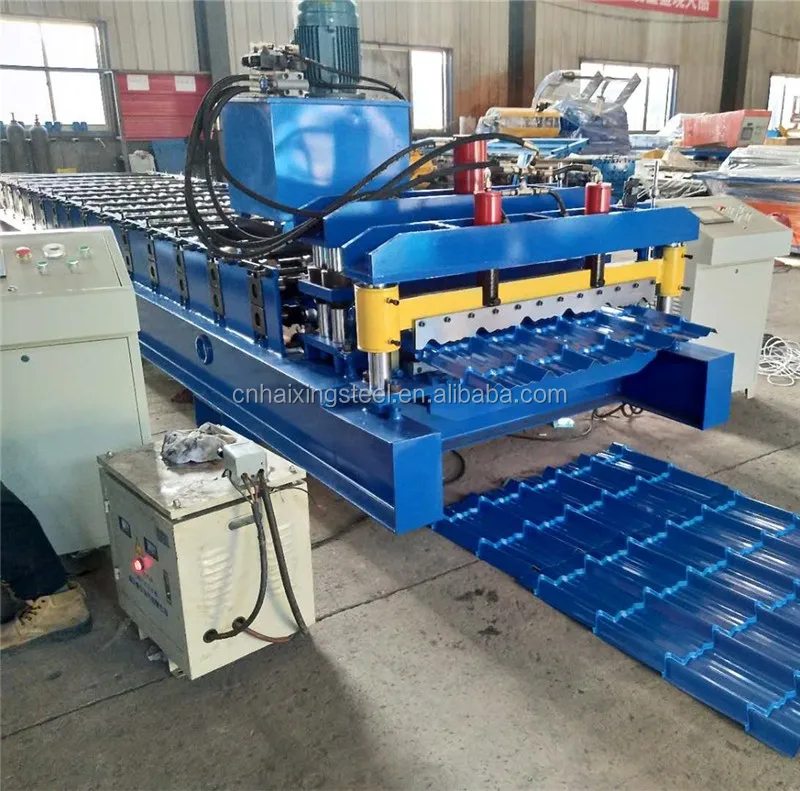

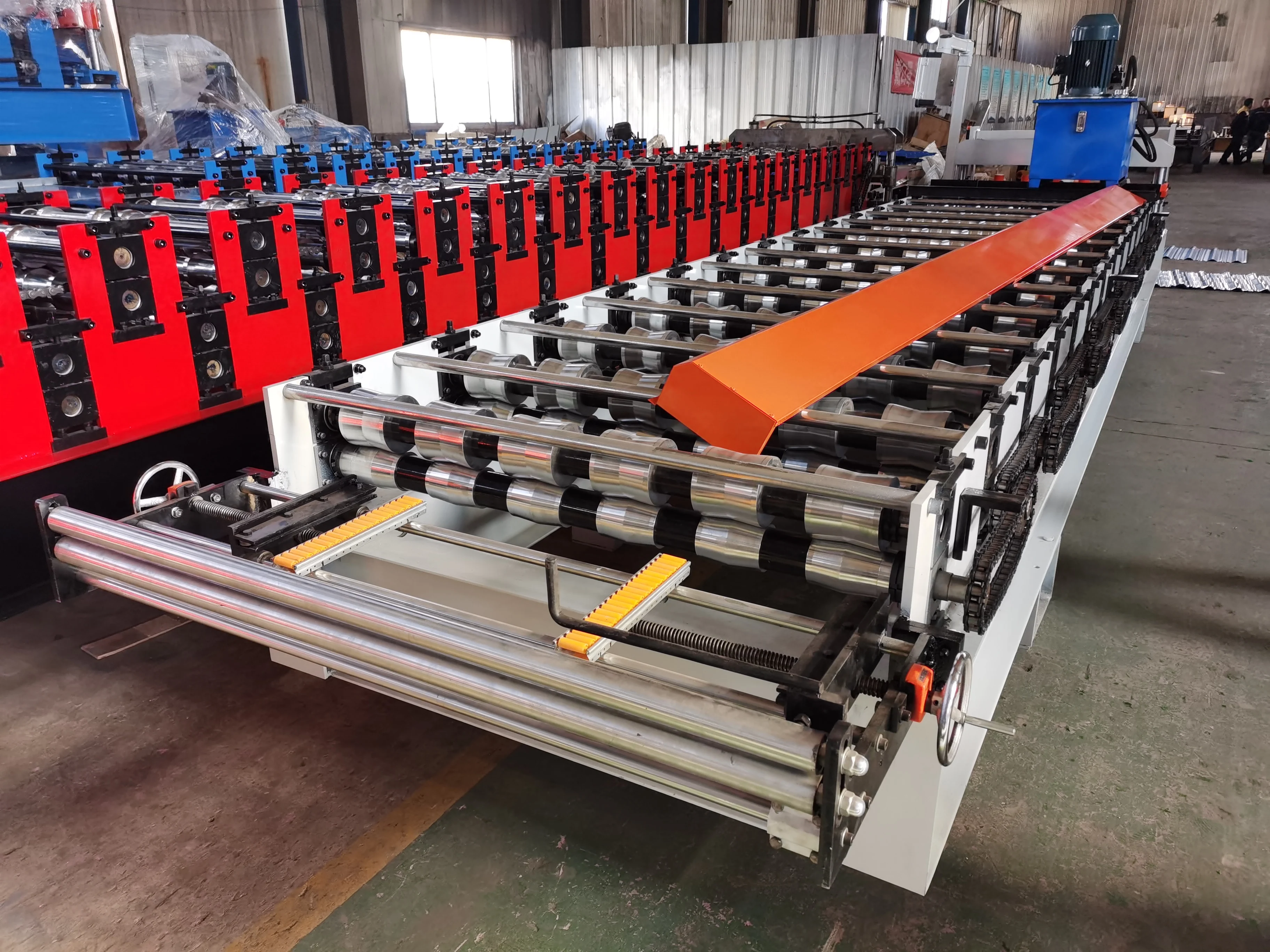

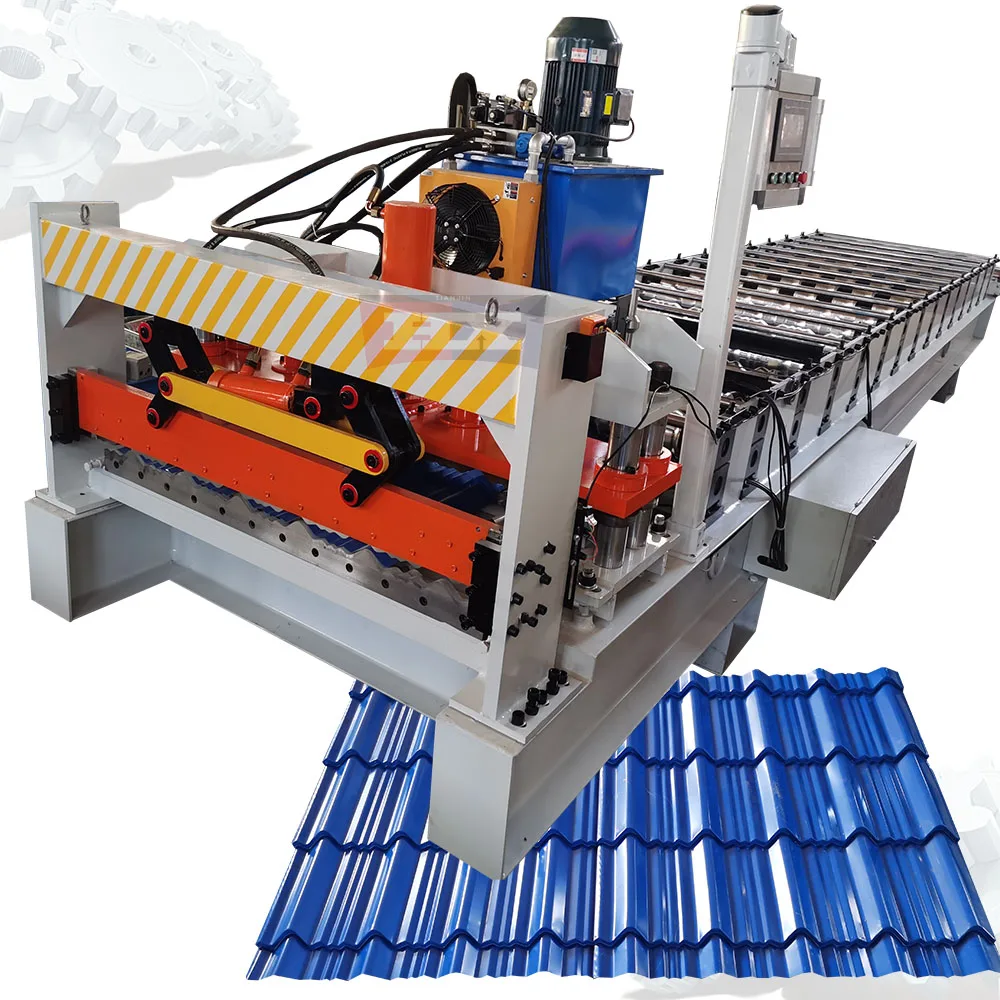

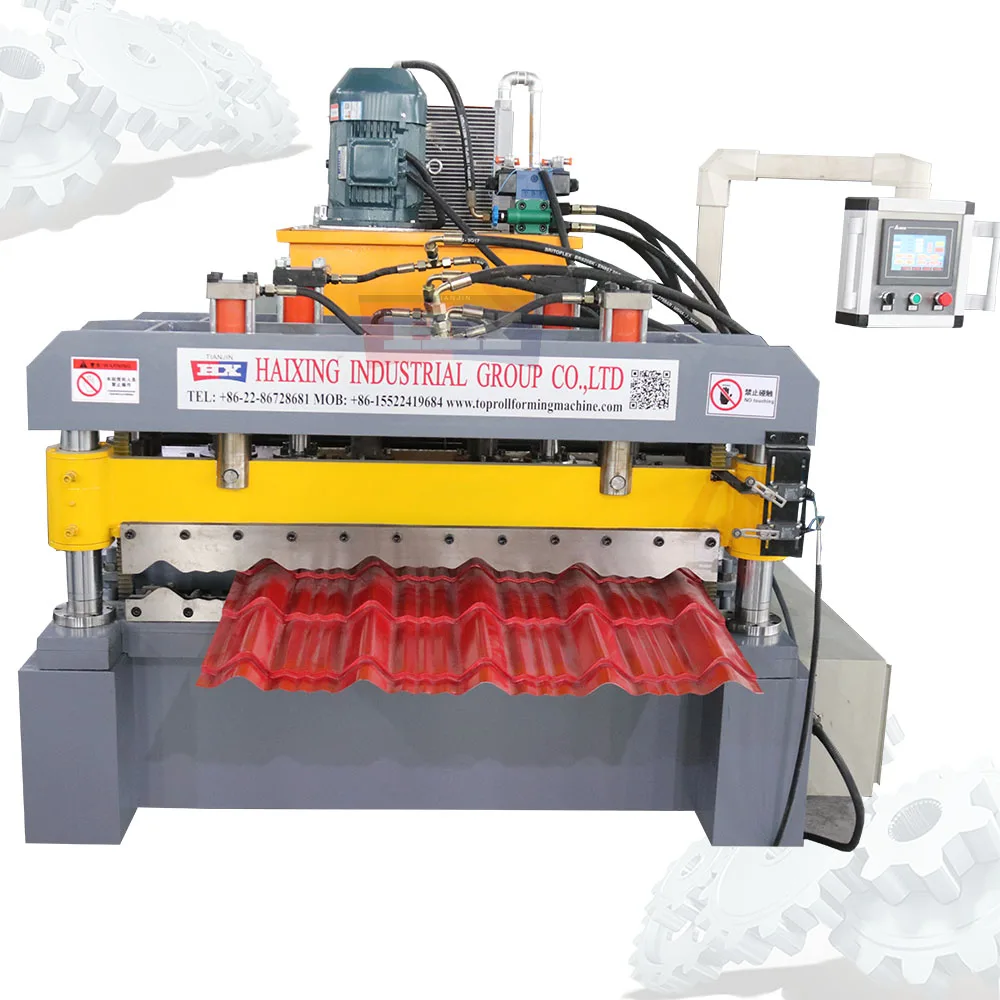

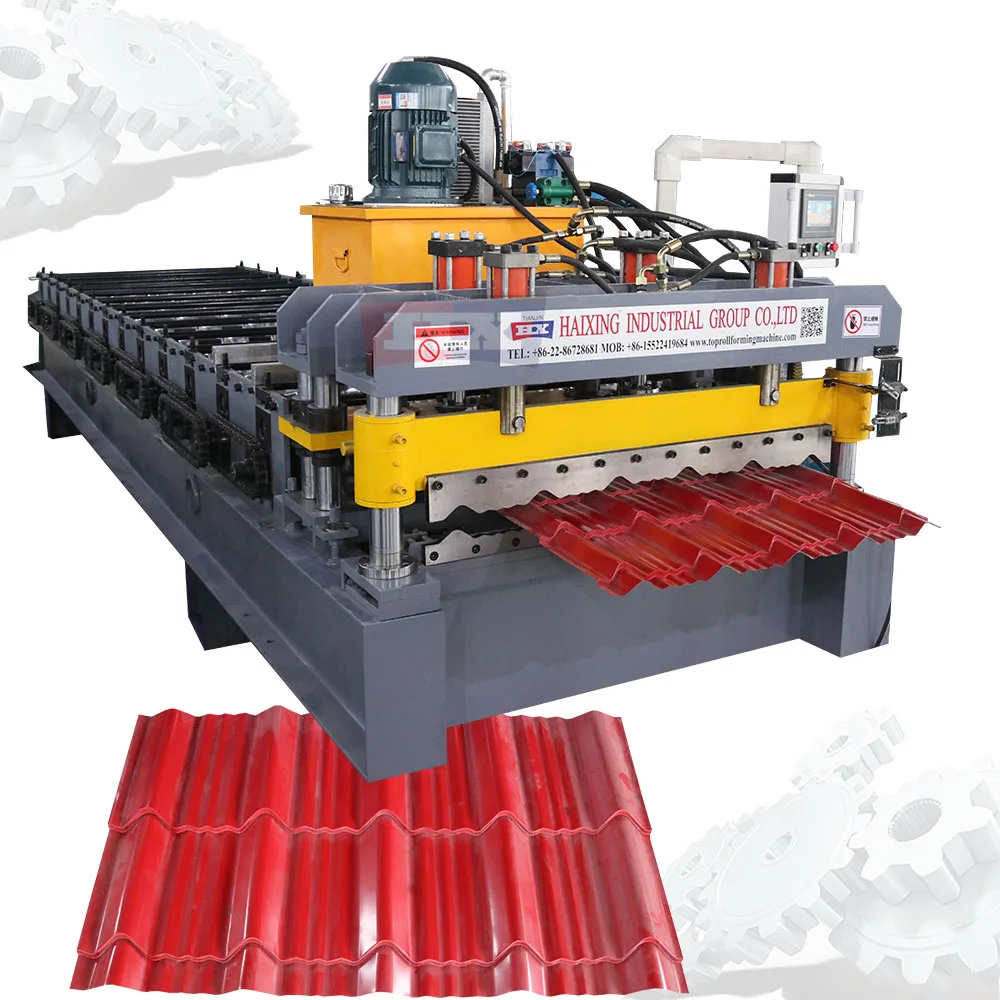

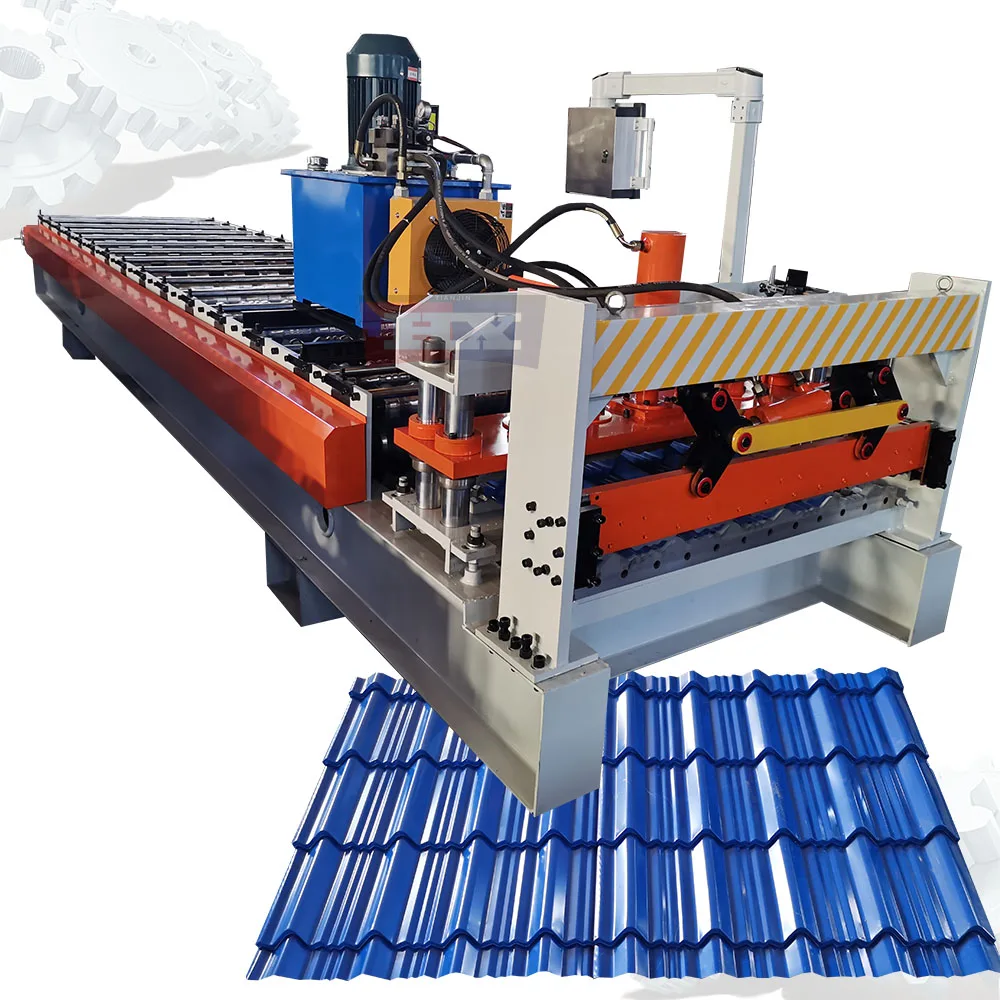

HAIXING glaçure tôle de toiture machine de moulage
Haixing glazed tile making machine color steel tile forming machine is popular in the world, with over 20 years producing and export experience, we would like to assist every customer to make the suitable machine and produce perfect roof, tile.

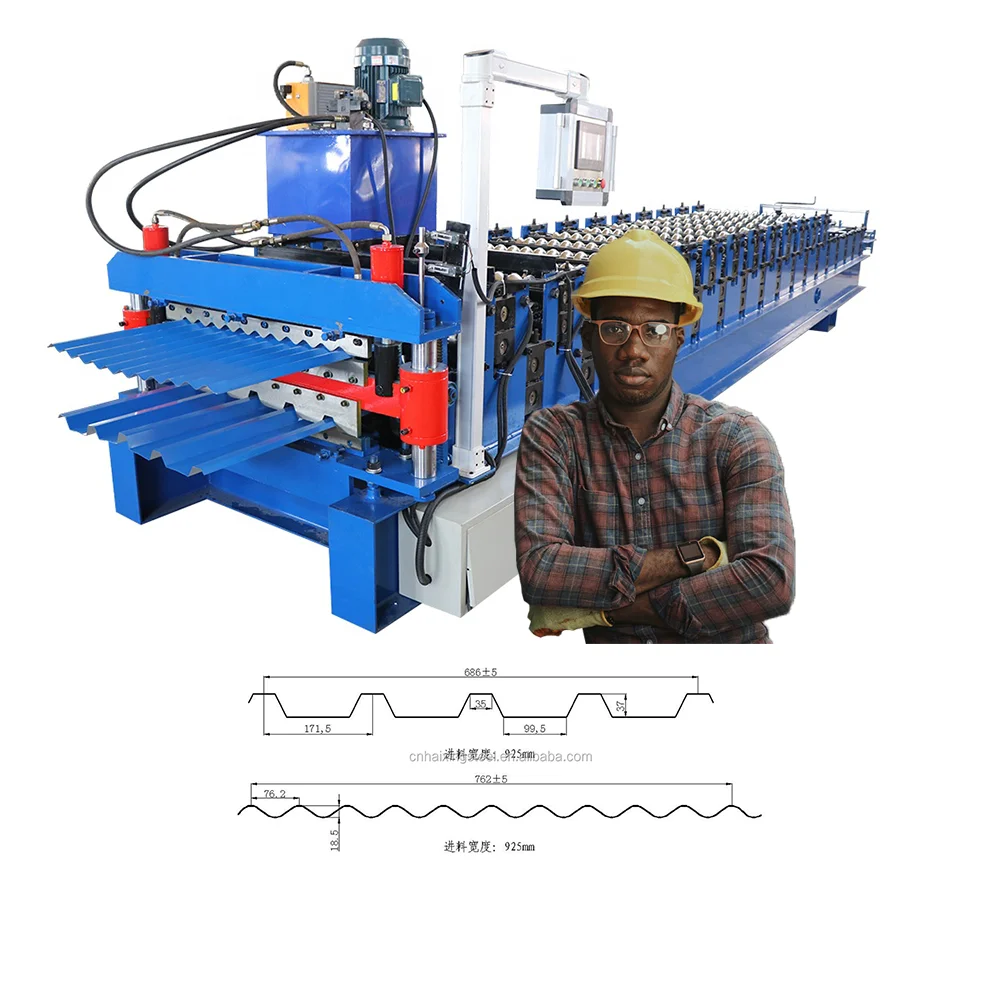

HAIXING glaçure tôle de toiture machine de moulage different profiles photo

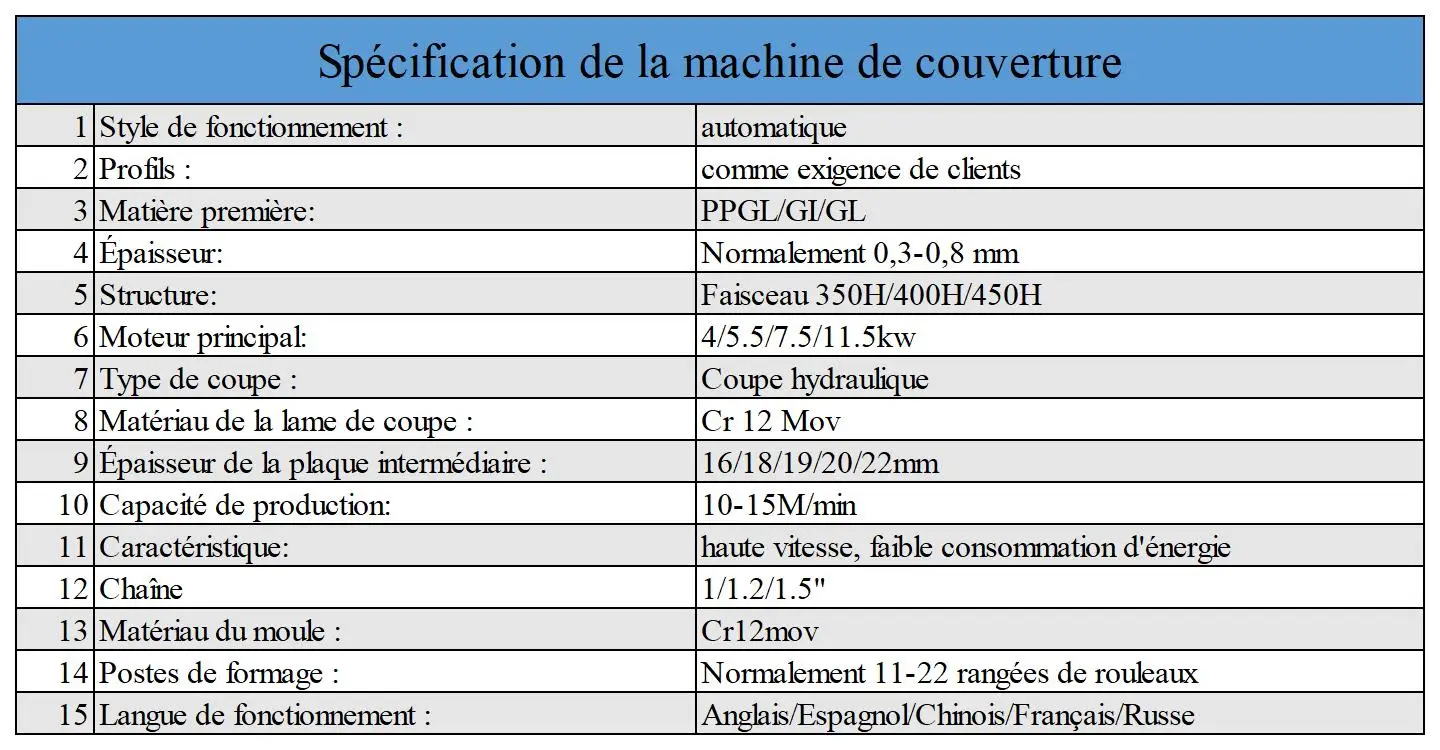

Specification
HAIXING glaçure tôle de toiture machine de moulage | ||||||||
Raw material | Color alu-zinc steel coil | |||||||
Dimensions | 6.8*1.5*1.5m | |||||||
Weight | 5200kg | |||||||
Main structure of the machine | 350mm H-Beam | |||||||
Side panel of machine | 16mm | |||||||
Thickness of the plate | 0.3-0.8mm | |||||||
Width of the plate | Max Material Width:1200mm | |||||||
Drive mode | Chain Wheel and Cycle Chain Width:1 Inch | |||||||
Productivity speed | 10-15m/min | |||||||
Rollers | 14rows | |||||||
Rolling materials | 45# forging steel with chromium plate | |||||||
Diameter of the roller | Φ70mm,Solid | |||||||
Motor Power | 5.5KW | |||||||
Pump Station Motor | 4KW | |||||||
Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ | |||||||
Control system | PLC control (Brand: Delta ) | |||||||
Touch screen | Delta | |||||||
Frequency system | Delta | |||||||
Voltage | 380V 50Hz 3phases (Customized) | |||||||

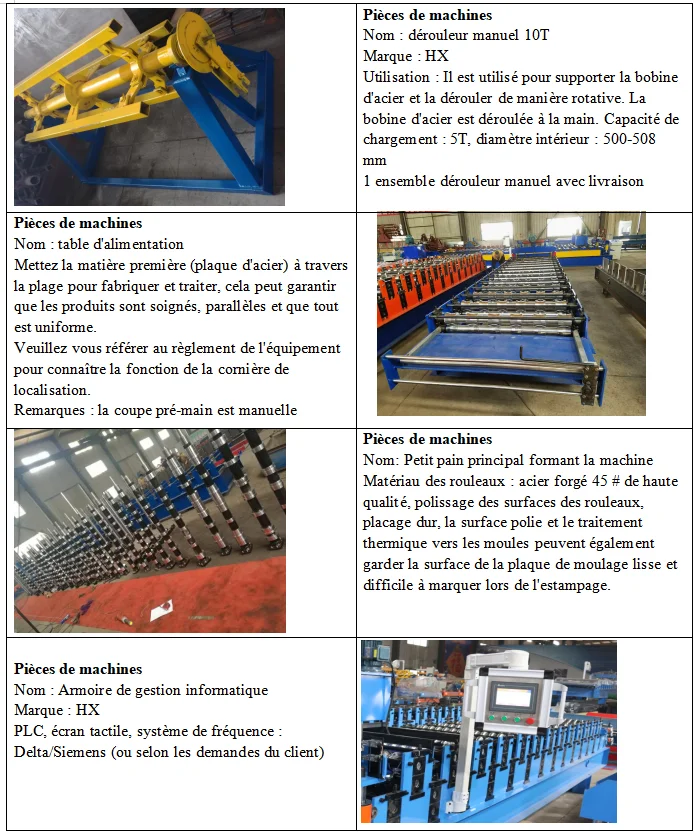

PICTURE DETAILS

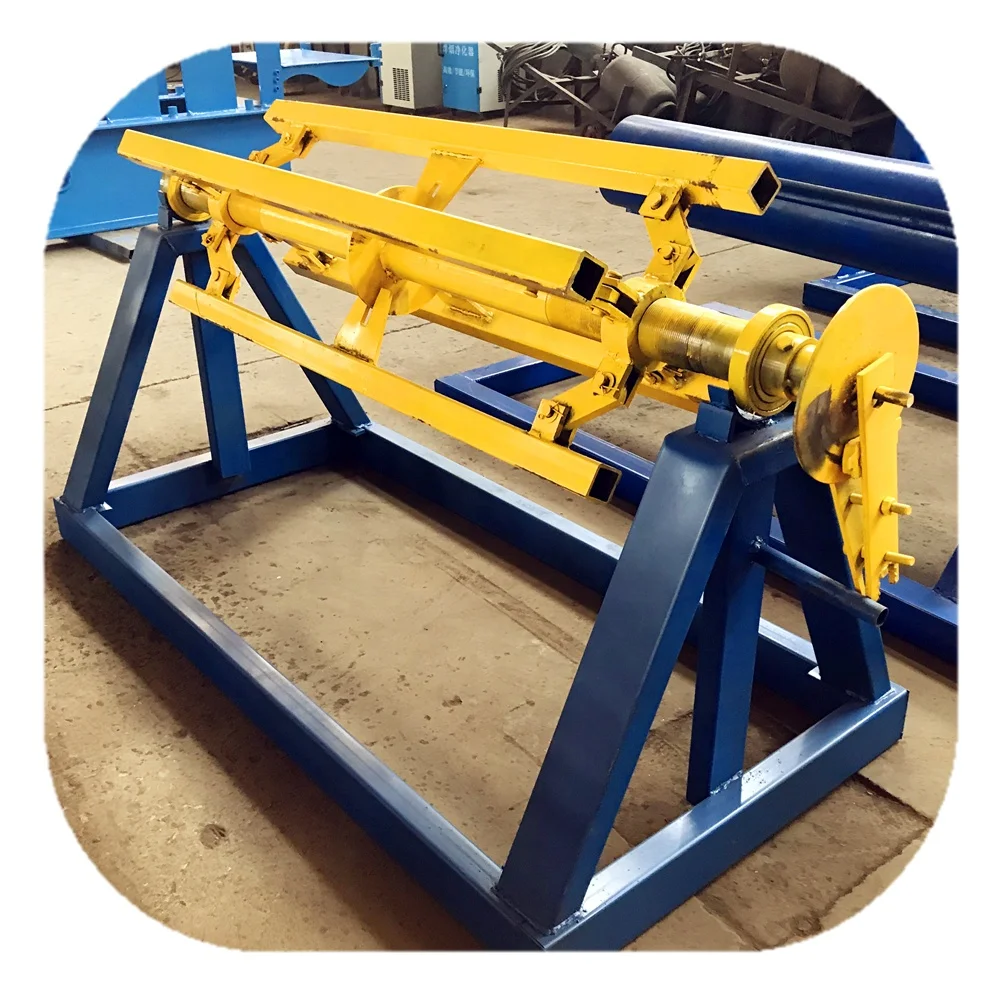

Name: Manual Decoiler
Usage: Mainly used to support steel coils, and manually uncoil and straighten the coil into the feeding table.
Steel coil width : 940, 1200, 1220 mm. (According to your actual drawing)
Loading capacity: 5T
Inner diameter: 470-530mm
Steel coil width : 940, 1200, 1220 mm. (According to your actual drawing)
Loading capacity: 5T
Inner diameter: 470-530mm
Name: Feeding table
Usage: Applied to control the width and position of the steel sheet,which is guided into the correct position of machine to make
sure the panel is neat and parallel.
Other Accessorie: The hand knife can cut the raw materials and control the length of the feed, thereby saving raw materials.
sure the panel is neat and parallel.
Other Accessorie: The hand knife can cut the raw materials and control the length of the feed, thereby saving raw materials.

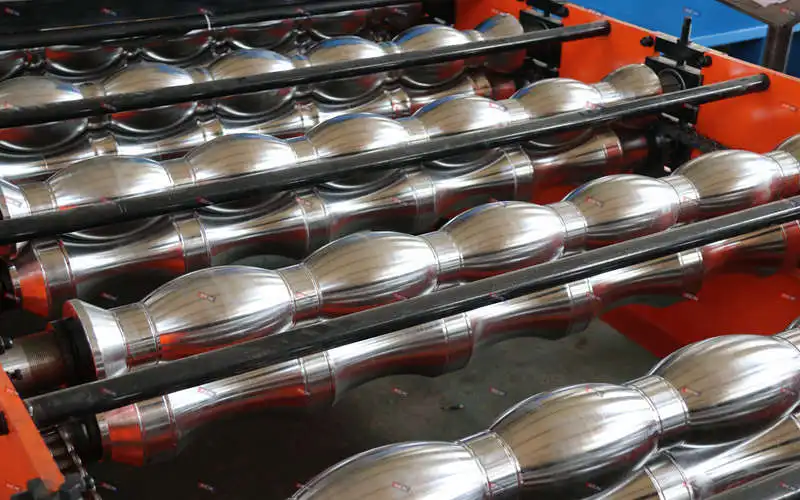

Name: Main rollers
Material: High grade 45# steel
Characteristic:After being forged, polished, heat-treated and finally chromeplated, they are very solid and not easy to wear. At
the same time, the roof tiles are smooth without burrs.
Characteristic:After being forged, polished, heat-treated and finally chromeplated, they are very solid and not easy to wear. At
the same time, the roof tiles are smooth without burrs.

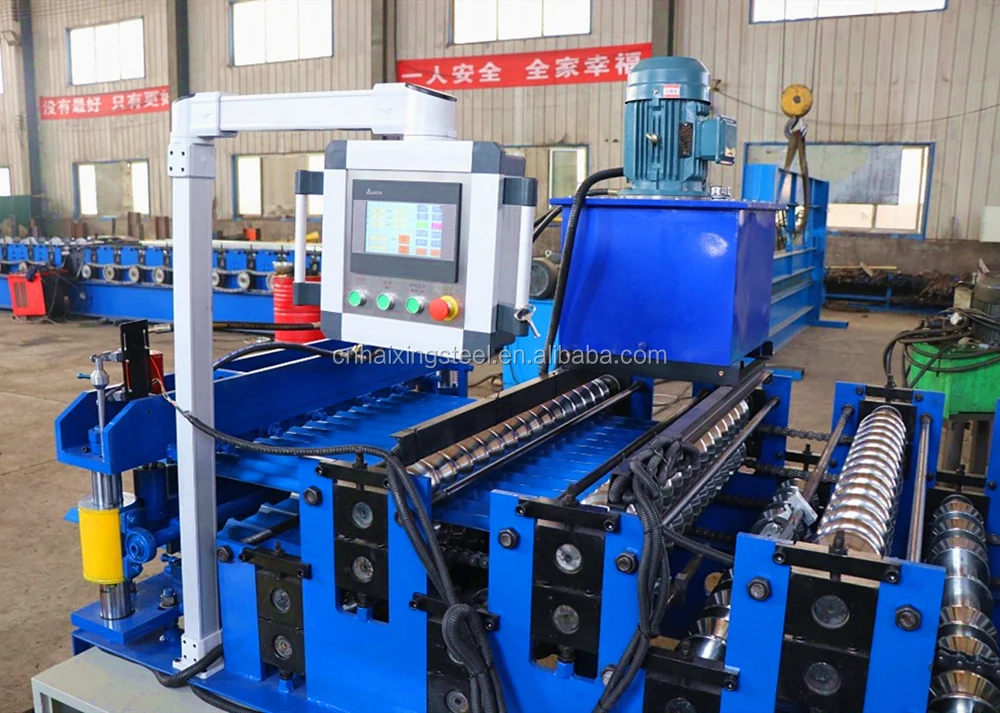

Name: Computer Control Cabinet
Brand: Lichao, Delta, Siemens
(According to customers）
Characteristic: It promotes fully automatic production of machines. With 360°rotating console, that greatly saves manpower.
Opreation language: Chinese/English/Russsian/Spanish
(According to customers）
Characteristic: It promotes fully automatic production of machines. With 360°rotating console, that greatly saves manpower.
Opreation language: Chinese/English/Russsian/Spanish

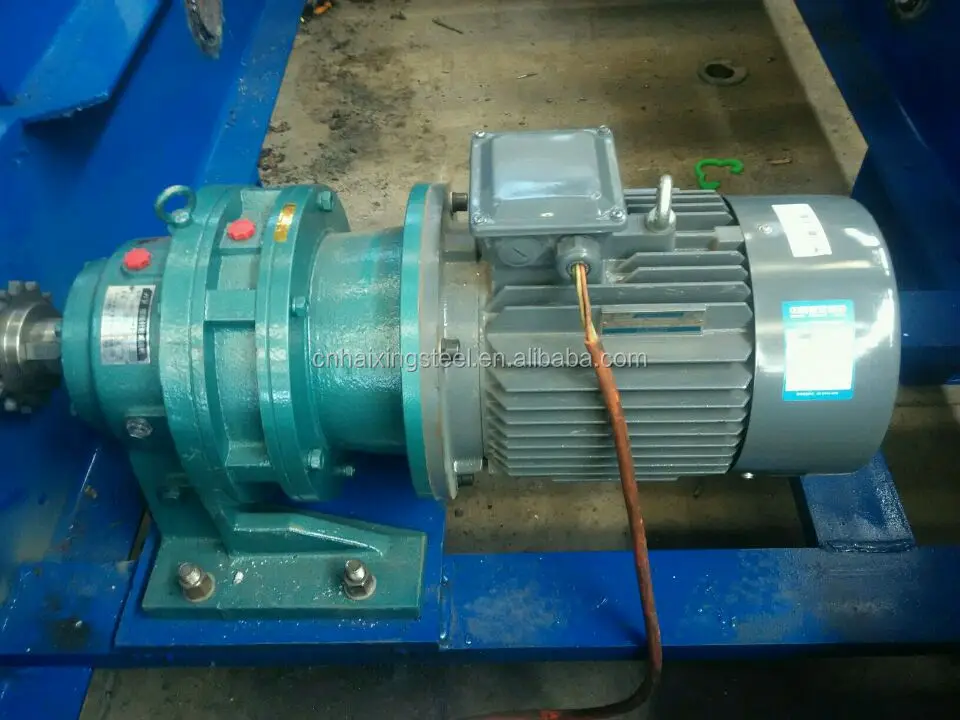

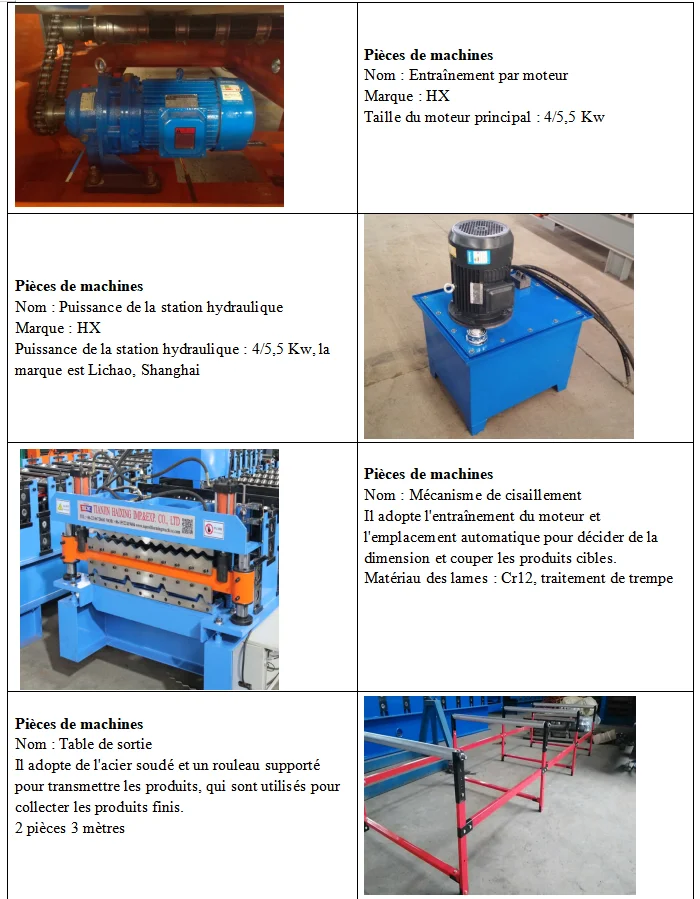

Name: Motor driver
Main motor size :5.5Kw
Brand: The famous brand from Jermany Siemens or Lichao, Shanghai or according to customer's need
Brand: The famous brand from Jermany Siemens or Lichao, Shanghai or according to customer's need

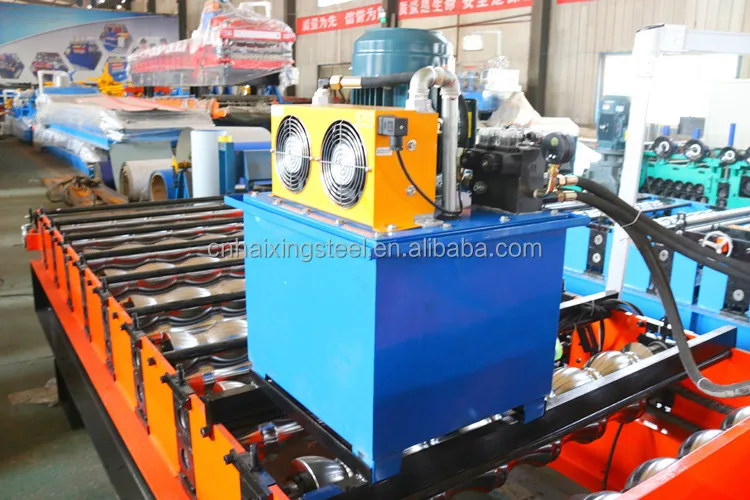

Name :Hydraulic station power
Hydraulic station power: 4Kw,
Brand: The famous brand from Jermany Siemens or Lichao, Shanghai or according to customer's need
Name: Cutting head
It adopts the Motor drive and automatic location to decide the dimension and cut the target products. Material of blades:
Cr12,quenching treatment
Cr12,quenching treatment

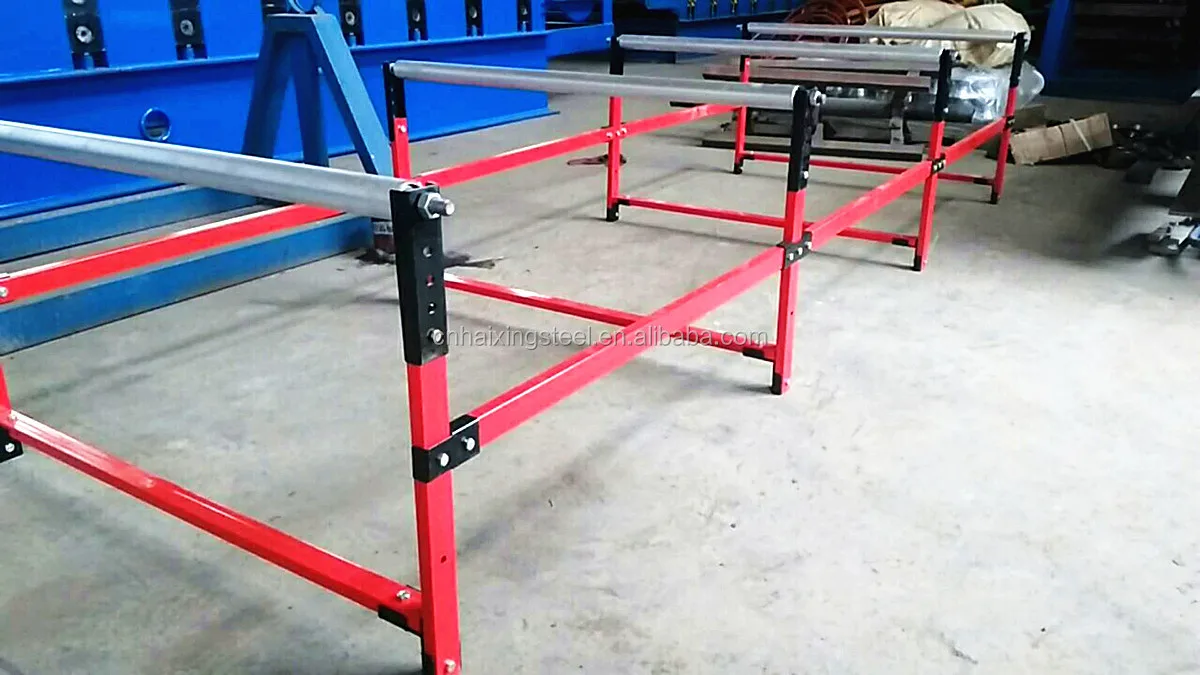

Name: Received goods table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. 2 pieces
3meters
3meters
HAIXING glaçure tôle de toiture machine de moulage include the following machine and parts | ||||||||
Passive Decoiler | 1Set | |||||||
Feeding Platform with Pre-cutter | 1Set | |||||||
Roll Forming Machine main body | 1Set | |||||||
PLC Control System | 1Set | |||||||
Hydraulic Cutting System | 1Set | |||||||
Exit Rack for roofing production | 2Pieces 3Meters | |||||||

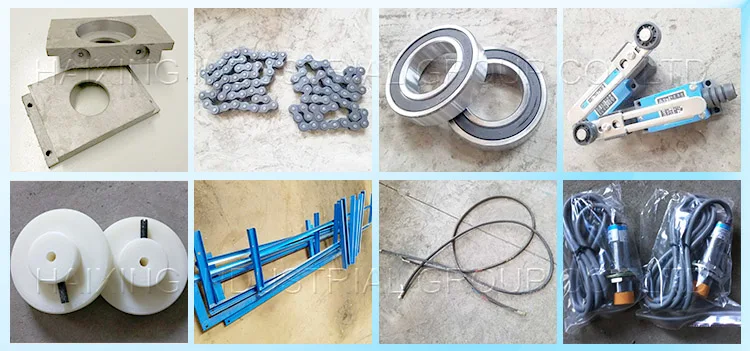

Spare parts as following photos | One carton box spare parts as following photos | |||||||

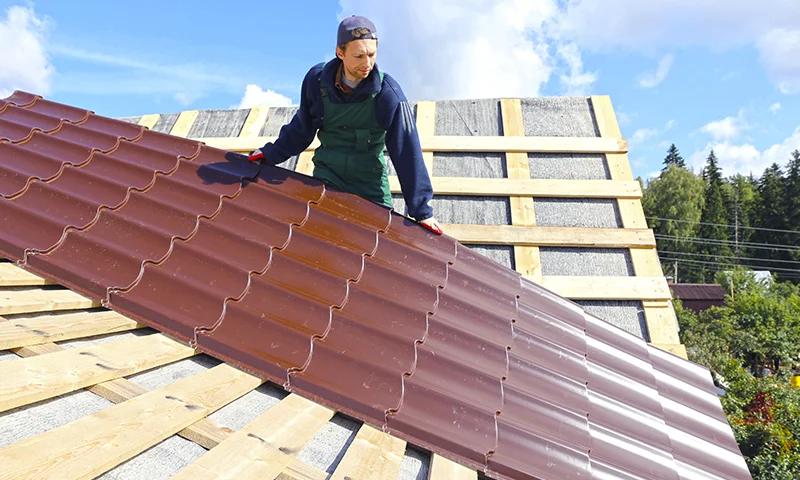

Applications

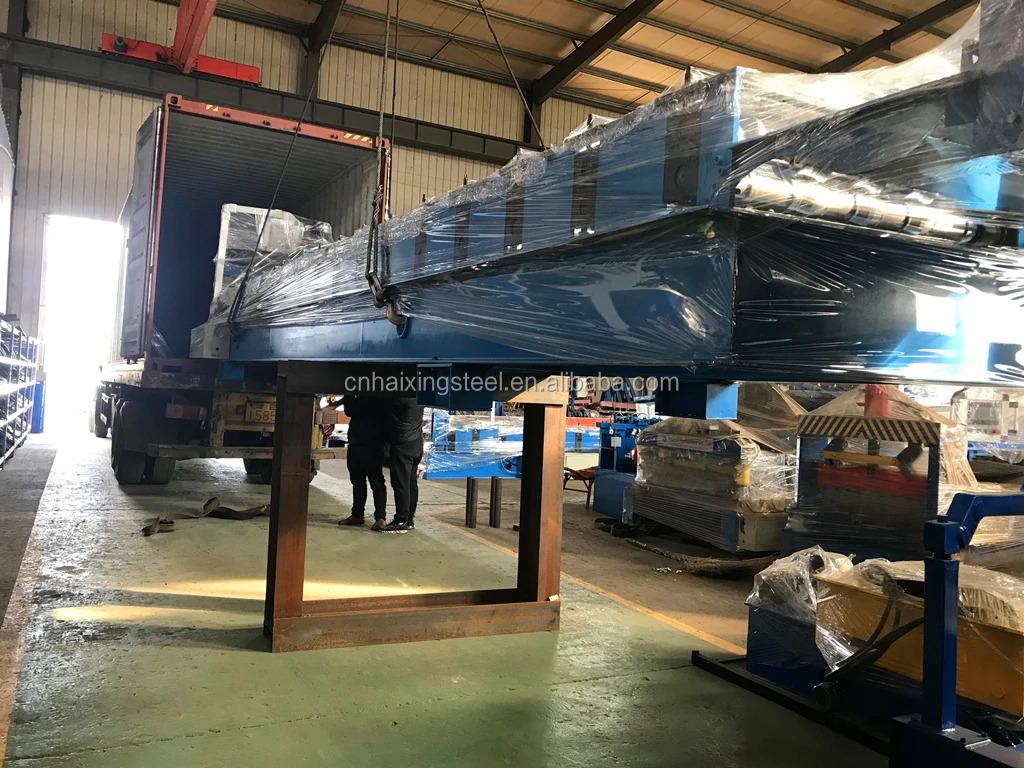

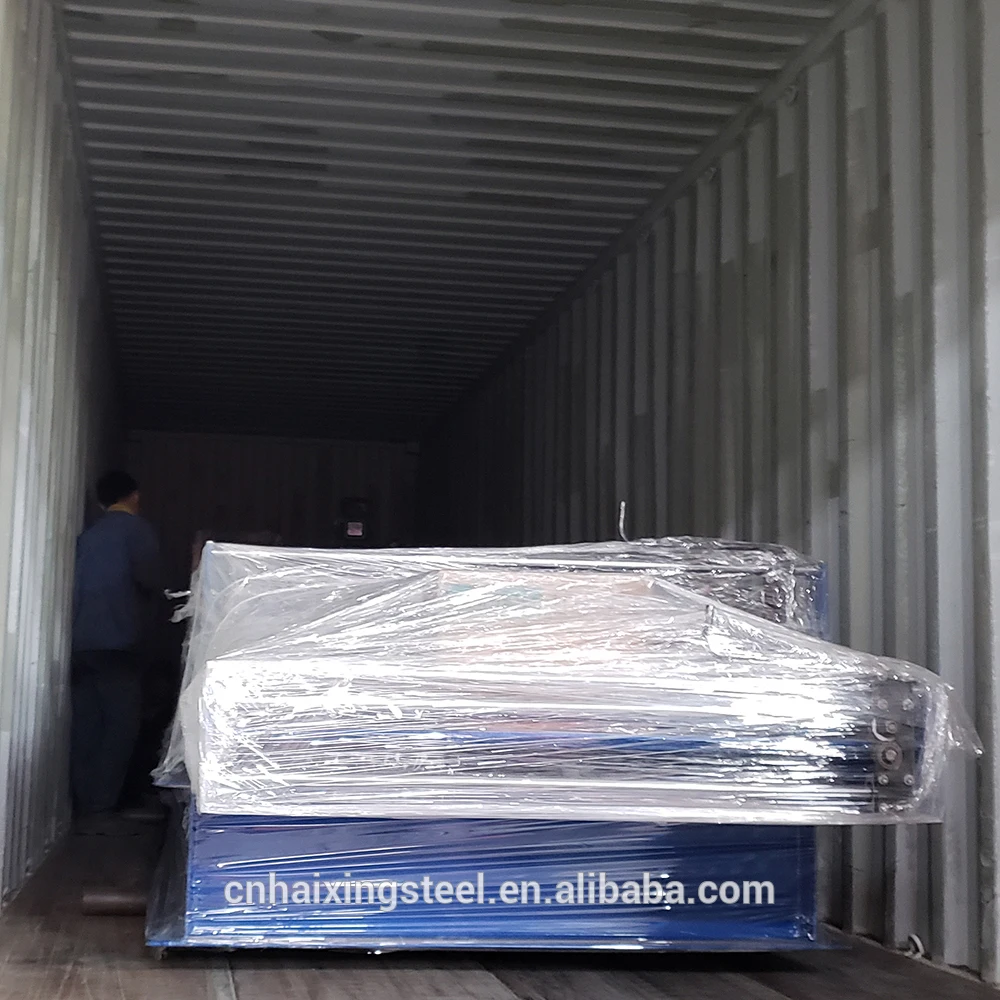

Packing & Delivery

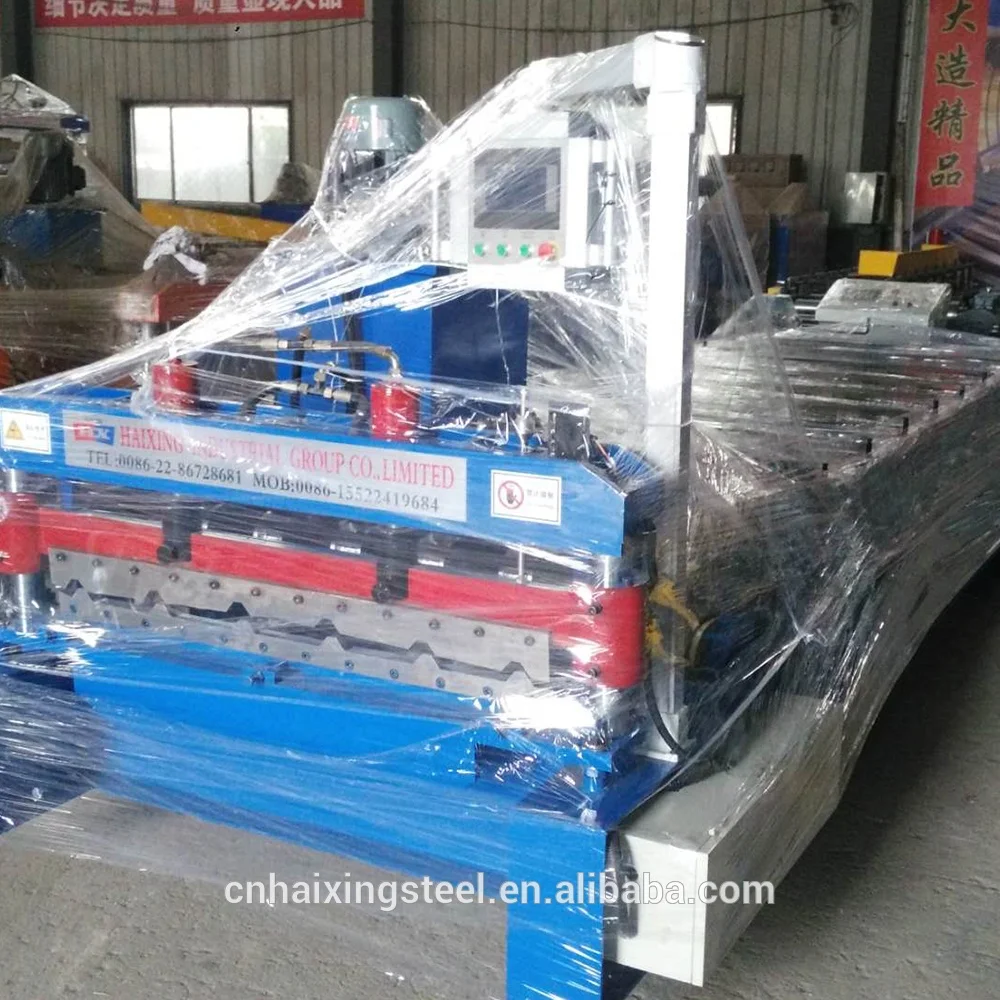

1.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
2.Rollers and shafts are covered with anti-rust oil.
3.PLC control system and motor pump are packed with waterproof paper and plastic film.
4.Spare parts in a carton box.
5.Manual decoiler was nude packing.
6.The output-table put into a carton box.
2.Rollers and shafts are covered with anti-rust oil.
3.PLC control system and motor pump are packed with waterproof paper and plastic film.
4.Spare parts in a carton box.
5.Manual decoiler was nude packing.
6.The output-table put into a carton box.
7.Packaging is totally fit for ocean shipping.

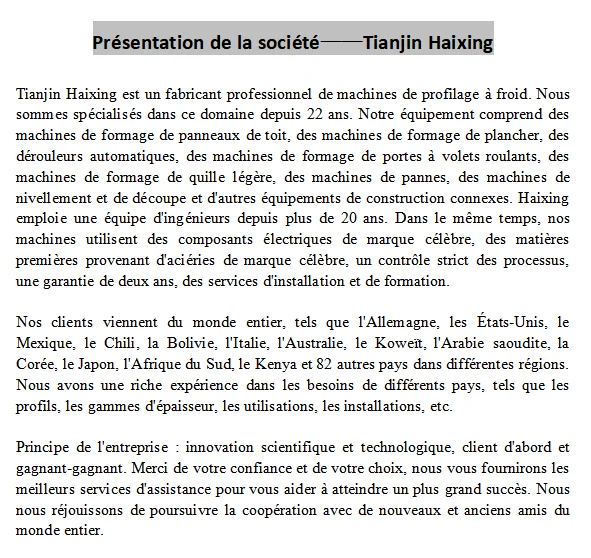

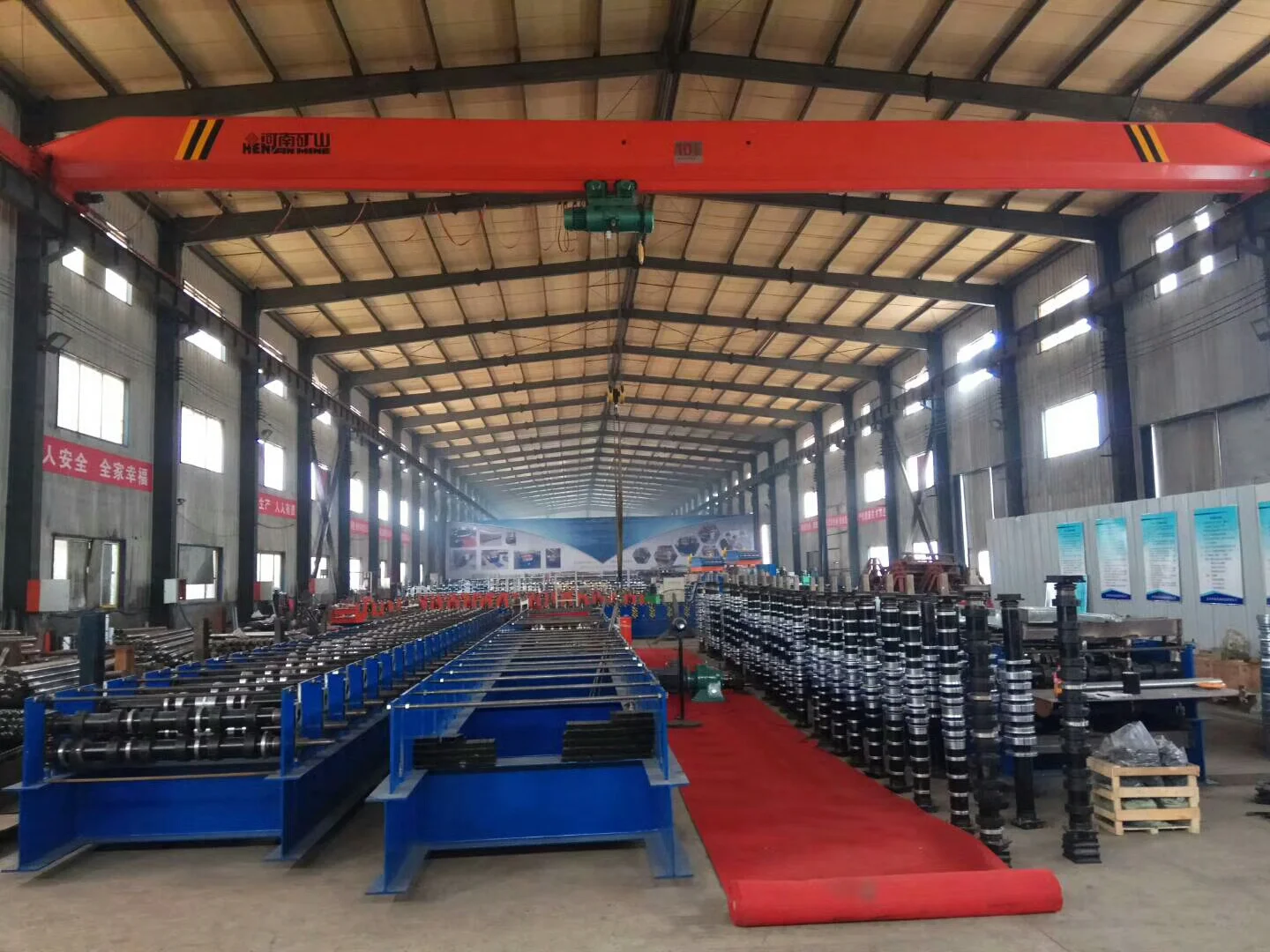

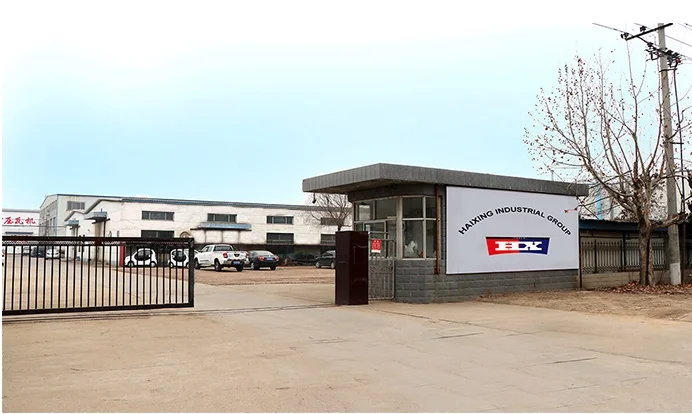

Company Profile
We, Tianjin Haixing is a professional cold roll forming machine manufacturer, We have been focusing on this field for 22 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.
Haixing has a experienced team of engineers. At the same time, our machines use international branded electrical components, raw materials from branded steel factories, we have strict process control susterm, our machines are two-year warranty, free installation and training services.
Our customers are all over the world, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.
Haixing has a experienced team of engineers. At the same time, our machines use international branded electrical components, raw materials from branded steel factories, we have strict process control susterm, our machines are two-year warranty, free installation and training services.
Our customers are all over the world, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.
WHY CHOOSE US
Warranty | 2 Years warranty and lifetime service | ||||||
Electrical parts brand | Internationl brand, for example Simens,Taiwan Delta,Omron,Schneider | ||||||
Export experience | Exported to 85+ countries with 20 years manufacture experience | ||||||
Our team | 5 CAD engineers,15 technicians, 200 workers and 30 sales | ||||||
Certification | CE,ISO9001,SGS | ||||||
After sales service | 24 hours online service | ||||||

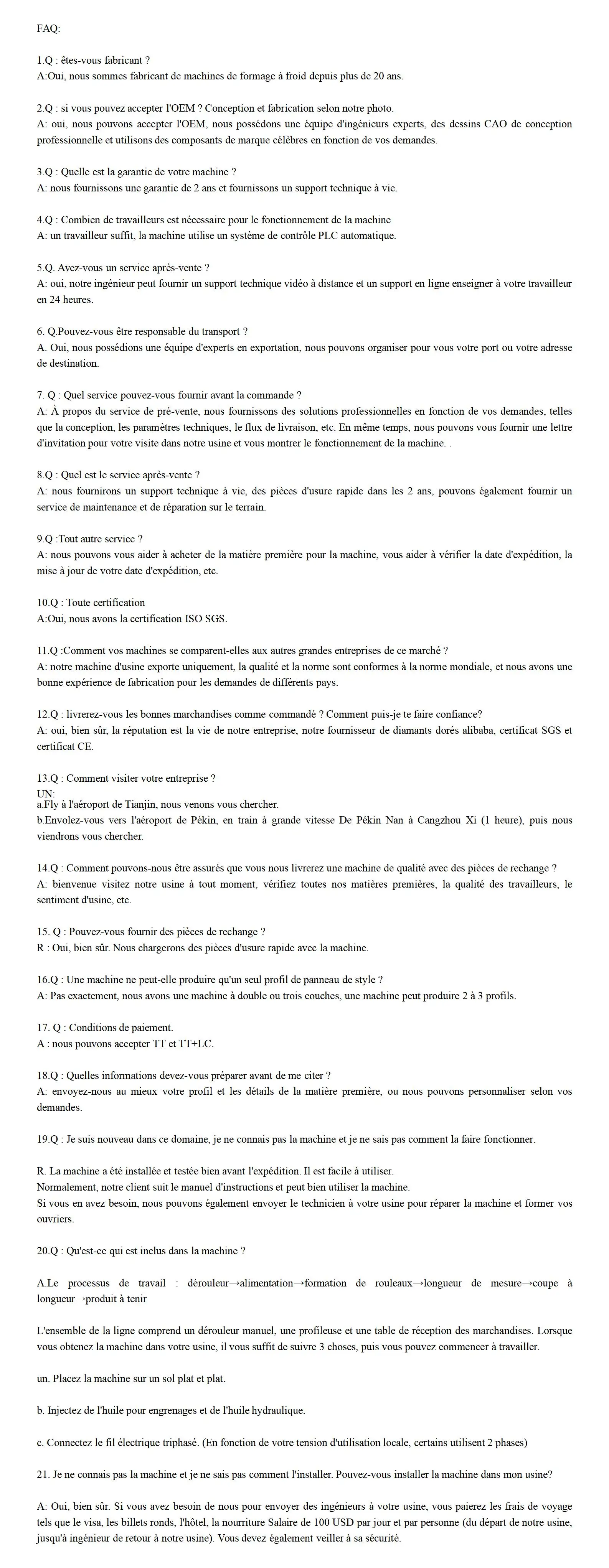

FAQ
1.Q:Are you manufacturer?
A:Yes,we are manufacturer for cold roll forming machine over 20 years.
2.Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
3.Q:What's the warrany for our machine?
A: we provide 2years guarantee and provide lifetime technical support.
4.Q:How many workers is needed for the machine operation ？
A: One worker is engough, the machine use automatic PLC control system.
5.Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
6.Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter,
delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
7.Q: What is the after- sale service?
A: we will supply lifetime technical support and supply quick-wear parts within 2years.
A:Yes,we are manufacturer for cold roll forming machine over 20 years.
2.Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
3.Q:What's the warrany for our machine?
A: we provide 2years guarantee and provide lifetime technical support.
4.Q:How many workers is needed for the machine operation ？
A: One worker is engough, the machine use automatic PLC control system.
5.Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
6.Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter,
delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
7.Q: What is the after- sale service?
A: we will supply lifetime technical support and supply quick-wear parts within 2years.
8. Q: What's the delivery time?
25 days after deposit receipt your payment
9.Q: Installation and training
a.If buyers visit our factory and check the Glazed tile making machine color steel tile forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the Transportation and accommodation expenses.
8. Q:what can you buy from us?
Roof & Wall Roll Forming Machine,Floor Deck Roll Forming Machine,Light Steel Keel Roll Forming Machine,CZ Purling Roll Forming Machine,Leveling Slitting Roll Forming Machine and other related machine.
a.If buyers visit our factory and check the Glazed tile making machine color steel tile forming machine , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the Transportation and accommodation expenses.
8. Q:what can you buy from us?
Roof & Wall Roll Forming Machine,Floor Deck Roll Forming Machine,Light Steel Keel Roll Forming Machine,CZ Purling Roll Forming Machine,Leveling Slitting Roll Forming Machine and other related machine.
HAIXING glaçure tôle de toiture machine de moulage business card
For more information of the roll forming machine, please feel free to contact us as in the businiss card.
