Машина для монтажа микросхем SMT /SMD ETON T9 машина установки и светодиодов smd оборудование размещения smt
- Категория: >>>
- Поставщик: Shenzhen Eton Automation Equipment Co. Ltd.
Сохранить в закладки 1600694340036:
Описание и отзывы
Характеристики
Product Description
Rope Strip Light SMT Line
SMT Line is the short name of surface mounting technology, it is widely apply to all kinds of electrical board and led lighting industry, usually have Semiautomatic smt line and Automatic smt line. SMT Line mainly included Stencil printing machine, Pick and place machine, Reflow oven machine, PCB Conveyor machine, Loader, etc.
ETON T9 SMT Line is professional design for 25M/50M/100M/200M rope led strip light
Semi-automatic Stencil Printer
Semiautomatic Stencil Printer Machine function is print solder paste on the PCB.
It is the first step on the SMT Line, semiautomatic printer is widely application and very easy to operate with different PCB Design.
ETON Stencil printer machine scrapers of different sizes are available.
Module name: | Semi auto stencil printer | Printing cycle: | 5-20 S | |
Dimension: | 1650*750*1650 mm(L*W*H) | Air Pressure: | 4-6 kgf/cm^2 | |
Platform Size: | 320*1250 mm | Weight: | 280 kg | |
PCB Size: | 300*1200 mm | Printing control method: | Touch screen+PLC |

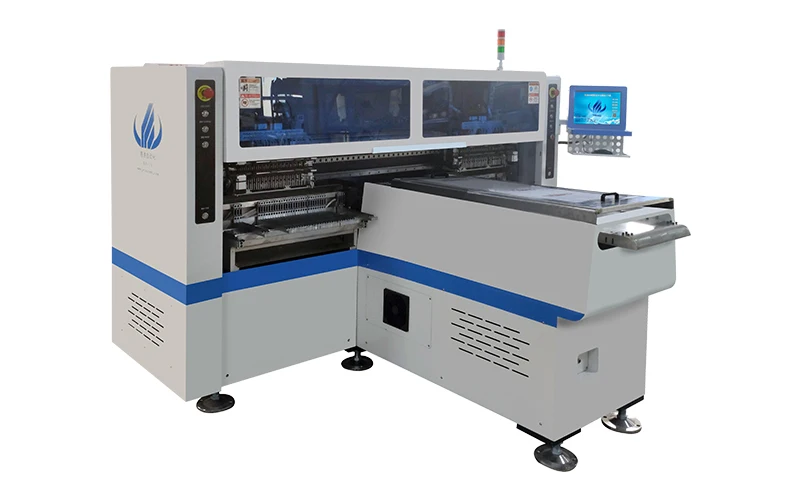

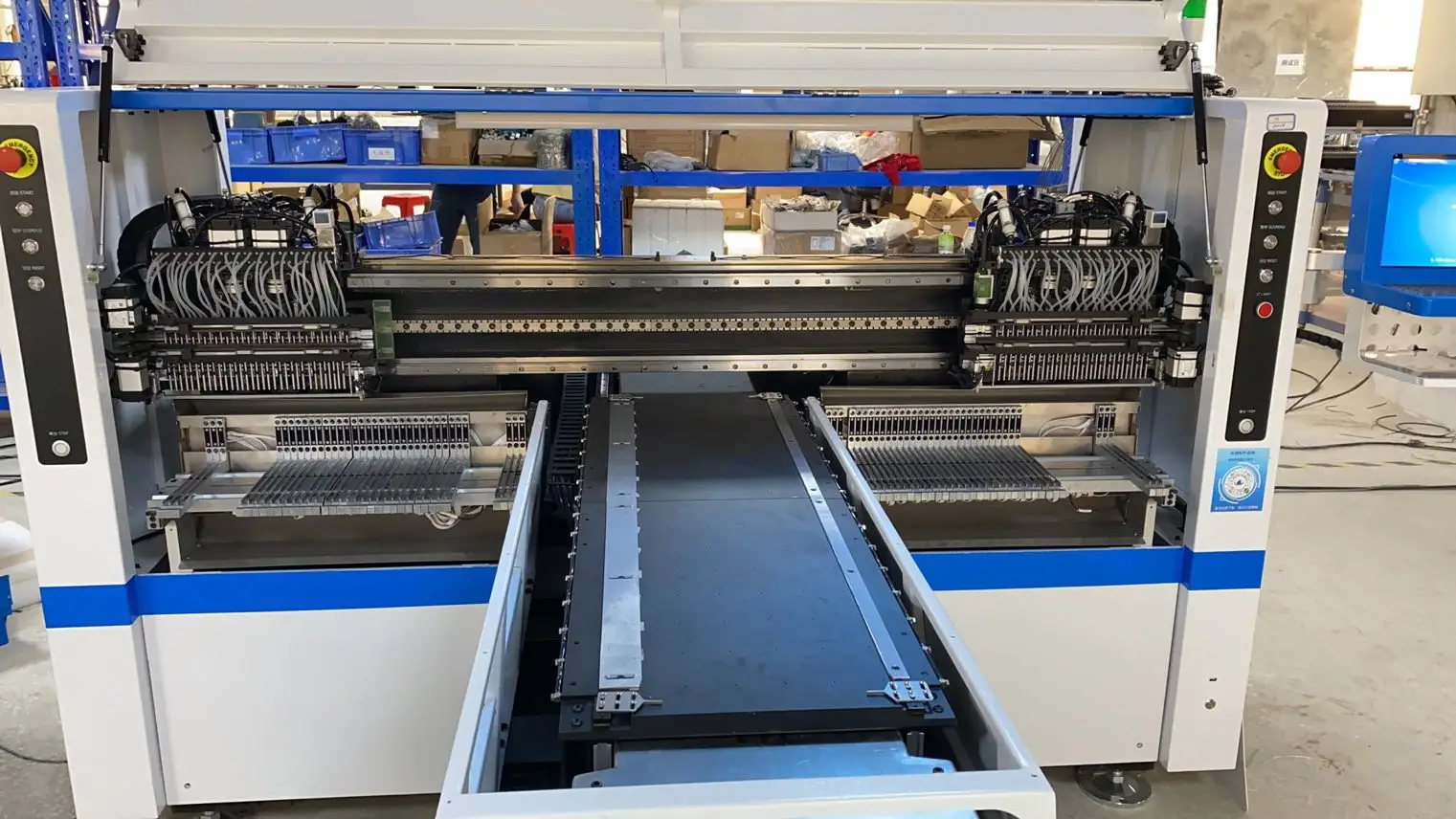

Automatic Pick And Place Machine
Pick and place machine is the most important module in this line, it directly influenced the whole line capacity.
ETON pick and place machine HT-T9 is high speed led chip mounter, it is suitable for mounting LED chip(0603/2835/3014/ 5050/etc)/ RGB/Resistance/IC/etc
The PCB width of T9 is fixed to 250MM, it is the standard strip light fpcb width in the industry.
Original design
T9 is special and original design for led flexible strip light, the conveyor plate support higher precision strip transport , it is ETON Patents
Integrated structure
The highly integrated and modular design improves the performance of the machine and is also more conducive to later maintenance

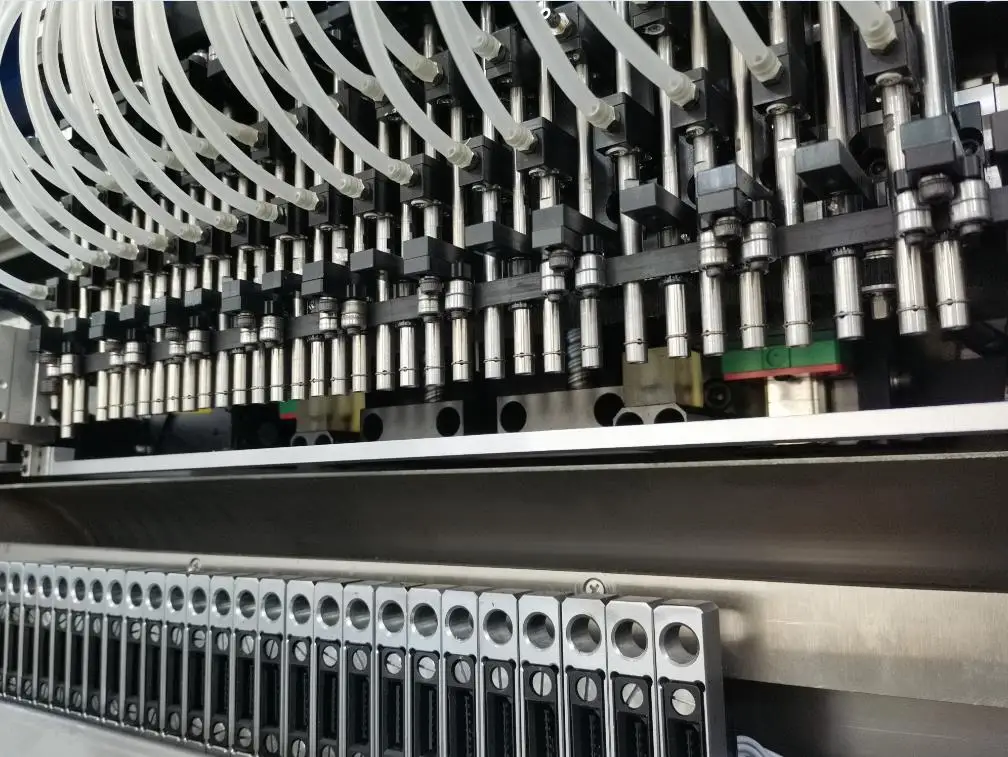

High precision mounting head
There are 68 mountings head in HT-T9, Using a new head design, lighter, more, and faster mounting speed
Module name: | Pick and place machine | Software: | R&D Independently | |
Dimension: | 3100*2300*1550 mm | Display: | LED screen monitor | |
Total Weight: | 1700 kg | No.of camera: | 2 sets | |
Max PCB size: | 250 mm width *any length | Mounting speed: | 250000 cph |
8 Zones Reflow Oven Machine
Heating system adopts high efficiency and energy saving nickel heat pipe, radiant power peak wavelength 4UM, with curved
reflector cover, high thermal efficiency, fast temperature rise, special forced hot air circulation structure system, so that PCB
and components are heated evenly
reflector cover, high thermal efficiency, fast temperature rise, special forced hot air circulation structure system, so that PCB
and components are heated evenly
Module name: | Eight zones reflow oven | PCB Limits height: | 25 mm | |
Dimension: | 4100*710*1500 mm | Transmission direction: | L-R(R.L) Optional | |
Length of heating zone: | 2800 mm | PCB transport speed: | 0-1.8 m/min | |
PCB Size: | 50-350 mm | Net weight: | 800 kg |

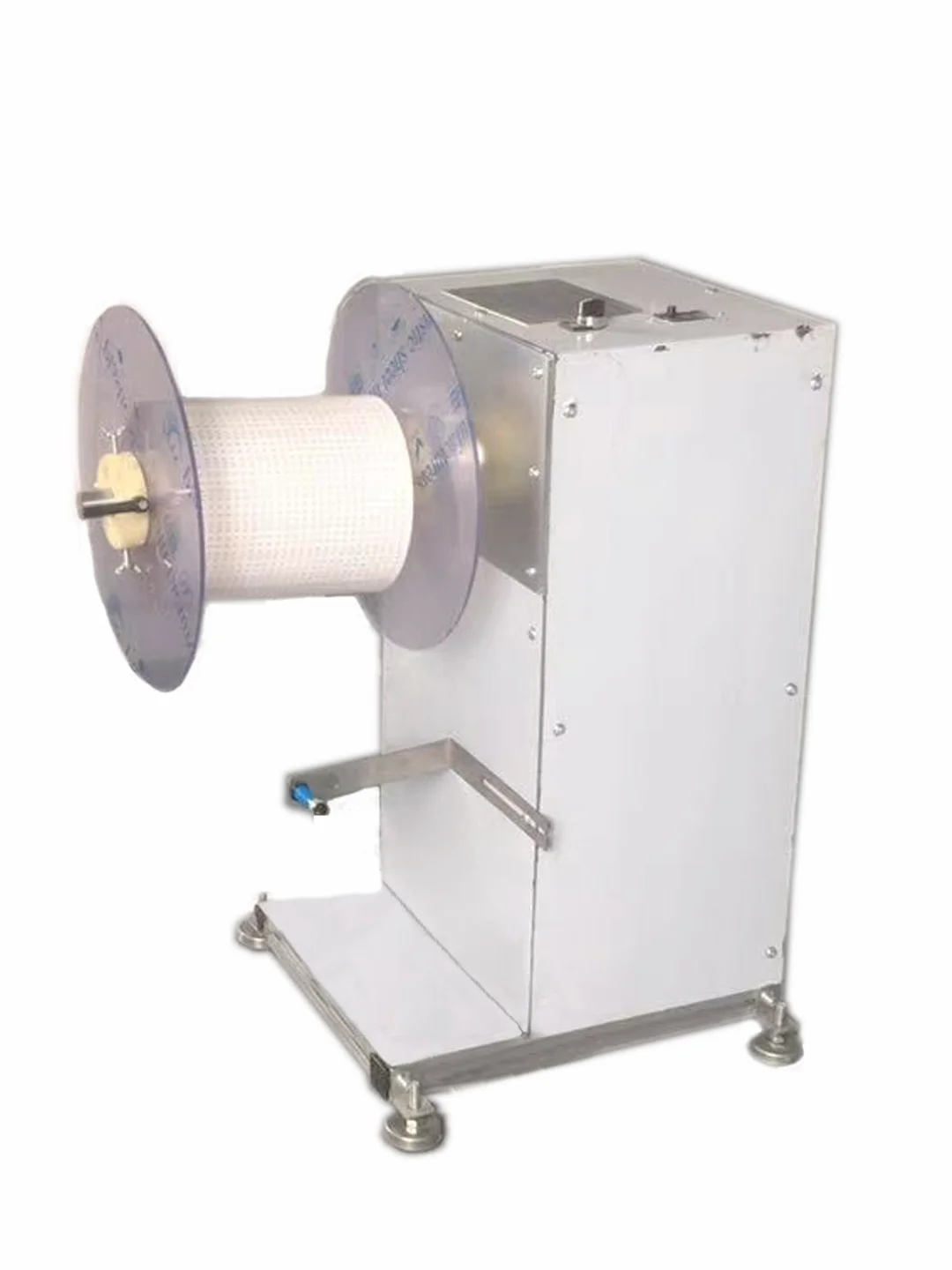

Send Board Machine
Send board machine is automatic sending the FPCB to the Stencil printer machine, it is necessary in the led strip light smt production line
24 M Belt Line
24 M belt line is buffer and transport the FPCB from the pick and place machine to the reflow oven machine, This design is special for rope light
Buffer Machine
Before FPCB transport from Printer to the Oven machine, here will need the Buffer machine, it is helping whole smt line more fluently
Product Usage
High speed led strip light smt line
ETON HT-T9 Led strip production line is only suitable for making all kinds of LED strip light, no matter 5 meters, 25 meters , 50meters, 100 meters or 200 meters, our machine is good application with high mounting speed.One hour capacity could be more than ---1000 Meters/Hour
Packing&Shipping
Sturdy packaging
For Machine, we using Vacuum wooden box packaging, inspection-free, avoid collision damage during transportation
Company Introduction
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Excellent service
Marketing Campaign
Exported more than 20 countries
ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000CPH, which save much labors and space of production, got large market share in USA,KOREA,INDIA,GERMANY,EYPT,TURKEY,VIENAM,TUNISIA,THAILAND more than 20 countries.
FAQ
1. How many machines sell in India ?
A: So far, we have hundreds machine sell in India.
2. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
3. I want to produce led bulb, do you have machine for that?
A: Yes, we could provide the whole SMT Machine for led bulb.
4. I want to produce 100 meters led strip light roll to roll, is F7S suitable ?
A: F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible.
5 What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, stencil printer, conveyor, pick and place machine, Loader, Unloader, etc.
6 Do you have middle speed pick and place machine for led tube/street light/display, lens/panel/led bulb/dob/etc ?
A: Yes! We have different module pick and place machine, for middle speed mounter, we have two kinds of machine, one is RT-1, itis 10 heads with 35000 cph, another is E8S with 45000 theoretical speed.
A: So far, we have hundreds machine sell in India.
2. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
3. I want to produce led bulb, do you have machine for that?
A: Yes, we could provide the whole SMT Machine for led bulb.
4. I want to produce 100 meters led strip light roll to roll, is F7S suitable ?
A: F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible.
5 What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, stencil printer, conveyor, pick and place machine, Loader, Unloader, etc.
6 Do you have middle speed pick and place machine for led tube/street light/display, lens/panel/led bulb/dob/etc ?
A: Yes! We have different module pick and place machine, for middle speed mounter, we have two kinds of machine, one is RT-1, itis 10 heads with 35000 cph, another is E8S with 45000 theoretical speed.
Recommend Products
T9-2S Pick and place machine
T9-2S is base on T9, upgrade new module, it is double head with double conveyor, could produce two fpcb at the same time, so the capacity is double than T9, super high speed led chip mounter machine for rope led strip light.
If you want to have super high capacity for led strip light, this machine will help you got large market share

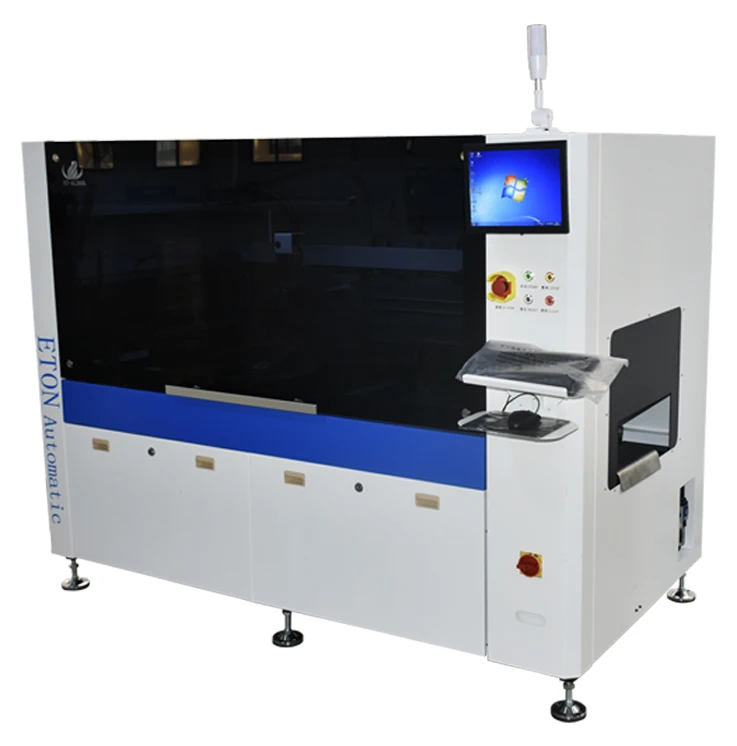

Automatic FPCB LED strip Light printer
ETON AL1025 is the automatic stencil printer machine for led strip light.
Compared with the semiautomatic Printer machine, this module is higher precision and save the labor cost for factory.
It also support automatic cleaning function for the stencil .
HT-E8S-1200 Pick and place machine
HT-E8S-1200 is intelligent and multifunctional smd pick and place machine/mounter/ placement machine
This model suitable for max pcb size is 1200*500 mm. with 12 heads , the capacity reach 45000 CPH.
It is widely apply to many kind led lighting and the electrical board. Such as the led tube, street light, downlight, panel light, Led bulb, DOB, Lens panel, etc
Contact us for more machine details!
ETON as the TOP SMT Machine manufacturer in China, many big led factory all using ETON Machine.
If you want to have a big led factory too, welcome contact us for more details!
Похожие товары

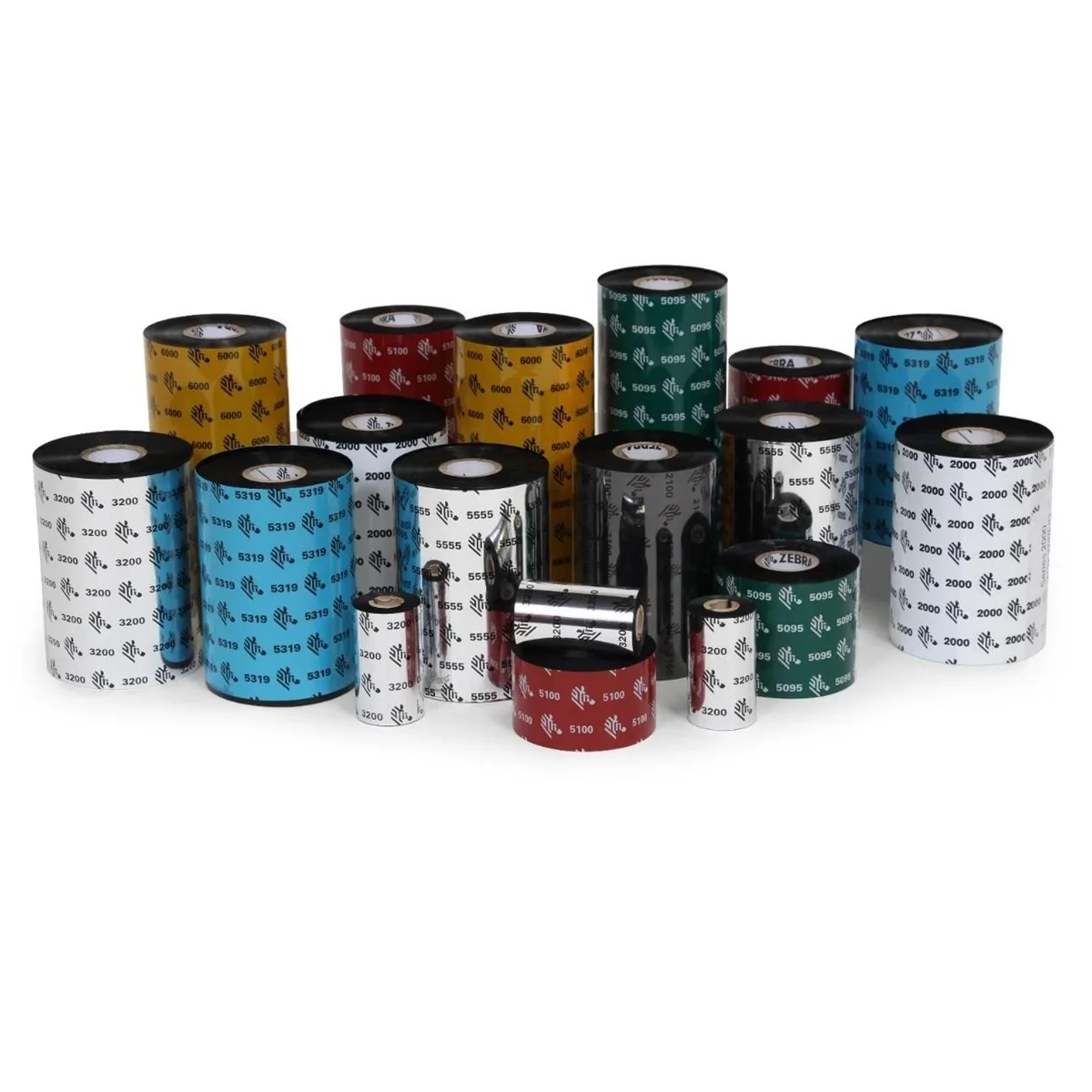

Высокопроизводительная 1 дюймовая чернильная лента для штрих-кодов с черными чернилами 300
Ковбойская шляпа с

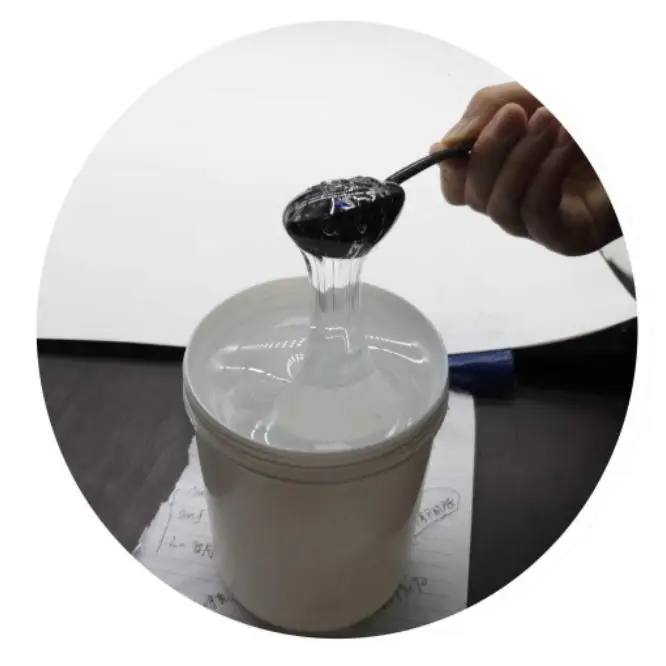

Лучший поставщик полиизобутена PB1300 PB2400, косметическое сырье, полиэтилен cas 9003-27-4

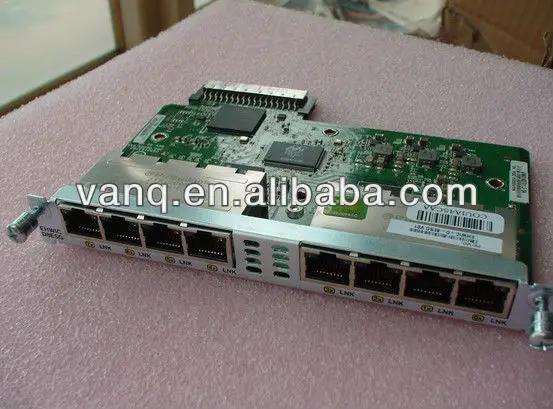

новых cisco интерфейс карты выключателем ehwic- пр- 8

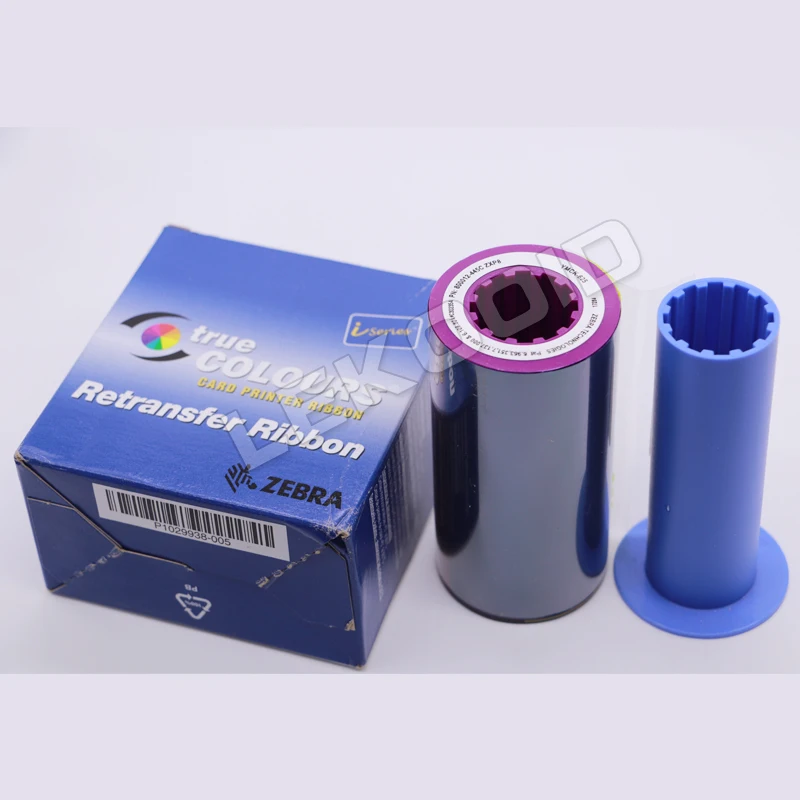

Цветная лента YMCK 800012-445 и пленка для переноса ленты 800012-601 для принтера Zebra ZXP Series 8 ZXP8
