Products Description
What's The Pile Breaker：

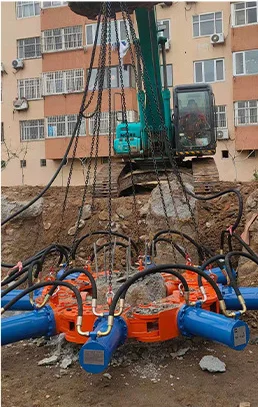

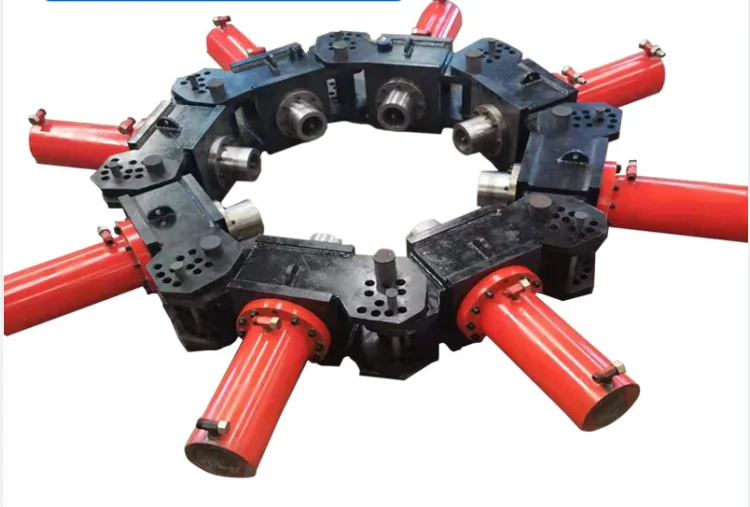

The hydraulic pile breaker provides pressure to multiple oil cylinders of the pile cutter through a power source, and the oil cylinders directly drive the drill rod and simultaneously squeeze the pile body to cut off the pile head. During the construction process of the pile breaking machine, the operation is simple, high efficiency, low noise, low cost, and it is suitable for pile group construction projects. The pile breaker adopts a highly modular combination, and the modules are connected by pin shafts, and the pile heads within a certain range of diameter can be cut off by combining different numbers of modules.
Hydraulic pile breaking machine cuts and removes: such as cast-in-place piles, precast piles, etc.; from the shape of the pile cutting head, it can be divided into round pile breakers and square pile breakers. Pile cutters are widely used in high-speed railway bridges, industrial and civil construction pile foundation projects. Generally, circular pile cutters are suitable for pile diameters of 250mm-2500mm; square pile cutters are suitable for pile side lengths of 250-650mm, which can meet various requirements. Requirements for large-scale foundation construction.
Hydraulic pile breaking machine cuts and removes: such as cast-in-place piles, precast piles, etc.; from the shape of the pile cutting head, it can be divided into round pile breakers and square pile breakers. Pile cutters are widely used in high-speed railway bridges, industrial and civil construction pile foundation projects. Generally, circular pile cutters are suitable for pile diameters of 250mm-2500mm; square pile cutters are suitable for pile side lengths of 250-650mm, which can meet various requirements. Requirements for large-scale foundation construction.
Basic Information
Feature：

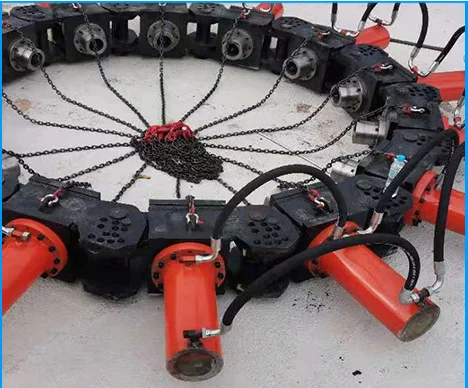

Modular design can be linked with a variety of construction machinery. Modules can be added and reduced according to the size of the pile. The convenient and quick tapered top design avoids the problems of soil accumulation on the guiding steel rod, deflection and fragility, etc., and the steel rod that rotates at any time is effective It prevents the internal production of the high-pressure cylinder, prevents the connection from breaking, and has the effect of anti-vibration
Model | Unit | LC04HPB |
Range of pile breaker | mm | 800-1000 |
Max force for single rod | KN | 300 |
Max stroke of hydraulic cylinder | mm | 300 |
Pressure of hydraulic cylinder | Mpa | 30 |
Max flow for single cylinder | L/min | 20 |
Why Choose Us
What Can We Prove：
Dangerous：
1. Contact-free operation is enabled.
2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.
Slowly：
1.Replaceable and changeable module combination makes its applicable for piles with various diameters.
2.The modules can be assembled and disassembled easily and conveniently.
Noisy：
1.Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments
Expensive salary：
1.Fewer operating workers are required to save cost for labor and machine maintenance during construction.
2.Suitable for different kinds of carrier.
3.Module generalization is realized with our square pile machine. It can be used for both circular piles and square piles by changing the module combination
Nondurable：
1. It is made of military material by first-class suppliers with reliable quality, extending its service life.
2.The mainboard used Q345B and the chisel used the 42CrMo.
3.12 month after-sales service.
4.Provide 50 spring pins for free.
5.Professional small tools for free.
2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.
Slowly：
1.Replaceable and changeable module combination makes its applicable for piles with various diameters.
2.The modules can be assembled and disassembled easily and conveniently.
Noisy：
1.Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments
Expensive salary：
1.Fewer operating workers are required to save cost for labor and machine maintenance during construction.
2.Suitable for different kinds of carrier.
3.Module generalization is realized with our square pile machine. It can be used for both circular piles and square piles by changing the module combination
Nondurable：
1. It is made of military material by first-class suppliers with reliable quality, extending its service life.
2.The mainboard used Q345B and the chisel used the 42CrMo.
3.12 month after-sales service.
4.Provide 50 spring pins for free.
5.Professional small tools for free.
About LICHMACH
About US
Henan Lich intelligent equipment Co.,Ltd was born in 2002, which supply comprehensive solution and engineering construction machinery products. We have good partnership with a number of international well-known brands involved in the field of engieering machinery, and have accumulated know-how and talents reserve of this field for many years. More important for our company is to establish strategic partnership with SINOMACH,which is central goverment enterprise and ranked TOP500 in the world, for the purpose of developing overseas market. We, LICHMACH company, are authorized by SINOMACH to develop overseas market and SINOMACH gives full support as our manufacturing base.
Philosophy of our LICHMACH is forever to supply affordable with best quality products, to supply one-stop solution for our customers, and to make efforts for those who wants to develop their own brand locally.
Looking forward to work with you and creat more value for you.
Philosophy of our LICHMACH is forever to supply affordable with best quality products, to supply one-stop solution for our customers, and to make efforts for those who wants to develop their own brand locally.
Looking forward to work with you and creat more value for you.
Factory Tour
SINOMACH is already involved in engineering machinery field for dozens of years, which R&D centers and factories are spreading all over our country. It has established joint venture partnership with several well-known brands in the workd such as Hyundai, komatsu, TEREX,etc., and supply many products based on OEM fabrication service. All these guarantee us to be capable for providing best products and service with rich technology accumulation and fabrication experience.
We Promise
1. The raw materials of each component are the most suitable;
2. Each machine is delivered to the buyer after inspection;
3. Adhere to the business philosophy of "honesty is the foundation, quality is the essence, mechanism is the soul, and appropriateness is far-reaching".
2. Each machine is delivered to the buyer after inspection;
3. Adhere to the business philosophy of "honesty is the foundation, quality is the essence, mechanism is the soul, and appropriateness is far-reaching".
Packaging&Shipping
FAQ
Q1:What about your warranty？
A1:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal
working condition.
working condition.
Q2:What about your spare parts？
A2:LICHMACH is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
Q3:What about your Installation & Maintenance?
A3:LICHMACH is able to provide with the overall installation of complicated machinery,allowing you to start the
normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
Q4:What about your training?
A4:LICHMACH offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Q5:What about your Technical Advice?
A5:LICHMACH can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
