Сухой порошок чили измельчитель морской соли куркумы сахара листьев чая
- Категория: Grinding Equipment >>>
- Поставщик: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Сохранить в закладки 1600694588583:
Описание и отзывы
Характеристики
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2. Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Products Description
Working Principles

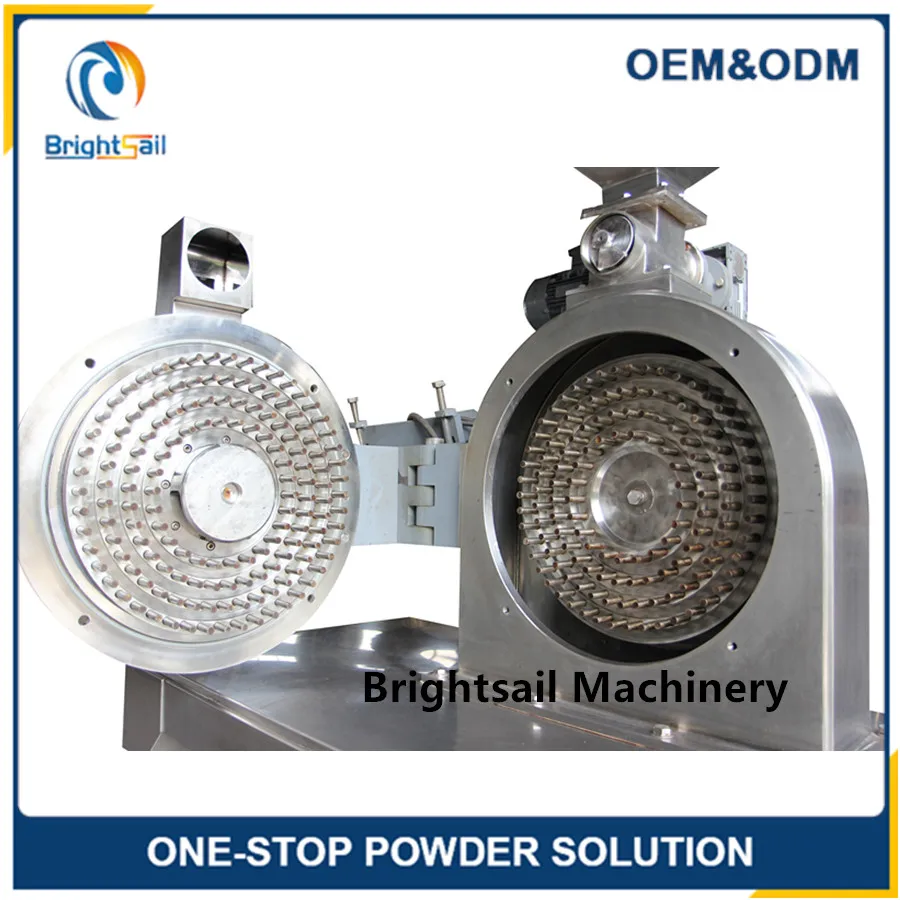

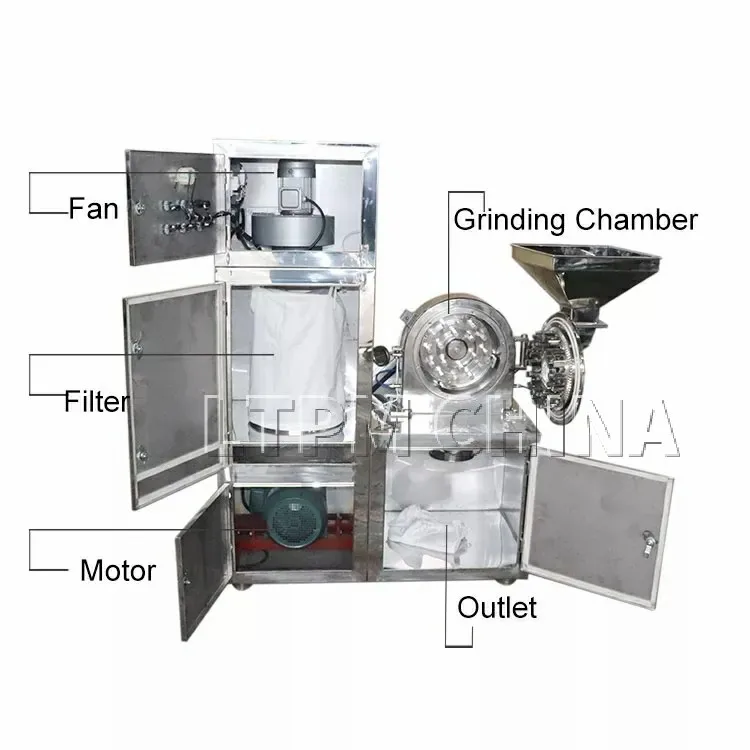

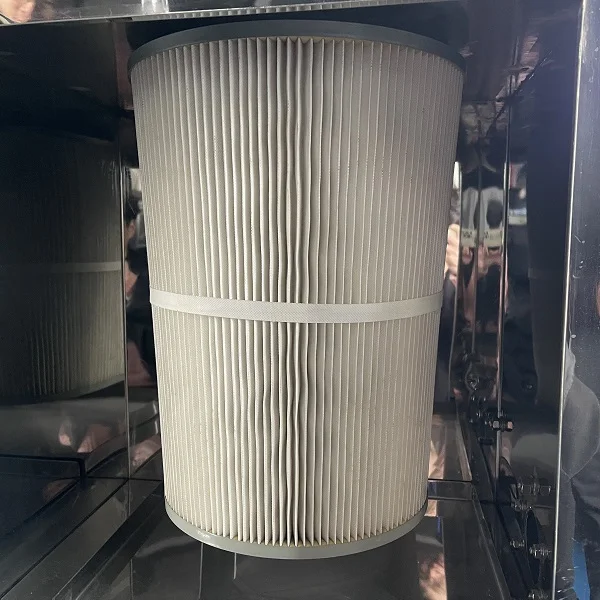

This device makes use of the relative motion of moved fluted disc and fixed fluted disc to grind materials by the impact and friction of cogs and the materials impact on each other. The grinded materials will enter into collector automatically by the action of rotating centrifugal force; and the dust will be filtered and discharged by cloth-bag. This device is designed with the “GMP” standard and is made of stainless steel. And no dust flying during producing. Currently, it has achieved international advanced level.
Purpose

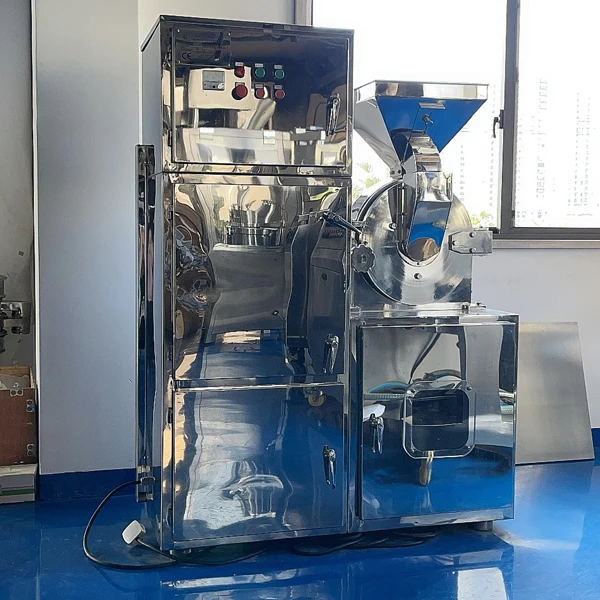

This device, a new generation of grinder equipment combining crushing and dust collection as a whole, is suitable for pharmacy, chemical, food , etc.
Chili Pepper Ginger Star Anise
Rice Corn Wheat Soy
Licorice Notoginseng Dendrobium Angelicadahurica
Sugar Salt Pearl Food Additives
Technical Data
Model | 15B | 20B | 30B | 40B | |||
Capacity (kg/h) | 5-30 | 20-150 | 30-300 | 40-800 | |||
Main Speed (rpm) | 5500 | 5300 | 4500 | 3800 | |||
Input Size (mm) | <10 | ||||||
Output Size (mesh) | 12-120 | ||||||
Main Power (KW) | 2.2 | 4 | 5.5 | 7.5 | |||
Fan Power (KW) | 0.37 | 0.55 | 0.55 | 1.1 | |||
Dimension (L*W*H,mm) | 1000*550*1300 | 1100*600*1600 | 1300*700*1700 | 1400*750*1900 | |||
Weight (kg) | 180 | 260 | 350 | 450 | |||
Features
1. It adapts the vertical low raw material discharging equipment. The machine makes some raw materials with poor fluidity after broken can be dischanged unblocked and no the phenomenon of accumulated powder.
2. The machine are made of qualified stainless steel. Its inner wall of the housing is smooth and level being processed through superior technology, make the powder discharging more flowing and is benefit to the work of clean too.
3. The gear disk of high speed and movable teeth are welded through well welding, it makes the teeth is durable, safety and reliable.
4. It s in conformity with the requirements of "GMP".
5. According to customer needs, may increase water cooling device, and conveyer screw.
Details Images
Control Panel
The layout of control area is reasonable,simple and beautiful,easy to operate.

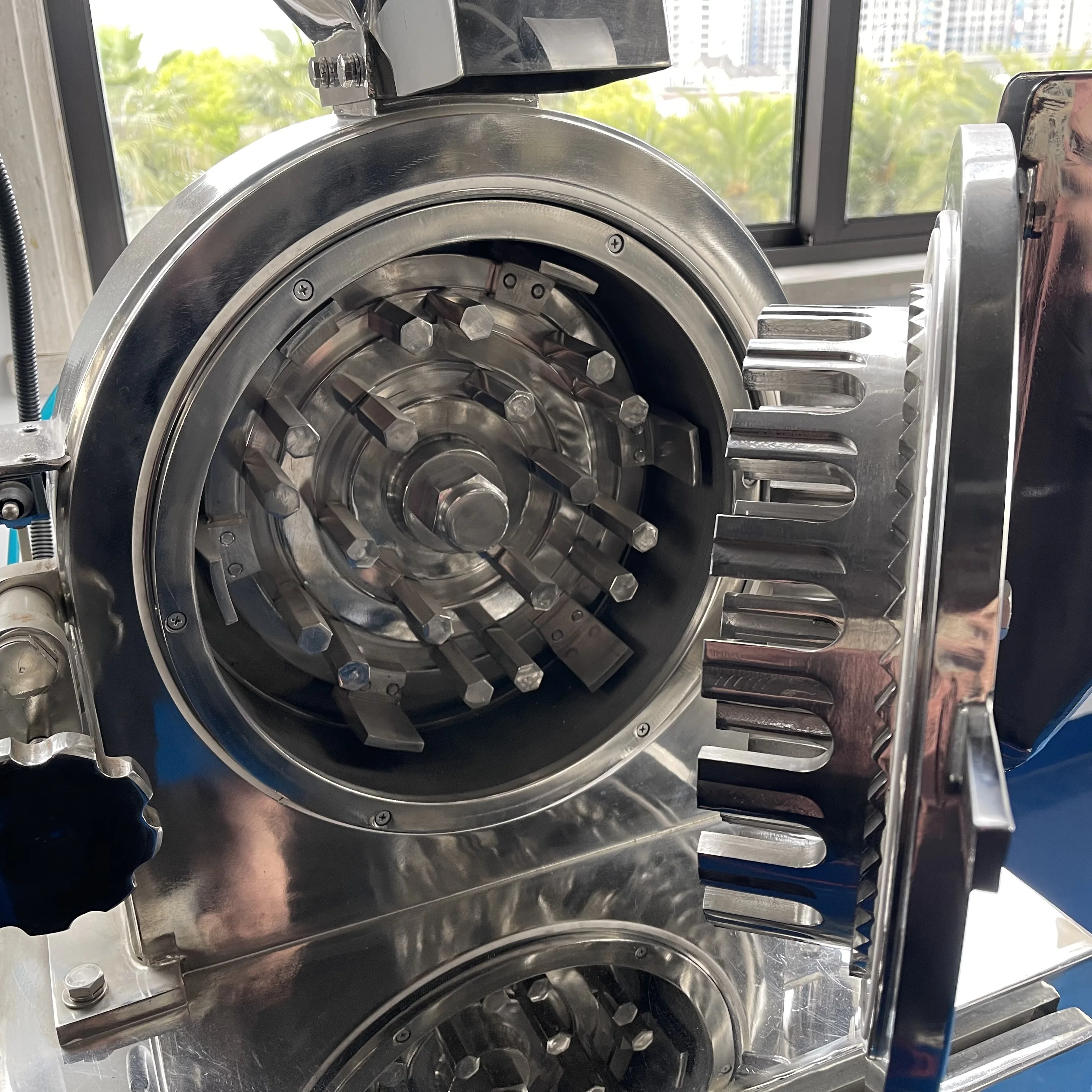

Grinding Chamber
The grinding chamber is bigger and thicker,which is better than the usual standard of the industry, and the output is guaranteed.
Belt Cover
There is a stainless steel cover outside the belt and pulley, which can effectively protect the safe operation of the machine and also protect the personal safety of workers.
Hand Wheel
The hand wheel adopts knurling design to increase the friction, which is convenient and labor-saving.
Feed Baffle
The operation is simple, and this device can be used to block the feeding port when feeding is not required, which can ensure the hygiene of the grinding chamber
Inlet
Made of stainless steel, the diameter is large to meet the needs of various materials of different specifications
Outlet
Made of stainless steel, the discharge port is designed in a circular arc shape, so that the product can be discharged smoothly, and the edge is smooth and does not hurt hands
Water Cooling Interface
lt can effectively reduce the temperature of the earing and the cavity, avoid high temperature damage to the material, and also protect the bearing to ensure stable and lasting operation.
Company Profile
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world. LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional,Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
Похожие товары
Какао-бобов какао-порошок измельчители шлифовальный станок какао-порошок making machine
Лидер продаж, промышленная универсальная дробилка какао бобов серии w
9 000,00 $ - 10 000,00 $

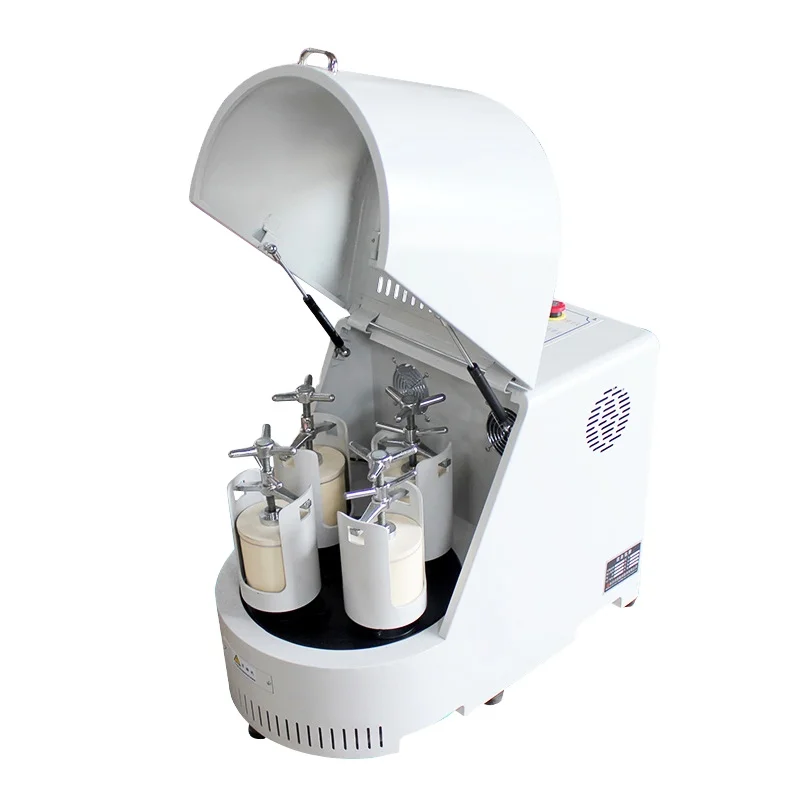

Большой Планетарная шаровая мельница (4x3L емкости) с четырьмя глинозема баночка-MSK-SFM-1-3 planetery для использования в шаровой мельнице и нанотехнологичная
5 100,00 $ - 5 700,00 $

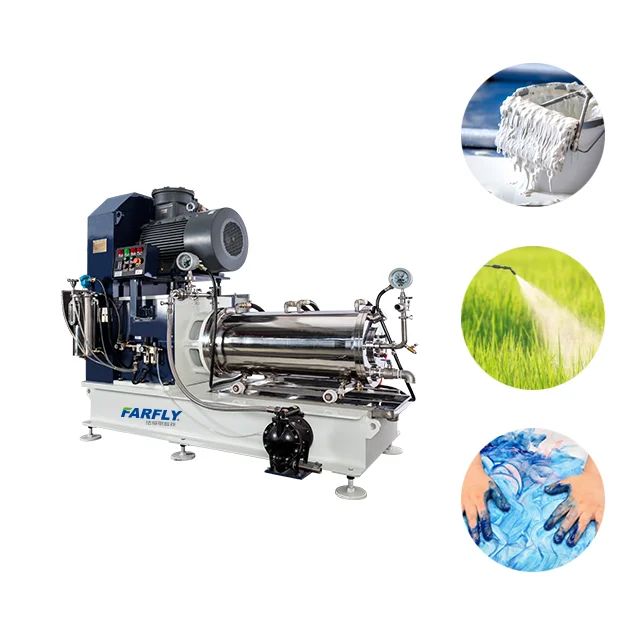

Большой флюс шлифовальный станок для чернил песок мельница
19 800,00 $

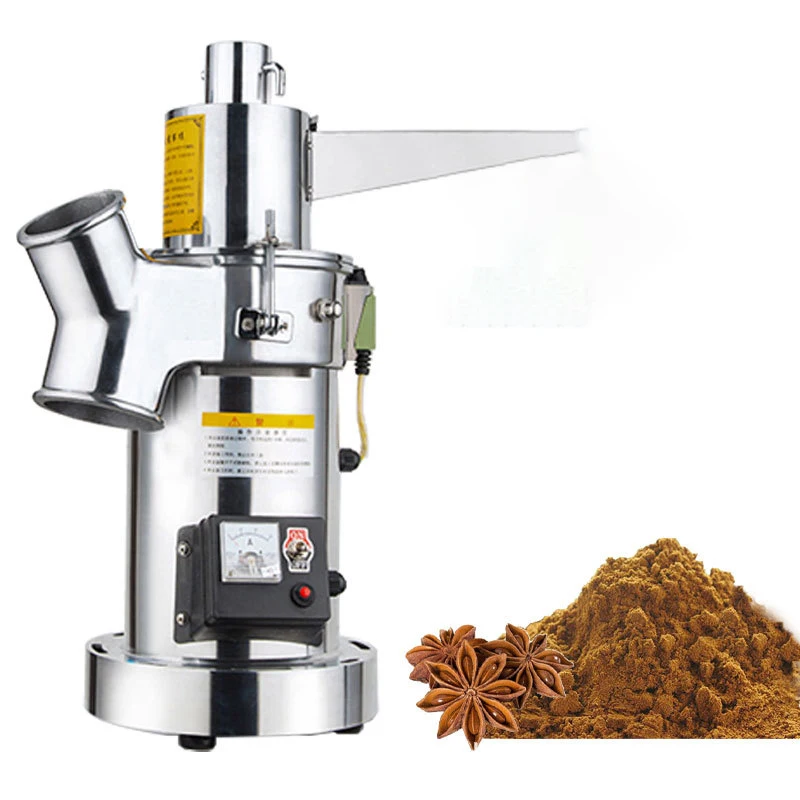

Сухой машина для просеивания пудра из приправ и растереть порошка раздавить оборудование производства специй молотковая
3 400,00 $ - 3 500,00 $
Популярная машина для производства кукурузной муки большого размера с сертификатом CE завод в
2 000,00 $

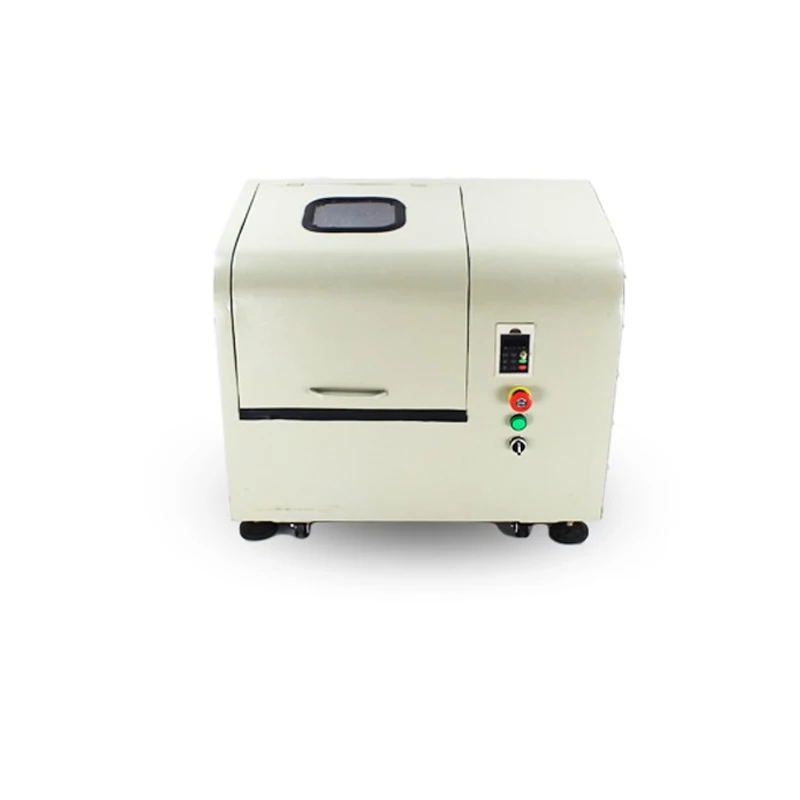

Нано-порошковая шлифовальная Нержавеющая сталь Цирконий Агат банки лабораторная Планетарная шаровая
