Двухполосный ПВХ пластиковый Электрический трубопровод машина для изготовления гофрированных труб промышленная труба пластик цена 16 32 мм
- Категория: >>>
- Поставщик: Qingdao Fullwin Plastic Machinery Co. Ltd.
Сохранить в закладки 1600694629051:
Описание и отзывы
Характеристики
Product Description
Disposable hookah hose making machine/Shisha production line/Shisha hose extruder machine
Single wall corrugated pipe making machine
FULLWIN plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates soas to realize water circulating cooling air of the products,which ensures high-speed moulding,even corrugation,smoothinner andouter pipe wall.these corrugated pipes are especially used as wires of up-market cars,Production speed 20-30m/min.
FULLWIN plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates soas to realize water circulating cooling air of the products,which ensures high-speed moulding,even corrugation,smoothinner andouter pipe wall.these corrugated pipes are especially used as wires of up-market cars,Production speed 20-30m/min.
Specification
No | name | Qty |
1 | Vacuum feeder with hopper dryer | 1set |
2 | SJ65/30 single screw extruder | 1set |
3 | Die head | 1set |
4 | forming mould | 1set |
5 | forming machine with water cooled | 1set |

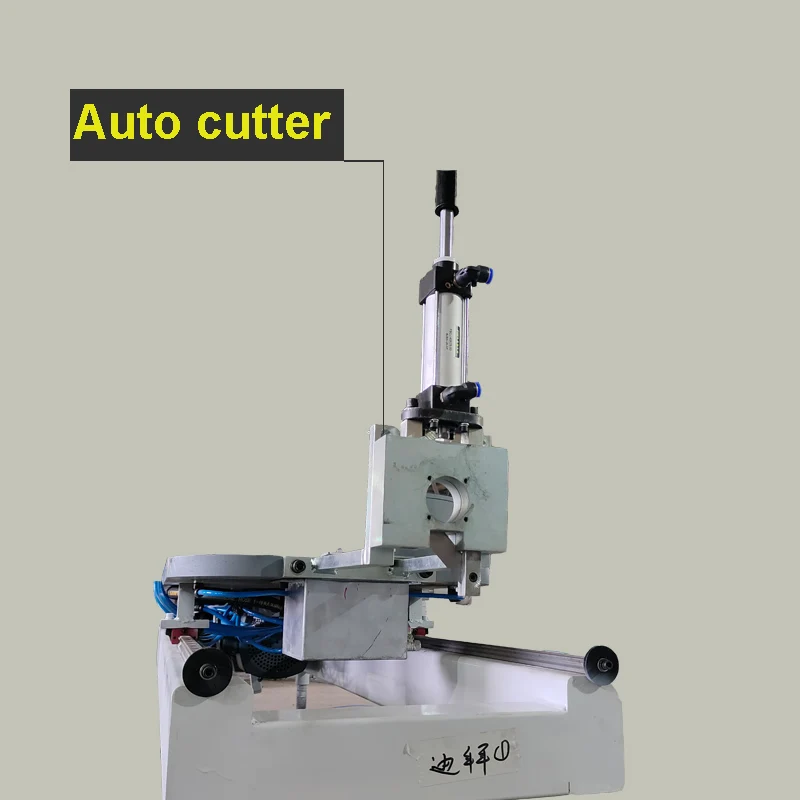

6 | online cutter | 1set |
7 | Double station winding machine | 1set |
8 | Free spare parts | 19pcs |

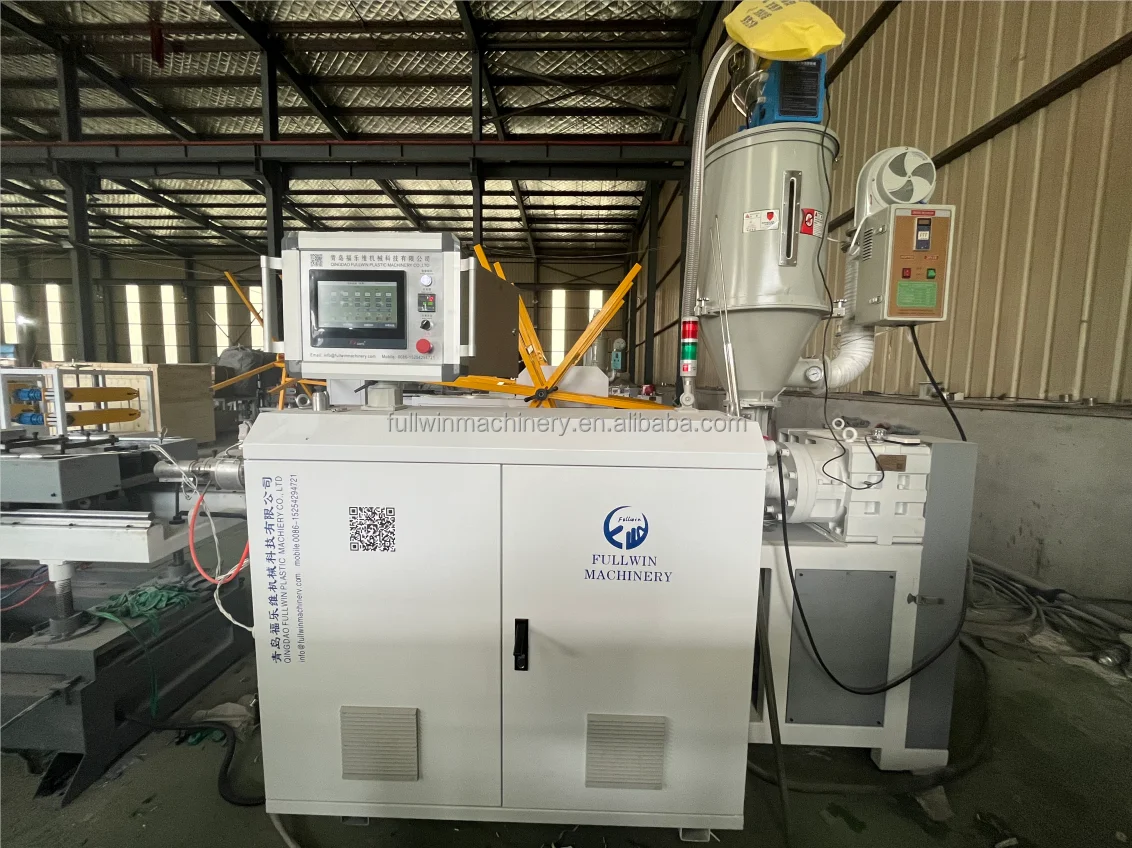

1. 65/30 high speed single wall corrugated pipe machine extruder
High plasticization rate,uniform melt and continuous production stability. High performance gearbox reducer.long life and low
noise.
screw barrel:FULLWIN design,single screw can use for pvc,pe,pp three material production.Surface Nitriding,increase the
Screw using life
plastic pipe extrusion machine the electric part:
ABB converter,Omron temperature control.All the parts using domestic and foreign well-known brands
noise.
screw barrel:FULLWIN design,single screw can use for pvc,pe,pp three material production.Surface Nitriding,increase the
Screw using life
plastic pipe extrusion machine the electric part:
ABB converter,Omron temperature control.All the parts using domestic and foreign well-known brands
2.Die head
fullwin design high quality die head
energy-saving heating ring can save 30% electricity cost
3.mouth mould and core bar
FullWin new design,the core bar and mouth mould fit together,when change size,no like the old
design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material.
design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material.

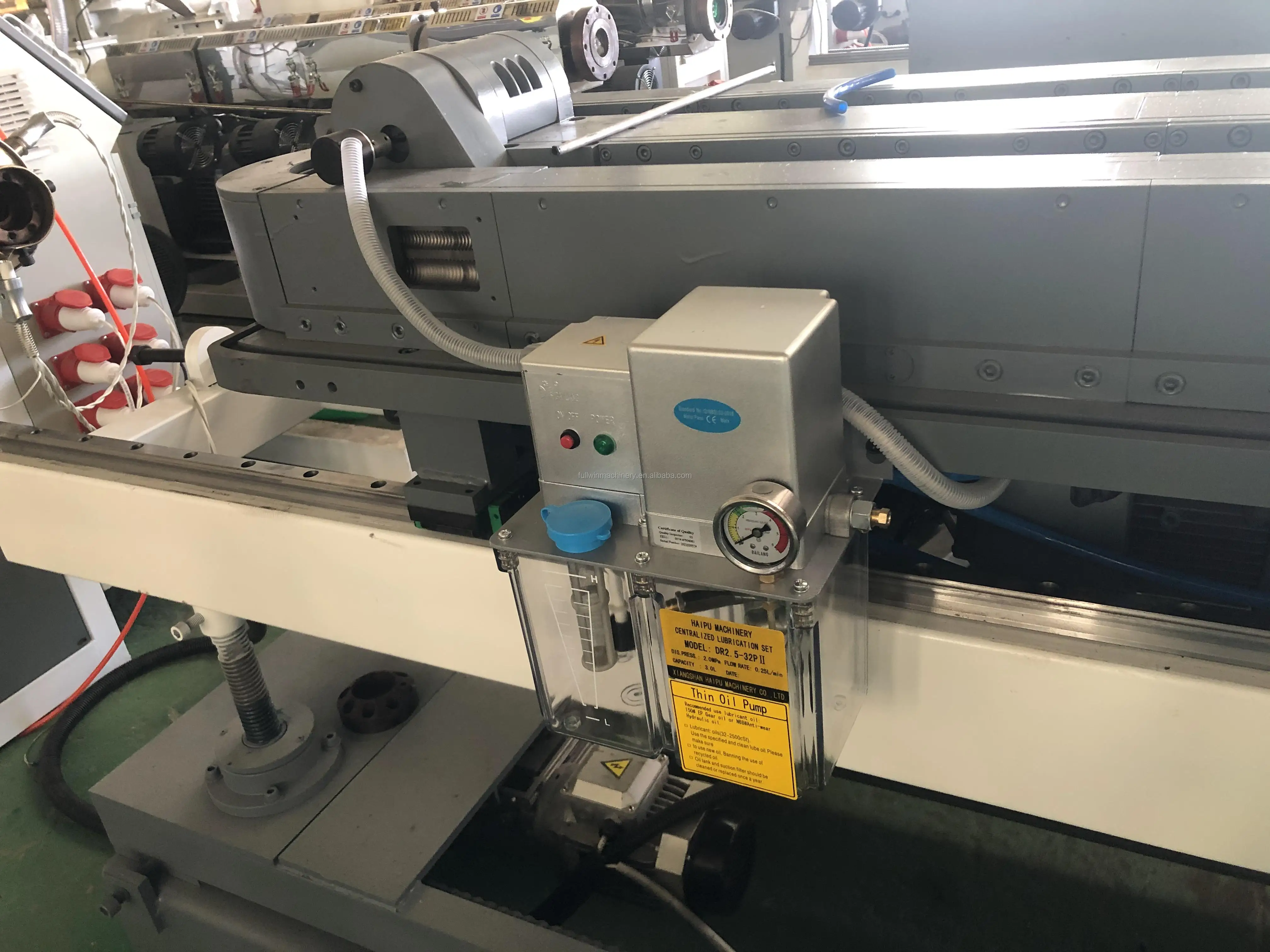

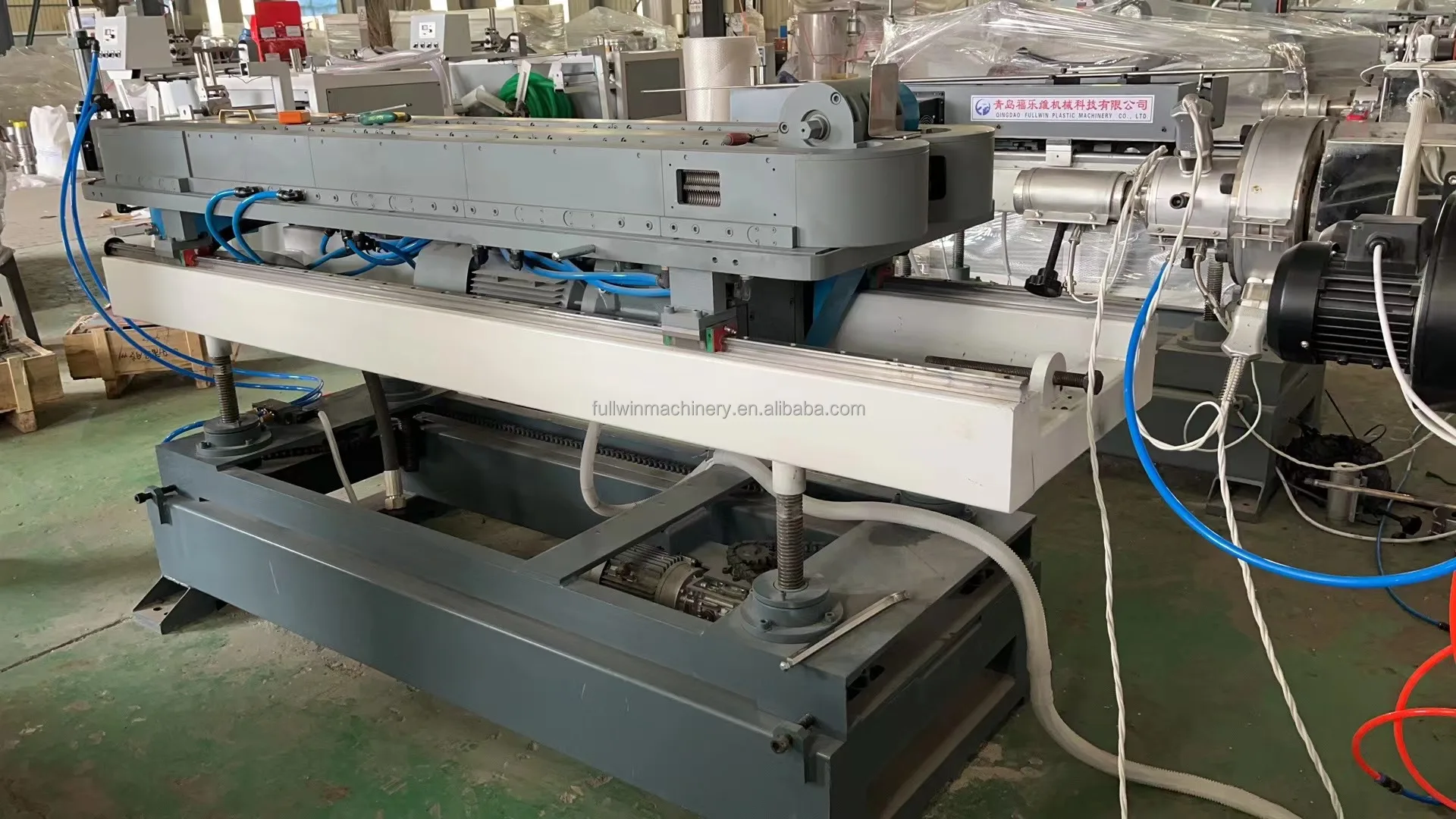

4.High speed water cooling forming machine
Production speed 20-30m/min
Plate is 38CrMoAIA has high surface hardness.wear resistance and fatigue strength,and has good heat resistance and corrosion
resistance,harden ability is not high,used for making nitriding parts with high wear resistance,high faigue strength,considerable
strength and high diamensional precision after treatment.the service life is double than 45#steel Cooling method:water cooling
The purple part of the plate is perforated for water circulation can ensure that the forming machine and mould are always keeping
in low temperature.the pipe inner side more smooth,increase the production speed and product quality.
Forming machine adjustment:manual control left and right,Electric control up and down.
Plate is 38CrMoAIA has high surface hardness.wear resistance and fatigue strength,and has good heat resistance and corrosion
resistance,harden ability is not high,used for making nitriding parts with high wear resistance,high faigue strength,considerable
strength and high diamensional precision after treatment.the service life is double than 45#steel Cooling method:water cooling
The purple part of the plate is perforated for water circulation can ensure that the forming machine and mould are always keeping
in low temperature.the pipe inner side more smooth,increase the production speed and product quality.
Forming machine adjustment:manual control left and right,Electric control up and down.

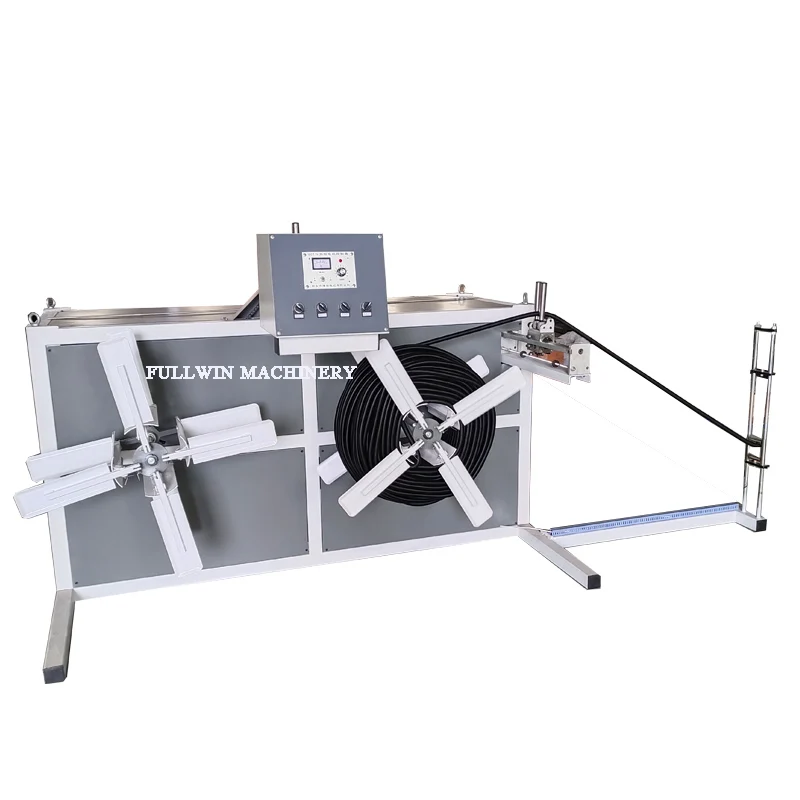

5.Double station winding machine
Automatic wiring device,balance the speed match rewinding speed,help winding machine adjust the speed,when the pipe production
slow,will stop rewinding,prevent pipe too tight disconnect.
slow,will stop rewinding,prevent pipe too tight disconnect.
Product Overview
Packing & Delivery
Company Profile
Our service
After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply,
water supply, labors and cranes, etc.
- Fullwin will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
- Engineer will give free training lessons to labors in buyer’s factory.
- If buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which tobe accounted all the machines has been successfully tested by buyer.
water supply, labors and cranes, etc.
- Fullwin will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
- Engineer will give free training lessons to labors in buyer’s factory.
- If buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which tobe accounted all the machines has been successfully tested by buyer.
fullwin machine list
High speed Single-wall corrugated pipe extrusion line
Double wall corrugated pipe extrusion line
Corrugated pipe Auxiliary equipment
PVC/UPVC/CPVC Pipe extrusion line PVC/UPVC/CPVC
PE/PPR Compound pipe extrusion line PE/PPR
Spiral Corrugated pipe extrusion line
PVC Fiber-Reinforced pipe extrusion line PVC
PVC Suction Hose extrusion line PVC
PVC/WPC window frame profile/Door board extrusion line
PET/PP packing belt extrusion line
PP/PE/ABS plastic plate extrusion line
PVC Shinning/Semi-Shinning foam board extrusion line
PP Hollow Grid Sheet extrusion line
PP/PE Granulating extrusion line
EPE Fruit foam net extrusion machine
Auxiliary equipment
Double wall corrugated pipe extrusion line
Corrugated pipe Auxiliary equipment
PVC/UPVC/CPVC Pipe extrusion line PVC/UPVC/CPVC
PE/PPR Compound pipe extrusion line PE/PPR
Spiral Corrugated pipe extrusion line
PVC Fiber-Reinforced pipe extrusion line PVC
PVC Suction Hose extrusion line PVC
PVC/WPC window frame profile/Door board extrusion line
PET/PP packing belt extrusion line
PP/PE/ABS plastic plate extrusion line
PVC Shinning/Semi-Shinning foam board extrusion line
PP Hollow Grid Sheet extrusion line
PP/PE Granulating extrusion line
EPE Fruit foam net extrusion machine
Auxiliary equipment
Contact US：
Похожие товары
Портативный диализный аппарат нового типа для гемодиализа Crrt
Кепка для духов, изготовленная на заказ, роскошная алюминиевая мраморная Корона, металлическая ОБЖИМНАЯ Крышка для флакона, Магнитная Крышка для духов Zamac
0,50 $ - 0,70 $

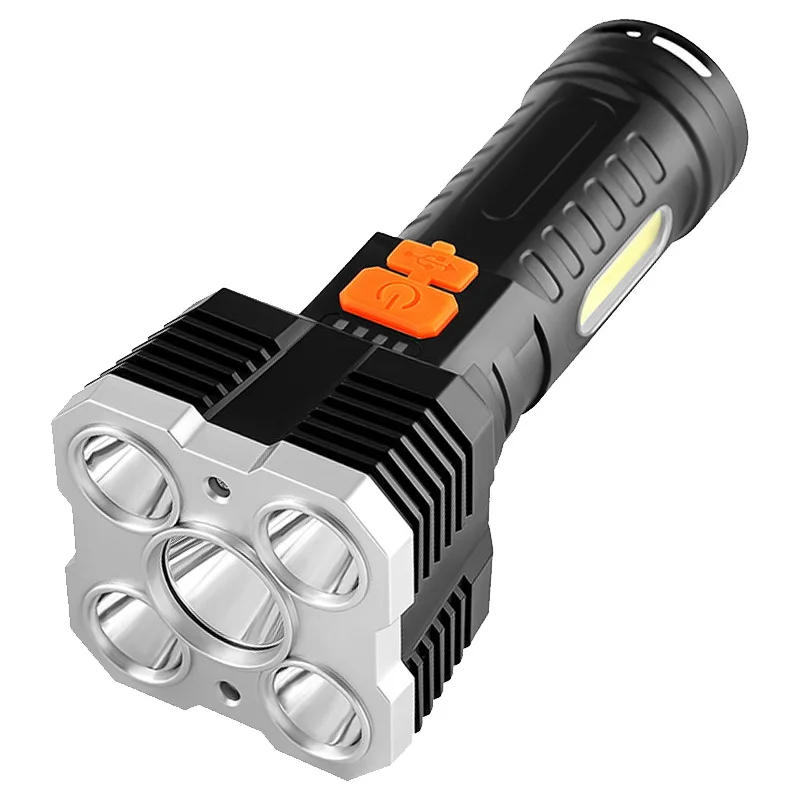

Многофункциональный мощный фонарик Durapower для кемпинга на открытом воздухе, перезаряжаемый от Usb светодиодный фонарик с боковым светом Cob
1,99 $ - 2,80 $
Рулон из розового хлопка, 25 г
1,87 $ - 2,16 $

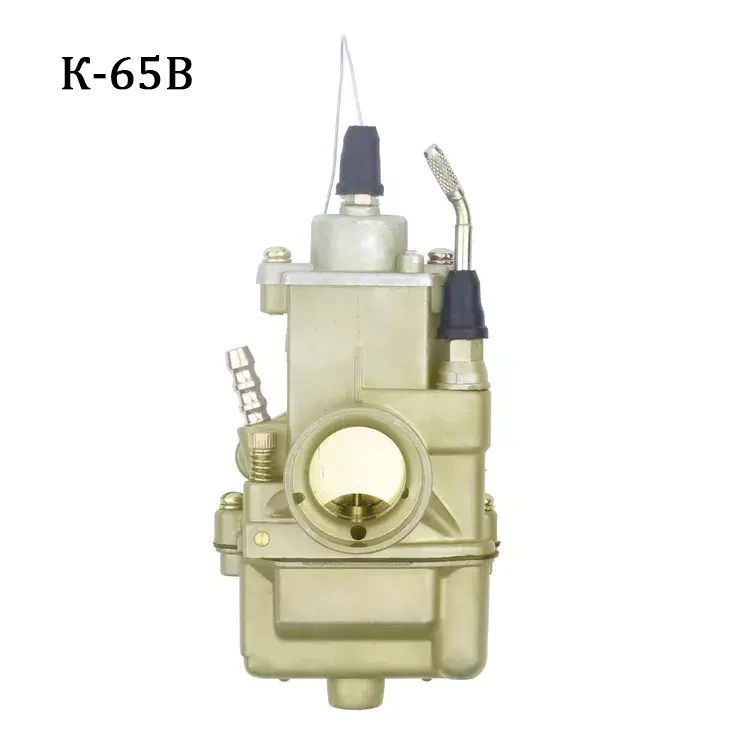

Новый карбюратор K68B Upiter IZH русский K68N K68A K68C
7,68 $ - 13,80 $

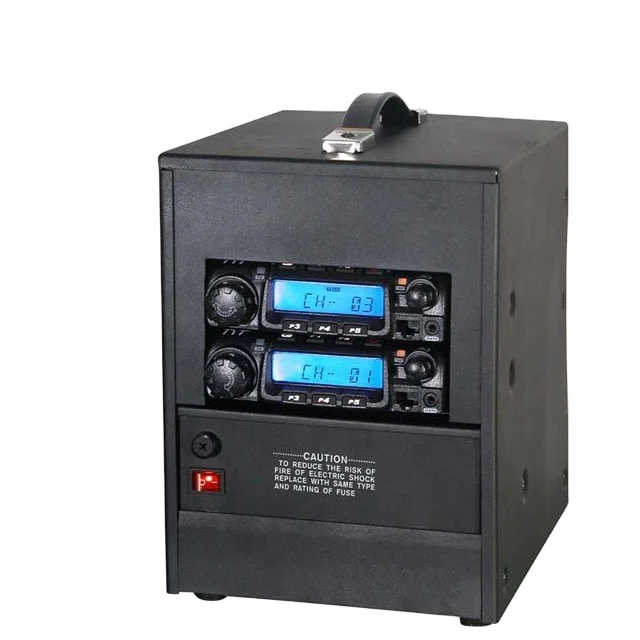

50 Вт Высокая выходная мощность полный дуплексер ретранслятор базовой станции 30-50 км VHF или UHF рация Мобильный приемопередатчик THR-9000D 30-50 км
