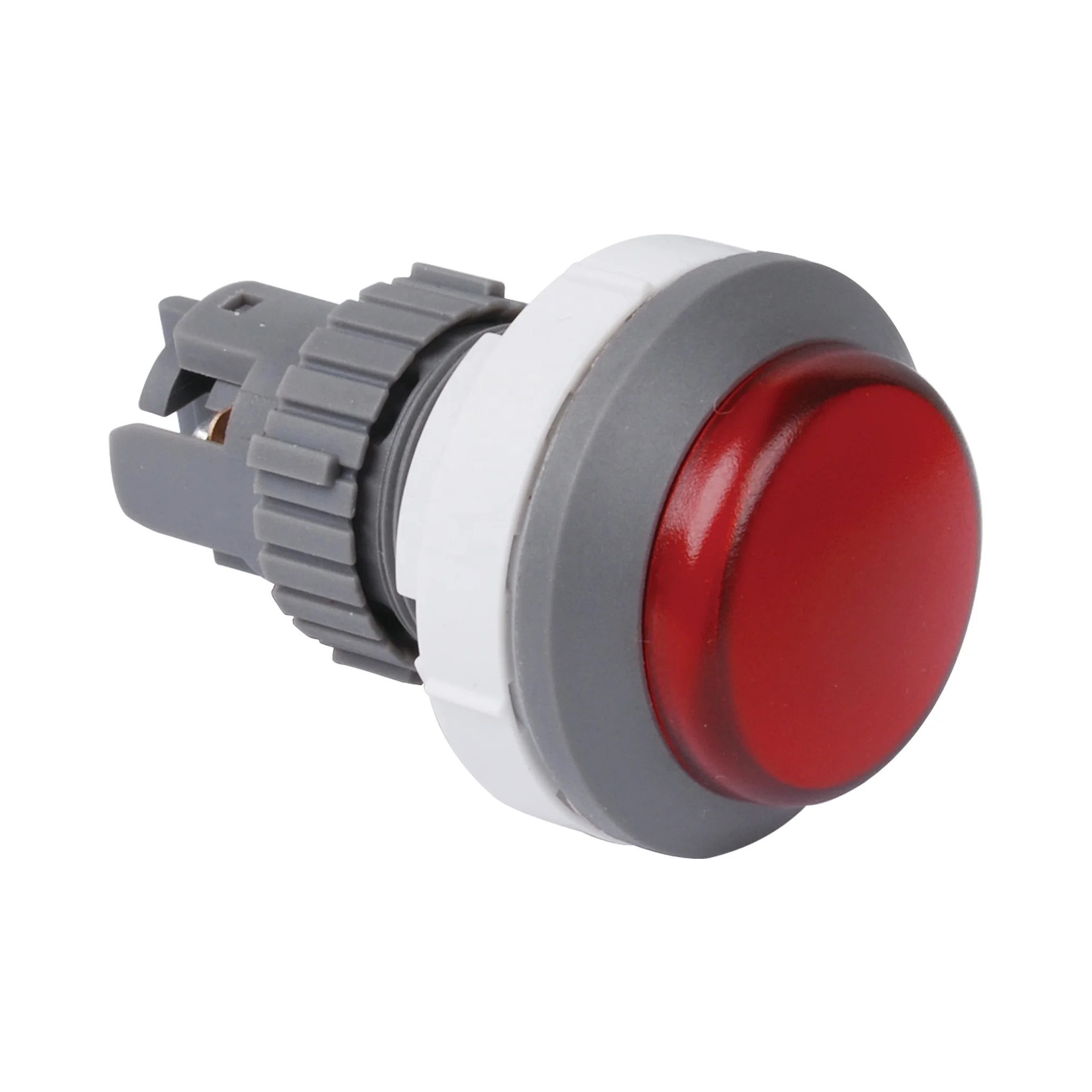

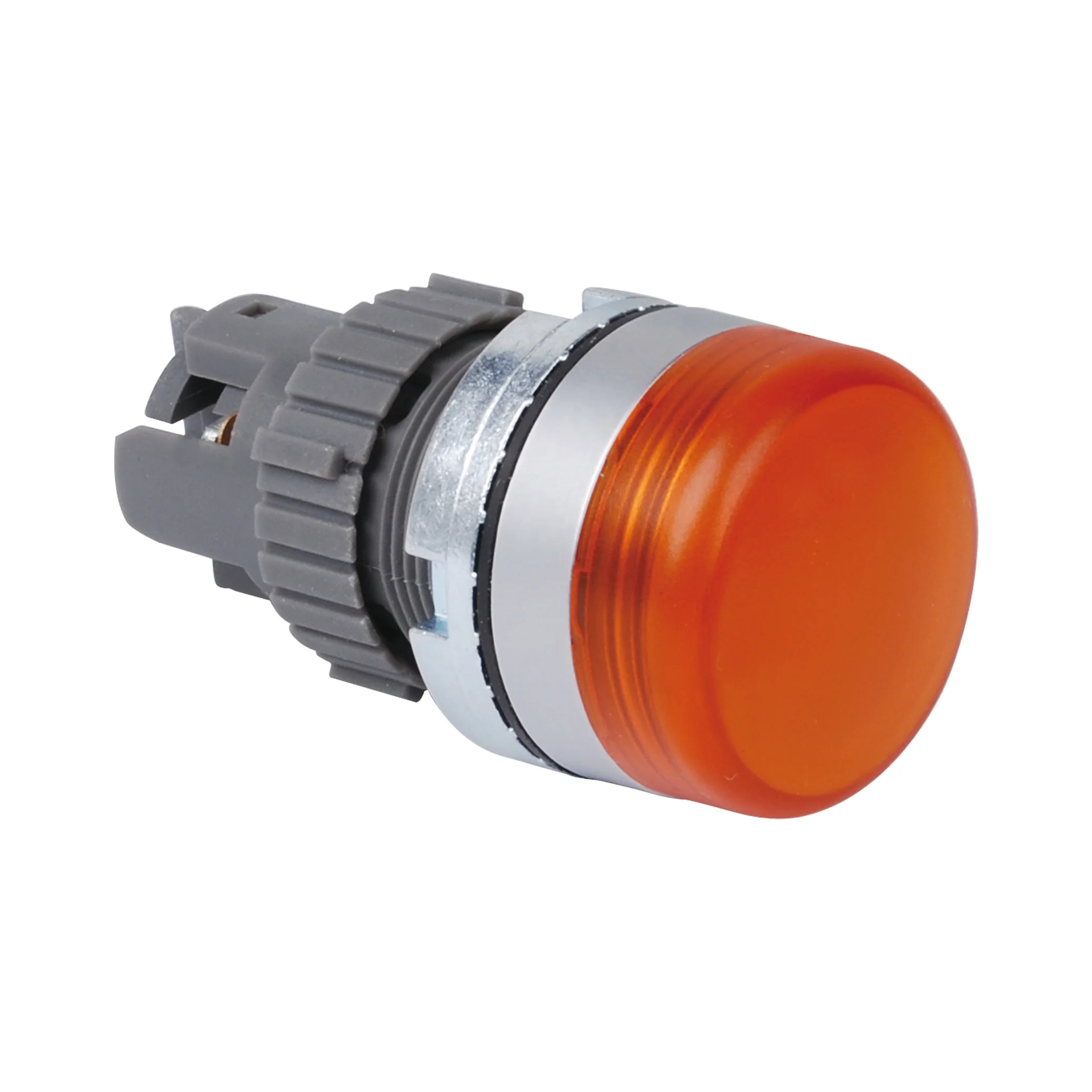

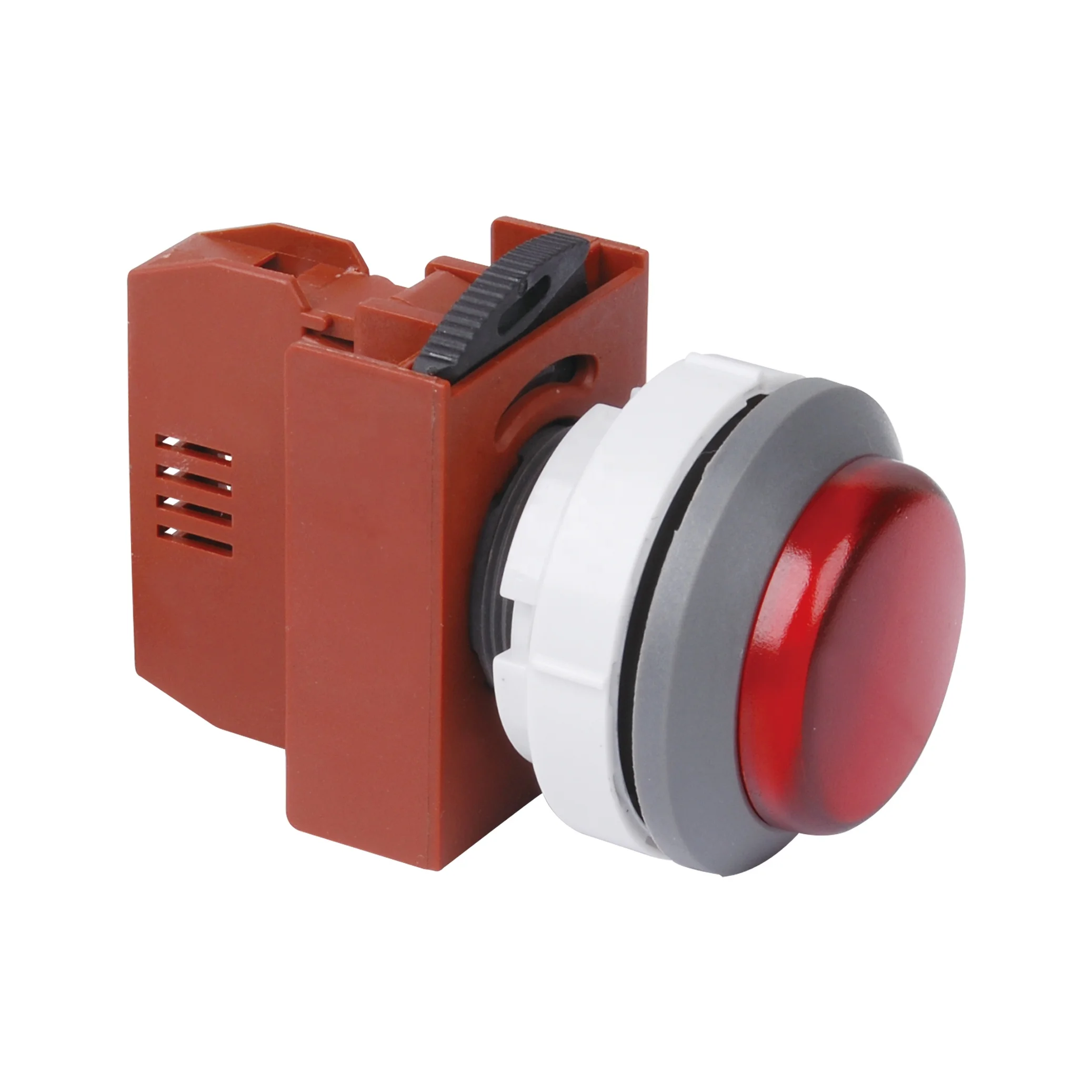

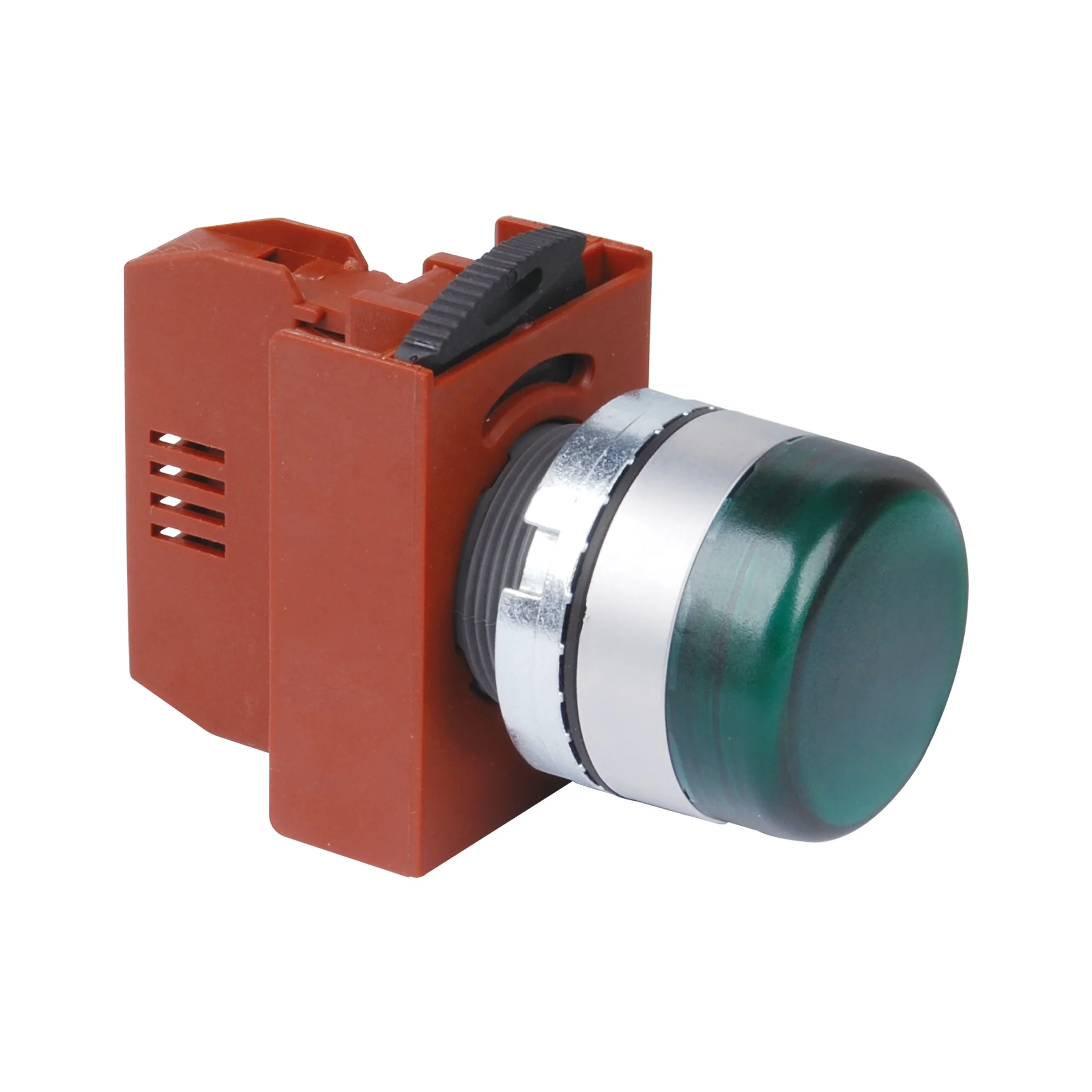

CNTD высококачественные круглые контактные блоки кнопочного переключателя 22 мм 30 10 А 600 в C01VN
- Категория: >>>
- Поставщик: CNTD Electric Technology Co. Ltd.
Сохранить в закладки 1600696600090:
Описание и отзывы
Характеристики
Model Number Structure
① Fixed hole diameter: 2=22 Φ Round、3=30 Φ Round
② Types:
SNS=Short handle knob、SNL=Long handle knob
SNK=key knob、PNF=flat head、PNH=convex head
PNM3=30mm big head、PNM4=40mm big head
PNM6=60mm big head、PNR3=30mm Emergency stop head
PNR4=40mm big head、PNR6=60mm Emergency stop head
PNKM4= Emergency stop knob、PND=Double with lamp button
PNP=Tensile switch、PIF=Flat ribbon lamp button
PIH=Convex head with lamp button、PIM4=big head with lamp button
PID=Double button、SIS=Short shank with lamp knob
SIS=Long handle with lamp knob、LIF=Standard type indicating lamp
LUF=circular type indicating lamp、MN=Monolever Switch
③ Operation type: Pushbutton Switch: Blank=Self-resetting、D=Self-locking
Knob Switch、Monolever Switch: F2=2 to the self-locking、F3=3 to the self-locking、F4=4 to the self-locking、T2=2 to reset、T3=3 to reset、T4=4 to reset
④ Contact: 1A=1NO、1B=1NC、1C=1A1B、1D=1A+1B、2A=2NO、2B=2NC、2C=1A1B+1A1B
⑤ Head color: R=red、G=green、Y=yellow、W=white、B=black、BL=blue
⑥ With lamp voltage: 12=12VDC、24=24VDC、36=36VDC、48=48VDC、
110=110VAC、220=220VAC、380=380VAC
Specifications
Electrical capacitor | Max insulation voltage 600VAC, Max thermal current10A |
Operation | AC15 Type: 250VAC/16A, DC13 Type: 250VDC/0.6A |
Contact resistance | Max 50MΩ |
Insulation strength | 2500VAC 50Hz, 1 minute |
Insulation resistance | 500VDC below, 100MΩ above |
Vibration resistance | 10g @40-500Hz |
Life | Lamp 1,000hour, LED 1,000hour |
Electrical life | Contact block AC15 250VAC/6A>1,000,000 |
DC13 250VAC/0.6A>1,000,000 | |
Storage temperature | Using: -20~+70℃ (With no icing) |
Operation temperature | Using: -20~+70℃ (With no icing) |
