Products Description
SKU:
T2401-O direct: X-HX0378A
T2401-O direct: X-HX0378B
T2401-N Passive: X-HX0410A
T2401-N Passive: X-HX0410B
W2401-O Active: X-HX0411A
W2401-O Active: X-HX0411B
W2401-N Passive: X-HX0412A
W2401-N Passive: X-HX0412B
Product selling point:
1: Parameter setting is simpler
2: Small and exquisite appearance
3: Direct output type
4: Wide application
5: Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second

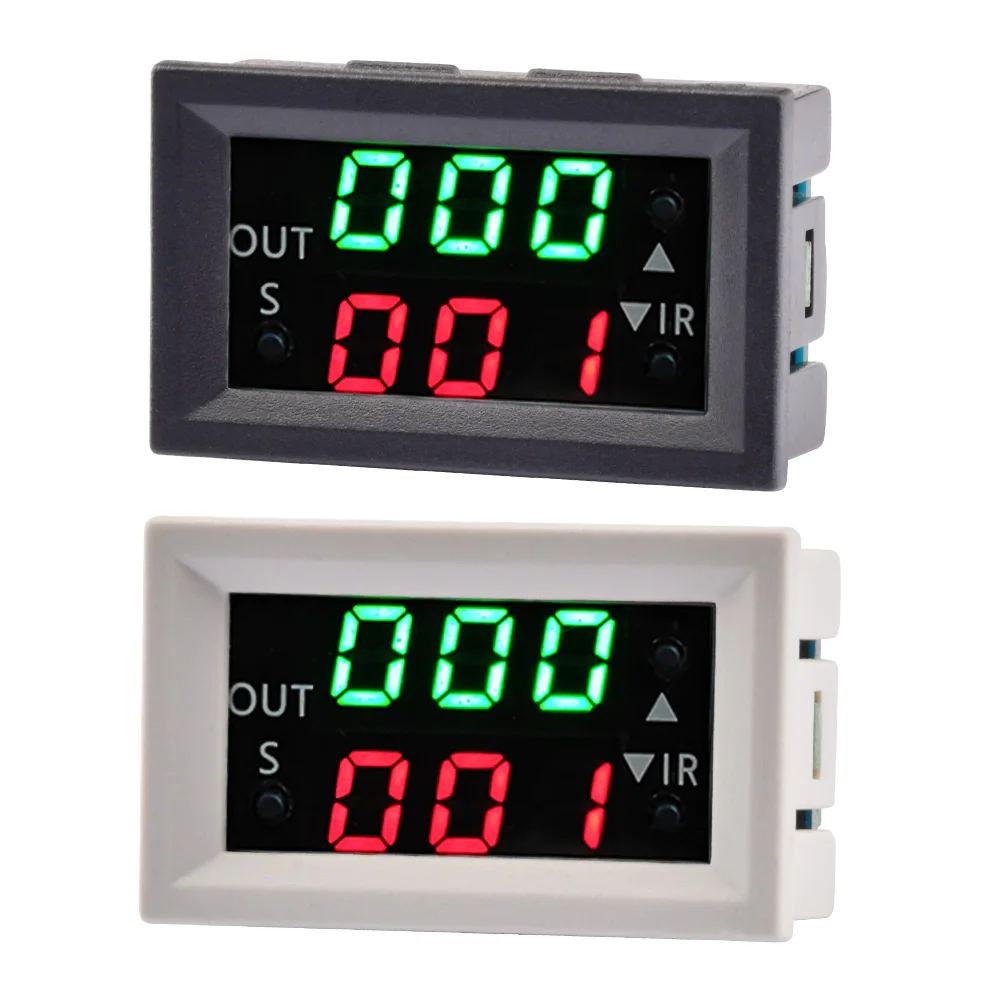

T2401-O DC12V Delay Dual Display Digital Time Relay Green Red Direct Output
Parameter:
Product Model: T2401-O
Product weight: 30g
Product size: 48X29X34mm
Mounting opening: 45.5x26.1mm
Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
Technical parameters: DC12V 2OA MAX 240W MAX
Working humidity: 35%~85%
Working temperature: -10~60℃
Size unchanged, compatible with installation, convenient for direct output wiring, green start and red stop, easy to set up, appearance patent
Code menu introduction:
Press and hold the S button for 6 seconds to enter the code menu
Mode setting demo
Double-click the S key to enter the parameter setting mode
safety warning:
The output is active, connect the load and then power on to avoid short circuit

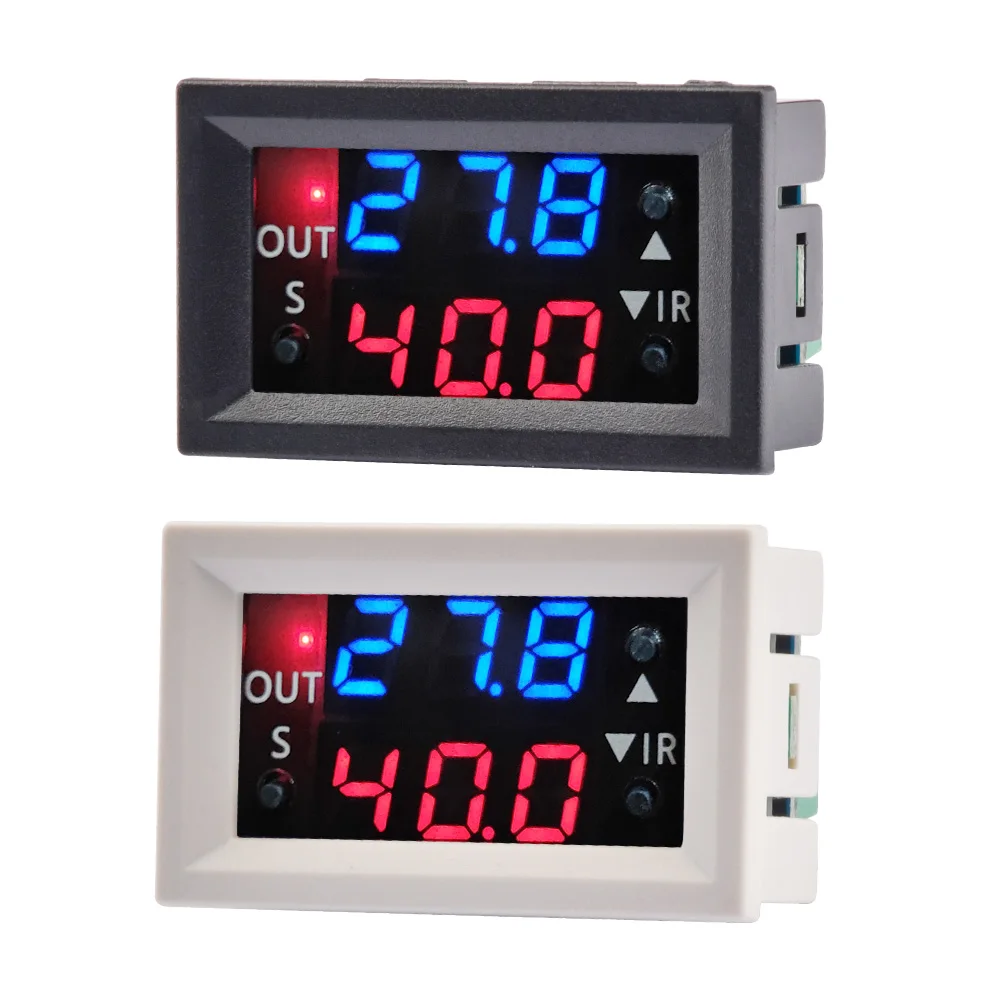

W2401-O Temperature Control Relay NTC 3950 Waterproof Probe DC12V Active Output Blue and Red Display
Parameter:
W2401-O
Active output
Only accept DC12V load

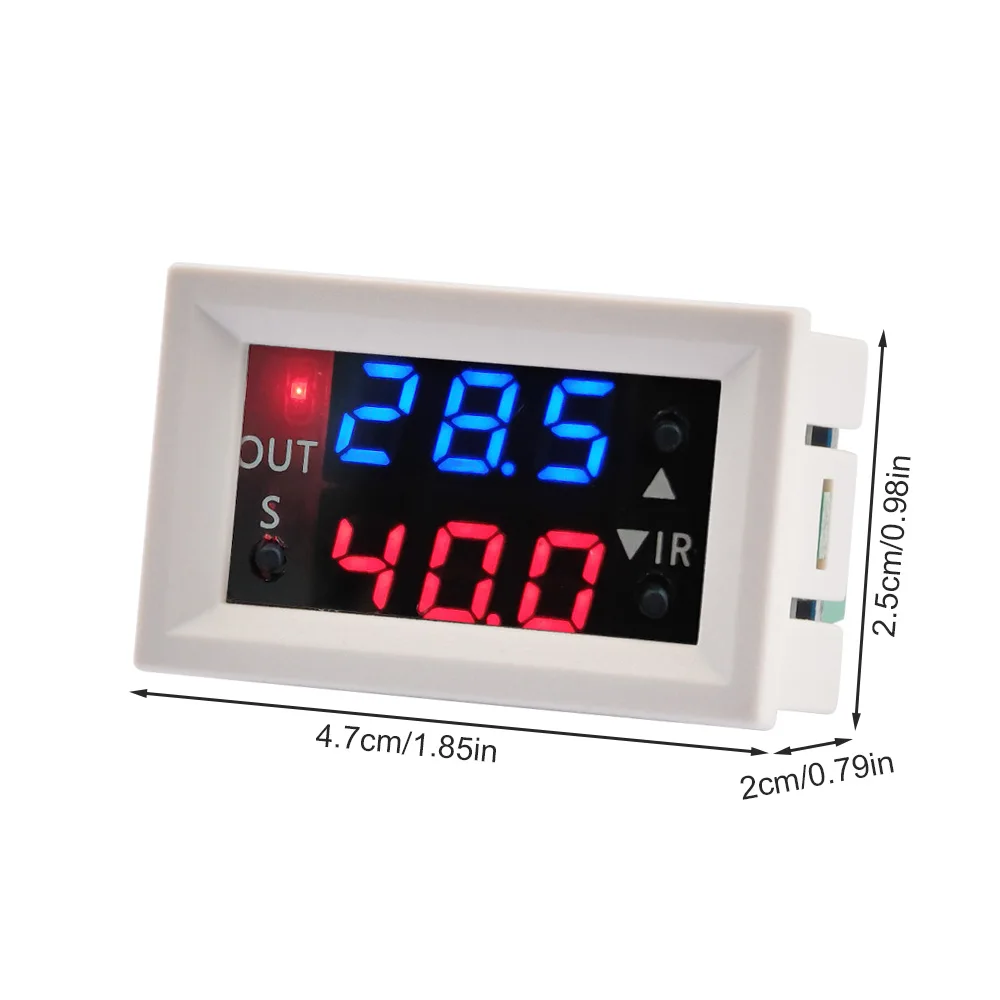

Size: 47.6×28.6×33.2mm
Embedded installation
Mounting opening: 45×26.1mm
Blue digital tube displays real-time temperature
Red digital tube shows the temperature of power failure
100cm NTC waterproof probe
Easy to set up and get started
1-way normally open relay control output
There is a Chinese and English bilingual manual in paper version
There is a setting lock to prevent accidental touch
Adjustable temperature range
-50°C~120°C
Minimum measurement: 0.1C
Error: ±1%
No over temperature alarm
no buzzer
Power on and run automatically
Power-off storage settings
Working voltage: DC12V
Load power DC12V 20A 240W

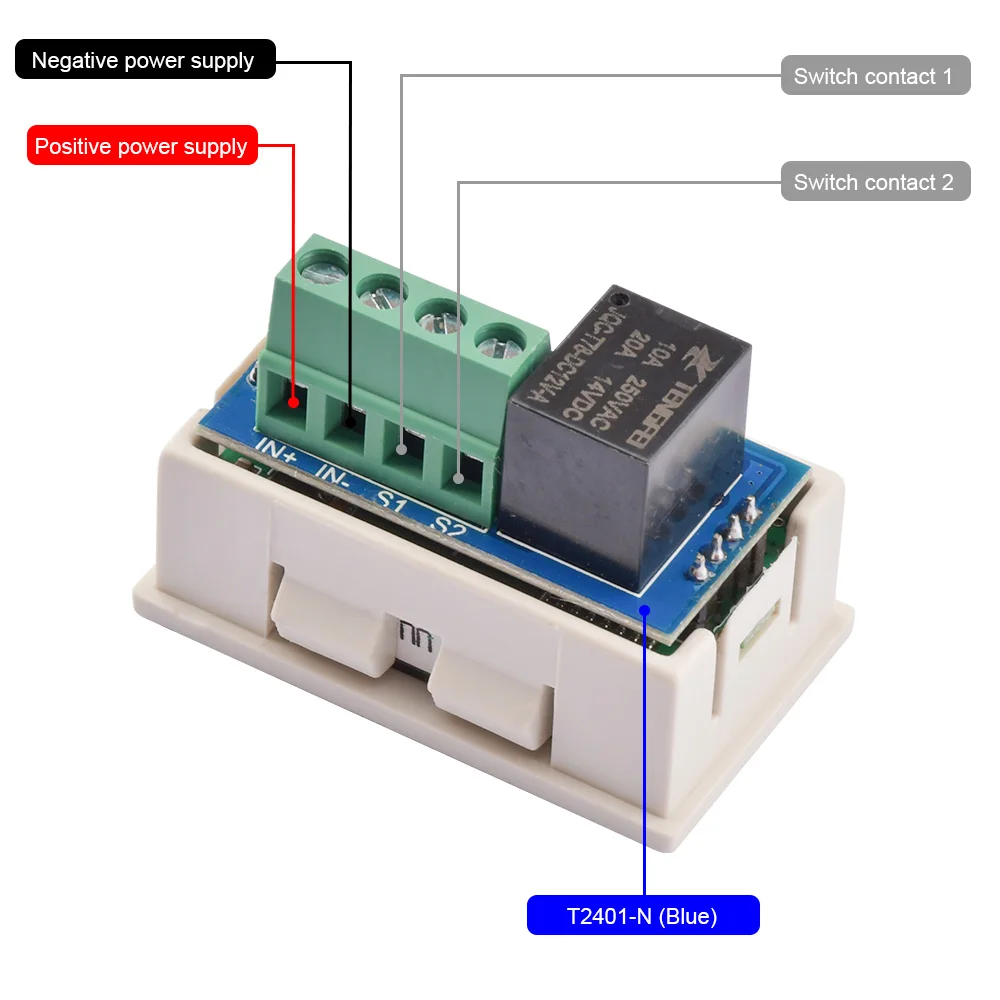

T2401-N Passive Output DC12V delay dual display digital time relay module
Parameter:
Contacts de-energized No output
Can be connected to loads other than 12V
Size: 47.6×28.6×33.2mm
Embedded installation
Mounting opening: 45×26.1mm
Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use
1-way normally open relay control on-off
There is a setting lock to prevent accidental touch
Adjustable timing range
0~999 (seconds, minutes, hours) Minimum timing unit: 1 second
Timing error: ±4.5%
Integrated crystal oscillator
Power-on auto-run power-off save settings
Working voltage: DC12V
load power
DC12V 20A240wAC220V 1500w ( max )
Loop switch supported
Alternate 1 switch is not supported

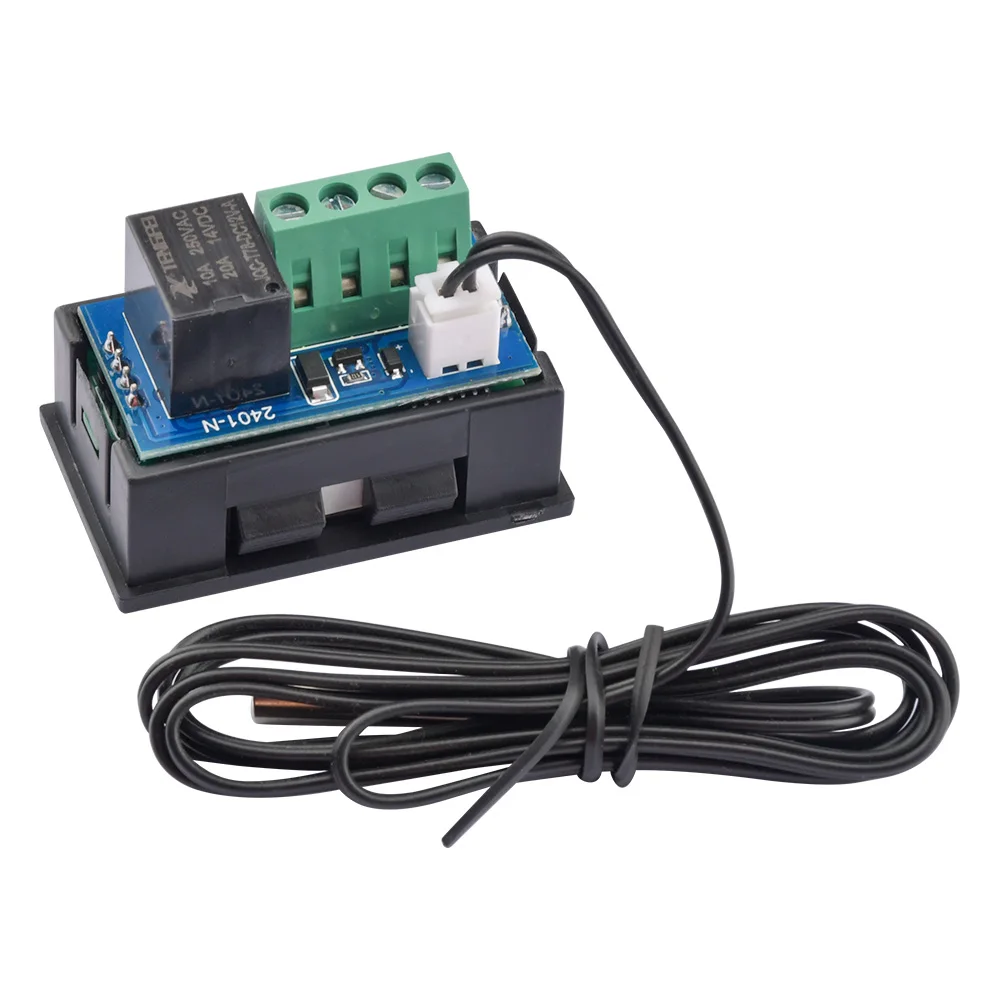

W2401-N temperature control relay NTC 3950 waterproof probe DC12V passive output blue and red display
Parameter:
W2401-N
Contacts are not charged and have no output
Can be connected to loads other than 12V
Size: 47.6×28.6×33.2mm
Embedded installation
Mounting opening: 45×26.1mm
Blue digital tube displays real-time temperature
Red digital tube shows the temperature of power failure
100cm NTC waterproof probe
Easy to set up and get started
1-way normally open relay control on-off
There is a Chinese and English bilingual manual in paper version
There is a setting lock to prevent accidental touch
Adjustable temperature control range -50℃~120℃
Minimum measurement value: 0.1℃
Error: ±1%
No over temperature alarm
no buzzer
Power-on auto-run power-off save settings
Working voltage: DC12V
load power
DC12V 20A240w AC220V 1500w (max)
SKU:
T2401-O direct: X-HX0378A
T2401-O direct: X-HX0378B
T2401-N Passive: X-HX0410A
T2401-N Passive: X-HX0410B
W2401-O Active: X-HX0411A
W2401-O Active: X-HX0411B
W2401-N Passive: X-HX0412A
W2401-N Passive: X-HX0412B
Product selling point:
1: Parameter setting is simpler
2: Small and exquisite appearance
3: Direct output type
4: Wide application
5: Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
T2401-O DC12V Delay Dual Display Digital Time Relay Green Red Direct Output
Parameter:
Product Model: T2401-O
Product weight: 30g
Product size: 48X29X34mm
Mounting opening: 45.5x26.1mm
Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
Technical parameters: DC12V 2OA MAX 240W MAX
Working humidity: 35%~85%
Working temperature: -10~60℃
Size unchanged, compatible with installation, convenient for direct output wiring, green start and red stop, easy to set up, appearance patent
Code menu introduction:
Press and hold the S button for 6 seconds to enter the code menu
Mode setting demo
Double-click the S key to enter the parameter setting mode
safety warning:
The output is active, connect the load and then power on to avoid short circuit
W2401-O Temperature Control Relay NTC 3950 Waterproof Probe DC12V Active Output Blue and Red Display
Parameter:
W2401-O
Active output
Only accept DC12V load
Size: 47.6×28.6×33.2mm
Embedded installation
Mounting opening: 45×26.1mm
Blue digital tube displays real-time temperature
Red digital tube shows the temperature of power failure
100cm NTC waterproof probe
Easy to set up and get started
1-way normally open relay control output
There is a Chinese and English bilingual manual in paper version
There is a setting lock to prevent accidental touch
Adjustable temperature range
-50°C~120°C
Minimum measurement: 0.1C
Error: ±1%
No over temperature alarm
no buzzer
Power on and run automatically
Power-off storage settings
Working voltage: DC12V
Load power DC12V 20A 240W
T2401-N Passive Output DC12V delay dual display digital time relay module
Parameter:
Contacts de-energized No output
Can be connected to loads other than 12V
Size: 47.6×28.6×33.2mm
Embedded installation
Mounting opening: 45×26.1mm
Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use
1-way normally open relay control on-off
There is a setting lock to prevent accidental touch
Adjustable timing range
0~999 (seconds, minutes, hours) Minimum timing unit: 1 second
Timing error: ±4.5%
Integrated crystal oscillator
Power-on auto-run power-off save settings
Working voltage: DC12V
load power
DC12V 20A240wAC220V 1500w ( max )
Loop switch supported
Alternate 1 switch is not supported
W2401-N temperature control relay NTC 3950 waterproof probe DC12V passive output blue and red display
Parameter:
W2401-N
Contacts are not charged and have no output
Can be connected to loads other than 12V
Size: 47.6×28.6×33.2mm
Embedded installation
Mounting opening: 45×26.1mm
Blue digital tube displays real-time temperature
Red digital tube shows the temperature of power failure
100cm NTC waterproof probe
Easy to set up and get started
1-way normally open relay control on-off
There is a Chinese and English bilingual manual in paper version
There is a setting lock to prevent accidental touch
Adjustable temperature control range -50℃~120℃
Minimum measurement value: 0.1℃
Error: ±1%
No over temperature alarm
no buzzer
Power-on auto-run power-off save settings
Working voltage: DC12V
load power
DC12V 20A240w AC220V 1500w (max)
