Гидравлический алюминиевый ручной ножничный подъемный стол в
230,00 $ - 315,00 $
Высококачественная сверхнизкая электрическая подъемная платформа гидравлический ножничный подъемный стол мини с нагрузкой 2000
- Категория: Lift Tables >>>
- Поставщик: Shandong Jndo Hoisting Equipment Co. Ltd.
Сохранить в закладки 1600699648799:
Описание и отзывы
Характеристики
Product Description

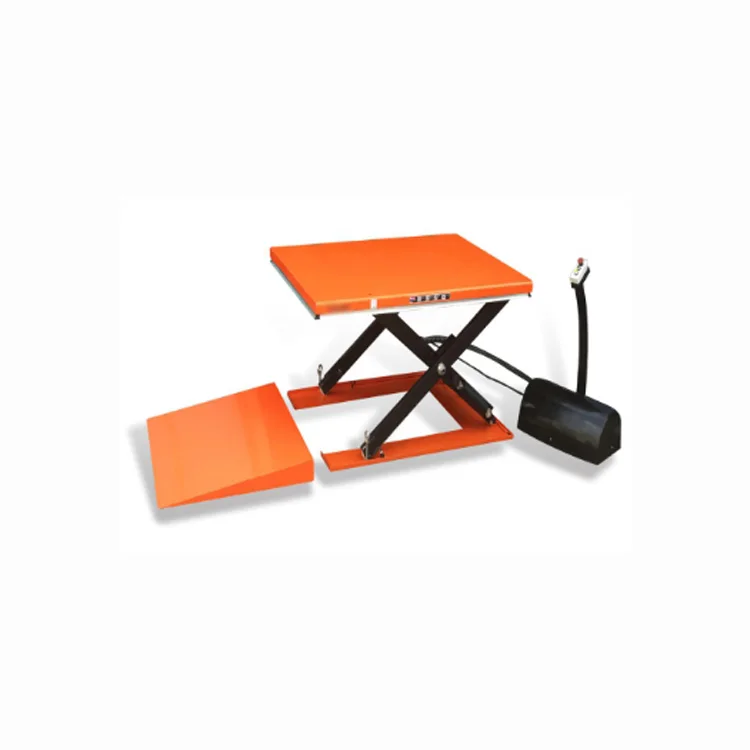

Ultra-low electric lifting platform
1. Heavy-duty design, strong and safe structure, standard slope for easy loading and unloading of goods;
2. Using high-quality pumping station, the goods can be lifted smoothly and powerfully;
3. Anti-pinch design is adopted, and the main pin shaft adopts self-lubricating design to prolong the service life;
4. There is an aluminum safety bar device under the table, which stops falling when the table falls and encounters obstacles to ensure safety;
5. The hydraulic system is equipped with a safety valve to prevent overload operation, and a flow control valve to adjust the descending speed;
6. The heavy-duty oil cylinder is equipped with an explosion-proof valve, which can prevent the lifting platform from falling quickly when the oil pipe bursts;
7. Comply with European EN1757-2 and American ANSI/ASME safety standards.
2. Using high-quality pumping station, the goods can be lifted smoothly and powerfully;
3. Anti-pinch design is adopted, and the main pin shaft adopts self-lubricating design to prolong the service life;
4. There is an aluminum safety bar device under the table, which stops falling when the table falls and encounters obstacles to ensure safety;
5. The hydraulic system is equipped with a safety valve to prevent overload operation, and a flow control valve to adjust the descending speed;
6. The heavy-duty oil cylinder is equipped with an explosion-proof valve, which can prevent the lifting platform from falling quickly when the oil pipe bursts;
7. Comply with European EN1757-2 and American ANSI/ASME safety standards.
Specification
Model | Load(kg) | Minimum height mm | Maximum height mm | Table size (L×W) mm | Base size (L×W) mm | Lifting time (s) | Power parameters | Weight kg |
YLF1001C | 1000 | 85 | 860 | 1450*1140 | 1325*1074 | 25 | 380V/50Hz | 357 |
YLF1002C | 1000 | 85 | 860 | 1600*1140 | 1325*1074 | 25 | 380V/50Hz | 364 |
YLF1003C | 1000 | 85 | 860 | 1450*800 | 1325*734 | 25 | 380V/50Hz | 326 |
YLF1004C | 1000 | 85 | 860 | 1600*800 | 1325*734 | 25 | 380V/50Hz | 332 |
YLF1005C | 1000 | 85 | 860 | 1600*1000 | 1325*734 | 25 | 380V/50Hz | 352 |
YLF1501C | 1500 | 105 | 870 | 1600*800 | 1325*734 | 30 | 380V/50Hz | 302 |
YLF1502C | 1500 | 105 | 870 | 1600*1000 | 1325*734 | 30 | 380V/50Hz | 401 |
YLF1503C | 1500 | 105 | 870 | 1600*1180 | 1325*734 | 30 | 380V/50Hz | 415 |
YLF2001C | 2000 | 105 | 870 | 1600*1180 | 1427*1114 | 35 | 380V/50Hz | 419 |
YLF2002C | 2000 | 105 | 870 | 1600*1000 | 1427*734 | 35 | 380V/50Hz | 405 |
Company Profile
Established in 2009, Shandong Jndo Hoisting Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist.
We are located in Weifang, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
We are located in Weifang, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(30.00%),Western Europe(19.00%),Southeast Asia(14.00%),North America(11.00%),Northern Europe(7.00%),Eastern Europe(7.00%),Oceania(4.00%),South America(3.00%),Mid East(3.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lifting Equipment; Handling Equipment
4. why should you buy from us not from other suppliers?
Shandong Jndo Hoisting Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2009,sell to Domestic Market(30.00%),Western Europe(19.00%),Southeast Asia(14.00%),North America(11.00%),Northern Europe(7.00%),Eastern Europe(7.00%),Oceania(4.00%),South America(3.00%),Mid East(3.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lifting Equipment; Handling Equipment
4. why should you buy from us not from other suppliers?
Shandong Jndo Hoisting Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
