Product Description

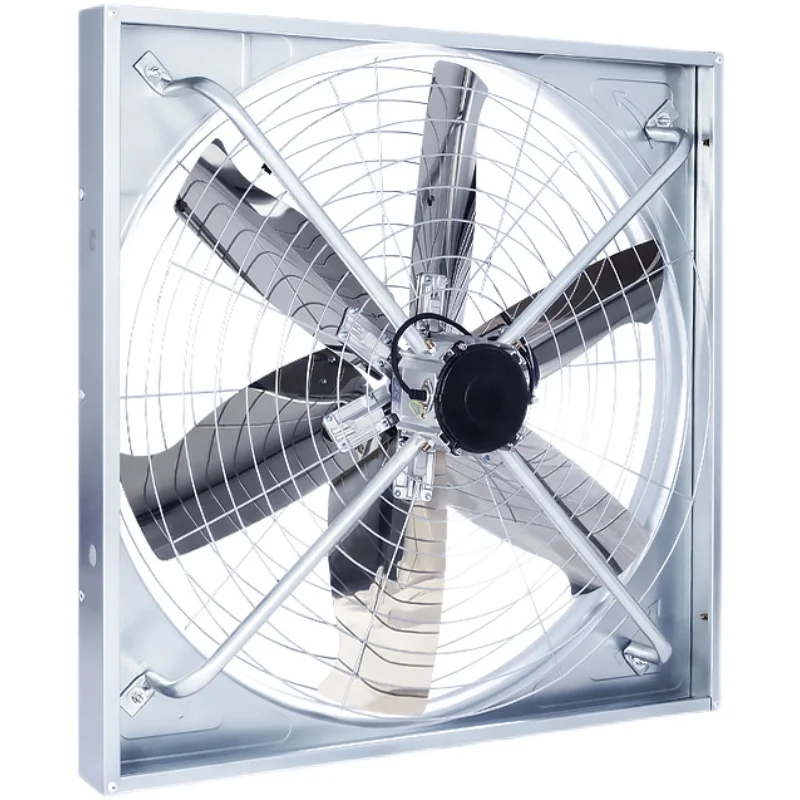

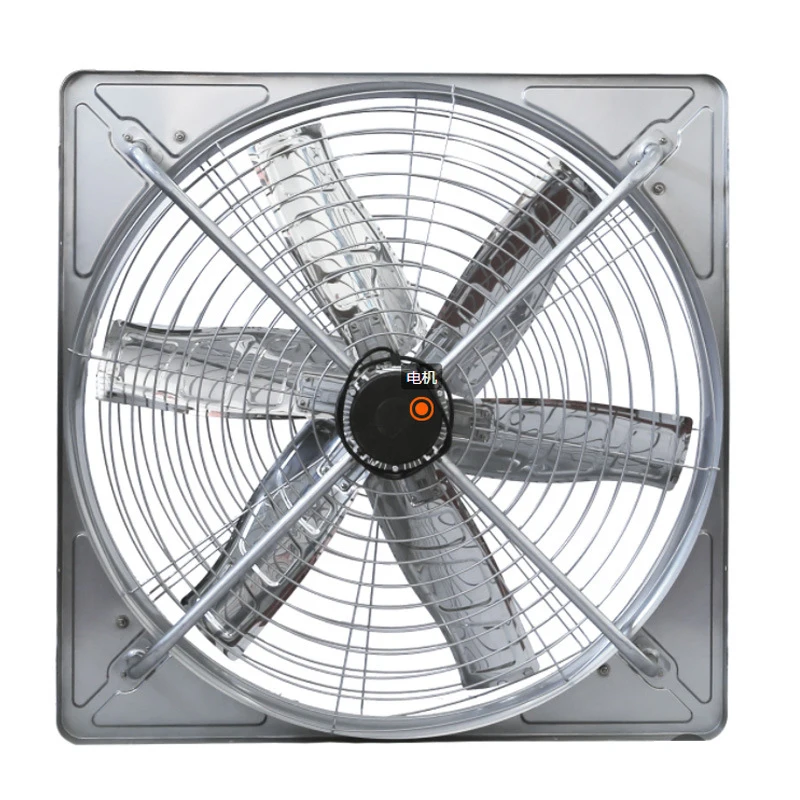

HUAYI series cow house hanging exhaust fan is widely used in various types of cow house for cooling and ventilation. Our cow house hanging exhaust fan can be customized according to customer needs, there are belt drive and direct drive, 4 fan blades and 6 fan blades, galvanized frame and plastic frame for available.
Model | Blade Diameter | Blade RPM | Motor RPM | Air Flow m³/hr | Input Power | Dimensions |
HYCF-900 | 750mm-30inch | 630 | 1400 | 28000 | 370w | 900*900mm |
HYCF-1000 | 900mm-36inch | 610 | 1400 | 30000 | 750w | 1000*1000mm |
HYCF-1100 | 1000mm-40inch | 600 | 1400 | 32500 | 750w | 1100*1100mm |
HYCF-1220 | 1100mm-44inch | 460 | 1400 | 38000 | 750w | 1220*1220mm |
HYCF-1380 | 1270mm-50inch | 439 | 1400 | 44000 | 1100w | 1380*1380mm |
HYCF-1530 | 1400mm-56inch | 325 | 1400 | 55000 | 1500w | 1530*1530mm |
Main Features
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.

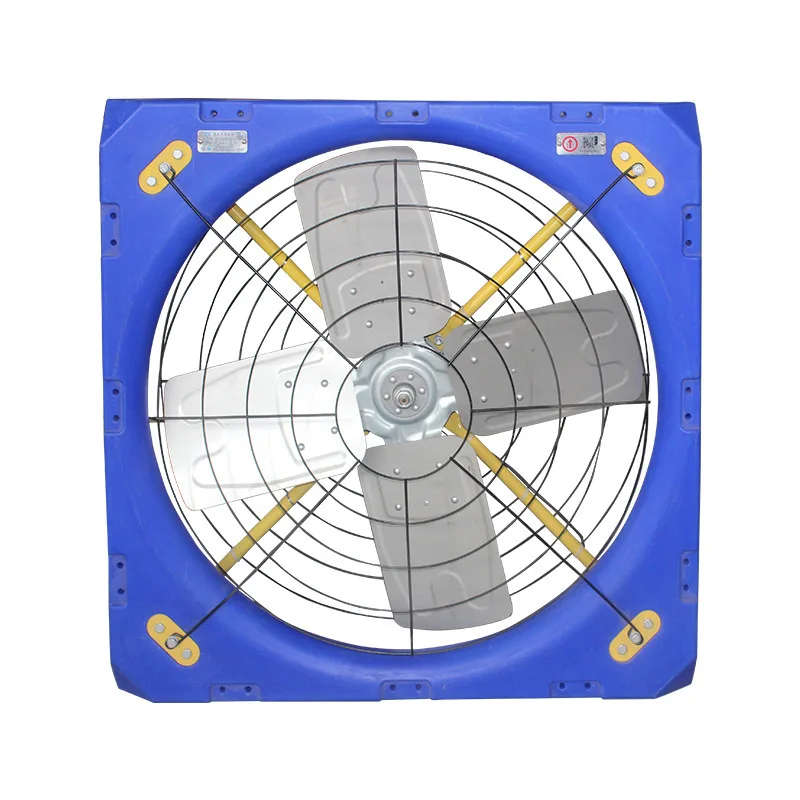

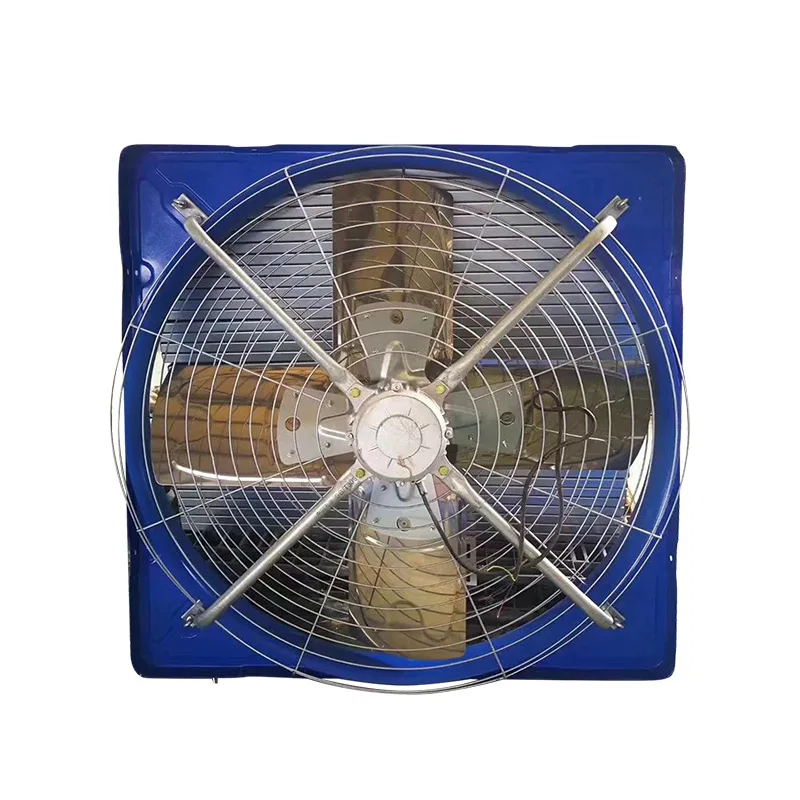

Plastic fan
Four Blades
Six Blades
Details Images
*Outer frame
Fan galvanized frame with zinc-coated 275g/sqm and high quality plastic frame can be choose, no rust and durable. Fan frame with hanging rings, convenient for installation and angle adjustment.
Fan blade is made of Krupp stainless steel by punch forming ,no dust ,attractive and durable.Special blades shape design ensure
large air volume,no deformation,no broken,keep air volume same all the way.
large air volume,no deformation,no broken,keep air volume same all the way.
Both Chinese famous motor and Siemens motor are available,Motor voltage and frequency could be customized.Chinese famous motor,special design for fan,the first one put forward the phase lack protection davice which could power off when shortage of electricity.Motor protection grade IP55,insultaion Class:Grade F
Experiments have improved that in order to get the best ventilation effect:
1.the optimum installation site is rightly above of the feeding trough.
2. the fan bottom and ground distance is 2.7m
3.Leaning angle controlling within 15° to 30° is the best.
1.the optimum installation site is rightly above of the feeding trough.
2. the fan bottom and ground distance is 2.7m
3.Leaning angle controlling within 15° to 30° is the best.
Case Display
Company Profile
Qingzhou Huayi Temperature Control Equipment Co., Ltd is a professional company engaged in the research and design of temperature control equipment. we devotes ourselve to the scientific and technological development of ventilation and cooling equipment, heating equipment and animal husbandry machinery, adopts advanced CAD software technology to design new products, and continuously builds energy-saving.technologies.We are a new type of workshop ventilation and cooling equipment, standardized livestock House, gardening greenhouse ventilation and cooling, heating equipment, the production of "HUAYI" brand products six series of more than 20 specifications, the main products include cooling pad, animal husbandry fan, negative pressure fan, gardening fan, circulation fan, roof exhaust fan, axial flow fan and so on, which can be widely used in agriculture, flowers, animal husbandry, plant, textile,coal mine, chemical industry, shopping malls and supermarkets, medicine, grain,vegetables, timber and other industries. Our products are exported to domestic and foreign markets.We strive to create products with good performance and excellent price. We do OEM or ODM service. No matter customize pattern, logo, package. All of our products have passed strict quality control and been issued certification of CE,ISO9001. Our products are exported all over the world and widely recognized and trusted by users.We welcome potential partners both at home and abroad contact and visit us for future business relationships and mutual success!
Our Factory
Why Choose Us
Long Standing History
15 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 50 automatic machines and 10 production lines, lower product cost for our customers.
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
15years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 400mm to 1530mm, ventilation capacity ranges from 1000CFM to 40000CFM.
Fast Delivery
The production efficiency is high. Our daily output is 1000 pieces. Most of our customers can deliver within 7 days, and some can deliver within one day or three days.
Complete Product Line
95%of the fan parts are produced in our own facility,we handle from coil sliding and folding, laser welding, CNC machining and assembly to ensure high precision of each part and higher performance of the exhaust fans
Professional Trustworthy
The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”HUAYI''
Our services
Pre-sales service
* Accept OEM & ODM, support custom products according to customer's requirement.
* partners both at home and abroad contact and visit our factory.
* give you professional suggestion, according to different market and products for new customers.
* partners both at home and abroad contact and visit our factory.
* give you professional suggestion, according to different market and products for new customers.
After-sales service
* All enquires will be valued and replied within 2 hours.
* Good package to protect the products.
* We return and exchange the products if the quality problems caused by manufacturing.
Packaging&Shipping
Unassembled Exhaust Fan Parts
unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
If the order is not large, we can send it to you by express delivery, such as TNT, DHL, UPS or EMS.
If the order volume is large we will recommend you to use air or sea transportation through the designated freight forwarder. We also have long-term cooperative agents.
Q1. Are you a factory or trading company?
A1:We are a professional and acomprehensive poultry farm equpment supplier integrating
R&D, production and sales founded on 2015. OEM and ODM are welcomed.
R&D, production and sales founded on 2015. OEM and ODM are welcomed.
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again, we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production, fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Похожие товары
Китайская фабрика низкая цена автоматическая Бройлер куриный домик оборудование для птицефермы
1 644,73 ₽ - 1 754,38 ₽
TUOYUN самый продаваемый коврик для домашнего использования пластиковая решетка пола в клетке кролика
164,48 ₽ - 219,30 ₽
Брудер для расплода большого размера птенцов
2 521,92 ₽ - 3 289,46 ₽
Пластиковый слайд Печатный пчелиный улей гнездо для двери ABS материал пластиковый вход

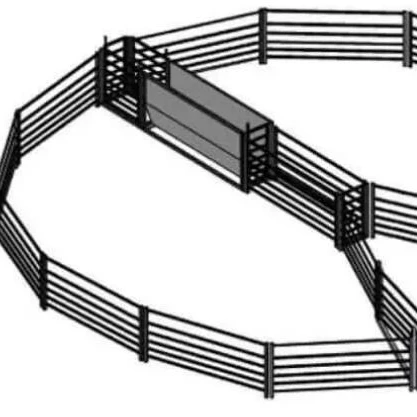

Новинка 2022 портативные панели для овец оцинкованные горячим способом
2 905,69 ₽ - 3 124,98 ₽

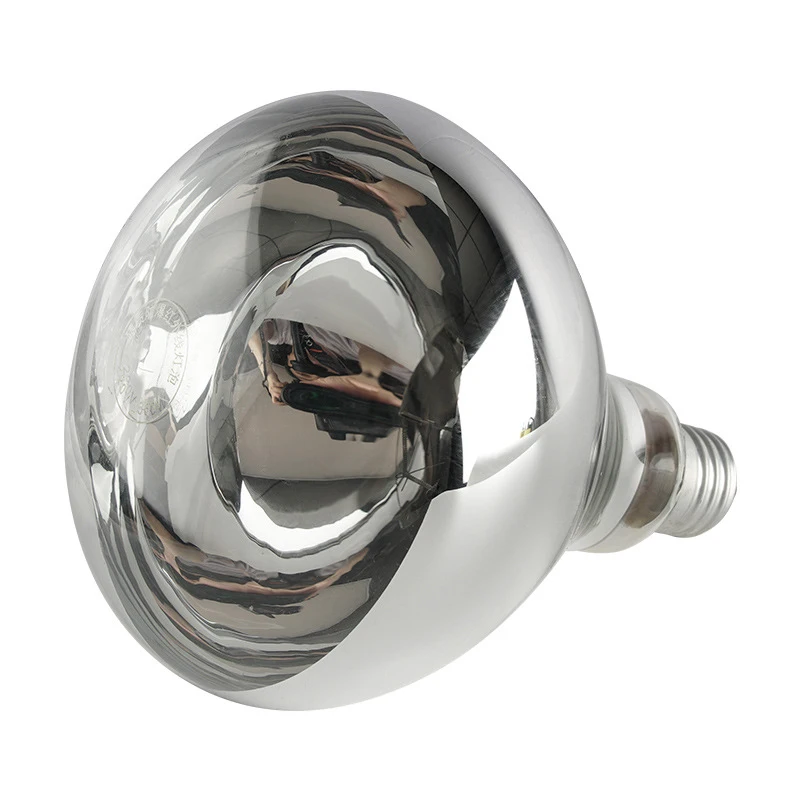

Инфракрасные лампы для цыплят
77,86 ₽ - 120,62 ₽

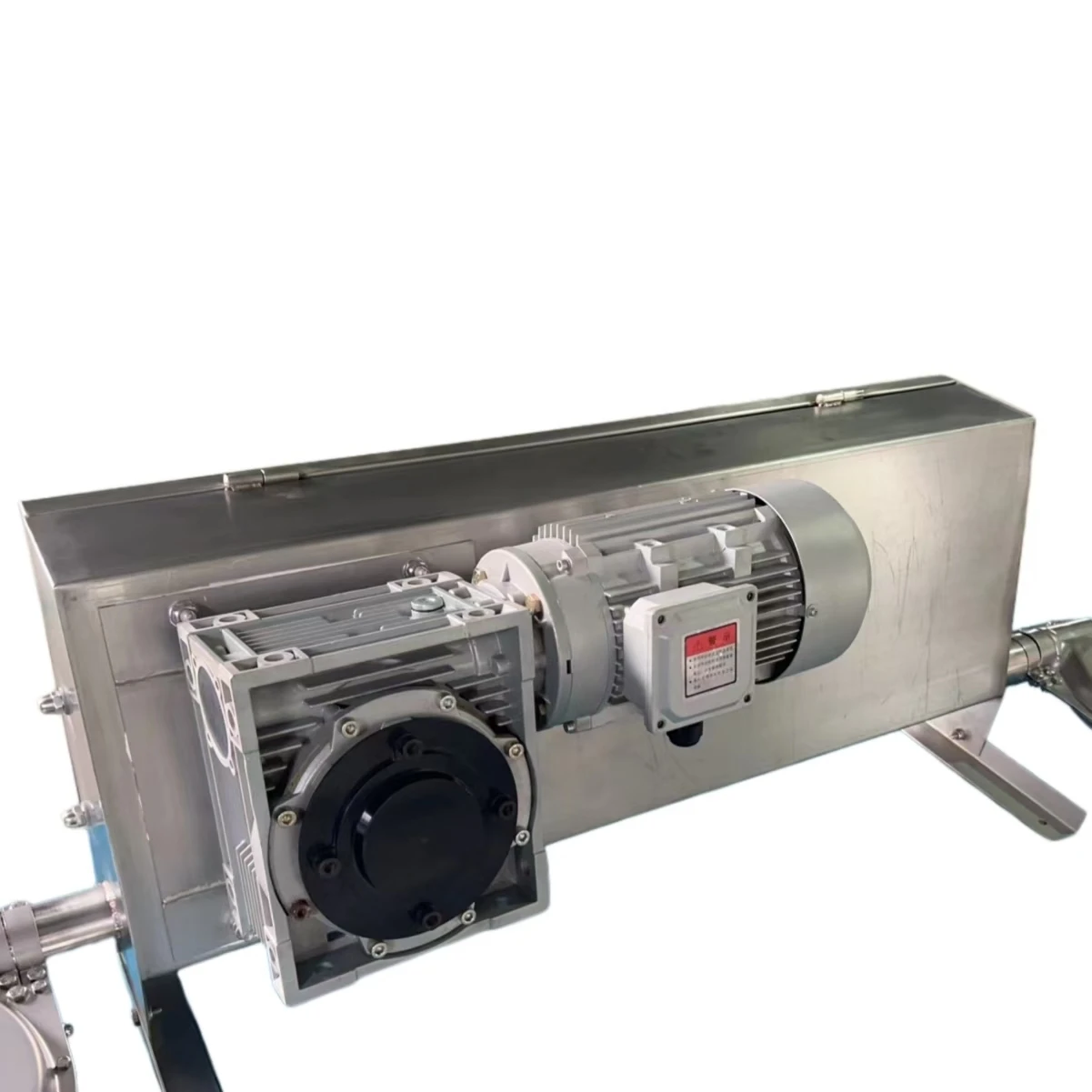

Нержавеющая сталь автоматическая чугунная линия подачи свиней ведущая для профессиональной системы кормления
