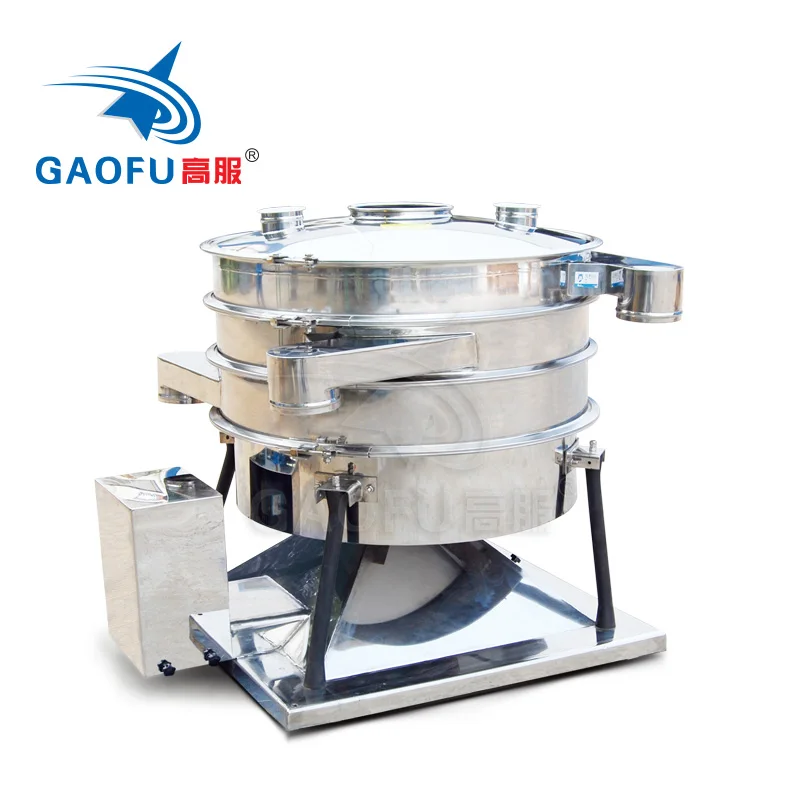

Гаофу, вибрационный просеиватель для удаления примесей, графитовый материал, скрининг, новое вибрационное сито
519 624,84 ₽ - 616 891,84 ₽
Лидер продаж высокочастотное вибрирующее сито с тонким экраном для добычи угольной руды
- Категория: >>>
- Поставщик: Hebei Dizhuo Rubber And Plastic Products Co. Ltd.
Сохранить в закладки 1600699843511:
Описание и отзывы
Характеристики
Products Description
hot sale high frequency vibrating fine screen sieve for coal ore mining
Polyurethane sieve plate has the characteristics of good wear resistance, long service life, high screening quality, low noise, strong self-cleaning ability, good screening performance and wide application range. It can be used in metallurgy, coal, mining, building materials, water conservancy, petroleum and other industries, and can be used for material classification, dehydration, medium removal and other operations.It is also called sand and stone dewatering screen,mining dewatering screen, Mud dewatering screen, tailings dewatering screen, etc.
MODEL | DIMENSION(MM) L*W*H | APERTURE(mm) | |
DZ01S Tension Screen（with steel wire） | 2400*1500*25 | 4*4-6*6 | |
2400*1500*25 | 8*8-12*12 | ||
2400*1500*28 | 15*15-35*35 | ||
2400*1500*30 | 40*40-60*60 | ||
2400*1500*40 | 65*65-90*90 | ||
accept customized production | |||
DZ02S Skeleton Screen （with steel skeleton） | 2400*1500*25 | 4*4-6*6 | |
2400*1500*25 | 8*8-12*12 | ||
2400*1500*28 | 15*15-35*35 | ||
2400*1500*30 | 40*40-60*60 | ||
flip-flow screen | 65*65-90*90 | ||
accept customized production | |||
DZ03S Dewatering Screen （with steel skeleton） | 305*305*30 | 0.1*12-2.5*12 | |
305*305*40 | |||
600*600*40 | |||
500*550*40 | |||
accept customized production | |||
DZ04S Flip-flow Screen | W330mm*H6-8mm | ||
DZ05S High frequency screen | 0.063mm | ||
1mm | |||
2mm | |||
DZ06S Wave screen | accept customized products for all size and aperture | ||
other polyurethane Screen | accept customized products for all size and aperture | ||
Dehydration sieve plate
Applications：Wet applications but may also be applied in dry screens
Material：polyurethane with iron skeleton inside
Size：305mm*610mm
Mesh number：from 4 mesh to 100 mesh
Fastening method：batten connection
Colour：yellow, red ,orange or green
Quotation info needed：length, width, thickness, aperture size and quantity
Material：polyurethane with iron skeleton inside
Size：305mm*610mm
Mesh number：from 4 mesh to 100 mesh
Fastening method：batten connection
Colour：yellow, red ,orange or green
Quotation info needed：length, width, thickness, aperture size and quantity
Dewatering sieve plate
Applications：Wet applications but may also be applied in dry screens
Material：polyurethane with iron skeleton inside
Size：from 500mm*500mm to 2500mm*1500mm
Mesh number：from 4 mesh to 100 mesh
Fastening method：bolt connection
Colour：yellow, red ,orange or green
Quotation info needed：length, width, thickness, aperture size and quantity
Material：polyurethane with iron skeleton inside
Size：from 500mm*500mm to 2500mm*1500mm
Mesh number：from 4 mesh to 100 mesh
Fastening method：bolt connection
Colour：yellow, red ,orange or green
Quotation info needed：length, width, thickness, aperture size and quantity
Circular sieve plate
Applications：Wet applications but may also be applied in dry screens
Material：polyurethane with iron skeleton inside
Size：diameter from 500mm to 1500mm
Mesh number：from 4 mesh to 100 mesh
Fastening method：bolt connection
Colour：yellow, red ,orange or green
Quotation info needed：diameter, aperture size and quantity
Material：polyurethane with iron skeleton inside
Size：diameter from 500mm to 1500mm
Mesh number：from 4 mesh to 100 mesh
Fastening method：bolt connection
Colour：yellow, red ,orange or green
Quotation info needed：diameter, aperture size and quantity
Macroporous sieve plate
Applications：Wet applications but may also be applied in dry screens
Material：polyurethane with iron skeleton inside
Size：from 500*500mm to 2500*1500mm
Aperture size：Strip hole from 3mm*12mm to 50mm*80mm， Square hole from 6mm*6mm to 100mm*100mm， circular hole from diameter 4mm to diameter 50mm.
There are also some elliptical aperture.
Fastening method：bolt connection
Colour：yellow, red ,orange or green
Quotation info needed：length, width, thickness, aperture size and quantity
Material：polyurethane with iron skeleton inside
Size：from 500*500mm to 2500*1500mm
Aperture size：Strip hole from 3mm*12mm to 50mm*80mm， Square hole from 6mm*6mm to 100mm*100mm， circular hole from diameter 4mm to diameter 50mm.
There are also some elliptical aperture.
Fastening method：bolt connection
Colour：yellow, red ,orange or green
Quotation info needed：length, width, thickness, aperture size and quantity
wear-resistant relaxation screen mesh
Applications：Wet applications but may also be applied in dry screens
Material：Wear resistant polyurethane
Size：3150mm*355mm*5mm
Aperture size：from 2mm*10mm to 20mm*50mm
Fastening method：inlay type
Colour：yellow, red ,orange or blue
Quotation info needed：length, width, thickness, aperture size and quantity
Material：Wear resistant polyurethane
Size：3150mm*355mm*5mm
Aperture size：from 2mm*10mm to 20mm*50mm
Fastening method：inlay type
Colour：yellow, red ,orange or blue
Quotation info needed：length, width, thickness, aperture size and quantity
Wear-resistant high-frequency screen
Applications：Wet applications but may also be applied in dry screens
Material：Wear resistant polyurethane
Size：from 700mm*500mm to 6000mm*1500mm
Mesh number：below 300 mesh
Fastening method：inlay type
Colour：orange
Quotation info needed：length, width, aperture size and quantity
Material：Wear resistant polyurethane
Size：from 700mm*500mm to 6000mm*1500mm
Mesh number：below 300 mesh
Fastening method：inlay type
Colour：orange
Quotation info needed：length, width, aperture size and quantity
Tension sieve plate or vibrating screen plate
Applications：Wet applications but may also be applied in dry screens
Material：polyurethane with wire rope and iron hooks on both sides
Size：from 900*400mm to 4000*1500mm
Aperture size：Strip hole from 3mm*12mm to 50mm*80mm，Square hole from 6mm*6mm to 100mm*100mm，circular hole from diameter 4mm to diameter 50mm.
There are also some elliptical aperture.
Fastening method：sieve hook connection
Colour：yellow ,red ,natural or orange
Quotation info needed：length, width, aperture size and quantity
Material：polyurethane with wire rope and iron hooks on both sides
Size：from 900*400mm to 4000*1500mm
Aperture size：Strip hole from 3mm*12mm to 50mm*80mm，Square hole from 6mm*6mm to 100mm*100mm，circular hole from diameter 4mm to diameter 50mm.
There are also some elliptical aperture.
Fastening method：sieve hook connection
Colour：yellow ,red ,natural or orange
Quotation info needed：length, width, aperture size and quantity
Rubber sieve plate
Applications：Wet applications but may also be applied in dry screens
Material：rubber
Quotation info needed：length, width, aperture size and quantity
Material：rubber
Quotation info needed：length, width, aperture size and quantity
Rubber sieve plate can be customized according to drawings or samples
Polyurethane edging sieve plate
Applications：coal washery
Material：Stainless steel sieve plate wrapped with polyurethane edge
Size：600mm*600mm,750mm*750mm
Aperture size：from 0.1mm to 2mm
Fastening method：batten connection
Colour：red or orange
Quotation info needed：Drawings or samples
Material：Stainless steel sieve plate wrapped with polyurethane edge
Size：600mm*600mm,750mm*750mm
Aperture size：from 0.1mm to 2mm
Fastening method：batten connection
Colour：red or orange
Quotation info needed：Drawings or samples
Wave sieve plate
Applications：Wet applications but may also be applied in dry screens
Material：polyurethane with iron skeleton inside
Size：within 1500mm*1000mm
Aperture size：from 0.1mm to 2mm
Fastening method：batten connection or bolt connection
Colour：red or orange
Quotation info needed：Drawings or samples
Material：polyurethane with iron skeleton inside
Size：within 1500mm*1000mm
Aperture size：from 0.1mm to 2mm
Fastening method：batten connection or bolt connection
Colour：red or orange
Quotation info needed：Drawings or samples
Products Show
Company Profile
Exhibition
Transport
FAQ
1.Q: How much is the freight cost?
A: It depends on the quantity,weight, carton size and your area.
2.Q:What is your shipping way?
A: By sea, By air, By express.
3.Q:What is your mass products delivery time?
A: 10-15 days. Exact time accord to the style, QTY.
4.Q:Can we order the color we want?
A:Yes, we can make any color you want.
5.Q: how can we guarantee quality?
A:Always a pre-production sample before mass production and always final Inspection before shipment;
6. Q: Are you a trading company or manufacturer?
A: We’re a manufacturer, welcome to visit our factory&office.
A: It depends on the quantity,weight, carton size and your area.
2.Q:What is your shipping way?
A: By sea, By air, By express.
3.Q:What is your mass products delivery time?
A: 10-15 days. Exact time accord to the style, QTY.
4.Q:Can we order the color we want?
A:Yes, we can make any color you want.
5.Q: how can we guarantee quality?
A:Always a pre-production sample before mass production and always final Inspection before shipment;
6. Q: Are you a trading company or manufacturer?
A: We’re a manufacturer, welcome to visit our factory&office.
