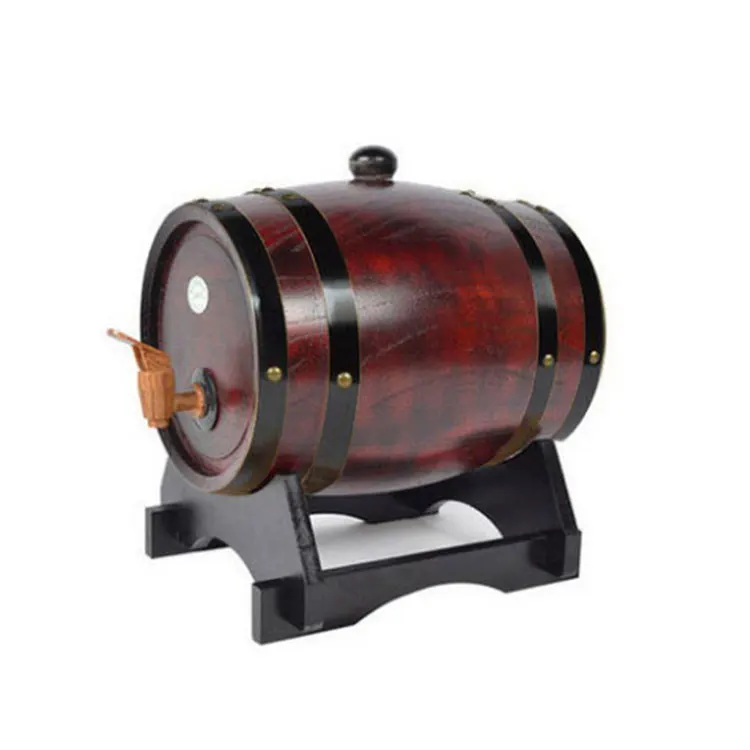

Дубовые бочки для красного вина и белого вина, пивные бочки, украшение для хранения, домашний пустой деревянный бочка для вина, оптовая продажа
9,14 $ - 19,91 $

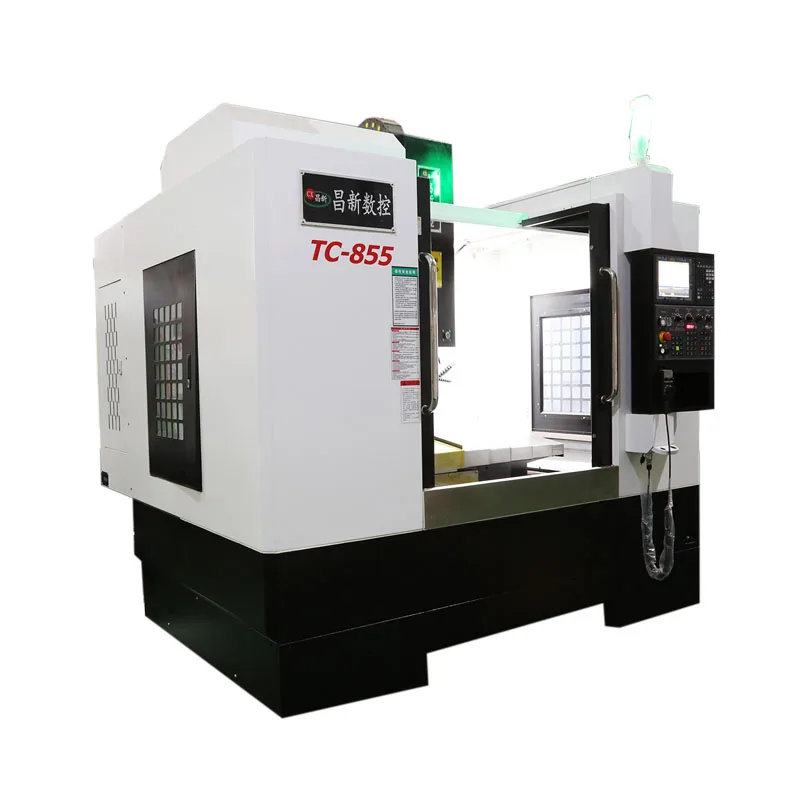

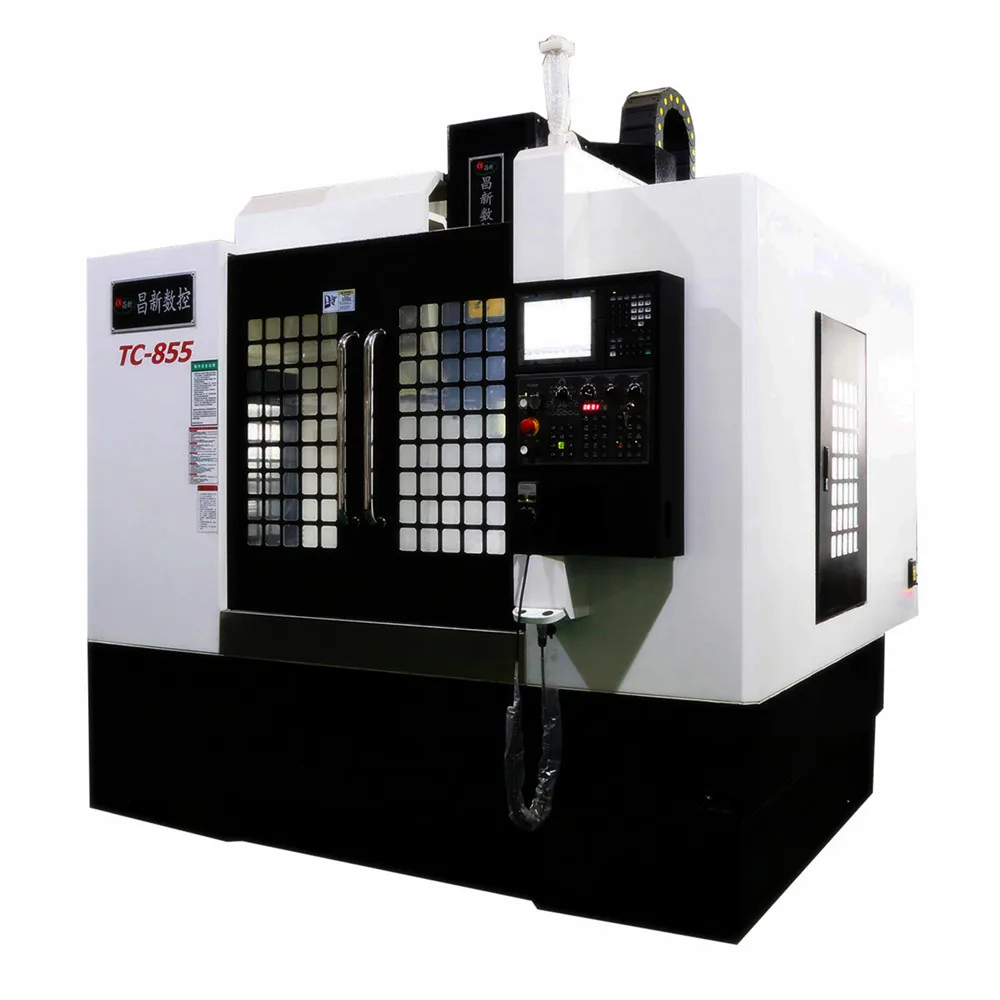

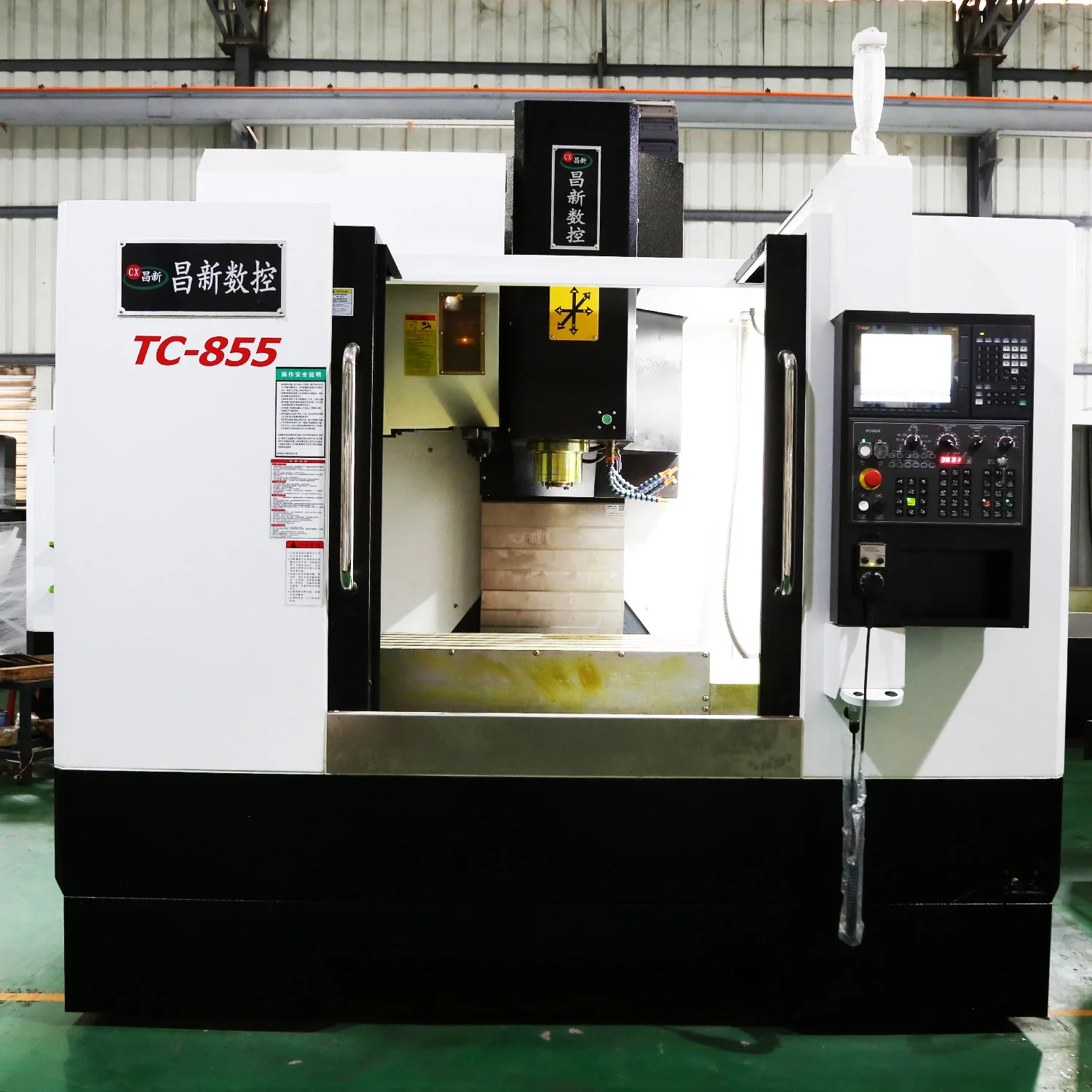

Вертикальный фрезерный станок с ЧПУ VMC850 CNC 855 управлением Fanuc
- Категория: >>>
- Поставщик: Dongguan Chansin Hardware Machinery Co. Ltd.
Сохранить в закладки 1600699857741:
Описание и отзывы
Характеристики
Product Overview
Vmc855 -800X550mm High Precision High Speed 3 Axis CNC Metal Vertical Machining Center Milling Machine
VMC855 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the small size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automotive part, mold etc.
With Taiwan high speed spindle to 10000rpm;
High accuracy; High speed; High rigidity; Low noise .
With Taiwan high speed spindle to 10000rpm;
High accuracy; High speed; High rigidity; Low noise .
FEATURES AT A GLANCE
VMC855 advantages:
1: The spindle has good rigidity, and adopts a 1:1 belt with a high torque output of 11KW.
2: The slide block of the Y/Z axis guide rail is enlarged to maintain better cutting rigidity and carry a larger load during heavy cutting.
3: The entire machine tool castings are tempered and naturally aged to better eliminate internal pressure and achieve better stability.
Details Images
Taiwan Brand Spindle
10000rpm
Taiwan Brand Tool Magazine
24 tools
Working Table
1000mm*550mm
4th Axis Rotary Table (Optional)
Brand : Taiwan TJR
5th Axis Rotary Table (Optional)
Brand : Taiwan TJR
Quality Control
Body parallelism and perpendicularity test
To insure the accuracy of the machine, we will do the parallelism and perpendicularity testing . All joint surface of the machine body are manually scraped to ensure geometric accuracy and rigidity.
Detecting the screw pitch error and the straightness of the linear guide rail in the XX and YY directions. Meanwhile, test the
actual positioning accuracy and repeat positioning accuracy of the machine.
actual positioning accuracy and repeat positioning accuracy of the machine.
In order to ensure quality , the machine will go through other quality control procedures, such as spindle vibration , noise inspection, 72-hour full function running test.
PRODUCT SPECIFICATIONS
Content | Unit | Parameters | Remarks | |||||
X/Y/Z-Axis Travel | mm | 800/550/550mm | ||||||
Distance from Spindle Nose to Table | mm | 120-720mm | ||||||
Distance from Spindle Center to Column Guide Rail | mm | 590mm | ||||||
Working Table Size | mm | 1000×550mm | ||||||
Table Max Load | kg | 800kg | ||||||
T Slot | mm | 5pcs×18T×90mm | ||||||
Spindle Speed | r/pm | 10000rpm | ||||||
Spindle Motor Power | kw | 11kw | ||||||
X/Y/Z-Axis Motor Power | kw | 3.0/3.0/3.0kw | ||||||
X, Y, Z three axis | mm | X axis -35mm, Y axis -45mm, Z axis -45mm roller linear guide | Z axis -six slider | |||||
Rapid Traverse(X/Y/Z) | mm/min | 36000/36000/36000mm | ||||||
Cutting Speed | mm/min | 0-15000mm | ||||||
Spindle Taper Diameter | / | BT40 | ||||||
Positioning Accuracy | mm | ±0.005mm/300mm | ||||||
Repeat Positioning Accuracy | mm | ±0.003mm/300mm | ||||||
Total Electricity Demand | KVA | 19kw | ||||||
Machine Size | mm | 2750×2750×2850mm | ||||||
Machine Weight | T | 5.5T | ||||||
Accessories | 1.Tool box (1 set) 2.Tool Holder(2 pcs) 3.Six inch vise (1pcs)and Lock knife seat (1 set) 4.Machine operating manual 5.Operation and programming manual 6.Servo Motor and Controller Manual | |||||||
1 | Machine Body | Casting three linear guide ways high-strength body (X35mm, Y-axis 45mm, Z-axis 45mm six-slide linear roller rail) | ||||||
2 | Spindle | Taiwan WLT / TD / VOLIS 10000 rpm synchronous belt spindle | ||||||
3 | System | Taiwan Syntec/Japan Fanuc/Japan Mitsubishi/ Germany Siemens | ||||||
4 | Spindle Motor | The servo motor that comes with the system 11KW | ||||||
5 | Three-axis motor | The system comes with servo motors X, Y, Z-3KW | ||||||
6 | Automatic lubrication system | pressurized volumetric automatic oiler, automatic balance distribution of lubricants (joint venture Baoteng brand oiler) | ||||||
7 | Machine Head balance system | Servo screw direct drive | ||||||
8 | High pressure chip system | high pressure motor, high pressure flushing (joint venture Sinaer brand water pump) | ||||||
9 | Screw | original Taiwan imported Hiwin /PMI screw | ||||||
10 | Spindle cooling | plus independent oil cooling system (joint venture Ruike brand oil cooler) | ||||||
11 | Tool Magazine | Taiwan OKADA arm type with 24 BT40 tools capacity | ||||||
12 | Controller | Standard Syntec/Fanuc/Mitsubishi/Siemens color display | ||||||
13 | X, Y, Z bearings | standard German FAG or Japan NSK | ||||||
14 | Three-axis roller guide | standard Taiwan Taiwan Hiwin / PMI | ||||||
15 | Spindle Knife cylinder | Standard Taiwan North Kui / Hao Cheng | ||||||
16 | Couplings | Standard Germany BK3 SW*J | ||||||
17 | Wind system combined with solenoid valve (triple) | standard joint venture Ogreut | ||||||
18 | The main electrical accessories | standard Germany Schneider, Merlin Gerin | ||||||
19 | Other air pressure components | standard joint venture Ogreut | ||||||
20 | Circuit breakers, relays | standard Germany Schneider, Merlin Gerin | ||||||
21 | Electric box air fan | standard joint venture FuRuize | ||||||
22 | Transformer | standard joint venture AoHengda | ||||||
23 | Work LED lamp | standard Taiwan Ou Si | ||||||
24 | Hand control electronic hand wheel | standard Taiwan NEMICON | ||||||
25 | Three-axis telescopic shield | standard joint venture Zhenfei | ||||||
26 | Full cover | standard joint venture Jiancheng/Hongwang | ||||||
Company Profile
FAQ
Q1: How can I choose the most suitable machines ?A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so
on.
Q3: What's the Payment Terms ?
A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q4: What's the MOQ?
A4: 1set
Q5: What's the warranty?
A5: One year.
You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so
on.
Q3: What's the Payment Terms ?
A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q4: What's the MOQ?
A4: 1set
Q5: What's the warranty?
A5: One year.
Похожие товары
ППС P84 NOMEX ПТФЭ Арамид нетканый игольчатый войлочный фильтр ткани ПТФЭ покрытие и синхронизация

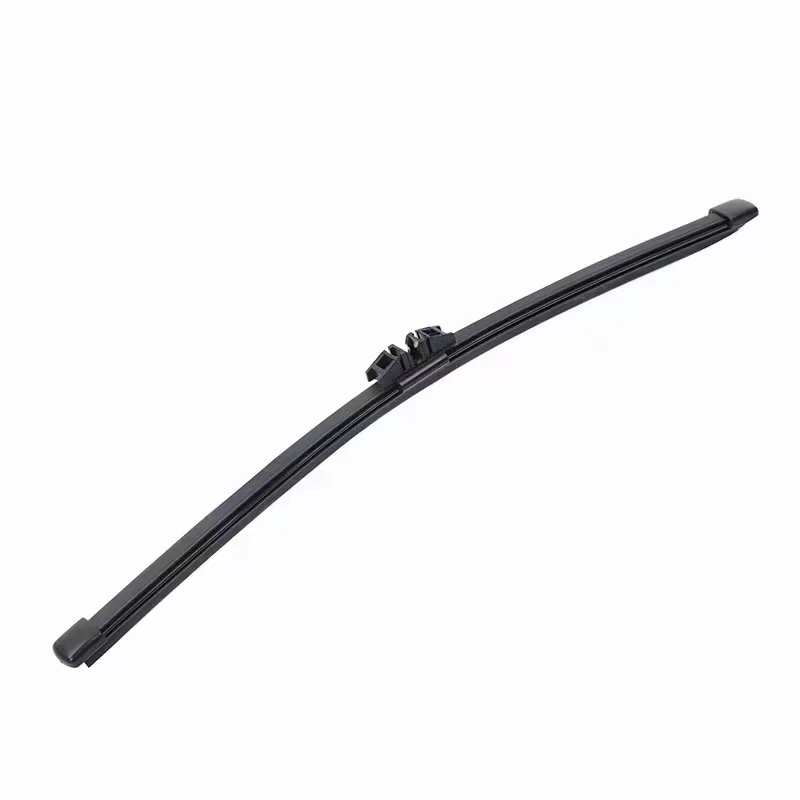

100 новые оригинальные проверенные драйверы отображают автомобильные стеклоочистители переднего лобового стекла автоматическая система стеклоочистителя
0,30 $ - 0,60 $

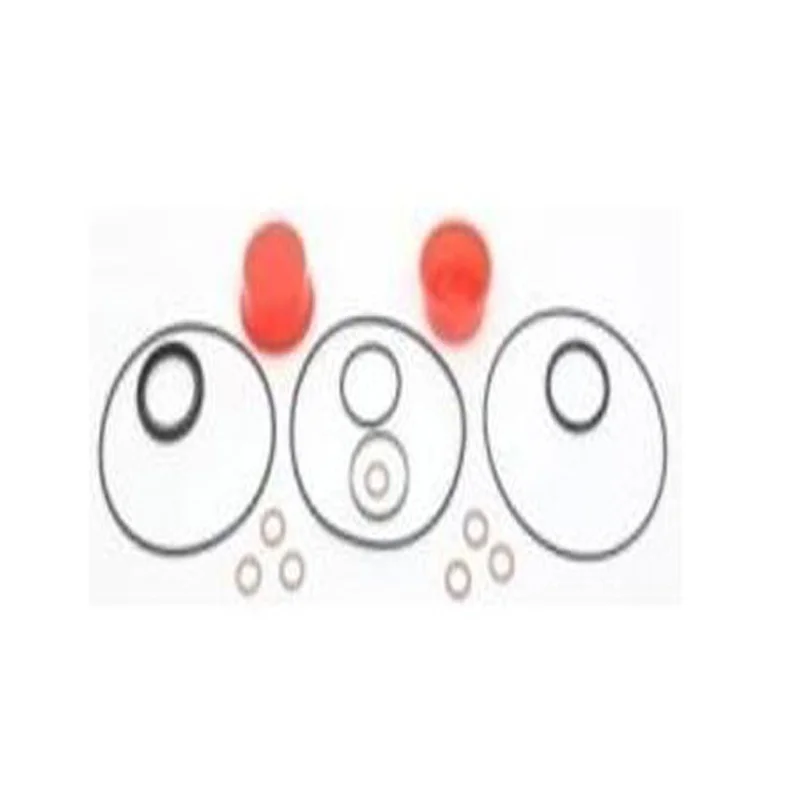

Комплект уплотнителей 35/412202 35-412202 35 412202 подходит для jcb Строительная Землеройная техника запасные части двигателя
0,10 $

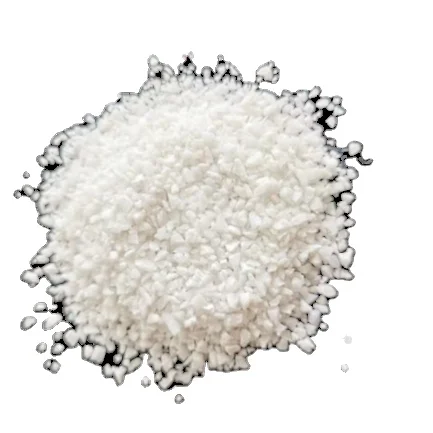

Китайский рекламный продукт от производителя, высокочистый кварц, белый силикагель, песок, цена за тонну
639,35 $

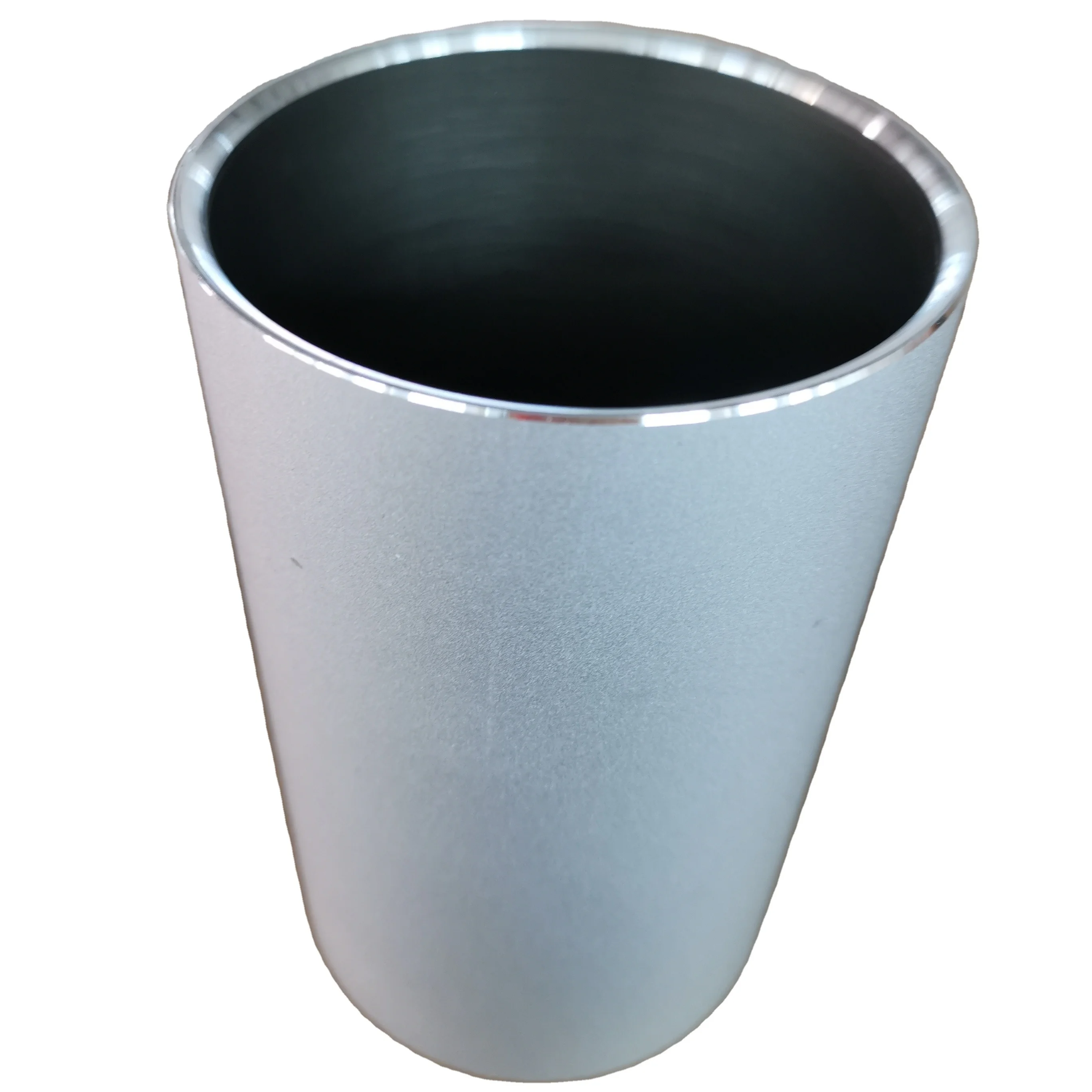

Анодированные алюминиевые круглые профили Huayang 6063 T6 для пневматического цилиндра
3,60 $ - 4,60 $

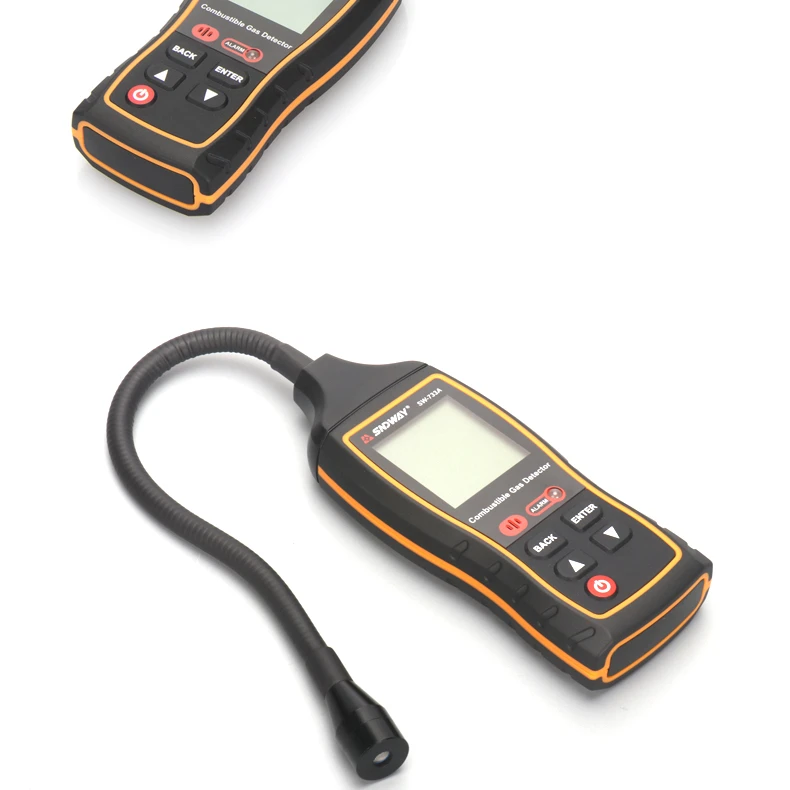

SW-743A Автомобильный Электронный хладагент для кондиционирования воздуха фреон техобслуживание детектор галогенных
8,00 $ - 12,00 $

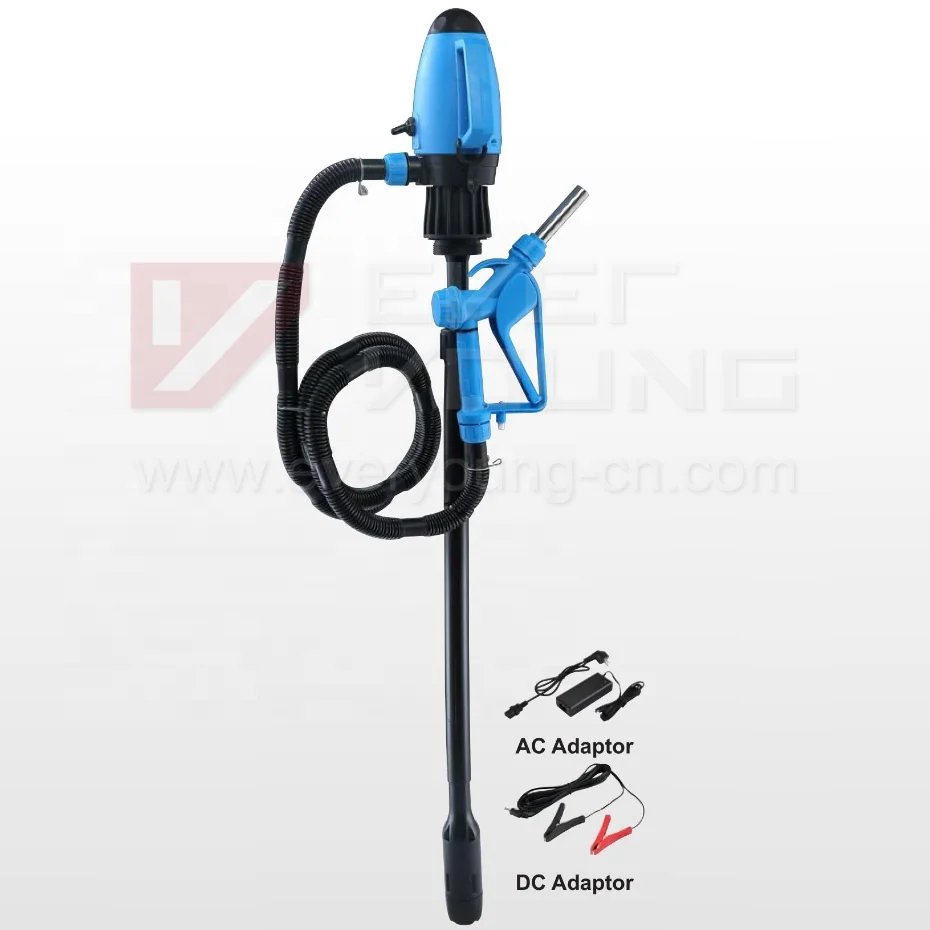

Электрический барабанный насос Adblue с адаптером переменного/постоянного тока цилиндрический IBC для дозатора
