Автоматическая упаковочная машина с несколькими головками весы 10/14

Автоматическая упаковочная машина с несколькими головками весы 10/14

Категория: Weighing Scales >>>
Поставщик: Hangzhou Zon Packaging Machinery Co. Ltd.

Цена:5 800,00 $ - 6 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t

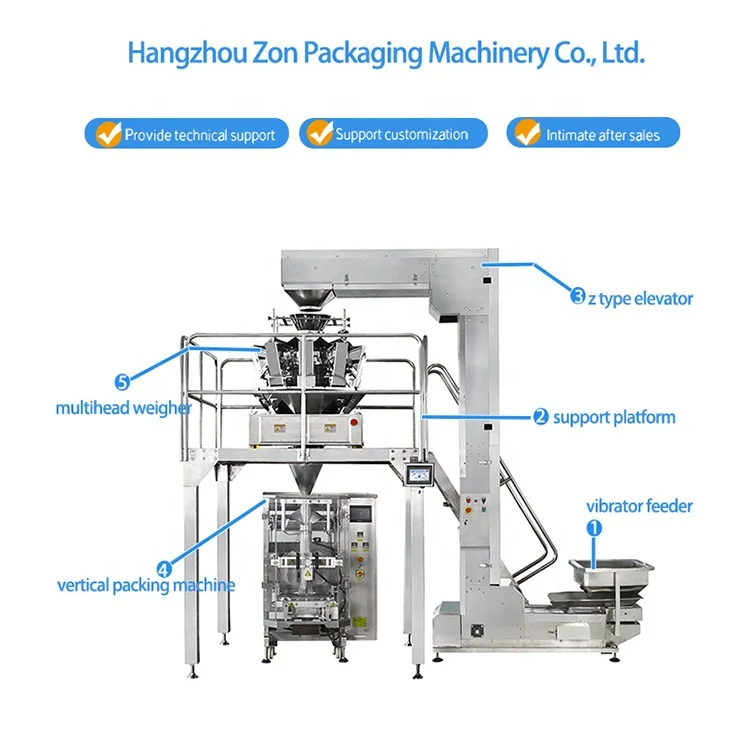

\t\t\t\t\t\t\t\t\tMultihead weigher \t\t\t\t\t\t\t

Model	ZH-A10	ZH-A14	ZH-A20
Weighing Range	10-2000g
Max Weigh Speed	65bags/min	120bags/min	130bags/min
Accuracy	±0.1-1.5g
Hopper Volume	0.5L/1.6L/2.5L/5L
Driver Method	Stepper motor
Option	Timing hopper/Dimple hopper/Overweight Identifier/Rotar top cone
Interface	7'HMI or 10"HMIW
Power Parameter	220V/50/60HZ 1000W	220V/50/60HZ 1500W	220V/50/60HZ 2000W
Package Size(mm)	1650(L)X1120(W)X1150(H)	1750(L)X1200(W)X1240(H)	1650(L)X1650(W)X1500(H) 1460(L)X650(W)X1250(H)
Gross Weight(Kg)	400	490	880

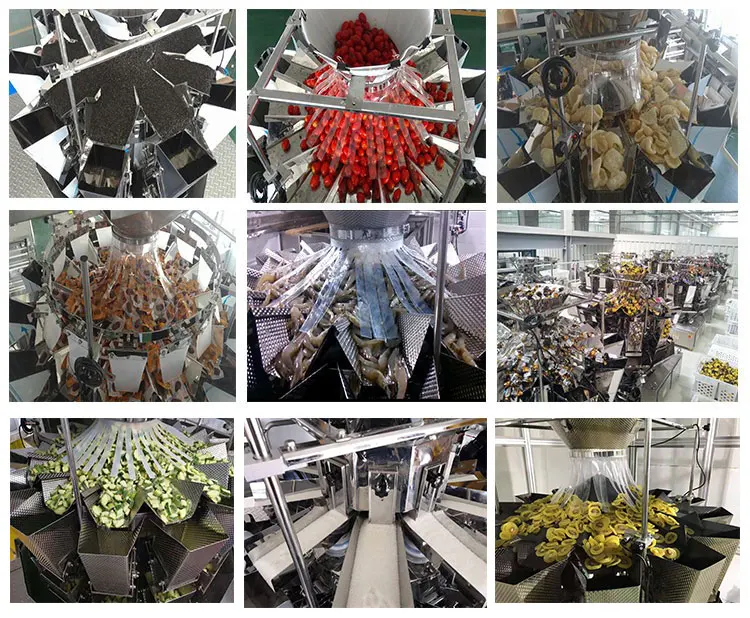

It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.

Technical Feature

1.The amplitude of vibrator can be auto-modified for more efficient weighing.
2. High precise digital weighing sensor and AD module have been developed.
3. Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4. Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.

5. Multi-language operation system can be selected basing on customer's requests.

Photoelectric sensor.

AUTONICS (Korea brand)

It works with conveyor.When sensor detects products,The conveyor will stop to feed products to multihead weigher,

When sensor doesn't detect,The conveyor will feed products to multihead weigher.

304/316 Stainless steel

The standard of multihead weighers are full 304 stainless steel.

For corrosion products,Scale will use 316 ss.

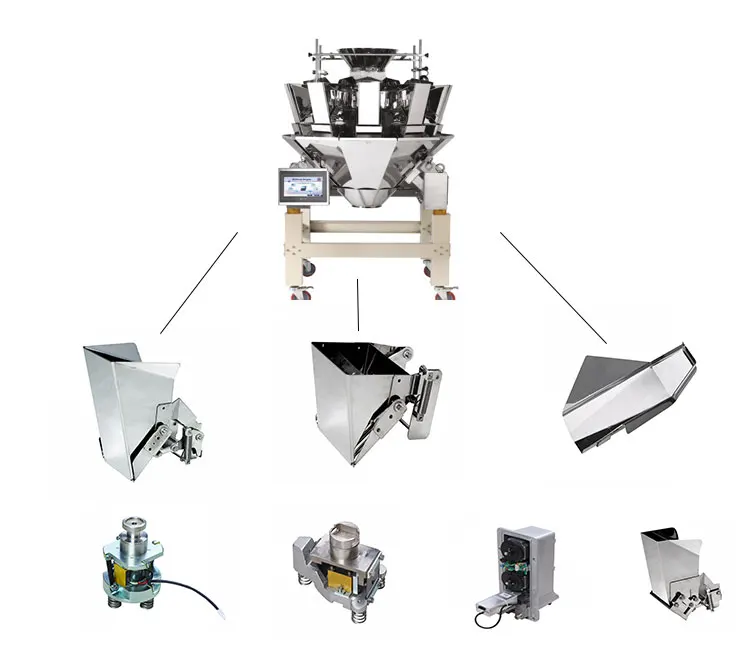

Hoppers and surface .

We have 0.5L,1.6L,2.5L,5L hoppersfor chossing

We have flat surface,dimpled surface,teflon surface,teflon and dimpled surface for choosing

The HMI is Taiwan brand

The standard language is English and Chinese.We also can write other languages as you want.

It can install 100 kinds parameters and easy to change when you have several targte weight products to pack

Speed Trace of Motor in Hopper Control

\t\t\t\t\t\t\t\t\tPackage \t\t\t\t\t\t\t

Payment:
Online trade assurace order.
We also accept T/T ,L/C and other payment terms.

Shipping:
Delivery time:25 working days after receive 40% as deposit.
Shipping method:Sea,air,train.we also cooperate with FEDEX,DHL,UPS etc

pre-sale service

1.Make packing solution according your requirements.

2.Welcome to vist our factory and dicuss face to face about packing solution and testing machines.

After-sale service

1.Installing and Training services:
We will train your engineer to install our machine. Your engineer can come to our factory or we dispatch our engineer to your company.

2.Trouble shooting service:

Some times if you can not fix the problem in your country, our engineer will go there if you need us to support.Of course, you need to afford the round trip flight ticket and accommodation fee.

3.Spare Parts replacement:
For machine in guarantee period, if spare part are broken, we will send you the new parts free and we will pay the express fee.
