Оригинальный мягкий перезаряжаемый литиевый аккумулятор Herewin 22000 мАч 14S 51 8 в для модели RC/автомобиля/сельскохозяйственного
- Категория: Batteries >>>
- Поставщик: Shenzhen Pansen Electronics Co. Ltd.
Сохранить в закладки 1600703166805:
Описание и отзывы
Характеристики
Instruction of Charging
The current of charge and discharge should not exceed the maximum current in the specification.
The design of charger should meet the specification.
It may cause the quality problem of batteries charge and discharge performance, mechanical performance and safety performance problems when current and voltage range beyond the requirements of this specificatio
Standard Charging method
0.5C CC(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.02C
Continuous Current:70A(determined by plug and wire,battery cells can be up to 240A)
Peak Current:150A(determined by plug and wire,battery cells can be up to 480A)
Operating temperature:
Charging: 10℃~40℃
Discharging:-10℃~40℃
Storage Temp. (at shipping status: approx. 50% capacity of fully charged state)
1 month: -20~40℃
3 month: -20~35℃
1 year: -20~25℃
The battery should cycle once in three month.
The use of the product warnings and precautions
1 Prevention of short circuit within a battery pack Enough insulation layers between wiring and the cells shall be used to maintain extra safety protection.
2 Prohibition of disassembly
1)Never disassemble the cells The disassembling may generate internal short circuit in the cell, which may cause gassing, firing, or other problems.
2)Electrolyte is harmful LIP battery should not have liquid from electrolyte
flowing, but in case the electrolyte come into contact with the skin, or eyes, physicians shall flush the electrolyte immediately with fresh water and medical advice is to be sought.
3 Prohibition of dumping of cells into fire Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
4 Prohibition of cells immersion into liquid such as water The cells shall never be soaked with liquids such as water, seawater drinks such as soft drinks, juices coffee or others.
5 Battery cells replacement The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
6 Prohibition of use of damaged cells The cells might be damaged during shipping by shock. If any abnormal features of the cells are found such as damages in a plastic envelop of the cell, deformation of the cell package, smelling of electrolyte, electrolyte leakage and others, the cells shall never be used any more. The cells with a smell of the electrolyte or a leakage shall be placed away from fire to avoid firing.
Protection Circuit Module(PCM)/
The cell/battery pack shall be with a PCM that can protect cell/battery pack properly.
PCM shall have functions of
PCM shall have functions of (1) overcharging prevention, (2) over-discharging prevention (3) over current prevention tomaintain safety and prevent significant deterioration of cell performance.The over current can occur by external short circuit
Storage
The battery shall be storied within -20℃~40℃ range environmental condition.
If the battery has to be storied for a long time (More than once every three months must fill the electricity),the environmental condition should be:
Temperature:23±5℃
Humidity:65±20%RH
The voltage for a long time storage shall be 50.4V~54.6V range
Standard Charging method
0.5C CC(constant current)charge to 58.8V,then CV(constant voltage 58.8V)charge till charge current decline to ≤0.02C
Похожие товары

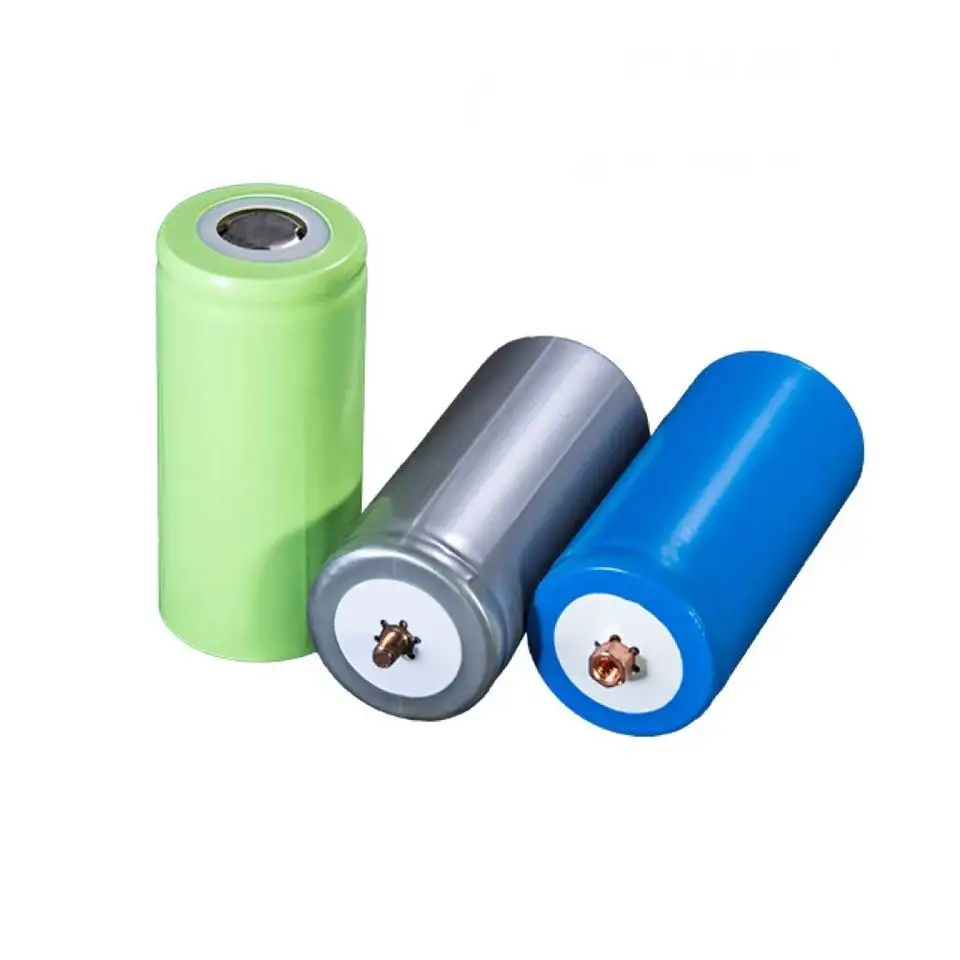

Высокопроизводительная аккумуляторная литий-ионная батарея SAMZU 2000 цикл 3 2 В ifr 32700 32650 lifepo4 6 Ач 6000
2,80 $ - 3,00 $
EXLIPORC EU Stock 2-3 дня Быстрая Доставка EV 308Ah LiFePO4 батарея LF280K LFP литиевая элементы Солнечные
49,00 $ - 110,00 $
Перезаряжаемый литий-ионный аккумулятор 18650 10 Ач 36 В филиппинские Аккумуляторы для электрических велосипедов и

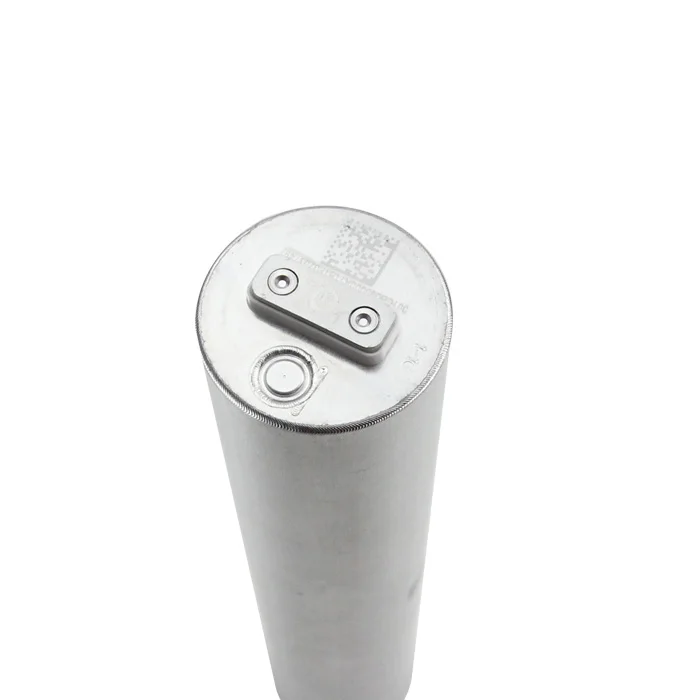

CATL 3 2 V 20Ah 34189 литий-железо-фосфатная цилиндрическая lfp батарея LifePo4 AGV EV Солнечная
ЕС наличии LiFePo4 3 2 V 230AH 272ah 280ah 302ah литиевых батарей многократного цикла глубокого заряда-разряда akku для DIY 24V

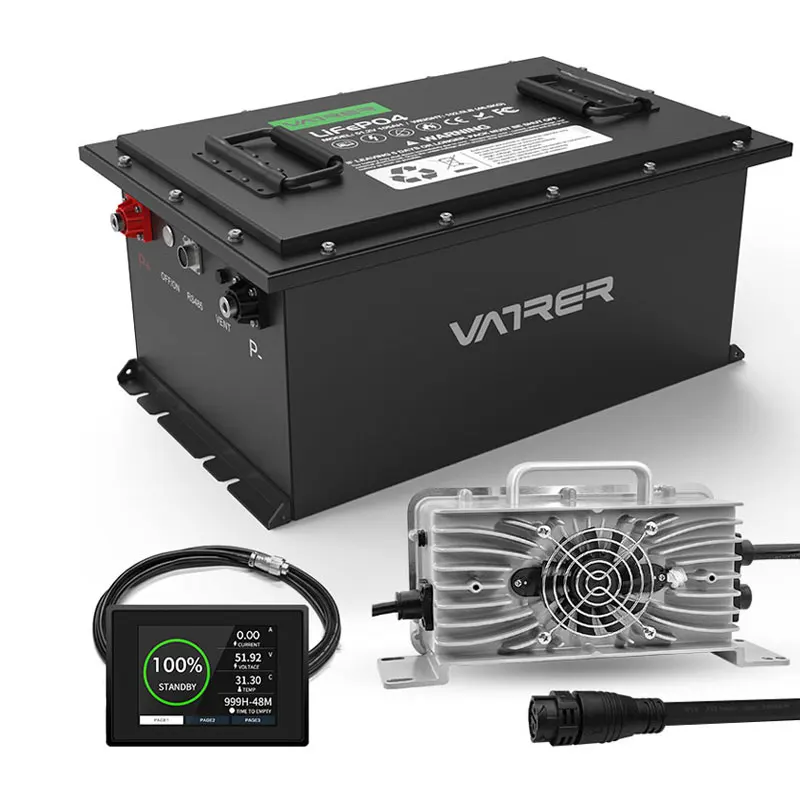

Литиевая аккумуляторная батарея для гольф-мобиля 48 В 105 Ач 4000
