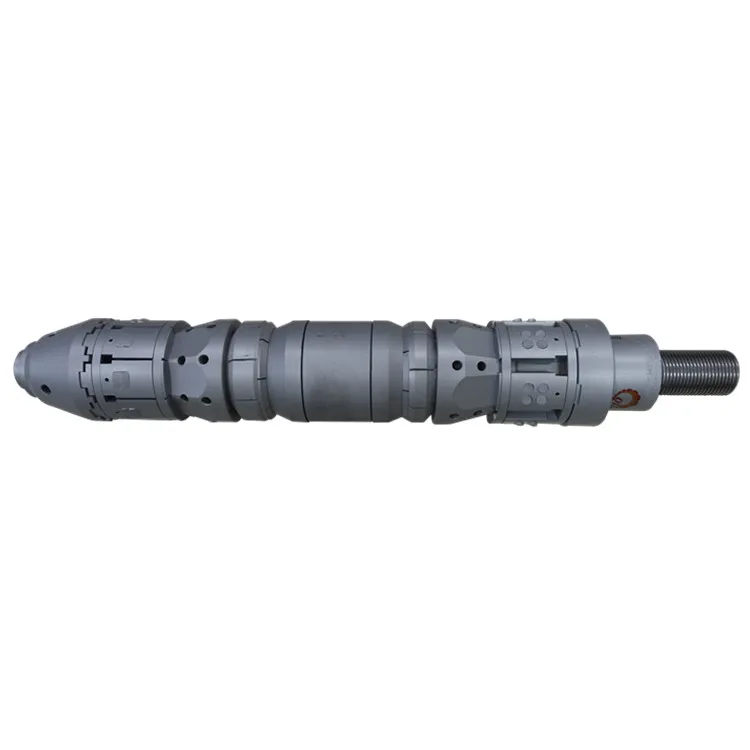

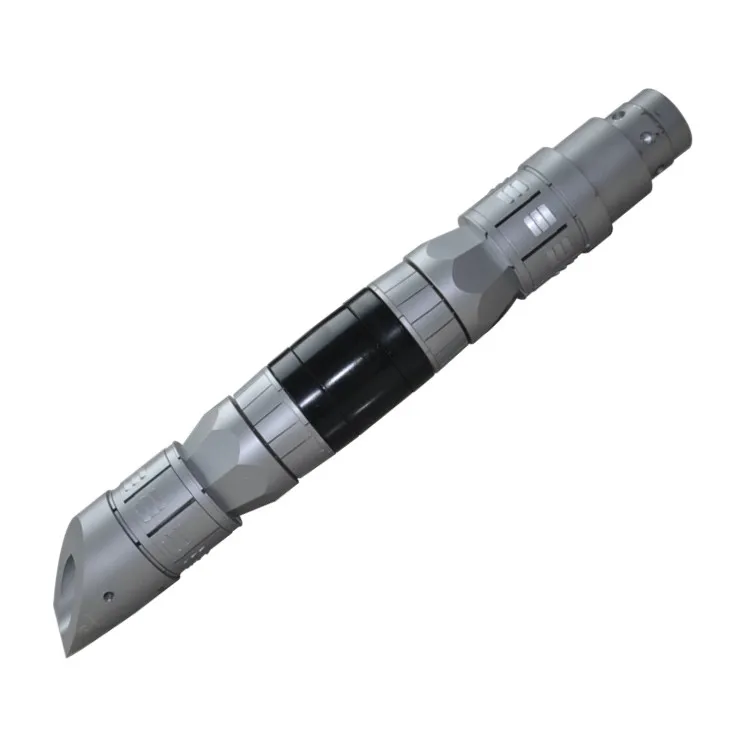

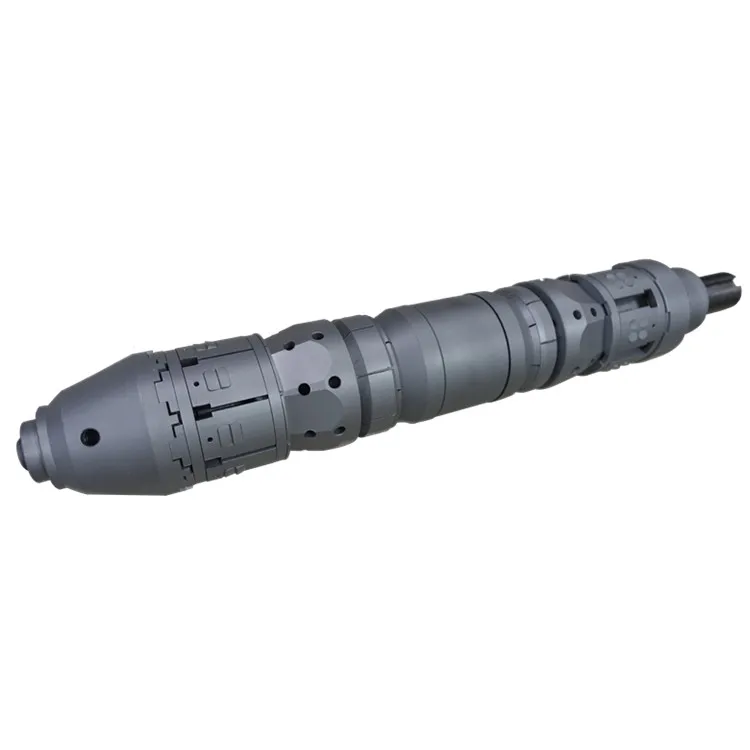

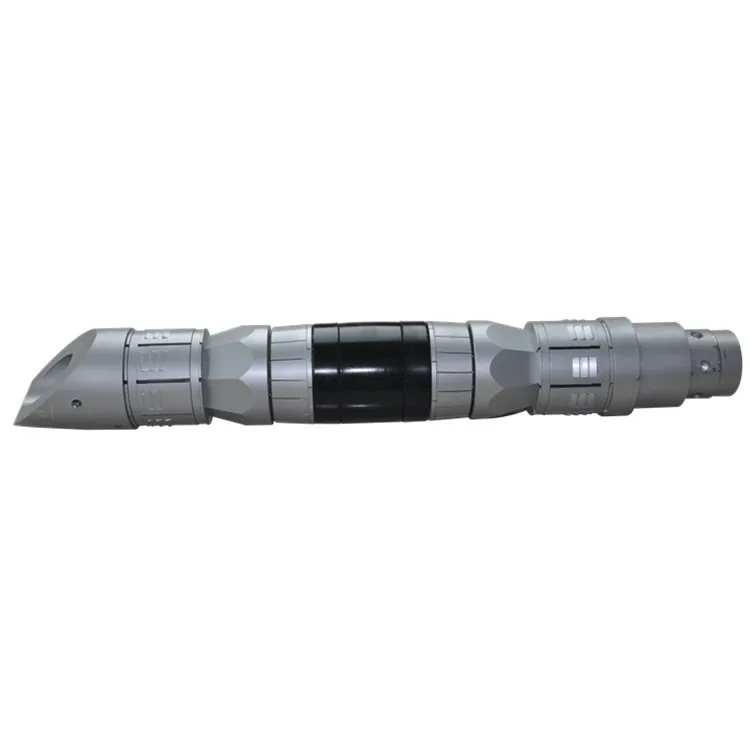

Dis разрешимы ГРП упаковщик мост разъем для высокого отклонение

Model: WY-453

No need to drill after fracturing, No residue, Full-bore production flow path

1. Self-made multi-strength soluble metal manufacturing, dissolution time on demand transformation.

The main body of our company's soluble bridge plugs is made of self-developed multi-strength soluble magnesium metal composite. After the core material composite application, the dissolution time of the whole machine is completely consistent, no residue, no toxicity, according to the on-site water quality and work. It is necessary to adjust the formula at any time to change the unique advantage of dissolution time.

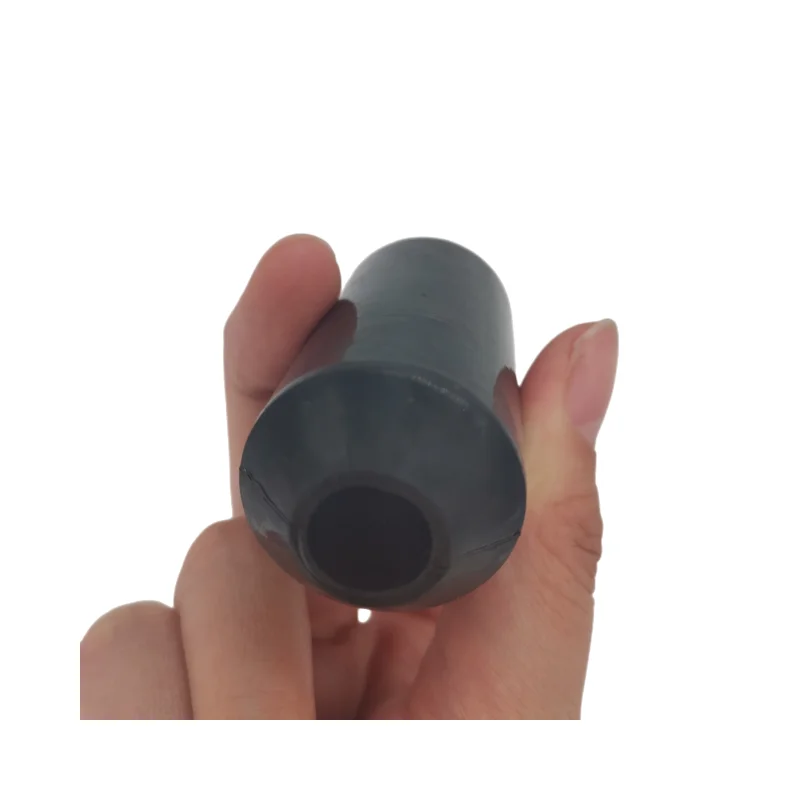

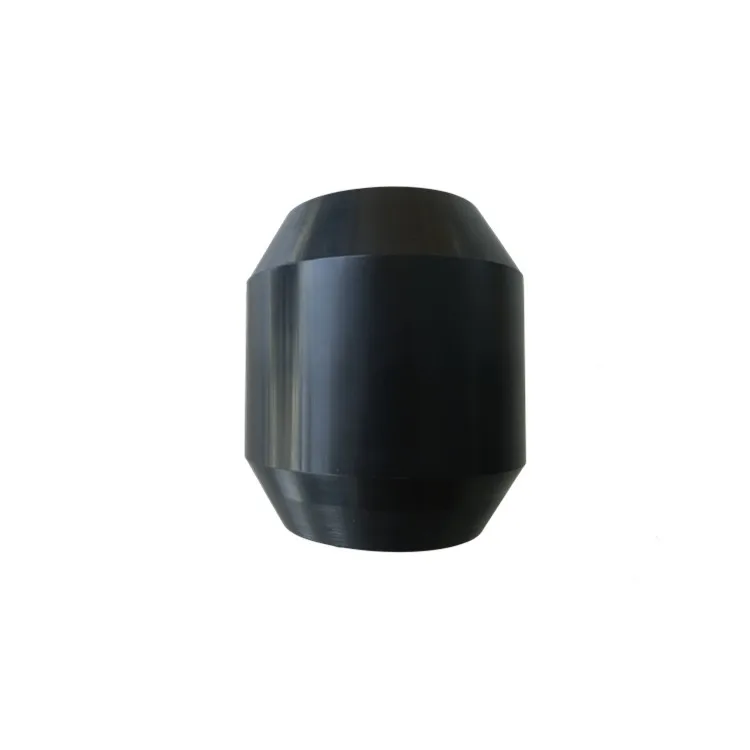

2:Self-developed high-strength degradable rubber cylinder for quick release of plugging

         The fully soluble bridge plug rubber cylinders are all made of self-developed high-strength degradable materials. Since the materials are uniquely produced by our company and have the advantages of effective control of degradation start-up time and degradation time, six temperature series products have been formed.

Type

RJ001-A

RJ001-B

RJ001-C

RJ001-D

Stable time  h

48

48

48

48

Degradation time (days)

15

15

15

15

Working temperature °C

60-80

80-100

100-120

120-150

Model

Outer Diameter(mm)

Inner Diameter(mm)

Length(mm)

Operating Temperature(℃)

Pressure Difference(MPa)

Casing Inner  Diameter(mm)

WY453-110

110

40

680

120/150

70

118-124

WY453-105

105

40

680

120/150

70

114-118

WY453-95

95

30

680

120/150

60

114-115

WY453-95

95

30

680

120/150

70

108-110

WY453-85

85

22

650

120/150

60

114-115

WY453-85

85

22

670

120/150

70

102-104

WY45R92-70

92

30

595

40-150

70

100-110

WY45R95-70

95

36

640

40-150

70

103-116

WY45R102-70

102

40

595

40-150

70

110-122

WY45R110-70

110

48

595

40-150

70

118-136
