Автоматическая селективная паяльная машина с CCD Прямая поставка

Автоматическая селективная паяльная машина с CCD Прямая поставка

Категория: Other Welding Equipment >>>
Поставщик: Shenzhen Oubel Technology Co. Ltd.

Цена:64 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

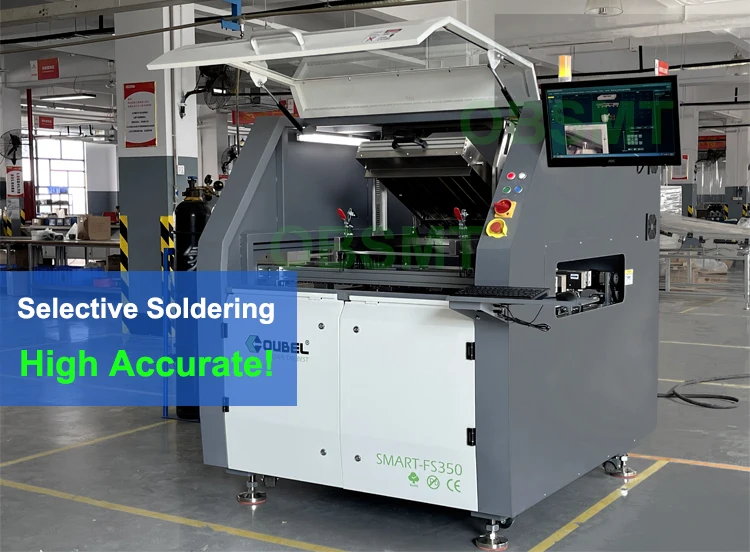

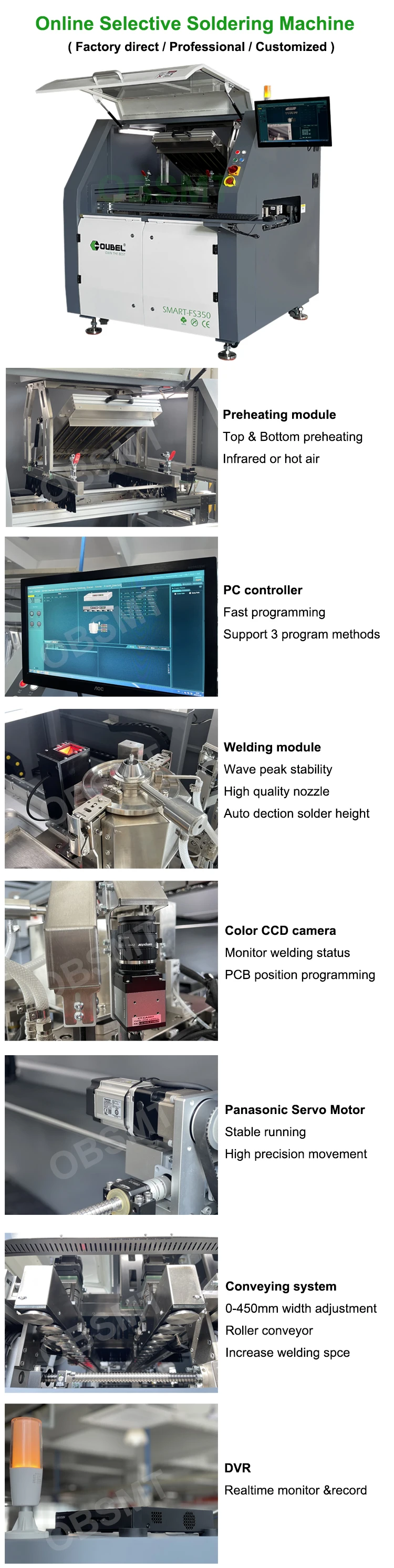

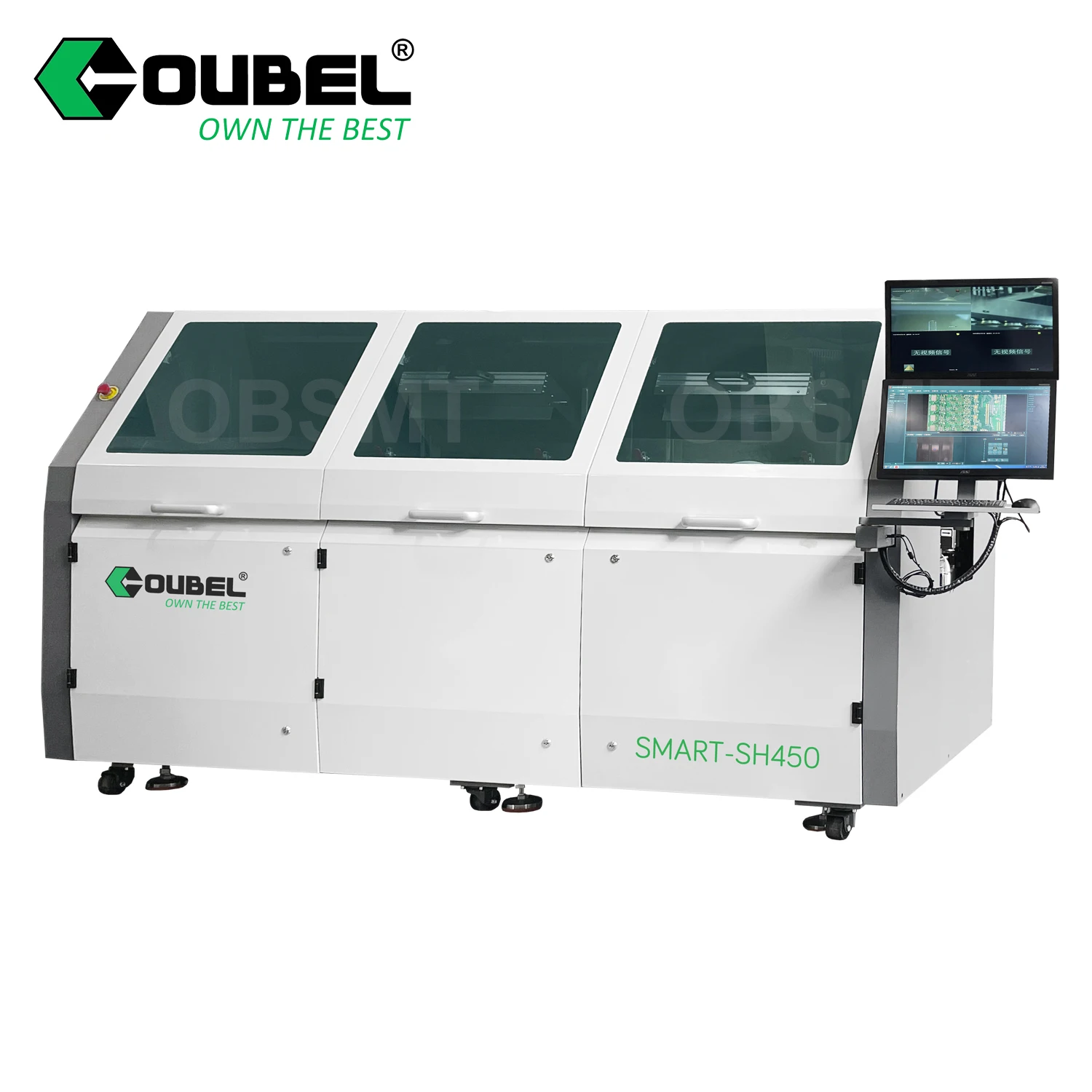

Factory direct auto selective soldering machine with CCD

Features of Selective Soldering Machine:

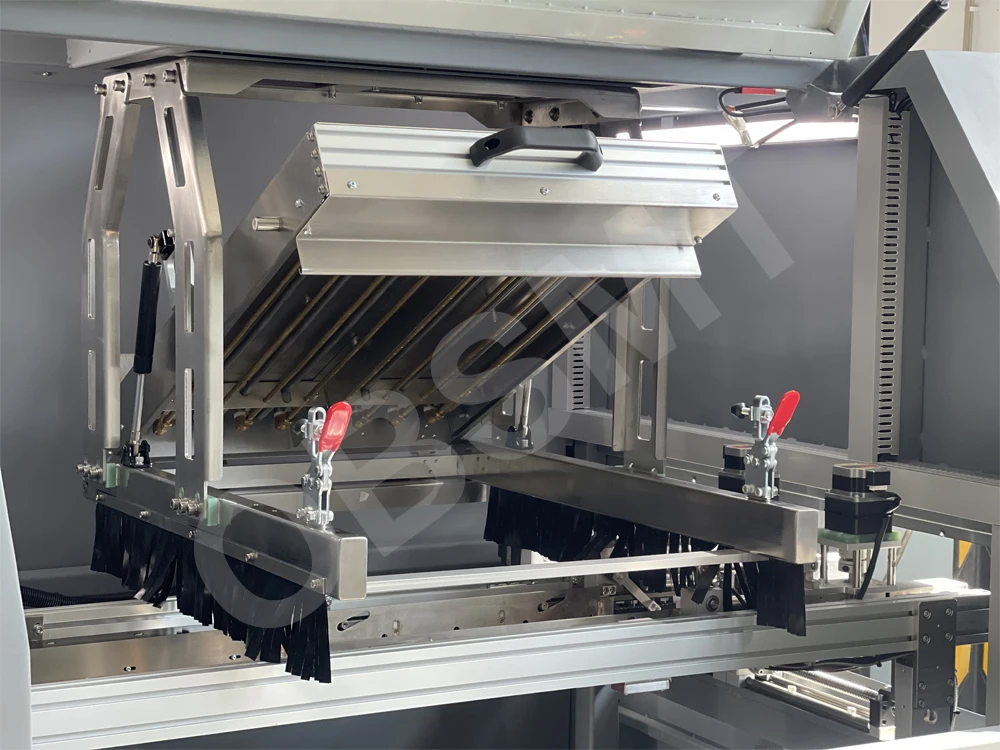

1. Equip with spraying， preheating and welding units which can complete the whole welding process in a small machine.

2. Small size, small footprint, length:1435mm.

3. Standard electromagnetic pump solder tank, no wear parts, easy maintenance.

4. Rotary track design which allows loading and unloading PCB on the same side of the machine.

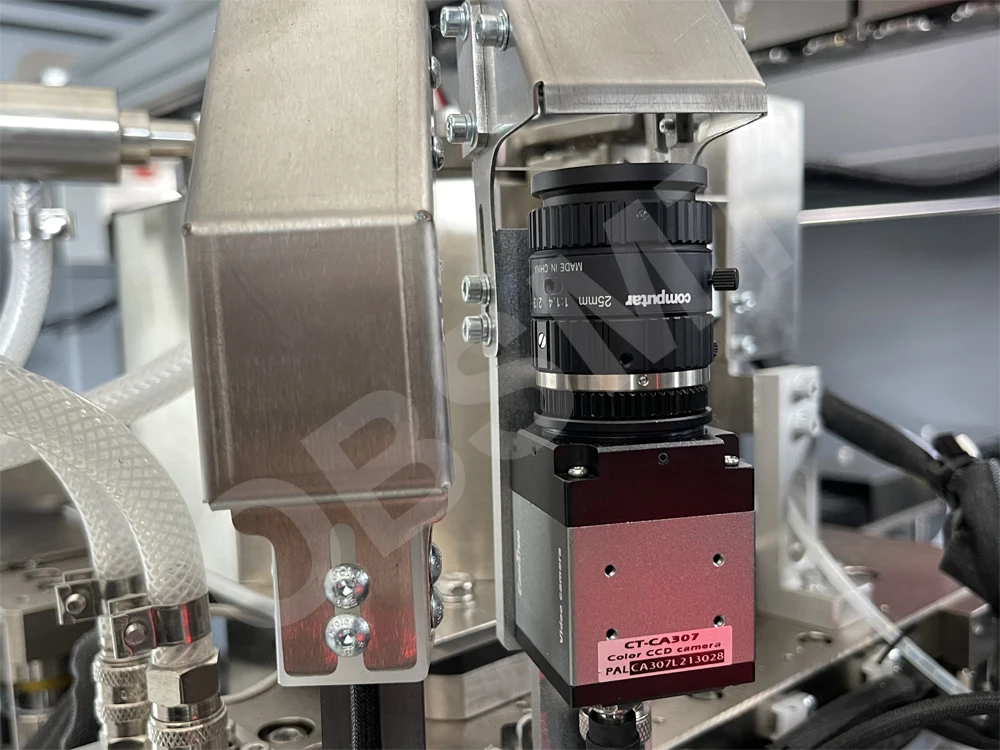

5. Standard equipped with teaching camera, spray cleaning function.

6. Realtime monitoring and recording of welding process.

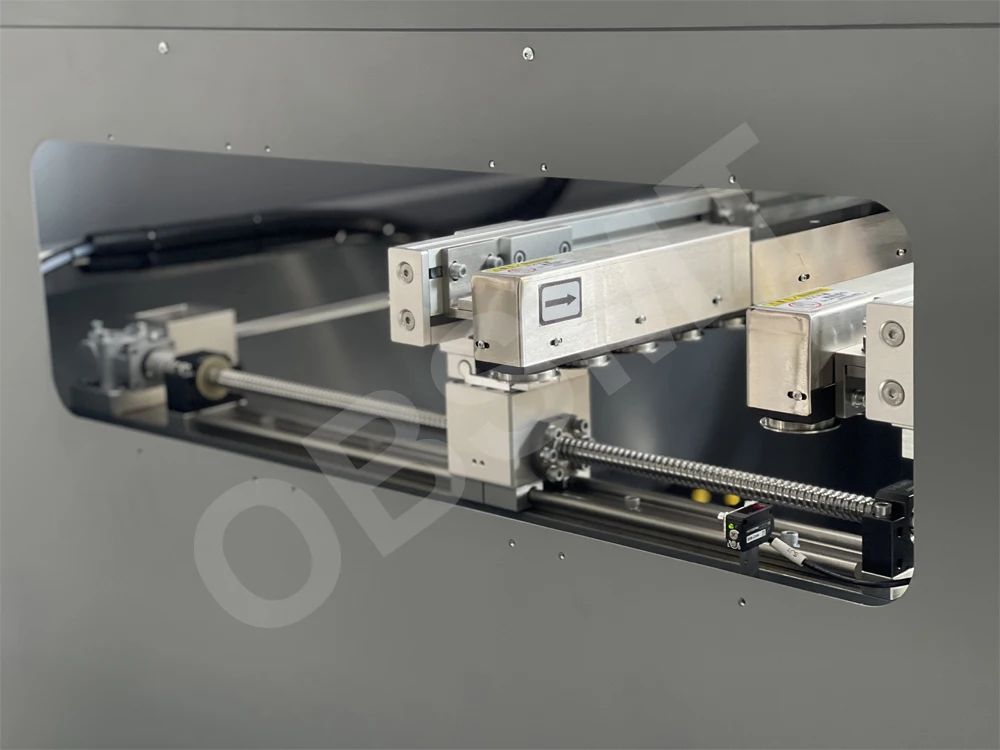

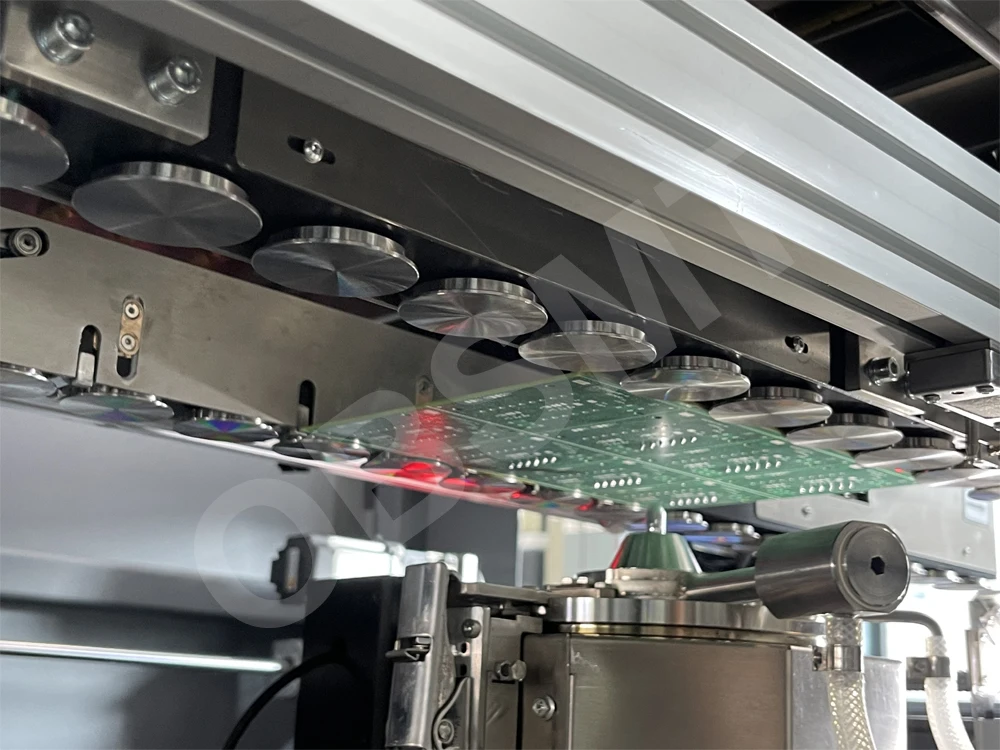

7. Transmission system adoption a roller conveyor,increase welding space,better close to the edge components of welding.

8. Adopts precise nozzle with 130um diameter which is imported from Germany and can uniformly spray flux in the required welding area.The minimum injection area is3mm which saves atleast 90%flux compared with the traditional spraying.

9. All the movements are drive d by servomotor.The movements are stable and smooth.The precision accuracy is around 0.05mm.

10. The soldering module has high precision axis system to ensure the accurate soldering path and with particular process,the system will eliminate the chance of bridging.

11. Process monitor screen and automatic soldering wave height detecting are very friendly for users.

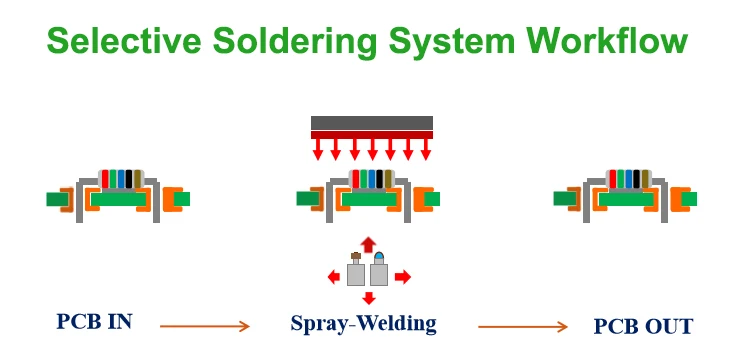

1. The PCB with inserted components shall be transferred to the stop position from the machine entrance;

2. After XYZ orientation is positioned and clamped, selective spray is carried out according to the pre-programmed program; After spraying, preheat according to preheating parameters.

3. After preheating, start welding.

4. After welding, XYZ position is released and PCB is out.

Specification of Selective Soldering Machine:

Model	SMART-FS350
Overall dimension(mm)	1435(L)1800(W)1670(H)
Weight	Approx.1050kgs
PCB Top Side Clearance	120mm
PCB Bottom Side Clearance	60mm
PCB process edge	≥3mm
Conveyor Height From Floor	900±20mm
PCB Conveying Speed	0.2-10m/min
Max PCB Weight	≤5kgs
PCB Thickness With Jig	1-6mm
Conveyor Width Adjustment Range	50-450mm
Conveyor Width Adjustment Mode	Electric
PCB Conveying Direction	L-R
Air Input Pressure	0.6Mpa
Nitrogen Supply	Offered by customer
Nitrogen Input Pressure	0.6Mpa
Nitrogen Consumption	1.5m³/h
Required Purity of Nitrogen	≥99.999%
Supply Voltage	380VAC
Frequency	50/60HZ
MaxPower Consumption	<12KW
Max Current	<25A
Ambient Temperature	10-35℃
Machine Noise Level	<65dB
Communication Interface	SMEMA
Max.Soldering distance of Xaxis	510mm
Max.Soldering distance of Yaxis	450mm
Max.Soldering distance of Z axis	60mm
Min outer diameter of nozzle	5.5mm
Nozzle inner diameter	2.5-10mm
Max soldering wave height	5mm
Solder pot capacity	Approx.13kg(Sn63pb)/Approx.12kg(lead-free)
Max soldering temperature	330℃
Soldering heating power	1.15kw
Preheat temperature range	<200℃
Heating power	6kw
Top side preheating	Hot air
Fluxbox capacity	2L
