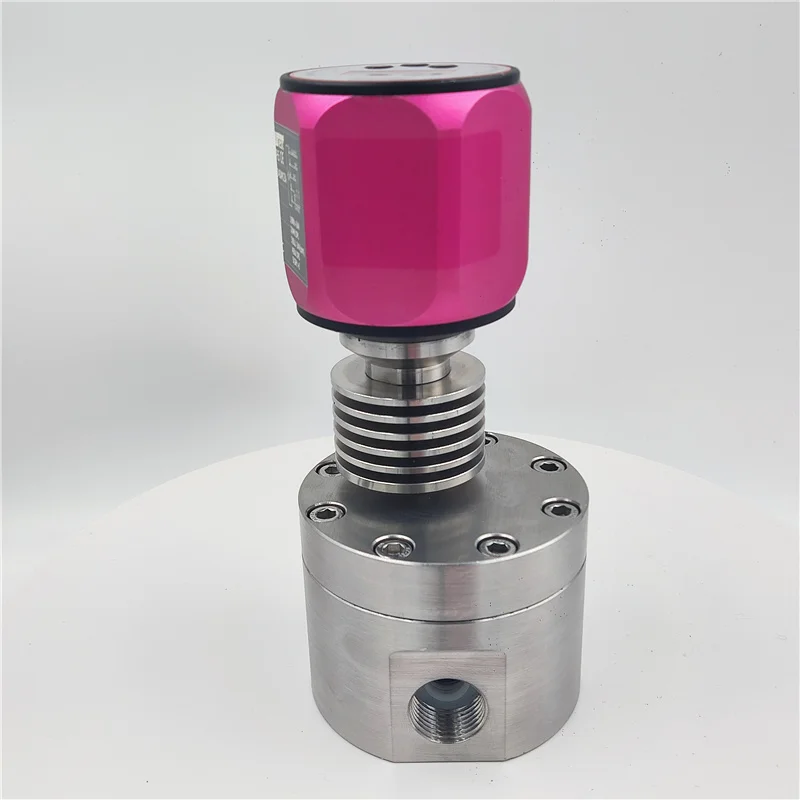

Микро ротаметр 1/2 дюйма Круглый Овальный редуктор из нержавеющей стали цифровой расходомер мини овальный регулятор расхода газа
- Категория: >>>
- Поставщик: Yiwu Hanstar Sci-Tech Co. Ltd.
Сохранить в закладки 1600705194272:
Описание и отзывы
Характеристики
Product Description

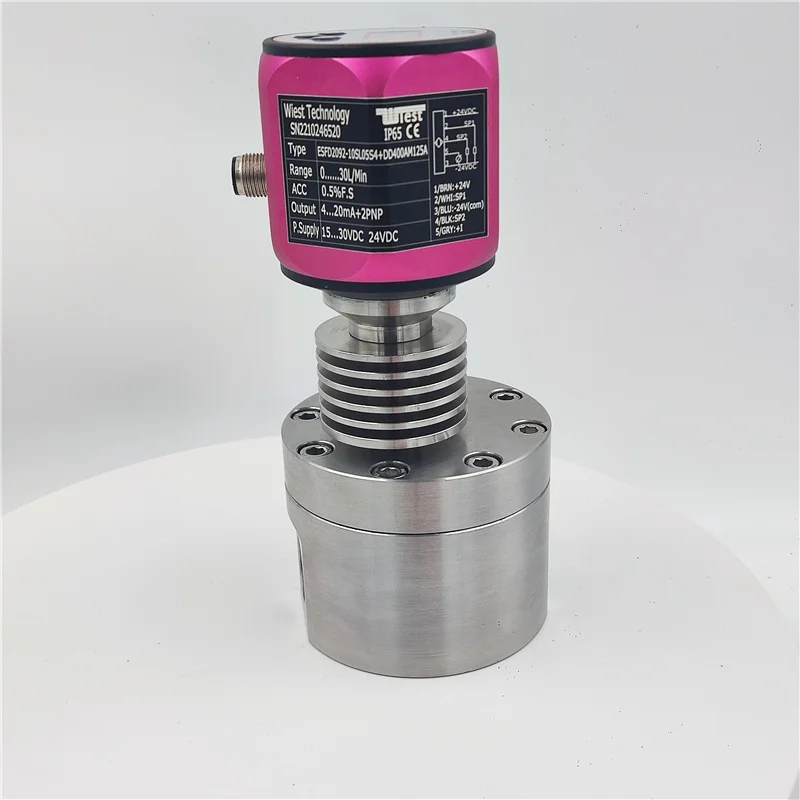

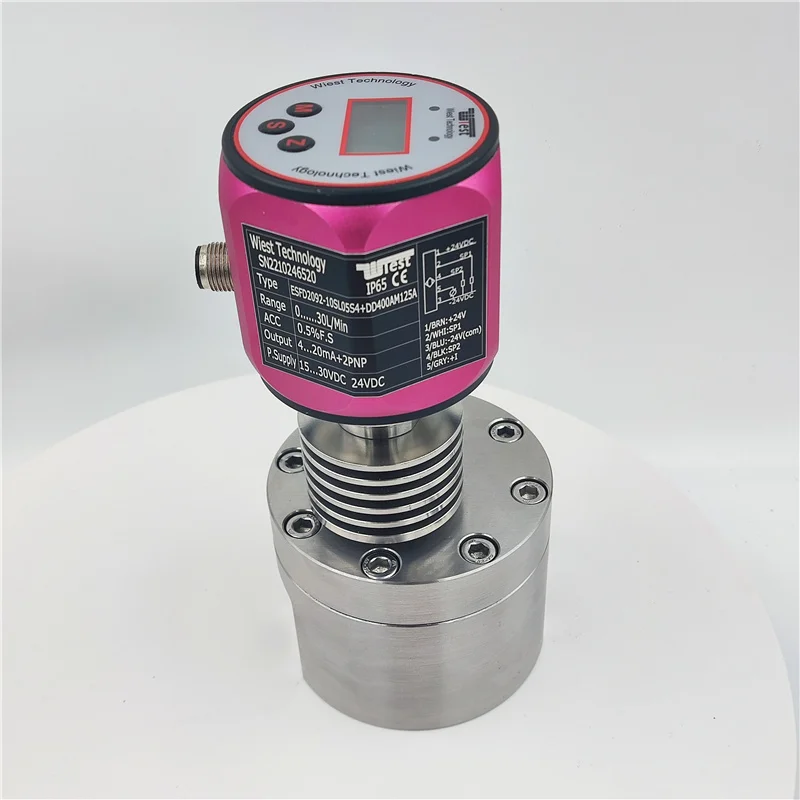

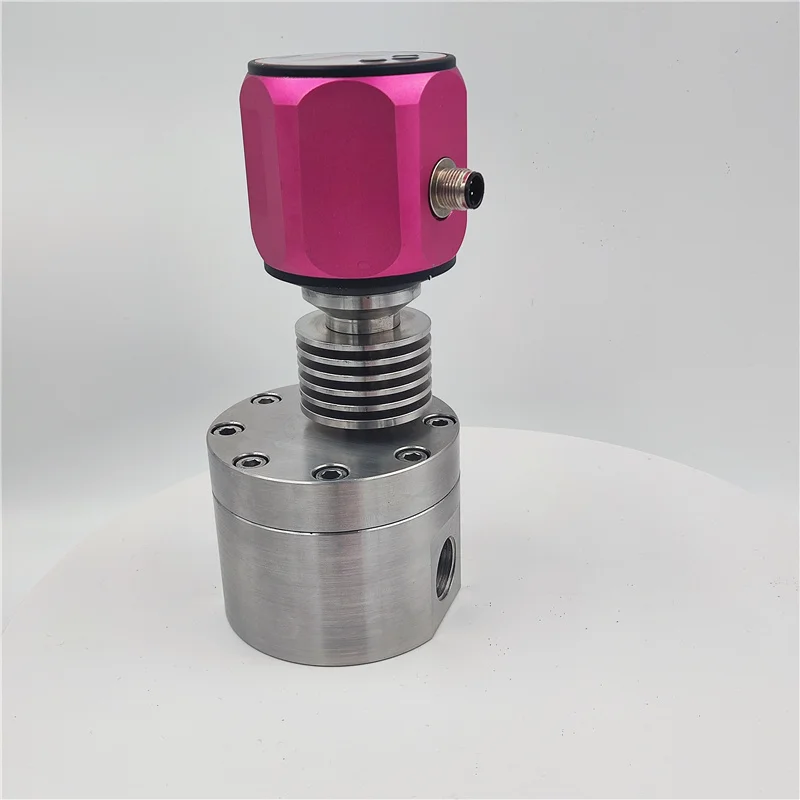

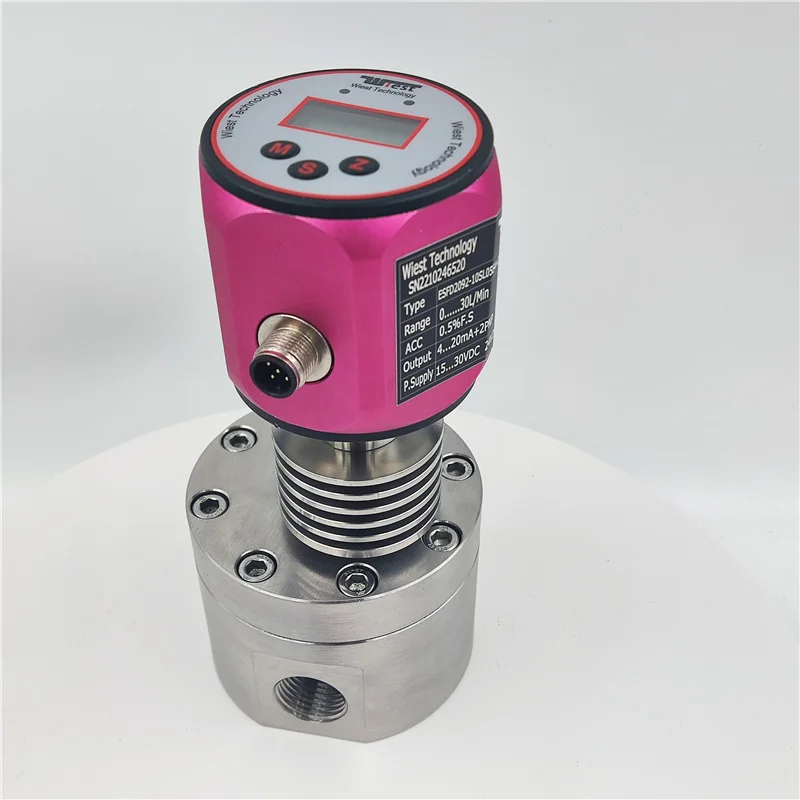

Product Name | Fuel diesel oil OGM meter mechanical oval gear flow meter with pulser high flow rate |
Product Code | ESFD9092 oval gear flow meter |
Main Material | SS304 / SS316 |
Pipe Diameter | DN10....DN200 |
Measuring Medium | liquid , water , oil, etc. |
Accuracy Class | 0.2%/0.5%/1.0%/ |
Protection Grade | integrated IP65/separated IP67 |
Output Signal | 4-20mA+2PNP (1 pulse+1 PNP) |
Display Parameters | instantaneous flow, cumulative flow |
Power Supply | 24VDC |
Optional Pipe | diameter and process connection |
Applicable Industries | Tap water supply, laboratory, hydraulic lubrication system, cooling system, dispensing system, ink system |
Product performance description
Circular gear flowmeter
-Light weight
-High reliability
-Small size, hexagonal, 350 degree rotation
-Intuitive display reading
-Intuitive display reading
-Not affected by external power supply
-Obvious advantages such as low cost of complete set
-On site, the measuring range can be modified online according to the actual needs of users
-This product has superior performance, reaching the leading level of similar products in the world
-Imported chip, stable and reliable
-Imported chip, stable and reliable
Product Paramenters
-Independent product design structure
-The measuring pipe is completely isolated from the electronic cavity-High precision
-Field display of flow
-It is resistant to harsh environment and the shell is firm
-Applicable medium: oil, resin, glue, etc
-Pay attention to the medium temperature and viscosity when selecting the type
-Viscosity of measured liquid: (2-4000) mPa. s
Product Usage
Product usage introduction
The principle of gear transmission: that is, a pair of gears with the same module (tooth shape) mesh with each other to transmit power from shaft A to shaft B to complete power transmission.
Gear transmission refers to the device that transmits motion and power by gear pair. It is the most widely used mechanical transmission mode in modern equipment. Gear transmission works by the meshing of teeth, and the gear teeth are the part of the gear directly involved in the work, so the failure of the gear mainly occurs on the gear teeth. The main failure forms are gear tooth fracture, tooth surface pitting, tooth surface wear, tooth surface gluing and plastic deformation.
Gear transmission refers to the device that transmits motion and power by gear pair. It is the most widely used mechanical transmission mode in modern equipment. Gear transmission works by the meshing of teeth, and the gear teeth are the part of the gear directly involved in the work, so the failure of the gear mainly occurs on the gear teeth. The main failure forms are gear tooth fracture, tooth surface pitting, tooth surface wear, tooth surface gluing and plastic deformation.
Selection Code
1. Series code : ESFD9092 oval gear flow meter
2. Pipe diameter : DN10, DN15......DN200
3. Accuracy : 0.1% F.S 0.2% F.S , 0.5% F.S , 1.0% F.S
4. Withstand voltage L: under low voltage (32Bar) M: Medium pressure (32Bar-100Bar) H: High voltage (above 100Bar)
5. Material : S : SS304 , L : Aluminum
6. The output , 4 : (4...20) m A; P : Output of pulse ;
7. Power supply D: 24VDC; A : 220VAC
8. Test Range : 150 : 0.5-150ml/min ; 300 : 1-300ml/min ; 1000 : 5-1000ml/min ; 1666: 8.5-1666ml/min ; 10 : 0.1-10ml/min ; 30 : 0.3-30ml/min ; 110 : 0.5-110ml/min ;
We can provide all kinds of flowmeters and pressure gauges :
Turbine flowmeter Flow Meters Flow Sensors Machining Services Pressure Transmitters venturi flowmeter Petrolum Flowmeters water flow meter area flow mete Metal Tube Rotameter Doppler Flowmeter Open Channel Flow Meter Ultrasonic Open Channel Flow Meter gas flow controller mass flow controller Air & Gas Flowmeters underwater pressure sensor scrape-board flow meter smith flowmeter water digital rotameter plastic flow meter air rota flow meter air rotameter Glass tube Water Flowmeter Gas Pressure Regulator rotameters Pulse output flowmeter oxygen flow meter oil flow meters mass flowmeter Configurable Flowmeter Industrial Argon Regulator Flowmeter Gauges oval gear flow meter
liquid rotameter orifice plate flow meter device Gravity Flow Meter diesel flow meter Water Sensor diesel fuel calculator instrument boat instrument pressure sensor water Not Full Pipe Flowmeter Ultrasonic flow Flow totalizers Water Acid Flow Meter Electromagnetic Flow Meter Wall oxygen flowmeter medical flowmeter Oxygen Pressure Flowmeter water-proof flowmeter digital water flow meter Magnetic Flowmeters differential pressure Transmitter vortex flowmeter for gas air steam probe sensor Kracht flowmeter water level gauge temperature pressure sensor
Warm Reminder
Precautions
-Nominal diameter series DN (mm): DN10-DN200
-Shell material: aluminum, stainless steel, etc
-Shaft material: 316 stainless steel
-Range ratio 10:1, up to 50:1
-Accuracy class: 0.2, 0.5
-Viscosity up to 1000 000CP
-Operating temperature: - 20 ℃ -+60 ℃ high (60 ℃ -+200 ℃)
-Medium: liquid (oil)
-Protection grade: IP65, IP67
-Pressure: 32bar, high-pressure customized
-Viscosity of measured liquid: (2-4000) mpa. s
-Shell material: aluminum, stainless steel, etc
-Shaft material: 316 stainless steel
-Range ratio 10:1, up to 50:1
-Accuracy class: 0.2, 0.5
-Viscosity up to 1000 000CP
-Operating temperature: - 20 ℃ -+60 ℃ high (60 ℃ -+200 ℃)
-Medium: liquid (oil)
-Protection grade: IP65, IP67
-Pressure: 32bar, high-pressure customized
-Viscosity of measured liquid: (2-4000) mpa. s
Site Use Scenarios
Packing&Shipping
Похожие товары
Оптовая продажа, китайская закуска, Смешанные фруктовые зефиры, жидкие конфеты с фруктовыми соками, чашка для мороженого, здоровые экзотические сладости для детей
0,46 $ - 0,52 $

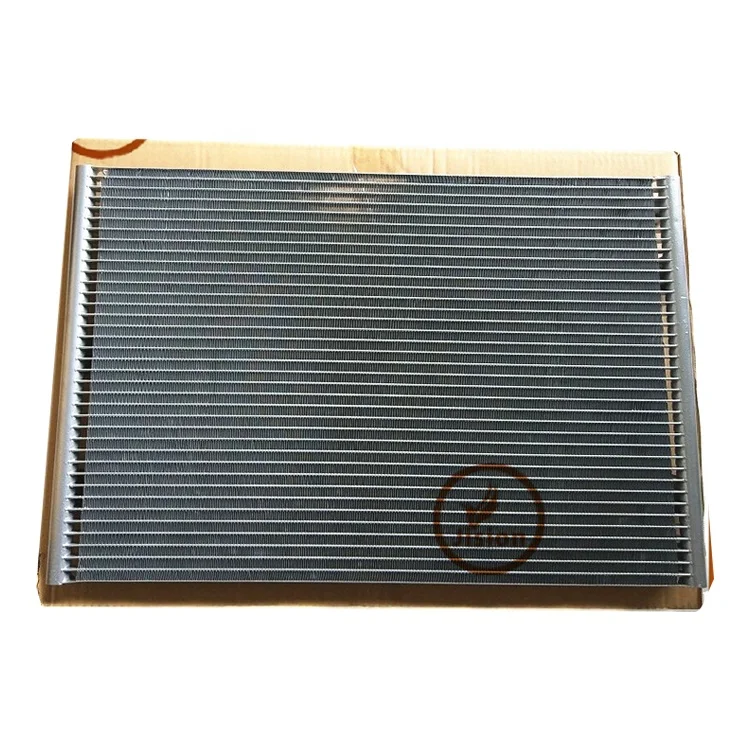

Гидравлический радиатор для экскаватора E320D, конденсатор 320D 245-7749 2457749
Трендовые продукты 2023, Новое поступление, Крутое кольцо для шеи, многоразовая охлаждающая трубка для шеи
3,15 $ - 3,87 $
MMA удобные тренировочные шорты 4-слойная трикотажная ткань Муай Тай, кикбоксинг, ММА шорты для фитнеса.
9,50 $ - 11,50 $
Китайские резиновые шины kapsen
09140024501,HMP-002,HMN-PA2-M ,HMN-PA2-F ,2111022301,2111022302, пневматический модуль разъемы схожи WAIN 03800250000 CX02P

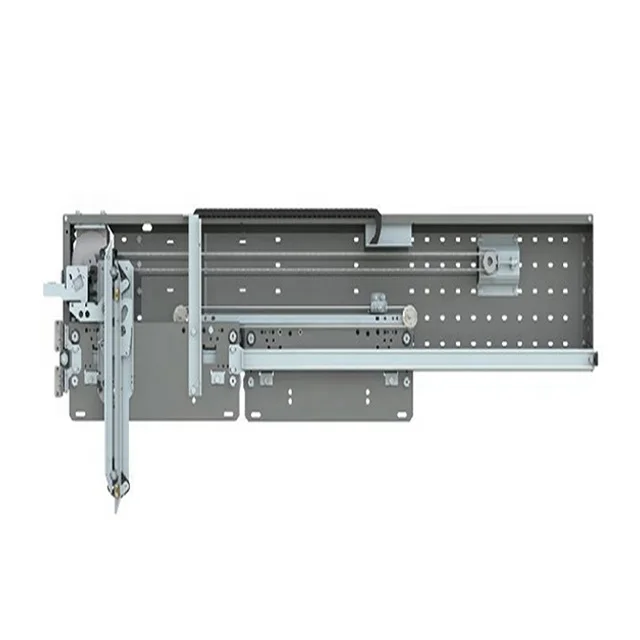

BST 2-панельный, поэтому Автоматический Дверной оператор лифта для большого веса
