ПВХ кромкооблицовочная машина производственная линия кромкополосная
14 000,00 $ - 15 000,00 $
Машина для производства пластиковых труб из ПВХ 4 нити 16
- Категория: Plastic Extruders >>>
- Поставщик: Zhangjiagang Huade Machinery Technology Co. Ltd.
Сохранить в закладки 1600705243648:
Описание и отзывы
Характеристики
4 strand 16 mm pvc pipe plastic make machine
No. | Name | Number |
1 | SJSZ65/132 extruder | 1set |
2 | 16-32mm extrusion die/mould | 1set |
3 | Vacuum tank | 1set |
4 | Cutting and haul-off unit | 1set |
5 | Stacker | 1 set |
4 strand 16 mm pvc pipe plastic make machine
4 strand 16 mm pvc pipe plastic make machine
Application:
It is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit etc.
Features:
Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.
We use Siemens Beide main motor, ABB inverter, RKC temperature controller, JC gearbox and etc. You can also choose PLC touch screen to control the operation, which can save labor cost and improve the production efficiency.
The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine.
Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.
It is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit etc.
Features:
Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.
We use Siemens Beide main motor, ABB inverter, RKC temperature controller, JC gearbox and etc. You can also choose PLC touch screen to control the operation, which can save labor cost and improve the production efficiency.
The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine.
Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.
CHARACTERISTICS and APPLICATIONS
Suitable diameter：16mm-32mm
Four station haul-off：up-down two caterpillar tracking
Four station haul-off：up-down two caterpillar tracking
Drawing speed：1-10m/min
Drawing forth：6000N
4 cavity PVC electrical tube，water supply pipe extrusion line can extrude four pipes at same time on one machine. This line can save invested cost in factory building and production， which increase the capacity a lot and reduce production time. SJSZ65 conical twin-screw extruder can easily reach 5.5-65 ton/per day，the production speed take 16mm as example can get more than 8-10m/min. The whole line is composed of conical twin screw extruder p65mm，4 cavity mould，4 cavity cooling calibration tank，4 station haul-off，4 station cutter and 4 station tipping table.
Processing flow of 4 strand 16 mm pvc pipe plastic make machine:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator→ vacuum forming machine → haul off machine → cutting machine → discharging rack
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator→ vacuum forming machine → haul off machine → cutting machine → discharging rack
4 strand 16 mm pvc pipe plastic make machine photos

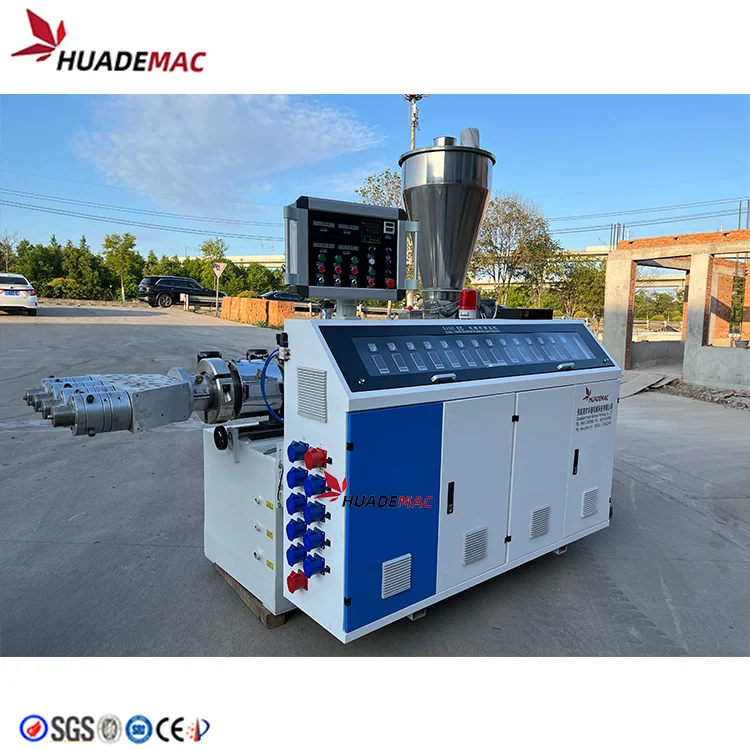

EXTRUDER
Extruder is one of the types of plastic machinery, originated in the 18th century.
According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die. Plastic extruders can be classified into twin-screw extruder, single screw extruder, rare multi-screw extruder and non screw extruder.
According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die. Plastic extruders can be classified into twin-screw extruder, single screw extruder, rare multi-screw extruder and non screw extruder.
Main Technical Parameters | ||
Model | sjsz-65 / 132 | |
Screw diameter | Φ 65 / 132mm, conical screw structure | |
Screw speed | 0-36r / min | |
Drive motor | 37KW | |
Speed regulation | Frequency conversion | |
Center height | 1000mm | |
Screw structure barrier screw | Barrier screw | |
Barrel structure slotted feeder barrel, barrel heating section | 4 sections (using cast aluminum heating ring), 22KW | |
Barrel cooling mode | Air cooling | |
Cooling fan | 25kw，3 | |

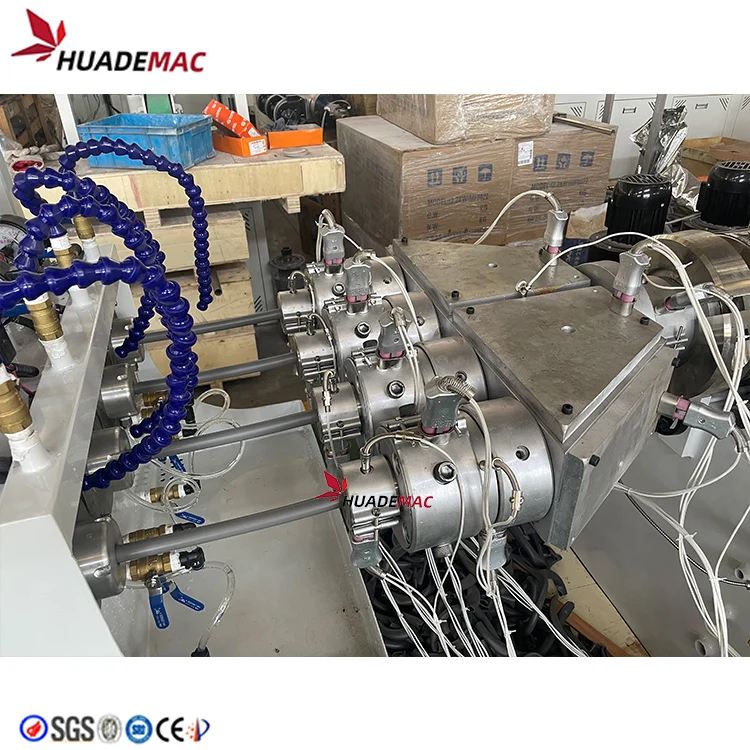

FOUR CAVITY DIE/MOULD
40Cr/42CrMo

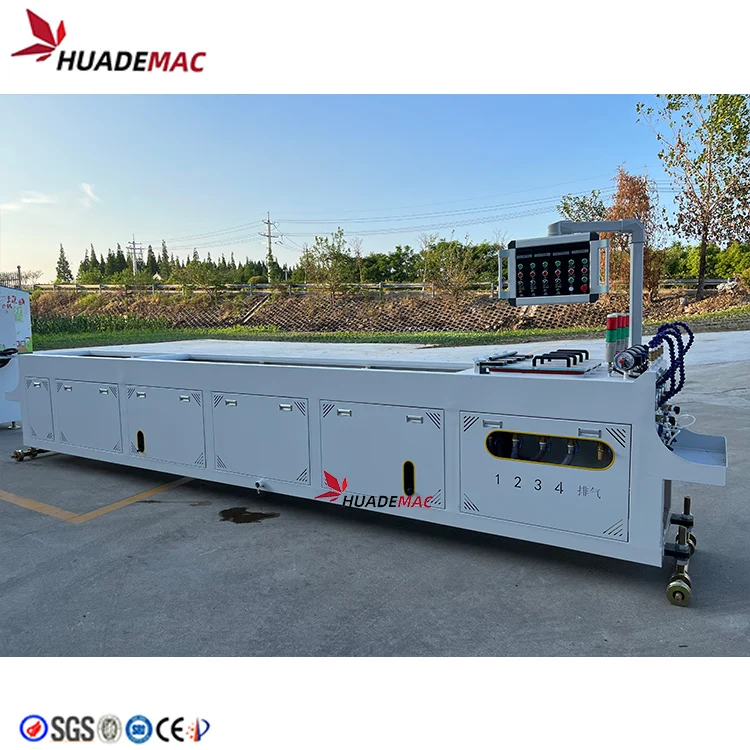

VACUUM CALIBRATING
Parameter | 16-40 four outlet | 20-63 double outlet | 20-110 | 50-160 | 75-250 | 110-315 | 160-450 | 315-630 | ||||||||
Double chamber vacuum sizing box（5.6m） | ||||||||||||||||
Vacuum pump power | / | / | 3KW×2 | 3 KW x2 | 3 KW x2 | 4 KW x2 | 4 KW x2 | 5.5KW x2 | ||||||||
Pump power | / | / | 3KW×2 | 4KW x 2 | 4KW x 2 | 5.5 KW x 2 | 5.5 KW x 2 | 7.5 KW x 2 | ||||||||
Single cavity vacuum sizing box（5.6m） | ||||||||||||||||
Vacuum pump power | 7.5kw | 2.2 KW x2 | 4kw x 1 | 3KW x 1 | 4KW x 1 | 5.5 KW | 5.5 KW | 4 KW x2 | ||||||||
Pump power | 5.5kw | 3KW x 2 | 4kw x 1 | 4KW x 1 | 5.5KW x 1 | 7.5 KW | 7.5 KW | 5.5KW x2 | ||||||||

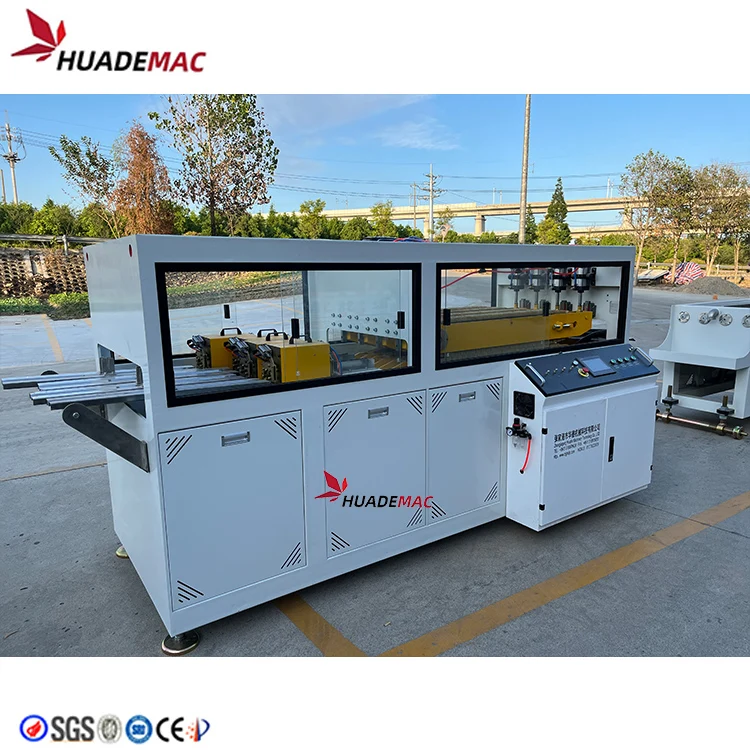

DUST-FREE CUTTER
FOUR CAVITY

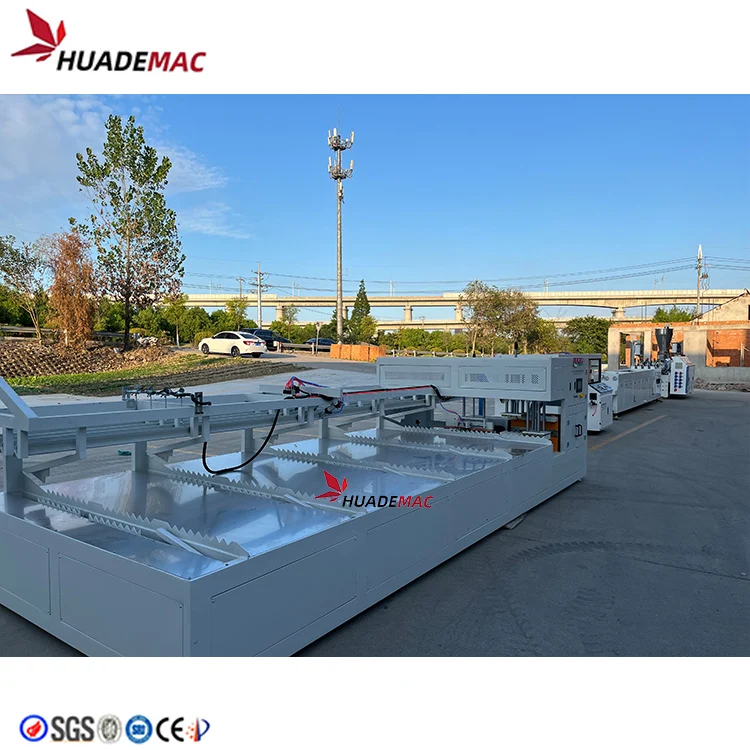

STACKER
4 strand 16 mm pvc pipe plastic make machine from Zhangjiagang Huade Machinery
Packaging and shipment of 4 strand 16 mm pvc pipe plastic make machine
