Аппарат для пайки DIP с современным дизайном волновой паяльник селективной сварки
- Категория: >>>
- Поставщик: Shenzhen Oubel Technology Co. Ltd.
Сохранить в закладки 1600705289059:
Описание и отзывы
Характеристики
Product Description

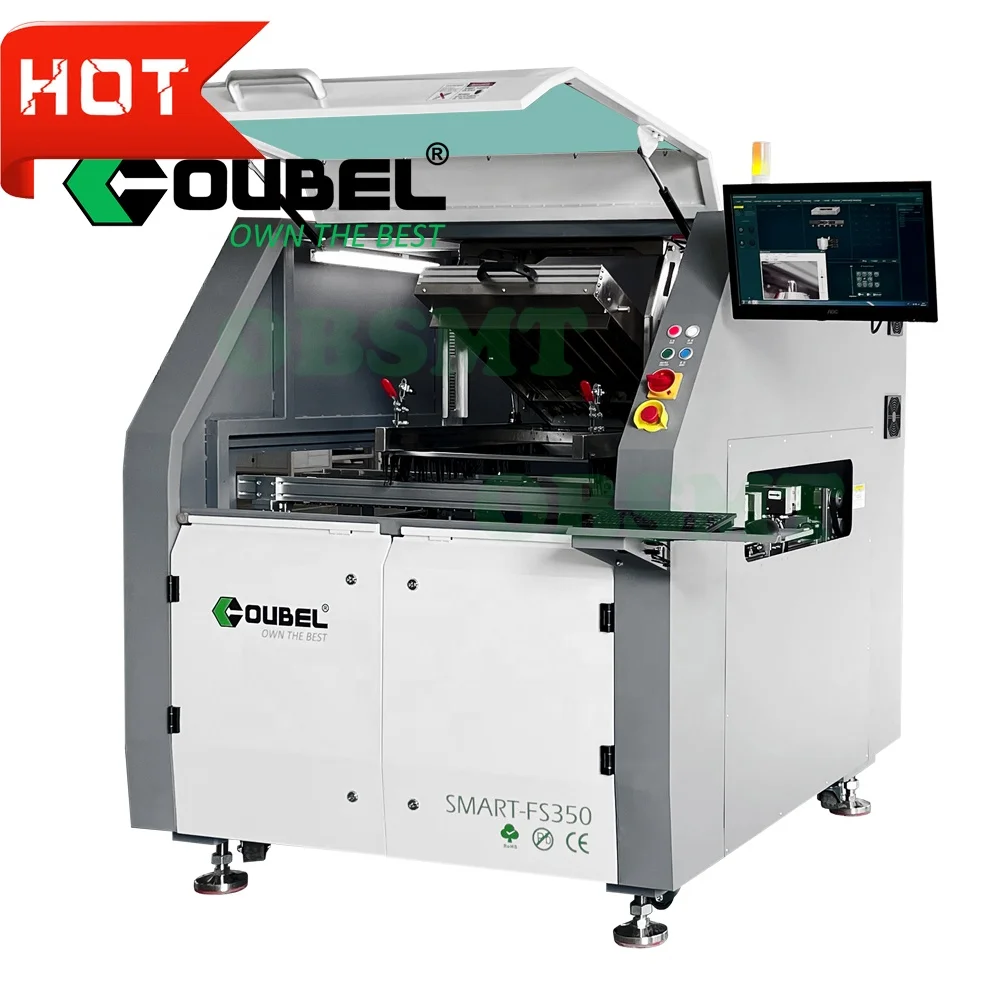

Modern Design DIP Soldering Machine Wave Soldering Pot For Selective Welding
Features:
2. Small size, small footprint, length:1435mm.
3. Standard electromagnetic pump solder tank, no wear parts, easy maintenance.
4. Rotary track design which allows loading and unloading PCB on the same side of the machine.
5. Standard equipped with teaching camera, spray cleaning function.
6. Realtime monitoring and recording of welding process.
7. Transmission system adoption a roller conveyor,increase welding space,better close to the edge components of welding.
8. Adopts precise nozzle with 130um diameter which is imported from Germany and can uniformly spray flux in the required welding area.The minimum injection area is3mm which saves atleast 90%flux compared with the traditional spraying.
9. All the movements are drived by servo motor.The movements are stable and smooth.The precision accuracy is around 0.05mm.
10. The soldering module has high precision axis system to ensure the accurate soldering path and with particular process,the system will eliminate the chance of bridging.
11. Process monitor screen and automatic soldering wave height detecting are very friendly for users.
Product Name | Modern Design DIP Soldering Machine Wave Soldering Pot For Selective Welding |
Model | SMART-FS350 |
Overall dimension(mm) | 1435(L)*1800(W)*1670(H) |
Weight | Approx.1050kgs |
PCB Top Side Clearance | 120mm |
PCB Bottom Side Clearance | 60mm |
PCB process edge | ≥3mm |
Conveyor Height From Floor | 900±20mm |
PCB Conveying Speed | 0.2-10m/min |
Max PCB Weight | ≤5kgs |
PCB Thickness With Jig | 1-6mm |
Conveyor Width Adjustment Range | 50-450mm |
Conveyor Width Adjustment Mode | Electric |
PCB Conveying Direction | L-R |
Air Input Pressure | 0.6Mpa |
Nitrogen Supply | Offered by customer |
Nitrogen Input Pressure | 0.6Mpa |
Nitrogen Consumption | 1.5m³/h |
Required Purity of Nitrogen | ≥99.999% |
Supply Voltage | 380VAC |
Frequency | 50/60HZ |
MaxPower Consumption | <12KW |
Max Current | <25A |
Ambient Temperature | 10-35℃ |
Machine Noise Level | <65dB |
Communication Interface | SMEMA |
Max.Soldering distance of Xaxis | 510mm |
Max.Soldering distance of Yaxis | 450mm |
Max.Soldering distance of Z axis | 60mm |
Min outer diameter of nozzle | 5.5mm |
Nozzle inner diameter | 2.5-10mm |
Max soldering wave height | 5mm |
Solder pot capacity | Approx.13kg(Sn63pb)/Approx.12kg(lead-free) |
Max soldering temperature | 330℃ |
Soldering heating power | 1.15kw |
Preheat temperature range | <200℃ |
Heating power | 6kw |
Top side preheating | Hot air |
Fluxbox capacity | 2L |
Products Show
Related Product
Jet Wave Soldering Machine

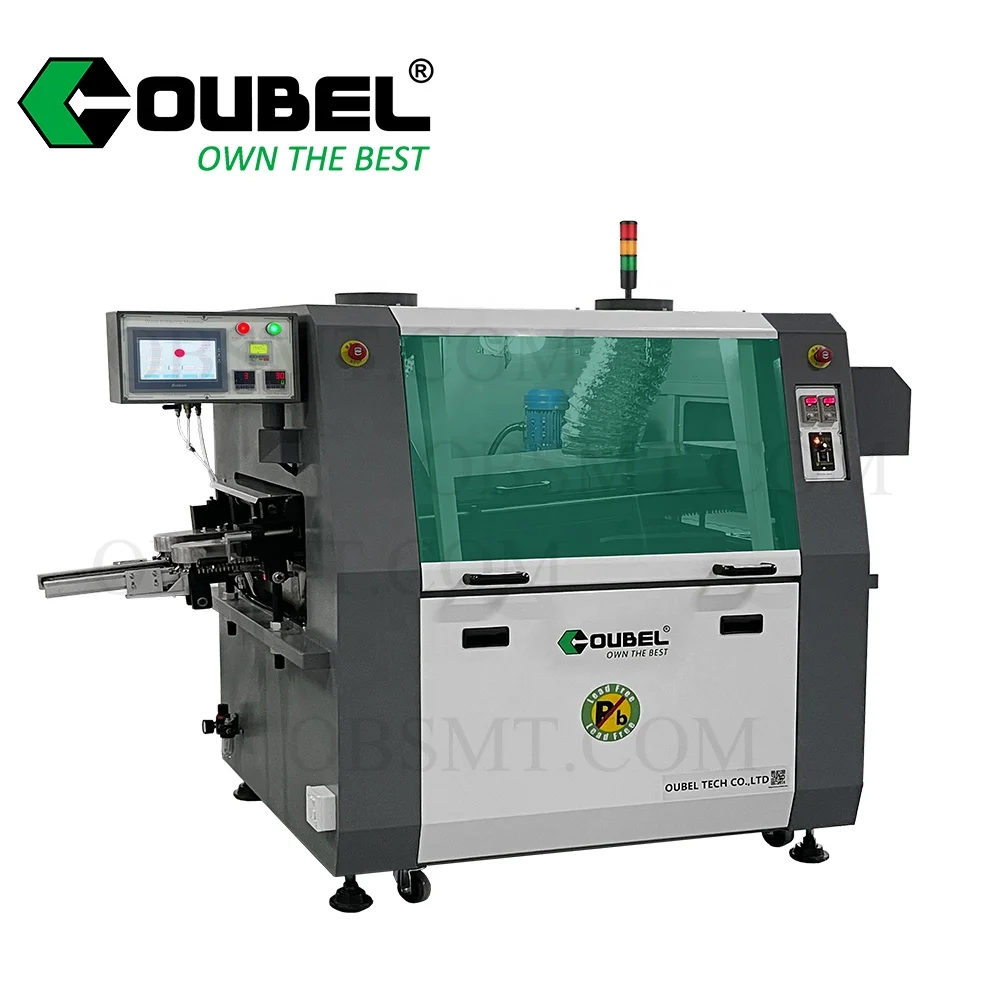

DIP Soldering Machine

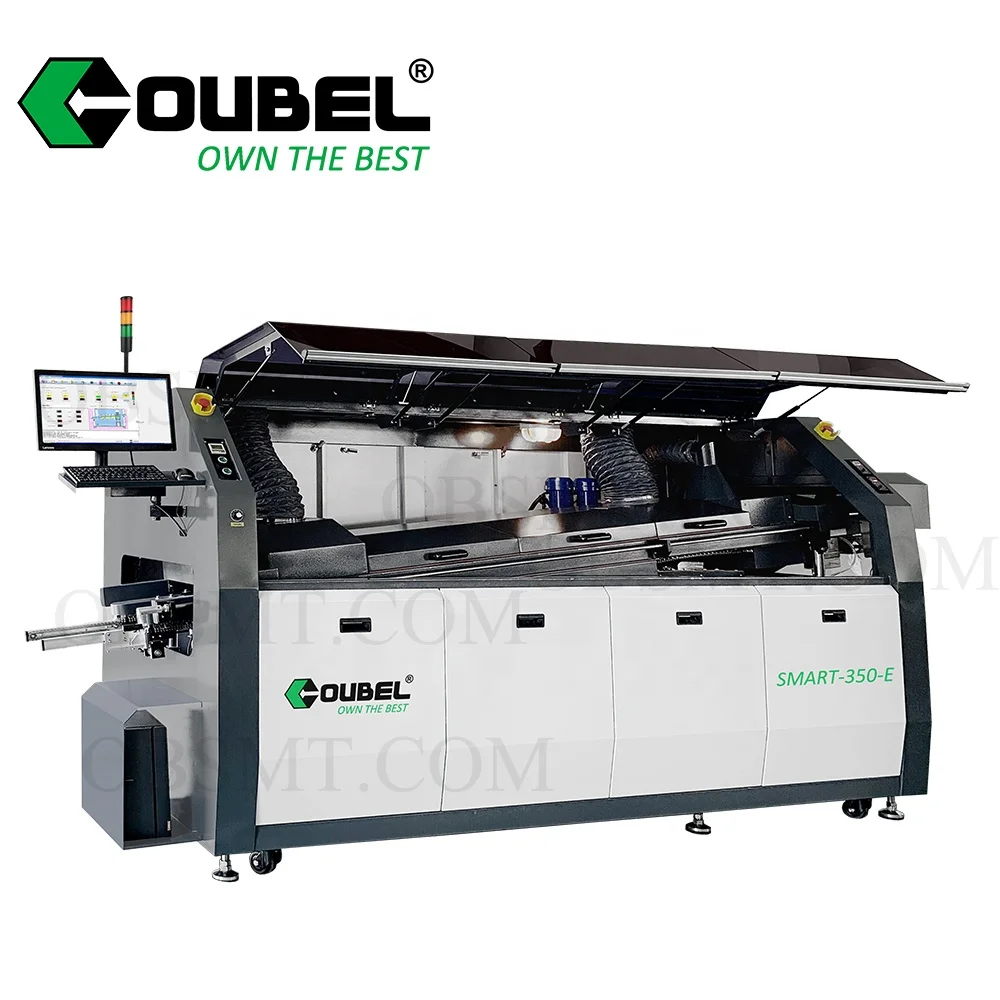

Auto Wave Soldering Machine
DIP Outfeed Conveyor
DIP Infeed Conveyor
PCB Lead Cutter
Packing & Delivery
Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details : 20-25 days
Our Company
Oubel supplies the dispensing and PCB conformal coating machine, SMT &DIP machines that is supported by a global service network ,we offer customer-inspired solutions in a range of industries.OUBEL is dedicated to making quality products that help our clients operate more efficiently and effectively. Oubel is guided by the principles of fairness to our suppliers, associates, clients and employees, and helping them achieve to the best of their potential.
Company
Studio
Core Competencies
Corporate Objectives
Certificate
Customer Photo
Since its establishment, the company has established good business relations with traders from all over the world and won the favor of many customers with our high-quality products and services
When the customer comes to the factory to watch the production and operation of the machine, our team carefully explains the operation process of the machine for him, so that the customer has some understanding of our production process and can rest assured of our products.
Our Service
Respond in time
Your inquiry about our products and price will be replied within 24 hours
Cheap and fine
We provide you with high quality materials and competitive prices
Good communication
Well-trained and experienced staffs to answer your enquires in fluent English
High efficiency
Complete the production shipment in the shortest time
High quality
Strict QC before shipping the products,Responsible for the quality of all products
Wide range of services
OEM & ODM services offered,Meet all your needs
FAQ:
Q: What we can do for you?
A: We provide Whole coating line (Auto coating line ,economic coating line ) DIP Line,SMT Line and so on.Professional Technical Support and Service.
Q: What is your delivery date?
A: The delivery date is about 20-25 days.
Q: What is your payment terms?
A: TT 100% payment in advance.
Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.
Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can also provide remote guidance
Q:What is the payment way ?
A:We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc.
Q: What we can do for you?
A: We provide Whole coating line (Auto coating line ,economic coating line ) DIP Line,SMT Line and so on.Professional Technical Support and Service.
Q: What is your delivery date?
A: The delivery date is about 20-25 days.
Q: What is your payment terms?
A: TT 100% payment in advance.
Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.
Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can also provide remote guidance
Q:What is the payment way ?
A:We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc.
Похожие товары

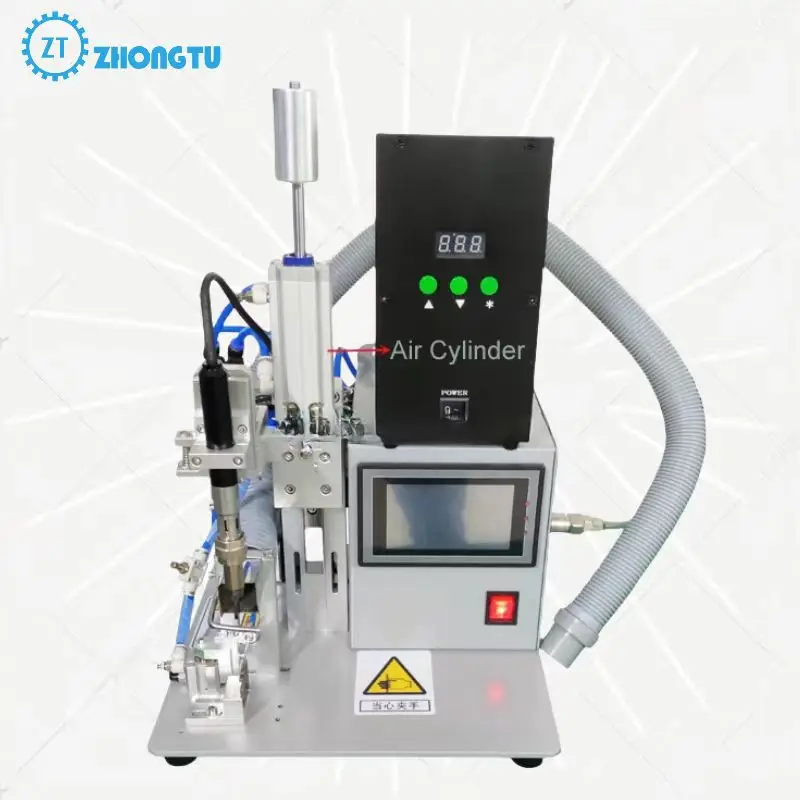

Портативное полуавтоматическое оборудование для пайки
