CLIRIK заводская цена 1250 шлифовальный станок с пемзой для продажи в Пакистане

Описание и отзывы

Характеристики

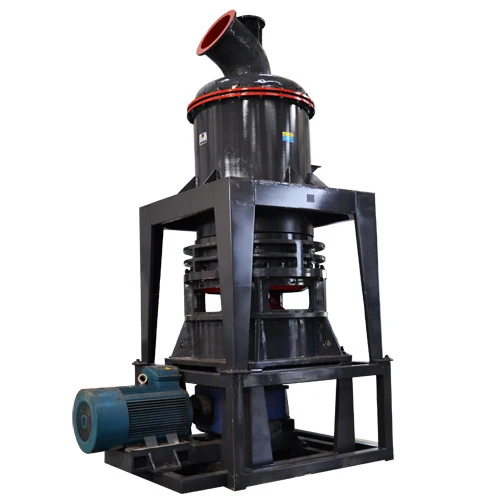

Product overview of 1250 mesh Pumice grinding mill machine

1250 mesh Pumice grinding mill machine is a kind of high-efficiency and low-consumption ultra-fine powder processing equipment. Compared with the traditional talc jet mill and ball mill, the process of powder selection is more simple.

1250 mesh Pumice grinding mill machine greatly reduces production cost and improves product fineness. Thousands of domestic and overseas users have proved that the equipment has the advantages of superior performance, stable quality, simple operation and convenient maintenance, and is an ideal equipment for ores ultra-fine powder processing.

Scope of application of 1250 mesh Pumice grinding mill machine

1250 mesh Pumice grinding mill machine mainly suitable for superfine powder processing of non-flammable and explosive brittle materials with medium and low hardness, Mohs hardness ≤6, such as calcite, chalk, limestone, dolomite, carbon black, kaolin, bentonite, talc, mica , magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alumite, graphite, fluorite, phosphate rock, potassium ore, More than 100 kinds of materials such as pumice, the particle size of fine powder products can be adjusted arbitrarily between 325-2500 mesh, and the output can reach 0.7-7.5 tons per hour.

Working principle of 1250 mesh Pumice grinding mill machine

1250 mesh Pumice grinding mill machine production line composition

The complete set of configuration includes crusher, bucket elevator, storage bin, vibrating feeder, micro-powder mill host, frequency conversion classifier, double cyclone powder collector, pulse dust removal system, high pressure fan, air compressor, electrical control system.

Working process of 1250 mesh Pumice grinding mill machine

After being crushed into small particles by the crusher, the bulk material is sent to the storage bin by the elevator, and then passed through the vibrating feeder and the inclined material guide pipe, and the material is evenly sent to the bulk material tray on the upper part of the inner turntable of the main machine.

When the mill is working, the main engine motor drives the main shaft and the turntable to rotate through the reducer, and the turntable drives dozens of grinding rollers to rotate and roll in the grinding ring raceway through the roller pins on the edge. The materials are scattered to the periphery under the action of centrifugal force, and fall into the magic cavity, where they are impacted, rolled and ground by the grinding rollers in the ring of the grinding ring. Repeated grinding into powder through three or four layers of rings.

The high-pressure fan sucks the external air into the machine by suction, and brings the pulverized material into the classifier. The high-speed rotating impeller screens it, the unqualified coarse powder falls back for regrinding, and the qualified fine powder enters the cyclone powder collector with the airflow, and the dust falls and is discharged from the discharge valve at the bottom to be the finished product.

A small part of fine dust enters the dust collector with the airflow and adheres to the surface of the filter bag. The pulse valve controls the high-pressure air flow to spray instantly from the inside of the filter bag, and the dust adhering to it will fall down due to the sudden shaking of the filter bag, and the conveyor at the bottom will send the fine powder materials collected in two places for finished product packaging. The filtered clean air is finally discharged at the outlet of the muffler.

Product advantage of 1250 mesh Pumice grinding mill machine

1. High efficiency and low consumption.

Under the condition of the same finished product fineness and motor power, the output is more than 1 times higher than that of jet mill, stirring mill and ball mill, and the energy consumption is 30% lower.

2. The wearing parts have a long service life.

Grinding rollers and grinding rings are forged with special materials, which greatly improves the durability. Under the condition of the same fineness of materials and finished products, the service life of wearing parts is 2-3 times longer than that of impact crusher and turbo crusher, generally more than 2 years. When processing calcium carbonate and calcite, the service life can reach 2-5 years.

3. High safety and reliability.

Because there is no rolling bearing and no screw in the grinding chamber, there is no problem that the bearing and its seals are easily damaged, and there is no problem that the screw is easy to loosen and damage the machine.

4. High product fineness.

Compared with other milling products, 1250 mesh Pumice grinding mill machine has higher fineness, up to 325-2500 mesh (47-5 micron) and the fineness can reach D97≤5μm.

5. Environmentally friendly cleaning.

The pulse dust collector is used to capture dust, and the muffler is used to reduce noise, which is environmentally friendly and clean.

6. Advanced intelligent frequency conversion speed control device.

By using this device, the particle size of the powder processed is more uniform, and the adjustment is convenient.

Product parameter of 1250 mesh Pumice grinding mill machine

1250 mesh Pumice grinding mill machine has HGM80, HGM80A, HGM90L, HGM100L-Ⅱ, HGM100P, HGM125L, HGM1680L seven types for your choice. For more information, please click here.

Parameter 1

Parameter 2

Unit kw	HGM80	HGM90L	HGM100L-Ⅱ	HGM100P	HGM125L	HGM1680L
Main unit	75	2*45	132-150	132-150	185-200	315
Classifier	18.5	18.5-30	30-37	30-37	75	132
Blower	45	55	75	75	2*45-2*55	2*75-2*90
Crusher	18.5	18.5	18.5	18.5	45	75
Bucket Elevator	3	3	4	4	4	7.5
Belt Conveyor Feeder	1.5	1.5	1.5	1.5	1.5	2
Discharging Valve	2*0.75	1.1	1.1	1.1	1.5	2*1.5
Air Compressor	11	15	22	22	37	55



Gypsum micro powder grinding mill manufacturer introduction

Shanghai Clirik Machinery Co., Ltd. located in Pudong New District of Shanghai, China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of vertical grinding mill. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service. CLIRIK has been the biggest vertical mill manufacturer in East China.



So far, we have established a whole production chain, the products cover vertical grinding mill, crusher, packing machine, powder modifying machine, air conveying system, and so on. For the grinding mill, we have a large capacity vertical roller mill(10-300 t/h), ultrfine vertical powder grinding mill(D97 2500mesh), ball mill, Raymond vertical mill, etc. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. In particular, we independently developed HGM micro powder grinding mill, which are not only renowned in the domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Oceania, and America, etc.

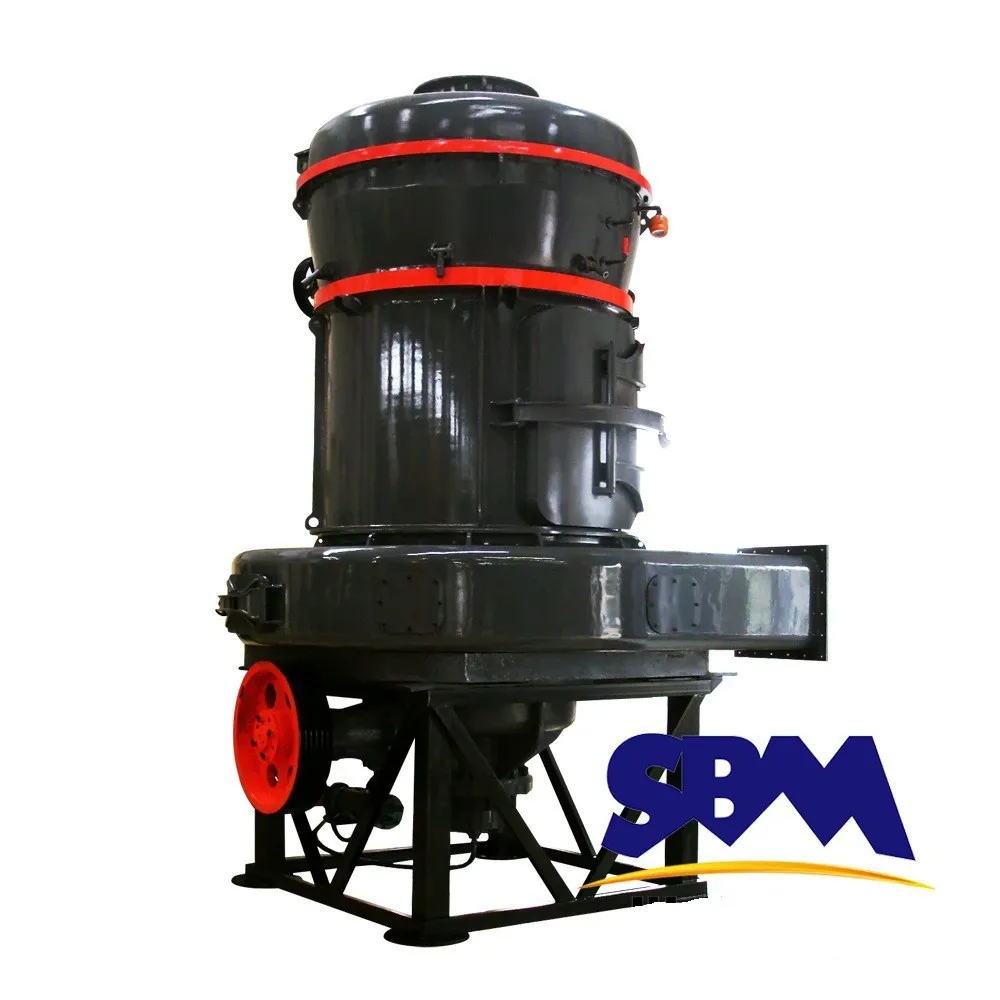

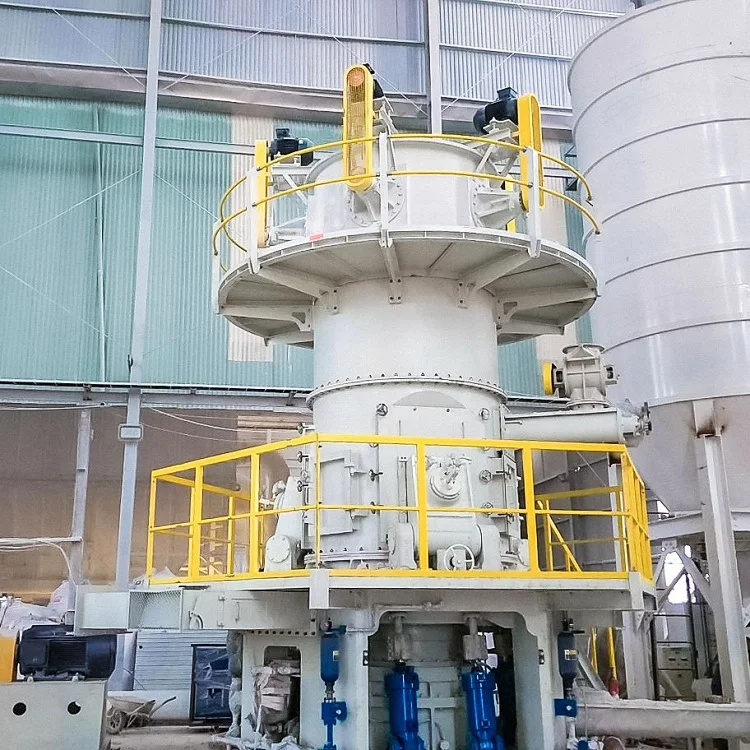

CLUM series ultrafine vertical roller mill	YGM series Raymond grinding mill	HGM series micro powder grinding mill
Processing ability: 1-20 t/h Fineness: 400-3000 mesh Max feeding size: 10 mm	Processing ability: 1-30t/h Fineness: 50-325 mesh Max feeding size: 20mm	Processing ability: 1-45 t/h Fineness: 150-2500 mesh Max feeding size: 10-25mm



FAQ

1. Which kind of material are you going to grind?

(Dolomite; calcite; talc; quartz; basalt; barite; feldspar; gravel; bentonite; gypsum; granite; coal; slag; pebble; others)



2. What’s the production capacity you want? How many tons or cubic meters per hour?

( > 100 TPH > 50 TPH > 30 TPH > 10 TH > 1 TPH < 1 TPH)



3. What’s the granularity of the final products you need?

(in milimeter, micron or mesh)



4. What’s the max input size of the material?

(In inch, centimeter or millimeter)
