Product Description
Feature
1. Pure Sine Wave 3 Phase Inverter low DC voltage, relieving battery cost
2. Automatically adjust AC output frequency conforming to AC input
3. Various protection (overload/over current/shortcircuit/high temperature/low battery voltage/high battery voltage)
4. Intelligent LCD dispalys input&output voltage, frequency, battery capacity, fault, load etc
5. pure sine wave output, low frequency transformer, isolated input&output design
6. Constant current&voltage design to prolong battery service life
7. Cold start on battery, automatical start on mains and restart function
8. Multiple communication port (RS232/RS485/SNMP/APP optional) to realize remote intelligent control)
9. Excellent mirco processor control with reliable quality and outstanding characteristic
Product Details
4kva~8kva 3 phase inverter:
10kva~30kva 3 phase inverter:
40kva~80kva 3 phase inverter:
100kva~150kva 3 phase inverter:
200kva 3 phase inverter:
Parameters
| Specification | ||||||||||||
| Rated Power | 60KVA/48KW | 100KVA/80KW | 125KVA/100KW | |||||||||
| Peak Power(20ms) | 144KVA | 240KVA | 300KVA | |||||||||
| Start Motor | 25HP | 40HP | 50HP | |||||||||
| Battery Voltage | 384VDC | |||||||||||
| Built-in solar controller charging current (Optional) | PWM: 100A-200A(192V&384V System) MPPT: 50A/100A(192V&384V System) | PWM: 100A-200A / MPPT: 50A/100A | ||||||||||
| Size(L*W*Hmm) | 720*575*1275 | 875*720*1380 | ||||||||||
| Packing Size(L*W*Hmm) | 785*640*1400 | 980*825*1560 | ||||||||||
| N.W.(kg) | 337 | 512 | 612 | |||||||||
| G.W.(kg)(Wooden Packing) | 370 | 552 | 652 | |||||||||
| Installation Method | Tower | |||||||||||
| Parameter | ||||||||||||
| Input | DC Input Voltage Range | 10.5VDC-15VDC(Single battery voltage) | ||||||||||
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | |||||||||||
| AC Input Frequency Range | 45Hz-55Hz(50Hz)/ 55Hz-65Hz(60Hz) | |||||||||||
| Max AC charging current | 0-45A(Depending on the model) | |||||||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||||
| Phase | 3/N/PE | |||||||||||
| Output | Efficiency(Battery Mode) | ≥85% | ||||||||||
| Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) | |||||||||||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | |||||||||||
| Output Wave(Battery Mode) | Pure Sine Wave | |||||||||||
| Output waveform distortion | Linear load≤3% | |||||||||||
| Efficiency(AC Mode) | >99% | |||||||||||
| Output Voltage(AC Mode) | Conforming to AC input | |||||||||||
| Output Frequency(AC Mode) | Conforming to AC input | |||||||||||
| No load loss(Battery Mode) | ≤2.5% rated power(4KVA-30KVA models);≤1% rated power(40KVA-200KVA models) | |||||||||||
| No load loss(AC Mode) | ≤2%rated power( charger does not work in AC mode) | |||||||||||
| No load loss(Energy saving Mode) | ≤10W | |||||||||||
| Phase | 3/N/PE | |||||||||||
| Battery Type | VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage) | ||||||||||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) | |||||||||||
| Protection | Battery undervoltage alarm | 11V(Single battery voltage) | ||||||||||
| Battery undervoltage protection | 10.5V(Single battery voltage) | |||||||||||
| Battery overvoltage alarm | 15V(Single battery voltage) | |||||||||||
| Battery overvoltage protection | 17V(Single battery voltage) | |||||||||||
| Battery overvoltage recovery voltage | 14.5V(Single battery voltage) | |||||||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||||
| Temperature protection | >90°C(Shut down output) | |||||||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | ||||||||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | |||||||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||||||||||
| Inside Solar controller (Optional) | Charging Mode | MPPT or PWM | ||||||||||
| Charging current | PWM: 10A/20A/30A/40A/50A/60A(48V System); 50A/100A/150A/200A(96V/192V/384V System) MPPT: 10A/20A/30A/40A/50A/60A/80A/100A(48V System); 50A/100A(96V/192V/384V System) | |||||||||||
| PV Input Voltage Range | PWM: 60V-88V(48V System); 120V-176V(96V System); 240V-352V(192V System); 480V-704V(384V System) MPPT: 60V-120V(48V System); 120V-240V(96V System); 240V-360V(192V System); 480V-640V(384V System) | |||||||||||
| Max PV Input Voltage(Voc) (At the lowest temperature) | PWM: 100V(48V System); 200V(96V System); 400V(192V System); 750V(384V System) MPPT: 150V(48V System); 300V(96V System); 450V(192V System); 800V(384V System) | |||||||||||
| PV Array Maximum Power | 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A) 96V System: (PWM: 5.6KW(50A)/11.2KW(100A)) / (MPPT: 5.6KW(50A)/5.6KW*2(100A)); 192V System: (PWM: 11.2KW(50A)/22.4KW(100A)/16.8KW*2(150A)/22.4KW*2(200A)) / (MPPT: 11.2KW(50A)/11.2KW*2(100A)); 384V System: (PWM: 22.4KW(50A)/44.8KW(100A)/33.6KW*2(150A)/44.8KW*2(200A)) / (MPPT: 22.4KW(50A)/22.4KW*2(100A)) | |||||||||||
| Standby loss | ≤3W | |||||||||||
| Maximum conversion efficiency | >95% | |||||||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | |||||||||||
| Transfer Time | ≤4ms | |||||||||||
| Display | LCD | |||||||||||
| Thermal method | Forced air cooling | |||||||||||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring) | |||||||||||
| Environment | Operating temperature | -10℃~40℃ | ||||||||||
| Storage temperature | -15℃~60℃ | |||||||||||
| Noise | 2000m(More than derating) | |||||||||||
| Elevation | ≤65dB | |||||||||||
| Humidity | 0%~95% ,No condensation | |||||||||||
*If you want to get other watts information, Please contact us
100KVA Inverter Wiring Diagram
Contact us to get 10kva~200kva inverters' wiring diagram
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or invertor;
2. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the invertor, grid will supply power to the loads directly after voltage being stabilized and charge batteries via invertor. When the grid is cut off, the battery will automatically continue to supply power via invertor.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the invertor’s rated power, there will be no output from the invertor. Only the chip of invertor is working. The power consumption of the invertor is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the invertor will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the invertor, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
Application
Packaging & Shipping
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment | ||
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
Related Products
Hot selling inverters
Company Information
Why choose us
About us
| Guangdong Xindun Power Technology Co.,Ltd | |
Factory Location | Foshan,Guangdong,China |
| Industry Experience | 13-year manufacturer, 16-year trading, 8-year alibaba gold supplier |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system |
| Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) |
| Factory | 6000 Square Meters, 60+ workers |
| Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department |
| Certificate | ISO9001:2015, CE, IEC, etc. |
| Patent | Software Paten, Design Patent, Project Pantent |
Workshop
Process
Exhibitions
Certificates
FAQ
Q1: Are you a factory?
A: Yes, we are ISO9001:2015 manufacturing with qualifications of TUV, CE, ROHS & CCC. main products including inverter, solar controller and solar energy system solution.
Q2: Are you inverter pure sine wave output?
A: Yes, all of our inverter are pure sine wave output.
Q3: What kind of output you can do?
A: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Our inverter can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
Q5: How long is your factory?
It's over 10 years. at the beginning our factory focused on domestic market.
From 2012, we set up our oversea sales department.
Q6: What' s the difference between low frequency and high frequency inverter?
A: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
Q7: What's the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
Q8: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solveeasily.
Q9: What to do if the product is broken?
A: Usually we do standard exporting package and insurance in case of broken. If any product is faulty, please send us the picture or video, we will study it and supply the spare parts of PCB board free for after sale service.
Похожие товары
Chisage ESS Инвертор солнечной энергии 8 кВт 3-фазный PV инвертор для системы с привязкой к сети
82 655,72-87 247,70 ₽
Система солнечной энергии инвертор Solis S6-EH3P15K02-NV-YD-L трехфазный низковольтный Гибридный Инвертор батареи
226 155,22-227 303,21 ₽

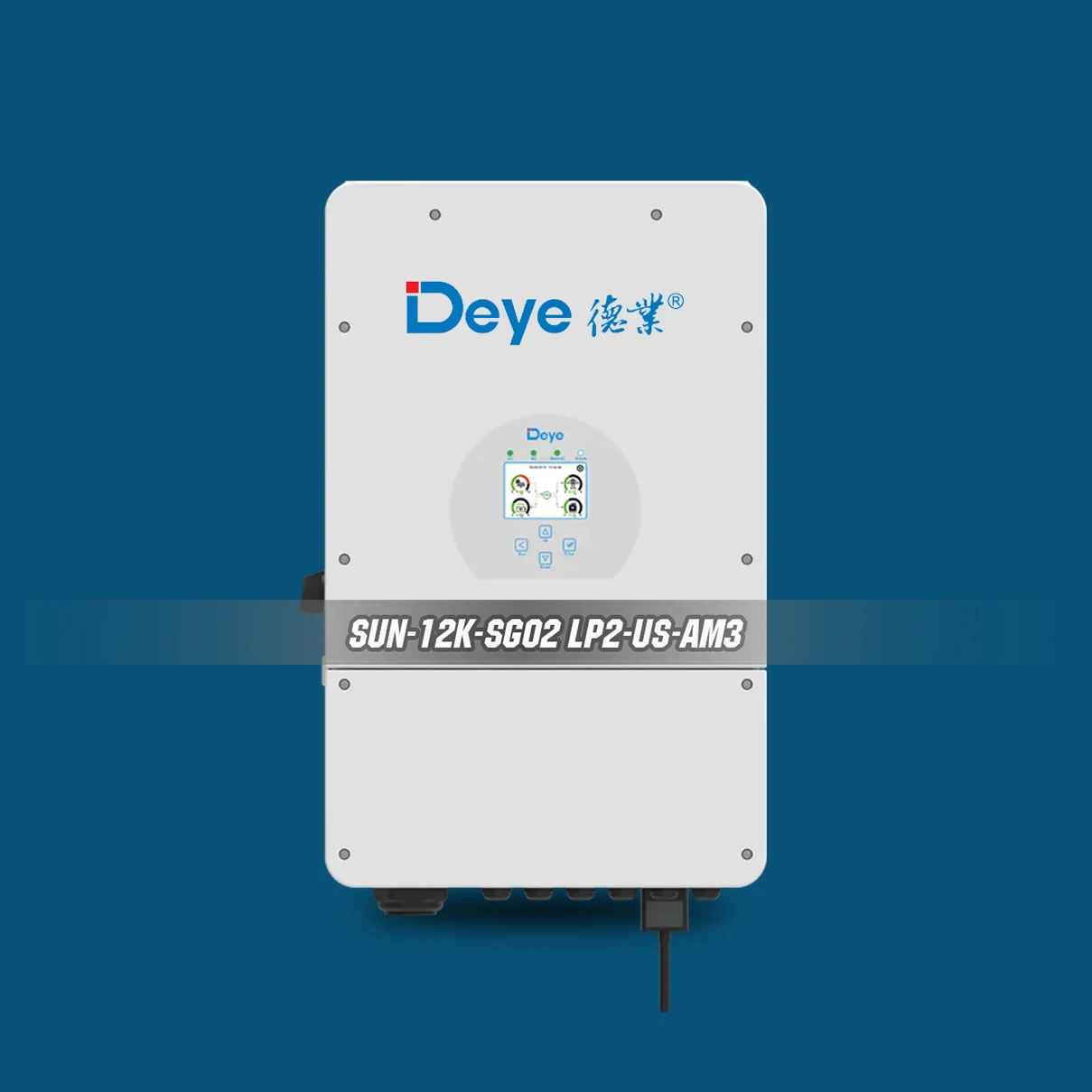

Дешевая цена 12 кВт SUN-12K-SG02 LP2-US-AM3 с разделенной фазой 120 В 240 гибридный солнечный инвертор
