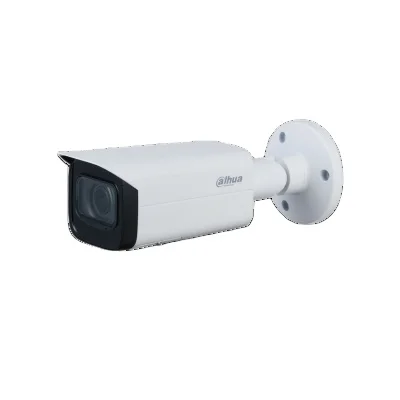

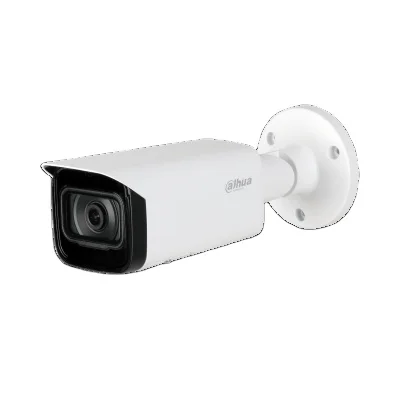

Сетевой видеорегистратор Dahua HAC HFW2501TU A POC Встроенный микрофон 5MP ИК 80 м объектив с фиксированным фокусным расстоянием ночное видение HDCVI камеры пули WDR (широкий динамический диапазон) псу аналоговая камера HD сетевой Da

Camera

Image Sensor

1/2.7"CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

S/N Ratio

0.001 Lux/F1.6, 30IRE, 0Lux IR on

Min. Illumination

> 65 dB

Illumination Distance

80m (262.5 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6 mm; 6 mm; 8 mm

Max. Aperture

F1.6

Field of View

3.6 mm: H: 92°; V: 48°; D: 109°

6 mm: H: 57°; V: 30°; D: 65°

8 mm: H: 43°; V: 24°; D: 48°

Iris Type

Fixed

Close Focus Distance

3.6 mm: 1.6 m (5.2 ft)
6 mm: 3.1 m (10.2 ft)
8 mm: 4.3 m (14.1 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

80 m (262.5 ft)

32 m

(105.0 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

6 mm

80 m

(262.5 ft)

48 m

(157.5 ft)

24 m

(78.7 ft)

12 m (39.4ft)

8 mm

150.4 m (493.4 ft)

60.2 m

(197.5 ft)

30.1 m

(98.8 ft)

15 m

(49.2 ft)

Video

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps

NTSC: 5M@25 fps; 4M@30 fps

AHD:

PAL: 4M@25 fps

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps

NTSC: 4M@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120 dB

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D NR

Smart IR

Yes

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Audio Interface

One channel built-in mic

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

POC (only CVI)/12V±30% DC

Power Consumption

Max 6.8W (12V DC, IR on); PoC (AT)

Environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F); < 95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to +140°F); < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

244.1 mm × 90.4 mm × 90.4 mm

(9.61" × 3.56" × 3.56")

Net Weight

0.79 kg (1.74 lb)

Gross Weight

1.05 kg (2.31 lb)
