Телескопический подъемник everstar для воздушной рабочей платформы 38 м
- Категория: >>>
- Поставщик: Xuzhou Hengxing Jinqiao Machinery Technology Co. Ltd.Xuzhou Ltd.
Сохранить в закладки 1600710287967:
Описание и отзывы
Характеристики
Product Description
HXE5040TBAJ6

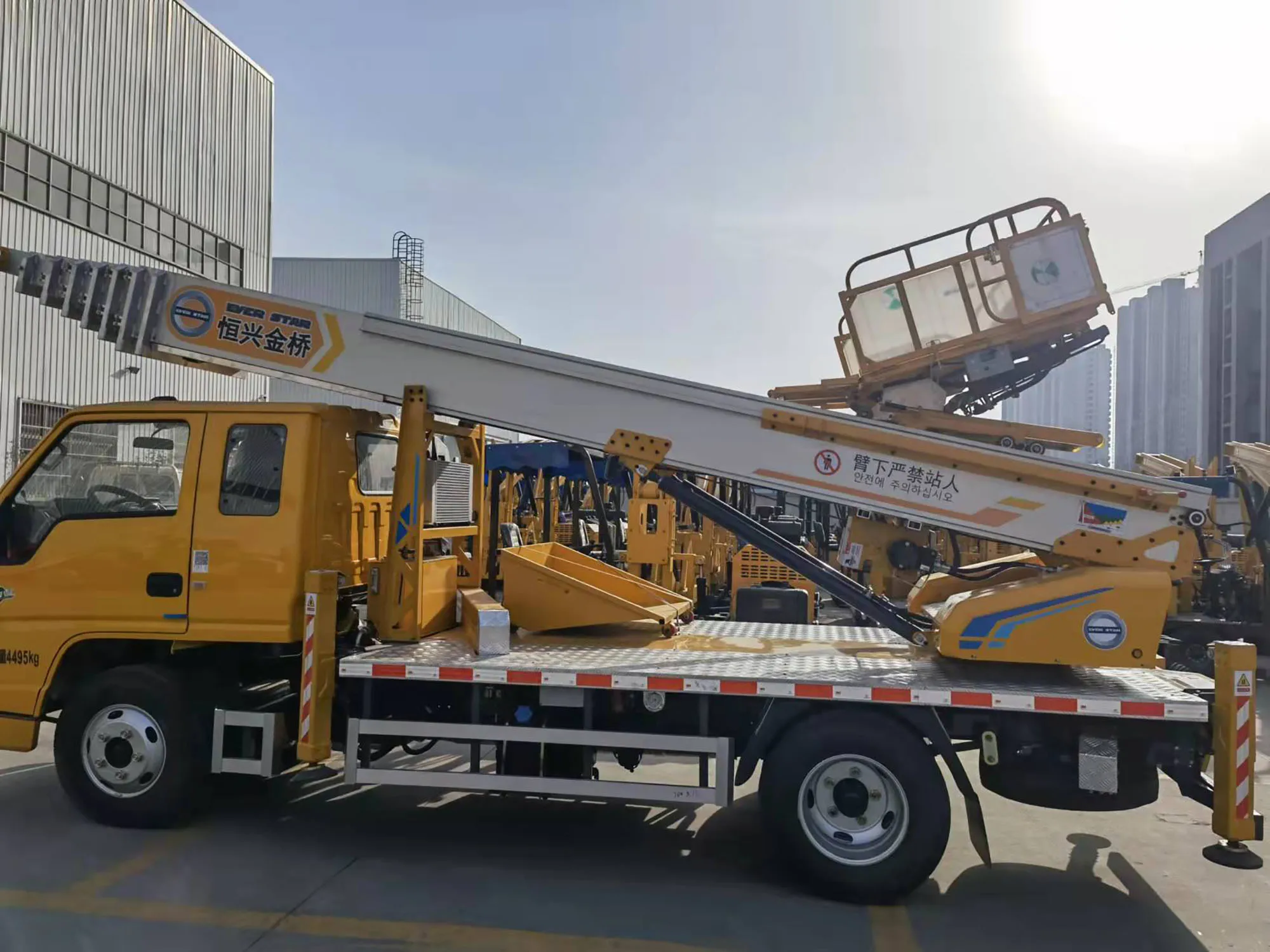

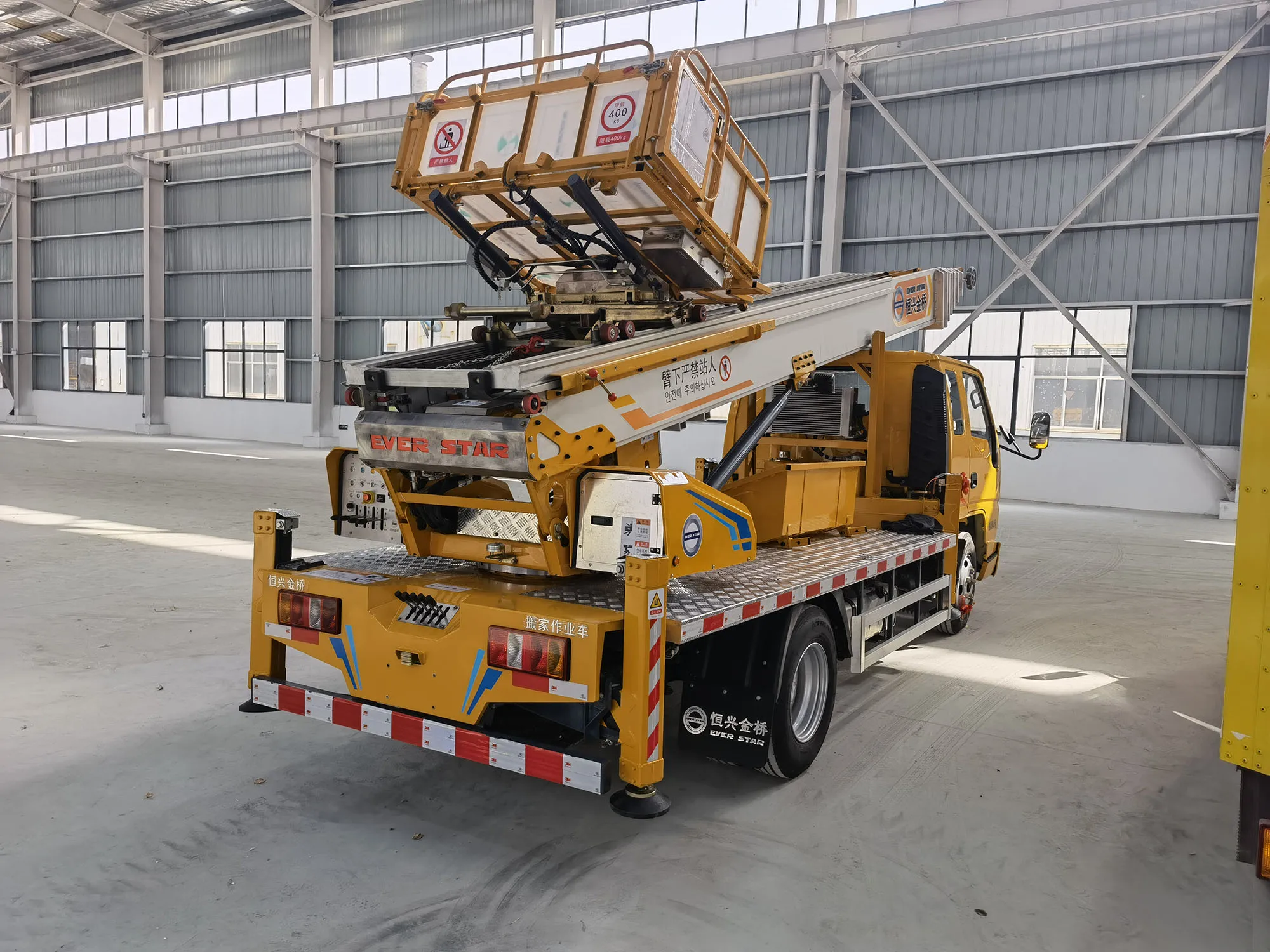

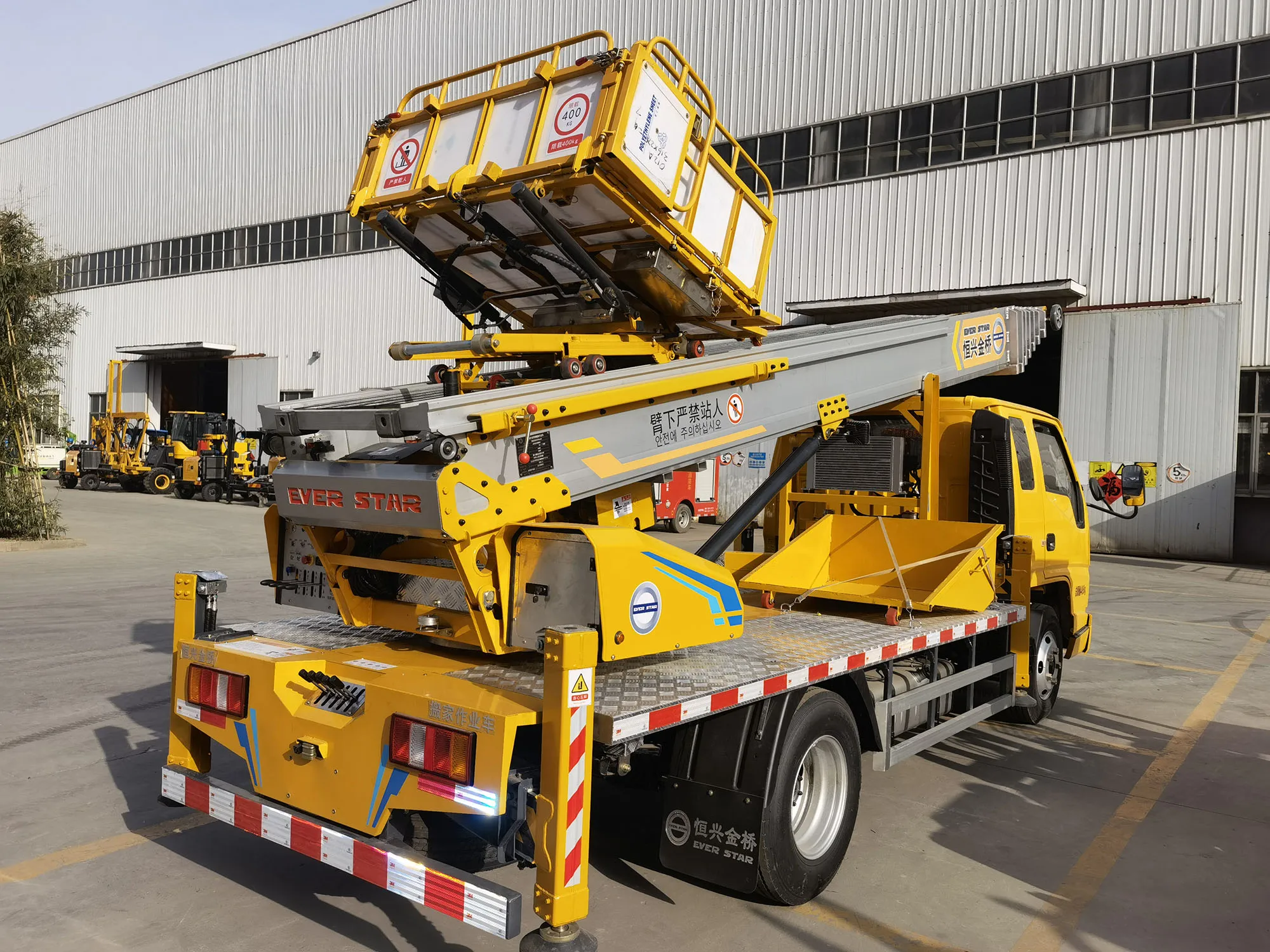

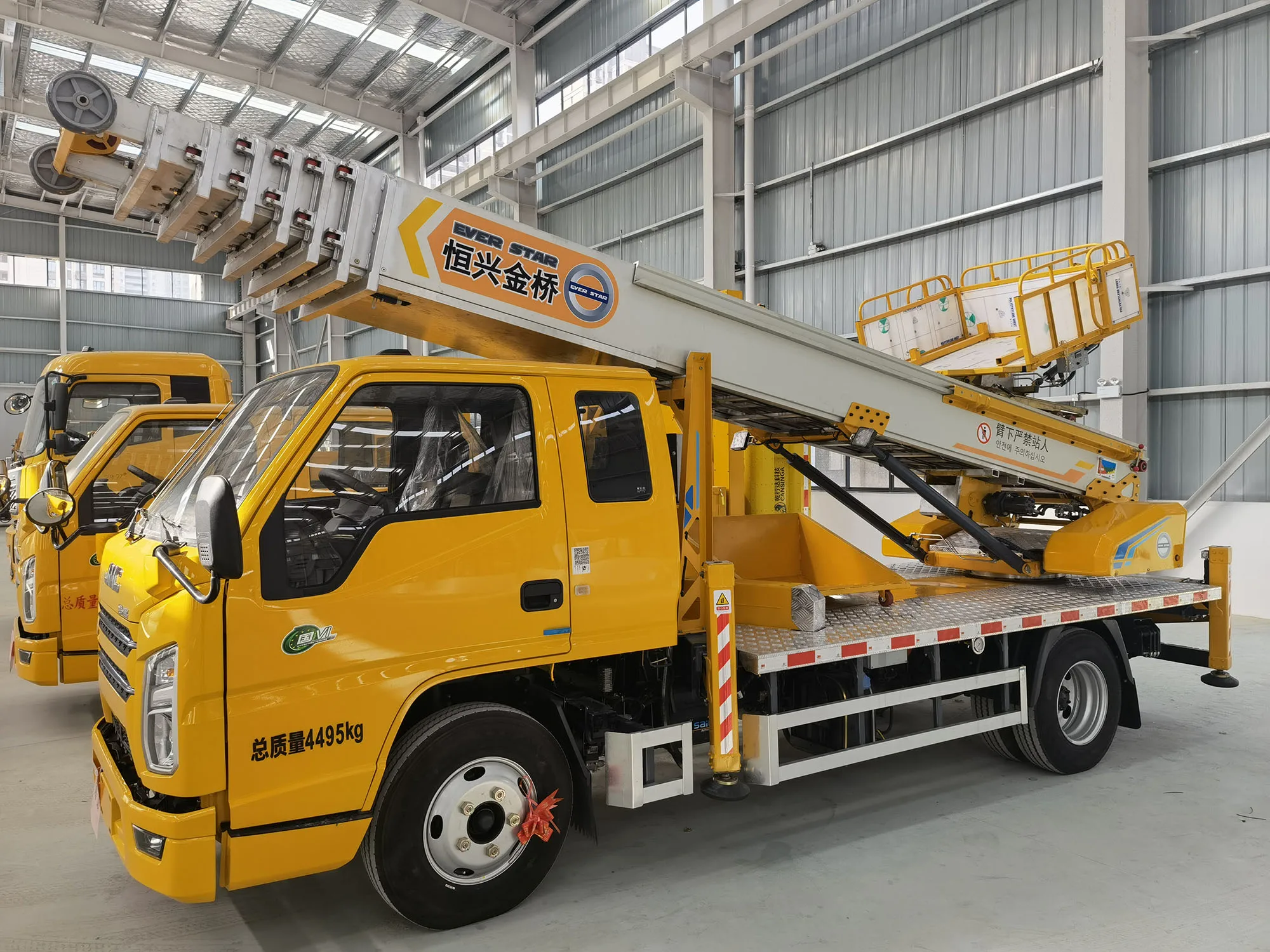

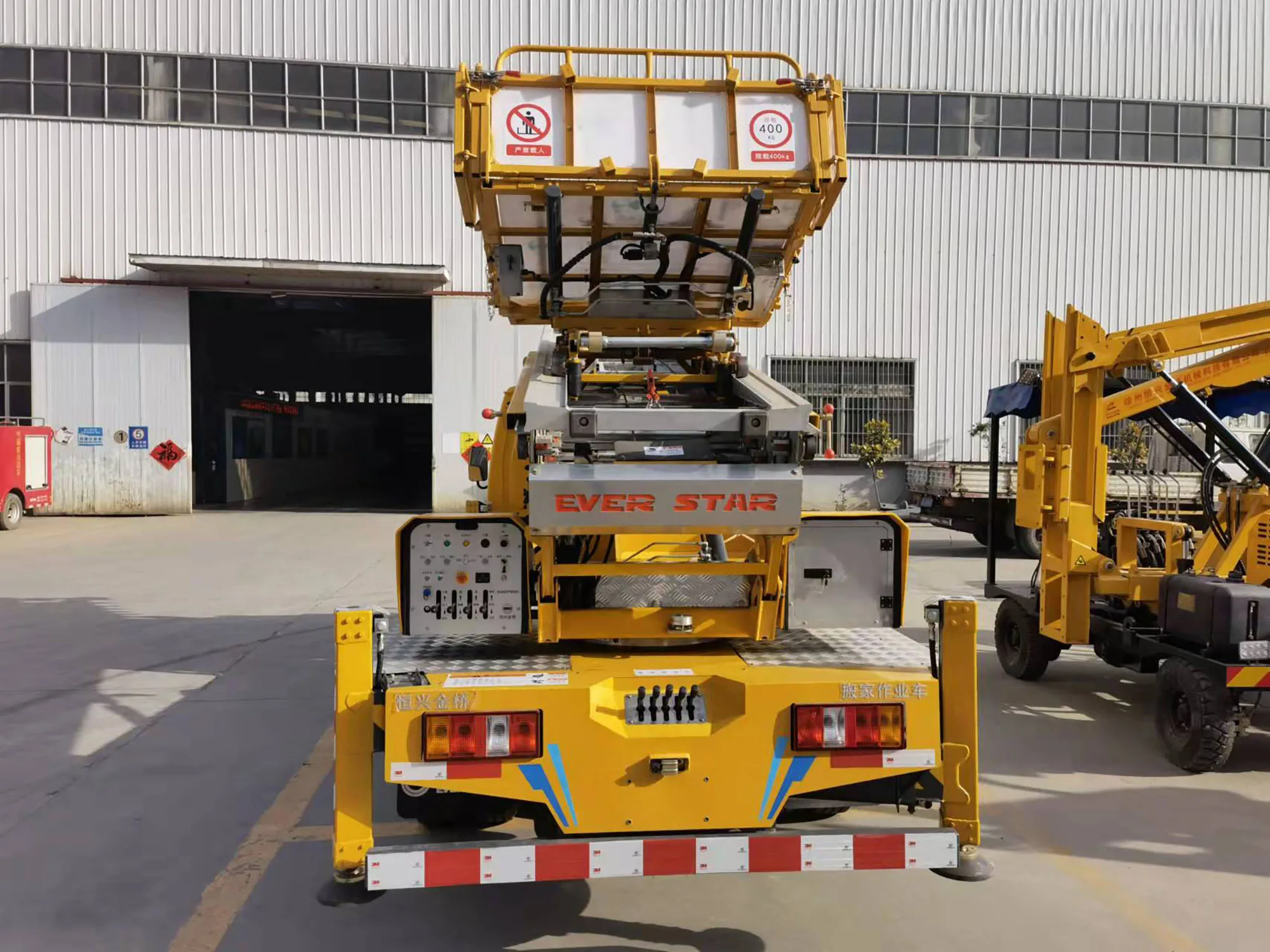

Aerial ladder truck
Outrigger
Control Panel
System
Sturctures
Configuration
Truck chassis: JMC JX1041TG26 chassis
Truck chassis: JMC JX1041TG26 chassis
Engine: JMC JX4D30B6H, power: 85KW
Cab: LMC VI CAB,Fit 2 passagers(including driver)
Bucket
Bucket baseplage dimension: 1150x1000mm
Hoarding height: 380mm
Bucket baseplate extendable dimension: 1950x1400mm
Double hydraulic cylinder remote control angle adjustable bucket, remote control door open close, with 800kw hydraulic power
station.
Boom type: 7 sections of high-strength aluminum alloy ladder arms + 1 section of auxiliary ladder
Slewing type: ±100° discontinuous rotation
Frame: BS700 high strength box frame
outrigger: Front V + rear V outrigger, BS700 high-strength steel box-type outrigger, built-in pipeline
Truck chassis: JMC JX1041TG26 chassis
Engine: JMC JX4D30B6H, power: 85KW
Cab: LMC VI CAB,Fit 2 passagers(including driver)
Bucket
Bucket baseplage dimension: 1150x1000mm
Hoarding height: 380mm
Bucket baseplate extendable dimension: 1950x1400mm
Double hydraulic cylinder remote control angle adjustable bucket, remote control door open close, with 800kw hydraulic power
station.
Boom type: 7 sections of high-strength aluminum alloy ladder arms + 1 section of auxiliary ladder
Slewing type: ±100° discontinuous rotation
Frame: BS700 high strength box frame
outrigger: Front V + rear V outrigger, BS700 high-strength steel box-type outrigger, built-in pipeline
Operation System
1. below chassis equipped with a five-handle hydraulic valve group, and the outriggers are fully hydraulically driven both
horizontally and vertically.
2. The truck above chassis is equipped with a load-sensitive proportional valve, which can be operated purely manually.
3. loading system with wireless handheld remote control, so the action of getting on the car can be operated remotely with one
hand. The maximum remote control distance is 200 meters.
4. The bucket with 800W high-power hydraulic pump station, the luffing of bucket and the tailgate of the bucket can be remotely
control.
Controller: Equipped with an intelligent controller, it can realize many intelligent functions such as automatic feeding,
automatic deceleration, automatic positioning, and overload alarm.
horizontally and vertically.
2. The truck above chassis is equipped with a load-sensitive proportional valve, which can be operated purely manually.
3. loading system with wireless handheld remote control, so the action of getting on the car can be operated remotely with one
hand. The maximum remote control distance is 200 meters.
4. The bucket with 800W high-power hydraulic pump station, the luffing of bucket and the tailgate of the bucket can be remotely
control.
Controller: Equipped with an intelligent controller, it can realize many intelligent functions such as automatic feeding,
automatic deceleration, automatic positioning, and overload alarm.
Basic functions and safety configuration
1. brief introduction
Maxmium bucket load: 400kg
Maximum loading heigh: 32 meters.
Maximum loading width of 14 meters.
Automatic feeding
Automatic deceleration at high/low position of the bucket,
Automatic unloading of the top of the bucket.
Overload alarm of the bucket.
Interlocking on and off the car.
Outrigger warning lights.
boom lighting.
2. Advantages:
2-1. The cargo bucket adopts sliding rail type secondary landing structure, which can realize the ultra-low loading position.
2-2. By setting the height of the bucket, the automatic lifting and lowering of the bucket can be realized with one button.
2-3. The state of the high and low positions of the cargo bucket is set and monitoring, which can realize the automatic
deceleration of the high and low positions of the bucket ensure the smooth and efficient transportation of materials.
2-4. When the bucket reaches set position, the hydraulic system automatically unloads to avoid overloading of the bucket lifting
system and improve the life of the ladder arm.
2-5. The cargo bucket overload alarm to ensure safety operation.
The boom is equipped with high-brightness LED lighting, which is convenient for night work.
2-6. The engine can be ignited and stopped at the turntable and platform.
outrigger top equipped with a strobe warning light to remind surrounding person when working
2-7. Equipped with outrigger landing detection and boom recovery detection, the outrigger cannot be operated without reliable
support, and the outrigger cannot be operated if the boom is not recovered in place to Prevent wrong opeartion.
Maxmium bucket load: 400kg
Maximum loading heigh: 32 meters.
Maximum loading width of 14 meters.
Automatic feeding
Automatic deceleration at high/low position of the bucket,
Automatic unloading of the top of the bucket.
Overload alarm of the bucket.
Interlocking on and off the car.
Outrigger warning lights.
boom lighting.
2. Advantages:
2-1. The cargo bucket adopts sliding rail type secondary landing structure, which can realize the ultra-low loading position.
2-2. By setting the height of the bucket, the automatic lifting and lowering of the bucket can be realized with one button.
2-3. The state of the high and low positions of the cargo bucket is set and monitoring, which can realize the automatic
deceleration of the high and low positions of the bucket ensure the smooth and efficient transportation of materials.
2-4. When the bucket reaches set position, the hydraulic system automatically unloads to avoid overloading of the bucket lifting
system and improve the life of the ladder arm.
2-5. The cargo bucket overload alarm to ensure safety operation.
The boom is equipped with high-brightness LED lighting, which is convenient for night work.
2-6. The engine can be ignited and stopped at the turntable and platform.
outrigger top equipped with a strobe warning light to remind surrounding person when working
2-7. Equipped with outrigger landing detection and boom recovery detection, the outrigger cannot be operated without reliable
support, and the outrigger cannot be operated if the boom is not recovered in place to Prevent wrong opeartion.
Company Profile
For more than 9 years,Xuzhou Hengxing Jinqiao Machinery Technology Co.,Ltd has been a trusted name in the kelly bar and pile driver manufacturing industries.
Located in Xuzhou city in Jiangsu Province, also known as the capital of construction machinery, we have significant advantages of transportation, to make the delivery faster and costless.
Always adhere to our culture as "quality is our life, client is first,teamwork and creation",through constant self-improvement and improvements in quality management and combined with outstanding after-sale services, we have become the first brand in piling rig kelly bar and pile driver.
Located in Xuzhou city in Jiangsu Province, also known as the capital of construction machinery, we have significant advantages of transportation, to make the delivery faster and costless.
Always adhere to our culture as "quality is our life, client is first,teamwork and creation",through constant self-improvement and improvements in quality management and combined with outstanding after-sale services, we have become the first brand in piling rig kelly bar and pile driver.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2008,sell to Domestic Market(80.00%),Southeast Asia(5.00%),South Asia(3.00%),Africa(3.00%),South America(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Oceania(1.00%),Central America(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Kelly Bar/Construction Machinery Parts, Highway Guardrail Pile Driver/Solar Pile Driver, Piling Rig And Spare Parts
4. why should you buy from us not from other suppliers?
More than 10 years experience;
15 production line;
10 QC line;
European standard processing machine
5 advantages: site guidance service available, CE /ISO/Patents, convenient & cheap transportation,24 hours online service, design team 30+ people;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Jiangsu, China, start from 2008,sell to Domestic Market(80.00%),Southeast Asia(5.00%),South Asia(3.00%),Africa(3.00%),South America(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Oceania(1.00%),Central America(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Kelly Bar/Construction Machinery Parts, Highway Guardrail Pile Driver/Solar Pile Driver, Piling Rig And Spare Parts
4. why should you buy from us not from other suppliers?
More than 10 years experience;
15 production line;
10 QC line;
European standard processing machine
5 advantages: site guidance service available, CE /ISO/Patents, convenient & cheap transportation,24 hours online service, design team 30+ people;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
