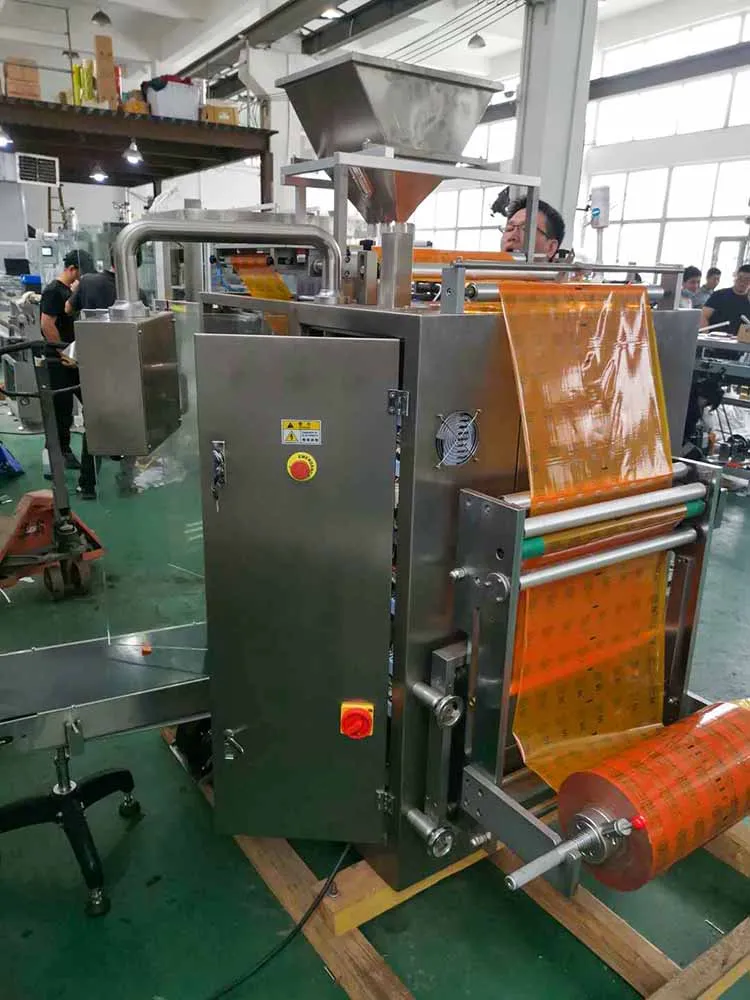

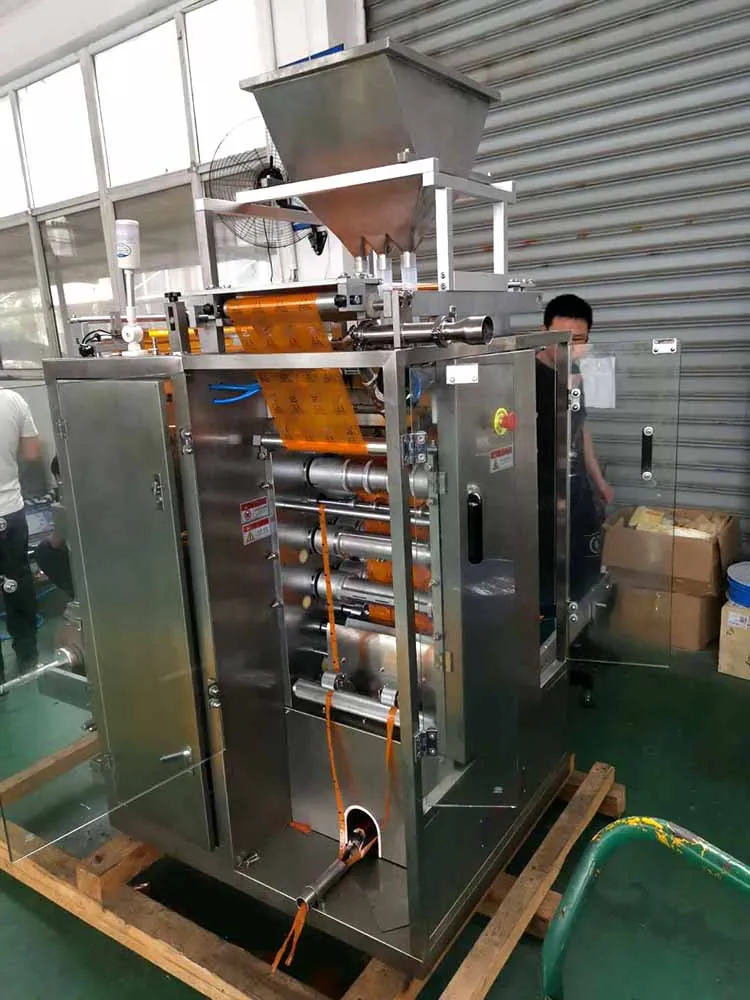

Вертикальная упаковочная машина для гранул Multi Lanes 4 Саше сахарная палочка

Вертикальная упаковочная машина для гранул Multi Lanes 4 Саше сахарная палочка

Категория: >>>
Поставщик: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD

Цена:48 000,00 $ - 60 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

(4 lanes)

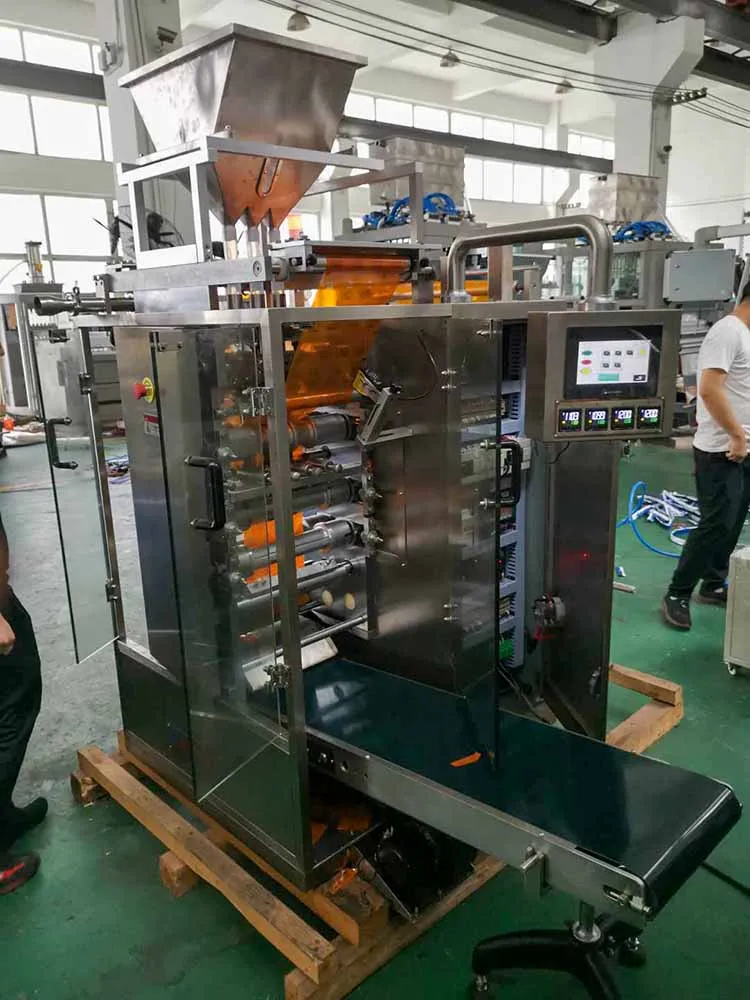

DXD-500 Four-sides Sealing & Multi-lanes

Packing Machine

(6 lanes)

DXD-900 Four-sides Sealing & Multi-lanes

Packing Machine

DXD-series four-sides Sealing & Multi-lanes Packing Machine suitable for packing catsup, thick paste material in the pharmacy(medicine), food, daily chemical and other industries.

Automatic packing into sachet with Measurement requirement, such as Peanut oil, salad oil, tomato paste, Curry sauce, Cough syrup; Shampoo, oil, Vaseline, creams of all kinds, and much more.

It is suitable for packaging and sealing of stripes, reticulation, serrations, right angles, fillets, abnormities, etc

Technical Data

Items / Model	DXD-500	DXD-900
Pouch length（adjustable）	50~160mm	50-300mm
Pouch width	50~105mm	35-105mm
Packing speed（depend on pouch size and material）	20~50 sachets/min	180-300 sachets/min
Measuring range	5~80ml	1-10ml
Applicable film	PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll	500mm	900mm
Max film roll diameter	Φ420mm	Φ300mm
Film roll core diameter	Φ75mm	Φ75mm
Dose accuracy	13g±3%
Power voltage	240V/380v/3phase/60Hz 4W
Power	12 Kw	12KW
Weight	1200kg	1200kg
Size	168012802050mm	180033502000mm

Features

1.Advanced performance, high power, low noise, compact structure, Operate steadily , easy to maintain, and has a long life span.

2.Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.

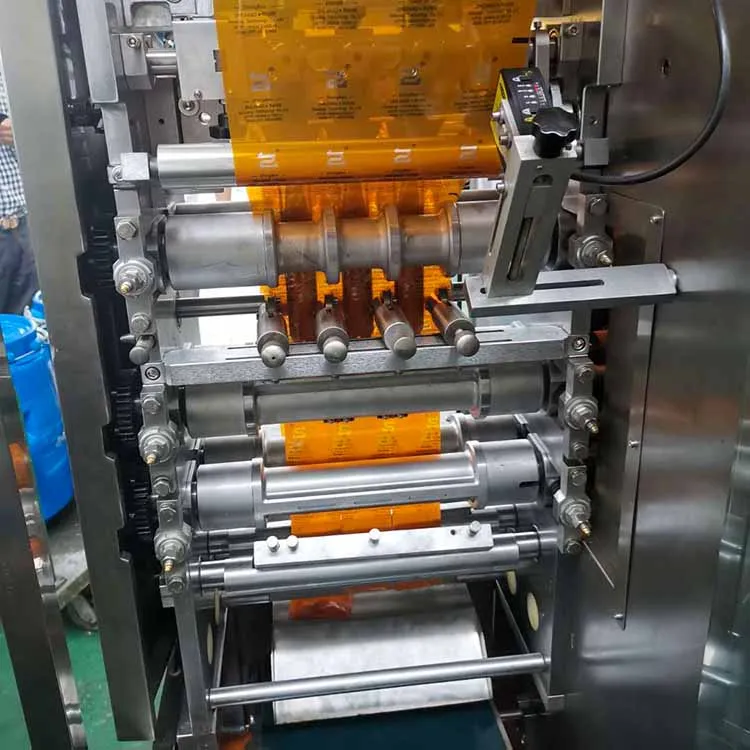

3.High precision whole rolling type heat sealing roller are adopted as sealing mould. 4-side sealing, multi-line sachets form. Because catsup material will easily leak in sealing side, an extra smooth bag shape, delicate and beautiful, packaging with high efficiency.

4.Accurate in measurement, According to different paste viscosity, specifically designed of reciprocating plunger pump with rotate valve controlling, matched with stroke adjustment air cylinder feeding, each
line's dosage can be adjusted easily and accurately.

5.Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.

Product Details

01.

A high degree of automatic machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse
sealing, filling, embossing, notch cutting, cutting Dotted line, transverse cutting to outputting finished sachets.

02.

Adaptability of the package film. the sealing temperature of machine is with automatic control, and with high control accuracy (± 1C °). Suitable for most complex film packing film in home and abroad, as PET/AL/PE、PET/PE、NY/AL/PE、NY/PE and so on.

03.

A PLC is used for automatic control, Each actuating mechanism adopt servo motor to driver, it is precise in automatic in step positioning, reliable performance, convenient to operate, and fully automatic.

04.

Fast and convenient to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting and transverse cutting through man-machine
interface.

05.

Extra function set up, for example, sachet cutting can can choose dotted line knife, flat cutting knife or abnormal shape knife.
Printing can can choose embossing(hard batch) or ink wheel printer. And the matching of alarm requirements and so on.

Company Profile

Our Company

Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world. LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional,Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.

Our Certificates

ISO, CE, SGS, BV Certified Company.

Our Machinery Manufacturing Workshop

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.

Our Machinery Manufacturing Workshop

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.

Professional Business Team

Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.

Packing & Shipping

All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.

FAQ

Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?
A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!

Any other doubts about our machine, please feel easy to contact with us.
