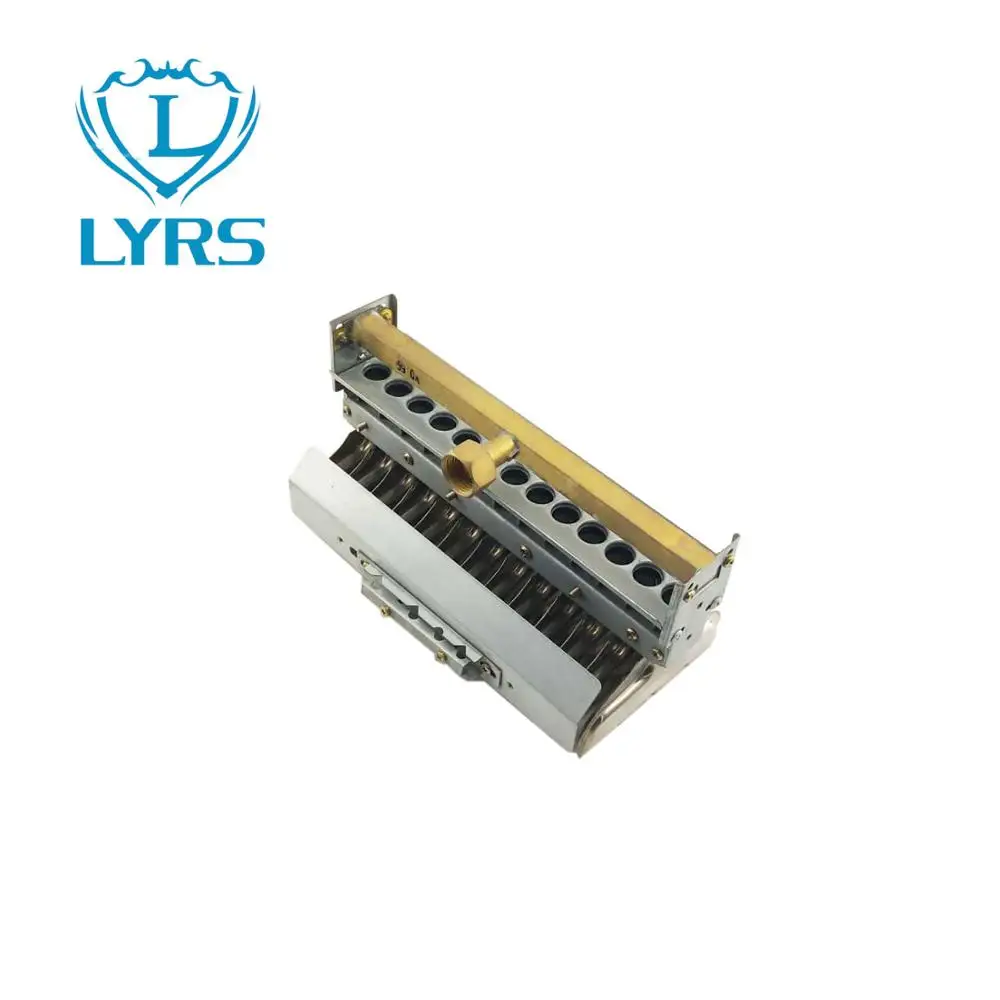

Хорошая цена от производителя, детали газовой горелки типа Harmonica или T для газового водонагревателя
1,80 $ - 2,20 $
Bn3308a _ сжиженный углеводородный газовый наружный нагреватель места во дворе качественные газовые Запчасти для камина пилотная горелка ODS
- Категория: >>>
- Поставщик: Changxing Benneng Gas Appliance Co. Ltd.
Сохранить в закладки 1600711108548:
Описание и отзывы
Характеристики
Material | Brass/ Stainless steel/ Steel/ Other |
Pilot hood | 1/2/3 flame |
Compression olive | 4 mm, 6 mm, 1/4” |
Gas source | NG/ LPG |
Supply ability | 20000PCS/Month |
Application | Gas heater/ BBQ/ Pizza oven/ Fireplace/ Water heater/ Gas stove |
Packaging | Customizable with standard export carton |
MOQ | 1000pcs |
What is an ODS and how does it work?
The Oxygen Depletion Sensor is a safety pilot system connected to the gas valve. They are used in all modern vent-free heaters and fireplaces.
It starts to work and shut off the gas supply when the oxygen content in the confined space drops to 18% from a normal 21%+. It is closed by the thermocouple of the ODS Sensor. Due to the oxygen reduction, the flame can’t burn the thermocouple.
With many years of manufacturing experience, we are regularly asked if oxygen depletion sensors can protect safety in gas heaters or fireplaces. We tell them that “it’s not the lack of oxygen that kills, it’s the increase in carbon monoxide levels”. This is because when there is a lack of oxygen, some other gas in the room will replace the oxygen. The “other gas” could be carbon dioxide or carbon monoxide, both harmful to humans.
It starts to work and shut off the gas supply when the oxygen content in the confined space drops to 18% from a normal 21%+. It is closed by the thermocouple of the ODS Sensor. Due to the oxygen reduction, the flame can’t burn the thermocouple.
With many years of manufacturing experience, we are regularly asked if oxygen depletion sensors can protect safety in gas heaters or fireplaces. We tell them that “it’s not the lack of oxygen that kills, it’s the increase in carbon monoxide levels”. This is because when there is a lack of oxygen, some other gas in the room will replace the oxygen. The “other gas” could be carbon dioxide or carbon monoxide, both harmful to humans.
Can the oxygen depletion sensor protect you?
Although initially designed to do so, in practice, it won’t strictly protect you from inhaling carbon dioxide or carbon monoxide gas—more on that at the bottom of the page.
Assuming that the oxygen level in the room drops from 21% to 18.5%, you will need to replenish 2.5% of the gas. Unfortunately, most are carbon dioxide, and more than 3% are harmful to the human body.
Carbon monoxide is even worse, if the body inhales more than 400 ppm, it will be poisoned within a few hours, and more than 1600 ppm will be dangerous in a few minutes.
Assuming that the oxygen level in the room drops from 21% to 18.5%, you will need to replenish 2.5% of the gas. Unfortunately, most are carbon dioxide, and more than 3% are harmful to the human body.
Carbon monoxide is even worse, if the body inhales more than 400 ppm, it will be poisoned within a few hours, and more than 1600 ppm will be dangerous in a few minutes.
Product By Bngas Series
Some of them are similar to SIT series.
WHAT DOES AN OXYGEN DEPLETION SENSOR DO?
Benefits of an Oxygen Depletion Sensor
An Oxygen Depletion Sensor is used to monitor the oxygen level in the room where your device is working. With it, you can monitor the amount of oxygen in an area and safely cut off the gas, so they are very necessary.
* Continuous Protection
* Continuous Protection
* Device Security
* Consistency testing
Why an Oxygen Depletion Sensor won’t save you
Do not believe at any time that these parts are completely safe and reliable. Because life is only once, in case of problems will be too late to regret. Every responsible manufacturer will inform buyers as follows:
* Do not use a gas fireplace or heater indoors with windows closed.
* Do not use a gas fireplace or heater while sleeping
* Get a professional to check your equipment at least once a year
* Do not use a gas fireplace or heater indoors with windows closed.
* Do not use a gas fireplace or heater while sleeping
* Get a professional to check your equipment at least once a year
OEM & ODM BNGAS ODS Sensor Applications
ODS for Gas Heaters
ODS Sensor is present in almost every ventless gas heater and is a critical safety component.
ODS for Ventless Gas Logs
ODS Sensor is present in almost every ventless gas log and is a critical safety component.
Leader for Gas Heater Parts in China
Over 16 Years Manufacturing Experience
BNGAS' VISION
Bngas’ vision is to be recognized as the leading sustainable partner for gas heater solutions!
BNGAS' MISSION
Our commitment is to create smart solutions for gas heater parts for a more sustainable world!
Clients That Trust Bngas
About Bngas
Bngas Ltd. was established by Dr. Yang with Dr. Li in Ningbo, Zhejiang in 2007. Due to their decades of experience in the gas industry and entrepreneurial vision, they successfully integrated and founded a one-stop solution factory.
Since 2007, Bngas has been dedicated to manufacturing gas heater parts and applying gas combustion solutions, and we have our brands: BNGAS and BNPARTS.
Our product lines consist of the following:
Gas Burner, Pilot Burner, ODS, Thermocouple, Gas Igniter, Electrode, Brass Fittings, and Gas Combustion Solution
Bngas has the most practical and advanced modern machinery, equipment, and test laboratories, all located in an ISO 9001-certified 13,000-square-meter vast area. Most of our components are certified according to European CE standards and American CSA standards.
Since 2007, Bngas has been dedicated to manufacturing gas heater parts and applying gas combustion solutions, and we have our brands: BNGAS and BNPARTS.
Our product lines consist of the following:
Gas Burner, Pilot Burner, ODS, Thermocouple, Gas Igniter, Electrode, Brass Fittings, and Gas Combustion Solution
Bngas has the most practical and advanced modern machinery, equipment, and test laboratories, all located in an ISO 9001-certified 13,000-square-meter vast area. Most of our components are certified according to European CE standards and American CSA standards.
Meet Our Top Management
During the past 16 years, our teams have helped 1600+ clients grow their businesses, we are always happy to work with you too!
Cleaning the ODS Sensor
The easiest way to do this is to use an air compressor gun to blow air into the intake hole (the round hole next to Nut A). You do not need to loosen the nuts. To clean more thoroughly, you should use an open-end wrench to hold nut A. Then loosen nut B from the pilot tube. After removing the old nut B, blow air into the hole inside the threads in the direction of the arrow. The purpose is to clean off dust, cobwebs, or lint. Remember to replace nut B after you have done this.
Lighting the Pilot
Before you light the ODS Sensor, make sure you don’t smell a leak around before you light it. If you smell gas, call a repairer to come to your home immediately to check it out and stop the ignition. If everything goes well, follow the steps below to light the pilot:
1. Turn off the gas control knob.
2. Turn off the gas flow adjustment knob (manual or remote control).
3. Wait 10 minutes for the gas to disappear automatically, and proceed to the next step only after you cannot smell any gas.
4. Follow the pilot tube connected to the gas control to find the pilot.
5. Turn the gas control knob counterclockwise to the pilot position
6. Keep the control knob pressed down and immediately lighted the pilot with the piezo igniter. After ignition, hold the control button for one minute before releasing it. If the knob does not pop out automatically, you will need to call a technician to come to your home for repair. If the pilot does not ignite, repeat this procedure.
7. Turn the gas control knob counterclockwise to the on position.
2. Turn off the gas flow adjustment knob (manual or remote control).
3. Wait 10 minutes for the gas to disappear automatically, and proceed to the next step only after you cannot smell any gas.
4. Follow the pilot tube connected to the gas control to find the pilot.
5. Turn the gas control knob counterclockwise to the pilot position
6. Keep the control knob pressed down and immediately lighted the pilot with the piezo igniter. After ignition, hold the control button for one minute before releasing it. If the knob does not pop out automatically, you will need to call a technician to come to your home for repair. If the pilot does not ignite, repeat this procedure.
7. Turn the gas control knob counterclockwise to the on position.
FAQ
Q1: What is your Minimum Order Quantity?
As a manufacturer, we must have a minimum order quantity to be accountable to everyone. Suppose your customers bypass you and buy dozens or hundreds from us. Should we sell to them directly?
That’s why we set the MOQ at 1,000 pcs to protect everyone’s interest.
That’s why we set the MOQ at 1,000 pcs to protect everyone’s interest.
Q2: What's your Delivery Time?
As a manufacturer, we must have a minimum order quantity to be accountable to everyone. Suppose your customers bypass you and buy dozens or hundreds from us. Should we sell to them directly?
That’s why we set the MOQ at 1,000 pcs to protect everyone’s interest.
That’s why we set the MOQ at 1,000 pcs to protect everyone’s interest.
Q3: Do you have a SIT or Polidoro model?
Our Regular delivery time is 30 working days.
However, as our orders have been increasing since the start of the coronavirus, our delivery times are 30-90 working days,
depending on the product.
depending on the product.
Q4: Do you help us Individually Packaged with instructions?
No problem at all, these are the services we can provide.
Похожие товары

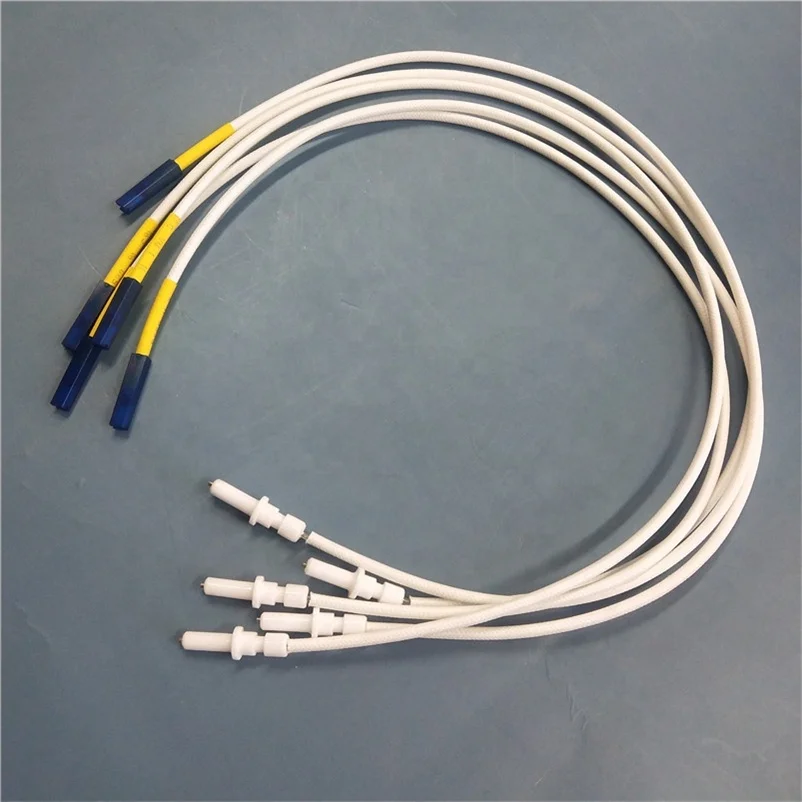

95 глиноземный электрод зажигания Свеча зажигания изолятор Al2O3 керамический воспламенитель

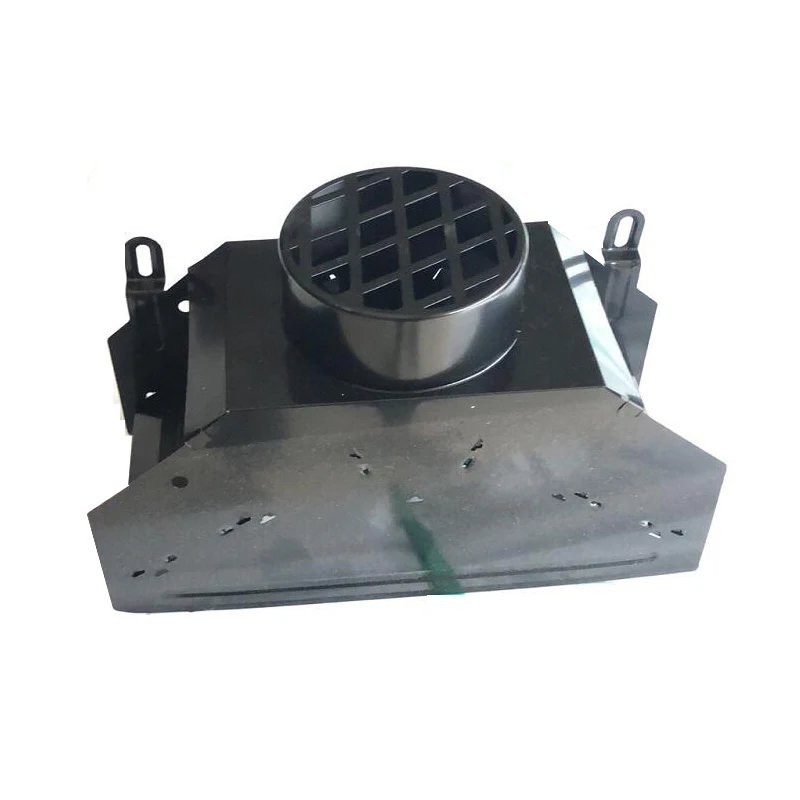

Запасные части для газового водонагревателя, трубка, выхлопной газовый водонагреватель, бленда
0,42 $ - 0,70 $

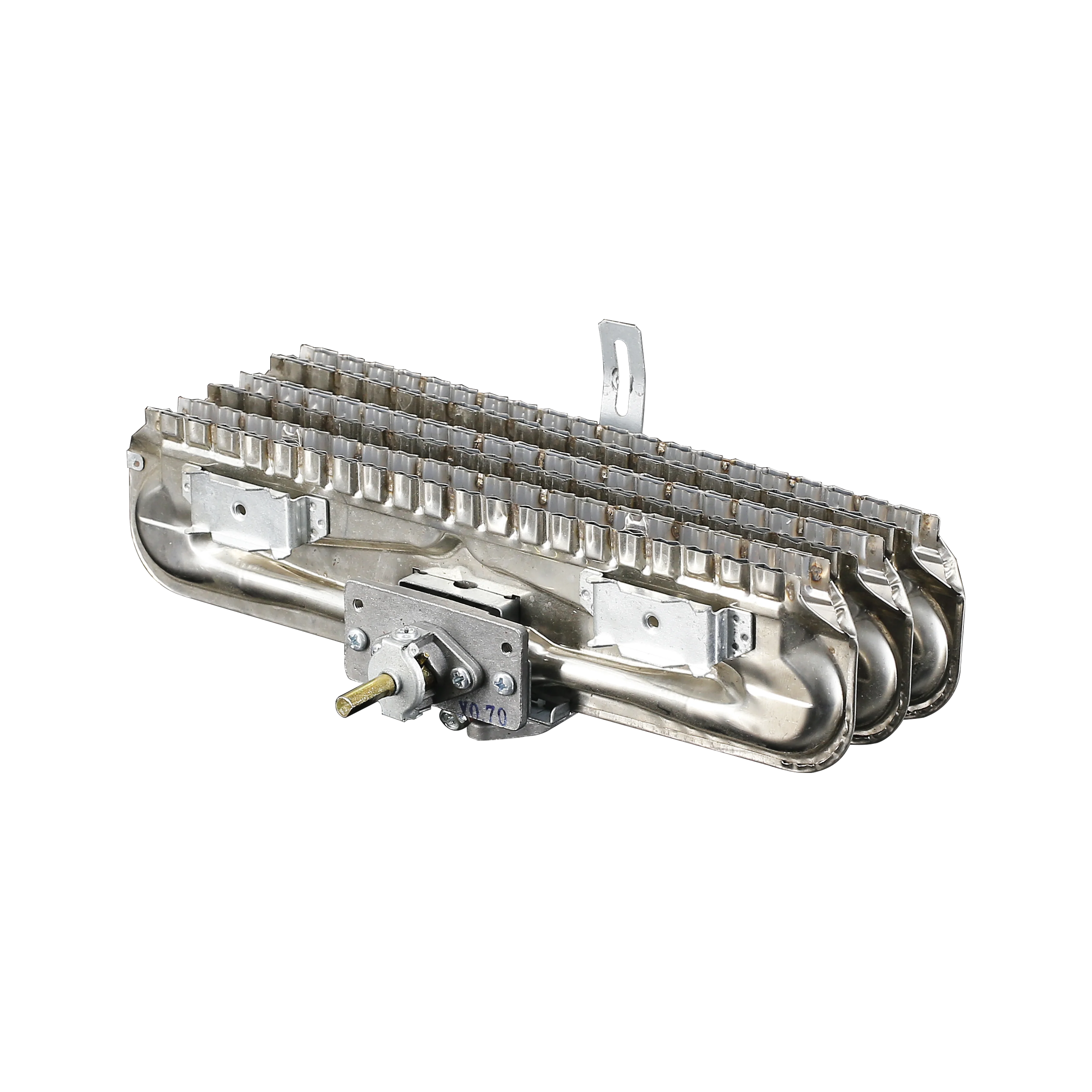

Небольшая газовая горелка для промышленной горелки сжиженного нефтяного газа
3,60 $ - 4,00 $

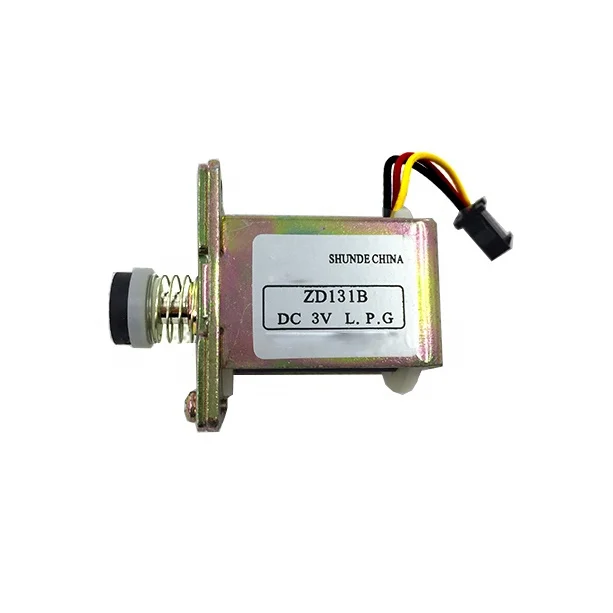

Производители электромагнитных клапанов ZD131B, газовый водонагреватель, оригинальный электромагнитный клапан
1,50 $ - 2,00 $

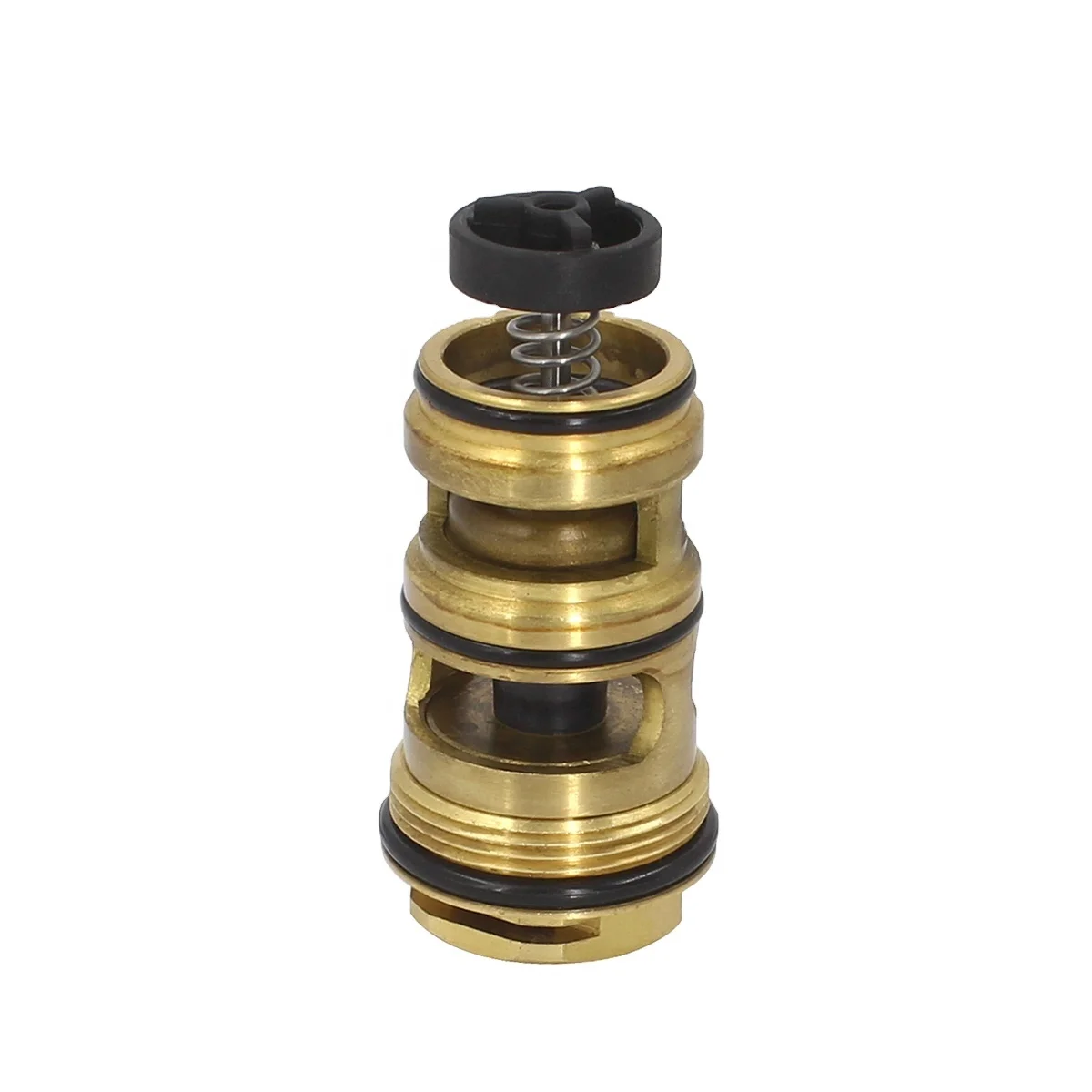

Латунный гидравлический патрон для трехходового клапана для Tiberis Cube 24F
