Переключатель PR12 4AC переменного тока Тип 2 провода нормально закрытый Индуктивный датчик обнаружения Бесконтактный переключатель
- Категория: Other Switches >>>
- Поставщик: Yiwu Kaiding Electronic Commerce Co. Ltd.
Сохранить в закладки 1600712372683:
Описание и отзывы
Характеристики
Products Description
button switch PR12-4AC AC Type 2-Wires Normally Close Inductive Sensor Detection Proximity Switch rocker switch
Express to Your Doorstep. Mix and Match Welcome. Low MOQ. Custom Order. Quick Response for Quote. Free Sample. OEM/ODM, L/C or T/T.
Features:
1. Proximity switch, also known as contactless proximity switch, is an electronic on-off sensor.
2. It has sensing performance, reliable action, stable performance and fast frequency response.
3. Shockproof, corrosion resistance, strong anti-interference capability.
4. Non-contact detection, does not affect the operating conditions of the measured object.
5. No mechanical wear and fatigue damage, long working life.
6. Sealed structure, good moisture and dust resistance, strong work reliability.
7. Widely used in machine tools, metallurgy, chemical, textile and printing industries.
Specification:
Condition: 100% brand new
Material: brass plated nickel shell, ABS detection surface
Weight: 55g/1.9oz
Detection distance: 4mm ±10%
Set distance: 0-3.2mm
Lag distance: less than 10% of the detection distance
Detection object: magnetic metal (the detection distance of non-magnetic metal decreases)
Standard test object: iron 15 * 15 * 1mm
Response frequency: DC: 0.5kHz, AC: 25Hz
Power supply voltage: AC110-220V(36-250V)50/60Hz (AC type)
Withstand voltage: AC1000V 50/60Hz 1min between the charging part and the shell
Voltage influence: within the rated power supply voltage range of ±15%, within the detection range of ±10% when it is the rated
power supply voltage value
Current consumption:
N.P type: below 13mA
D type: below 0.8mA
A type: below 1.7mA
Control output:
N.P type: below 300mA
D type: below 200mA
A type: below 400mA
Circuit :
N.P.D type: reverse connection , surge absorption, load short circuit
A Type: surge absorption
Ambient temperature: each - 30 to + 65 ℃ action and save
Ambient humidity: 35-95% RH each (no ice, no frost) action and save
Temperature influence:
Temperature range -30 to + 65 ℃ , +23 ℃, ± 15% detection distance;
Temperature range -25 to + 60 ℃, +23 ℃, ± 10% detection distance.
Insulation resistance: more than 50mΩ (DC500 ) charge between parts and the shell
Package List:
1 x Proximity Sensor Switch
1. Proximity switch, also known as contactless proximity switch, is an electronic on-off sensor.
2. It has sensing performance, reliable action, stable performance and fast frequency response.
3. Shockproof, corrosion resistance, strong anti-interference capability.
4. Non-contact detection, does not affect the operating conditions of the measured object.
5. No mechanical wear and fatigue damage, long working life.
6. Sealed structure, good moisture and dust resistance, strong work reliability.
7. Widely used in machine tools, metallurgy, chemical, textile and printing industries.
Specification:
Condition: 100% brand new
Material: brass plated nickel shell, ABS detection surface
Weight: 55g/1.9oz
Detection distance: 4mm ±10%
Set distance: 0-3.2mm
Lag distance: less than 10% of the detection distance
Detection object: magnetic metal (the detection distance of non-magnetic metal decreases)
Standard test object: iron 15 * 15 * 1mm
Response frequency: DC: 0.5kHz, AC: 25Hz
Power supply voltage: AC110-220V(36-250V)50/60Hz (AC type)
Withstand voltage: AC1000V 50/60Hz 1min between the charging part and the shell
Voltage influence: within the rated power supply voltage range of ±15%, within the detection range of ±10% when it is the rated
power supply voltage value
Current consumption:
N.P type: below 13mA
D type: below 0.8mA
A type: below 1.7mA
Control output:
N.P type: below 300mA
D type: below 200mA
A type: below 400mA
Circuit :
N.P.D type: reverse connection , surge absorption, load short circuit
A Type: surge absorption
Ambient temperature: each - 30 to + 65 ℃ action and save
Ambient humidity: 35-95% RH each (no ice, no frost) action and save
Temperature influence:
Temperature range -30 to + 65 ℃ , +23 ℃, ± 15% detection distance;
Temperature range -25 to + 60 ℃, +23 ℃, ± 10% detection distance.
Insulation resistance: more than 50mΩ (DC500 ) charge between parts and the shell
Package List:
1 x Proximity Sensor Switch
Purchase Info | Terms of Payment | Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. |
Sample | Free Sample, but do not pay the cost of freight. | |
Sample Time | If in stock, 3-10 working days after freight payment. | |
Lead Time | 7-35 working days. |
Related Products
Details Images
Our Service
1. Your inquiry will be replied within 12 hours. Please contact us if you have any questions.
2. Well-trained workers and more than 10 years experience. Your application's unique requirements will be carefully addressed by our trained engineers.
3. Our products are directly from factory to save your money.
4. Small orders are acceptable for quick delivery and to help you reduce stock cost.
5. Custom-made and Logo print according to your drawings or samples ,give your ideas that our engineer will make a drawing for you.
2. Well-trained workers and more than 10 years experience. Your application's unique requirements will be carefully addressed by our trained engineers.
3. Our products are directly from factory to save your money.
4. Small orders are acceptable for quick delivery and to help you reduce stock cost.
5. Custom-made and Logo print according to your drawings or samples ,give your ideas that our engineer will make a drawing for you.
Packing&Delivery
Please send your address, telphone number of receiver , post code and express account number to our mail box.
Plastic box for outer package;
Carton package for transportation;
Can be customized as request.
Plastic box for outer package;
Carton package for transportation;
Can be customized as request.
FAQ
Q: Are you trading company or manufacturer?
A: We are Factory and trading combination, some items produce and other items are outsourcing.
Q: Why you price is so competitive?
A: We direct product and outsourcing from small factory, save many administrate cost and middleman margin.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Похожие товары
IDEC HS1L серии безопасности переключатель блокировки дверей

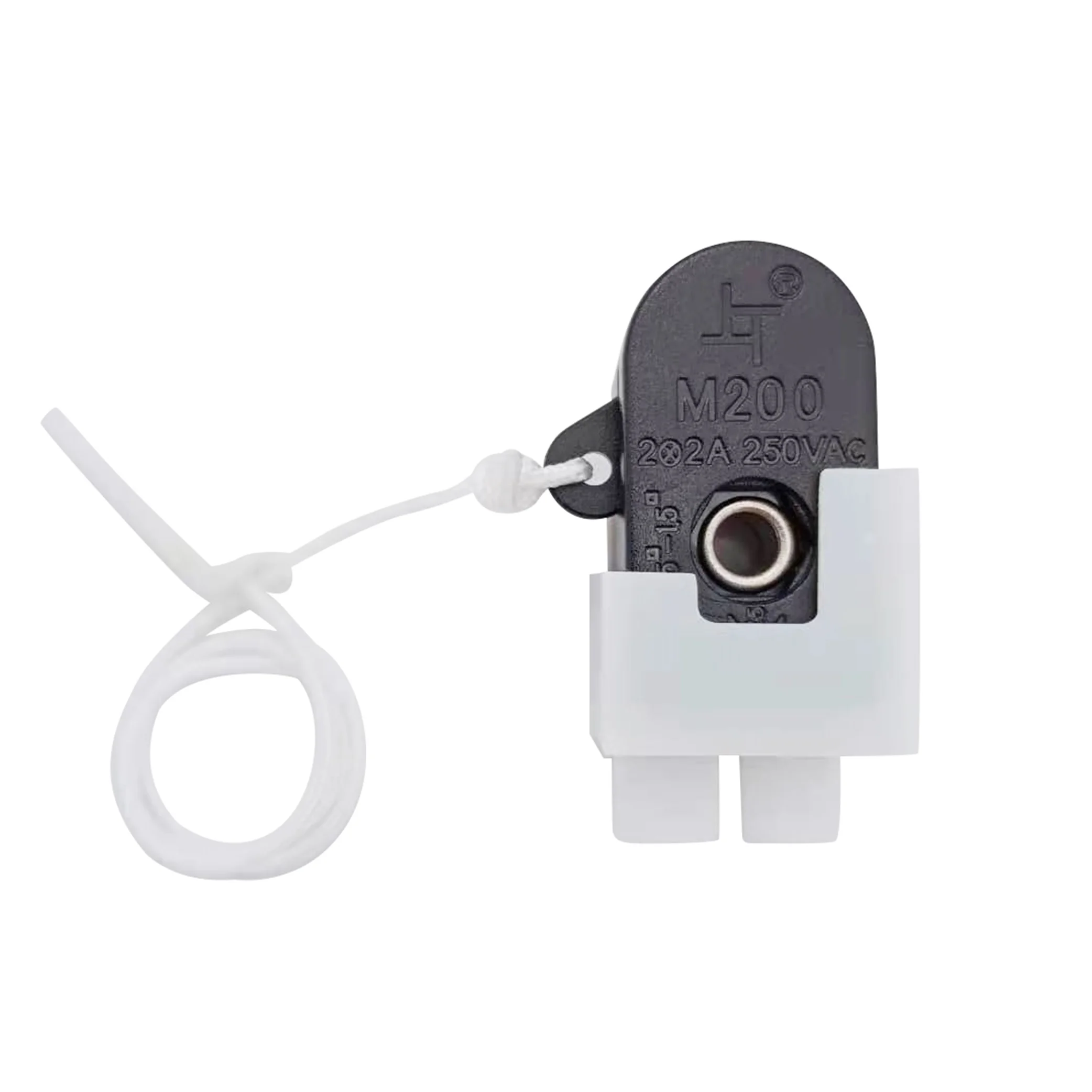

Боковой мини-выключатель шнура 2 А 250 В переменного тока
0,48 $ - 0,55 $
Двойной переключатель с ИК-датчиком для двери шкафа 12/24

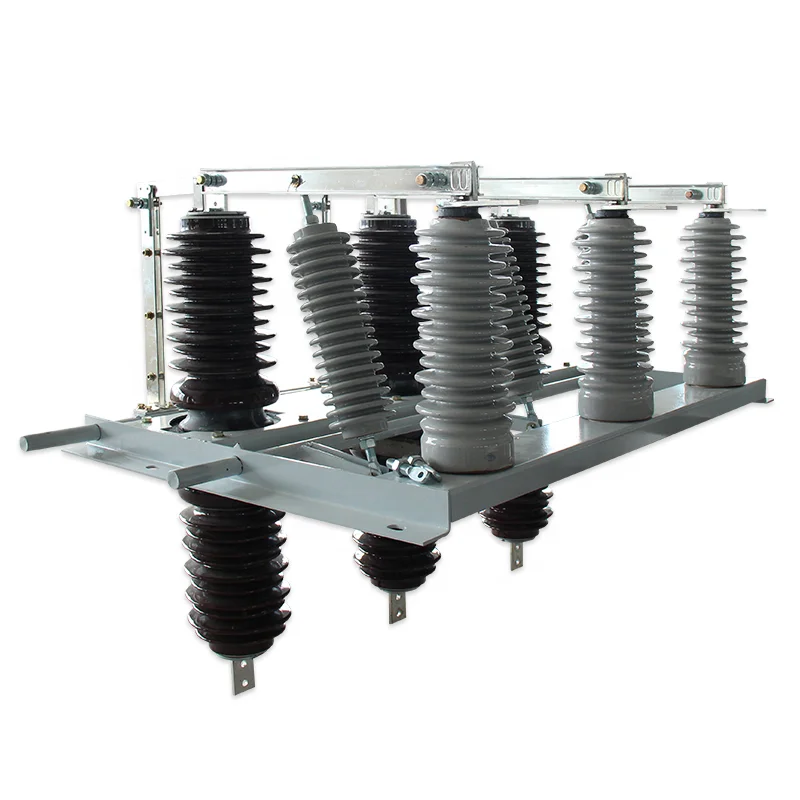

Изоляционный переключатель для внутренних шкафов необычное использование индивидуальный стиль 12 кВ

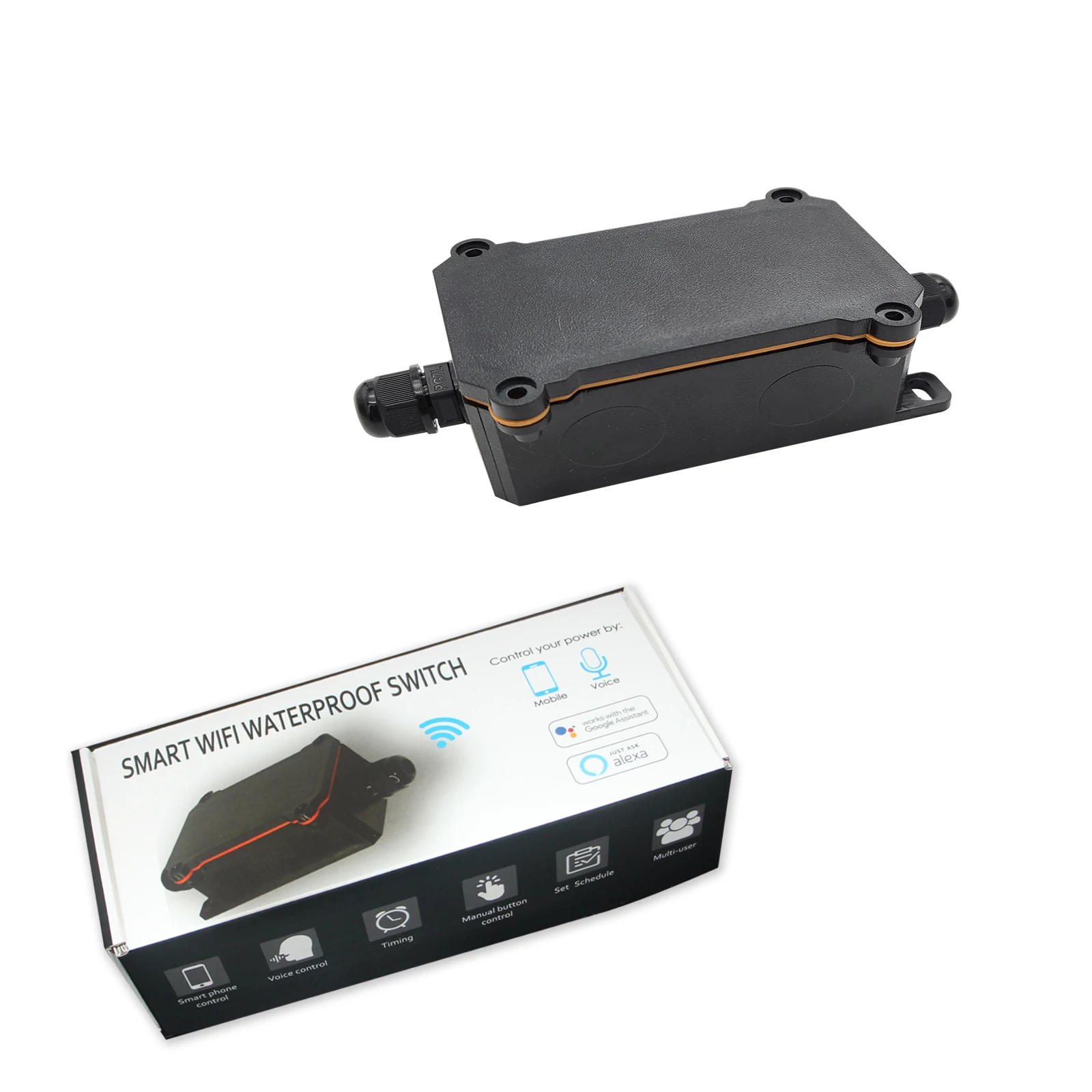

Умный Wi-Fi релейный переключатель для водяного насоса уличное садовое Голосовое управление Tuya Google Assistant Alexa
7,20 $ - 9,20 $

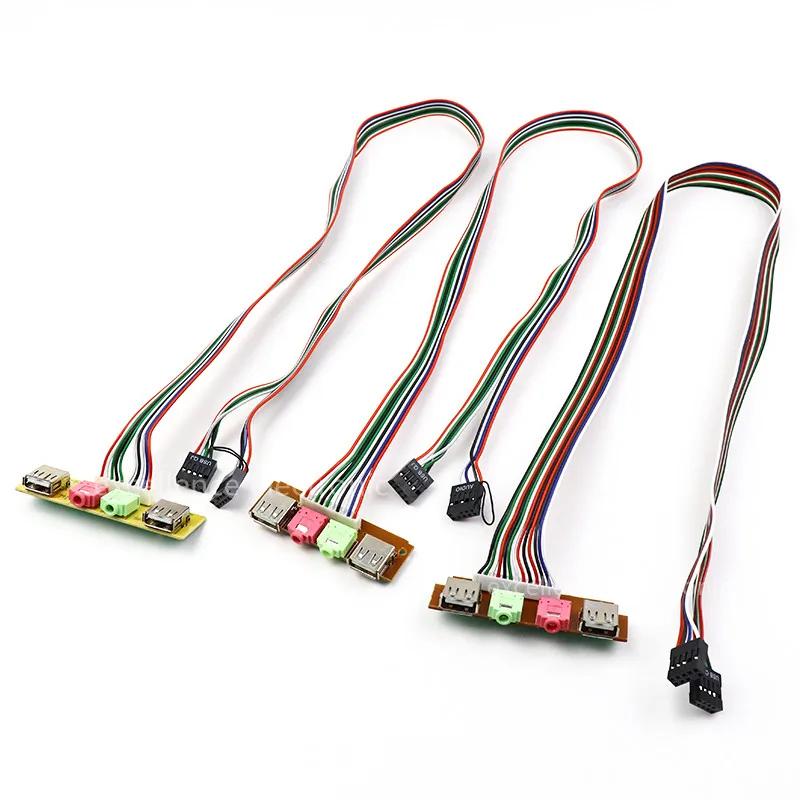

2 USB ПК компьютерный чехол 6 8/7 4/7 8 см Передняя панель аудио порт микрофон наушники кабели возле вход и

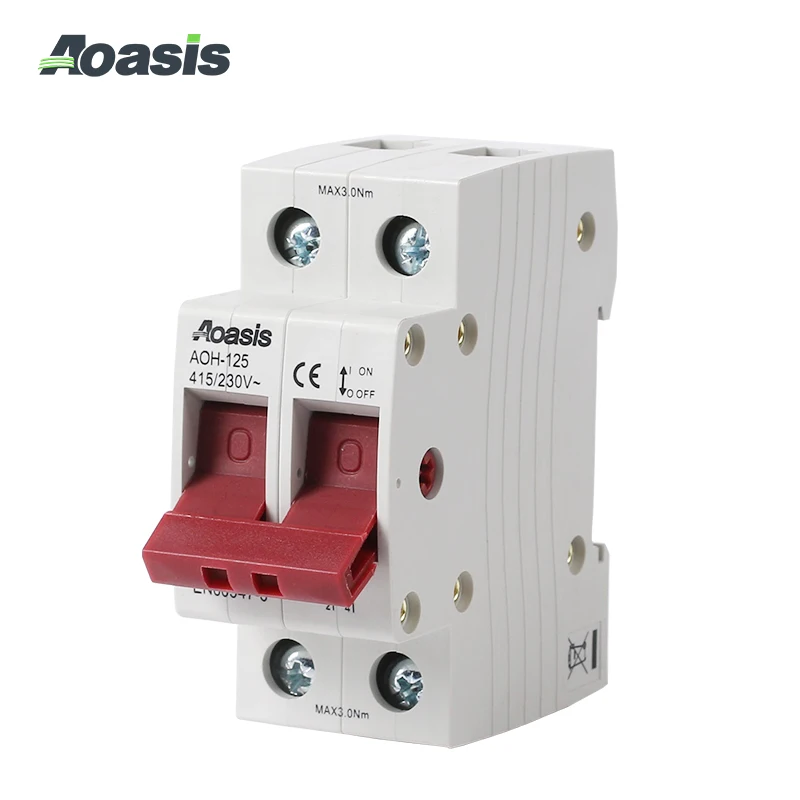

AOASIS AOH-125 2P DZ47 125A MSD мини-выключатель миниатюрный выключатель
