17 дюймовый ЖК модуль TFT M170ETN01.1 с 1280*1024 1000 nits и LVDS кабелем ЖК дисплеем
- Категория: >>>
- Поставщик: Shenzhen Caison Technology Co. Ltd.
Сохранить в закладки 1600713538698:
Описание и отзывы
Характеристики
Product Description
Brand | AUO | Model | M170ETN01.1 | ||
Diagonal Size | 17inch | Type | a-Si TFT-LCD, LCM | ||
Pixel Format | 1280(RGB)×1024 [SXGA] 96PPI | Configuration | RGB Vertical Stripe | ||
Active Area | 337.92(H)×270.336(V) mm | Outline Dim. | 358.5(H)×296.5(V) ×10.8(D) mm | ||
Bezel Area | 341.72(H)×274.14(V) mm | Treatment | Antiglare, Hard coating (3H) | ||
Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) | ||
View Direction | Symmetry | Response Time | 3.8/1.2 (Typ.)(Tr/Td) | ||
Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | ||
Support Color | 16.7M 72% NTSC | Light Source | WLED [9S4P] , 30K hours , W/O Drive | ||
Form Style | / | Designed For | / | ||
Frame Rate | 60Hz | Touch Panel | Without | ||
Interface Type | LVDS (2 ch, 8-bit) 30 pins Connector | ||||
Power Supply | 5.0V (Typ.) | ||||
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||||

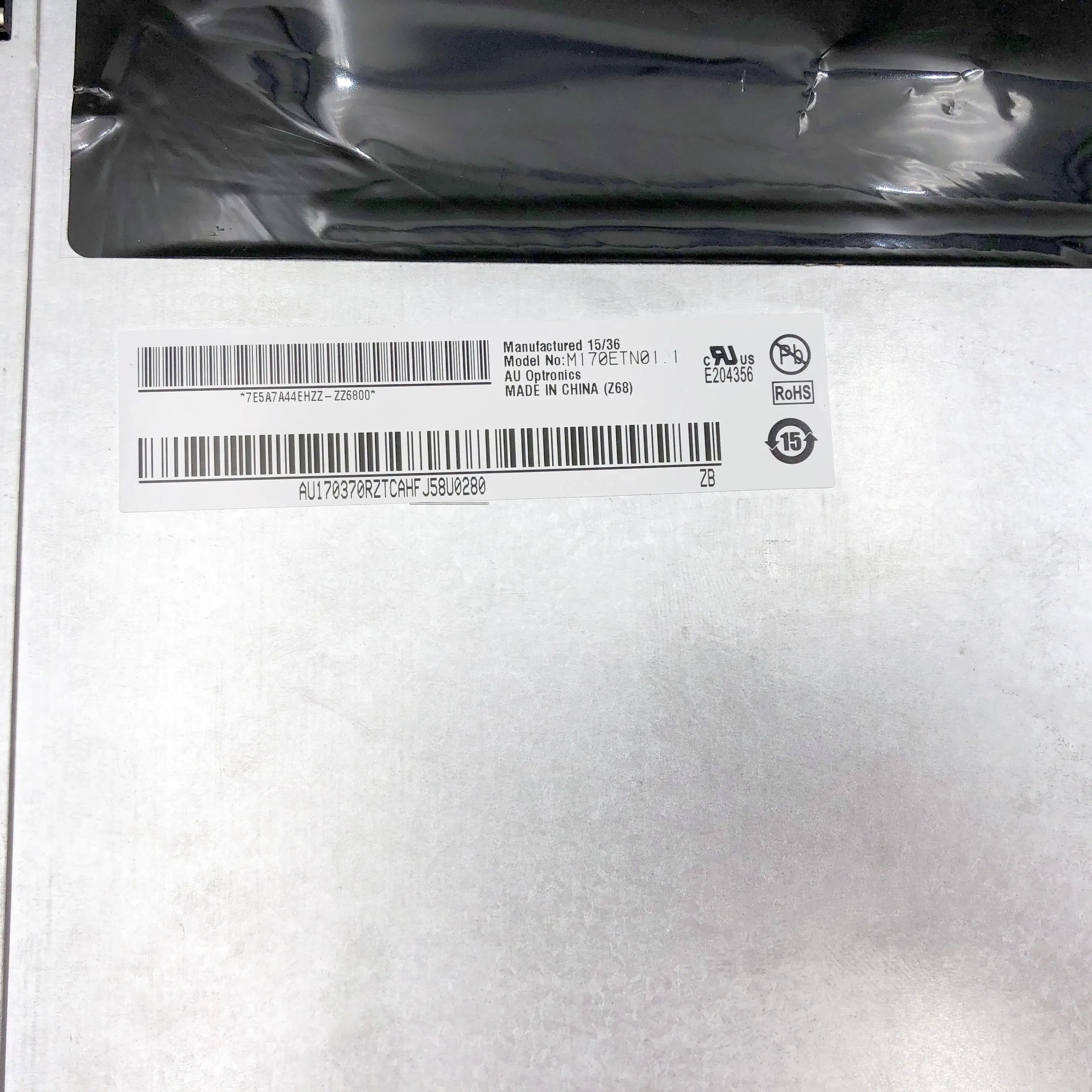

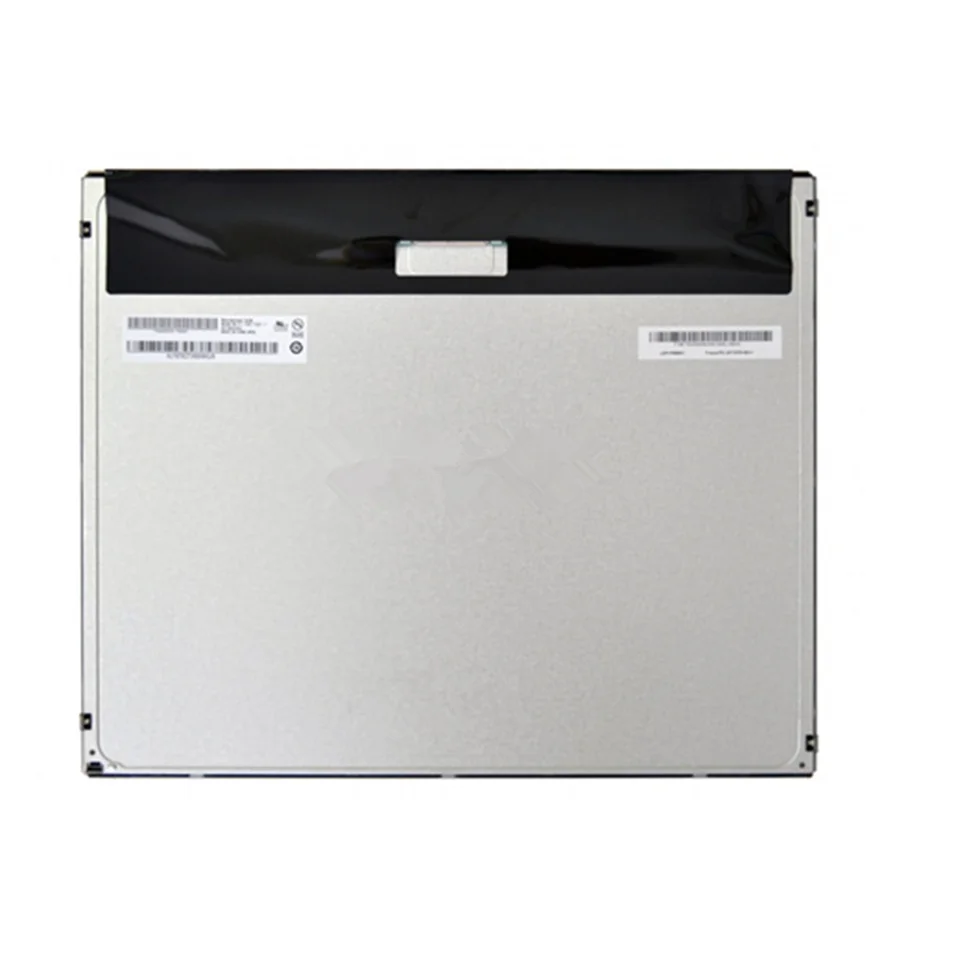

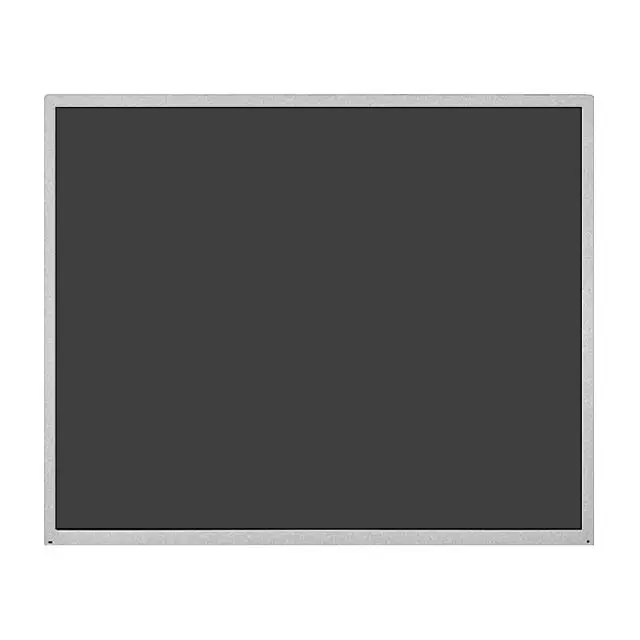

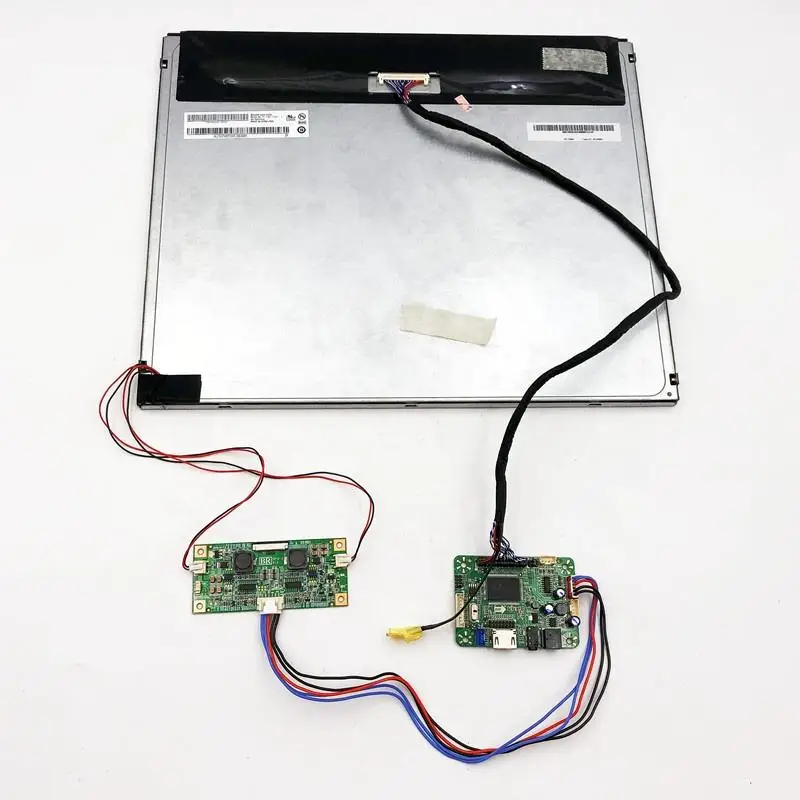

Details Images
AUO 17 inch TFT LCD Module M170ETN01.1 with 1280*1024, 1000 nits and LVDS cable for lcd panel
