Маквина кр18 роладора
717 623,40 ₽ - 1 388 877,29 ₽
Популярный рынок США цветная стальная металлическая кровельная машина с защелкой
- Категория: >>>
- Поставщик: Sussman Machinery (wuxi) Co. Ltd.
Сохранить в закладки 1600714971352:
Описание и отзывы
Характеристики
Product Description

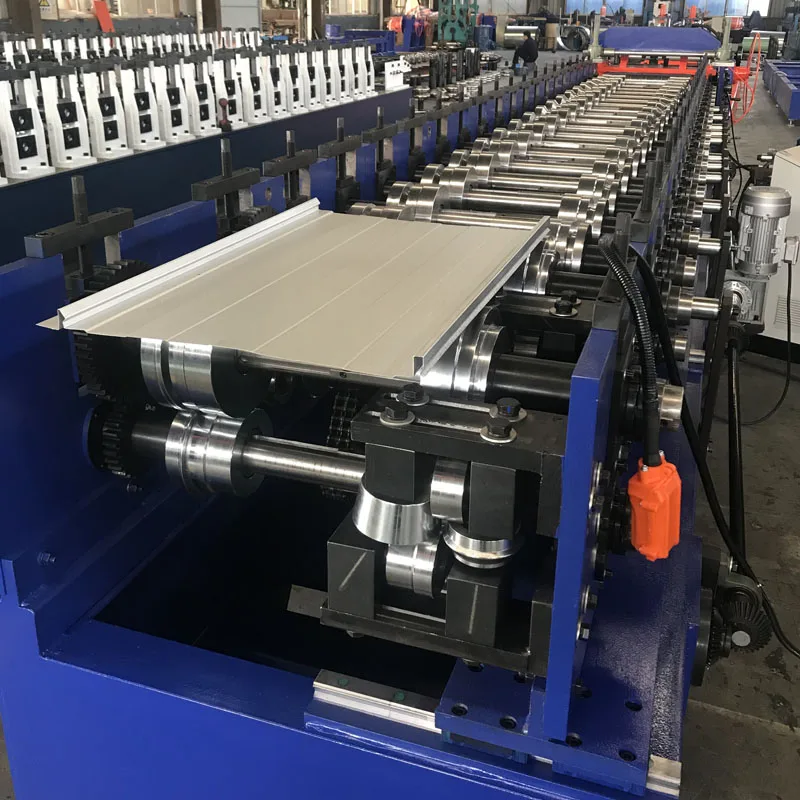

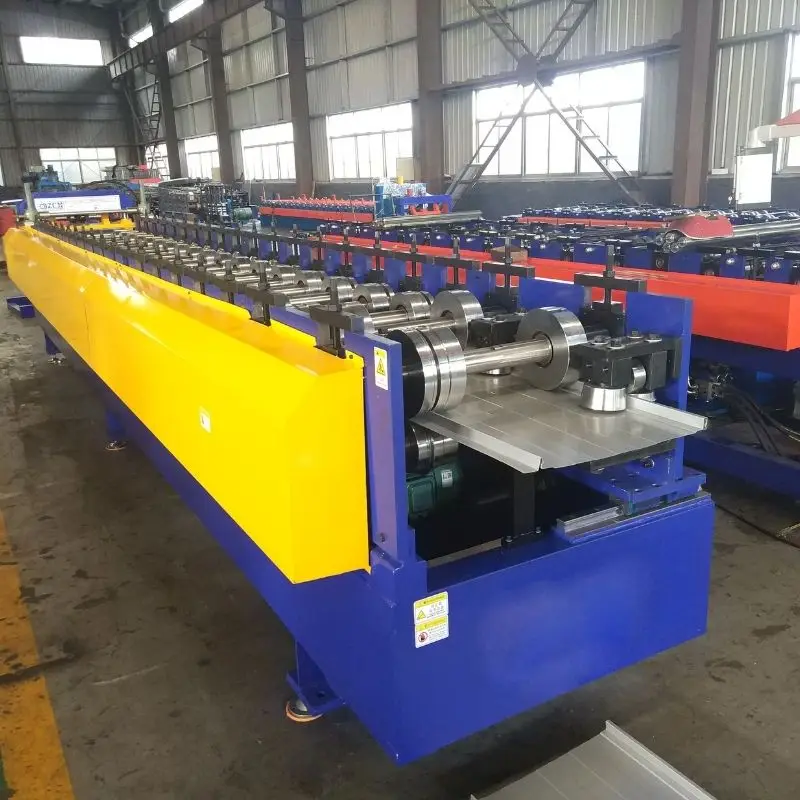

No. | Standing seam wall cladding forming machine | ||
1 | Suitable to process | Color alu-zinc steel coil/Aluminium Coil | |
2 | Roller | 20 Rollers | |
3 | Dimensions | 9000*1000*1000mm | |
4 | Motor Power | 7.5Kw | |
5 | Pump Station Motor | 5.5kw | |
6 | Thickness of the plate | 0.6-1.2mm | |
7 | Productivity | 10-15m/min | |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ | |
9 | Diameter of the roller | Φ75mm | |
10 | Weight | About 8000kgs | |
11 | Main structure of the machine | 400H beams | |
12 | Processing precision | Within 1.0mm | |
13 | Side panel of machine | 20mm | |
14 | Chain Wheel and Cycle Chain | 1 Inch | |
15 | Voltage | 380V 50Hz 3phases or as customer's need | |
16 | Control system | PLC control (Delta) | |
17 | Frequency system | Delta | |
18 | Drive mode | Motor driver | |
19 | Touch screen | Delta | |
20 | Rolling materials | 45# forging steel with chromium plate | |
21 | Length Tolerance | ±2mm | |
Detailed Images
Un-coiler: 5 tons passive
De-coiling Holder: about 1500mm×1500mm×1700mm
Insider diameter of the un-coiler: 460-520mm
Cutting way: Hydraulic Pre- cut.
Oil pump station:1set.
Hydraulic power: 5.5kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance:\t+-1.5mm
Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Size:4000*1350*1000mm

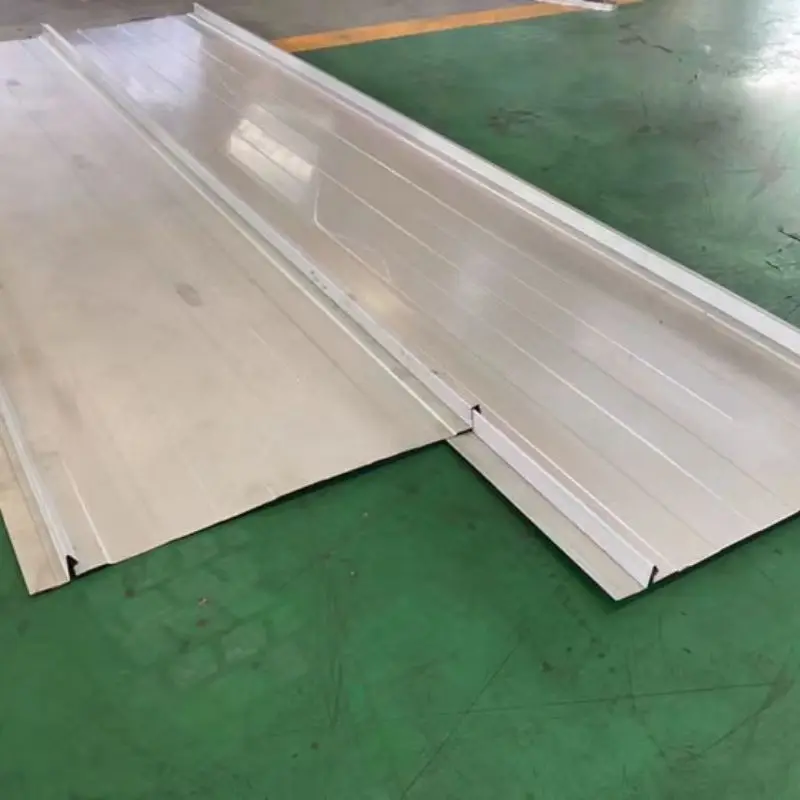

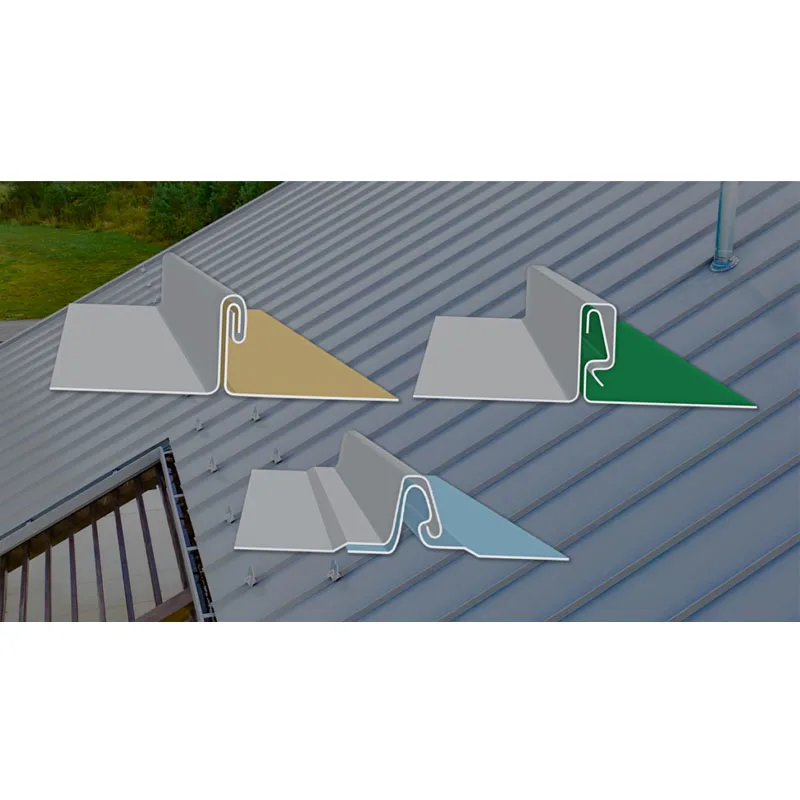

Profile we make
Maintance and the service of the machine
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
Customer's feedback
Packing & Delivery
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
Our Company
Our customers
Sussman Machinery has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, Rwanda,UNITED ARAB EMIRATES,Tanzania,Kenya,Philippines, Indonesia,South Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
