  Clear Acrylic           Color Acrylic          Mirror Acrylic       Glitter Acrylic      Marble Acrylic            PVC foam

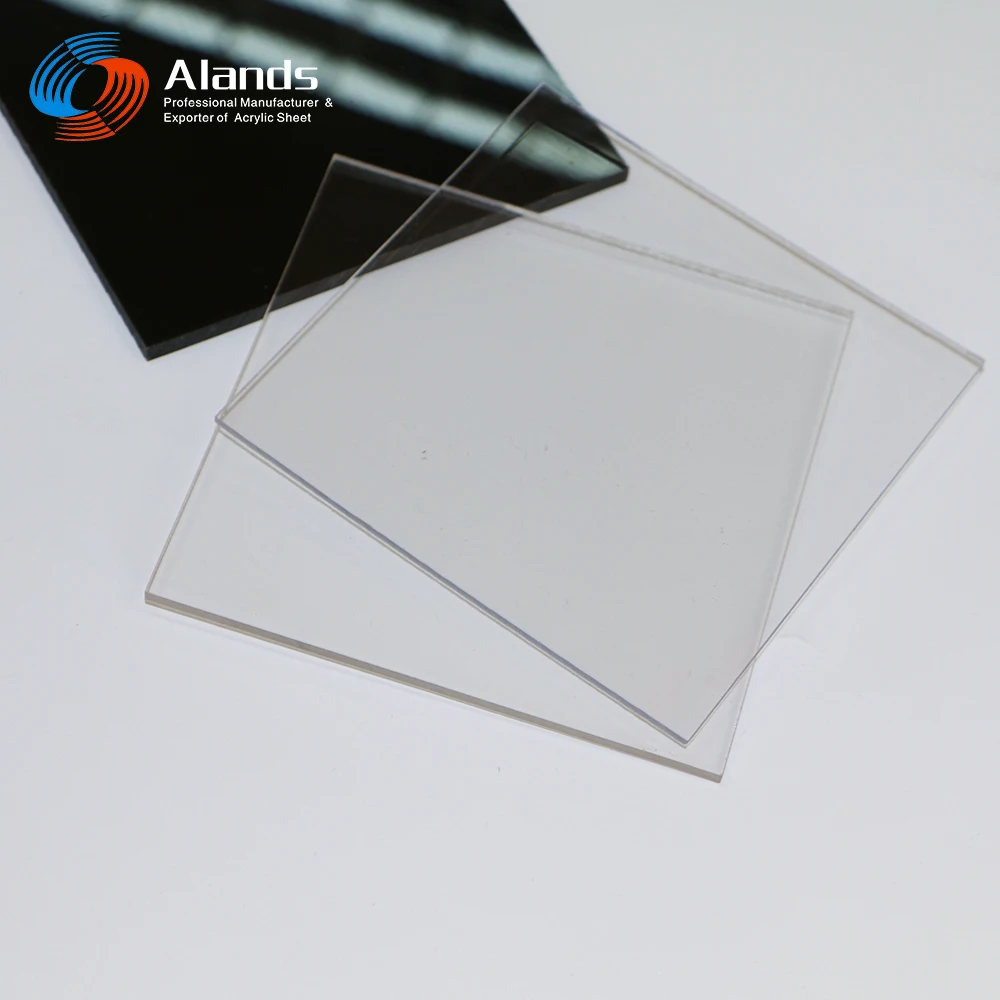

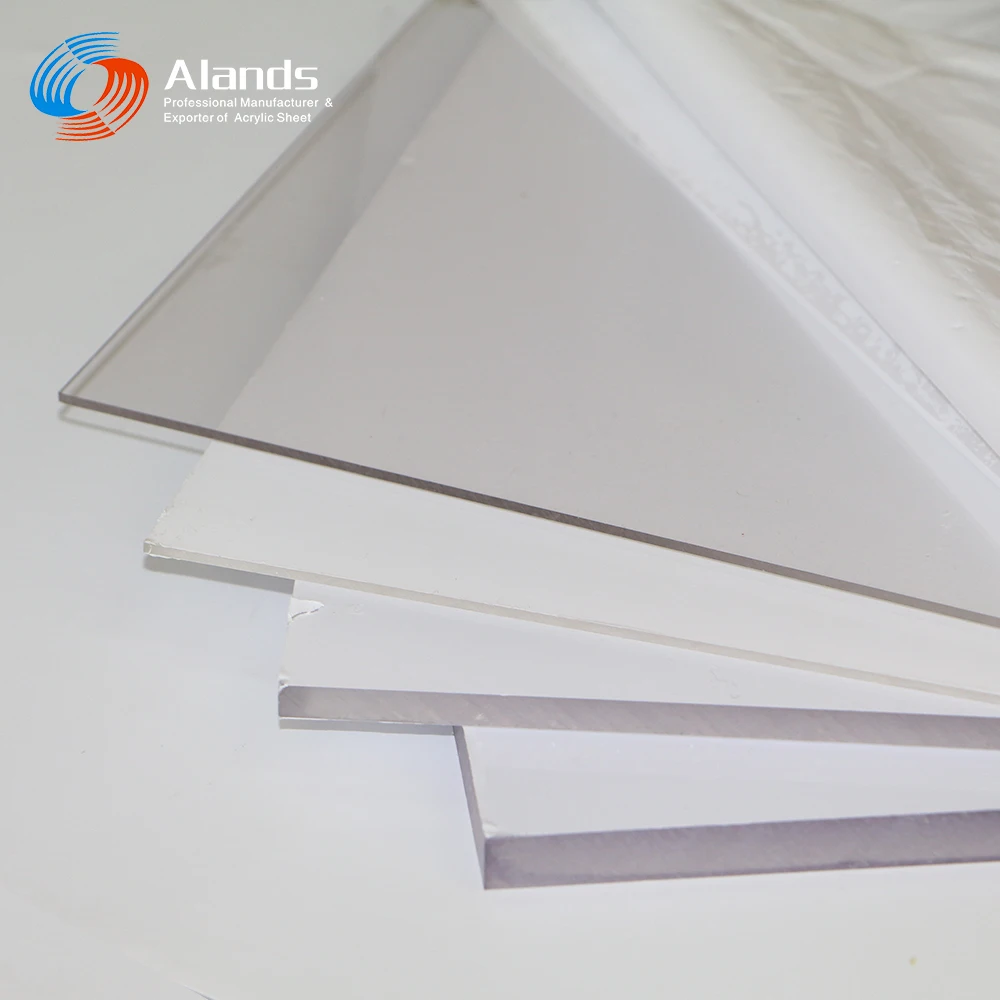

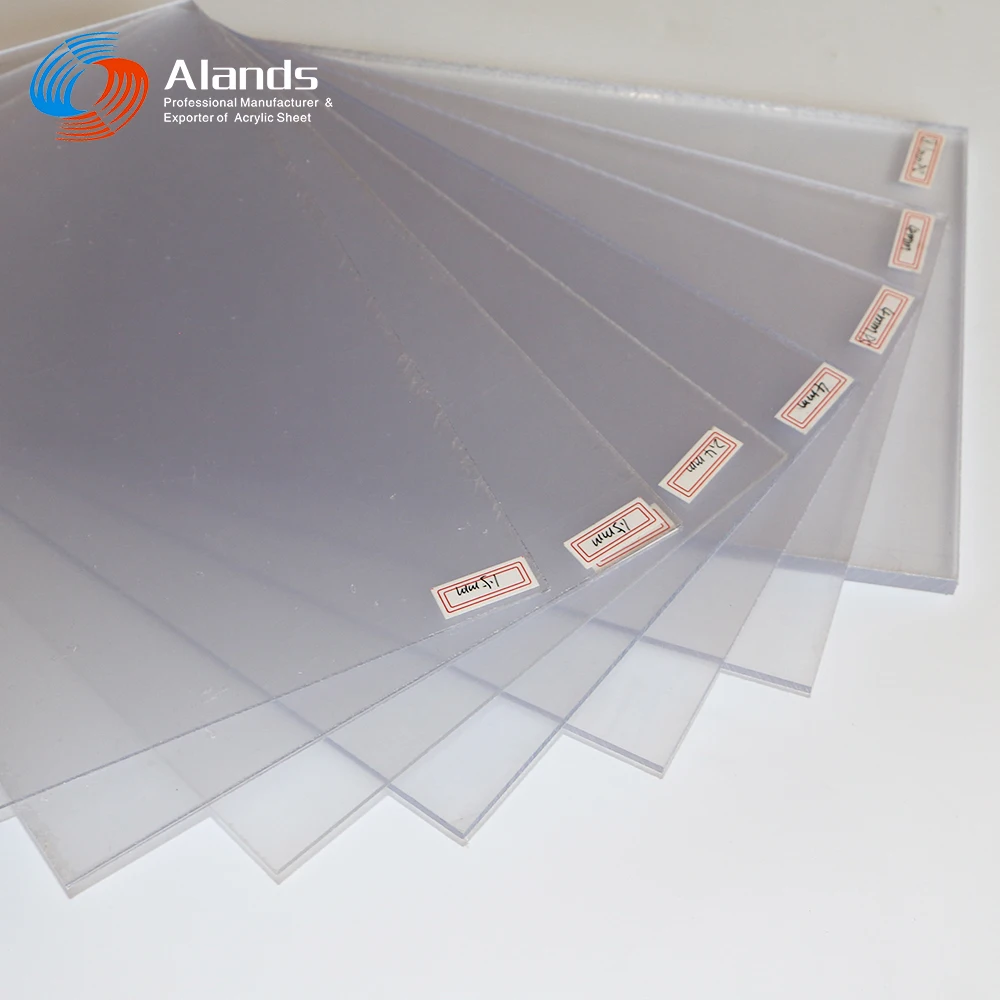

2mm 3mm 4mm 5mm 6mm clear PC sheets polycarbonate sheet

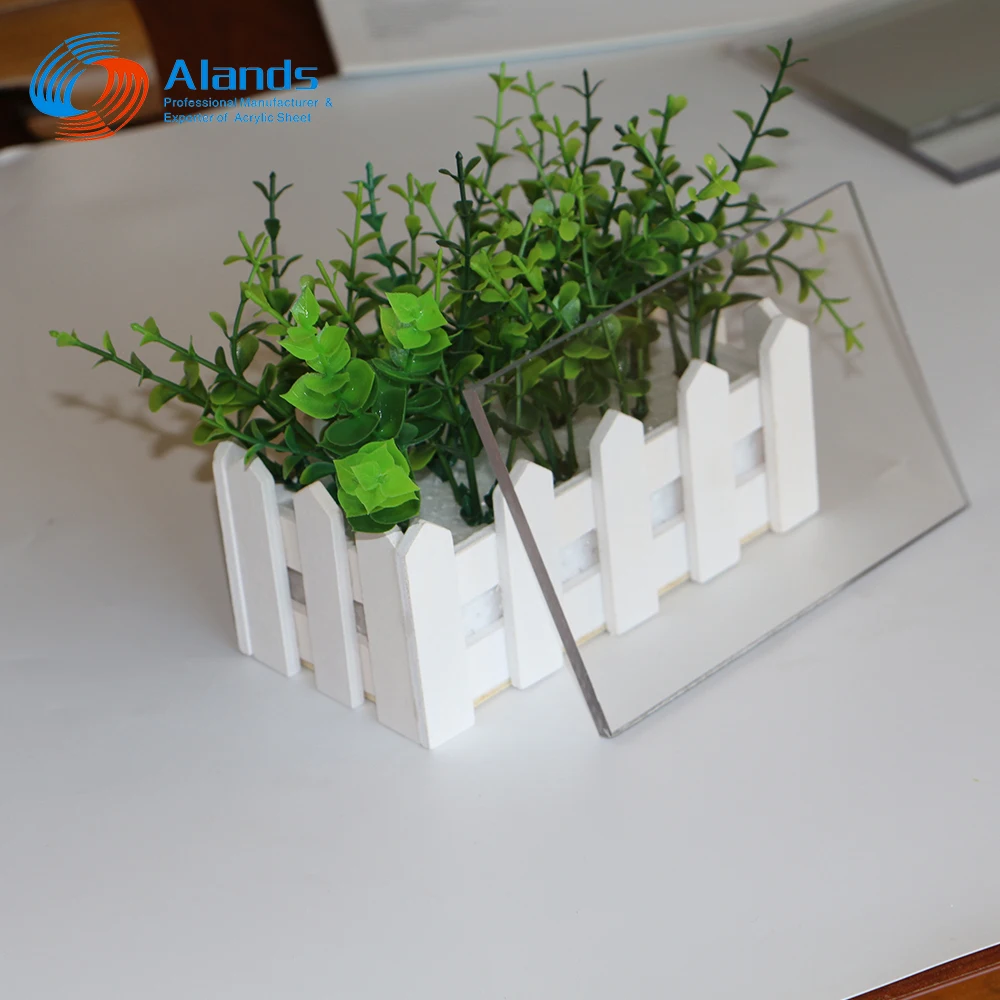

 Polycarbonate sheets show


PC sheet.jpg














  Specifications


















Size






1250 x 2500mm      1220 x 2440mm(4'x8')
1250 x 1850mm     1220 x 1830mm(4'x6')
2050 x 3050mm     1850 x 2450mm (6'x8')





Width<=2050mm


Length - No limited



All customized sizes



Thickness






1.2mm                                 2.0mm- 3/32''
3.0mm- 1/8''                        4.5mm- 3/16''


4mm                                    5mm


6.0mm- 1/4''                        9.0mm- 3/8''

Flexible thickness from 1mm up to 9mm thick






          Color






Clear/Transparent
White


Opal


Tinted Grey


Transparent Blue


Transparent Green


Frosted


Customize color












 Features


1) Light transmission:    Up to 40%-82% depending on color and thickness


2) Impact resistance:   250-300 times of the ordinary glass


3) Fire retardancy:  Grade B1 by the national GB8624 test


4) UV surfaces:   UV protected from the sunshine


5) Light weight:  Only 1/12 of the weight of glass of the same thickness of glass


6) Sound insulation:   Significant advantage for sound insulation


7) Weather ability:   Service temperature from -40°C to 120°C








 Applications


1) Roofing light sheet and sunshade for office building, store, hotel, stadium, school, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.


3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.


7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing










 Types of polycarbonate sheets


1) PC Hollow sheet:


Width: 1.22m, 2.1m,


Length: no limit


PC Hollow Sheet.png





2) PC Solid sheet


Width: 0.6m to 2.1m are OK. Popular is 1.22, 1.5, 1.8, 2.1m)


Length: no limit Popular: 2.44, 3m, 5m and 6m


PC solid sheet.png





3) PC Diamond Embossed sheet


Diamond Embossed sheet.png





 Technical Sheet


































































Characteristics



Unit



Data of PC Twin-wall Hollow Sheet



Light transmission



%



40  ~  82



Impact strength



J/m



2.1  ~  2.3



Coefficient of thermal expansion



mm/m .ºC



0.065



Heat conductivity



W/m2 .ºC



3.0 ~ 3.9



Service temperature



ºC



-40ºC~+120ºC



Tensile strength



n/mm2



≥60



Bending strength



n/mm2



100



Bending elastic modulus



mpa



2400



Tensile stress at break



mpa



≥65



Elongation at break



%



≥100



Sound insulation effect



db



20 decibel decrease for 10mm thick sheet






 Packing

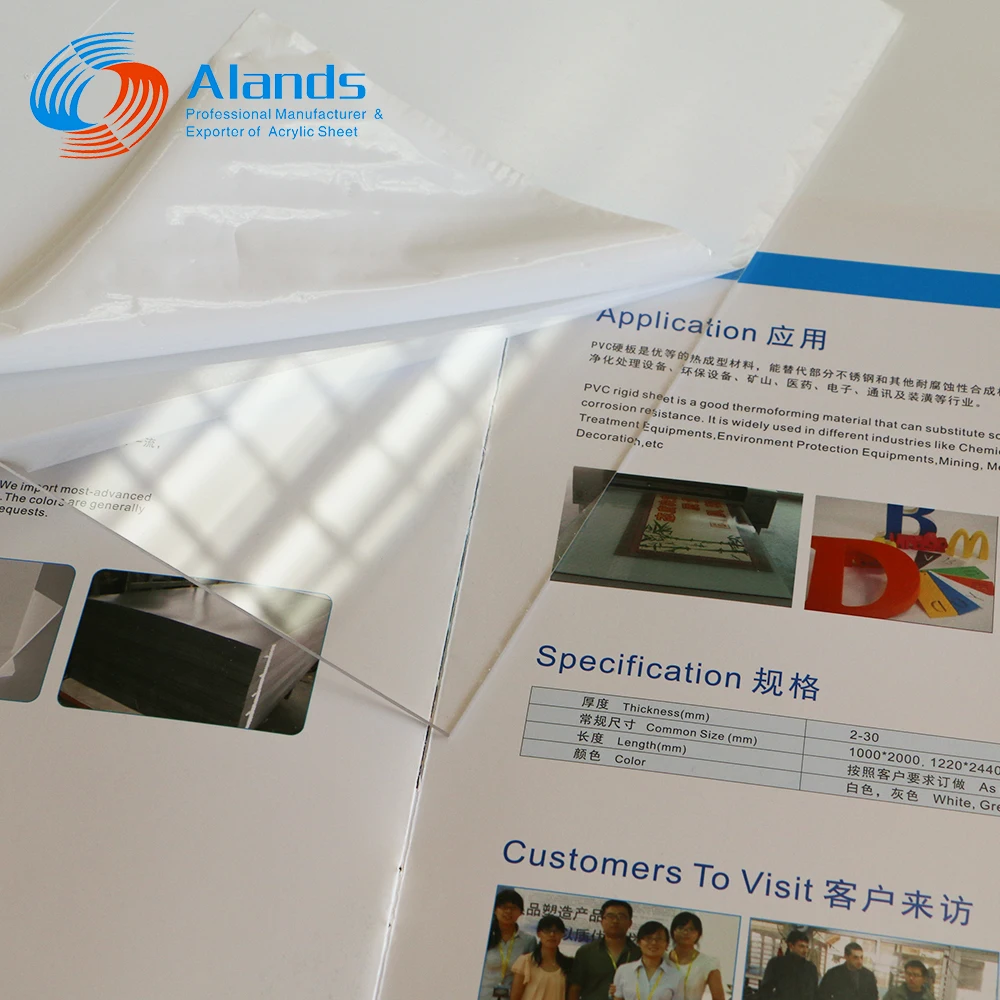

 We have five different film masking onto the polycarbonaten sheets suface:


1. White PE film masking on both sides, both sides are blank without any words;


2. One side white with words, the other side clear PE film blank without any words;


3. One side white, the other side clear PE film, both blank without any words;


4. Clear PE film masking on both sides blank.





PC sheet packing.jpg








Packing when shipment


 Plywood Pallet:


usually can hold 1500KG - 2000KG each pallet, looks very pretty when in loading, easier to unload when goods arrive to denstination.


If you want easy unloading from container, better to choose plywood pallet.


PC sheet package.jpg











 About Us


Alands Plastic is specializing  in  researching, manufacturing  and selling  plastic products in China. It is one of the High-technology companies which pay moreattention to the new energy products.We adopt advanced production  techniques and  data  control  equipment   to  produce excellent  quality  acrylic sheets , PVC foam  board and Polycarbonate sheets (PC sheet). All of our products are  recognized  as qualified  standard  by  Bureau of Technical  Supervision.


Our  acrylic sheets, PVC foam boards and PC sheets  have been enjoying very  good markets many years on the basis of stable quality.


Production line.png








 Sales Network


Our polycarbonate sheets are popular in  Southeast Asia, Europe, South America, North America, Africa, Oceania and the Middle East ! We strive  to build global marketingnetwork to provide with timely and thoughtful


sales and after-sales service !








 Certification


All of our PC sheets and acrylic sheets are certified by CE and SGS. All of our PVC foam sheets and acrylic mirror sheets are certified by SGS. Our acrylic sheets are produced as per ISO 7823-1:2003 & GB/T 7134-2008. Quality can be guranteed.













 Exhibition


Usually we attend two exhibitions of acrylic pleastic  at least every  year in Shanghai or Guangzhou in China.  We also attend international fair in America and Dubai.





Shanghai Expo Fair in March


Shanghai Fair.jpg





Dubai SGI Exhibition in January







USA Orlando ISA Fair in March


US fair.jpg














Contact - Owen Wang
















FAQ





1.Q: Can you provide the sample for quality reference?
A: We can provide the some free samples for reference under the customer pay for the shipment cost, but the cost will be return in the first order.





2.Q: Can you accept prototype or OEM/ODM?


 A: OEM/ODM are acceptable, besides the prototype cost could be refundable once the order reach our MOQ.





3.Q: What’s our advantage?
A: High quality : clear acrylic products with high transmittance about 90%-93% , tolerancewithin +/-0.2mm , no bubble ,
no burr on the surface.Competitive price : transparent best price Quality response : within 24 hours reply

4.Q: What’s the payment term?
A: T/T is acceptable
30% deposit along with PO released.
70% before shippment .
Payment terms can be negotiable with long term business relation.








 Delivery&Container Loading
