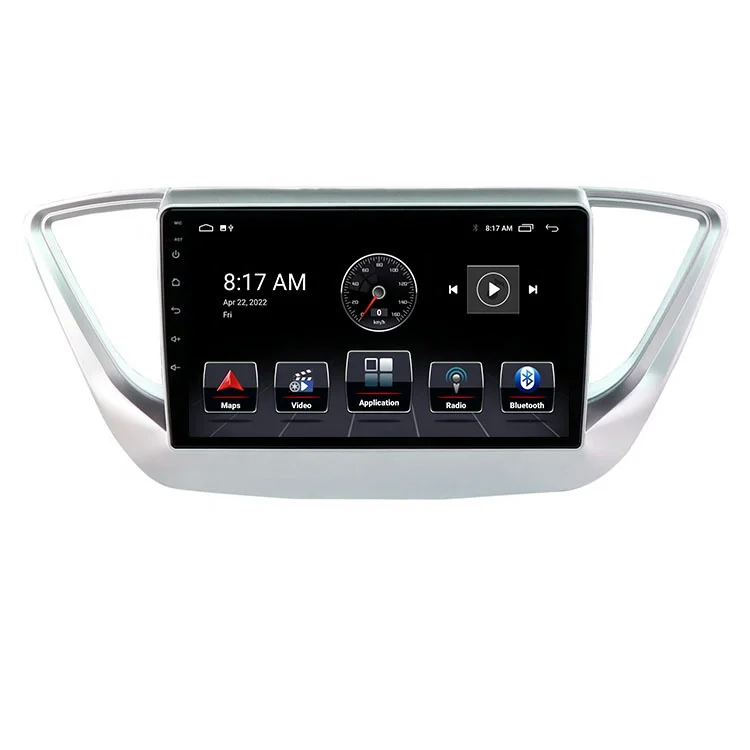

![434--.jpg]()

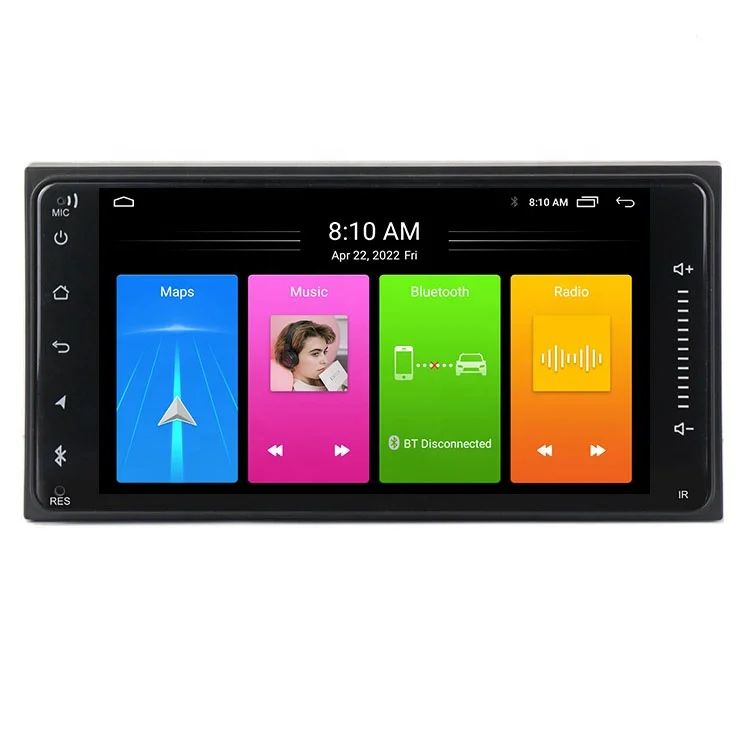

CPU: Coretex-A53, frequency up to 1.5GHZ
GPU: G31-MP2 GPU
System: Android10.0
RAM: 1GB
Read-only memory: 16GB
SD card interface: support SD card expansion (reserved)
Three way USB
USB0: Entertainment/Carplay
USB1: HD dual recording video DVR
USB2: TPMS tire pressure
TFT drive: LVDS output, the default resolution is 1024*600
Radio: Si4755/support RDS
Navigation: GPS&BD or GPS&GLONASS
Audio RCA output: 4.1ch output, FL/FR/RL/RR, SUBWOOF
Video RCA output: 1 CVBS output
AV input: 2 L/R channels, CVBS input, 1 MIC input;
Reversing: Standard configuration supports AHD, the format supports AHD720_25/30 frames, AHD1080P_25/30 frames,
TVI720P_30 frames, CVBS_P/N, support double recording before and after.
Display screen: LVDS: 800*480, 1024*600, 1280*720, 1280*480
CAN BUS: Support plug-in
BT: Standard Bluetooth 4.0, support optional Bluetooth 5.0
WIFI: 2.4G WIFI, support 802.11 b/g/n
Mobile phone interconnection: support &Carplay wired+wireless+Android automatic
DSP: Support DSP, high-end 32-segment EQ high-score adjustment, cinema-level adjustment.
Capacitive touch screen: supports five-point touch
Learning type square control: support two channels
Brake: support
ILL: Support
Backlight adjustment: support
Panel light: support three-color light
External power control: 1 channel 12V radio power switch, 1 channel 12V original car power amplifier control
TV function: support
Infrared remote control: support infrared remote control input and output
SD card: support
External 360: Support external 360 panoramic frame, support touch
External MIC: support, keep the original MIC
Video output: CVBS video output
Tire pressure, early warning radar: support serial control mode
Physical buttons: support 1 KEY button, 2 END knobs
Display expansion: support large size display expansion
Expansion: Support external OBD/tire pressure/external microphone
SpecificationSpecification
item
|
value
|
Type
|
Build-in 2DIN
|
Placement
|
Dashboard
|
OS
|
ANDROID 12
|
Screen Type
|
TFT, Capacitive Touch Screen, 2.5D Screen, QLED
|
Screen Size
|
9-10.1"
|
Function
|
GPS, Stereo, HANDSFREE, TPMS, Amplifier, CarPlay, Mirror Link, android auto, picture in picture, Split Screen, Car Steering Wheel Control
|
Connection
|
usb, TF Card, Built-in WiFi
|
Combination
|
Built-in GPS, MP3 / MP4 Players, Radio Tuner, Touch Screen, Backup camera, AUX Port
|
Warranty
|
1 Year
|
Certification
|
ce, FCC, RoHS
|
GPS
|
Built-in GPS Navigation System
|
Screen
|
QLED 1024*600
|
Mirror link
|
Suppoort
|
ROM
|
RAM/1GB with ROM/16GB
|
Languages
|
Multi Language Avaiable
|
Steering Wheel control
|
Supportd
|
WiFi
|
Dual Wi-Fi Band Connection(5GHz
|
Interface
|
USB2.0/USB 2pcs
|
Core
|
4CORE
|
