10 кВт 8 7 солнечный гибридный инвертор 48 в 230 Вт автономный с сертификацией CE двойной выход
- Категория: >>>
- Поставщик: Shenzhen Sunray Power Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600716780337:
Описание и отзывы
Характеристики
Main Feature
▲Pure sine wave solar inverter（on/off Grid）
▲Inverter running without battery
▲Output power factor 1.0
▲High PV input voltage range(90~500VDC)
▲WIFI&GPRS available for IOS and Android
▲Built-in anti-dusk kit for harsh environment
▲Built-in 160A（for7.2KW/8.2KW）/180A（for 10.2KW）MPPT solar charge
▲Smart battery charge design to optimize battery life
▲One-click restoration to factory Settings
▲Dual output
▲Built-in Lithium battery automatic activation
▲Touch buttom
Product Description
Specification
Model | MPS-V MAX 7.2KW | MPS-V MAX.8.2KW | MPS-V MAX 10.2KW | |||
Phase | 1-phase | |||||
Maximum PV input power | 8200w | 8200w | 10200w | |||
Rated output power | 7200w/7200VA | 8200W/8200VA | 10200W/10200VA | |||
Maximum solar charging current | 160A | 160A | 160A | |||
GRID-TIE OPERATION | ||||||
PV input（DC） | ||||||
Nominal DC voltage /Maximum DC voltage | 360VDC/500VDC | |||||
Start-up voltage /initial feeding voltage | 90VDC/120VDC | |||||
Mppt Voltage range | 90VDC-450VDC | |||||
Numbe of mppt trachers/Maximum input current | 1/27A | |||||
GRID OUTPUT(AC) | ||||||
Nominal output Voltage | 200/230/240VAC | |||||
Output voltage range | 195.5-253VAC | |||||
Nominal output current | 35.6A | |||||
Power factor | >0,99 | |||||
Free-in grid frequency range | 49-51±1HZ | |||||
Efficiency | ||||||
Maximum conversion efficiency | 98% | |||||
TWO LOAD OUTOUT POWER(2.0) | ||||||
FULL LOAD | 7200W | 8200W | 10200W | |||
MAXIMUM Main Load | 7200W | 8200W | 10200W | |||
MAXIMUM second Load | 2400W | 2733W | 3400W | |||
Main load cut off voltage | 44VDC | 44VDC | 44VDC | |||
Main load return voltage | 48VDC | 48VDC | 48VDC | |||
Off grid operation | ||||||
AC INPUT | ||||||
AC start -up voltage /Auto restart voltage | 120-140VAC/180VAC | |||||
Acceptable input voltage range | 90-280VAC or 170-280VAC | |||||
Maximum AC INPUT current | 40A | 40A | 40A | |||
Nominal operating frequency | 50HZ/60HZ | |||||
Surge power | 14400W | 16400W | 20400W | |||
PV INPUT(DC) | ||||||
Maximum DC voltage | 500VDC | |||||
Mppt voltage range | 90VDC-450VDC | |||||
Number of mppt trackers /Maximum input current | 1/27A | |||||
BATTER MODE OUTTPUT (AC) | ||||||
Nominal output voltage | 48vdc | 48vdc | 48vdc | |||
Output wavefrom | Pure sine wave | |||||
Efficiency(DC TO AC) | 94% | |||||
BATTERY CHARGER | ||||||
Nominal DC voltage | 48VDC | 48VDC | 48VDC | |||
Maximum solar charging current | 160A | 160A | 180A | |||
Maxiumum AC charging Current | 140A | 140A | 140A | |||
Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to Mid East(30.00%),Africa(25.00%),Domestic Market(20.00%),Eastern Asia(5.00%),North America(5.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),South Asia(0.00%),Oceania(0.00%),Western Europe(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPS; Inverter; Solar Charge Controller
4. why should you buy from us not from other suppliers?
shenzhen sunray power is a high-tech factory which specialized in producing ups and inverter. we can provide full range of online ups from 1KVA to 200KVA and power inverter from 500VA to 15KVA. We have strong R&D team with 10 years experiences.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2008,sell to Mid East(30.00%),Africa(25.00%),Domestic Market(20.00%),Eastern Asia(5.00%),North America(5.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),South Asia(0.00%),Oceania(0.00%),Western Europe(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPS; Inverter; Solar Charge Controller
4. why should you buy from us not from other suppliers?
shenzhen sunray power is a high-tech factory which specialized in producing ups and inverter. we can provide full range of online ups from 1KVA to 200KVA and power inverter from 500VA to 15KVA. We have strong R&D team with 10 years experiences.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
Contact Us
Похожие товары
Гибридный солнечный инвертор 5000w 24vdc 48vdc до 110v 220vac для Чистая синусоида выход с заряда батареи
41 901,86-43 623,85 ₽
Deye Hybrid SUN-5/6/8/10/12K-SG04LP3 Инвертор солнечной энергии по цене с датчиком температуры
202 047,30-227 303,21 ₽
Гибридный инвертор DDP DC переменного тока для домашней солнечной системы
82 655,72-87 247,70 ₽
3.2kva 3KW 24V Гибридный солнечный инвертор с контроллером заряда mppt чистый синусоидальный используемый для системы хранения энергии
16 152,31-18 138,34 ₽

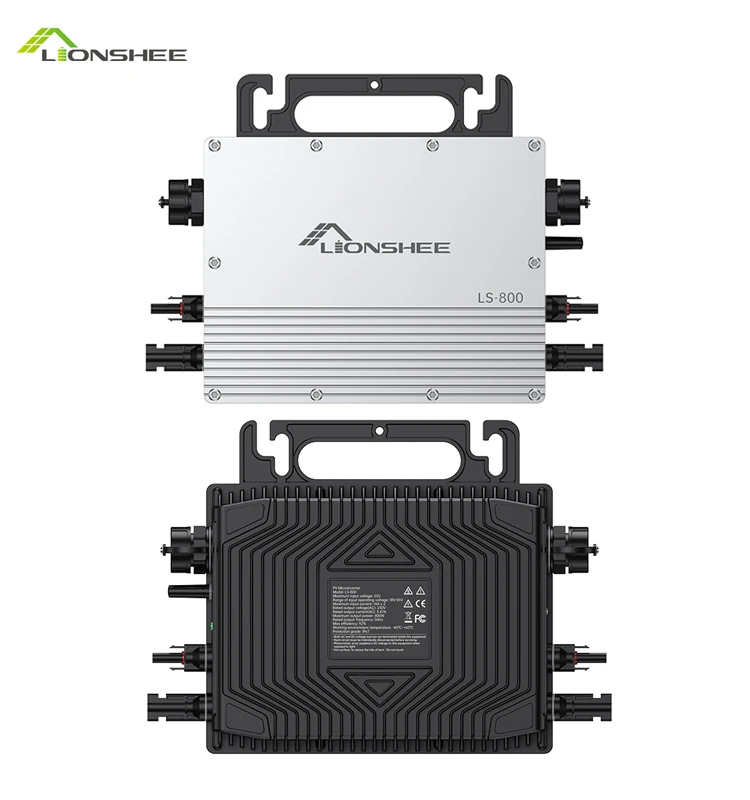

800 Вт США версия ЕС микроинвертор 110 В 120 230 портативный для солнечной системы PV Балконная энергетическая установка
