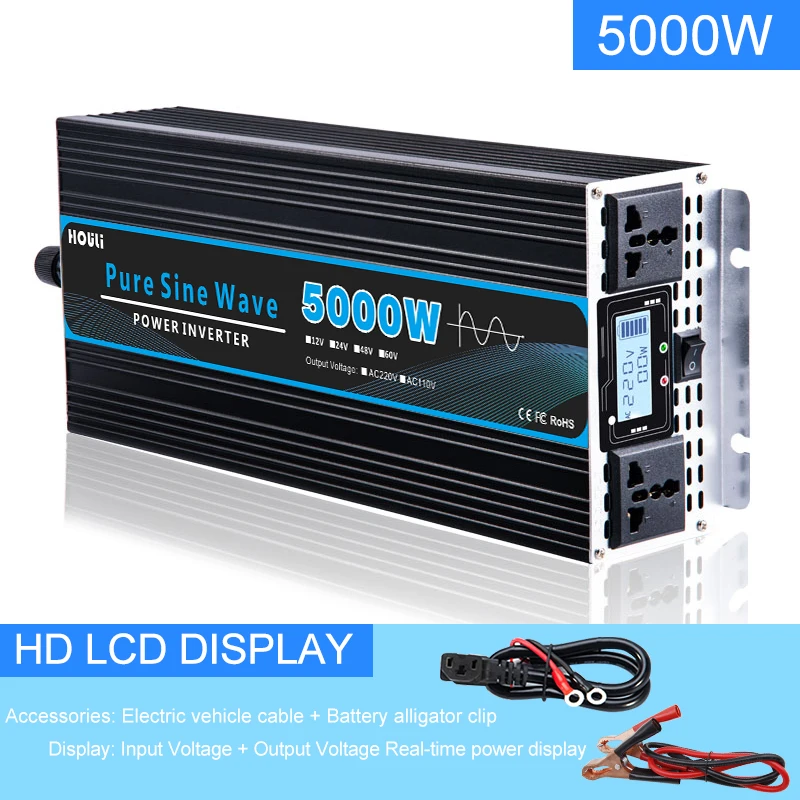

Инвертор солнечной энергии HOULI 48 в 5000 Вт инвертор немодулированного синусоидального сигнала с тороидальным трансформатором
- Категория: >>>
- Поставщик: Shenzhen Huashenghong Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600717702720:
Описание и отзывы
Характеристики
Products Description
Model | HPOL0025U | ||||||
Input DC Voltage | 12V | 24V | 48V | 60V | |||
Output AC Voltage | AC220V/AC110V | ||||||
Continuous Power | 2500W | ||||||
Surge Power | 5000W | ||||||
Waveform | Pure Sine Wave (THD<3%) | ||||||
Efficiency | >90% | ||||||
Frenquency | 50HZ/60HZ±3HZ | ||||||
Working temperature | 0~70℃ | ||||||
Storage temperature | -30℃~+70℃ | ||||||
Note:
The continuous power is the actual power of the inverter. ( Inverte5000W, actual power(continuous power) is 2500W ) When purchasing an inverter, you must first understand the voltage and frequency used in your country. Buying an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!
Feature:
1. Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high conversion efficiency (up to 95%), the low power consumption of the product itself can greatly extend battery life.
2. You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances such as refrigerators, freezers, induction cookers.
3. Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.
2. You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances such as refrigerators, freezers, induction cookers.
3. Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.

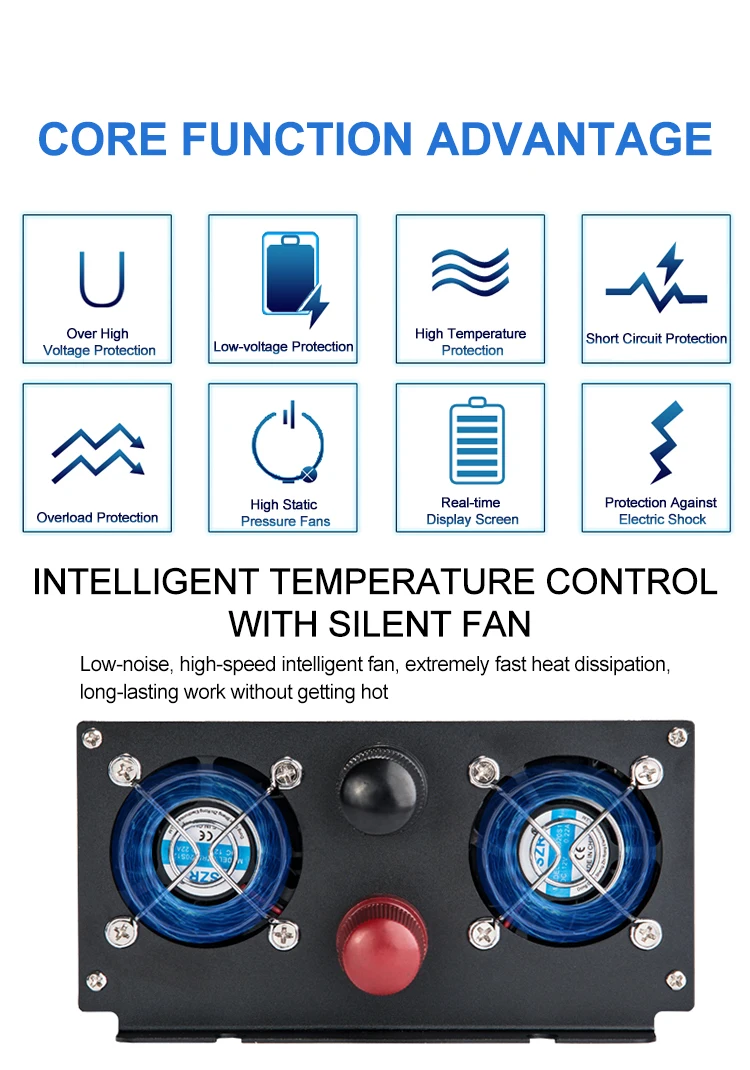

Product Advantage
Usage Method

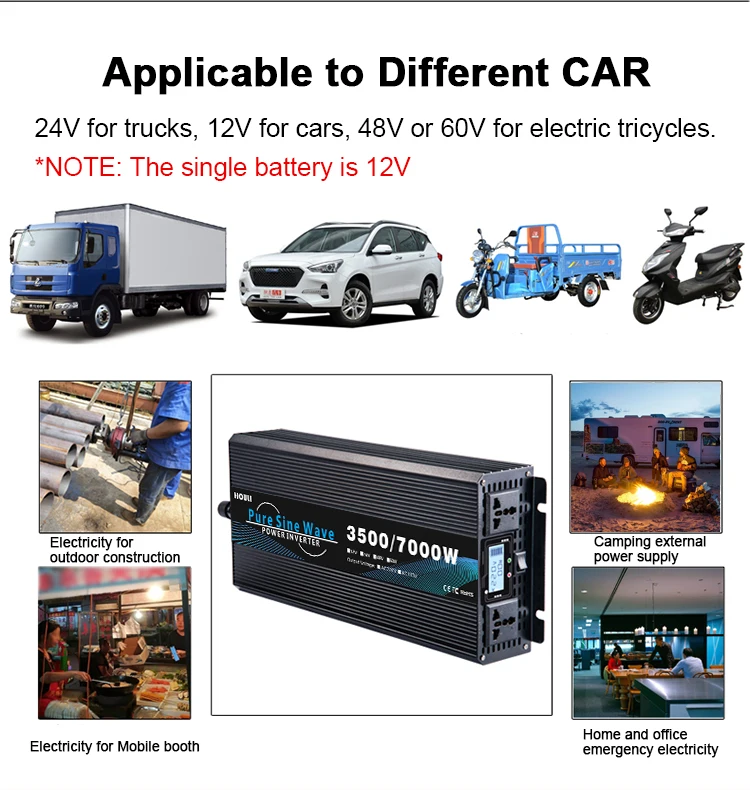

Application
Company Profile
Shenzhen Huashenghong Technology Co., Ltd is a 10 years professional manufacturer. Main products Including Solar power generation products, like Power inverter, MPPT, and PWM Solar charger. Product has passed CE ROHS UKCA FCC certification.
Factory has a rofessional R&D team to support OEM ODM service. Professional sales team provide 24 hours pre-sales and after-sales service. Nearly 100 employees on production department to ensure fast delivery and timely response to customer requirements. Welcome to contact us for advice or more details.
FAQ
How to choose an inverter?
1.Determine what the battery voltage is, and what is the capacity of the battery?
If your battery output voltage is 12V.you have to choose a 12V inverter. The size of the battery will directly affect the size of the charger. The laeger the battery,the more electrical appliances it can carry.
Such as 12Vbattery *60AH capacity *0.8 conversion rate + 576W or less can be brought.
2.What kind of electrical appliances can I bring?
Electrical appliances are divided into resistive loads and inductive load appliances.
Resisstive appliances:
computers,televisions,fans,electric lights and other household appliances.
Inductive appliances:
refrigerators,washing machines,jce machines,hand drills,pumps,sanders,etc.
Resistive appliances do not have starting power,and inductive appliances have starting power,which is generally between 3 and 7 times.
Therefore, it is necessary to detemine whether the appliances is a resistive appliances or an inductive appliance.
1.Determine what the battery voltage is, and what is the capacity of the battery?
If your battery output voltage is 12V.you have to choose a 12V inverter. The size of the battery will directly affect the size of the charger. The laeger the battery,the more electrical appliances it can carry.
Such as 12Vbattery *60AH capacity *0.8 conversion rate + 576W or less can be brought.
2.What kind of electrical appliances can I bring?
Electrical appliances are divided into resistive loads and inductive load appliances.
Resisstive appliances:
computers,televisions,fans,electric lights and other household appliances.
Inductive appliances:
refrigerators,washing machines,jce machines,hand drills,pumps,sanders,etc.
Resistive appliances do not have starting power,and inductive appliances have starting power,which is generally between 3 and 7 times.
Therefore, it is necessary to detemine whether the appliances is a resistive appliances or an inductive appliance.
FOR EXAMPLE
If the battery is 12V/60AH,can you use a 2000W inverter with a 500W hard drill ?
1.First look at the maximum battery charger is :12*60*0.8 = 576W,>500W.
2.Determine whether the electrical appliance is a resistive electrical appliance or an inductive electrical appliance: the hand drill is an inductive electric drill.
3.The continuous power of the hand drill is 500W,and the duration of 2000W is 1000W,>500W.
The starting power is generally about 3 times (the starting power of dofferent electrical appliances is different) so 500W X 3 = 1500W, the starting power of the 2000W inverter is 2000W,>1500W Therefore,the 500W hand drill can be used with a 12V/60AH battery and a 2000W inverter.
Other appliances can also be judged by this method.
If the battery is 12V/60AH,can you use a 2000W inverter with a 500W hard drill ?
1.First look at the maximum battery charger is :12*60*0.8 = 576W,>500W.
2.Determine whether the electrical appliance is a resistive electrical appliance or an inductive electrical appliance: the hand drill is an inductive electric drill.
3.The continuous power of the hand drill is 500W,and the duration of 2000W is 1000W,>500W.
The starting power is generally about 3 times (the starting power of dofferent electrical appliances is different) so 500W X 3 = 1500W, the starting power of the 2000W inverter is 2000W,>1500W Therefore,the 500W hand drill can be used with a 12V/60AH battery and a 2000W inverter.
Other appliances can also be judged by this method.
Contact Us
Похожие товары
Простая установка 150% 60s 15 кВт векторный привод переменного тока

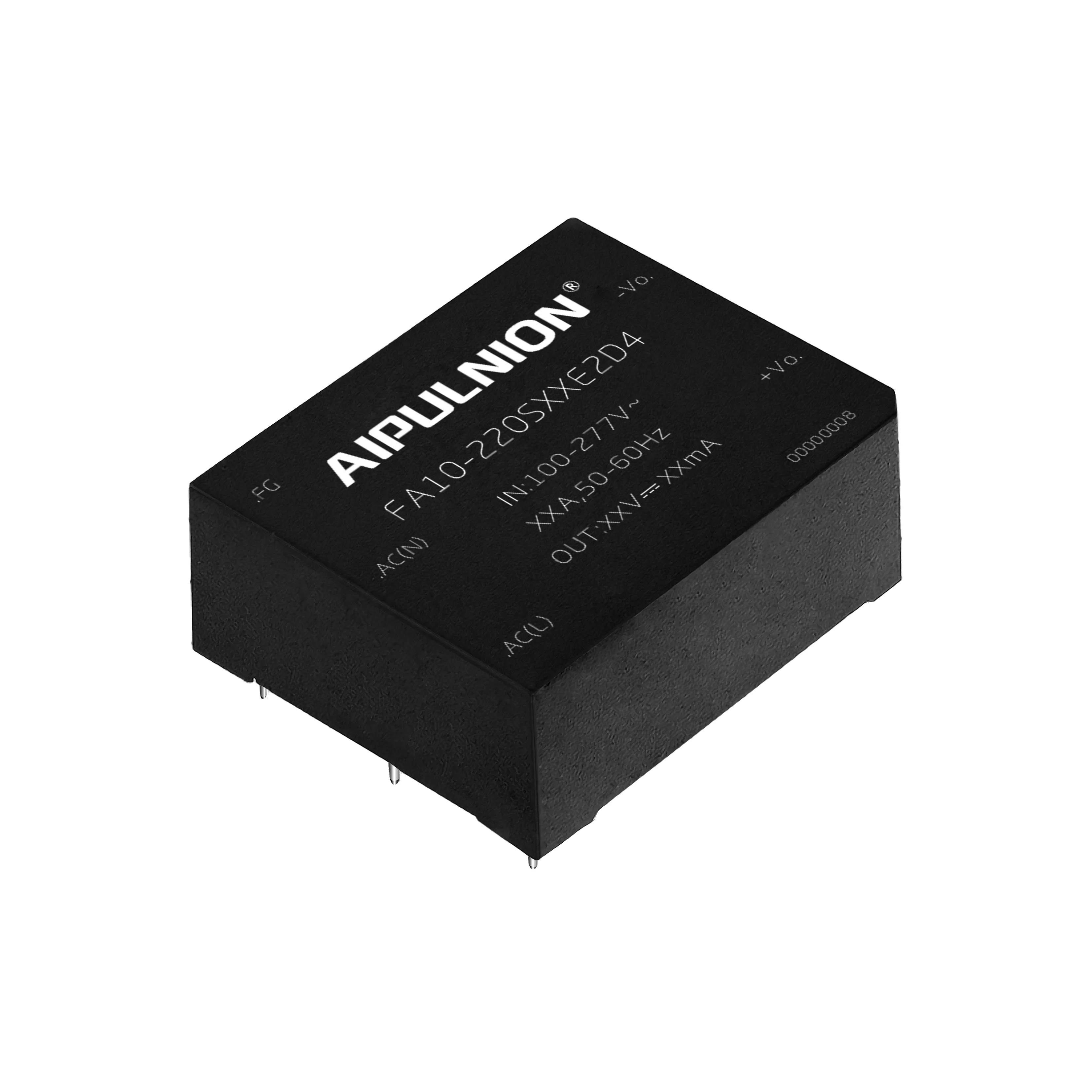

Высокое изоляционное напряжение 4KVac 110 V/120 V/220 V/230 V/240 V до 3 V/5 V/9 V/12 V/15 V/24 AC/DC модуль преобразователя питания

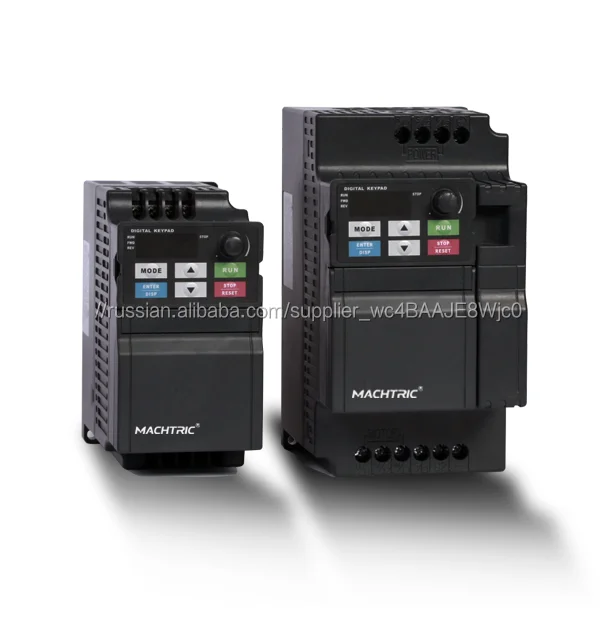

переменного тока преобразователя частоты пид для воздуха компрессор 380v 50hz 60hz
постоянного тока в переменный чистая синусоида инвертор 2кВт
KUNCAN 5 В до 9 в step up dc/dc повышающий преобразователь инверторы и преобразователи
45Kw регулятор скорости вращения двигателя 45 кВт переменного тока

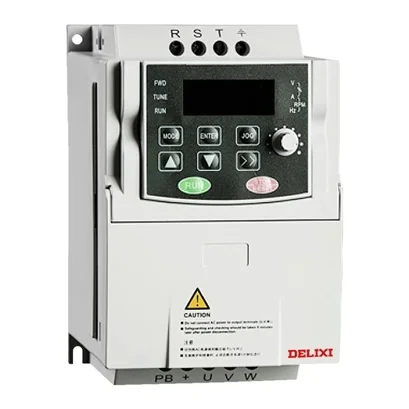

Sinovo водитель SD200 Преобразователь Частоты преобразователь ПЕРЕМЕННОГО ТОКА
