Стандартная пищевая центрифуга с винтовым графином для извлечения растительных семян GMP
- Категория: >>>
- Поставщик: Liaoyang Wintech Industrial Co. Ltd.
Сохранить в закладки 1600719688204:
Описание и отзывы
Характеристики

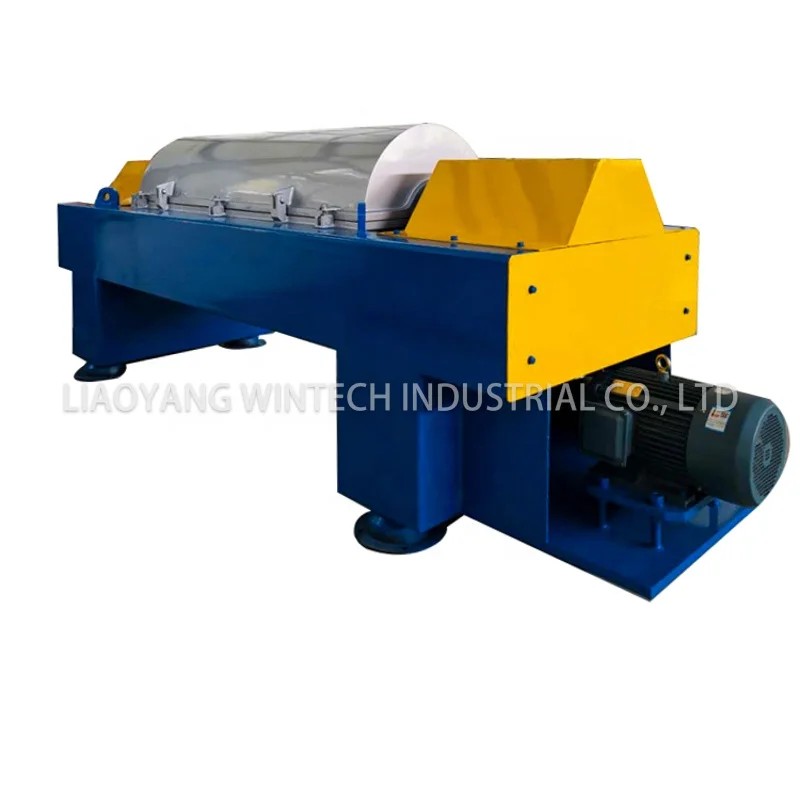

GMP Standard Food Grade Screw Decanter Extraction Centrifuge for Vegetable Seed Oil Separation
Products Description

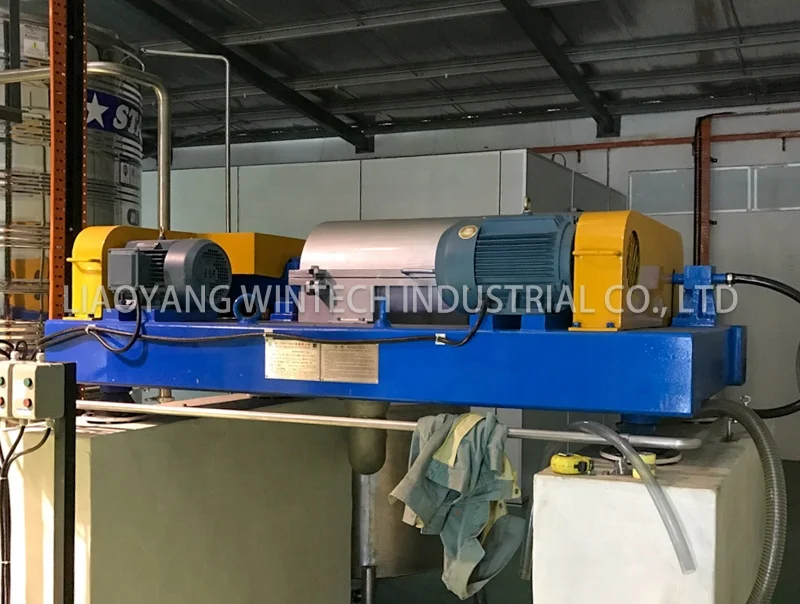

Our client factory: Plant extracts liquid solid separation
Our client factory: sludge solid liquid two phase separation
Our client factory: oil water solid three phase separation
Description:

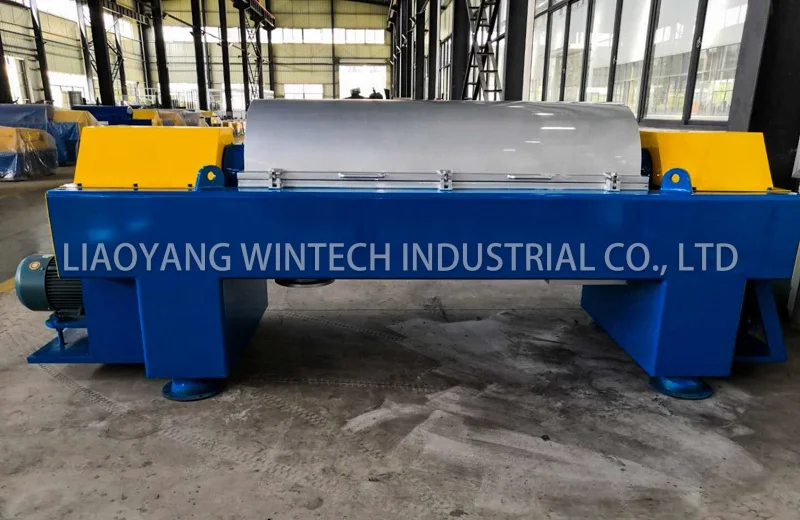

Horizontal screw decanter centrifuge is a kind of horizontal screw unloading, continuous operation settlement equipment. The working principle of this type of centrifuge is: the drum and the screw rotate at a certain differential speed in the same direction and at a high speed, the raw material is continuously introduced into the inner drum of the conveying screw by the feeding pipe, and enters the drum after acceleration. Under the action of the centrifugal force field, the heavier solid phase deposits on the drum wall to form the sediment layer. The conveying screw continuously pushes the deposited solids to the cone end of the drum, and then discharges them out of the machine through the slag discharge port. The lighter liquid phase forms an inner liquid ring, which overflows the drum continuously from the overflow port at the big end of the drum, and is discharged out of the machine through the discharge port.The machine can continuously feed, separate, wash and discharge materials at full speed. It is characterized by compact structure, continuous operation, stable operation, strong adaptability, large production capacity and convenient maintenance. It is suitable for the separation of suspension with solid particle size greater than 0.005mm and concentration range of 2-40%. Widely used in chemical, light industry, food, environmental protection and other industries.
Product More Pictures:
This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker, differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotating of bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day.
The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge. This machine has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state, makes the environment clean. This machine adopts the most advanced international special structural design, especially the spiral stoker, make the sludge concentration dehydration integration characteristics. It has better performance than ordinary centrifuge, more high capacity, better separation effect, save energy and manual work.
Main Features:
1. Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return
2. Spiral stoker blades: Surfacing welding tungsten carbide grinding
3. Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.
4. Main bearing: Sweden NSK
5. Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber
6. Electrical protection: overload, phase loss, torque protection
7. Main and vice inverter use common DC bus, vice motor’s function is generating electricity ( save electricity)
8. PLC remote control (Customer selection).
2. Spiral stoker blades: Surfacing welding tungsten carbide grinding
3. Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.
4. Main bearing: Sweden NSK
5. Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber
6. Electrical protection: overload, phase loss, torque protection
7. Main and vice inverter use common DC bus, vice motor’s function is generating electricity ( save electricity)
8. PLC remote control (Customer selection).
Product Parameters
We have a variety of centrifuge models to choose from, if you are interested, please feel free to contact us, we will share more information for you. | ||||||||
Working Principle
The purpose of separation is to separate the solids in the mixed fluid with a specific gravity greater than that of the liquid phase from the liquid phase fluid. When the mixed liquid enters the high-speed rotating drum body cavity from the feed inlet, the solids with larger specific gravity in the mixed liquid will rapidly settle to the inner wall of the drum under the action of centrifugal force, and be discharged from the drum body by the screw pusher from the solid outlet; at the same time, the liquid phase with small specific gravity will form an inner liquid ring under the action of centrifugal force and be discharged from the drum body through the liquid overflow port. The rotating drum and the screw pusher operate at high speed at the same time. Due to the speed difference between them, the solid matters settled on the drum wall are continuously pushed by the screw pusher to the liquid outlet for discharge, and the whole separation process is carried out continuously.
Application Field
It is widely used in the production of chemical, printing, metallurgical coal mine, oil production, metallurgy,iron and steel, fabric, food, drink, dyes and so on, and it can also solve industrial and municipal wastewater. By use it, solid can be dehydrated, liquid can be clarified. The application of horizontal screw decanter centrifuge in environmental protection mainly refers to the dehydration of sludge produced in the process of industrial and civil sewage treatment. Nowadays, environmental problems have become the focus of the world. In this context, the value of horizontal screw decanter centrifuge has been reflected. Because of its inherent characteristics of large processing capacity, automatic operation and good dehydration effect, horizontal screw decanter centrifuge has been widely used and promoted in the field of environmental protection. Horizontal screw decanter centrifuge is the preferred equipment for sludge dewatering.

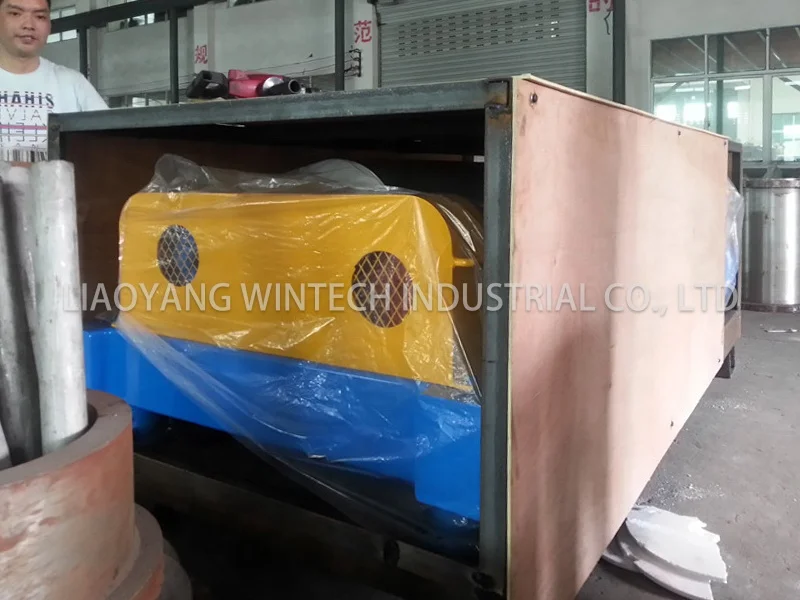

Product Packaging
Company Profile
Our Services:
Pre-Service:
1. 24 hours online consult and service;
2. Introduce the product to the customer in detail, answer the question raised by customer carefully;
3. Make different plans for choice according to the needs and requirements of customers;
After-sale Service:
1. Help to install and debug the equipment;
2. Provide 24 hours technical support by e-mail or phone;
3. Keep sufficient replaceable spare parts;
4. Help customers solve any other questions about products or other aspect;
5. Establish long-term and friendly relationship.
Service Commitment:
1. We will provide one-year warranty period to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
1. 24 hours online consult and service;
2. Introduce the product to the customer in detail, answer the question raised by customer carefully;
3. Make different plans for choice according to the needs and requirements of customers;
After-sale Service:
1. Help to install and debug the equipment;
2. Provide 24 hours technical support by e-mail or phone;
3. Keep sufficient replaceable spare parts;
4. Help customers solve any other questions about products or other aspect;
5. Establish long-term and friendly relationship.
Service Commitment:
1. We will provide one-year warranty period to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
Our Honors:
Our Customers:
LIAOYANG WINTECH INDUSTRIAL CO., LTD is a Centrifugal Separation Filter Equipment processing and manufacturing as the main industry, the main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, and corresponding supporting equipments, eg. food production line, industrial production line, chemical production line. At the same time to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
FAQ
1. What data is required to confirm the model?
(1) Materials to be separated (2) Treatment capacity per hour (3) Solid content
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Of course, we sincerely invite you to visit. If it's not convenient for you to come to our factory, you can also visit by telephone video conference.
5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site. Or you can post materials to our factory.
6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site or guide by video conference.
(1) Materials to be separated (2) Treatment capacity per hour (3) Solid content
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Of course, we sincerely invite you to visit. If it's not convenient for you to come to our factory, you can also visit by telephone video conference.
5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site. Or you can post materials to our factory.
6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site or guide by video conference.
Related Products
Похожие товары
Новый Дизельный топливный инжектор общей топливной магистрали 0445117033 059130277CP 95811012820 059130277CG для VW AUDI Porsche 3 0
200,00 $
Флисовое одеяло для новорожденных
2,60 $ - 4,50 $

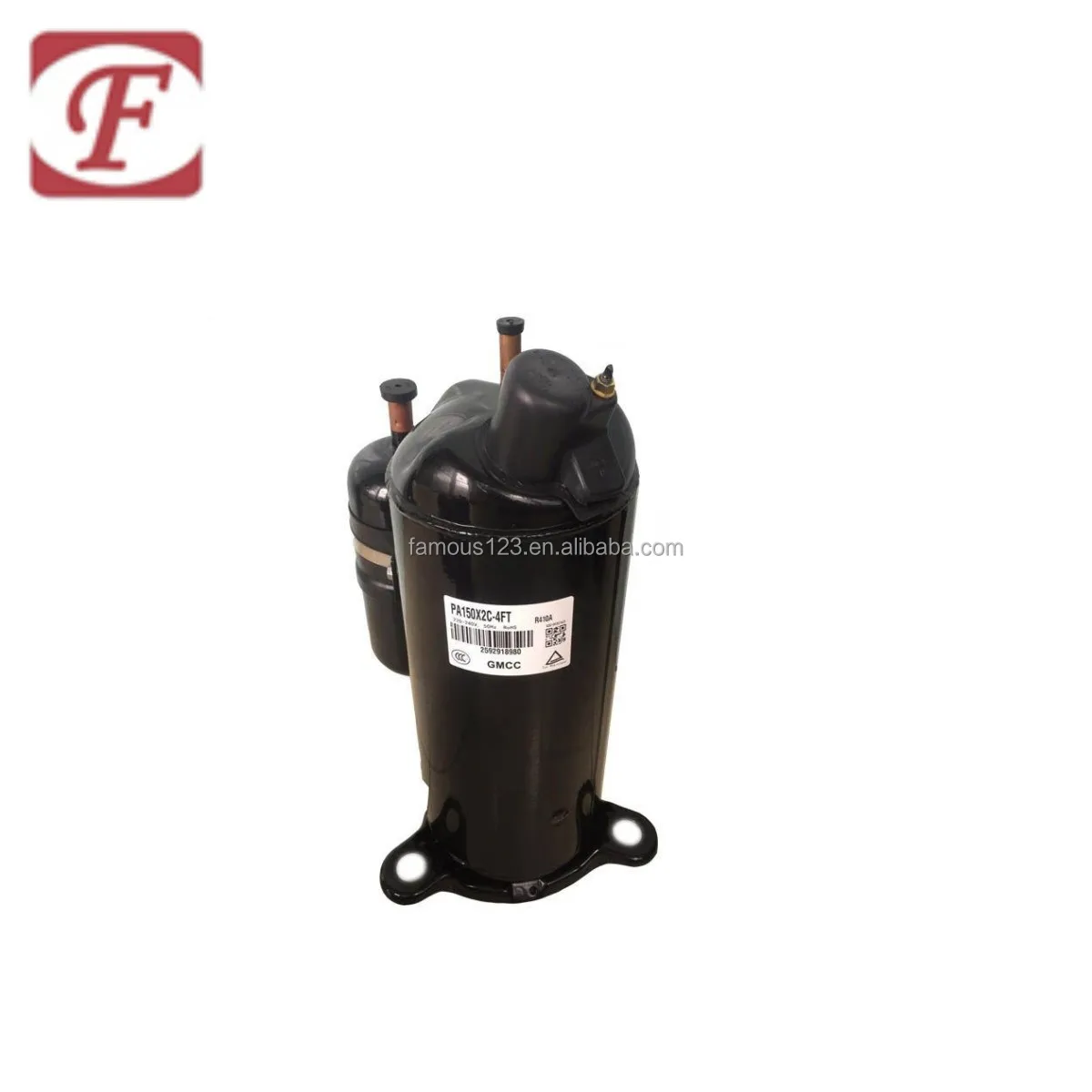

R410A DC инвертор GMCC роторный компрессор Модель ATQ360D1UMU,ATQ420D1UMU,ATQ420D2UMU, ATQ420D2UMU
69,00 $

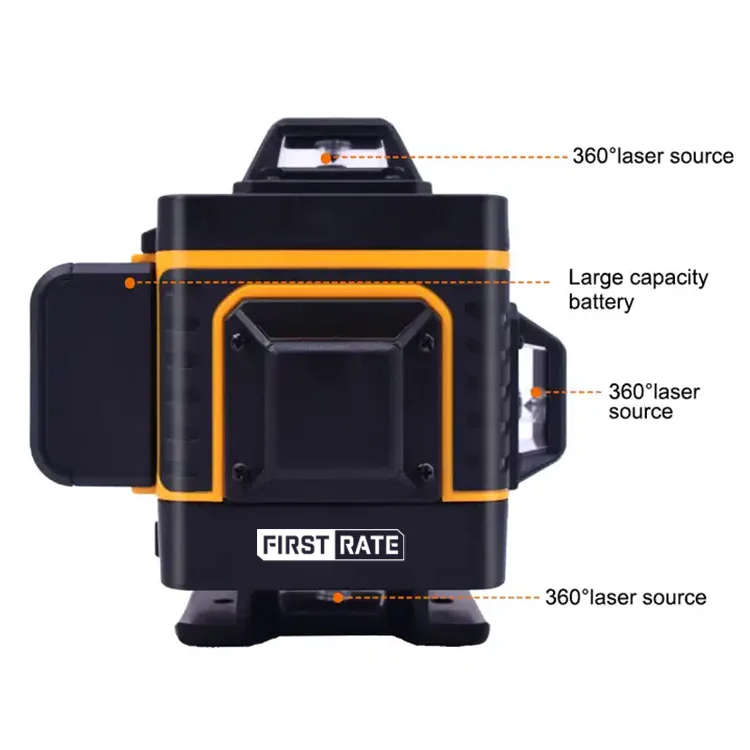

Лазерный уровень зеленого слипка, самовыравниваясь, вращающийся зеленый лазерный уровень, 360 поперечная линия, низкая цена
30,80 $

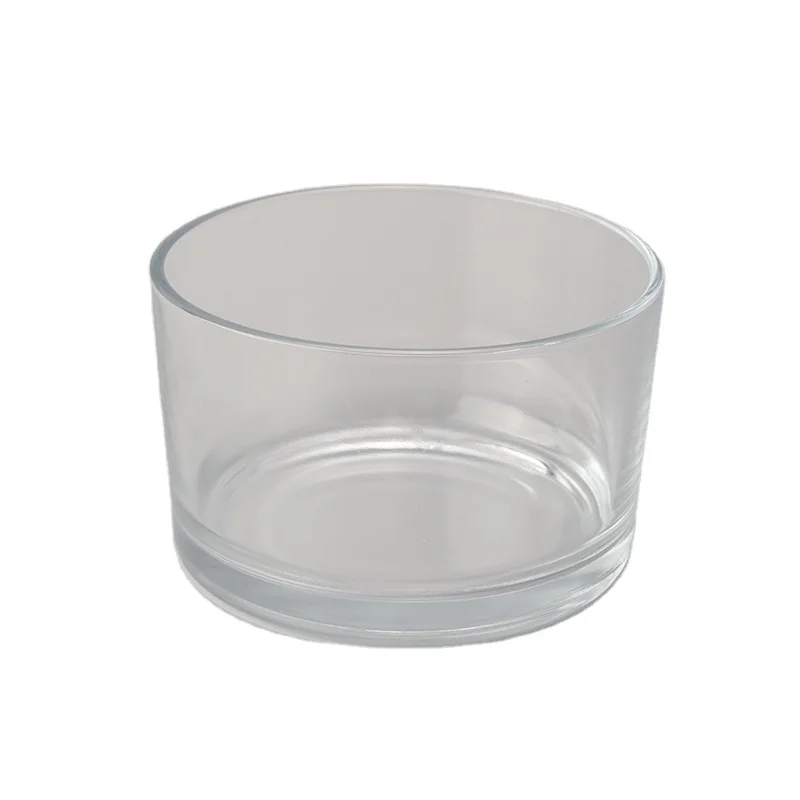

Стеклянный подсвечник с 3 фитилями, прозрачная стеклянная банка для свечей

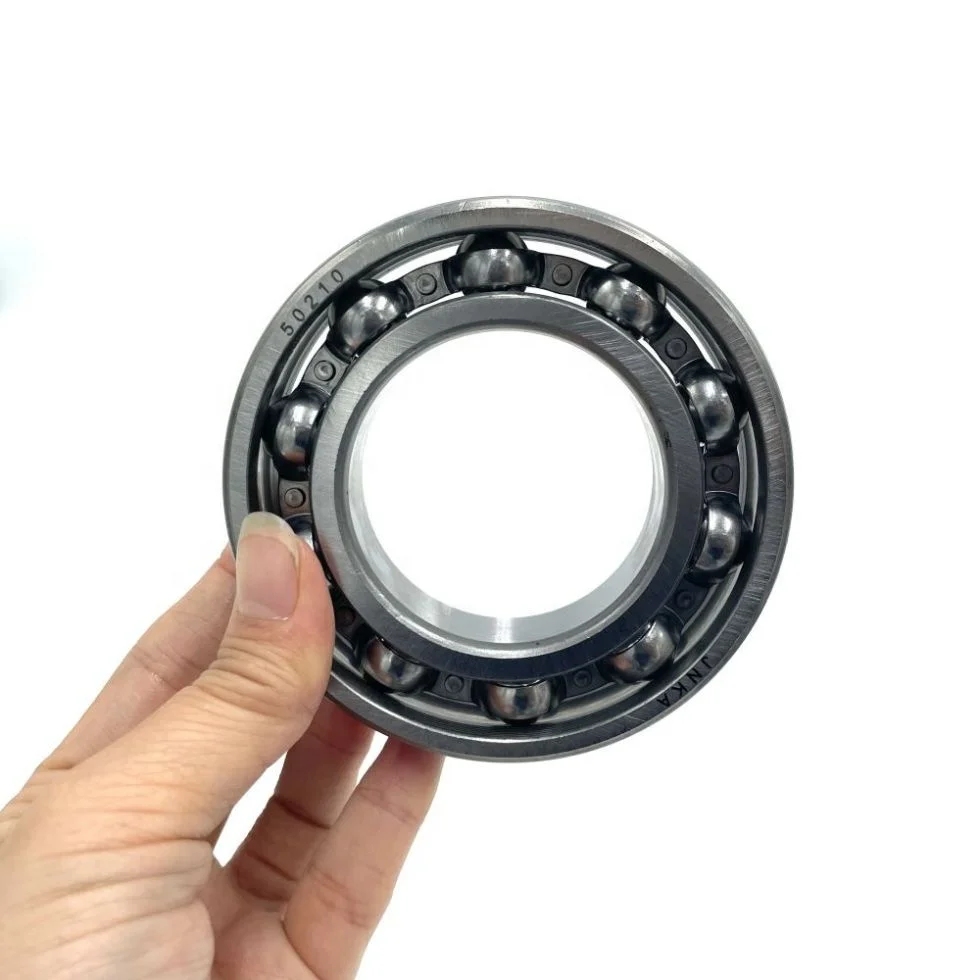

Китайская Фабрика подшипников Gcr15angG10 Z1V1 качественные 63/28 2rs радиальные шарикоподшипники
1,10 $ - 1,50 $

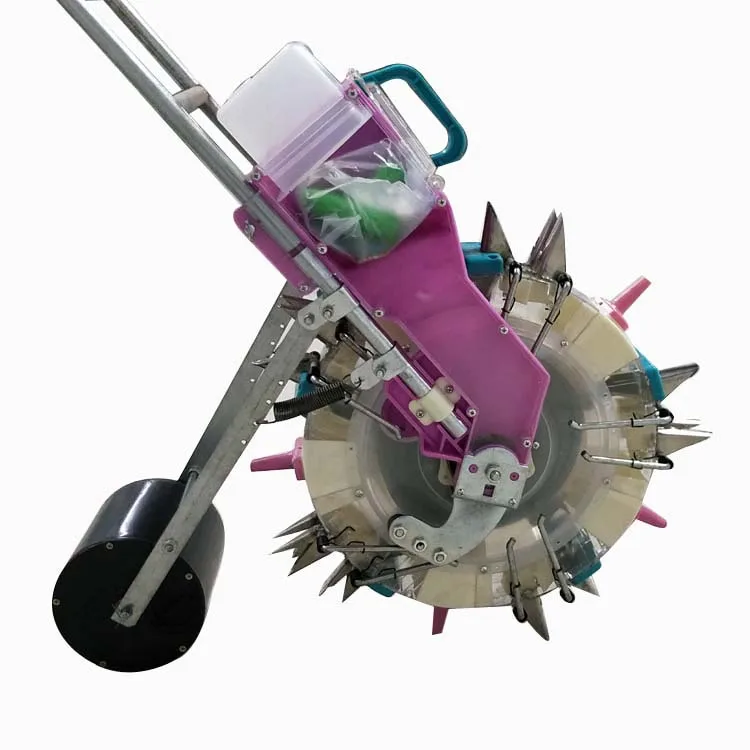

WSP-06 Многофункциональный ручной пуш-ап для посева семян барабан
