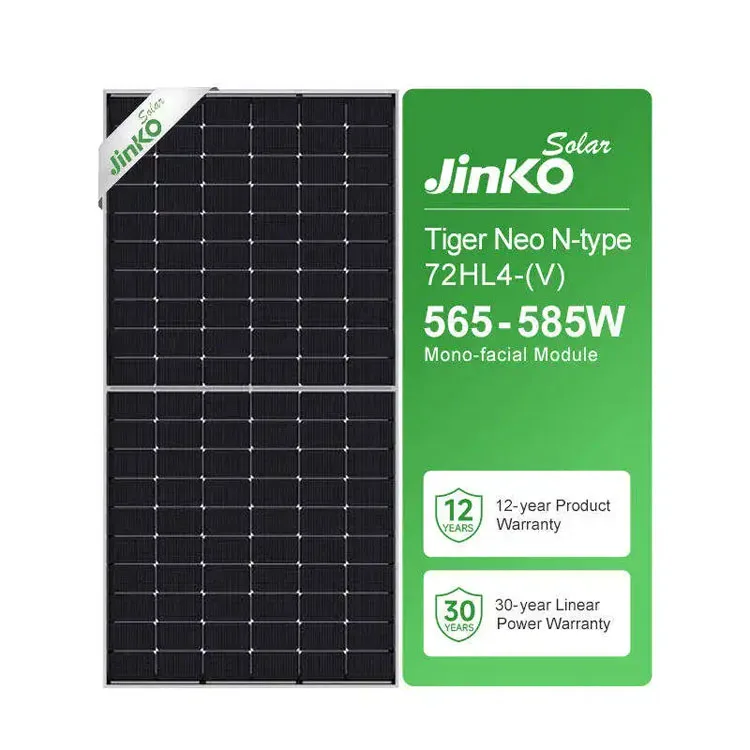

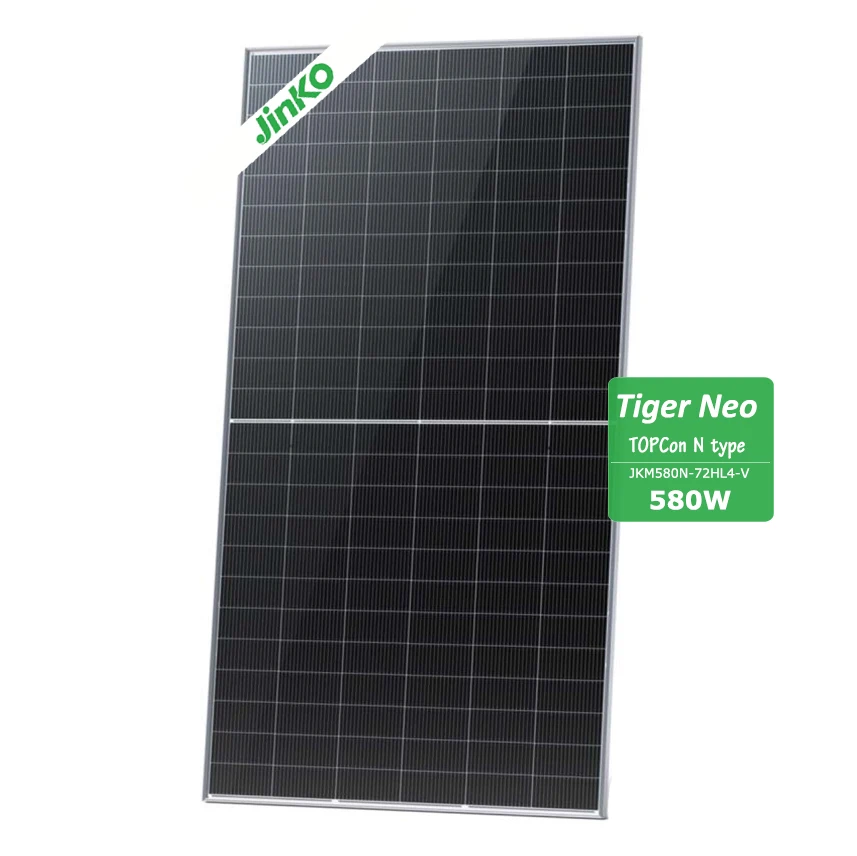

Солнечные панели уровня 1 Jinko solar Tiger Neo N type JKM585N 72HL4 JINKO 580 Вт 585 590 N type полувековой солнечный модуль Topcon
- Категория: >>>
- Поставщик: Hefei Pinergy Solar Technology Co. Ltd.
Сохранить в закладки 1600720737170:
Описание и отзывы
Характеристики
Product Description

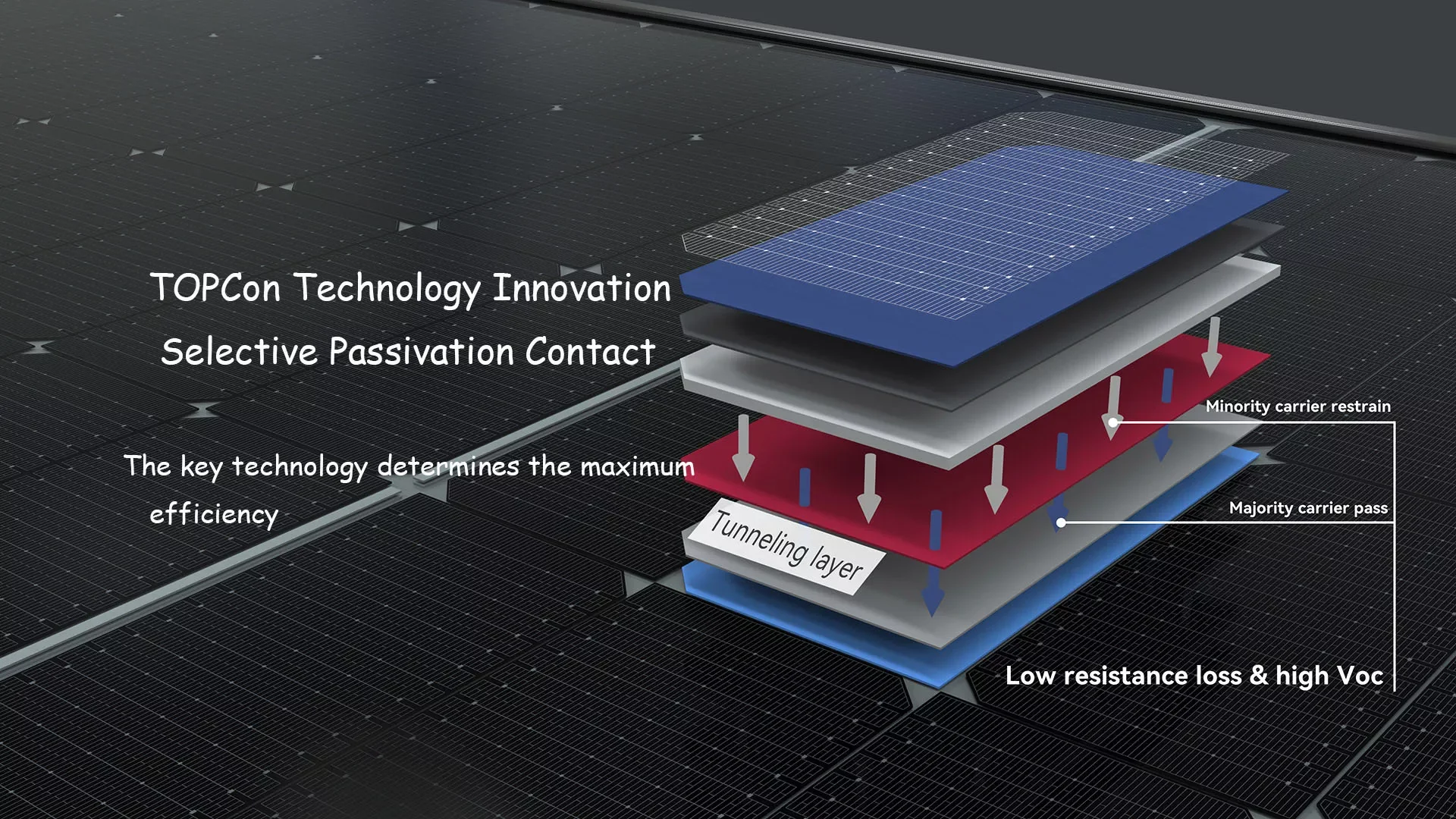

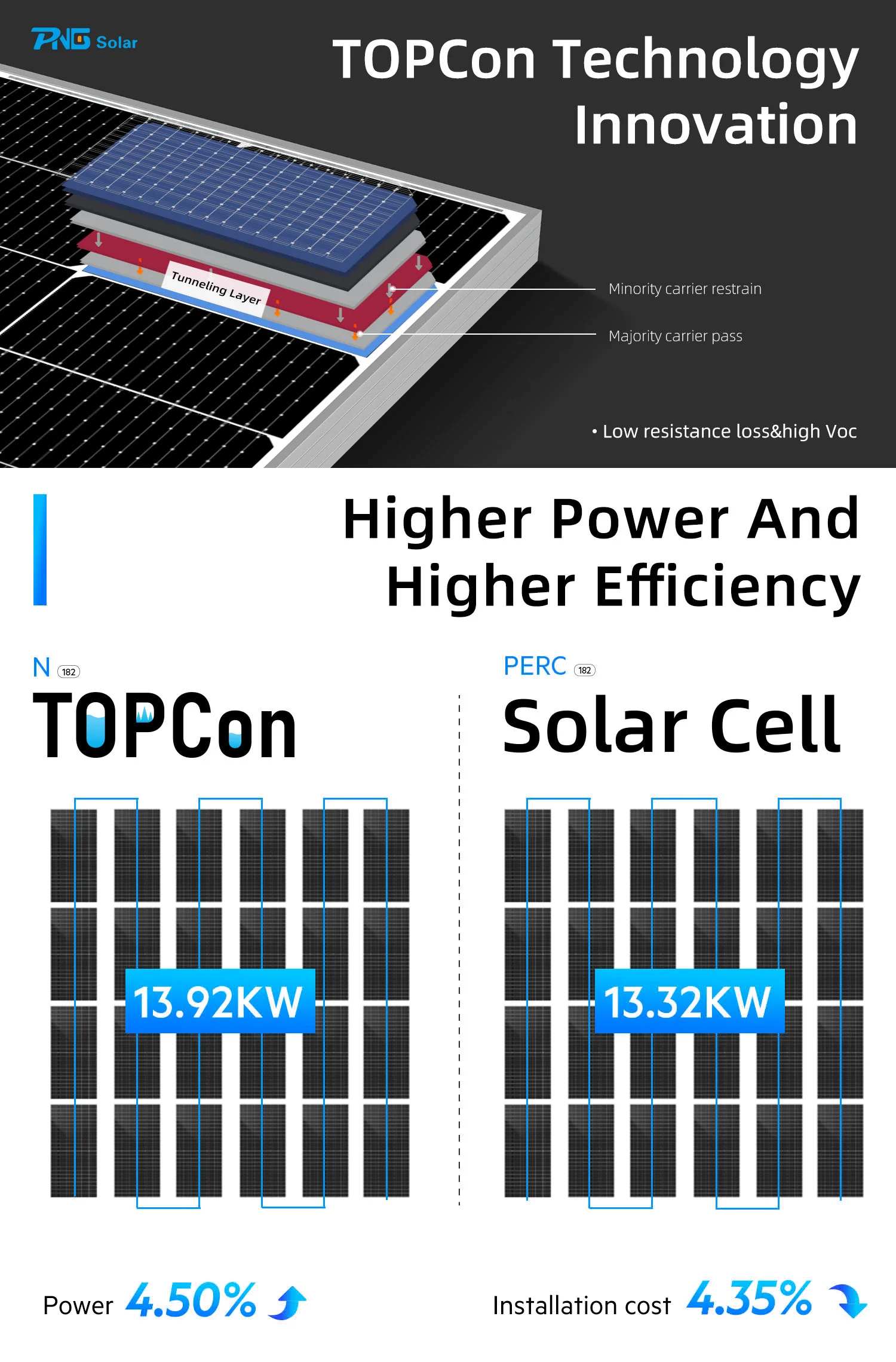

What are N-type solar ?
An N-type solar cell consists of a thin p-type silicon (doped with boron) layer over a much thicker n-type silicon (doped with phosphorus) layer. Electrical contacts are applied to both sides. The p-side is the front side facing the sun. It is given an antireflective coating, over which is pasted a clear adhesive (for instance EVA) which holds the front protective glass layer.
Currently most of the crystalline solar cells are p-type. This is because of a lower cost of production of p-type. The reasons are probably attributable to history of development of solar cells. But performance wise, n-type solar cells can give much better efficiency compared to p-type solar cells. Two main factors account for this. Firstly, p-type material has boron (trivalent) doping. In the presence of light and oxygen boron undergoes some undesirable action, which reduces efficiency of conversion. This is called Light Induced Degradation or LID.
Currently most of the crystalline solar cells are p-type. This is because of a lower cost of production of p-type. The reasons are probably attributable to history of development of solar cells. But performance wise, n-type solar cells can give much better efficiency compared to p-type solar cells. Two main factors account for this. Firstly, p-type material has boron (trivalent) doping. In the presence of light and oxygen boron undergoes some undesirable action, which reduces efficiency of conversion. This is called Light Induced Degradation or LID.
Specification
Module Type: JKMxxxN-72HL4-(V) | 570 | 575 | 580 | 585 | 590 | ||||
Maximum Power (Pmax/w) | 570 | 575 | 580 | 585 | 590 | ||||
Maximum Power Voltage (Vmp/V) | 42.99 V | 43.17V | 43.35V | 43.53V | 43.71V | ||||
Maximum Power Current (Imp/A) | 13. 26A | 13. 32A | 13.38A | 13.44A | 13.50A | ||||
Open-circuit Voltage (Voc/V) | 51.99V | 52.30 | 52.50 | 52.70 | 52.90 | ||||
Short-circuit Current (Isc/A) | 13.89A | 13.95A | 14.01A | 14.07A | 14.13A | ||||
Module Efficiency STC (%) | 22.07 | 22.26 | 22.45 | 22.65 | 22.84 | ||||
Operating Temperature(°C ) | -40°C~+85°C | ||||||||
Maximum system voltage | 1500VDC (IEC) | ||||||||
Maximum series fuse rating | 25A | ||||||||
Power tolerance | 0~+3% | ||||||||
Temperature coefficients of Pmax | -0.29%/°C | ||||||||
Temperature coefficients of Voc | -0.25%/°C | ||||||||
Temperature coefficients of Isc | 0.045%/°C | ||||||||
Details
Glass
*Anti Reflective Glass*Self-cleaning function
*Module efficiency is increased by 2%
*Service life is as long as25years(30years optional)
*Translucency of normal luminance is increased by 2%
*Module efficiency is increased by 2%
*Service life is as long as25years(30years optional)
*Translucency of normal luminance is increased by 2%
Solar Cell
* Anti-PID
* Appearance Consistency
* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module
* Appearance Consistency
* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module
Frame
* Conventional frame
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and prolong service life
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and prolong service life

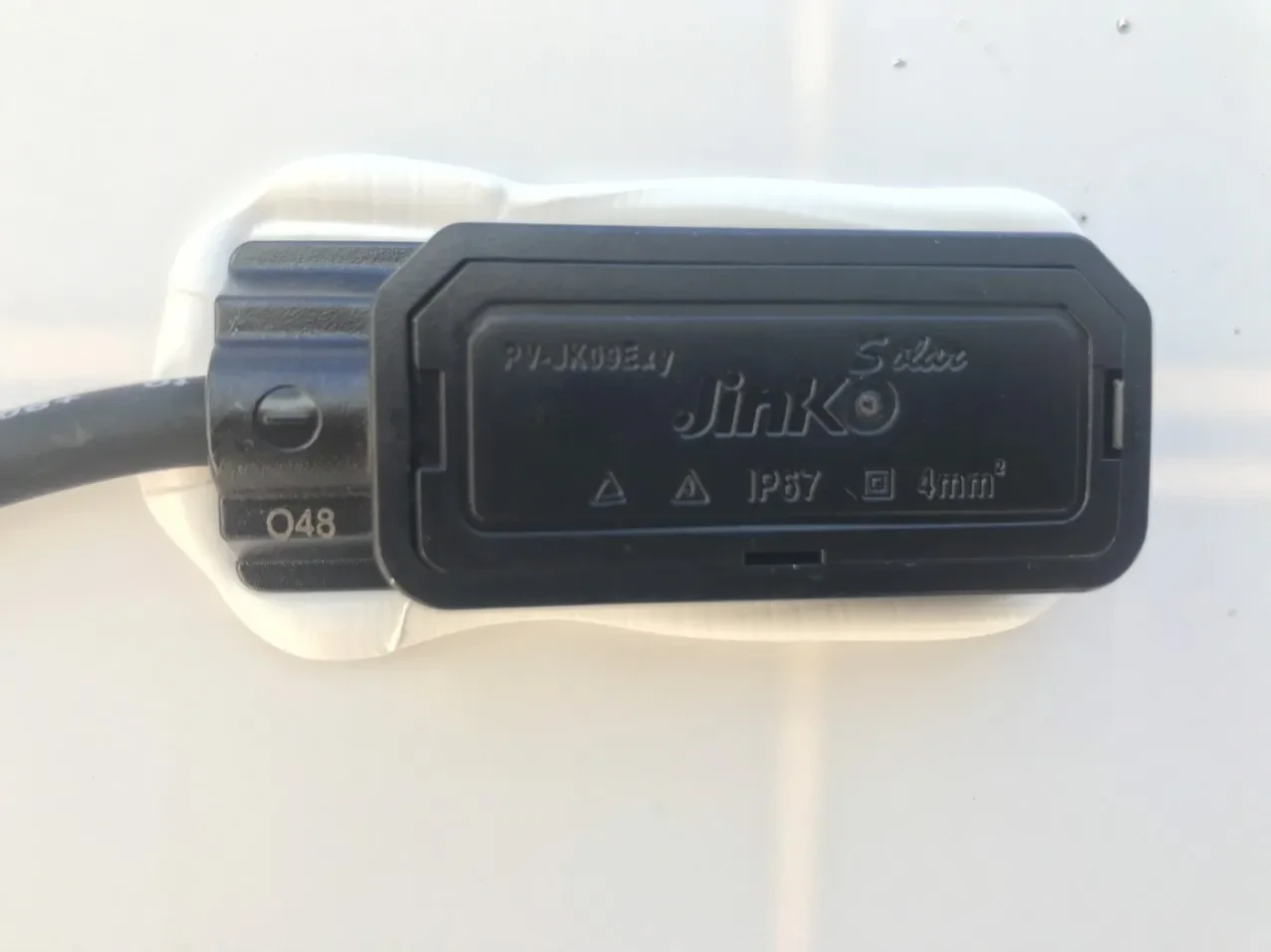

Junction box
*Heat dissipation
*Long service life
*IP68 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition
*Long service life
*IP68 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition

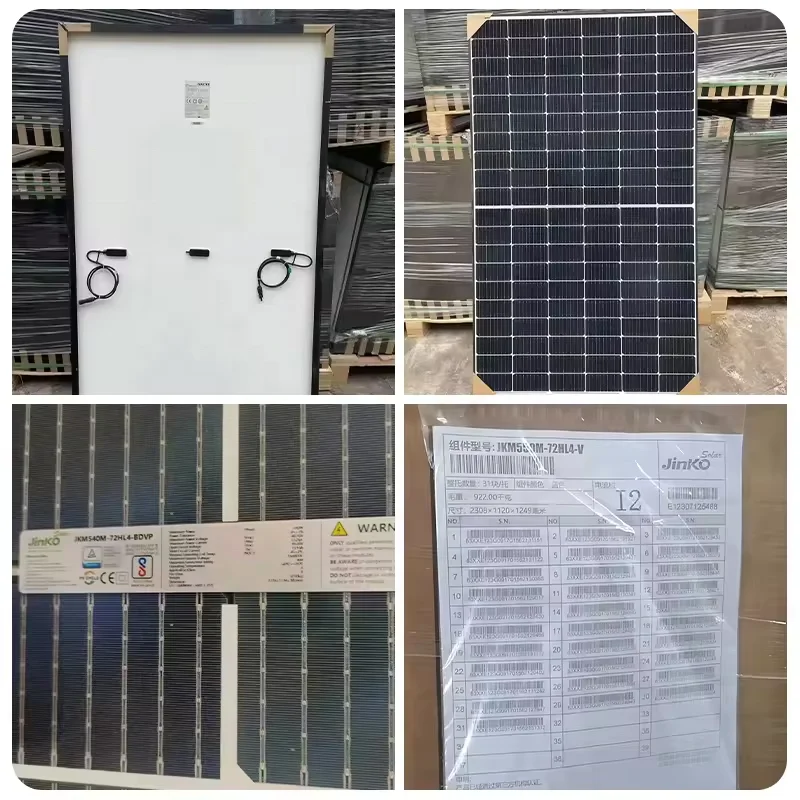

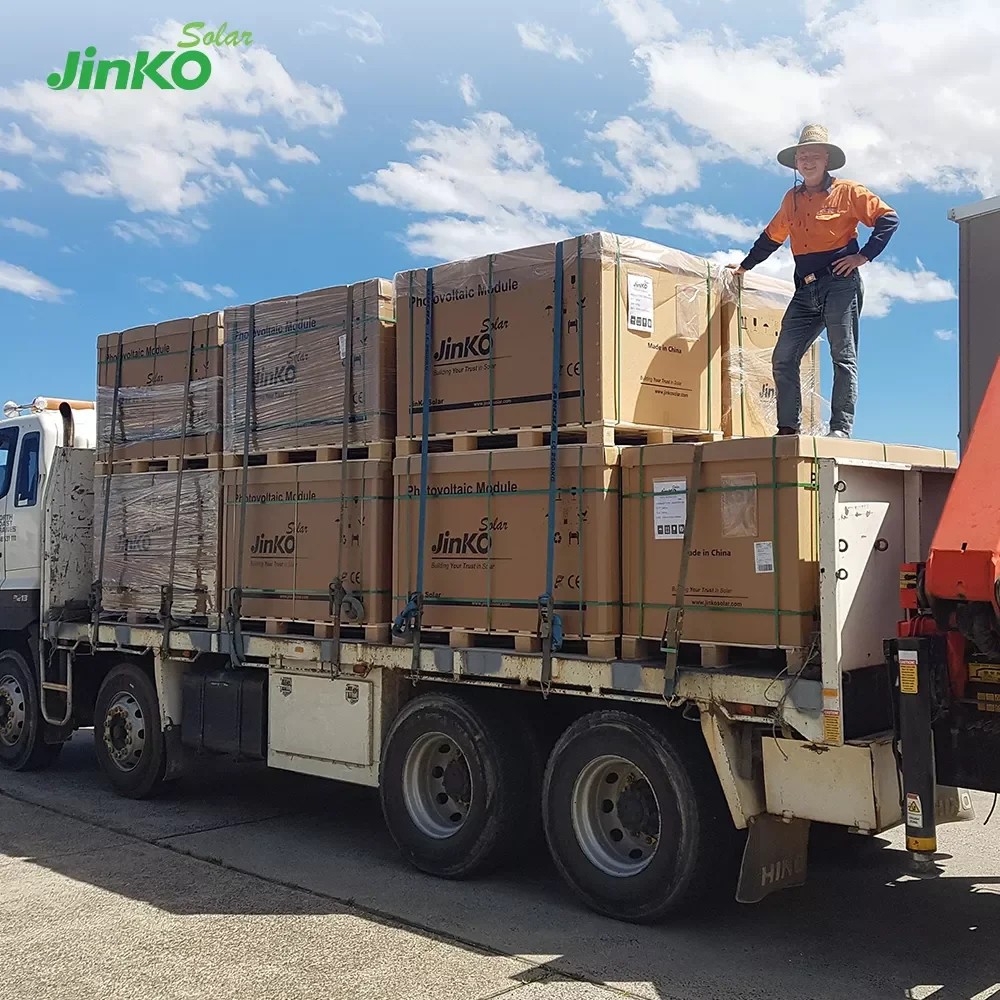

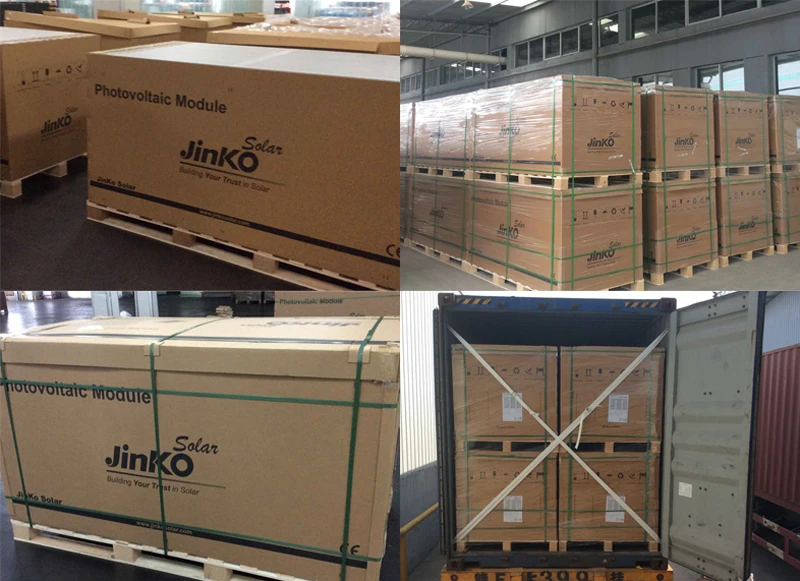

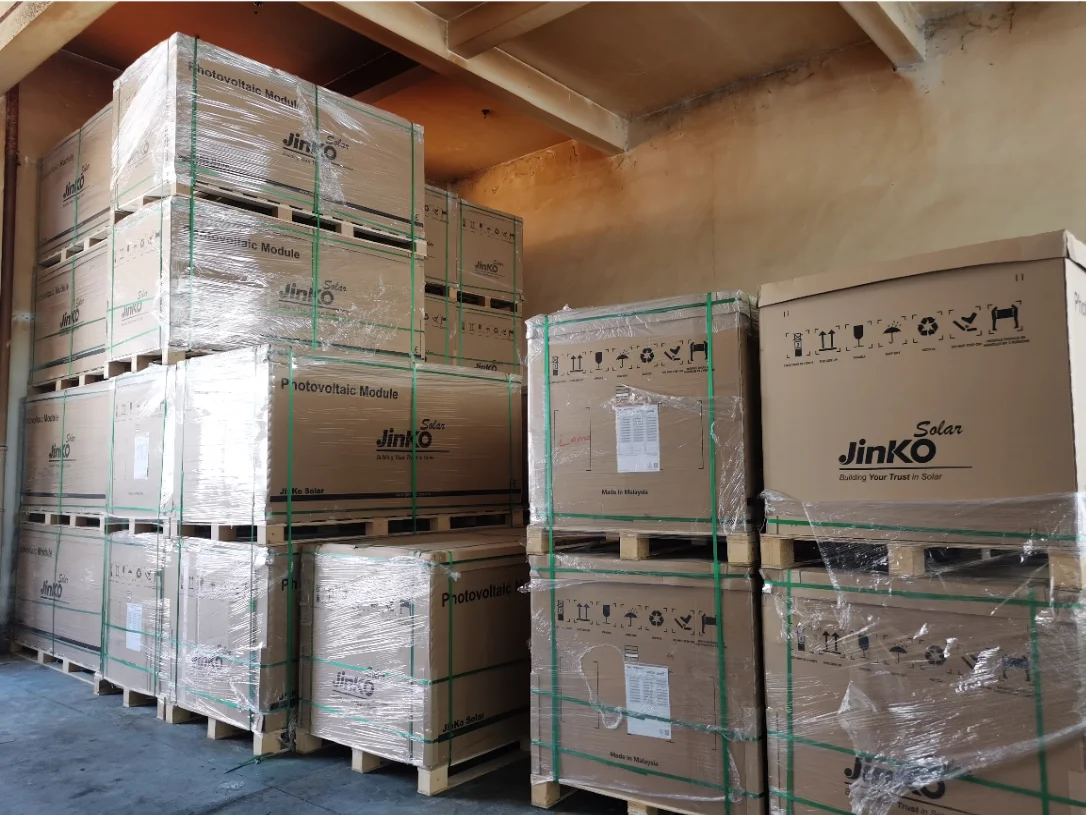

Packing & Delivery
PACKAGE CONFIGURATION | ||
Container | JKM575-590N-72HL4 | |
Pallet | 31PCS | |
40'HQ | 620PCS | |

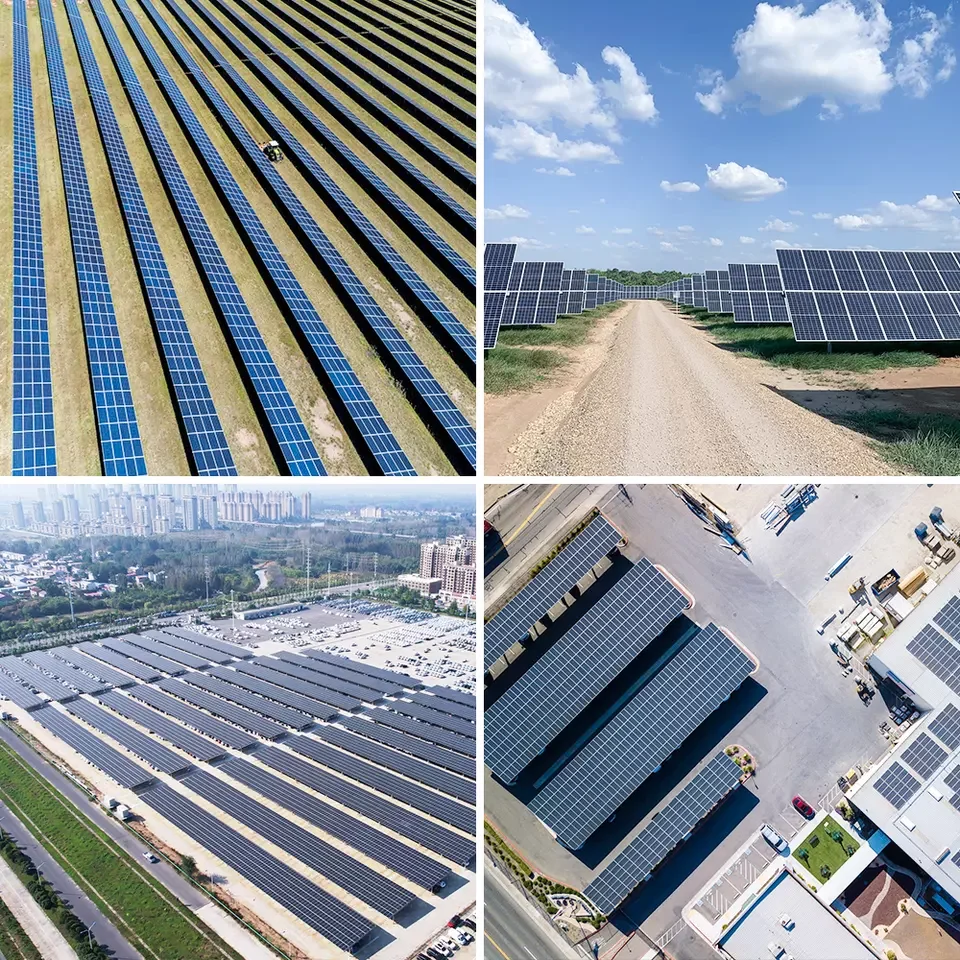

Project Show
300KW on grid solar power project in Thailand
1.5MW on grid solar power project in Hvidovre, Denmark.
15KW on grid solar power project in Vietnam
3MW solar farm project
The factory

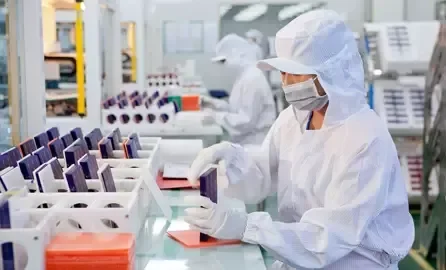

100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.

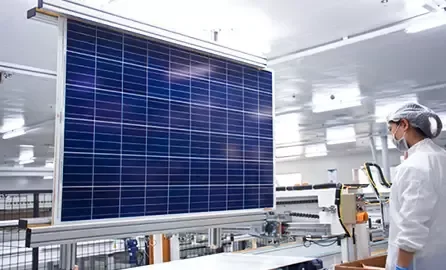

100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.

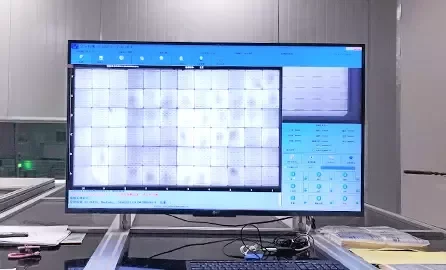

100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
Company Profile
Hefei Pinergy Solar Technology Co., Ltd is a professional and world-class manufacturer of PV modules. The business
covers the R&D, production and sales of PV modules, solar power plants and PV system products,and Ｏ＆Ｍ services, etc. We are located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. We are dedicated to making quality photovoltaic modules for global customers.
covers the R&D, production and sales of PV modules, solar power plants and PV system products,and Ｏ＆Ｍ services, etc. We are located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. We are dedicated to making quality photovoltaic modules for global customers.
FAQ
Q1:How to choose the right inverter?
A1: Tell us your demand, then our sales will recommend a suitable inverter for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
A1: Tell us your demand, then our sales will recommend a suitable inverter for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
Related Products
Похожие товары
Панели для солнечных батарей LONGi/Jinko/JA, 550 Вт, 535 мощностью 540 Вт, 550 Вт, моно-фотовспышка, 550 Вт, солнечная панель
8,68 ₽ - 10,85 ₽
Солнечная панель Jinko Tiger Neo N типа, моно 420 Вт, электрические солнечные панели Jinko для системы солнечной энергии
9,76 ₽ - 11,93 ₽
Jinko все черные солнечные панели 430 Вт 435 Вт монокристаллические Кремниевые Солнечные панели для жилых домов
10,85 ₽ - 13,02 ₽
Панель солнечных батарей типа Jinko Tiger Neo 620-645 N, 550 Вт, 580 Вт, 600 Вт, 630 Вт, 700 Вт, жилые двухфазные фотоэлектрические солнечные панели, в наличии
4 771,18 ₽ - 5 096,49 ₽
Солнечные панели Jinko/longi/Raw 580 585 590 TOPCon n type soolares 690 Вт 700 Вт монокристаллические двулицевые солнечные панели n типа
9,76 ₽ - 14,10 ₽
550 Вт 400 Вт монокристаллическая солнечная панель моно 2000 Вт 150 160 12 В 300 Вт 1000 Вт 5000 Вт 1 кВт одиночный Ампер выход 48 В 36 вольт 50 В
10,85 ₽ - 13,02 ₽

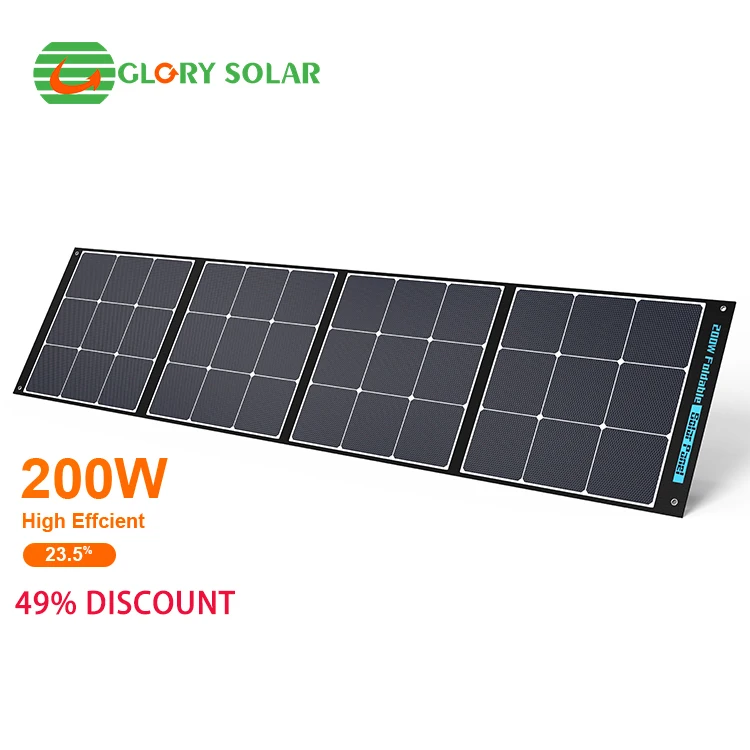

50% скидка Glory Солнечная 200 Вт ETFE портативная складная солнечная панель контейнер для наружного кемпинга
