Высокоэффективный твердосплавный концевой фрезерный станок с ЧПУ фреза 4 канавками
- Категория: >>>
- Поставщик: Xiamen HJ Carbide Technology Co. Ltd.Xiamen Ltd.
Сохранить в закладки 1600722780524:
Описание и отзывы
Характеристики
Specification

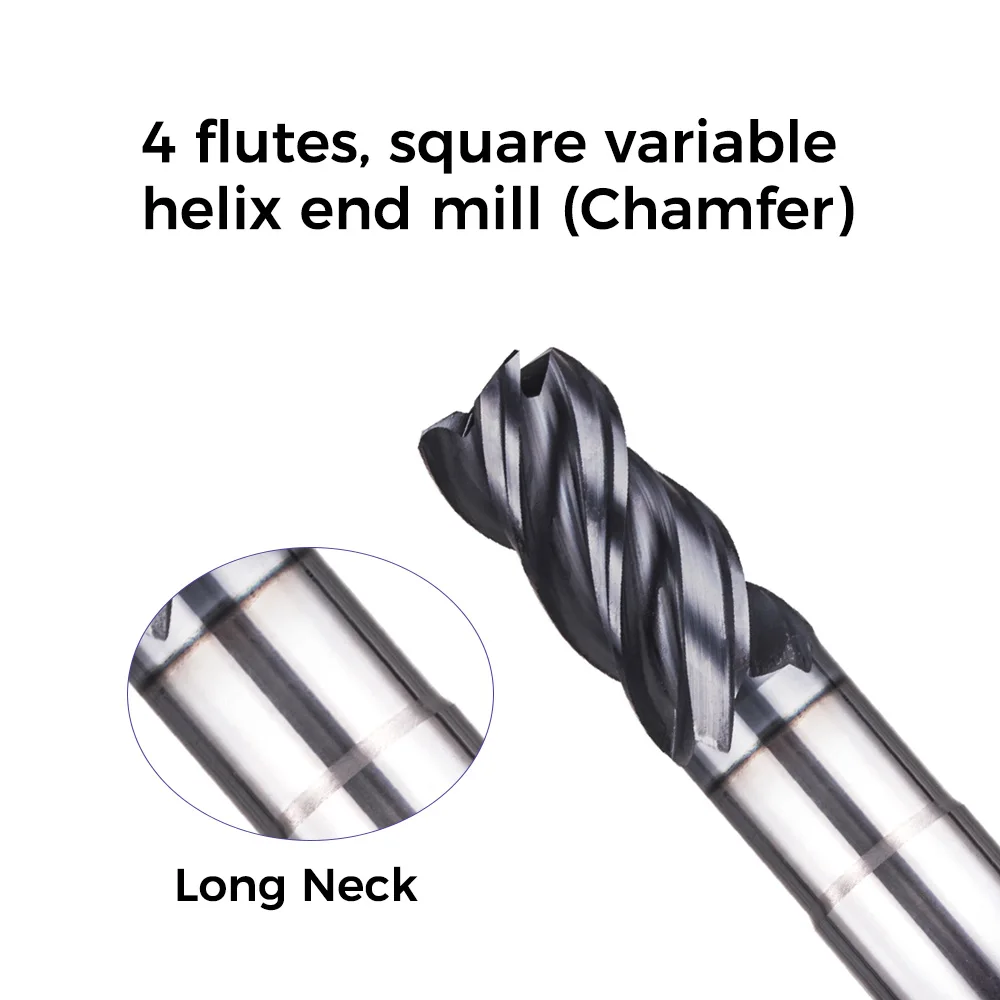

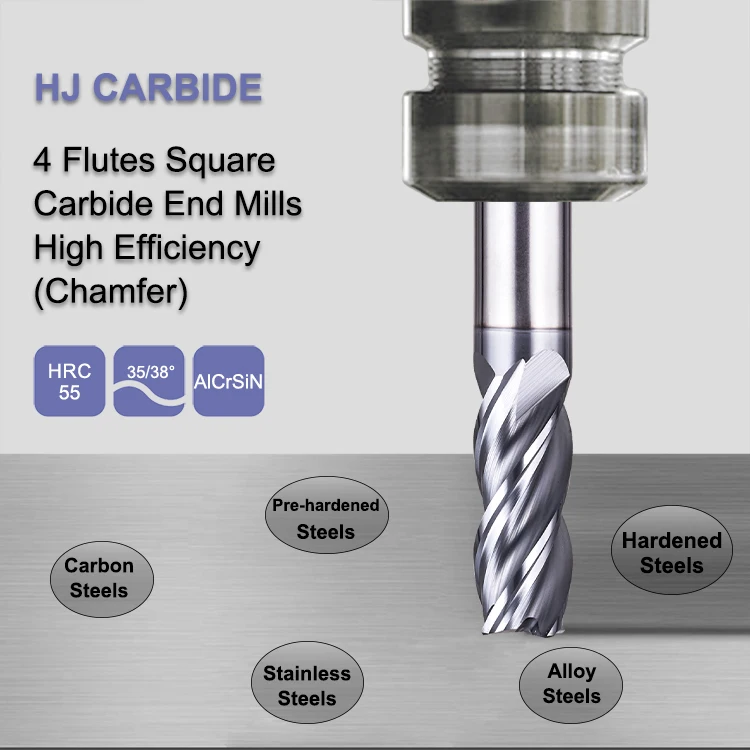

High Performance Solid Carbide End Mills, X Series
Wide Range of Applicable
The variable helix is designed by taking both tool strength and chip space into consideration, suitable for high-efficiency machining applications where large cutting depth and width are needed;
Different Milling Operations
Face milling with small ap (depth of cut) and large ae (width of cut);
Side milling with large ap (depth of cut) and small ae (width of cut);
Shallow slotting (less than 0.5D);
Superior Substrates and Coatings
Ultra-fine grained carbide substrates provide high wear resistance and hardness;
Self-developed AlCrSiN coatings are applied along with Balzers latest KiLA furnace;
Unique Cutting Edge Geometry
Variable pitch end mill utilizes unequal flute spacing, which enables vibrations to be suppressed;
Different Milling Operations
Face milling with small ap (depth of cut) and large ae (width of cut);
Side milling with large ap (depth of cut) and small ae (width of cut);
Shallow slotting (less than 0.5D);
Superior Substrates and Coatings
Ultra-fine grained carbide substrates provide high wear resistance and hardness;
Self-developed AlCrSiN coatings are applied along with Balzers latest KiLA furnace;
Unique Cutting Edge Geometry
Variable pitch end mill utilizes unequal flute spacing, which enables vibrations to be suppressed;

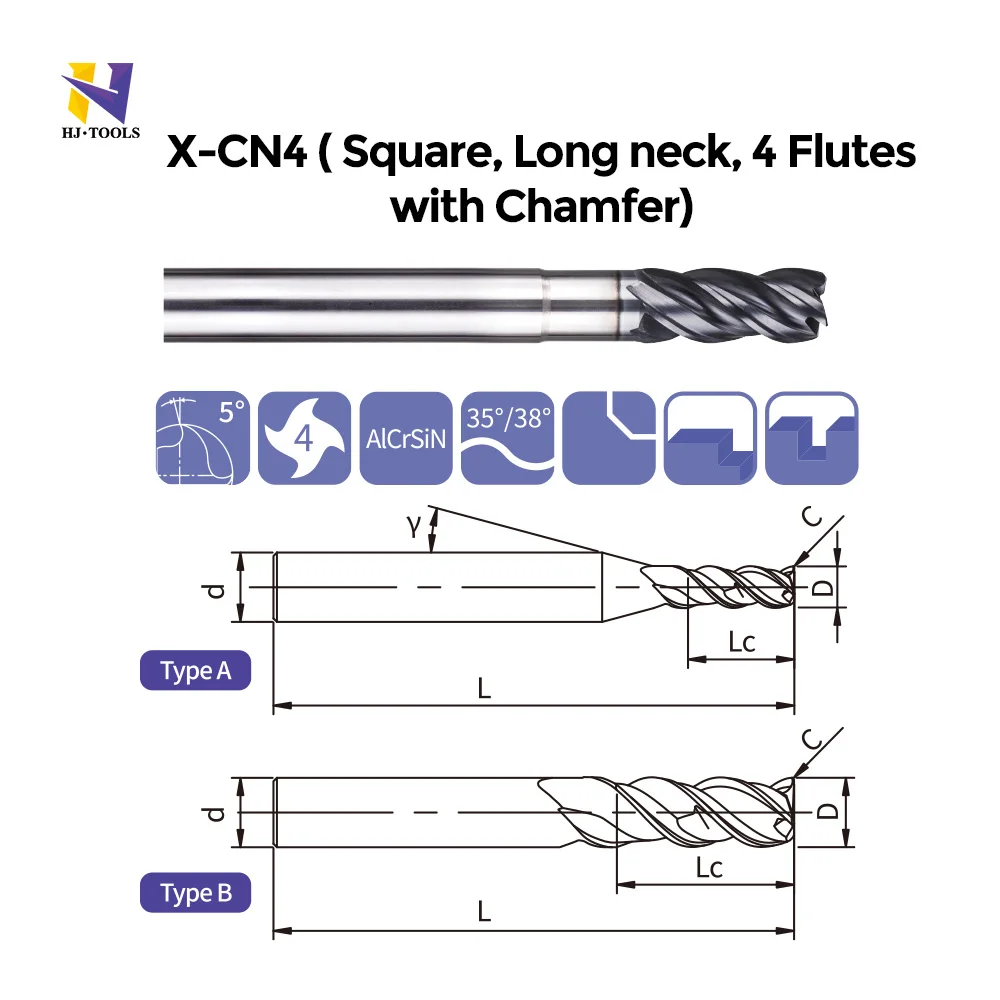

Order Code | Cutting Diameter (D) | Length of Cut (Lc) | Neck Length (L1) | Neck Diameter (d2) | Chamfer (C) | Overall Length (L) | Shank Diameter (d) | Type |
X-CN4-03013 | 3 | 10 | 18 | 2.9 | 0.13 | 75 | 4 | A |
X-CN4-04018 | 4 | 12 | 20 | 3.8 | 0.18 | 75 | 4 | B |
X-CN4-05020 | 5 | 15 | 35 | 4.8 | 0.2 | 75 | 6 | B |
X-CN4-06020 | 6 | 16 | 24 | 5.8 | 0.2 | 100 | 6 | B |
X-CN4-08020 | 8 | 20 | 30 | 7.5 | 0.2 | 100 | 8 | B |
X-CN4-10030 | 10 | 25 | 40 | 9.5 | 0.3 | 150 | 10 | B |
X-CN4-12030 | 12 | 30 | 40 | 11 | 0.3 | 150 | 12 | B |
X-CN4-16040 | 16 | 36 | 50 | 15 | 0.4 | 150 | 16 | B |
X-CN4-20050 | 20 | 45 | 60 | 19 | 0.5 | 150 | 20 | B |
Recommend Products
Company Profile
HJ Carbide is a high-tech enterprise integrating R&D, production and sales. Expert in the ultrafine cemented carbide research and development.
We specialized in designing and manufacturing of precision cutting tools, including cemented carbide rods, Solid Carbide end mill cutter, carbide drill bits, carbide turning inserts and some special precision cutting tools.
Our company is based on our firm commitment to providing the premium cutting tools and highest levels of customer service for global customers in the aerospace, automotive, medical, mold making and 3C industries who are looking
for comprehensive cutting tool solutions.
Coupled with a range of advanced manufacturing equipment, streamlined processes and testing devices, our team of seasoned professionals is large enough to produce the cutting tools to an exceptionally high standard. All our cutting tool products are ISO9001 and OHSAS18001 compliant. The reliable quality of products is highly appreciated by our customers worldwide.
Whether you are a distributor looking for cooperative partner or an end user looking for custom cutting tools for your specific machining applications, We are a trustworthy source for you.
We specialized in designing and manufacturing of precision cutting tools, including cemented carbide rods, Solid Carbide end mill cutter, carbide drill bits, carbide turning inserts and some special precision cutting tools.
Our company is based on our firm commitment to providing the premium cutting tools and highest levels of customer service for global customers in the aerospace, automotive, medical, mold making and 3C industries who are looking
for comprehensive cutting tool solutions.
Coupled with a range of advanced manufacturing equipment, streamlined processes and testing devices, our team of seasoned professionals is large enough to produce the cutting tools to an exceptionally high standard. All our cutting tool products are ISO9001 and OHSAS18001 compliant. The reliable quality of products is highly appreciated by our customers worldwide.
Whether you are a distributor looking for cooperative partner or an end user looking for custom cutting tools for your specific machining applications, We are a trustworthy source for you.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer?
A: Yes, We are a professional cutting tools manufacturer and has its own factory based in Xiamen. We produce in-house the carbide rods, end mills, drill bits, indexable inserts, etc.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We enter new cutting tool area with skilled personnel who have worked in industry-renowned companies for years, which found a basis for our future growth.
3) We have launched the new brand “HONGJIANG” for cutting tools and seek for partner globally. Now it is the right time to cooperate with us and take an advanced position in our sales network.
Q: What is your brand positioning?
A:1). Quality positioning: HONGJIANG brand aims at establishing itself as a leading brand and competing in a global market by supplying premium quality products.
2). Price positioning: We provide our products with the same quality as those international brands at more reasonable prices.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
A: Yes, We are a professional cutting tools manufacturer and has its own factory based in Xiamen. We produce in-house the carbide rods, end mills, drill bits, indexable inserts, etc.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We enter new cutting tool area with skilled personnel who have worked in industry-renowned companies for years, which found a basis for our future growth.
3) We have launched the new brand “HONGJIANG” for cutting tools and seek for partner globally. Now it is the right time to cooperate with us and take an advanced position in our sales network.
Q: What is your brand positioning?
A:1). Quality positioning: HONGJIANG brand aims at establishing itself as a leading brand and competing in a global market by supplying premium quality products.
2). Price positioning: We provide our products with the same quality as those international brands at more reasonable prices.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
Похожие товары

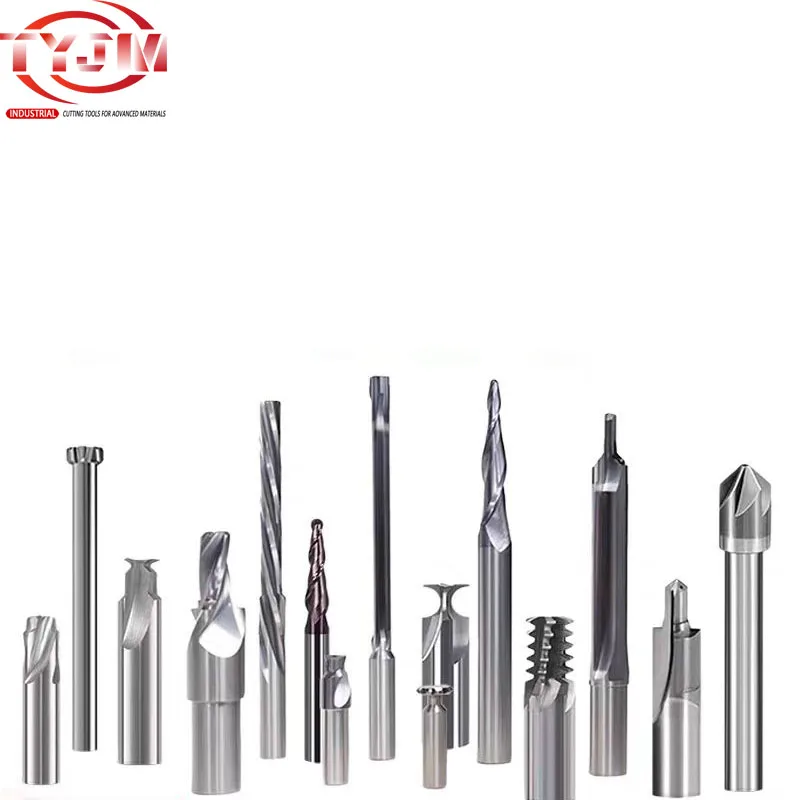

Пользовательские инструменты с ЧПУ прецизионные режущие твердосплавная Концевая фреза Заводская поддержка OEM ODM
108,77-145,02 ₽

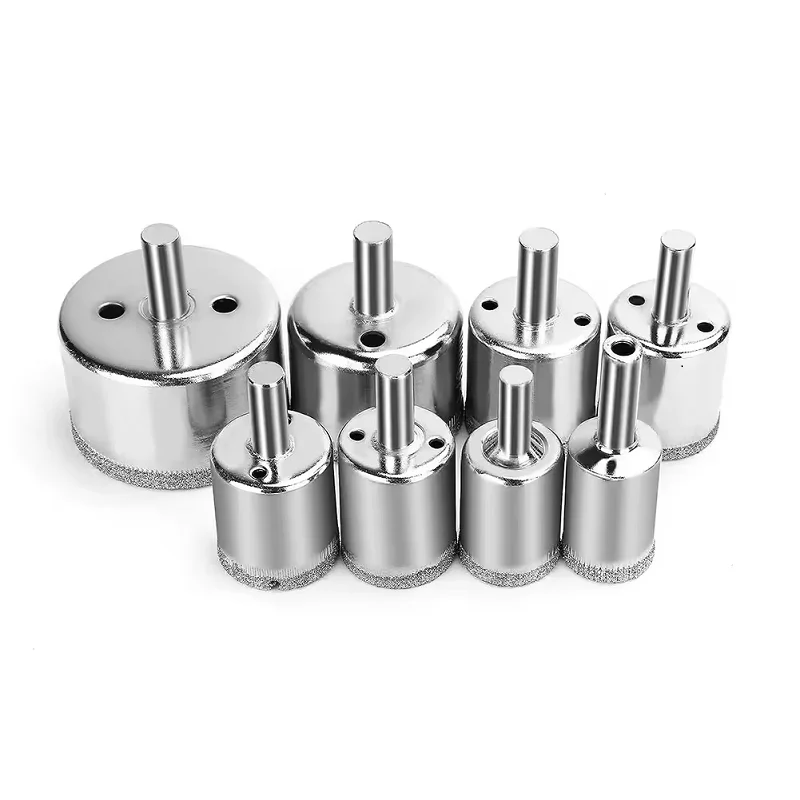

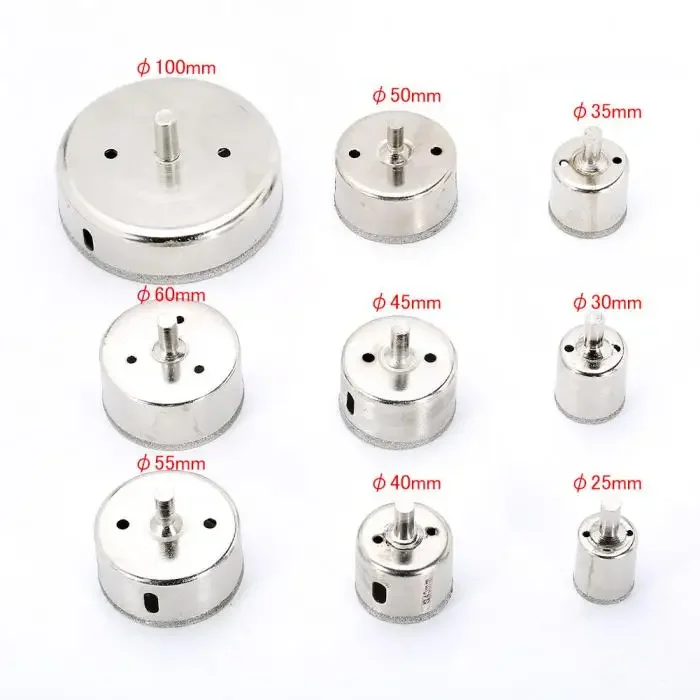

10 шт. сверлильный аппарат с алмазным покрытием 8-32 мм
10 шт./набор сверло для сверления стеклянной плитки
FH-6A детали для электроинструмента 6 шт. набор фрезов в деревянной коробке резки древесины
700,93 ₽
Фреза с угловым радиусом

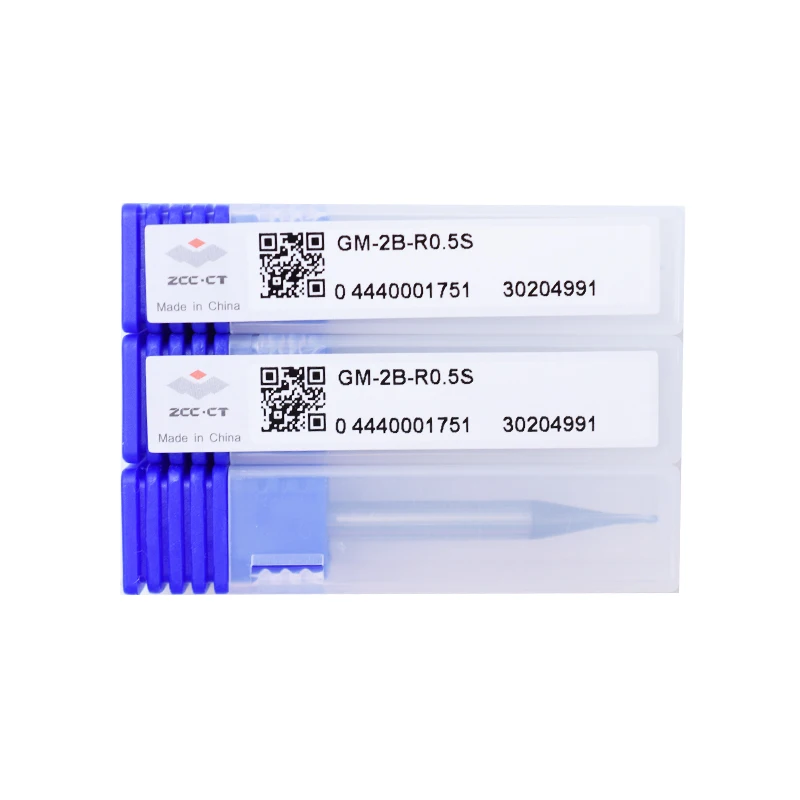

ZCC.CT фреза GM-2B-R0.5S Вольфрамовая вставка из карбида вольфрама торцевая станки с ЧПУ
