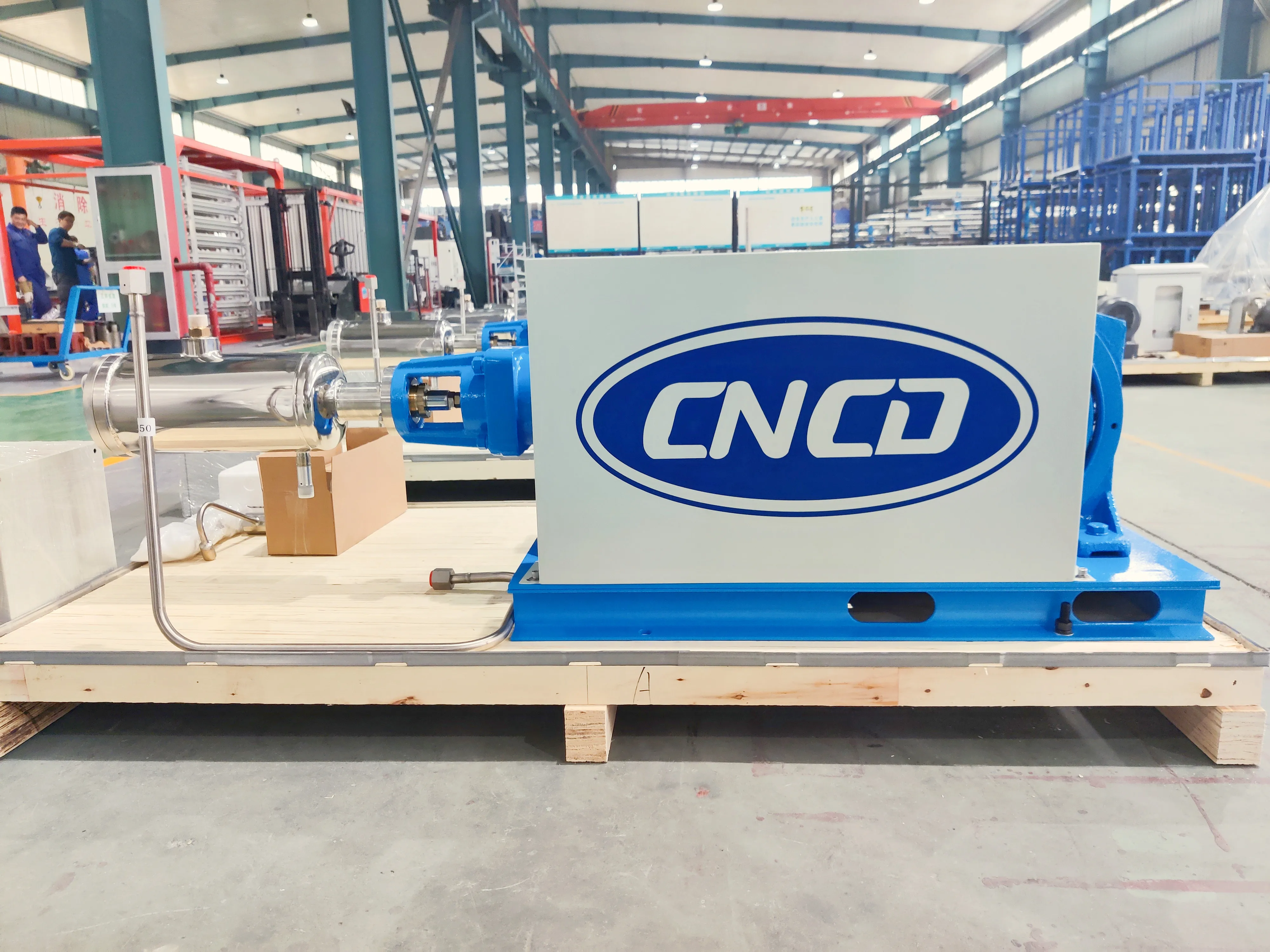

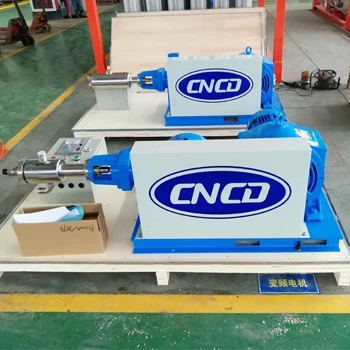

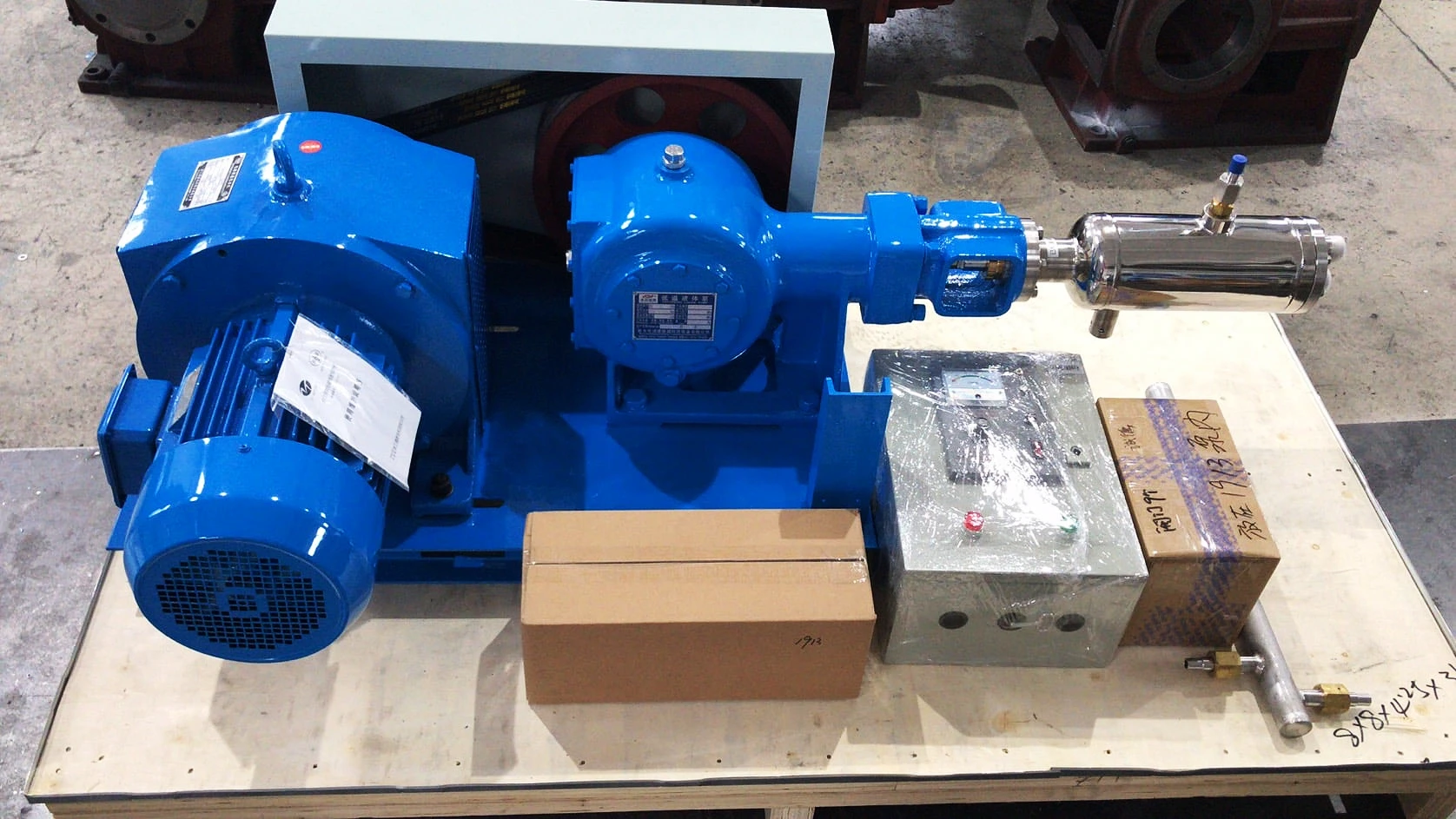

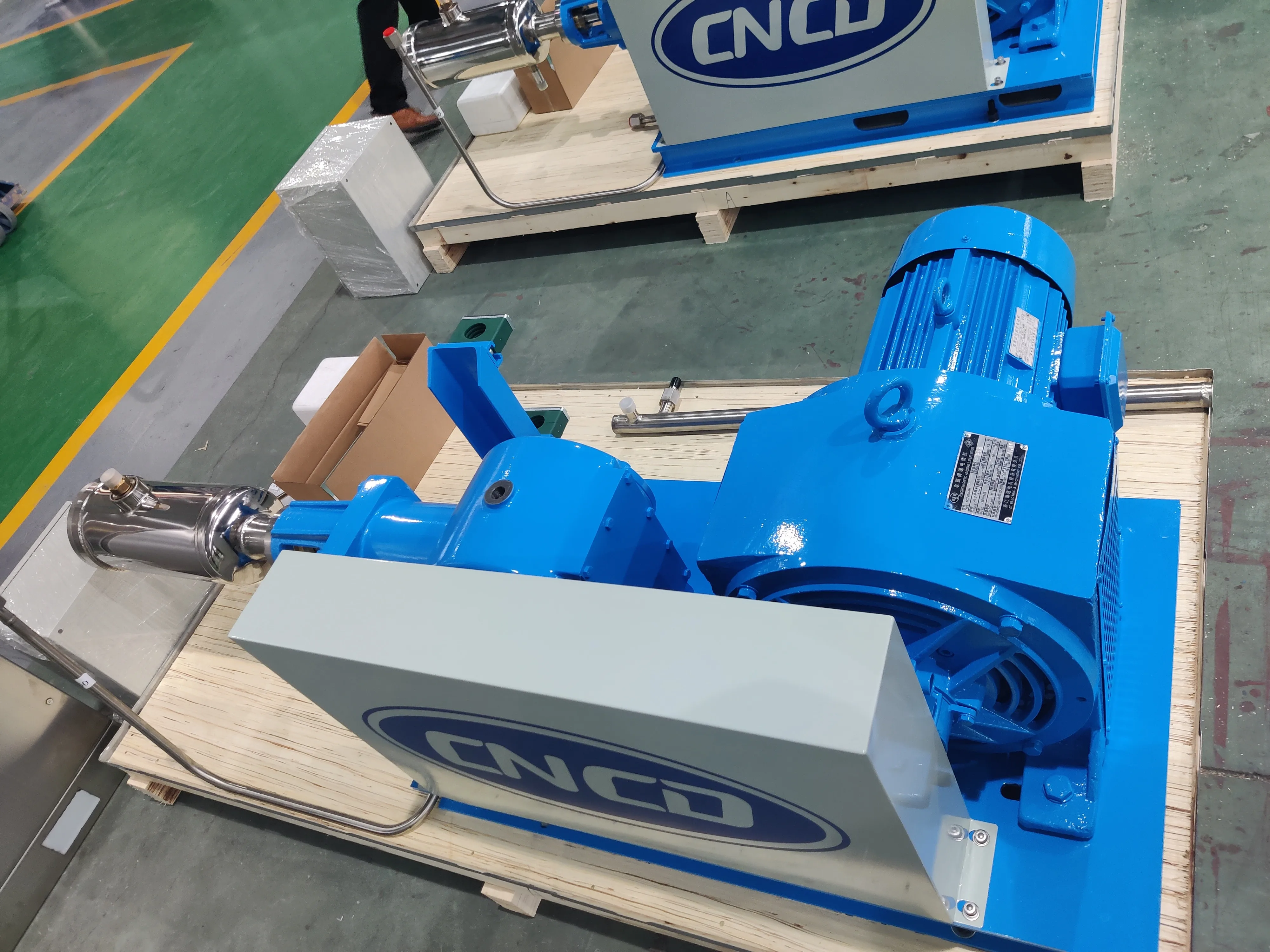

High Grade 300-600L/h 35MPa Liquid Nitrogen Horizontal Pump For Medical
This series of pump is based on the advanced technology in the world,design and manufactured with meticulousness.The pump has a stable performance, convenient operation and maintenance,start-up time is short,smooth operation and so on.Pump Head adopt high vacuum multilayer insulation,Reduce the cold damage the working medium,And the use of flow-through design,So that the pump can be started at the time without relief.The pump is suitable for liquid oxygen,liquid nitrogen, liquid argon filling system.
Its aim is to work in the cryogenic liquid storage tank after filling the cylinder supercharged vaporization, Simple design and careful manufacturing optimization ensures safe and reliable operation for a long time.
Technical Parameter:
Model | Flow (L/h) | Inlet pressure (MPa) | Max pressure (MPa) | Power (KW) | Medium transported | Product type |
BPO300-600/165 | 300-600 | 0.02-0.8 | 16.5 | 5.5 | Liquid oxygen Liquid nitrogen Liquid argon | Horizontal Singlecylinder Piston |
BPO300-600/200 | 20 | 7.5 | ||||
BPO300-600/250 | 25 | 11 | ||||
BPO300-600/350 | 35 | 15 |
Performance features:
1.A such pump has classic design and stableperformances; its service life can reach 20 years.
2.A high vacuum jacket pump head is used,and the vacuum degree reaches 10-5 torr so as to reduce cold loss.
3.lts seal is reliable: the service life of packing can each 150,000 times/cylinder and the service life of the piston ring is as long as 300,000 times/cylinder.
4.An auxiliary gas sealing device can be equipped to further enhance the service life of the sealing element.
5.Maintenance is convenient: it merely takes two hours to perform a routine maintenance.
6.The pump can be continuously operated for 24hours.

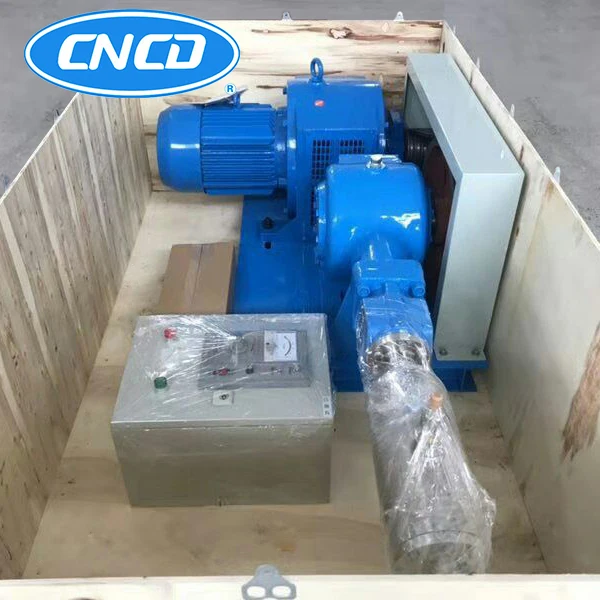

1.Standard export wooden box packing
2.Pallet
3.20ft /40ft container
4.Customer's Request
Xinxiang Chengde Energy Technology Equipment Co.Ltd(original Chengde Gas Equipment Co. Ltd.) was founded in 2002,company is located in Industrial Park,Fengquan district,Xinxiang city, Henan province.with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation.The company has been committed to the pressure vessels.Low-temperature cryogenic equipment and gas equipment in the field of research and development design manufacture and installation.
Our main products have cryogenic liquid storage tank,LNG storage tank,cryogenic liquid pump,ambient vaporizer, water bath vaporizer, LPG electric vaporizer,cryogenic liquid cylinders(VGL),cryogenic nitrogen dewar container,cryogenic liquid micro tank,ISO tank container,LPG storage tank,semi-trailer tank,air separation plant etc.Liquid oxygen,nitrogen,argon,carbon dioxide and other industrial gases complete equipment engineering;LNG refueling station,LNG vaporizing station,Storage station, peak regulating station complete sets of equipment engineering.
The company more than 30000 square meter for workshop.Our company have exported products to foreign countries more than 20 years have rich experience in production and exported,products have exported to more than 68 countries also have branch office in the Vietnam.
![]() | ![]() | ![]() |
