Гибкий водосточный желоб
351,30-394,79 ₽
Плоская гофрированная дренажная трубка из ПНД для гольфа зеленая и футбольная площадка Pipe X158 натуральной травы
- Категория: Other Plastic Building Materials >>>
- Поставщик: Act GroupAct Group
Сохранить в закладки 1600725663835:
Описание и отзывы
Характеристики
KEY words: corrugated flat pipe, flat drainage pipe, HDPE flat tube for drainage, quick response drainage pipe

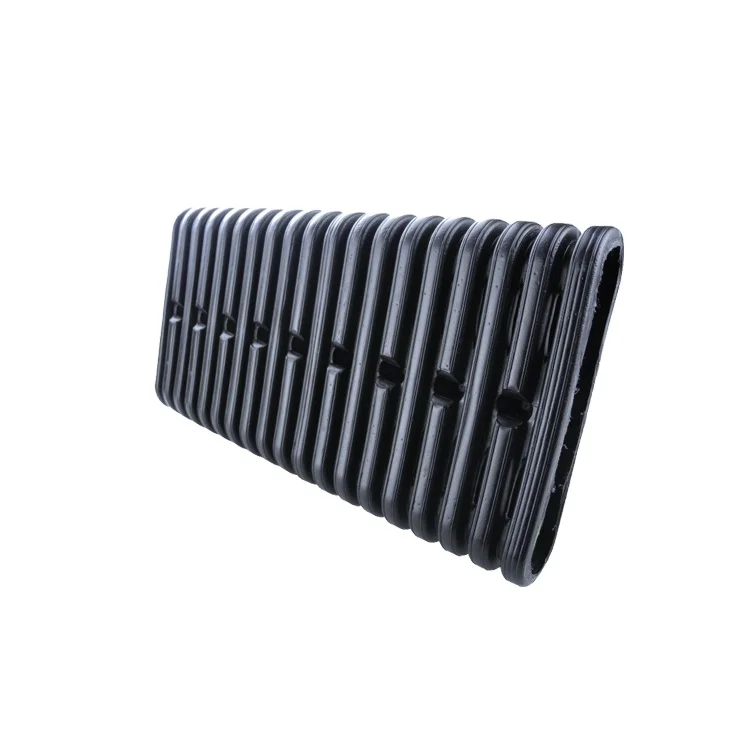

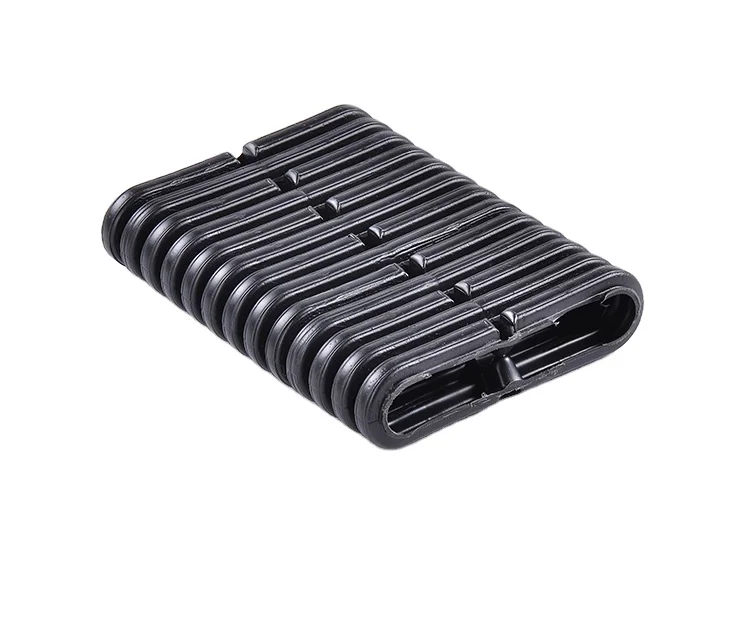

ACT Tube X158 flat drainage pipe offers quick drainage response and is ideal for time-critical applications such as high-traffic roads and track beds. Other popular uses include building foundation drainage, golf courses, athletic fields, airport runways, railroad truck ballast, and perimeter "curtain" drainage for landfills and leaching fields.
Corrugated Drainage flat pipe - QUICK RESPONSE drainage system for permeable subbase
ACT tube X flat pipe drainage system is an effective and dimensional stable solution for subsurface drainage, which can be used in a wide range of applications including sports field, golf green and fairway, highway engineering, airport, building foundation and retaining walls etc.
Material
Made from durable HDPE
The flat pipe is made from HDPE and slotted to allow rapid water infiltration and discharge. Lateral pillars give a significant
advantage in horizontal and vertical compressive strength. It is recognized as an effective and cost efficient alternative to
conventional round pipe drainage system.
advantage in horizontal and vertical compressive strength. It is recognized as an effective and cost efficient alternative to
conventional round pipe drainage system.
Structure
TUBE X158 is probably the most effective and consistent sub-surface drainage solution.
The flat pipe is made from HDPE and slotted to allow rapid water infiltration and discharge. Lateral pillars give a significant
advantage in horizontal and vertical compressive strength. It is recognized as an effective and cost efficient alternative to
conventional round pipe drainage system.
advantage in horizontal and vertical compressive strength. It is recognized as an effective and cost efficient alternative to
conventional round pipe drainage system.
Low installation cost
Lower installation cost in terms of trench excavation and backfill materials.

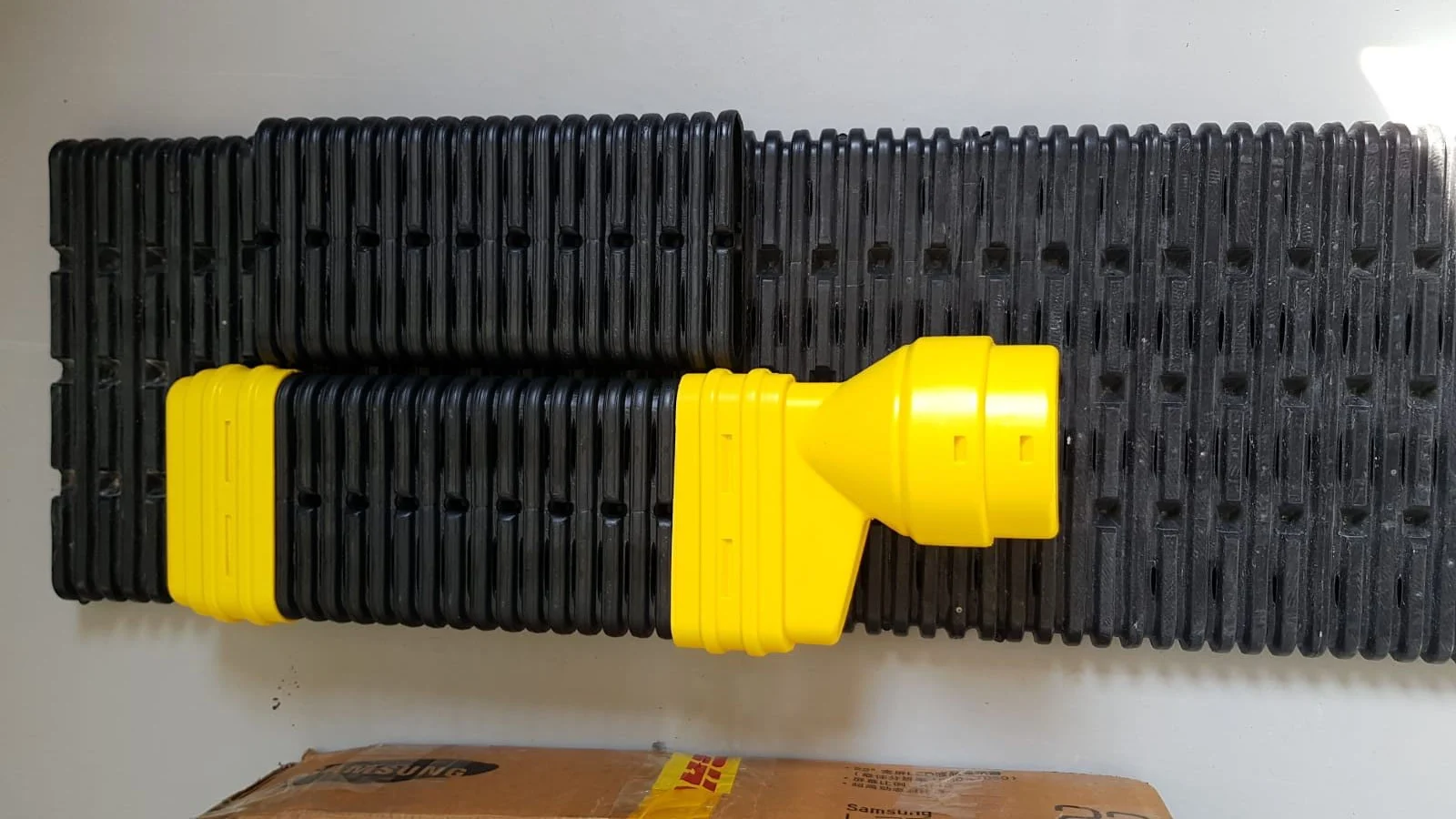

A complete system with all necessary fitting
We provide all necessary fittings that you need for the whole system including:
4-way joint

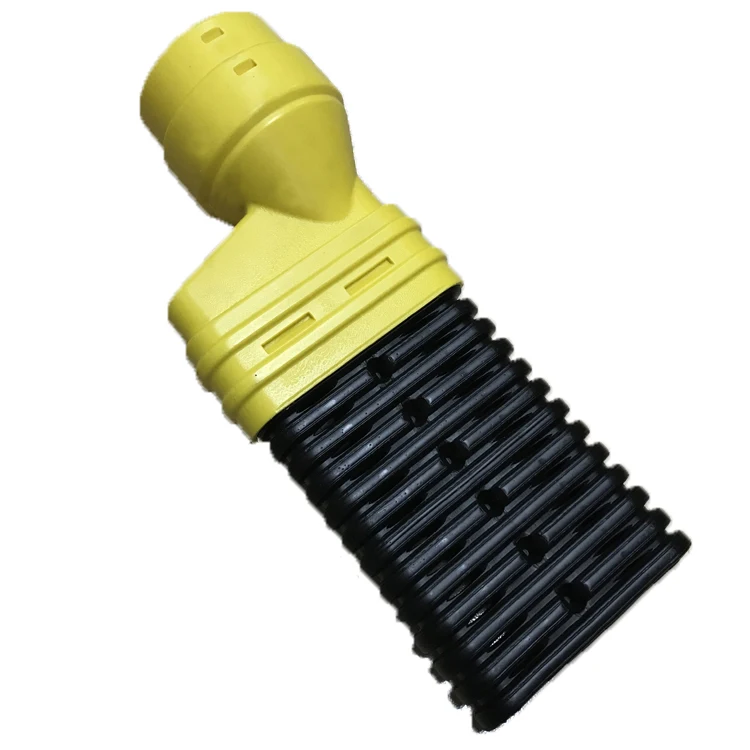

Outlet (connect to round tube)
End caps
Save labor cost during installation
Narrow or trenchess installation to guarantee the lowest installation labor cost as possible.
Application
Mining ;Retaining walls; Landfills; Sports fields;
Landscaping fields; Roadside edge drains
Golf courses
Landscaping fields; Roadside edge drains
Golf courses
Packing in coil
Flat drainage pipe is packed in coil to save up space. With loading capacity of up to 3300meter for one 20ft container, our flat pipe can save your cost from the begining.
optional non woven cloth
optional non woven cloth wrapped around the tube
TECHNICAL DATA | ||||||
Properties | Specifications | Unit | Standard | |||
Pipe Width | 158 | mm | ||||
Pipe Length | 100 | m | ASTM D2122 | |||
Pipe Height | 42 | mm | ASTM D2122 | |||
Slot Size | 3.0 × 25 | mm x mm | ASTM D2122 | |||
Horizontal Compressive Strength | > 200 | kPa | ASTM D2412 | |||
Vertical Stiffness (@5% deflection) | > 1000 | kN/m 2 | AS2439 | |||
Luxury soccer dugout NPY-VIP
Luxury soccer dugout with car seats
4 row aluminum bleacher NLP-4
Aluminum bleacher, 1-4 rows
Portable aluminum soccer goal LYM-732B
Aluminum goal post, 3 different regular sizes to provide
. You can source the below products from us with competitive price and superior quality:
1) Artificial grass for all types
2) Stadium seating, including:
1. plastic seats
2. bleachers
3. demountable grandstand
4. telescopic seating system
5. auditorium seats
3) Sports facilities
1. Soccer goal posts and trolleys
2. Tennis goal posts
4) Interlocking grass protection cover, sports flooring
5) Flat drainage pipe system
6) LED Sports Lights
Feel free to contact me from Alibaba.com for details.
1) Artificial grass for all types
2) Stadium seating, including:
1. plastic seats
2. bleachers
3. demountable grandstand
4. telescopic seating system
5. auditorium seats
3) Sports facilities
1. Soccer goal posts and trolleys
2. Tennis goal posts
4) Interlocking grass protection cover, sports flooring
5) Flat drainage pipe system
6) LED Sports Lights
Feel free to contact me from Alibaba.com for details.
For more details, please contact us by Alibaba.com
Похожие товары

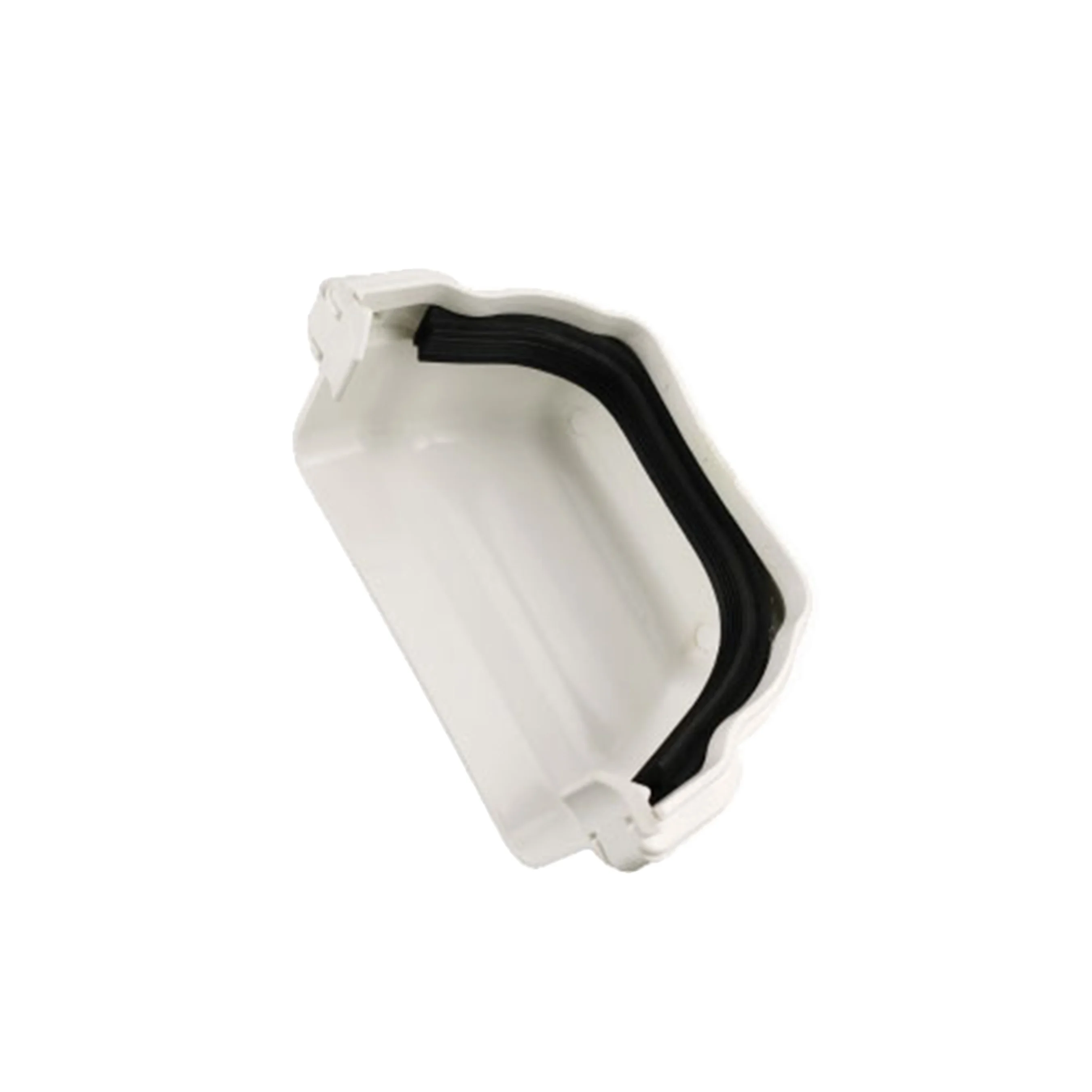

Пластиковый строительный материал ПВХ желоб 5 0 дюймов K-стиль Торцевая крышка
0,35-0,43 $
Пластиковый держатель для перчаток
70,26-76,96 ₽

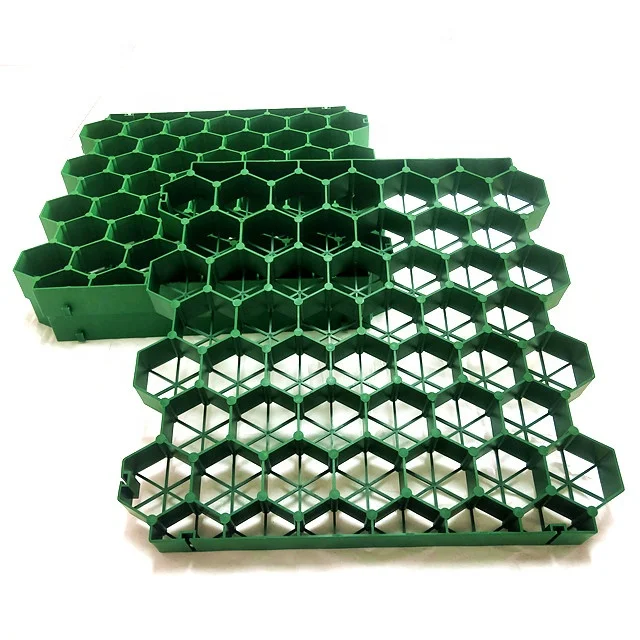

Гравия, подъездная дорожка, пластиковая травяная дорожка, сетка, цена для парковки
719,32-724,90 ₽
Высококачественный наружный дренажный канал линейная Крышка для водосточных труб
Краска пластиковые испытательная панель Высокое качество пластиковая прокладка для ПК factory-5mm
53,54 ₽
Заводская поставка, изготовление на заказ, водопроводная и дренажная оранжевая пластиковая трубка, cpvc труба, цена производителя
2 230,45 ₽

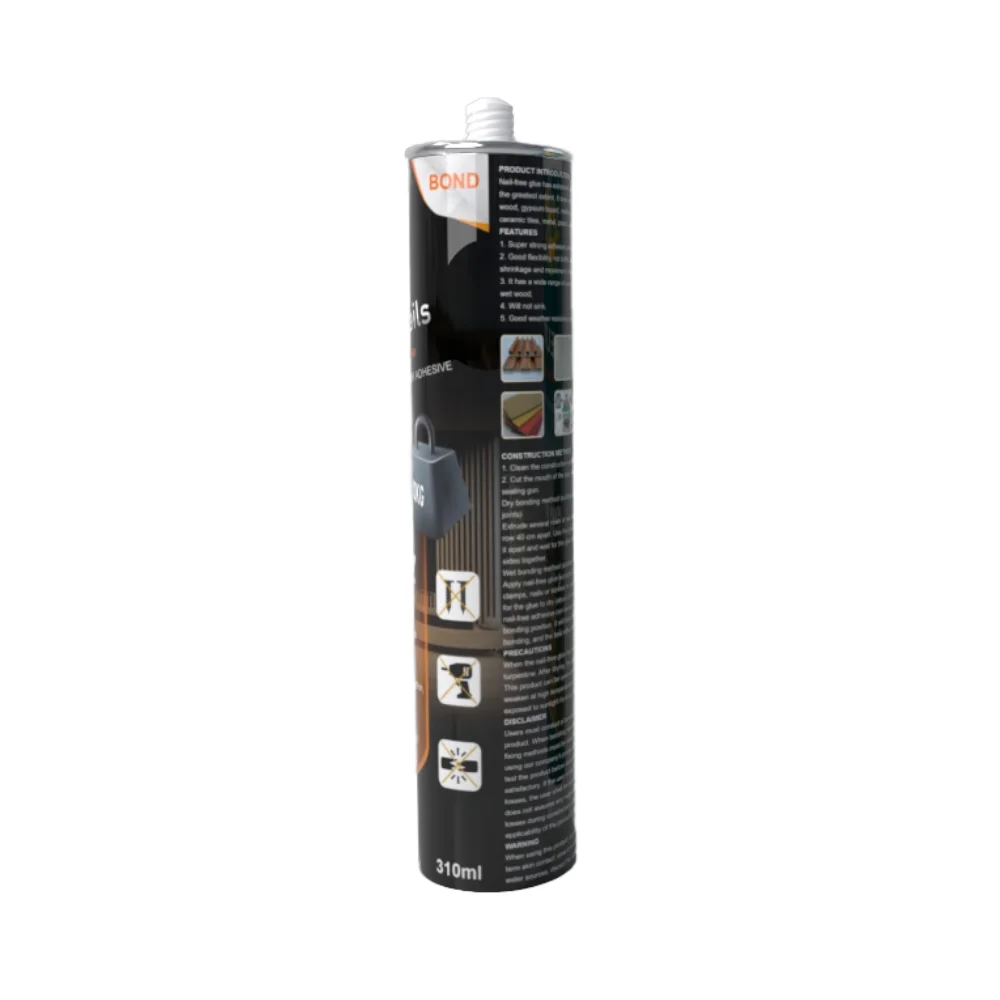

Экологически чистый и нетоксичный суперпрочный клей без гвоздей для строительства
