Термотрансферная машина для печати на футболках с ПЭТ-пленкой рулонная подача a3 + 3880 l805 l1800 dtf принтер чернилами epson
1 750,00 $

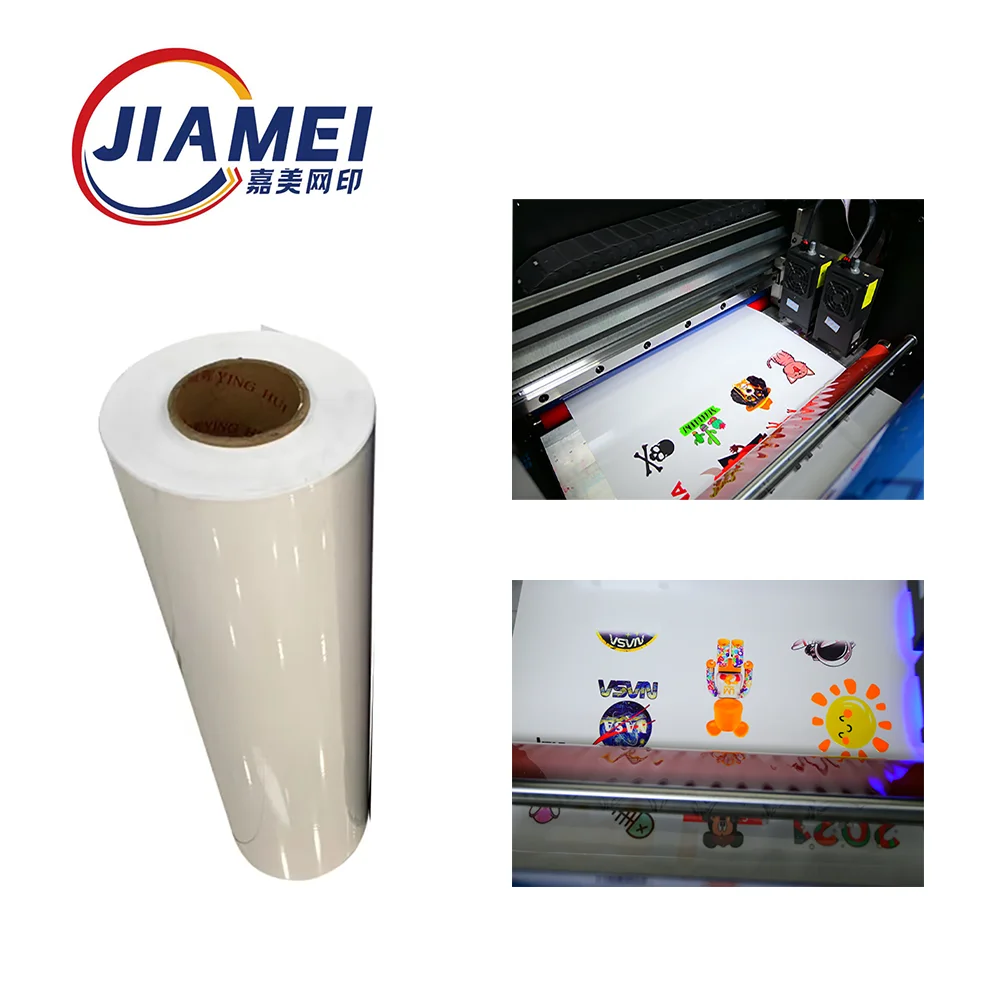

2023 Прямая продажа с завода рулон A3 для рулона UV DTF ПЭТ пленочный принтер пленки AB
- Категория: >>>
- Поставщик: Shenze Jiamei Screen Printing Equipment Co. Ltd.Shenze Ltd.
Сохранить в закладки 1600726193014:
Описание и отзывы
Характеристики
Product Description

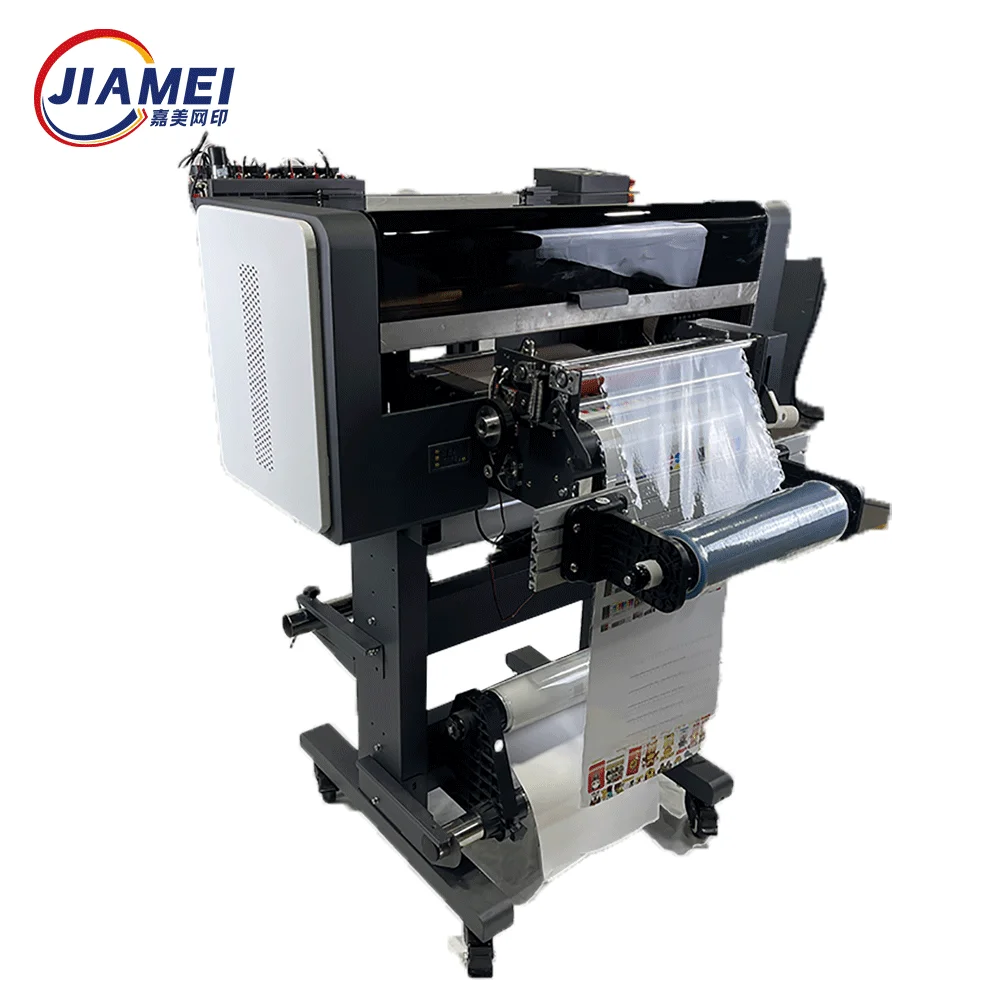

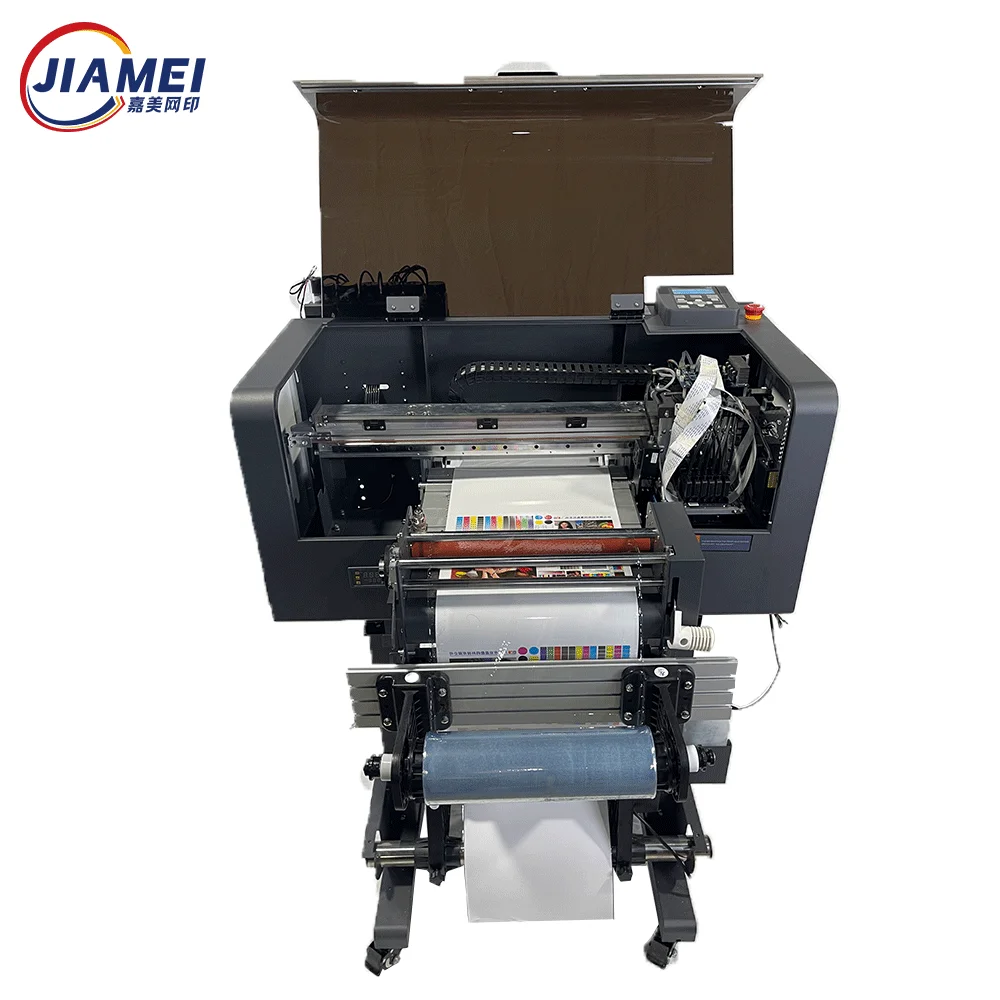

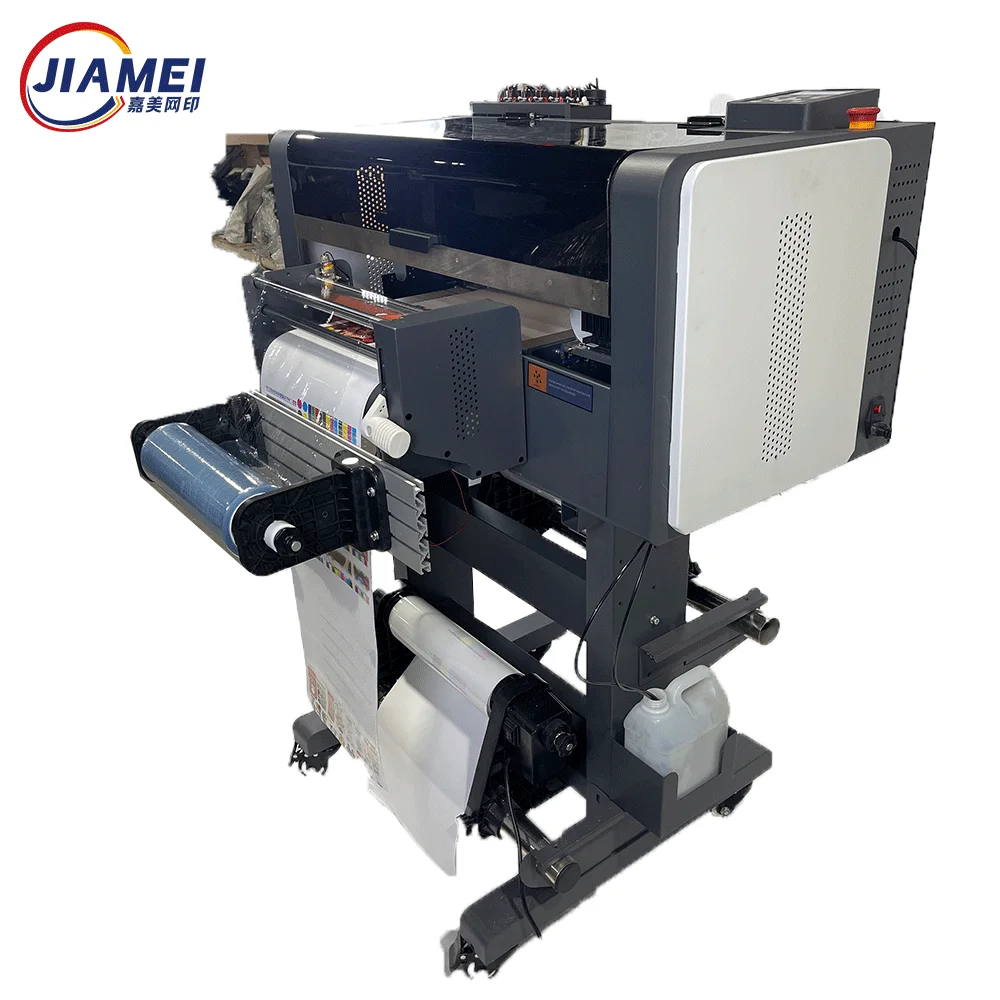

A3 roll to roll UV DTF printer with Laminator ALL IN ONE
The UV DTF printer is a uniquely designed printer, which uses the AB film as a carrier to print the pattern on the A film, and then attaches the B film through the laminating device, and the ink is quickly solidified by the UV lamp, so that our pattern printing is completed,
After that, the pattern is cut out by a cutting machine, the pattern is glued on the substrate, and the film is torn off to complete the printing.
It has simple printing steps, wide application, adjustable size, short time and good effect.
Mold | JM-UVDTFA3 | Power | 220V/110V |
Print head | 2 pcs espon XP600 | Color | CMYK+W+GL |
Printing speed | 2.5㎡/h | PCBA | Hansen |
Printing width | 30-33 cm | Software system | RIIN |
Printing Materials | AB film | Package size | 106*85*79 cm |
Ink type | UV ink | UV lamps power | 40-160W |
Product Feature
Automated Operations
In the process of using the printer, there will be no complex operation that we need to control.Automatically feed the A film,
Start the printing, Automatically laminating and collect finsh printed prints.Printing and laminating arecompleted at one time,
eliminating the laminating machine;
High Precision & Printing Speed
We can offer different printheads, Print faster and Manipulate easier.
Control Panel & Heating system & Vacuum platform
The control screen panel is easy to operate and understand.
The temperature can be adjusted manually.
The vacuum platform can fix the film, and the printing process is not offset.
After printing, automatic heating and pressure cover B film.
Intelligent ink detection
Hoson Main board, high precision, fast speed, bright and delicate printing screen
High precision motors and guides
We will provide you instant online support service and free repair service.
In the process of using the printer, there will be no complex operation that we need to control.Automatically feed the A film,
Start the printing, Automatically laminating and collect finsh printed prints.Printing and laminating arecompleted at one time,
eliminating the laminating machine;
High Precision & Printing Speed
We can offer different printheads, Print faster and Manipulate easier.
Control Panel & Heating system & Vacuum platform
The control screen panel is easy to operate and understand.
The temperature can be adjusted manually.
The vacuum platform can fix the film, and the printing process is not offset.
After printing, automatic heating and pressure cover B film.
Intelligent ink detection
Hoson Main board, high precision, fast speed, bright and delicate printing screen
High precision motors and guides
We will provide you instant online support service and free repair service.
the process of uv DTF printing:
The printing sequenceis: white ink-color ink-varnish;
2.Lamintoring to the Film B:

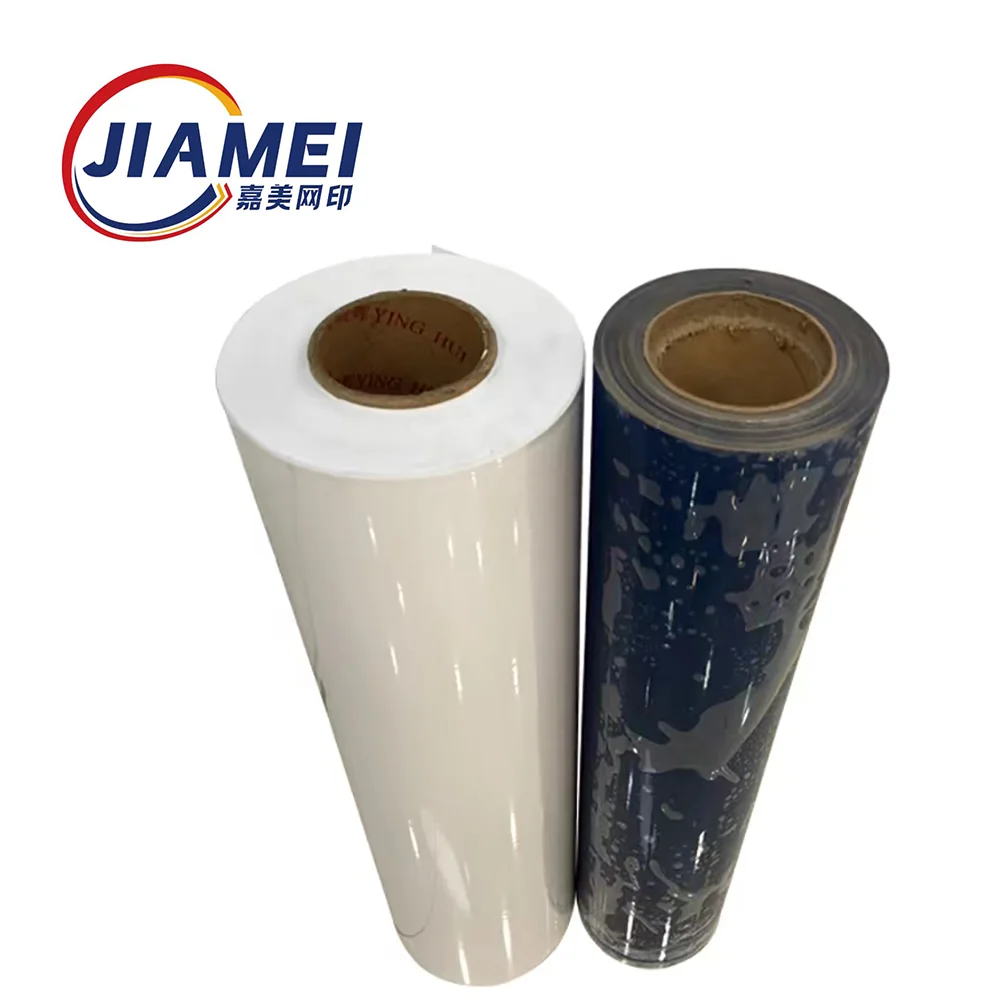

The B film is hung on the support of the laminator. When laminating, the matte surface must be
attached to the glue surface, otherwise it could not be take off.
The film temperature is 80 degrees, the slower the better.
3.Cut out the desired pattern and paste it on the material to be pasted.
4.Press the pattern repeatedly, slowly tear open the film,finished.
The B film is hung on the support of the laminator. When laminating, the matte surface must be
attached to the glue surface, otherwise it could not be take off.
The film temperature is 80 degrees, the slower the better.
3.Cut out the desired pattern and paste it on the material to be pasted.
4.Press the pattern repeatedly, slowly tear open the film,finished.
Product usage
The uv dtf printer has a printing device and a laminating device, and requires AB film as a printing carrier to ensure the entire printing process.
1. Printing patten with A film
2. Through the lamination device.pattern separation with B-membrane
3. Press the film and tear off film
2. Through the lamination device.pattern separation with B-membrane
3. Press the film and tear off film
Feedback from Clients
Похожие товары
Хит продаж белый термополиуретановый Полиамид DTF термоклей клей порошок для термопечати на футболке
10,00-14,00 $

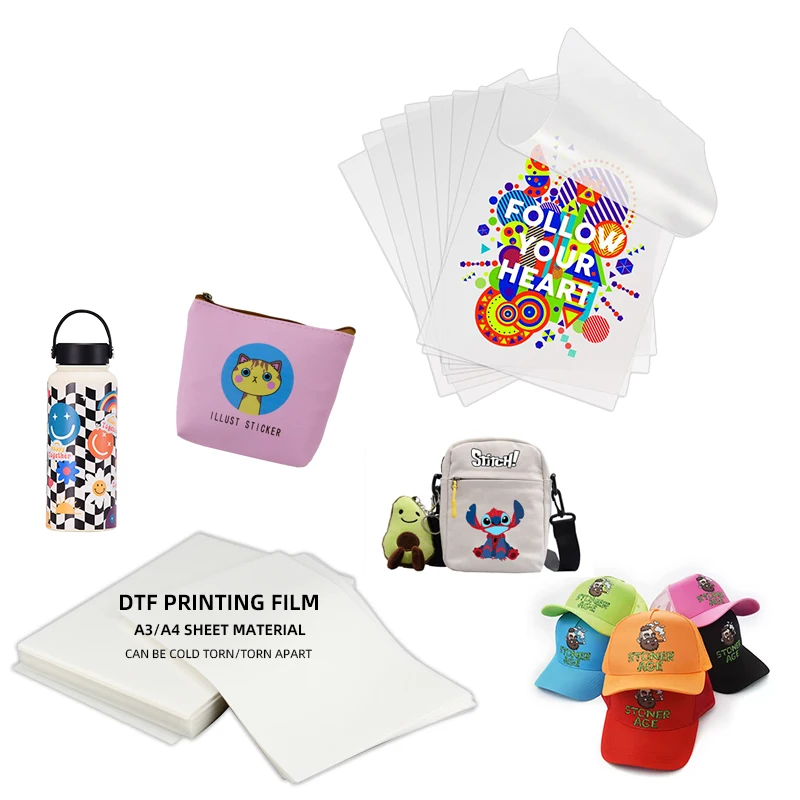

Силиконовая прозрачная пленка для ПЭТ/Пу А4 от производителя термопереводная ПЭТ-принтера
22,00-30,00 $

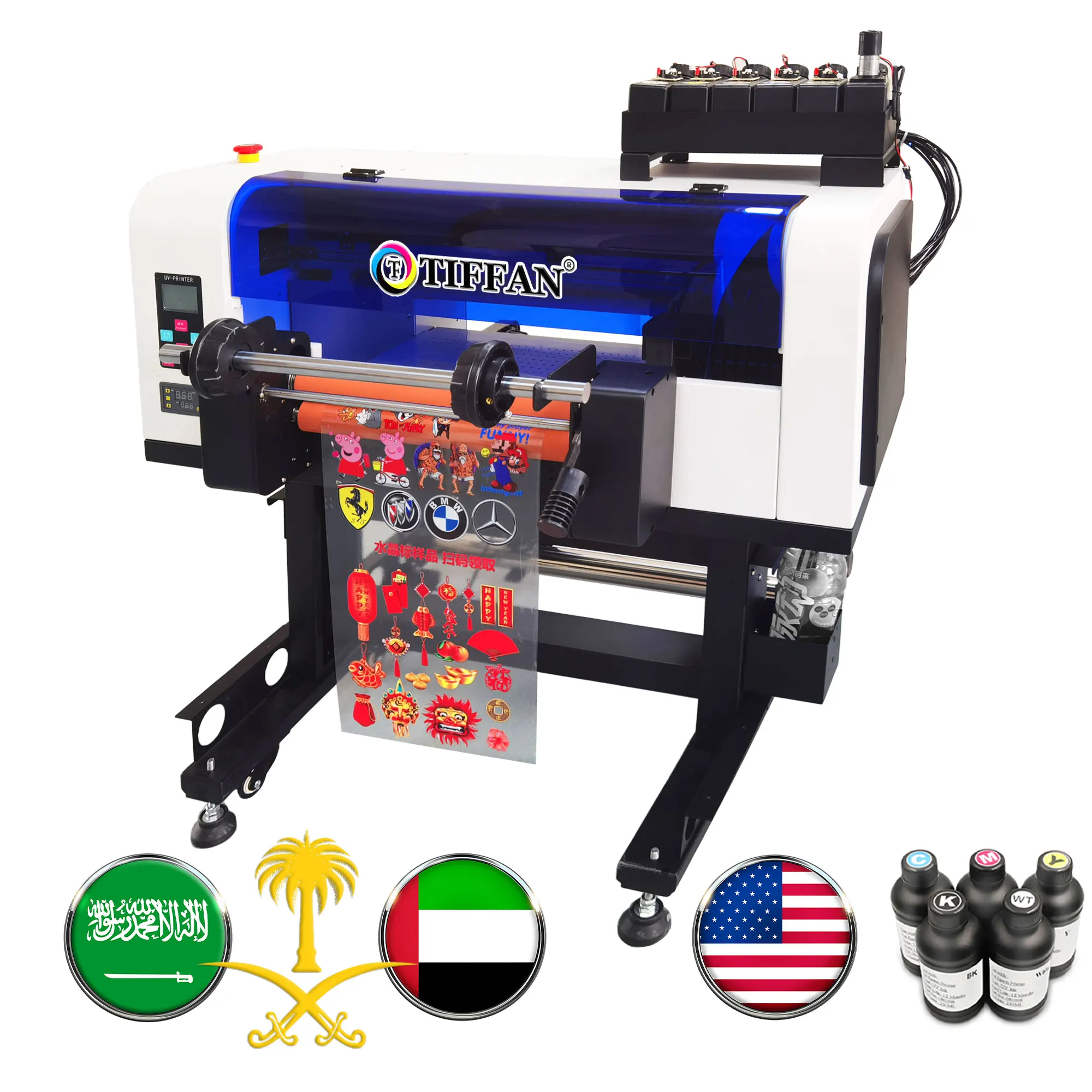

УФ принтер 30 см XP600 2 печатающая головка Кристалл этикетка все в 1 UV DTF для стеклянной керамической акриловой печати
2 200,00-2 400,00 $
Новый настольный принтер dtf 6002 pro max широкомасштабный l1800 60 см для наклеек этикеток uv
2 150,00-2 450,00 $

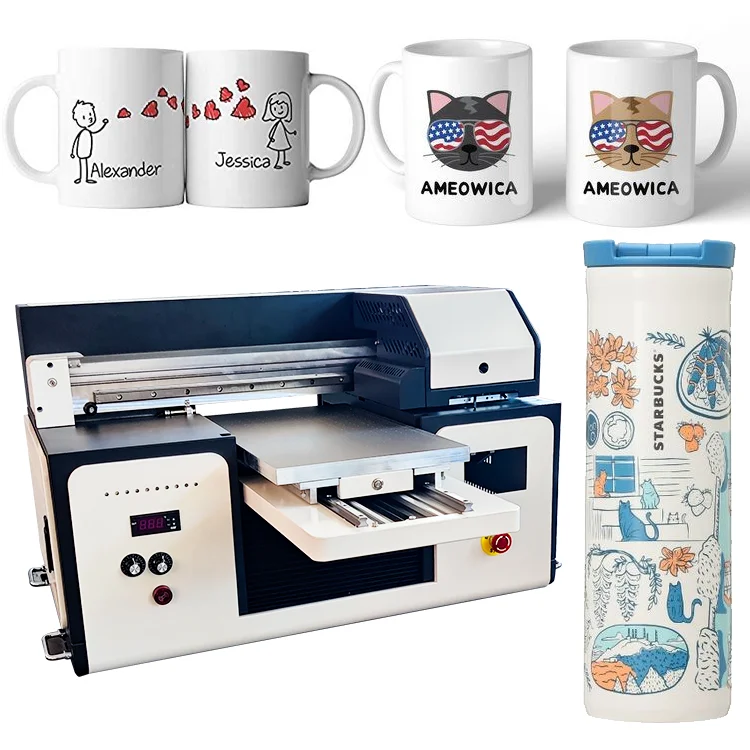

Заводская цена 13-дюймовый принтер A3 xp600 uv dtf 60 a3 a4 для деформации чашки
