Профессиональная медно горная Золотая Руда шлифовальный станок коммерческие влажные шлифовальные машины шаровая мельница для химической обработки
- Категория: >>>
- Поставщик: Henan Shunzhi Machinery Co. Ltd.
Сохранить в закладки 1600726642946:
Описание и отзывы
Характеристики

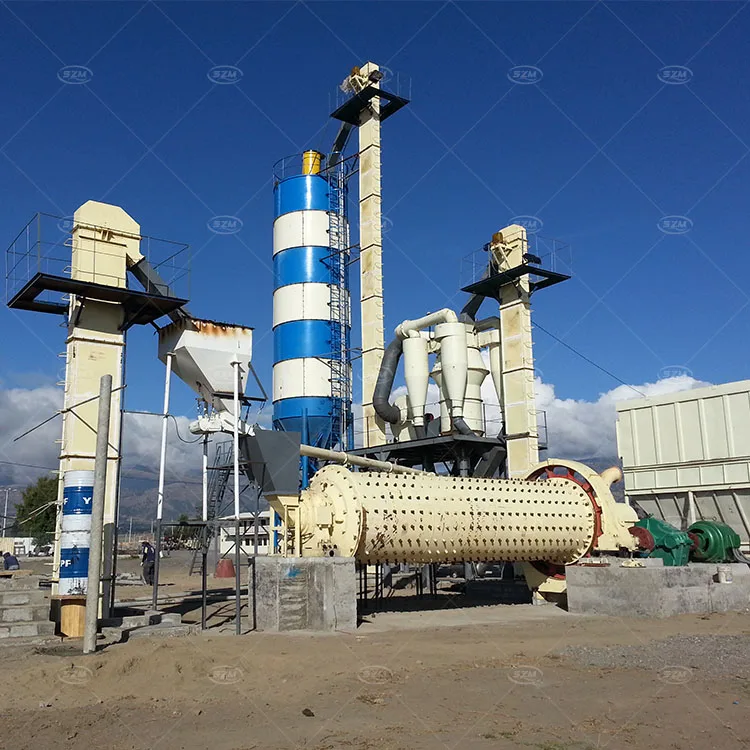

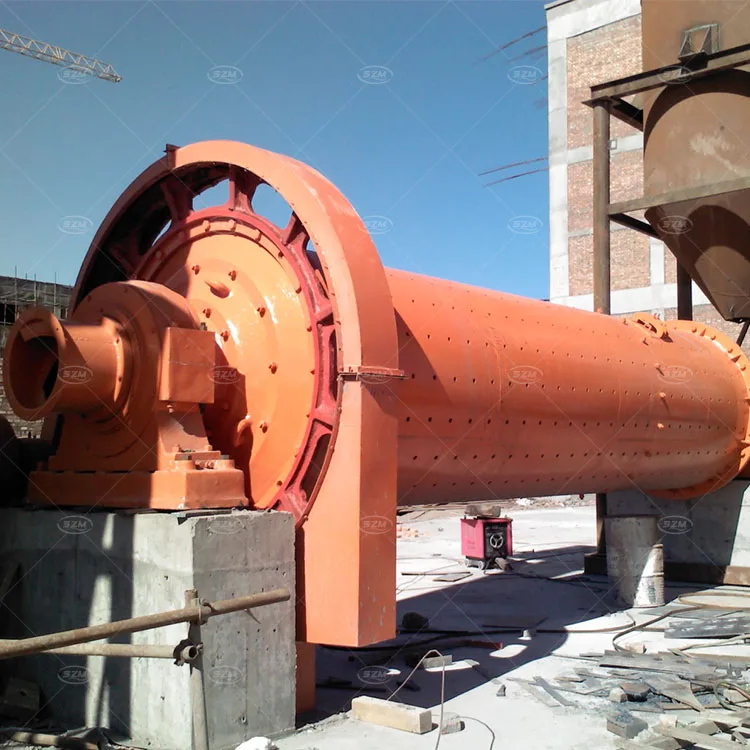

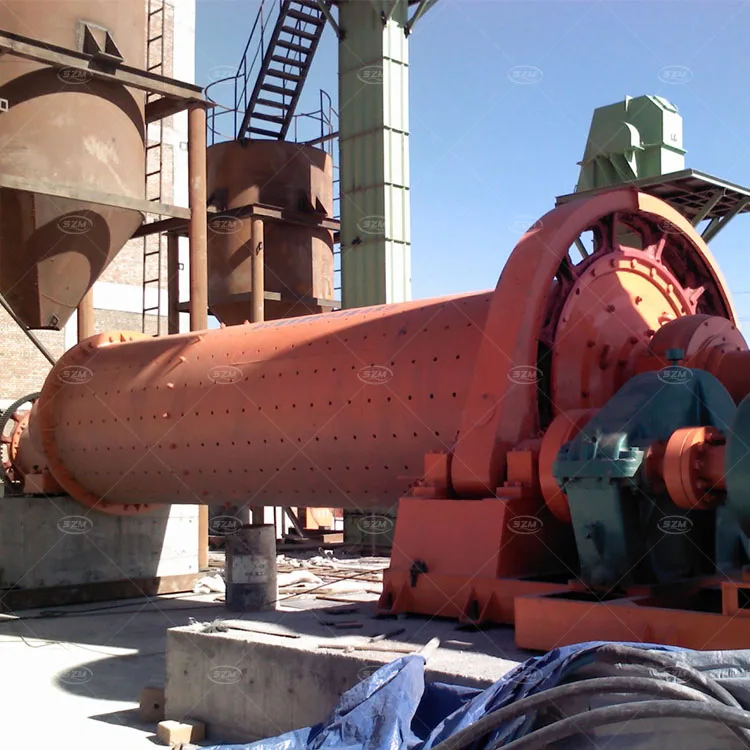

Ball mill is a key equipment to grind the crushed materials, widely used in powder-making production line including cement,silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type.
VARIOUS MODELS BALL MILL
Energy Saving Ball Mill
Intermittent Ball Mill
Ceramic Ball Mill
MORE COMBINATIONS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS
PRODUCT DETAILS
2. Discharge device
3. The gear cover
4. The big gear
5. Insulation cover
6. Ministry of rotary
7. Lining board
8. Main bearing
9. Feeding device
3. The gear cover
4. The big gear
5. Insulation cover
6. Ministry of rotary
7. Lining board
8. Main bearing
9. Feeding device
SCOPE OF APPLICATION
RIVER PEBBLES
COBBLESTONES
COAL
MARBLE
TECHNICAL PARAMETERS
Model | Max. feeding size(mm) | Discharge size（mm) | Capacity (t/h) | Motor Power(kw) |
900x1800 | 20 | 0.075-0.89 | 0.65-2 | 18.5 |
900x3000 | 20 | 0.075-0.89 | 1.1-3.5 | 22 |
1200x2400 | 25 | 0.075-0.60 | 1.5-4.8 | 30 |
1200x3000 | 25 | 0.074-0.40 | 1.6-5 | 37 |
1200x4500 | 25 | 0.074-0.40 | 1.6-5.8 | 55 |
1500x3000 | 25 | 0.074-0.40 | 2-5 | 75 |
1500x4500 | 25 | 0.074-0.40 | 3-6 | 110 |
1500x5700 | 25 | 0.074-0.40 | 3.5-6 | 130 |
1800x3000 | 25 | 0.074-0.40 | 4-10 | 155 |
1800x4500 | 25 | 0.074-0.40 | 4.5-12 | 210 |
1800x6400 | 25 | 0.074-0.40 | 6.5-15 | 245 |
1800x7000 | 25 | 0.074-0.40 | 7.5-17 | 155 |
2100x3000 | 25 | 0.074-0.40 | 6.5-36 | 210 |
2100x4500 | 25 | 0.074-0.40 | 8-43 | 245 |
OTHER PRODUCTS
AVAILABLE FROM STOCK
DELIVERY SITE
CASE PRESENTATION
ABOUT US
Our factory
Henan Shunzhi Machinery Co.,Ltd. is a modern enterprise specialized in manufacturing mining-equipment which is integrated with research, production, and marketing of the mining equipments. We provide complete sets of mine selection machines, crusher equipment, sand making equipment, and dryer equipment, etc.
WELCOME TO VISIT OUR FACTORY
-- Our customers from over 30 countries and regions.
-- High efficiency,high quality,low cost. We can customize capacity according to customer requirements.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
-- High efficiency,high quality,low cost. We can customize capacity according to customer requirements.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
BUYING PROCESS
AFTER-SALES SERVIECE
Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
