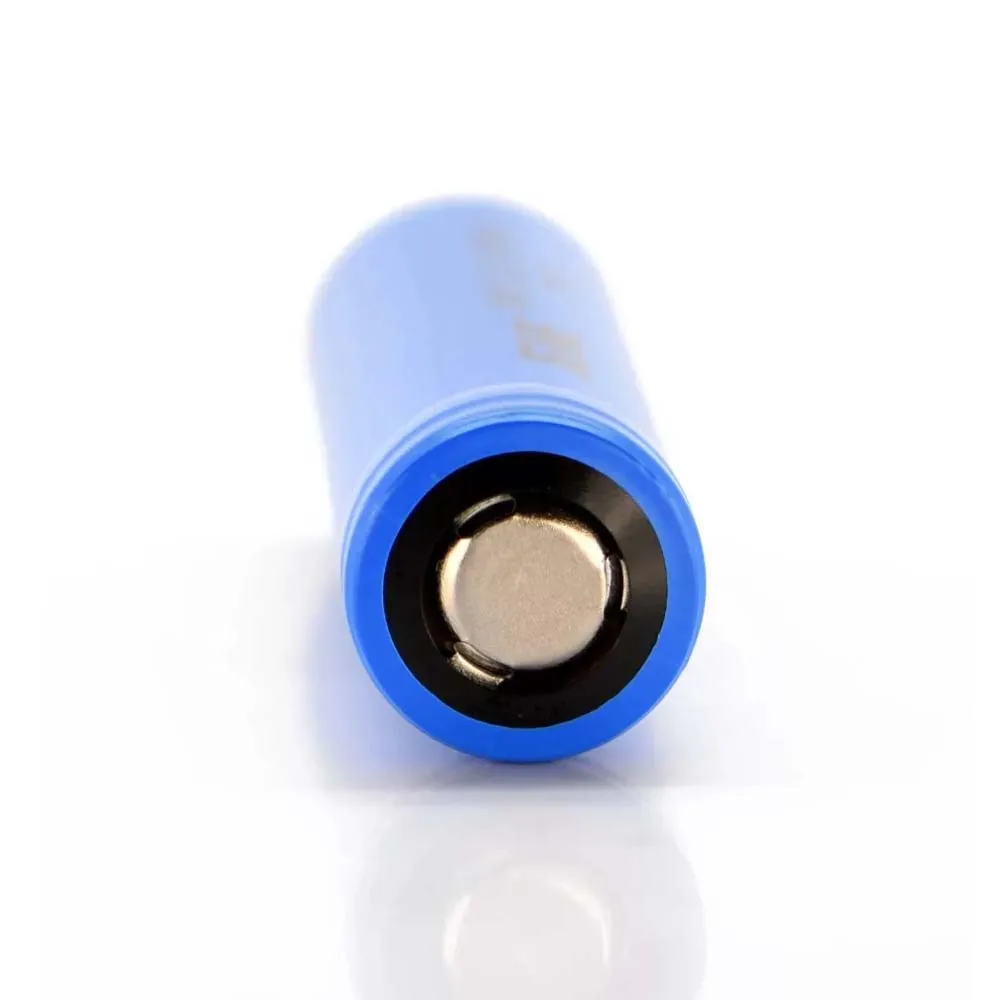

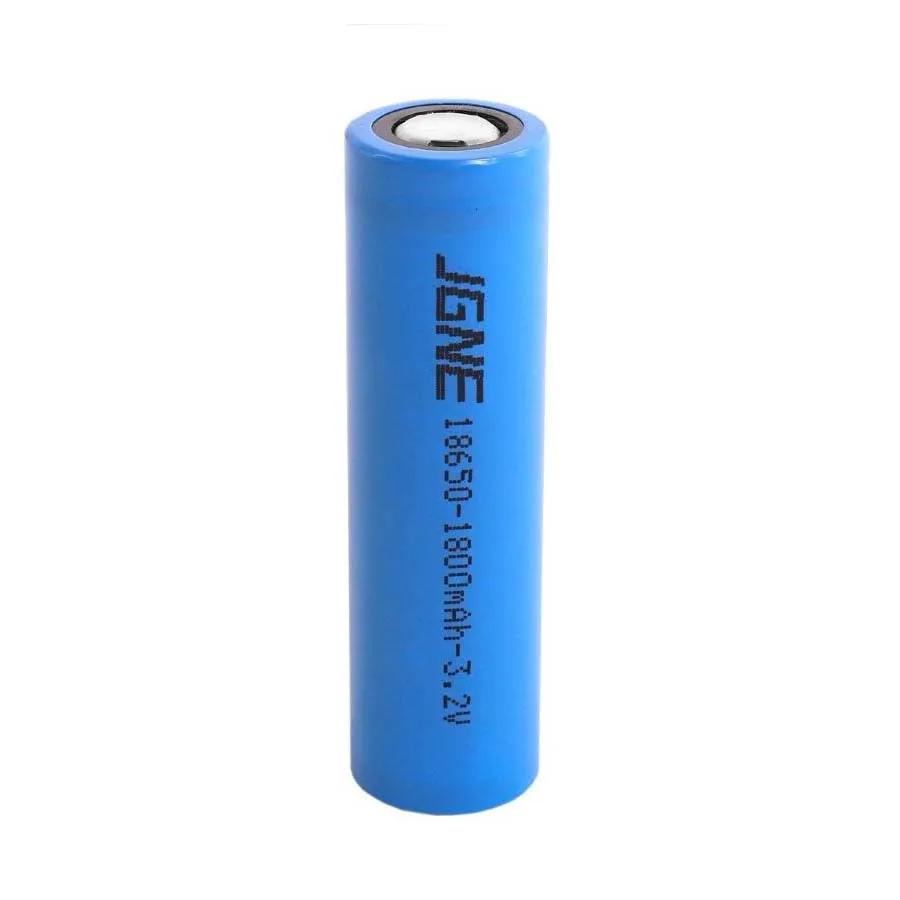

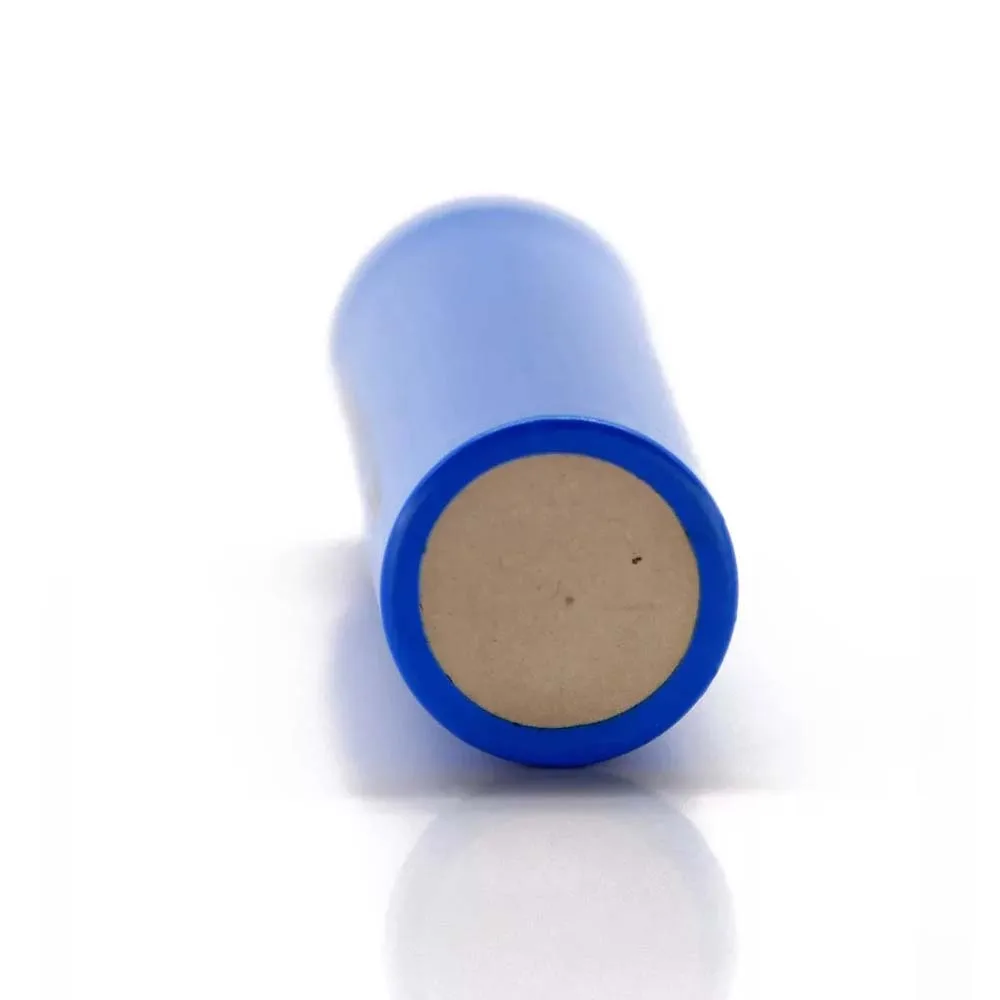

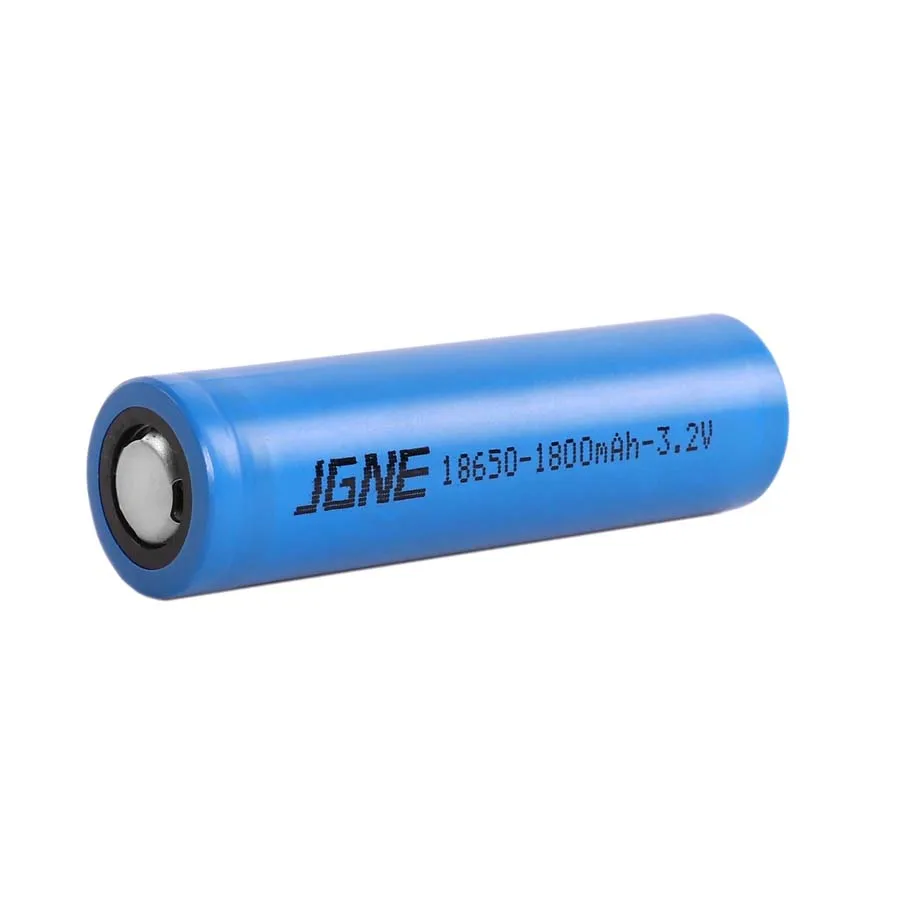

JGNE HTCFR18650 3 2 В 1800 мАч 5.4A аккумуляторная батарея LiFePO4

Сохранить в закладки 1600731643517:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики







JGCFR18650-1800mAh-3.2V
Lithium-ion Cell


Product Description




Specification


Model
JGCFR18650-1800mAh-3.2V
Standard Capacity
1800 mAh
0.2C,(current value of 1800mA at 1C)
Minimum Capacity
1750 mAh, 0.2C
Standard Voltage
3.2V
Alternating Internal Resistance
≤25 mΩ, AC 1kHz measurement at 25 ± 2 ℃
Standard Charge
Cut-off Voltage: 3.65 V
Charge Current:0.9A
Cut-off Current:18mA

constant-current charge to 3.65 V at 0.5C, constant voltage charge to stop until 0.01C mA.

Max. Charging Current
1.8 A
Standard Discharge
Discharge Current:0.9A
Cut-off Voltage: 2.5V

Constant current discharge
Fast Discharge Current
1.8A

This current is the maximum current recommended for the combination of cells, and the specific value should be determined
according to the combination structure. The maximum operating current is set at a temperature not exceeding 60 ℃.
Max. Continuous Discharge Current
5.4A

Only for single cell
Pulse Discharge Current
10 A,5s
Cycle Characteristic
2000 times(100%DOD)
4000 times(80%DOD)
7000 times(50%DOD)

The residual capacity is no less than 80% of rated capacity at 1C rate
Application
Toys, Power Tools, Home Appliances, Consumer Electronics, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems
Working Temperature
Charge:0℃~55℃
Discharge:-20℃~60℃
Storage Temperature
-20℃~55℃, < 1 months
-20℃~45℃, < 3 months
-20℃~25℃, < 12 months
Cell Weight
Approx 41.5g, Including casing
































Packing & Delivery




25pieces/carton,cartons with pallet,color box which is as per custmorers requirements
