Цилиндрическая аккумуляторная батарея LiFePO4 26650 3 2 В 3600 мАч 3C литий ионная

Сохранить в закладки 1600731798398:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

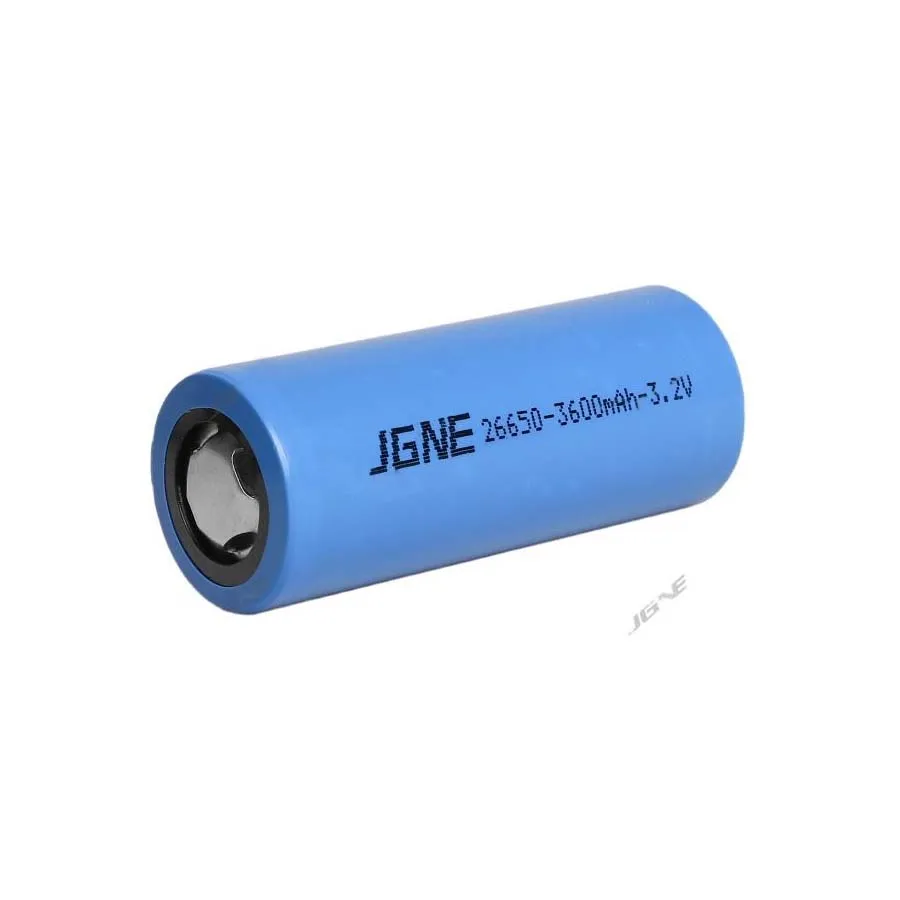

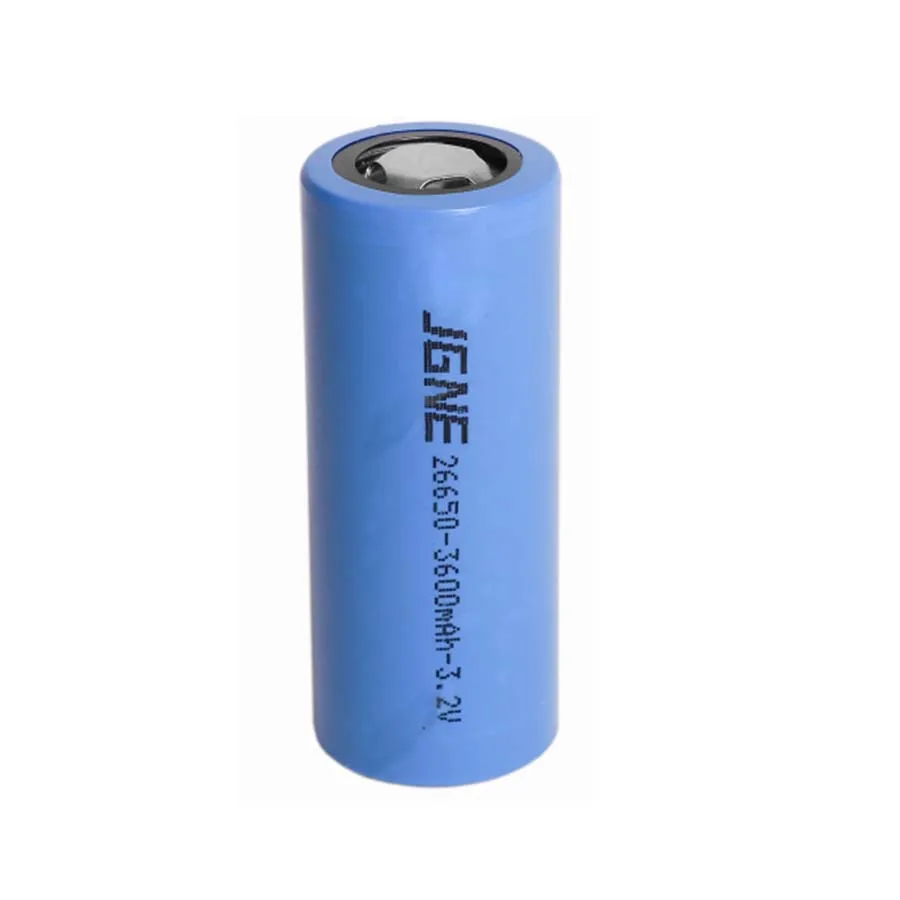

JGCFR26650-3600mAh-3.2V
Lithium-ion Cell


Product Description








Specification


Model
JGCFR26650-3600mAh-3.2V
Standard Capacity
3600 mAh
0.2C,(current value of 4000mA at 1C)
Minimum Capacity
3550 mAh, 0.2C
Standard Voltage
3.2V
Alternating Internal Resistance
≤25 mΩ, AC 1kHz measurement at 25 ± 2 ℃
Standard Charge
Cut-off Voltage: 3.65 V
Charge Current:1.8A
Cut-off Current:36mA

constant-current charge to 3.65 V at 0.5C, constant voltage charge to stop until 0.01C mA.

Max. Charging Current
3.6 A
Standard Discharge
Discharge Current:1.8A
Cut-off Voltage: 2.5V

Constant current discharge
Fast Discharge Current
3.6A

This current is the maximum current recommended for the combination of cells, and the specific value should be determined
according to the combination structure. The maximum operating current is set at a temperature not exceeding 60 ℃.
Max. Continuous Discharge Current
10.8A

Only for single cell
Pulse Discharge Current
20 A,5s
Cycle Characteristic
2000 times(100%DOD)
4000 times(80%DOD)
7000 times(50%DOD)

The residual capacity is no less than 80% of rated capacity at 1C rate
Working Temperature
Charge:0℃~55℃
Discharge:-20℃~60℃
Storage Temperature
-20℃~55℃, < 1 months
-20℃~45℃, < 3 months
-20℃~25℃, < 12 months
Cell Weight
Approx 88g, Including casing


































Packing & Delivery
