Product Description

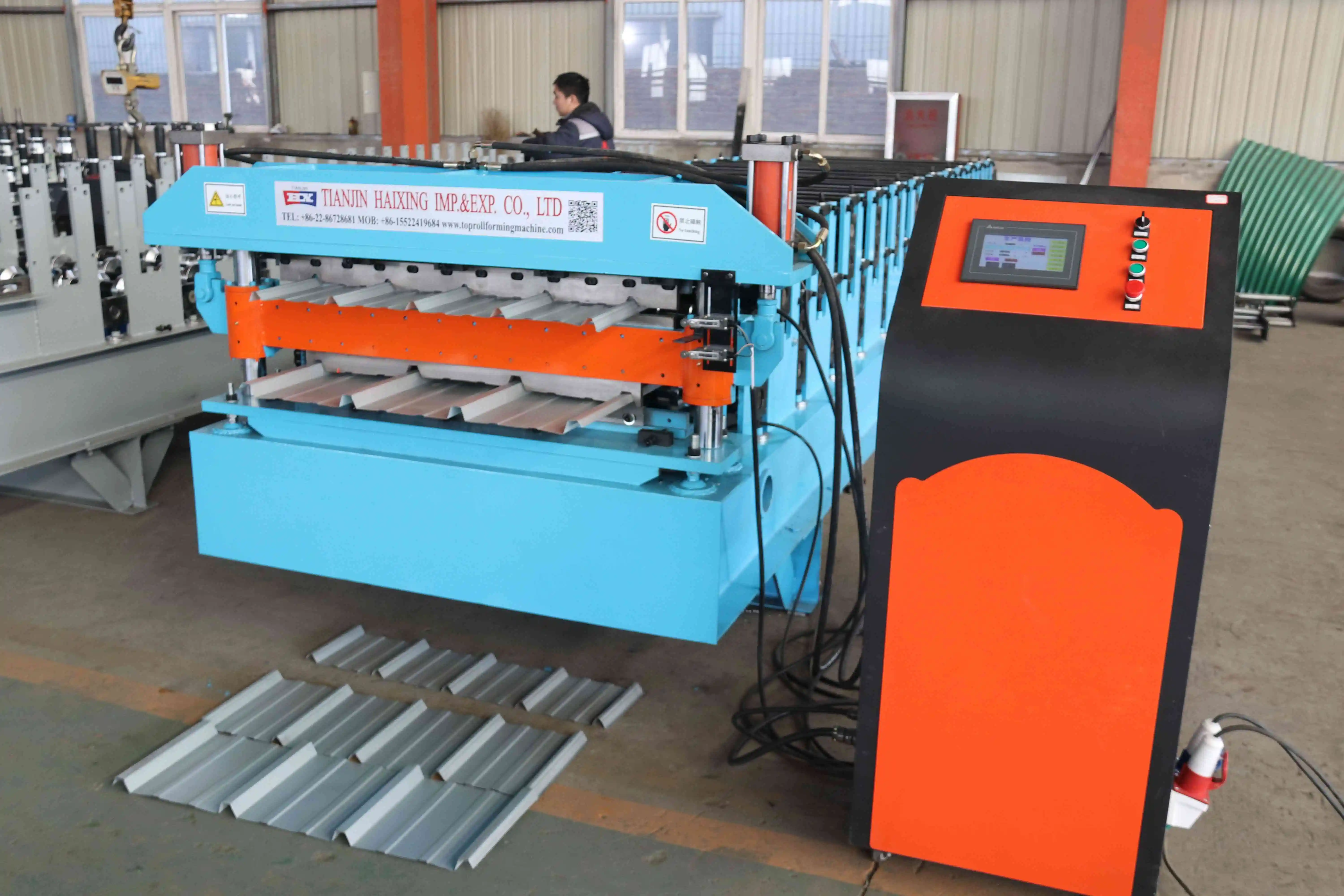

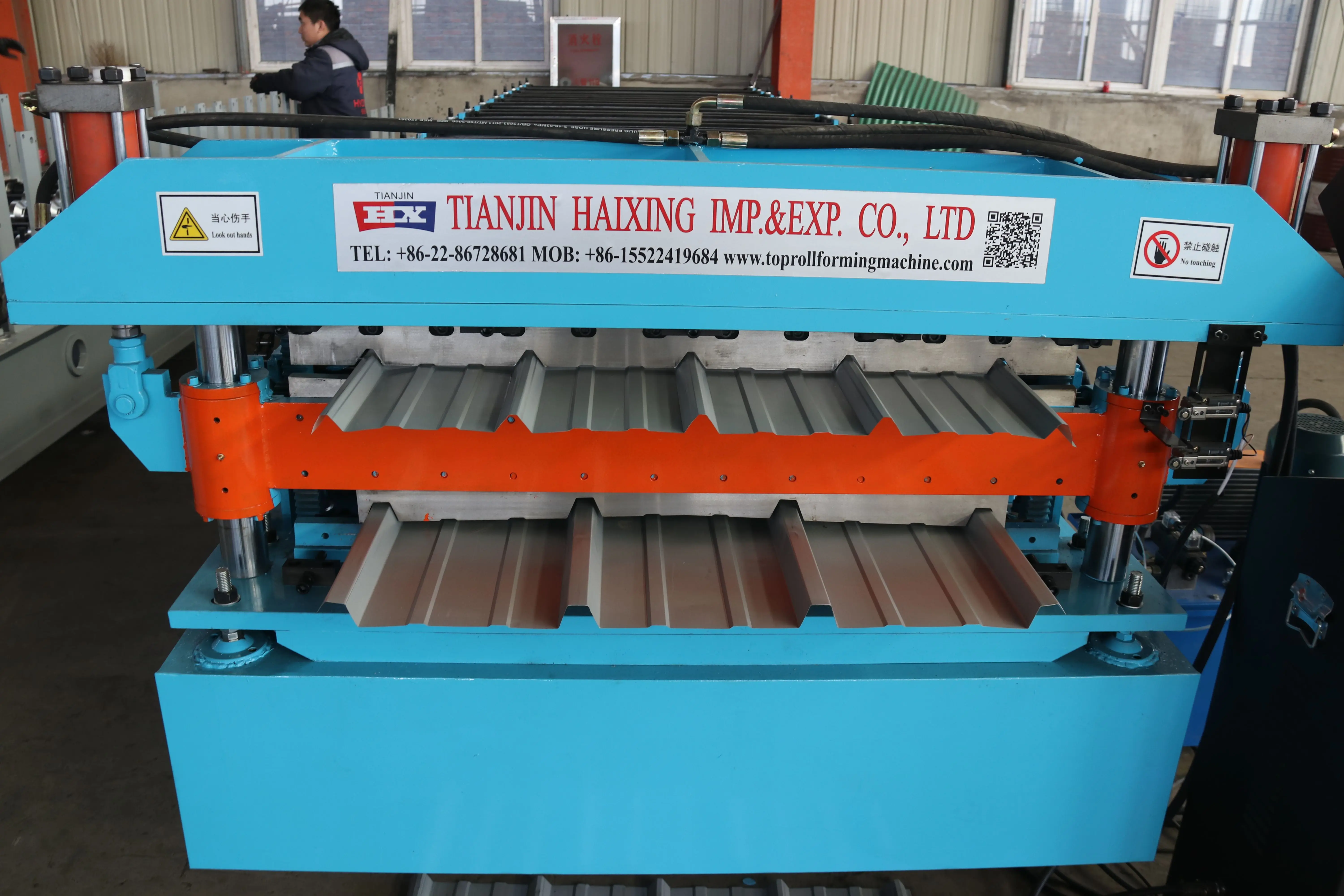

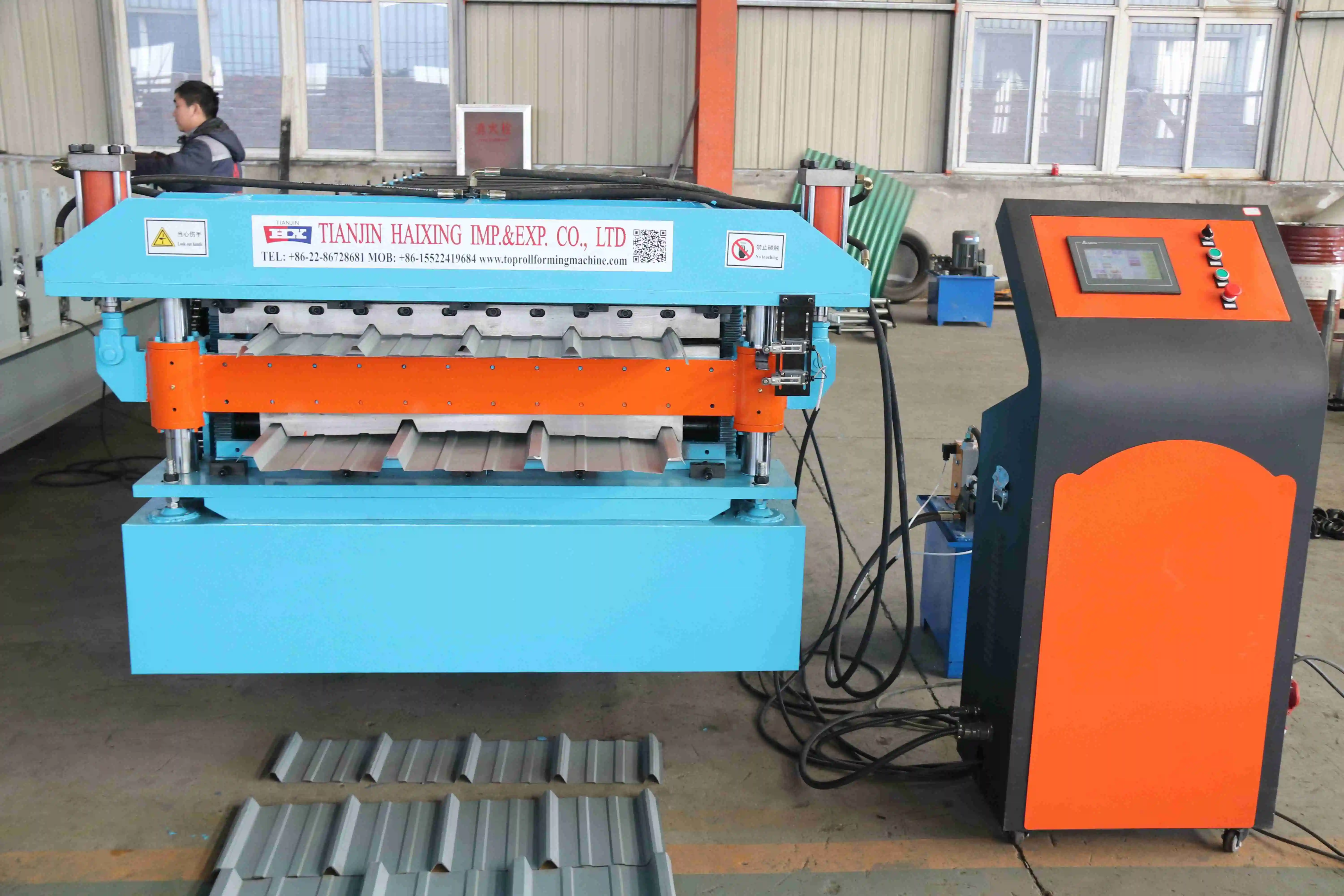

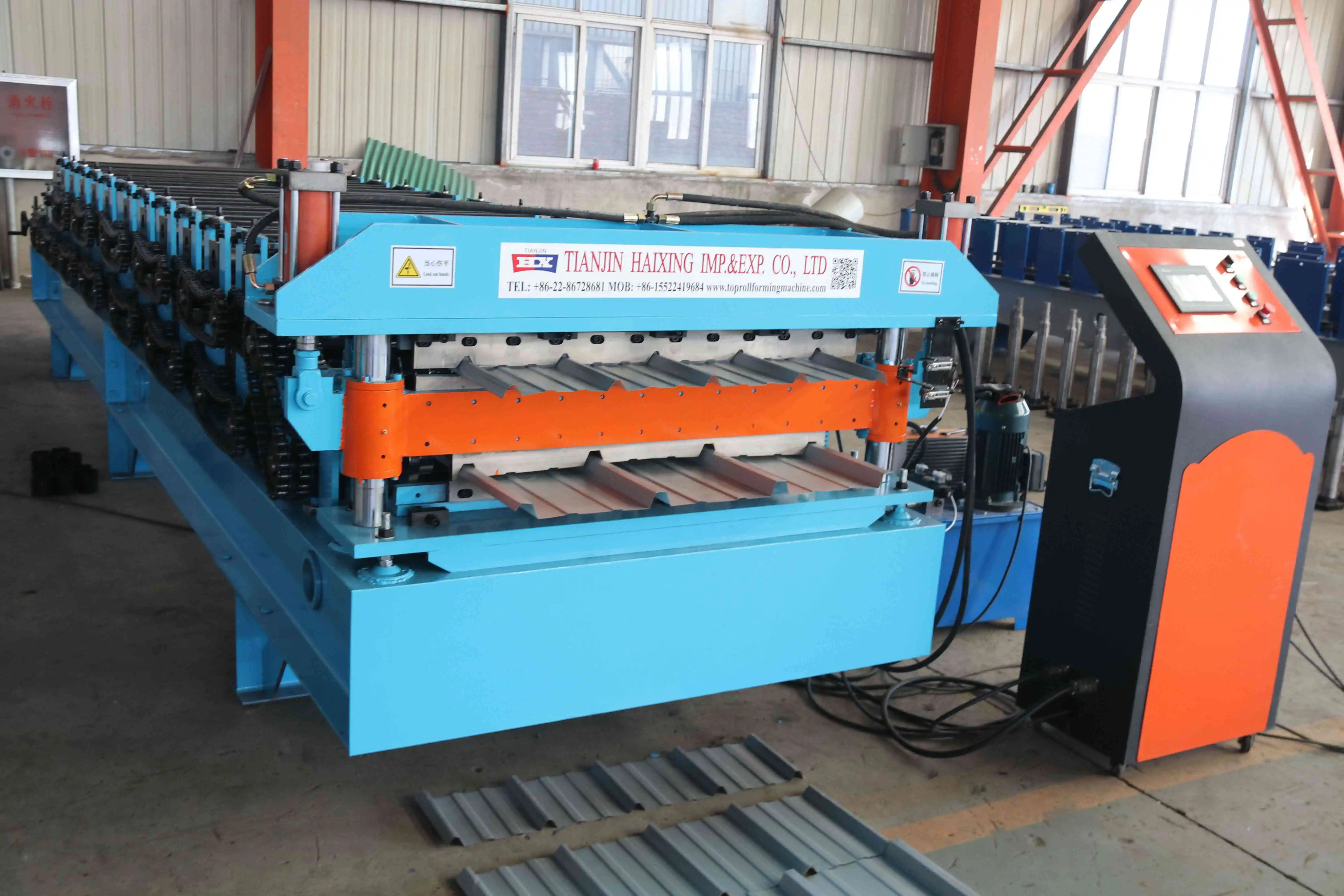

_{Double layer metal roofing sheet trapezoidal tile R BPR AG roof panel roll forming machine}

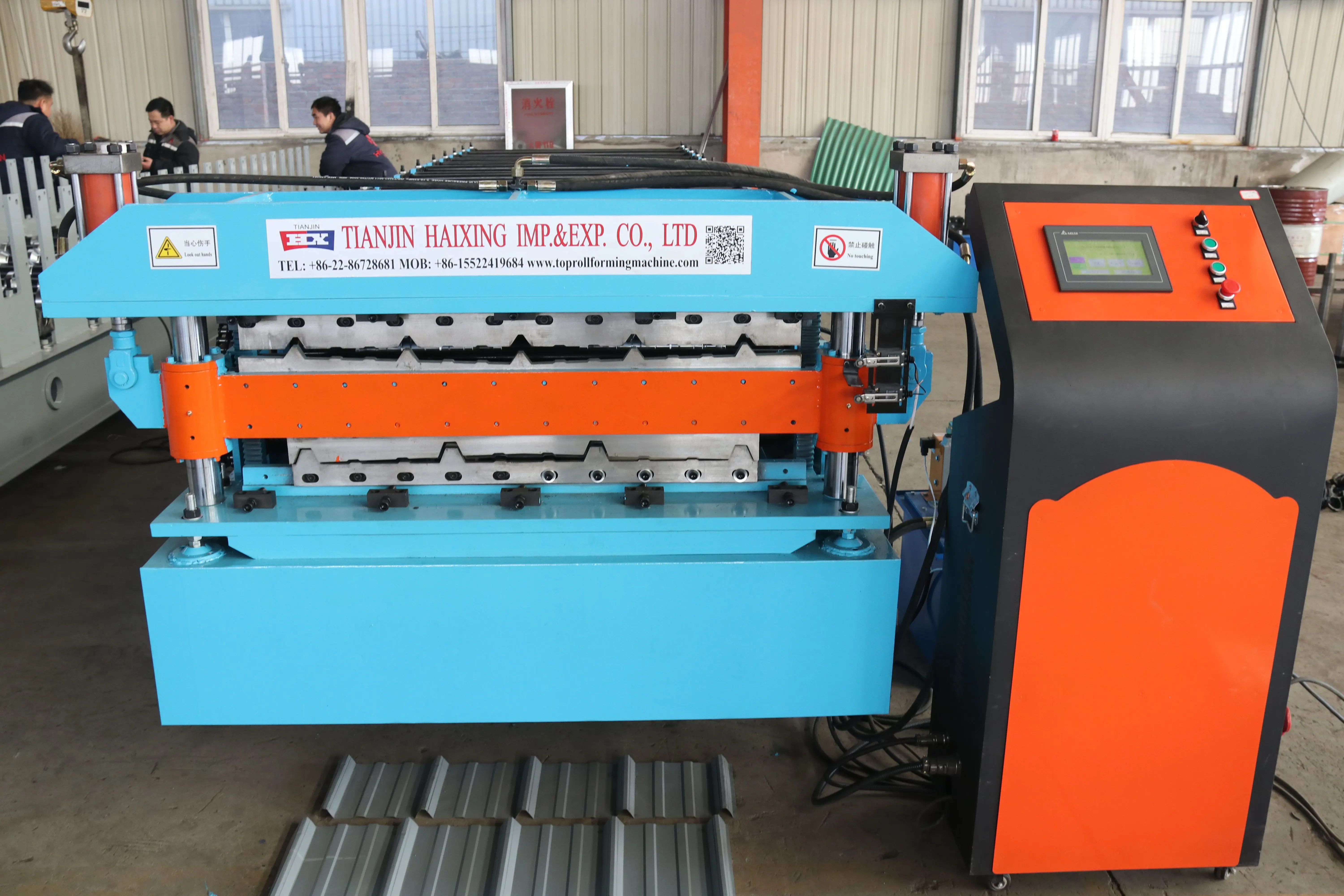

Trapezoidal tile R BPR AG roof panel roll forming machine is popular in the world, especially in America market. It's easy operation and more than 10 years lifetime. With over 20 years producing and export experience, we would like to assist every customer to make the suitable machine and produce perfect roof, tile,steel structure products.

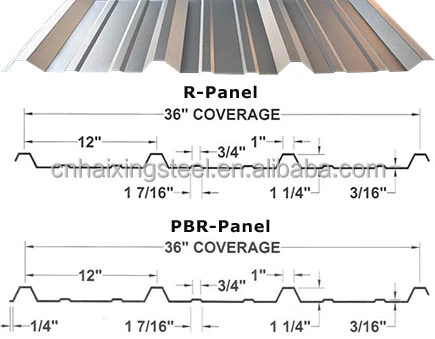

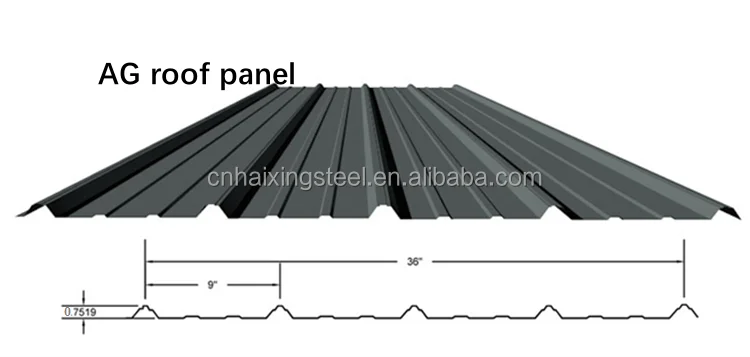

R BPR AG roof panel roll forming machine Profile drawing

AG roof Panel

Specification

Double layer metal roofing sheet trapezoidal tile R BPR AG roof panel roll forming machine
Raw material	Color alu-zinc steel coil
Dimensions	6.51.51.5m
Weight	5200kg
Main structure of the machine	350mm H-Beam
Side panel of machine	16mm
Thickness of the plate	0.3-0.8mm
Width of the plate	Max Material Width:1200mm
Drive mode	Chain Wheel and Cycle Chain Width:1 Inch
Productivity speed	10-15m/min
Rollers	15rows
Rolling materials	45# forging steel with chromium plate
Diameter of the roller	Φ70mm,Solid
Motor Power	5.5KW (Lichao or Siemens famous brand)
Pump Station Motor	4KW (Lichao or Siemens famous brand)
Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
Control system	PLC control ( Delta or Siemens famous brand )
Touch screen	Delta or Siemens famous brand
Frequency system	Delta or Siemens famous brand
Voltage	380V 50Hz 3phases (Customized)

PICTURE DETAILS

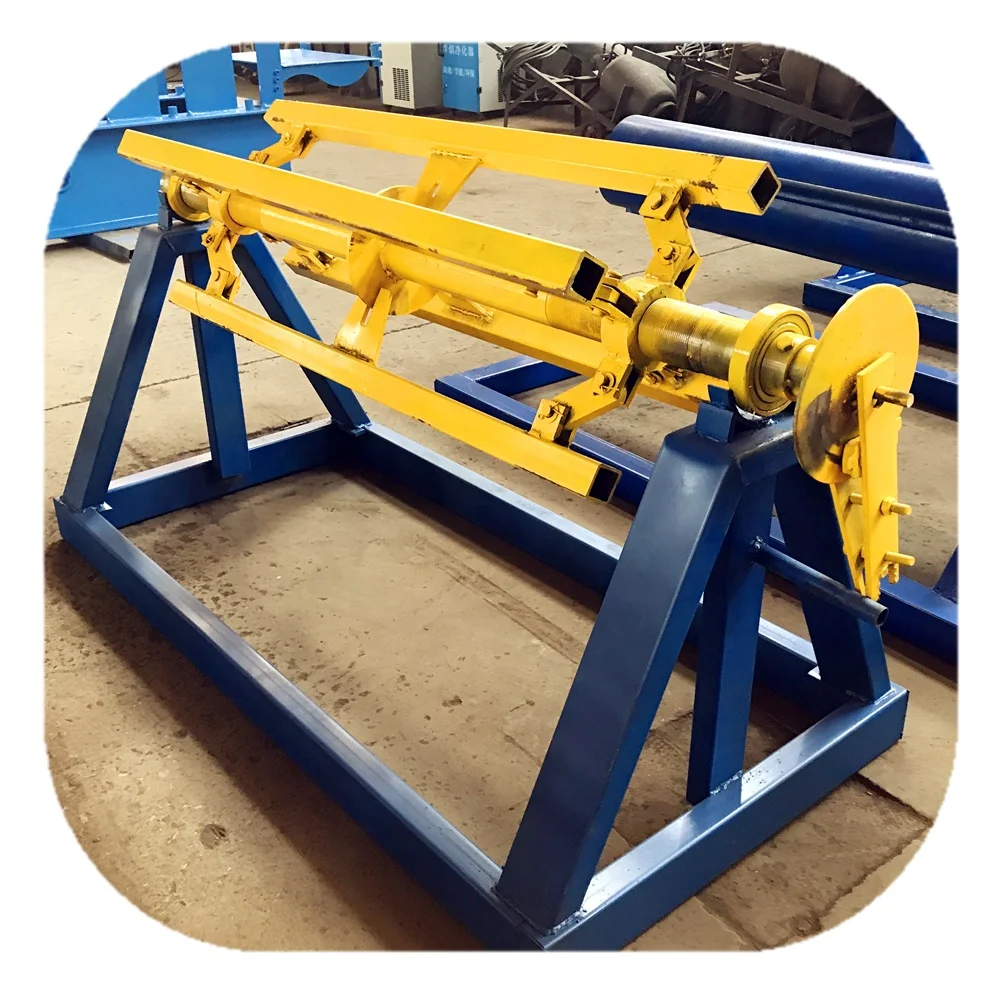

Name: Manual Decoiler

Usage: Mainly used to support steel coils, and manually uncoil and straighten the coil into the feeding table.
Steel coil width : 940, 1200, 1220 mm. (According to your actual drawing)
Loading capacity: 10T
Inner diameter: 470-530mm

We supply 10Ton manual decoiler for free. We also have electric decoiler or hydraulic decoiler.

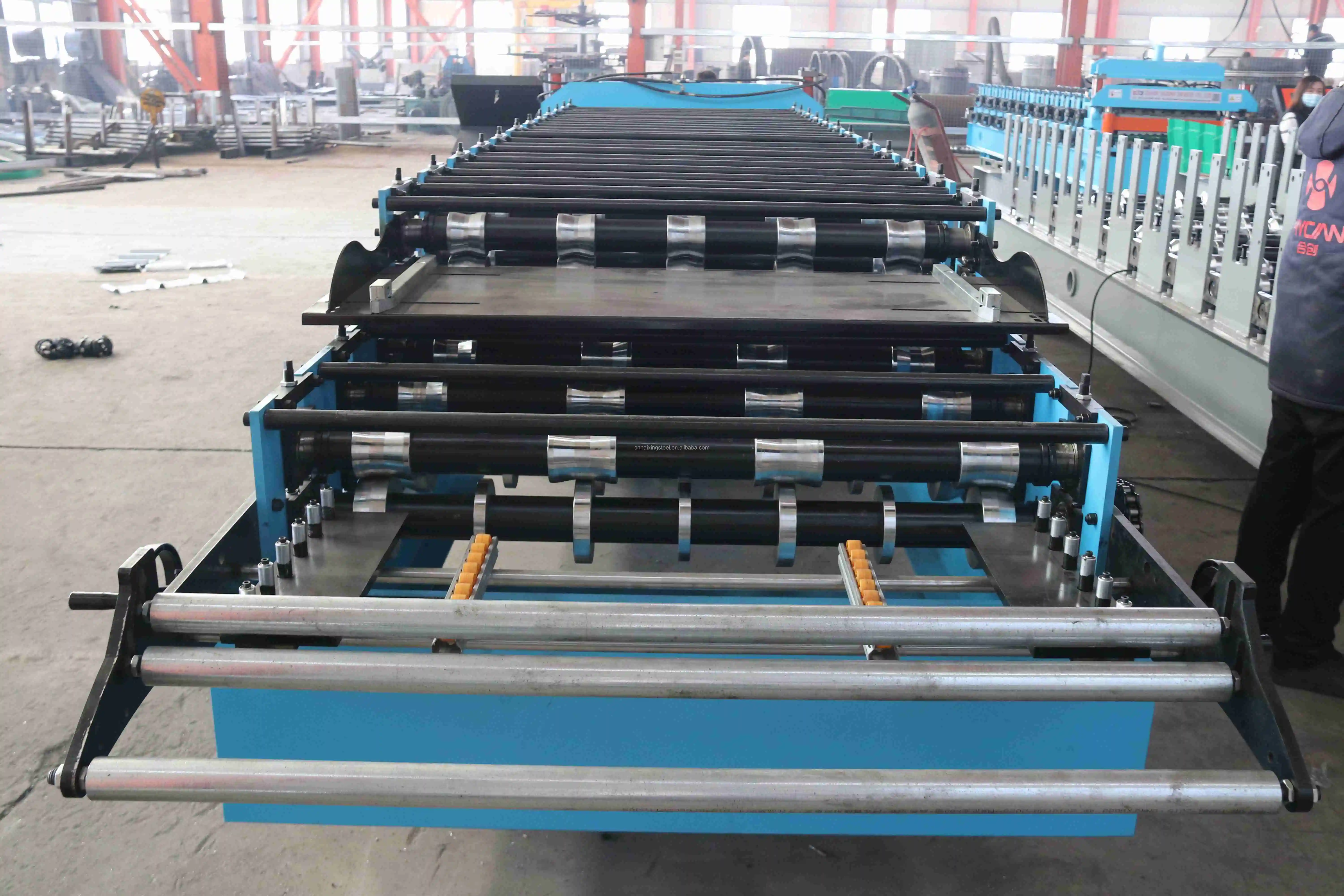

Name: Feeding table

Usage: Applied to control the width and position of the steel sheet,which is guided into the correct position of machine to make
sure the panel is neat and parallel.
Other Accessorie: The hand knife can cut the raw materials and control the length of the feed, thereby saving raw materials.

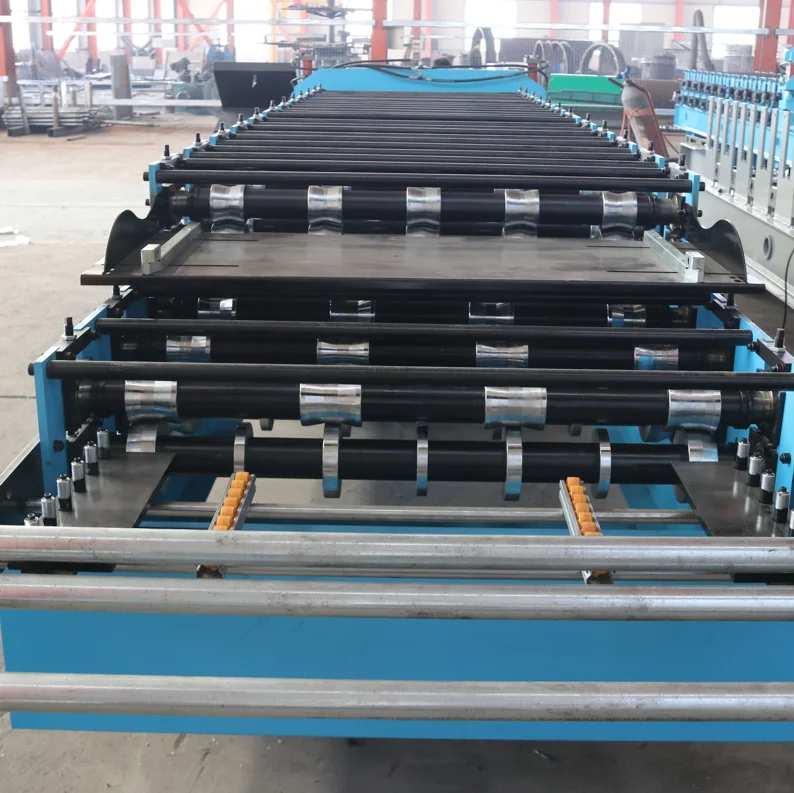

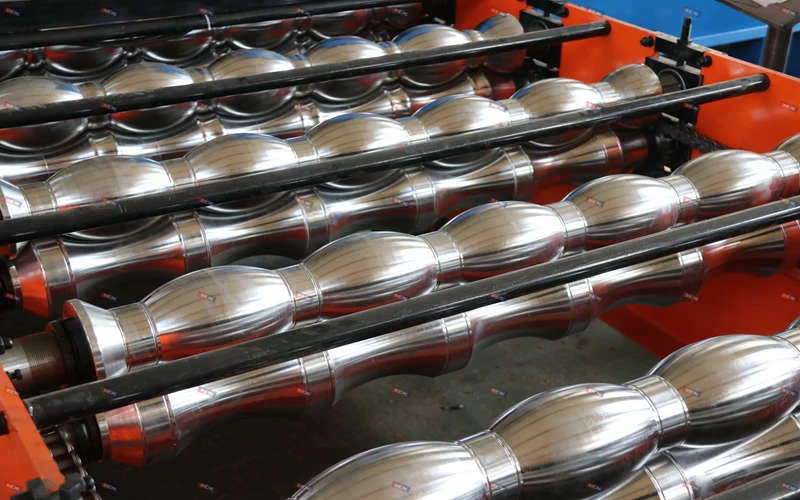

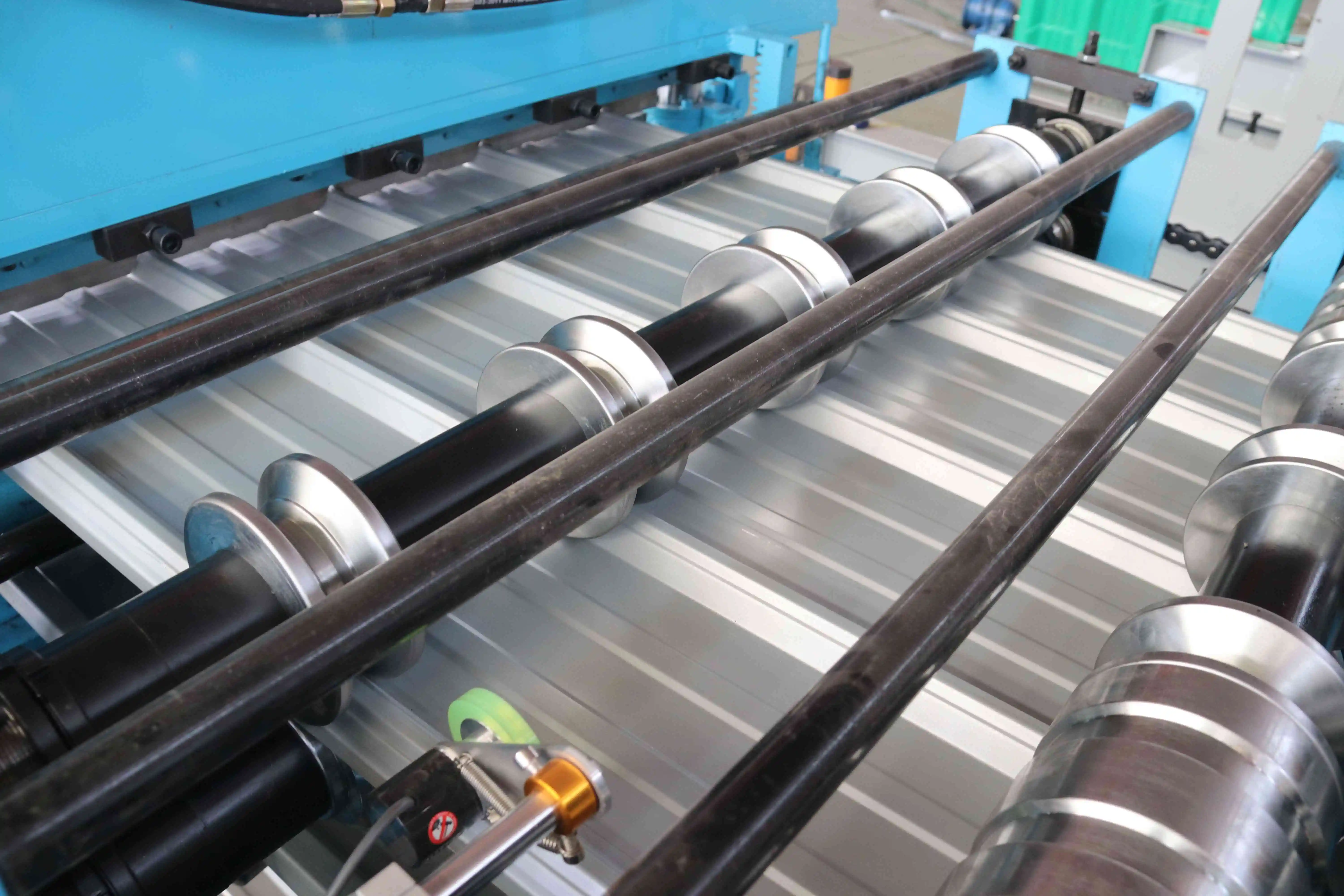

Name: Main rollers

Material: High grade 45# steel
Characteristic:After being forged, polished, heat-treated and finally chromeplated, they are very solid and not easy to wear. At
the same time, the roof tiles are smooth without burrs.

Name: Computer Control Cabinet

Brand: Lichao, Delta, Siemens
(According to customers）
Characteristic: It promotes fully automatic production of machines. With standing computer control cabinet or 360°rotating console, that greatly saves manpower.
Opreation language: Chinese/English/Russsian/Spanish

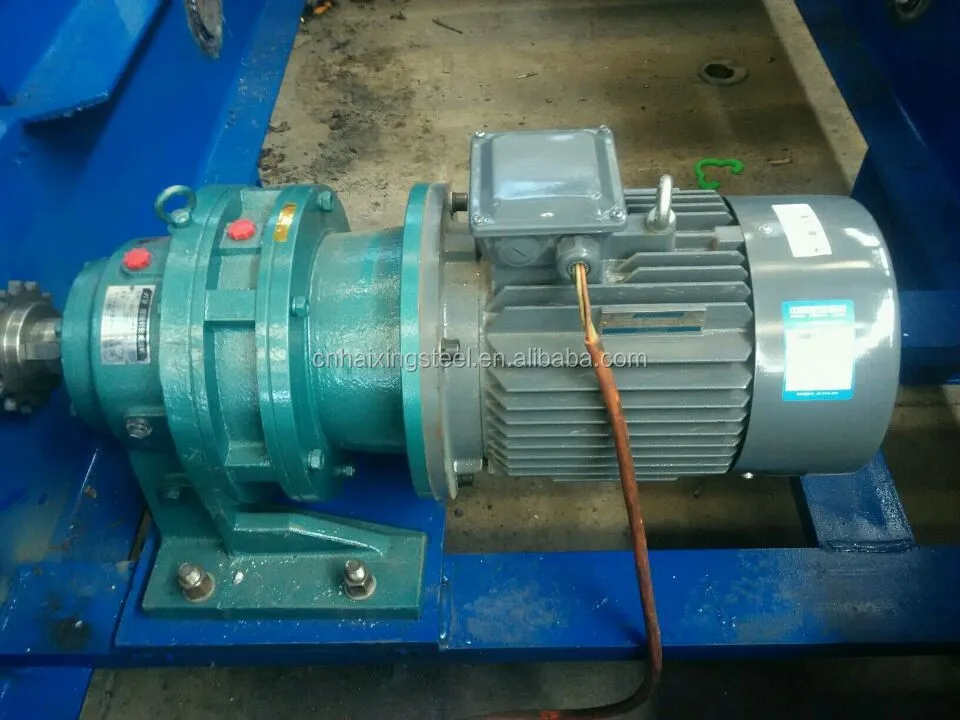

Name: Motor driver

Main motor size :5.5Kw
Brand: The famous brand from Jermany Siemens or Lichao, Shanghai or according to customer's need

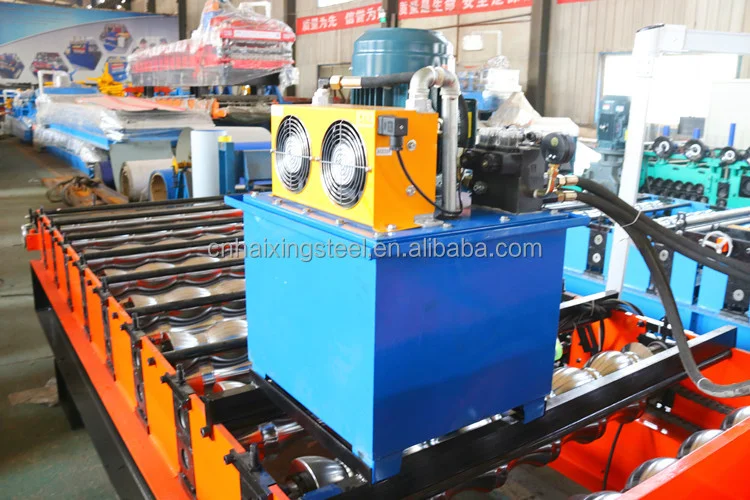

Name :Hydraulic station power

Hydraulic station power: 4Kw,

Brand: The famous brand from Jermany Siemens or Lichao, Shanghai or according to customer's need

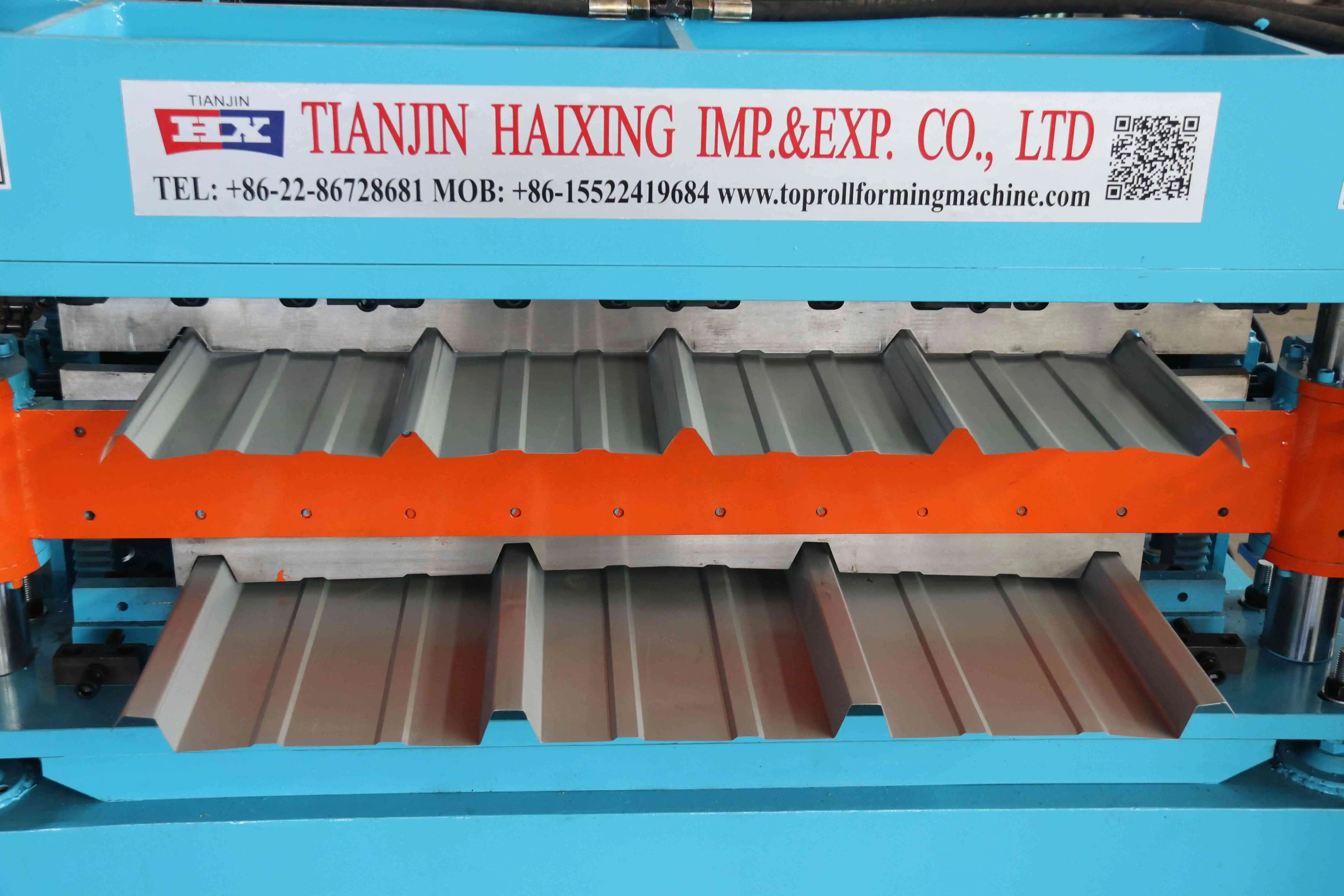

Name: Cutting head

It adopts the Motor drive and automatic location to decide the dimension and cut the target products.

Hydraulic four guide post cutting.

Material of blades:
Cr12mov, quenching treatment

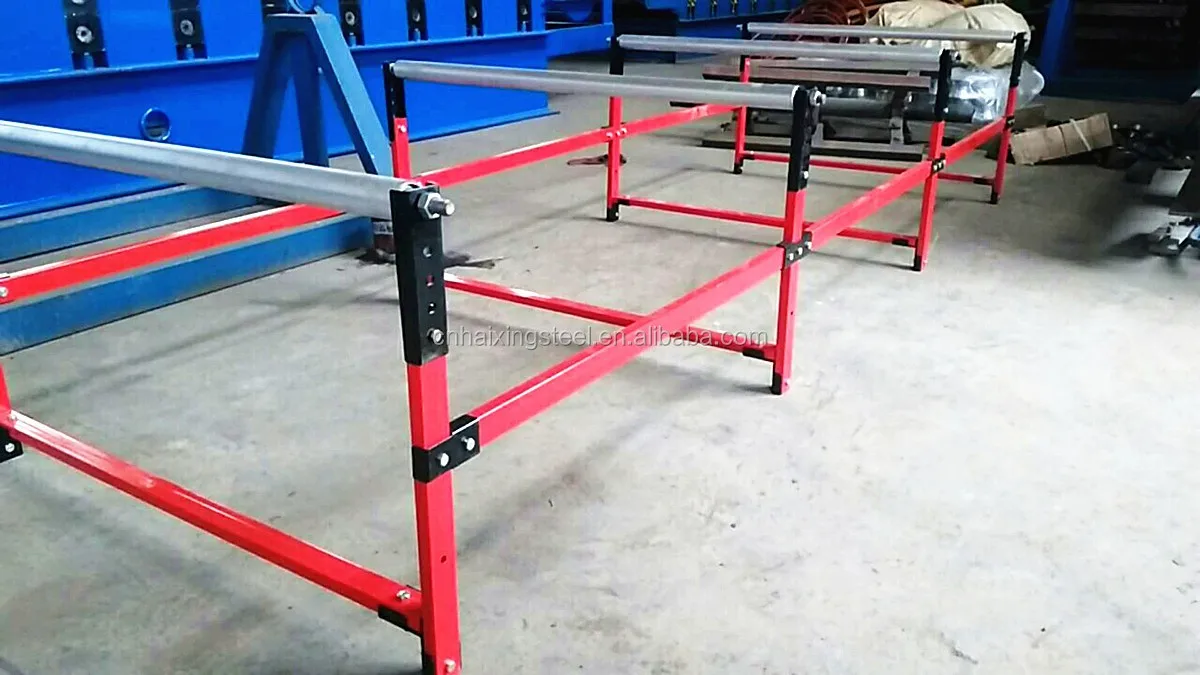

Name: Received goods table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. 2 pieces
3meters

We supply 2 pieces of 3 meters receiving good table for free

The following machine and parts included in Double layer metal roofing sheet trapezoidal tile R BPR AG roof panel roll forming machine
Passive Decoiler	1Set
Feeding Platform with Pre-cutter	1Set
Roll Forming Machine main body	1Set
PLC Control System	1Set
Hydraulic Cutting System	1Set
Exit Rack for roofing production	2Pieces 3Meters
Spare parts as following photos	One carton box spare parts as following photos

Packing & Delivery

1.The main body of Double layer metal roofing sheet trapezoidal tile R BPR AG roof panel roll forming machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
2.Rollers and shafts are covered with anti-rust oil.
3.PLC control system and motor pump are packed with waterproof paper and plastic film.
4.Spare parts in a carton box.
5.Manual decoiler was nude packing.
6.The output-table put into a carton box.

7.Packaging is totally fit for ocean shipping.

Company Profile

We, Tianjin Haixing is a professional cold roll forming machine manufacturer, We have been focusing on this field for 22 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.
Haixing has a experienced team of engineers. At the same time, our machines use international branded electrical components, raw materials from branded steel factories, we have strict process control susterm, our machines are two-year warranty, free installation and training services.
Our customers are all over the world, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.

WHY CHOOSE US

Warranty	2 Years warranty and lifetime service
Electrical parts brand	Internationl brand, for example Simens,Taiwan Delta,Omron,Schneider
Export experience	Exported to 85+ countries with 20 years manufacture experience
Our team	5 CAD engineers,15 technicians, 200 workers and 30 sales
Certification	CE,ISO9001,SGS
After sales service	24 hours online service

FAQ

1.Q:Are you manufacturer?
A:Yes,we are manufacturer for cold roll forming machine over 20 years.
2.Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
3.Q:What's the warrany for our machine?
A: we provide 2years guarantee and provide lifetime technical support.
4.Q:How many workers is needed for the machine operation ？
A: One worker is engough, the machine use automatic PLC control system.
5.Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
6.Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter,
delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
7.Q: What is the after- sale service?
A: we will supply lifetime technical support and supply quick-wear parts within 2years.

8. Q: What's the delivery time?

25 days after deposit receipt your payment

9.Q: Installation and training
a.If buyers visit our factory and check the R BPR AG roof panel roll forming machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the Transportation and accommodation expenses.
8. Q:what can you buy from us?
Roof & Wall Roll Forming Machine,Floor Deck Roll Forming Machine,Light Steel Keel Roll Forming Machine,CZ Purling Roll Forming Machine,Leveling Slitting Roll Forming Machine and other related machine.

Double layer metal roofing sheet trapezoidal tile R BPR AG roof panel roll forming machine business card

For more information of the roll forming machine, please feel free to contact us as in the businiss card.
