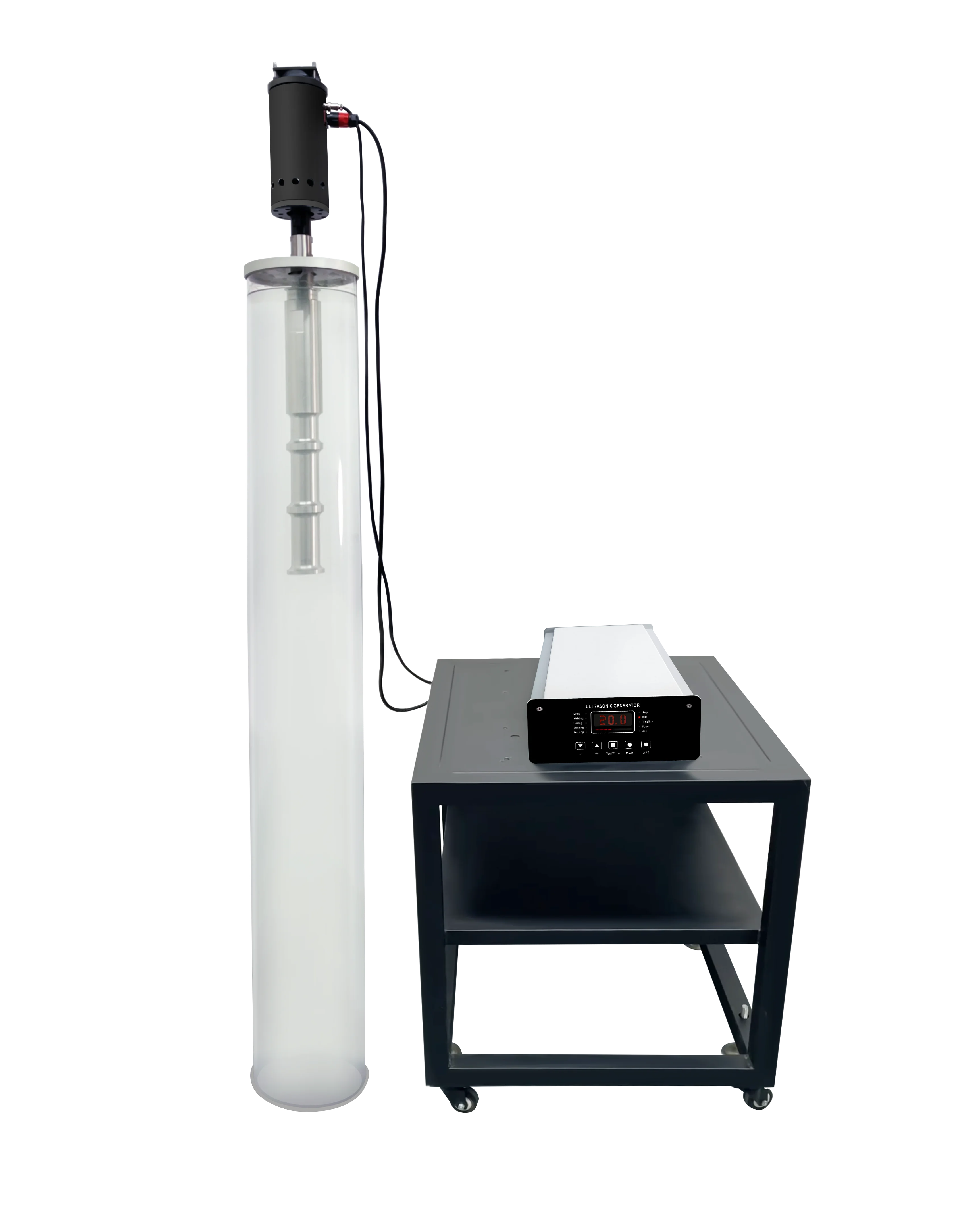

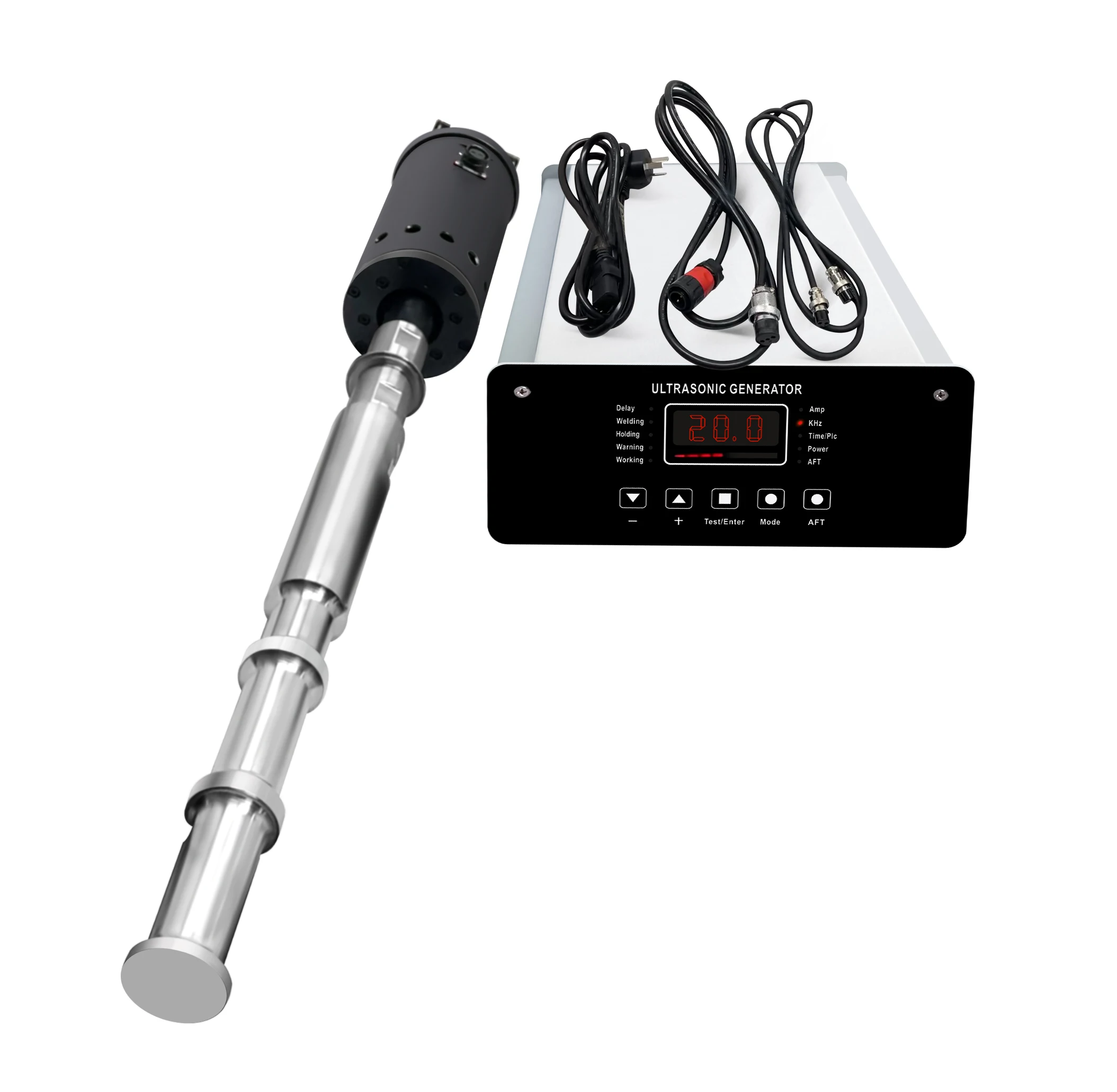

CQ20 Ultrasonic Extraction System is an ultrasonic product for the matching of extraction equipment. The ultrasonic core accessories composed of intelligent automatic frequency tracking ultrasonic generator, high-Q high-power transducer, and titanium alloy extraction tool head have good performance in extraction, homogenization, stirring, emulsification and other aspects. The system has functions such as automatic frequency tracking, adjustable power, adjustable amplitude, and abnormal alarm. Equipped with RS485 communication, various parameters can be changed and observed through HMI.

 Technical Parameters:

• Intelligent automatic frequency tracking ultrasonic generator, real-time frequency tracking, to ensure that the ultrasonic wave is in the best effect range


• 20khz 2600W high-power transducer, low impedance, high conversion efficiency, strong amplitude


• Titanium alloy extraction application tool head has high conversion efficiency and long service life


• PLC or RS485 control function, with error output port


• Abnormal protection of frequency, power, transducer current, etc.

Application Areas: biotechnology, chemical technology, pharmaceutical technology, food technology, environmental technology.

• Fragmentation of cells, bacteria, viruses, spores and other cellular structures
• Homogeneous soil and rock samples
• Preparation of DNA fragmentation in high-throughput sequencing and chromatin immunoprecipitation
• Study the structural and physical characteristics of rocks
• Dispersion of pharmaceutical substances for injection
• Ultrasound to homogenize beverages
• Dispersion and extraction of Chinese herbal medicine
• Alcoholization of wine-aging technology
• Cracking, emulsification, homogenization and crushing of particulate matter such as carbon nanotubes and rare earth materials
• Speed up the dissolution and speed up the chemical reaction, for example for the processing of oils and fats
